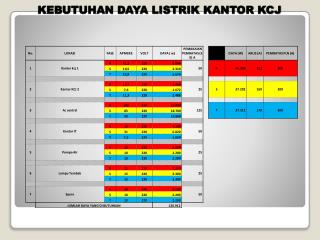

  1. KEBUTUHAN DAYA LISTRIK KANTOR KCJ

  2. TO KWH METER NYY, 4 x 70 mm 200 A 25 A 50 A 125 A 50 A 25 A 25 A 50 A WAIRING DIAGRAM PANEL YANG HSR DI KERJAKAN AC CENTRAL KANTOR KCJ KANTOR KCJ 1 LAMPU TEMBAK POMPA AIR SPERE KANTOR KCJ 2 KANTOR IT

  3. TAMPAK DEPAN PANEL A A A V

  4. R S ISTIMASI PELETAKAN MCB DAN BUSHBAR YANG DI GUNAKAN T N Terminal G

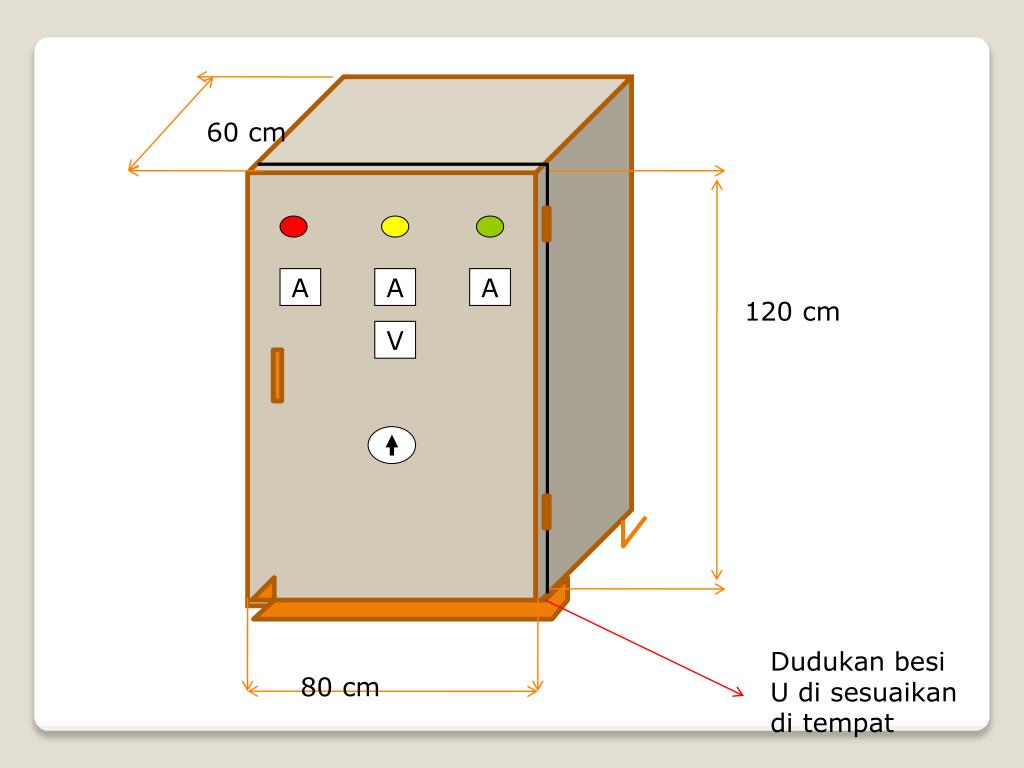

  5. 60 cm A A A 120 cm V Dudukanbesi U disesuaikanditempat 80 cm

  6. JENIS TERMINAL OUTLET MCB KAPASITAS 200 A

  7. 60 cm A A A V PENEMPATAN PANEL DISTRIBUSI 80 cm
