  1. Summary of services exiting from PP0SDDx or PP4SDDx, x=0…3(directed towards the racks for the RB24 side or RB26 side) The services between PP0SDDx and PP1SDDx will have the same layout October 1st, 2004 - Preliminary

  2. Services exiting from PP0SDD0 or PP4SDD0(directed towards the racks for the RB24 side or RB26 side) • Each PP0SDD0 and PP4SDD0 serve: Layer 3 / half-ladders 0,1, 2,3 and Layer 4 / half-ladders 0,1,2,3 • LV cables • Power:# 40 AXON X-1091-TSTX-2 (Cu cross-section (91x0.254) = 4.61mm²)(http://www.axon-cable.com/pdf/halogen_a.pdf)unit O.D.= 8.9 mm, unit weight=146.3 g/m, sub-total weight = 5.9 kg/m • Detector bias (HV) • HV# 28 CERN-04.31.51.750.1unit O.D. = 3.3 mm, unit weight = 15.8 g/m, sub-total weight = 0.5 kg/m • MV # 28 CERN-04.21.51.055.4unit O.D. = 5.0 mm, unit weight = 28.9 g/m, sub-total weight = 0.8 kg/m • DCS • # 2 RJ45-RJ45 UTP patch-cord(http://www.cogestra.com/query.asp?c=HW_Cables/Connectors%20Networking&i=CBL-RJ45-44432)unit O.D. = 7.5mm, unit weight = 37.7 g/m, sub-total weight = 0.1 kg/m • Optical fiber ribbons (maximum envelope) • # 8 fiber ribbons (http://www.occfiber.com/products/product_specs.php?CableID=8&Group=Zero%20Halogen)unit O.D. 2.0 mm; unit weight = 8.0 g/m, sub-total weight = 0.1 kg/m • Cooling pipes • # 6 AISI316L pipes I.D./O.D. = 10/12 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m • # 3 AISI316L pipes I.D./O.D. = 12/14 mm ; unit weight = 328.0 g/m , sub-total weight = 1.0 kg/m • Air ducts • Needed mass-flow is 38 m3/h; air has to be filtered and with relative humidity of about 40%

  3. Services exiting from PP0SDD1 or PP4SDD1(directed towards the racks for the RB24 side or RB26 side) • Each PP0SDD1 and PP4SDD1 serve: Layer 3 / half-ladders 4,5 and Layer 4 / half-ladders 4,5,6,7, 8,9,10,11 • LV cables • Power:# 50 AXON X-1091-TSTX-2 (Cu cross-section (91x0.254) = 4.61mm²)(http://www.axon-cable.com/pdf/halogen_a.pdf)unit O.D.= 8.9 mm, unit weight=146.3 g/m, sub-total weight = 7.3 kg/m • Detector bias (HV) • HV# 76 CERN-04.31.51.750.1unit O.D. = 3.3 mm, unit weight = 15.8 g/m, sub-total weight = 1.2 kg/m • MV # 38 CERN-04.21.51.055.4unit O.D. = 5.0 mm, unit weight = 28.9 g/m, sub-total weight = 1.1 kg/m • DCS • # 3 RJ45-RJ45 UTP patch-cord(http://www.cogestra.com/query.asp?c=HW_Cables/Connectors%20Networking&i=CBL-RJ45-44432)unit O.D. = 7.5mm, unit weight = 37.7 g/m, sub-total weight = 0.2 kg/m • Optical fiber ribbons (maximum envelope) • # 10 fiber ribbons (http://www.occfiber.com/products/product_specs.php?CableID=8&Group=Zero%20Halogen)unit O.D. 2.0 mm; unit weight = 8.0 g/m, sub-total weight = 0.1 kg/m • Cooling pipes • # 6 AISI316L pipes I.D./O.D. = 10/12 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m • # 3 AISI316L pipes I.D./O.D. = 12/14 mm ; unit weight = 328.0 g/m , sub-total weight = 1.0 kg/m • Air ducts • Needed mass-flow is 38 m3/h; air has to be filtered and with relative humidity of about 40%

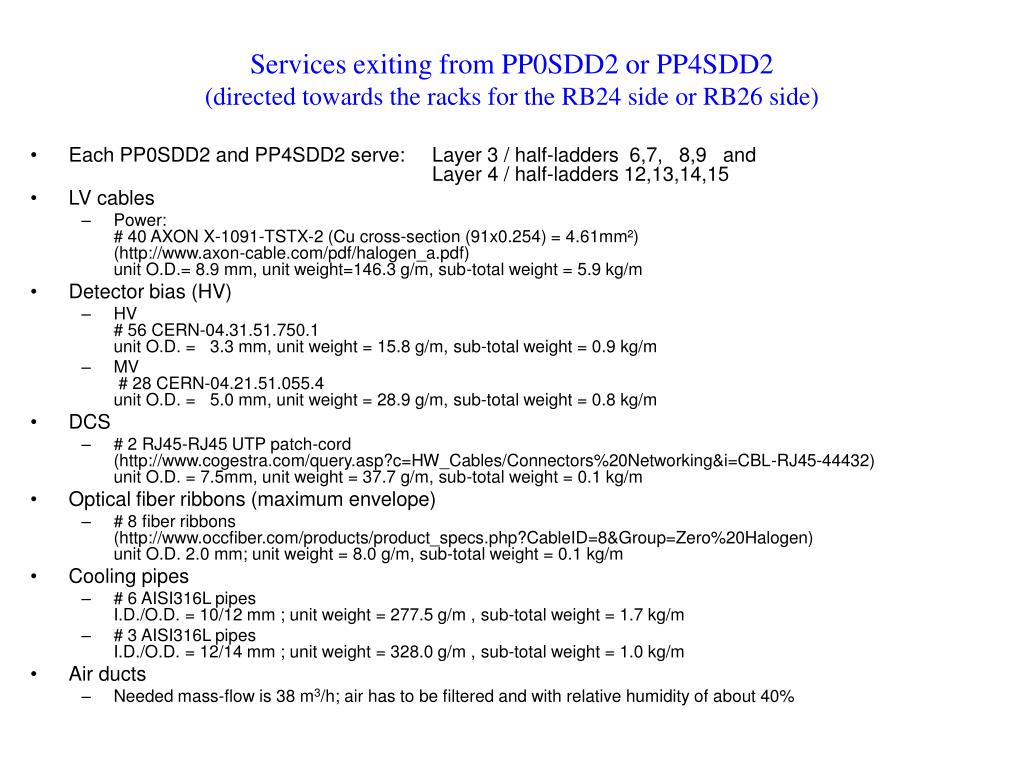

  4. Services exiting from PP0SDD2 or PP4SDD2(directed towards the racks for the RB24 side or RB26 side) • Each PP0SDD2 and PP4SDD2 serve: Layer 3 / half-ladders 6,7, 8,9 and Layer 4 / half-ladders 12,13,14,15 • LV cables • Power:# 40 AXON X-1091-TSTX-2 (Cu cross-section (91x0.254) = 4.61mm²)(http://www.axon-cable.com/pdf/halogen_a.pdf)unit O.D.= 8.9 mm, unit weight=146.3 g/m, sub-total weight = 5.9 kg/m • Detector bias (HV) • HV# 56 CERN-04.31.51.750.1unit O.D. = 3.3 mm, unit weight = 15.8 g/m, sub-total weight = 0.9 kg/m • MV # 28 CERN-04.21.51.055.4unit O.D. = 5.0 mm, unit weight = 28.9 g/m, sub-total weight = 0.8 kg/m • DCS • # 2 RJ45-RJ45 UTP patch-cord(http://www.cogestra.com/query.asp?c=HW_Cables/Connectors%20Networking&i=CBL-RJ45-44432)unit O.D. = 7.5mm, unit weight = 37.7 g/m, sub-total weight = 0.1 kg/m • Optical fiber ribbons (maximum envelope) • # 8 fiber ribbons (http://www.occfiber.com/products/product_specs.php?CableID=8&Group=Zero%20Halogen)unit O.D. 2.0 mm; unit weight = 8.0 g/m, sub-total weight = 0.1 kg/m • Cooling pipes • # 6 AISI316L pipes I.D./O.D. = 10/12 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m • # 3 AISI316L pipes I.D./O.D. = 12/14 mm ; unit weight = 328.0 g/m , sub-total weight = 1.0 kg/m • Air ducts • Needed mass-flow is 38 m3/h; air has to be filtered and with relative humidity of about 40%

  5. Services exiting from PP0SDD3 or PP4SDD3(directed towards the racks for the RB24 side or RB26 side) • Each PP0SDD3 and PP4SDD3 serve: Layer 3 / half-ladders 10,11, 12,13 and Layer 4 / half-ladders 16,17,18,19, 20,21 • LV cables • Power:# 50 AXON X-1091-TSTX-2 (Cu cross-section (91x0.254) = 4.61mm²)(http://www.axon-cable.com/pdf/halogen_a.pdf)unit O.D.= 8.9 mm, unit weight=146.3 g/m, sub-total weight = 7.3 kg/m • Detector bias (HV) • HV# 72 CERN-04.31.51.750.1unit O.D. = 3.3 mm, unit weight = 15.8 g/m, sub-total weight = 1.1 kg/m • MV # 36 CERN-04.21.51.055.4unit O.D. = 5.0 mm, unit weight = 28.9 g/m, sub-total weight = 1.0 kg/m • DCS • # 3 RJ45-RJ45 UTP patch-cord(http://www.cogestra.com/query.asp?c=HW_Cables/Connectors%20Networking&i=CBL-RJ45-44432)unit O.D. = 7.5mm, unit weight = 37.7 g/m, sub-total weight = 0.2 kg/m • Optical fiber ribbons (maximum envelope) • # 10 fiber ribbons (http://www.occfiber.com/products/product_specs.php?CableID=8&Group=Zero%20Halogen)unit O.D. 2.0 mm; unit weight = 8.0 g/m, sub-total weight = 0.1 kg/m • Cooling pipes • # 8 AISI316L pipes I.D./O.D. = 10/12 mm ; unit weight = 277.5 g/m , sub-total weight = 2.2 kg/m • # 4 AISI316L pipes I.D./O.D. = 12/14 mm ; unit weight = 328.0 g/m , sub-total weight = 1.3 kg/m • Air ducts • Needed mass-flow is 38 m3/h; air has to be filtered and with relative humidity of about 40%

  6. Services between from PP2SDD0 and PP2SDD0 or between PP3SDD0 and PP4SDD0 • Ladder served: Layer 3 / half-ladders 0,1, 2,3 and Layer 4 / half-ladders 0,1,2,3 • LV cables • Power:# 24 AXON X-1461-TSTX-2 (Cu cross-section (61x0.203) = 1.91mm²)(http://www.axon-cable.com/pdf/halogen_a.pdf)unit O.D.= 5.9 mm, unit weight=69.6 g/m, sub-total weight = 1.67 kg/m • Detector bias (HV) • HV# 28 CERN-04.31.51.750.1unit O.D. = 3.3 mm, unit weight = 15.8 g/m, sub-total weight = 0.5 kg/m • MV # 28 CERN-04.21.51.055.4unit O.D. = 5.0 mm, unit weight = 28.9 g/m, sub-total weight = 0.8 kg/m • DCS • # 56 CERN-04.21.51.704.4unit O.D. = 2.9mm, unit weight = 17.1 g/m, sub-total weight = 1.0 kg/m • Optical fiber ribbons (maximum envelope) • # 8 fiber ribbons (http://www.occfiber.com/products/product_specs.php?CableID=8&Group=Zero%20Halogen)unit O.D. 2.0 mm; unit weight = 8.0 g/m, sub-total weight = 0.1 kg/m • Cooling pipes • polyurethane pipes # 2 I.D./O.D. = 10/6.5 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m# 5 I.D./O.D. = 12/9.0 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m# 2 I.D./O.D. = 16/11 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m • Air ducts • Needed mass-flow is 38 m3/h; air has to be filtered and with relative humidity of about 40%

  7. Services between from PP2SDD1 and PP2SDD1 or between PP3SDD1 and PP4SDD1 • Ladder served: Layer 3 / half-ladders 4,5 and Layer 4 / half-ladders 4,5,6,7, 8,9,10,11 • LV cables • Power:# 30 AXON X-1461-TSTX-2 (Cu cross-section (61x0.203) = 1.91mm²)(http://www.axon-cable.com/pdf/halogen_a.pdf)unit O.D.= 5.9 mm, unit weight=69.6 g/m, sub-total weight = 2.09 kg/m • Detector bias (HV) • HV# 38 CERN-04.31.51.750.1unit O.D. = 3.3 mm, unit weight = 15.8 g/m, sub-total weight = 0.6 kg/m • MV # 38 CERN-04.21.51.055.4unit O.D. = 5.0 mm, unit weight = 28.9 g/m, sub-total weight = 1.1 kg/m • DCS • # 76 CERN-04.21.51.704.4unit O.D. = 2.9mm, unit weight = 17.1 g/m, sub-total weight = 1.3 kg/m • Optical fiber ribbons (maximum envelope) • # 8 fiber ribbons (http://www.occfiber.com/products/product_specs.php?CableID=8&Group=Zero%20Halogen)unit O.D. 2.0 mm; unit weight = 8.0 g/m, sub-total weight = 0.1 kg/m • Cooling pipes • polyurethane pipes # 1 I.D./O.D. = 10/6.5 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m# 4 I.D./O.D. = 12/9.0 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m# 4 I.D./O.D. = 16/11 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m • Air ducts • Needed mass-flow is 38 m3/h; air has to be filtered and with relative humidity of about 40%

  8. Services between from PP2SDD2 and PP2SDD2 or between PP3SDD2 and PP4SDD2 • Ladder served: Layer 3 / half-ladders 6,7, 8,9 and Layer 4 / half-ladders 12,13,14,15 • LV cables • Power:# 24 AXON X-1461-TSTX-2 (Cu cross-section (61x0.203) = 1.91mm²)(http://www.axon-cable.com/pdf/halogen_a.pdf)unit O.D.= 5.9 mm, unit weight=69.6 g/m, sub-total weight = 1.67 kg/m • Detector bias (HV) • HV# 28 CERN-04.31.51.750.1unit O.D. = 3.3 mm, unit weight = 15.8 g/m, sub-total weight = 0.5 kg/m • MV # 28 CERN-04.21.51.055.4unit O.D. = 5.0 mm, unit weight = 28.9 g/m, sub-total weight = 0.8 kg/m • DCS • # 56 CERN-04.21.51.704.4unit O.D. = 2.9mm, unit weight = 17.1 g/m, sub-total weight = 1.0 kg/m • Optical fiber ribbons (maximum envelope) • # 8 fiber ribbons (http://www.occfiber.com/products/product_specs.php?CableID=8&Group=Zero%20Halogen)unit O.D. 2.0 mm; unit weight = 8.0 g/m, sub-total weight = 0.1 kg/m • Cooling pipes • polyurethane pipes #2 I.D./O.D. = 10/6.5 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m#5 I.D./O.D. = 12/9.0 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m#2 I.D./O.D. = 16/11 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m • Air ducts • Needed mass-flow is 38 m3/h; air has to be filtered and with relative humidity of about 40%

  9. Services between from PP2SDD3 and PP2SDD3 or between PP3SDD3 and PP4SDD3 • Ladder served: Layer 3 / half-ladders 10,11, 12,13 and Layer 4 / half-ladders 16,17,18,19, 20,21 • LV cables • Power:# 30 AXON X-1461-TSTX-2 (Cu cross-section (61x0.203) = 1.91mm²)(http://www.axon-cable.com/pdf/halogen_a.pdf)unit O.D.= 5.9 mm, unit weight=69.6 g/m, sub-total weight = 2.09 kg/m • Detector bias (HV) • HV# 36 CERN-04.31.51.750.1unit O.D. = 3.3 mm, unit weight = 15.8 g/m, sub-total weight = 0.6 kg/m • MV # 36 CERN-04.21.51.055.4unit O.D. = 5.0 mm, unit weight = 28.9 g/m, sub-total weight = 1.0 kg/m • DCS • # 72 CERN-04.21.51.704.4unit O.D. = 2.9mm, unit weight = 17.1 g/m, sub-total weight = 1.2 kg/m • Optical fiber ribbons (maximum envelope) • # 8 fiber ribbons (http://www.occfiber.com/products/product_specs.php?CableID=8&Group=Zero%20Halogen)unit O.D. 2.0 mm; unit weight = 8.0 g/m, sub-total weight = 0.1 kg/m • Cooling pipes • polyurethane pipes # 3 I.D./O.D. = 10/6.5 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m# 7 I.D./O.D. = 12/9.0 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m# 2 I.D./O.D. = 16/11 mm ; unit weight = 277.5 g/m , sub-total weight = 1.7 kg/m • Air ducts • Needed mass-flow is 38 m3/h; air has to be filtered and with relative humidity of about 40%

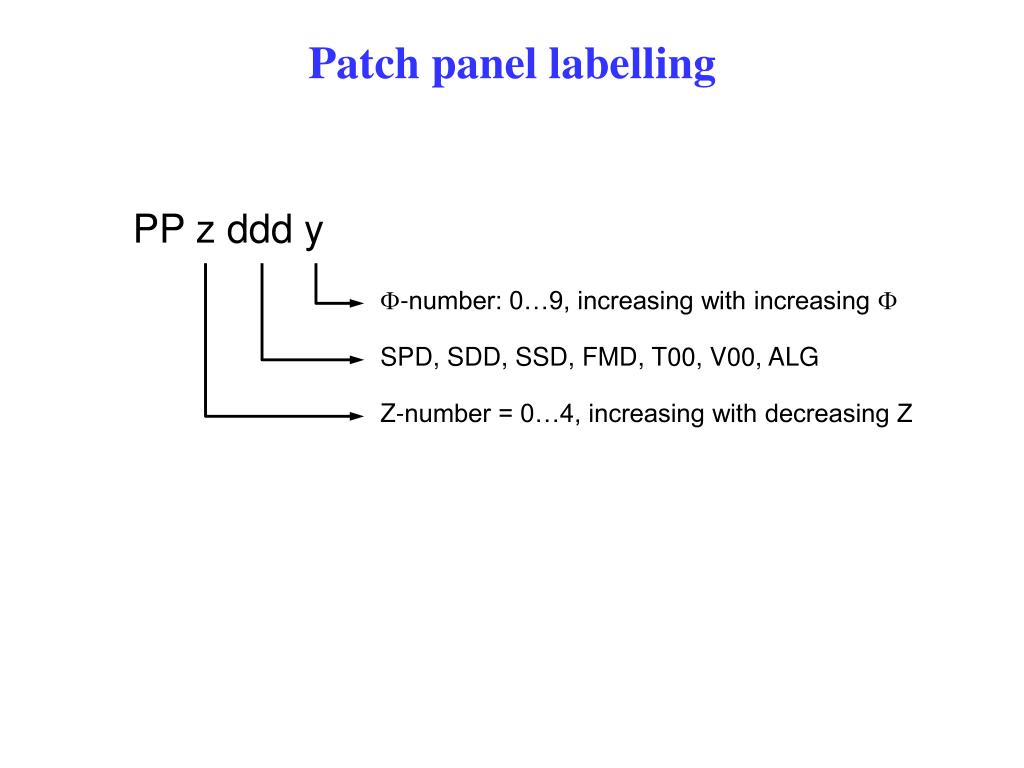

  10. Patch panel labelling PP z ddd y F-number: 0…9, increasing with increasing F SPD, SDD, SSD, FMD, T00, V00, ALG Z-number = 0…4, increasing with decreasing Z

  11. FROM ALICE-INT-2003-038

  12. Possible positions of PATCH PANEL 0 PATCH PANEL 1 (formerly shoe-boxes Z Y PATCH PANEL 2 X

  13. ITS SERVICES RB26 side Patch-Panel 4 (formerly shoe-boxes) ITS-Engineering Meeting 21-09-2004 Y Patch-Panel 3 Z X Pier-Luigi BARBERIS

  14. PP2SDD2 PP2SDD1 PP2SDD0 PP2SDD3 ITS SERVICES RB24 side PATCH-PANEL 2; FRONT VIEW; Z= 1020 ITS-Engineering Meeting 21-09-2004 Pier-Luigi BARBERIS

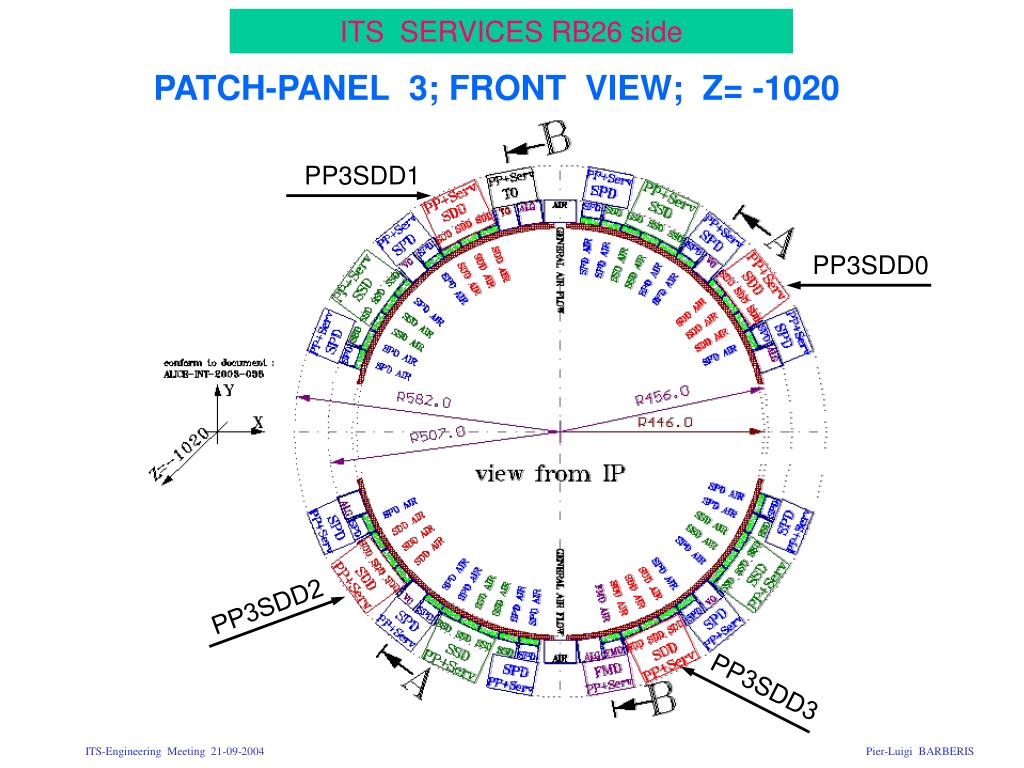

  15. PP3SDD1 PP3SDD0 PP3SDD3 PP3SDD2 ITS SERVICES RB26 side PATCH-PANEL 3; FRONT VIEW; Z= -1020 ITS-Engineering Meeting 21-09-2004 Pier-Luigi BARBERIS
