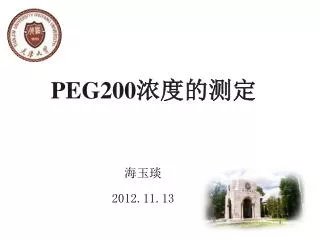

  1. PEG200浓度的测定 海玉琰 2012.11.13

  2. 实验步骤 1、配制1.0、3.0、5.0、7.0、9.0 mg/L PEG溶液 分别取0.1、0.3、0.5、0.7、0.9 mL于100mL容量瓶，稀释至刻度，摇匀 稀释至刻度,摇匀,得1.0g/L 的母液 PEG200 1.0g 容量瓶 1000mL 2、制作标准曲线 不同浓度 PEG溶液 5mL 以PEG浓度为横坐标，光密度为纵坐标作图，制成标准曲线 放置一定时间 以蒸馏水为空白 用分光光度计 测定光密度 10mL容量瓶， 稀释至刻度，摇匀 得0.5、1.5、2.5、3.5、4.5 mg/L PEG溶液 5% BaCl2溶液 1mL 0.02mol/L KI-I2试剂 1mL

  3. 溶液稀释50倍，测定其光密度 文献中在500nm左右测定PEG光密度

  4. A-t变化曲线 配制后5min左右测定

  5. A-W变化曲线

  6. 结果与讨论 • PEG-I2沉淀是一种极细的颗粒状沉淀物，呈棕色，沉降速度极慢。 • 碘测定PEG的方法可用于测定分子量为4000~20000的PEG[1-2]。 • PEGs of 3 different molecular weights (200, 400 and 600 Da) were employed in filtration tests. PEG concentrations were determined by gel permeation chromatography (GPC) performed on a Varian Inc. [3]. • The MW of samples from the feed and the collected permeate were analyzed via gel permeation chromatography. The GPC column HEMA Bio, linear, 10 μm, 600/8 mm, 100–3000000 g/mol, MZ, Germany, for the analysis of PEG solutions[4]. [1] Determination of polyethylene glycols by precipitation with iodine. Talanta,1985, 32(6):491-494. [2] 碘沉淀法测定聚乙二醇. 水处理技术, 1989, 15(5): 299-301. [3] Effects of hypochlorous acid exposure on the rejection of salt, polyethylene glycols, boron and arsenic(V) by nanofiltration and reverse osmosis membranes. Water Research, 2012, 46(16): 5217-5223. [4] Factors affecting the sieving behavior of anti-fouling thin-layer cross-linked hydrogel polyethersulfone composite ultrafiltration membranes. Journal of Membrane Science, 2012, 390-391: 99-112.

  7. 下一步计划 • 碘测定方法不适用 • 凝胶渗透色谱法 • 测出的数值(分子量、分子量分布等)如何换算成浓度？？ • 总有机碳(TOC)分析仪 可行

  8. Thank you !
