  1. Graphing With Excel

  2. ROC Curve Graph

  3. Select Data for Diagonal

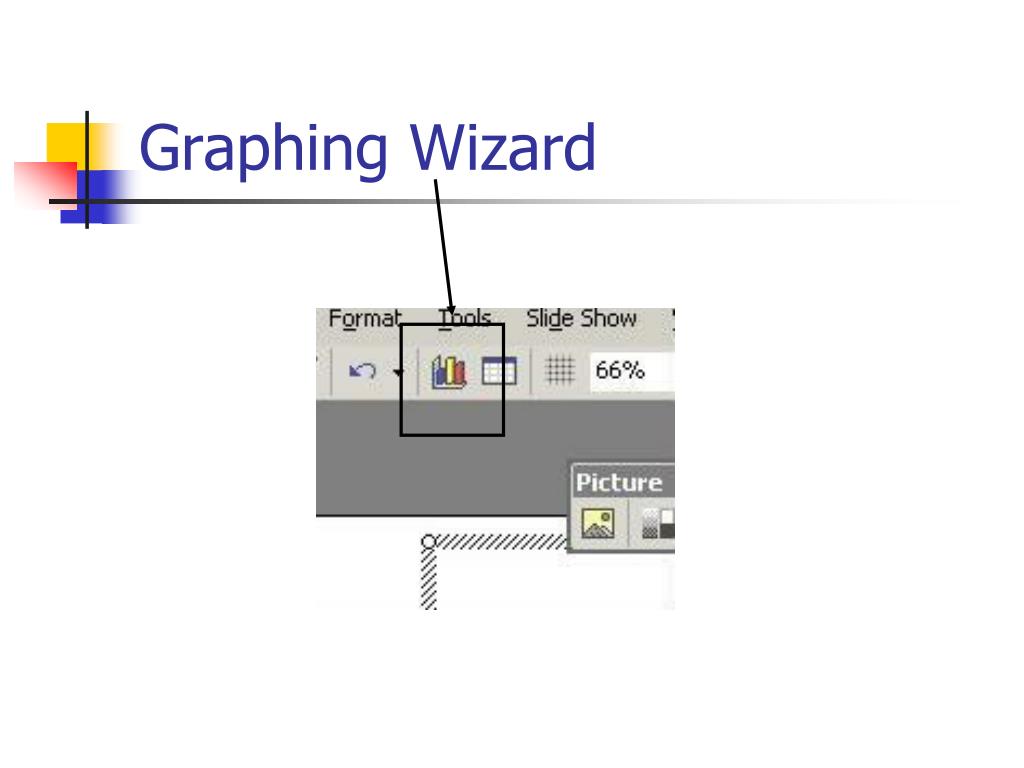

  4. Graphing Wizard

  5. XY (Scatter)

  6. Use Straight Line Connectors Also use symbols for points. This is the only data that we know.

  7. Data is in Columns

  8. Label Your Axes

  9. Remove Legend. Why?

  10. This is what you have now

  11. Set the Axes Scales Place mouse over one of the axes and right click. Repeat with other axis.

  12. Set Max and Major Unit to 1.0

  13. Clear the background Place mouse over one of the background of the graph and right click.

  14. Set Area to None

  15. Add Your Data Place mouse over one of the background of the graph and right click. Select Source Data.

  16. Add New Series

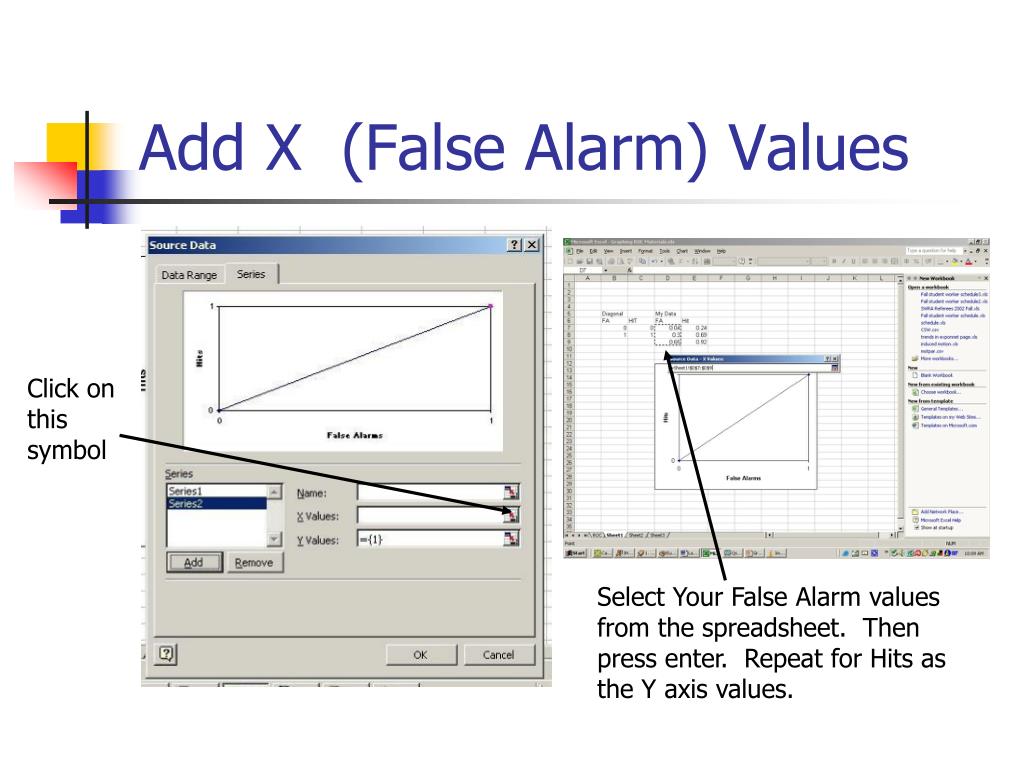

  17. Add X (False Alarm) Values Click on this symbol Select Your False Alarm values from the spreadsheet. Then press enter. Repeat for Hits as the Y axis values.

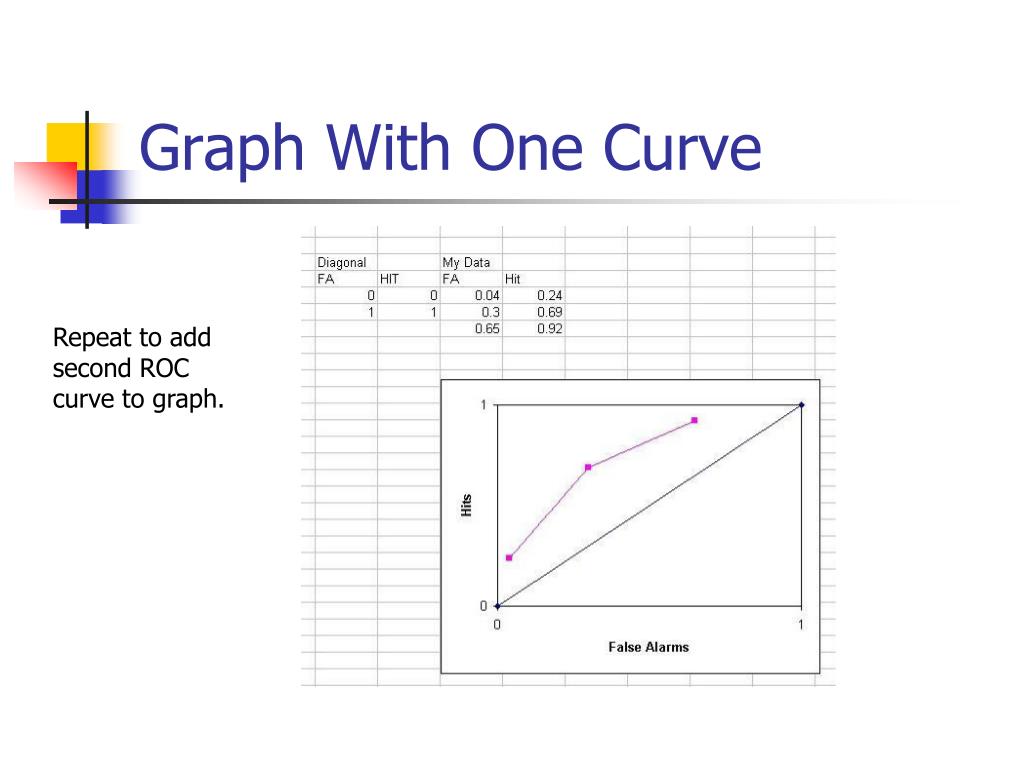

  18. Graph With One Curve Repeat to add second ROC curve to graph.
