  1. Built inFuel System B 97 08-01

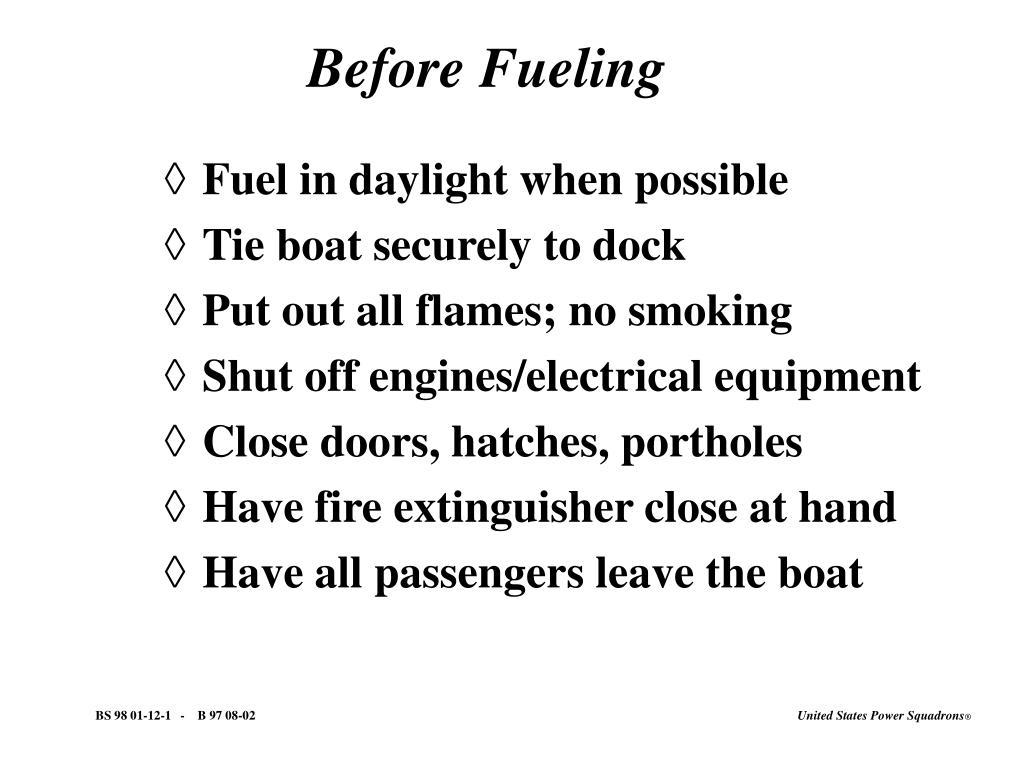

  2. Before Fueling • Fuel in daylight when possible • Tie boat securely to dock • Put out all flames; no smoking • Shut off engines/electrical equipment • Close doors, hatches, portholes • Have fire extinguisher close at hand • Have all passengers leave the boat BS 98 01-12-1 - B 97 08-02

  3. While Fueling • Keep nozzle in contact with filler pipe • Estimate fuel needed • Fill only 95% full BS 98 01-12-2 - B 97 08-03

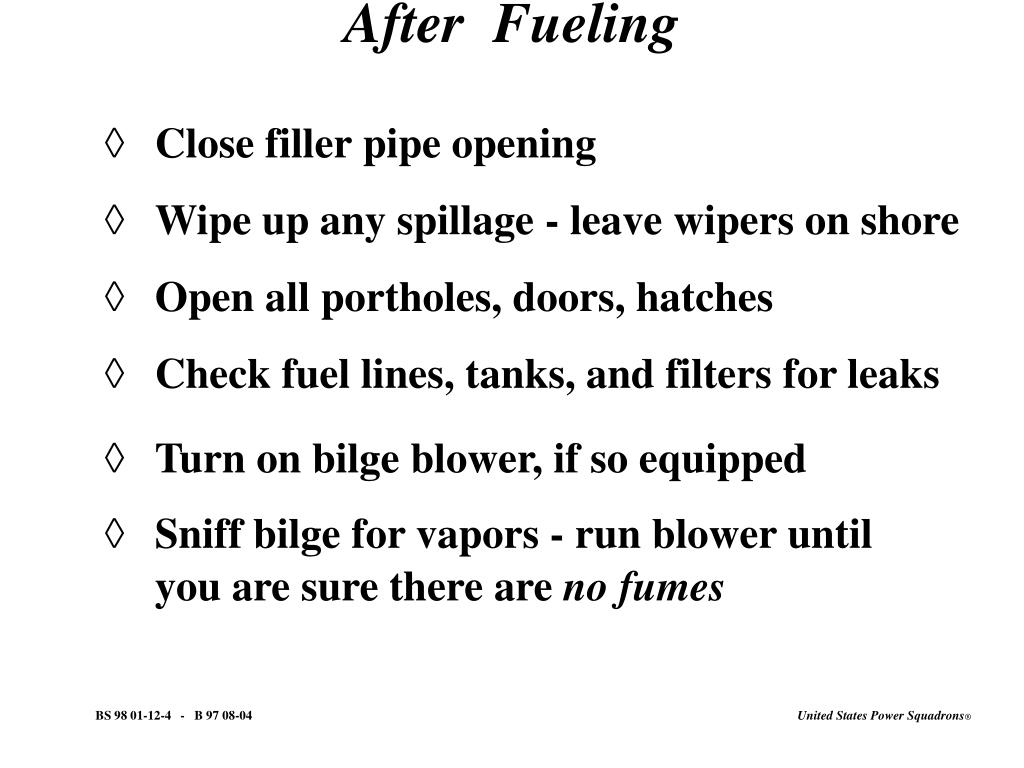

  4. After Fueling • Close filler pipe opening • Wipe up any spillage - leave wipers on shore • Open all portholes, doors, hatches • Check fuel lines, tanks, and filters for leaks • Turn on bilge blower, if so equipped • Sniff bilge for vapors - run blower until you are sure there are no fumes BS 98 01-12-4 - B 97 08-04

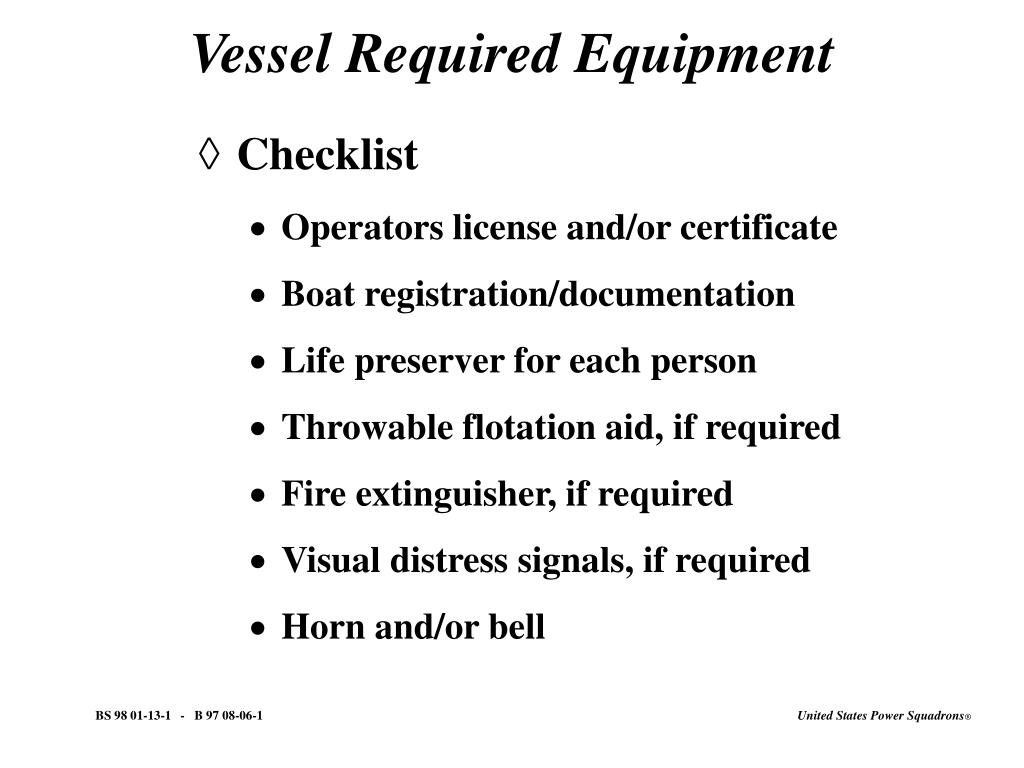

  5. Vessel Required Equipment • Checklist • Operators license and/or certificate • Boat registration/documentation • Life preserver for each person • Throwable flotation aid, if required • Fire extinguisher, if required • Visual distress signals, if required • Horn and/or bell BS 98 01-13-1 - B 97 08-06-1

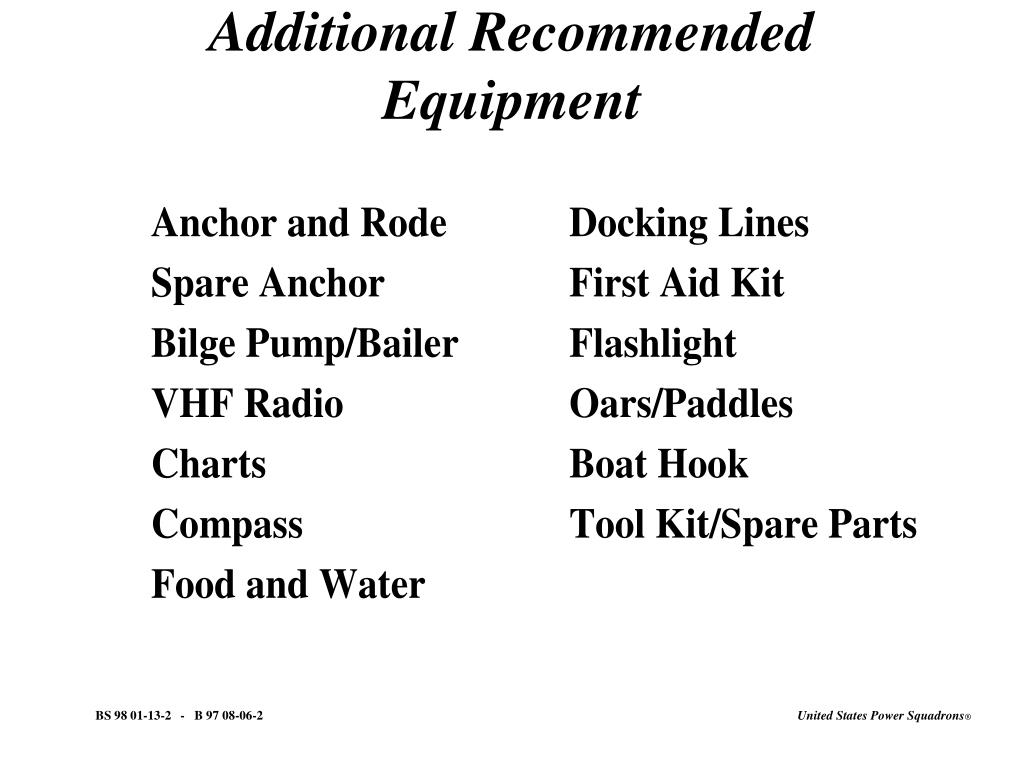

  6. Additional RecommendedEquipment BS 98 01-13-2 - B 97 08-06-2

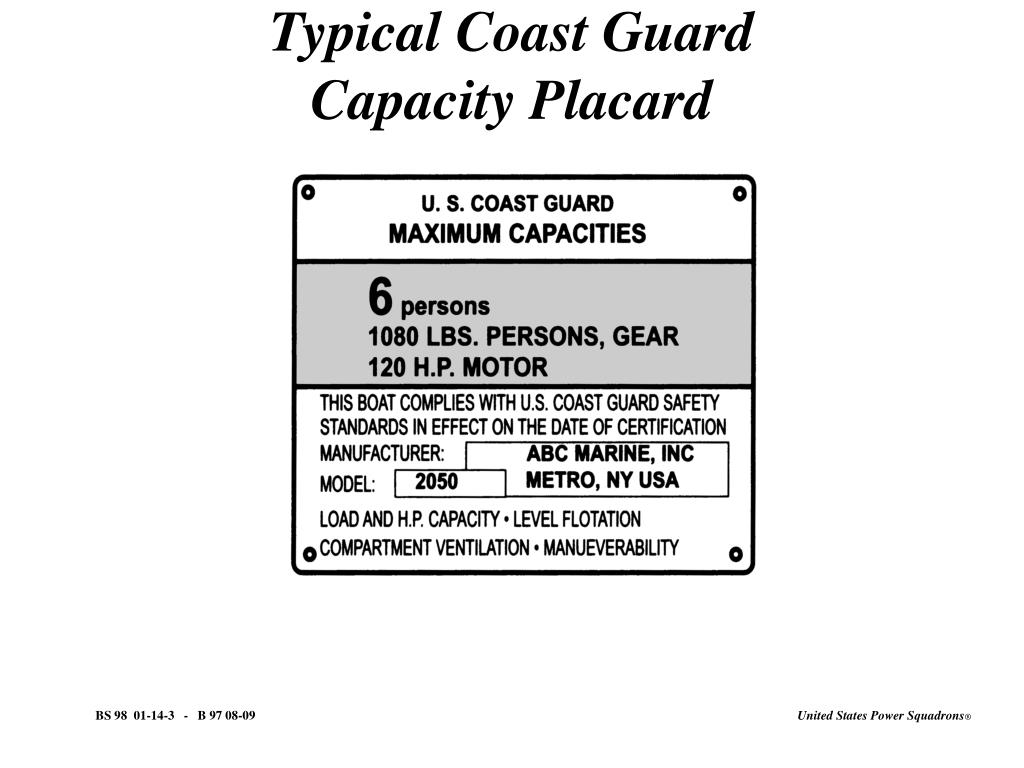

  7. Typical Coast GuardCapacity Placard BS 98 01-14-3 - B 97 08-09

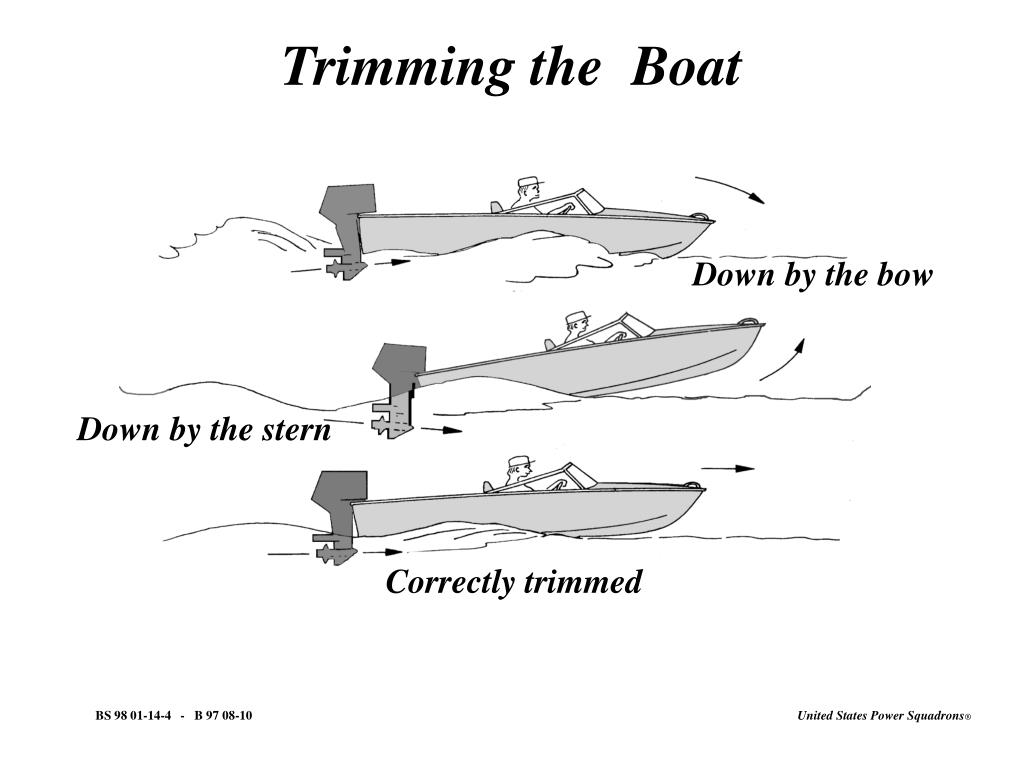

  8. Trimming the Boat Down by the bow Down by the stern Correctly trimmed BS 98 01-14-4 - B 97 08-10

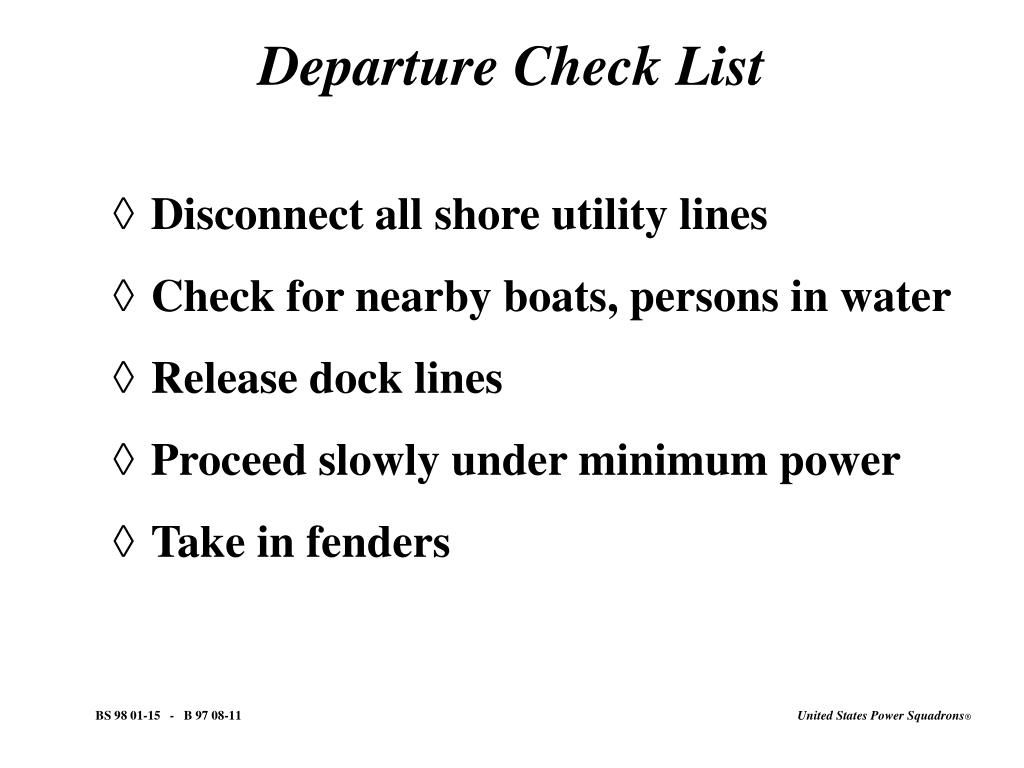

  9. Departure Check List • Disconnect all shore utility lines • Check for nearby boats, persons in water • Release dock lines • Proceed slowly under minimum power • Take in fenders BS 98 01-15 - B 97 08-11

  10. Getting Underway Wind From Ahead Or Off The Pier BS 98 01-16 - B 97 08-12-1

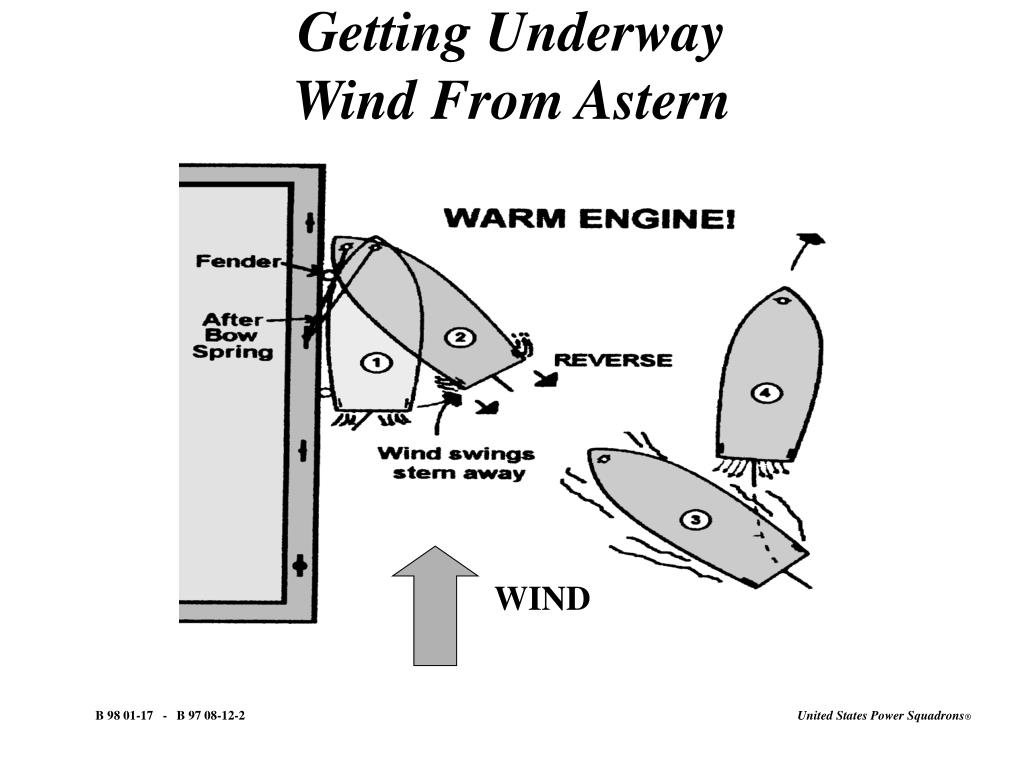

  11. Getting Underway Wind From Astern WIND B 98 01-17 - B 97 08-12-2

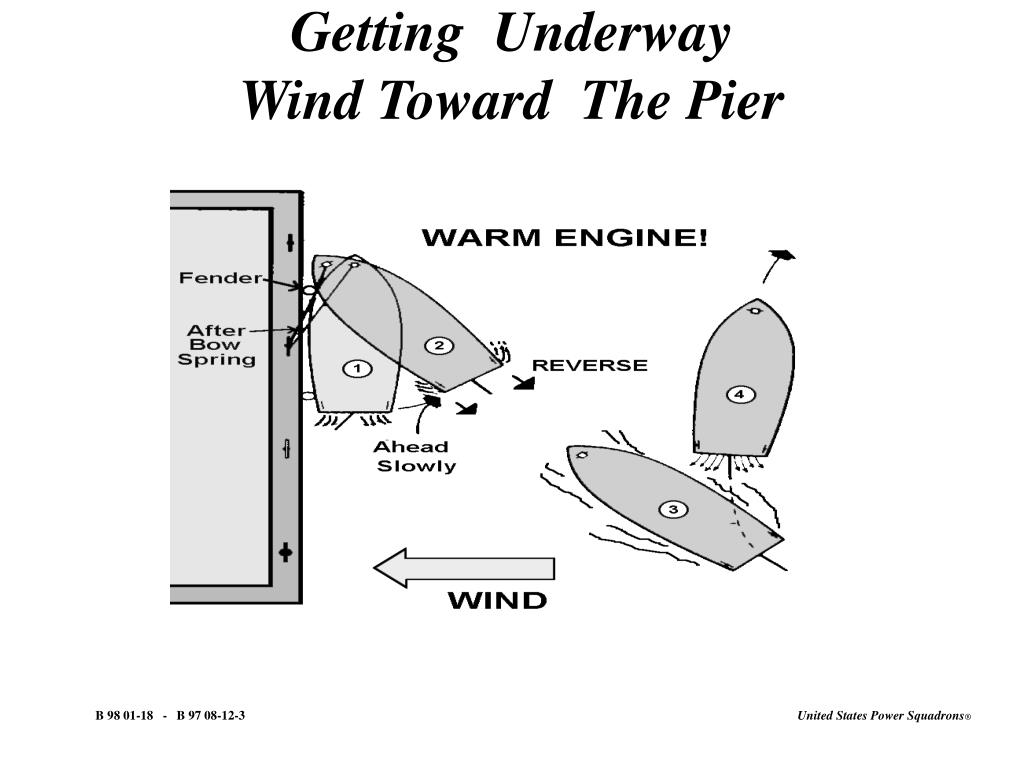

  12. Getting Underway Wind Toward The Pier B 98 01-18 - B 97 08-12-3

  13. Train an AlternateSkipper • To stop the engine/drop the sails • To use the radio in an emergency and if possible • To anchor the boat • To return the boat to its mooring B 97 08-16
