  1. CLB: Current status and development IFIC (CSIC – Universidad de Valencia) 15 Jan, 2014

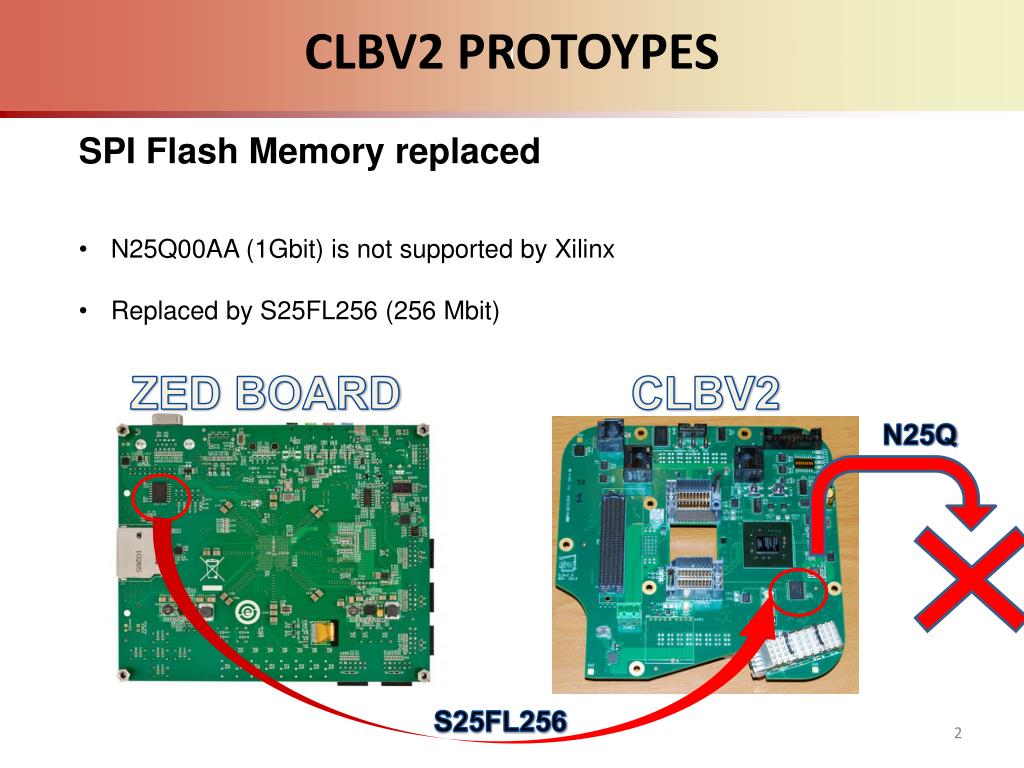

  2. l CLBV2 PROTOYPES • SPI Flash Memoryreplaced • N25Q00AA (1Gbit) isnotsupportedby Xilinx • Replacedby S25FL256 (256 Mbit) ZED BOARD CLBV2 N25Q S25FL256

  3. l 2nd LM32 INTEGRATION (FIRMWARE) SVN: CLBv2\trunk\fw\TestDesigns\test_tdc_hydro_stmach(K7-325T) TDC, AES, State Machine UART, Multiboot, GPIO, 3XI2C, SPI Problemsporting firmware to CLBV2 Prototype (K7-160T) Processing BMM file "fpga.bmm" ... ERROR:NgdBuild:989 - Failed to process BMM informationfpga.bmm Checkingexpandeddesign ... INTERNAL_ERROR::45 - Memoryallocationleak of 60 bytes at 0x04497AE4 for a 'AddressMappingType' record. Total memory in use at allocationwas 12766 bytes. Source file "BmmUtils.c", line number 3054. INTERNAL_ERROR::45 - Memoryallocationleak of 25 bytes at 0x040E6BBC for a StrNew. Total memory in use at allocationwas 12826 bytes. Source file "BmmUtils.c", line number 3059.

  4. l TEST 2nd LM32 INTEGRATION IN PROTOTYPE FMC Debug Board PSEUDO OCTOPUS INFN-Bologna Serial Com. 31 Ch V6

  5. l 2nd LM32 INTEGRATION (SOFTWARE) Shell commands, drivers and librariesforwishboneslavesimplemented and included in: SVN: CLBv2\trunk\sw\embedded\TestDesigns\test_tdc_hydro_stmach TDC: Core ON/OFF Channels OF/OFF Multiboot MultibootAddress trigger ON State Machine DOM id nº bytes of time slice Runnumber Start Time Slice Duration in ms orus

  6. l Nextsteps • To finishtheintegration in K7-160T • Test TDC readout FMC and PseudoOctopus • Test TDC+Hydrousingthe 2nd UART (FMC board) • IPMUX interface

  7. THANKS FOR YOUR ATTENTION!
