  1. See It Now:A Primer on LCD, DLP, LCoS, and Plasma Technologies Pete Putman, CTS, ISF Publisher, HDTVexpert.com Contributing Editor, Pro AV

  2. The CRT is Getting Old • Technology is over 100 years old • Monochrome CRTs used from 1910s • Color CRTs developed in early 1950s (RCA) • Monochrome tubes were used in front projectors in 1980s – 90s (7”, 8”, 9”) • Manufacturing has largely moved to China • High-volume, low-margin product • Thomson TTE, TCL, and others make them

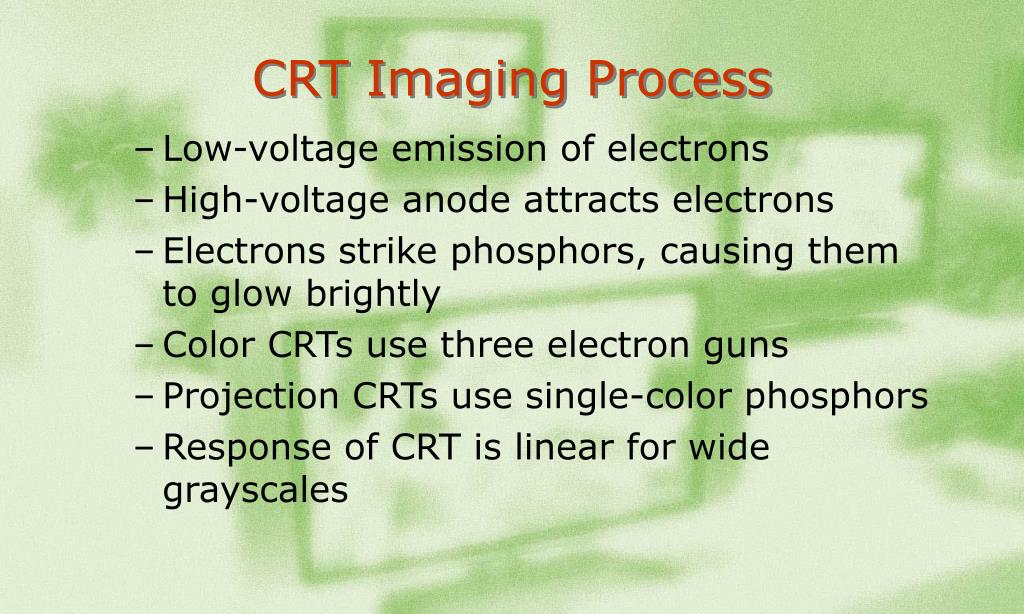

  3. CRT Imaging Process • Low-voltage emission of electrons • High-voltage anode attracts electrons • Electrons strike phosphors, causing them to glow brightly • Color CRTs use three electron guns • Projection CRTs use single-color phosphors • Response of CRT is linear for wide grayscales

  4. CRT Imaging Process

  5. CRT Performance • Advantages: • CRTs can scan multiple resolutions • Wide, linear grayscales are possible • Precise color shading is achieved • CRTs have no native pixel structure • Drawbacks: • Brightness limited by tube size • Resolution (spot size) linked to brightness • Heavy, bulky displays for small screen sizes

  6. What Will Replace The CRT? • Contenders for direct-view applications: • Liquid-crystal displays (LCDs) • Plasma display panels (PDPs) • Contenders for front/rear projection applications: • Liquid-crystal on silicon (LCoS) • Silicon Xtal Reflective Device (SXRD) • Digital Image Light Amplifier (D-ILA) • Digital Light Processing (DLP)

  7. Transmissive Liquid-Crystal (LCD) Displays

  8. LCD Display Technology • Liquid-crystal displays are transmissive • LC pixels act as light shutters • Current LCD benchmarks: • Sizes to 82” (prototypes) • Resolution to 1920x1080 pixels • Brightness > 500 nits • Power draw < plasma in same size • Weight < plasma in same size

  9. LCD Imaging Process • Randomly arranged LCs pass light (“off” ) • Aligned LCs block light (“on”) • This effect is called “birefringence” • Principle is the same for low-temperature and high-temperature polysilicon LCDs, and liquid crystal on silicon (LCoS) panels

  10. LCD Imaging Process

  11. LCD Imaging ProcessBuilding a Better Mousetrap The Sharp Approach The Samsung Approach The LG Philips Approach

  12. Real-World LCD Benchmarks • A review sample 45-inch LCD monitor delivered 304nits (89 foot-Lamberts) with ANSI (average) contrast measured at 217:1 and peak contrast at 234:1 • Typical black level was 1.6 nits (8x CRT) • Native resolution – 1920x1080 • Power consumption – 284.2 watts over a 6-hour interval (total of 1.726 kWh)

  13. Real-World LCD Benchmarks • Color Rendering • Test panel uses CCFLs • Gamut is smaller than REC 709 coordinates • Green way undersaturated • Red, blue are closer to ideal coordinates

  14. LCD Display Technology • Technology Enhancements: • Better color through corrected CCFLs, LEDs • Improved black levels (compensating films) • Higher contrast (pulsed backlights) • Wider viewing angles (compensating films) • Higher resolution (1920x1080 @ 37”) • Improved LC twist times (various)

  15. Emissive Imaging:Plasma Display Panels (PDPs)

  16. PDP Technology • Plasma displays are emissive • Current PDP benchmarks: • Sizes to 103” • Resolution to 1920x1080 • Brightness >100 nits (FW), 1000 nits peak • Power draw 15%-20% > same size LCD • Weight 20%-25% > same size LCD

  17. Plasma Imaging Process • Three-step charge/discharge cycle • Uses neon – xenon gas mixture • 160 - 250V AC discharge in cell stimulates ultraviolet (UV) radiation • UV stimulation causes color phosphors to glow and form picture elements • Considerable heat and EMI are released

  18. Plasma Imaging Process

  19. PDP Rib Structure (Simple)

  20. Deep Cell Structure (Advanced) • Waffle-like structure • Higher light output • Less light leakage between rib barriers • Developed by Pioneer

  21. Plasma Tube Structure (Future?) • Phosphors, electrodes, and Ne/Xe gas combined into long tubes • Reduces cost of larger screens • Flexible displays? • Developed by Fujitsu

  22. Real-World Plasma Benchmarks • A review sample 50-inch plasma monitor measured from 93 nits (full white) to 233 nits (small area), with ANSI (average) contrast measured at 572:1 and peak contrast at 668:1 • Typical black level .21 nits (closer to CRT) • Native Resolution - 1366x768 • Power consumption – 411.3 watts over a 6-hour interval (total of 2.089 kWh)

  23. Real-World Plasma Benchmarks • Color Rendering • Gamut is smaller than REC 709 coordinates • Green somewhat undersaturated • Red, blue are very close to ideal coordinates

  24. Plasma Display Technology • Technology Enhancements: • Wider color gamuts (films, phosphors) • Improved lifetime (gas mixtures) • Higher resolution (1920x1080 @ 50”) • Resistance to burn-in (change in gas mixture)

  25. Reflective Imaging:Digital Light Processing (DLP) Displays

  26. DLP Imaging • Digital micromirror device (DMD) used • Rapid on-off cycling of mirrors (pulse-width modulation) builds grayscale image • Color added and blended: • With color wheel (single chip) • With polarizing beam splitter (3-chip) • Lens projects image to screen

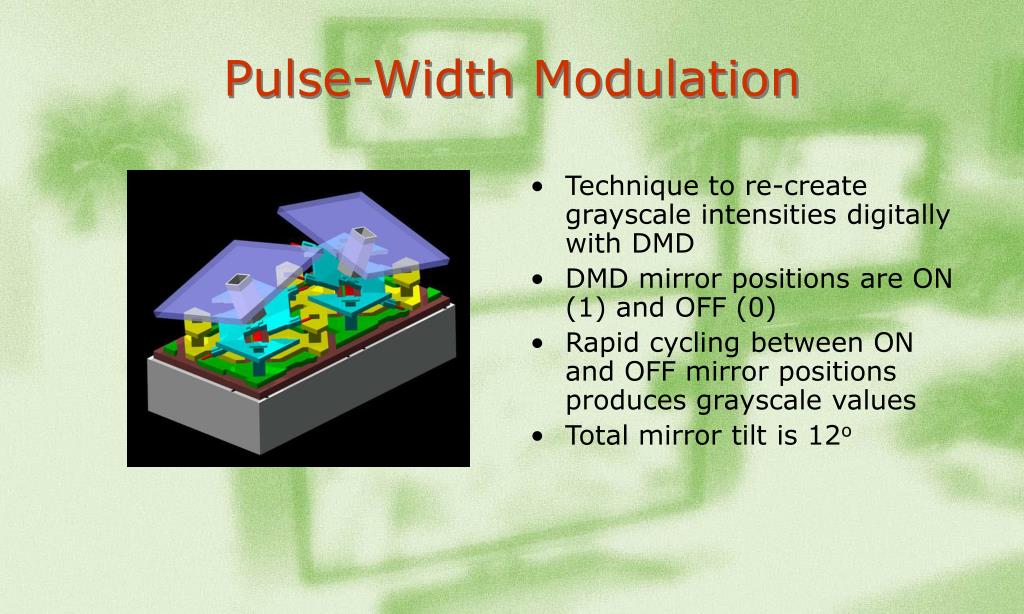

  27. Pulse-Width Modulation • Technique to re-create grayscale intensities digitally with DMD • DMD mirror positions are ON (1) and OFF (0) • Rapid cycling between ON and OFF mirror positions produces grayscale values • Total mirror tilt is 12o

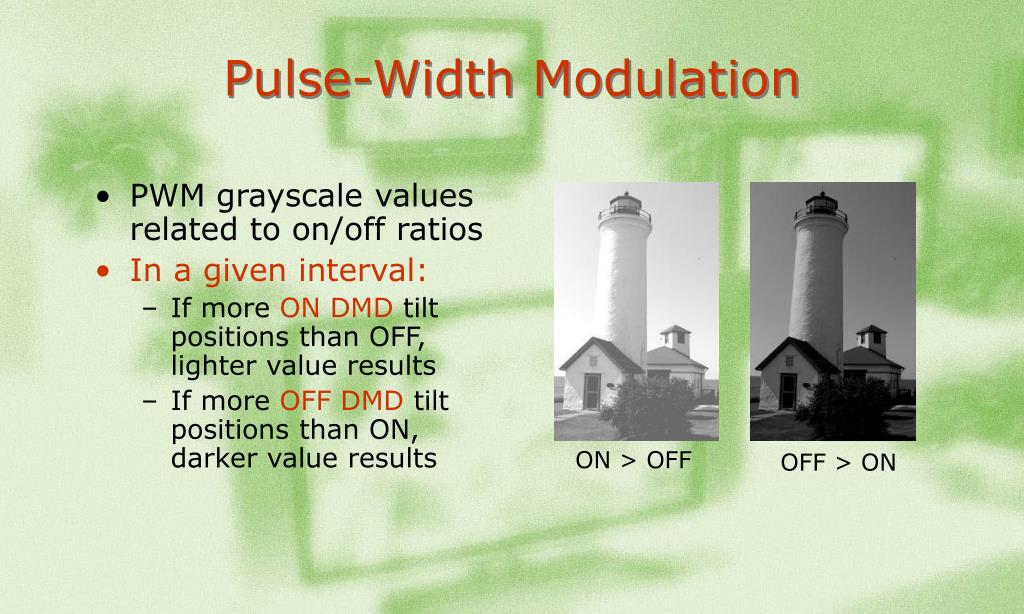

  28. Pulse-Width Modulation • PWM grayscale values related to on/off ratios • In a given interval: • If more ON DMD tilt positions than OFF, lighter value results • If more OFF DMD tilt positions than ON, darker value results ON > OFF OFF > ON

  29. DLP Imaging – Single Chip

  30. DLP Imaging – Three-Chip

  31. Three-Chip Imaging • Uses Polarizing Beam Splitter (PBS) for high-power three-chip DLP projectors • Light travels in both directions through it • Red, green, and blue colors added in PBS

  32. Digital Micromirror Devices • DMDs can be made in many sizes • 4:3 - 16:9 aspect ratios are supported • Simple light path with single chip • Pure digital light modulator SXGA (left) and XGA (right) DMDs

  33. Reflective Imaging:Liquid-Crystal on Silicon (LCoS) Displays

  34. LCoS Imaging • LCoS is a reflective imaging system • Switching transistors are on backplane • Greater imaging surface available – higher fill factor than HTPS LCD • Easier to achieve high pixel density in small panels than with HTPS LCD

  35. LCoS Panel Cutaway

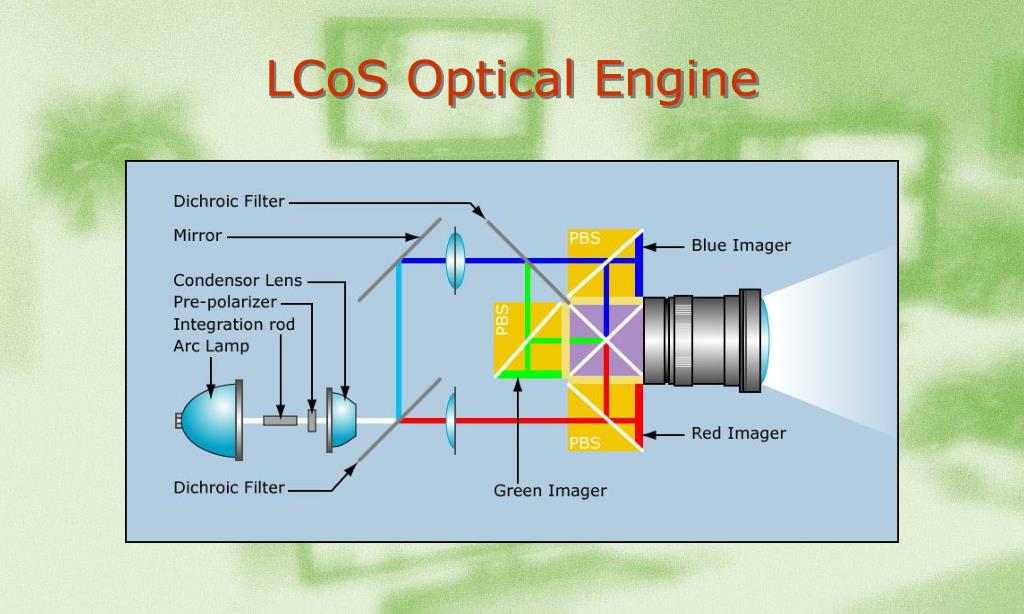

  36. LCoS Optical Engine

  37. LCoS Panels • JVC Direct Drive Digital Light Amplifier (D-ILA) is LCoS technology • Resolutions to 4K • High ‘fill factor’ (>90%) • Used in front and rear projection systems JVC 4096x2160 D-ILA Panel

  38. LCoS Panels • Sony Silicon Xtal Reflective Device (SXRD) also LCoS technology • Panels made with both 2K and 4K resolution • Used in front/rear projection systems Sony 4096x2160 SXRD panel

  39. Image Quality Parameters

  40. Brightness/Contrast/Grayscale • Pixel-based imaging breaks the link between brightness and resolution • Peak brightness levels to 1000 nits in LCD and plasma achieved, > 10,000 lumens in LCoS and DLP projectors • Average contrast to 500:1 (LCD, LCoS) • Average contrast > 1000:1 (DLP, plasma)

  41. Color and White Balance • CRT offers ‘pure’ RGB color blending and clean white balance • Plasma color balance affected by gas mixture and UV emissions • LCD, LCoS, DLP projectors dependent on light source (short-arc lamps) • UHP/UHE less expensive, color is tricky • Xenon more costly, color quality is superior

  42. Illuminants:Projection Lamps • Short-arc mercury vapor lamps • UHP, UHE, SHE are common designations • Uneven spectral output • Life 1000–3000 hours • 150W UHP Lamp

  43. Illuminants:Projection Lamps • Short-arc xenon lamps • Higher wattage than comparable UHP lamps • Evenly-distributed spectral output • Life 500-2000 hours • 325W Xenon Lamp

  44. Illuminants:Cold-Cathode Backlights • Compact design • Uneven spectral energy – high in green/blue • Bright sources of diffuse lighting • Life 50,000 – 60,000 hrs • Not “green!” (contains Hg) Two CCFL Lamps

  45. Illuminants: LED Backlights • Compact design • Evenly-distributed spectral energy • LED matrix is weighted • LED life estimated at 50,000 – 100,000 hours • LEDs are “current hogs” GRB LED Array

  46. Illuminants:Plasma Phosphors • Rare earth formulations similar to CRT • Red, blue easy to saturate; green is tougher • Ne/Xe mixture affects color balance and life (estimated 40,000 – 60,000 hrs) Close-up of RGB Phosphors

  47. See It Now:A Primer on LCD, DLP, LCoS, and Plasma Technologies Pete Putman, CTS, ISF Publisher, HDTVexpert.com Contributing Editor, Pro AV
