TEAM UP! FOR Waste-Heat AND Recovery SAVINGS

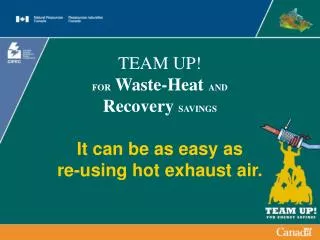

1. TEAM UP!FOR Waste-Heat ANDRecovery SAVINGS It can be as easy as re-using hot exhaust air.

2. Why should we care? • For the environment • For the bottom line

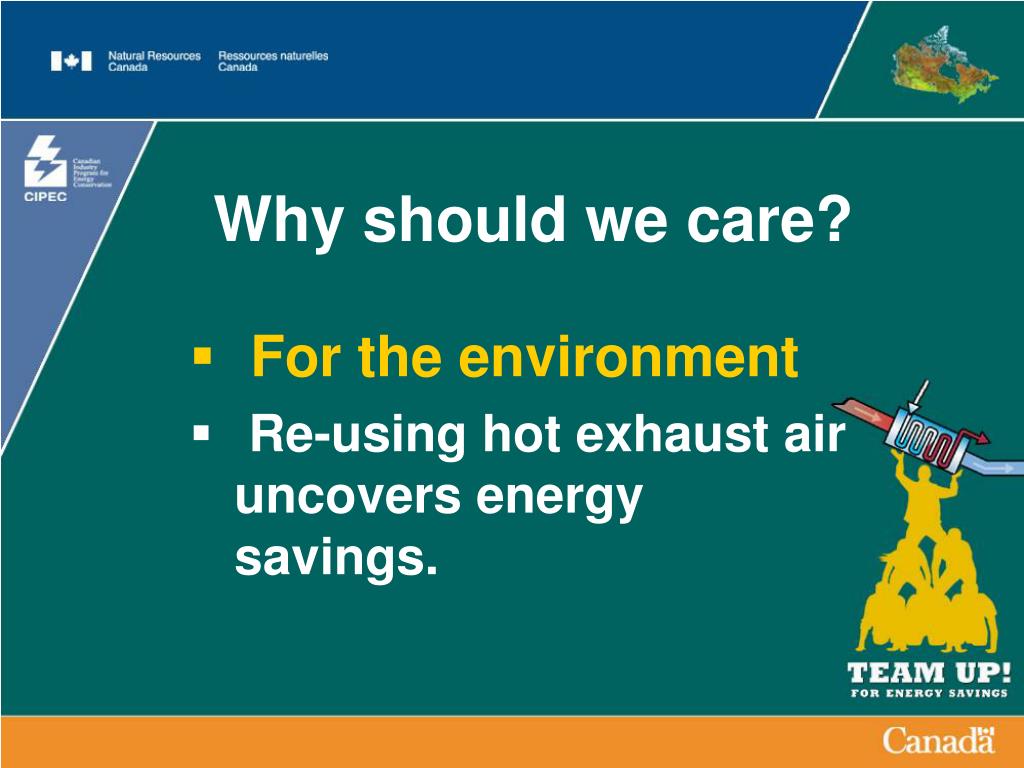

3. Why should we care? For the environment Re-using hot exhaust air uncovers energy savings.

4. Why should we care? For the bottom line Re-using hot exhaust air saves money.

5. What are the sources? Usable energy may be available from • Hot flue gases • Hot or cold water drained to a sewer • Exhaust air • Hot or cold product or waste product

6. What are the sources? Usable energy may be available from (cont.) • Cooling water or hydraulic oil • Ground-source thermal energy • Heat collected from solar panels • Superheat and condenser heat rejected from refrigeration equipment

7. What factors should beconsidered? • How does the supply compare with demand? • How easily can the waste-heat source be accessed? • How far is the source from the demand? • What’s the quality of the waste heat? • Are there any implications for product quality? • How much upgrading is required? • Are there any regulatory limits? • What will the payback period be?

8. What can we do? • Housekeeping • Low-cost opportunities • Retrofits

9. What can we do? • Housekeeping • Inspect and maintain equipment to minimize the production of waste heat. • Identify sources of waste heat. • Eliminate as many sources of waste heat as possible. • Reduce the temperature of the remaining waste heat.

10. What can we do? 2. Low-cost opportunities • Capture waste heat from a clean waste stream that normally goes into the atmosphere or down the drain, and then pipe the waste stream to where it can be used. • Re-use hot exhaust air for drying.

11. What can we do? 2. Low-cost opportunities (cont.) • Use waste-process water as a heat sourcefor a heat pump. • Use the heat of the plant effluent being treated in a wastewater treatmentfacilityas a heat sourcefora heat pump.

12. What can we do? 2. Low-cost opportunities (cont.) • Install improved automatic controls. • Re-use heat from cooling hydraulic oil (e.g. within moulding machineand the injection moulds themselves). This reduces the electrical load on the production process as well.

13. What can we do? 3. Retrofits • Install waste-heat reclamation equipment (e.g. replace a cooling tower circulation loop with a shell-and-tube heat exchanger). • Upgrade or replace outdated waste-heat reclamation equipment.

14. What can we do? 3. Retrofits (cont.) • Recover flue gas heat and use it as a heat source for a heat pump. • Use an absorption heat transformer, which reclaims waste heat using a solution of lithium bromide. • Integrate a compact heat exchanger with other processes.

15. What can we do? 3. Retrofits (cont.) • In a large computer centre, capture generated heat by using thermal storage. • Recover heat generated through refrigeration and upgrade it using a heat pump. • Convert high-temperature flue gas heat (e.g. from metallurgical furnaces) into superheated steam for electric power generation.

16. How can we do it? We have the people. We have the tools. oee.nrcan.gc.ca/industrial

17. Thank you Together we can make it happen. It’s good for the environment. It’s good for the bottom line.
