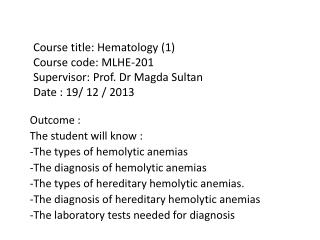

Course title: Hematology (1)Course code: MLHE-201 Supervisor: Prof. Dr Magda SultanDate : 19/ 12 / 2013

Outcome :

The student will know :

-The types of hemolytic anemias

-The diagnosis of hemolytic anemias

-The types of hereditary hemolytic anemias.

-The diagnosis of hereditary hemolytic anemias

-The laboratory tests needed for diagnosis

1-Hemolytic anemia(HA)

  • HA = decreased levels of red blood cells in circulating blood (anemia) because of their accelerated destruction (hemolysis)

  • A red blood cell survives 120 days

  • The spleen (part of the reticulo-endothelial system) is the main organ which removes old and damaged RBCs from the circulation.

  • Breakdown of RBCs can exceed the rate that the body can make RBCs and so anemia can develop.


  • Anemia of increased destruction

    • Normochromic, normocyticanemia

    • Shortened RBC survival

    • Reticulocytosis - Response to increased RBC destruction

    • Increased indirect bilirubin

    • Increased LDH

Classification of hemolytic anemias

  • Causes of hemolytic anemiascan be either:

    1 - hereditary (genetic ) 2 - acquired.

Physiologic classification of anemia

Hemolytic anemia

  • Hereditary

    • Defects of hemoglobin

      • Thalassaemia, Sickle cell anemia

    • Defects of the red cell membrane

      • Hereditary spherocytosis, Hereditary elliptocytosis

    • Defective red cell metabolism (enzymes)

      • G6PD deficiency. P K deficiency

  • Acquired

    • Immune mediated : Autoimmune, isoimmune, drugs

    • Microangiopathic: DIC, HUS

    • Hypersplenism

    • Miscellaneous: drugs, toxin, infection, burn, chemical

Mechanisms of hemolysis:- intravascular - extravascular

Intravascular hemolysis :Red cell destruction occurs in vascular spacee.geclinical states associated with Intravascular hemolacute hemolytic transfusion reactions severe burns physical trauma bacterial infections

Intravascular hemolysis :- laboratory signs of intravascular hemolysis: tests for hemolysis and aditionally: hemoglobinemia methemalbuminemia hemoglobinuria hemosiderinuria

Extravascular hemolysis :red cells destruction occurs in reticuloendothelial systeme.gscyrestem - clinical states associated with extravascular hemolysis :autoimmune hemolysis delayed hemolytic transfusion reactions hemoglobinopathies hereditary spherocytosis hypersplenism hemolysis with liver disease- laboratory signs of extravascular hemolysis: tests for hemolysis

Signs of hemolytic anemia: Physical

  • Symptoms of anemia

  • Jaundice

  • Pallor

  • Splenomegaly / hepatosplenomegaly

Laboratory features (1)

*Morphology: anemia

*Peripheral blood smear microscopy:

  • **fragments of the red blood cells ("schistocytes") can be present

  • **some red blood cells may appear smaller and rounder than usual (spherocytes)

  • **reticulocytes are present in elevated numbers.

  • Normoblastscan be present.

Bone marrow smear microscopy:

* Erytrhroid hyperplasia

* The level of unconjugatedbilirubin in the blood is elevated.

* The level of lactate dehydrogenase (LDH) in the blood is elevated

Laboratory features (2)

*The direct CoombꞋs test is positive, if hemolysis is caused by an immune process.

*Increased excretion of urobilinogen in the urine

*Increasedstercobilinogen in the stool.

*Sometimes abnormal results of the osmotic fragility test

Hereditary Hemolytic anemia

  • Defects of hemoglobin

    • Thalassaemia, Sickle cell anemia

  • Defects of the red cell membrane

    • Hereditary spherocytosis, Hereditary elliptocytosis

  • Defective red cell metabolism

    • G6PD deficiency. P K deficiency



  • The abnormalities of the gene may result from substitution of single amino acid like sickle cell anaemiaor decrease synthesis of the whole globin chain (thalassaemia)

Sickle cell anaemia

  • Substitution of glutamic acid by valine

    The Hb is stable when oxygenated state and become unstable and polymerized on deoxygenated state

Sickle cell anaemia

  • Polymerization will lead to precipitation of Hb. The cell become deformed (sickle shape) and very sticky leading to vascular occlusion and small infarction to the affected areas.

  • Short life span of cells leading to chronic anaemia,

The origin of the disease is a small change in the protein hemoglobin

The change in cell structure arises from a change in

the structure of hemoglobin.

A single change in an amino acid causes hemoglobin

to aggregate.

Sickle cell anaemia



Hb 6-9 g/dl, high retics (5-15%), Normocytic anemia , target or anisocytosis

Sickling test

Hb electrophoresis Hb S 60-100 in SS

Parents sickle trait Hb AS

Hgb Electrophoresis

  • Amino acids in globin chains have different charges

  • Separates hemoglobin according to charge

  • 90% Hgb S, 10% Hgb F, small fraction of Hgb A2


Means defective synthesis of one or more of the

globin chains which form normal hemoglobin. In

very severe form this globin is totally absent. The

defect may be in alpha chain ( thalassaemia),

Beta chain ( thalassaemia) or Delta chain (



  • NORMAL ADULT RBC CONSISTS OF 3 FORMS OF Hb: - HbA - 2 α and 2 β globin chains - HbA2 – 2 α and 2 δ globin chains - HbF - 2 α and 2 γ globin chains

  • THALASSEMIAS α and β

Different forms of thalassemia

  • Alfa thalassemia

  • Beta thalasemia: major, minor (trait), intermedia

  • Delta/Beta thalassemia

  • Hereditary persistentce of fetal hemoglobin (HPFH)

Beta Thalassaemia

Defective  chain synthesis

Excess  chain Precipitation

cell membrane damage

Circulating Red cell

Bone marrow



Ineffective erythropoiesis

Erythropoietin increased

blood transfusion

 Iron absorption

Bone marrow expansion

Iron overload

skeletal changes & hyper metabolism

Complication and death

Beta-Thalassemia major laboratory features

  • Severe anemia

  • Blood film: anisopoikilocytosis, hypochromia, target cells, basophylic stippling, reticulocytes moderately increased and normoblasts .

  • Marrow: marked erythroid hyperplasia, increased sideroblasts

  • Shortened red cell survival

  • Haemoglobin electrophoresis :

  • Fetal hemoglobin > 90%, HbA absent, HbA2 low/normal/high


  • Defective or absent spectrin molecule

  • Leads to loss of RBC membrane, leading to spherocytosis

  • Decreased deformability of cell

  • Increased osmotic fragility

  • Extravascular hemolysis in spleen

Hereditary spherocytosis (HS)Laboratory features - hemolytic anemia- blood smear-microspherocytes - abnormal osmotic fragility test, acidifiedglycerol lysis time - negative direct Coombs test


Glucose 6-Phosphate DehydrogenaseFunctions

  • Regenerates NADPH, allowing regeneration of glutathione

  • Protects against oxidative stress

  • Lack of G6PD leads to hemolysis during oxidative stress

    • Infection

    • Medications

    • Fava beans

  • Oxidative stress leads to Heinz body formation,  extravascular hemolysis





Assignement :

Student name :الشيماء مصطفي عبد العاطي

Title:Sickle cell anaemia

Student name : اميره اسعد يوسف

Title : Haemoglobin electrophoresis .

Student name :اميره صلاح مرشدي

Title :G6PD deficiency .

Student name :انجي عبد الموجود

Title : Spherocytic anaemia .

Student name : بسمه مهدي رياض

Title :Laboratory tests of hemolytic anaemias .

Training questions :What are the tests of hemolysis ?

  • How to diagnose Sickle cell anaemia ?

  • How to classify hemolytic anaemias ?

  • Reference book :

  • Essential Hematology .

  • Dacie .
