Saturday, Dec 8,

9:00am - 12:00pm

EN 1054

### Chapter 19.1 Exploratory Data Analysis

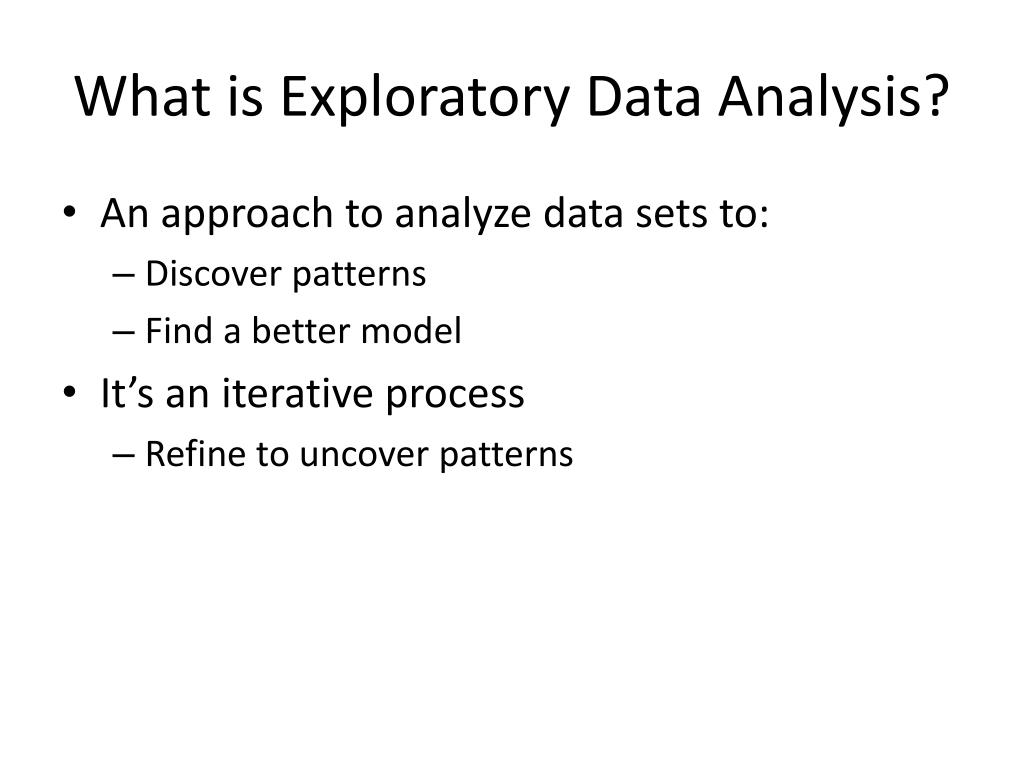

What is Exploratory Data Analysis?
• An approach to analyze data sets to:
• Discover patterns
• Find a better model
• It’s an iterative process
• Refine to uncover patterns

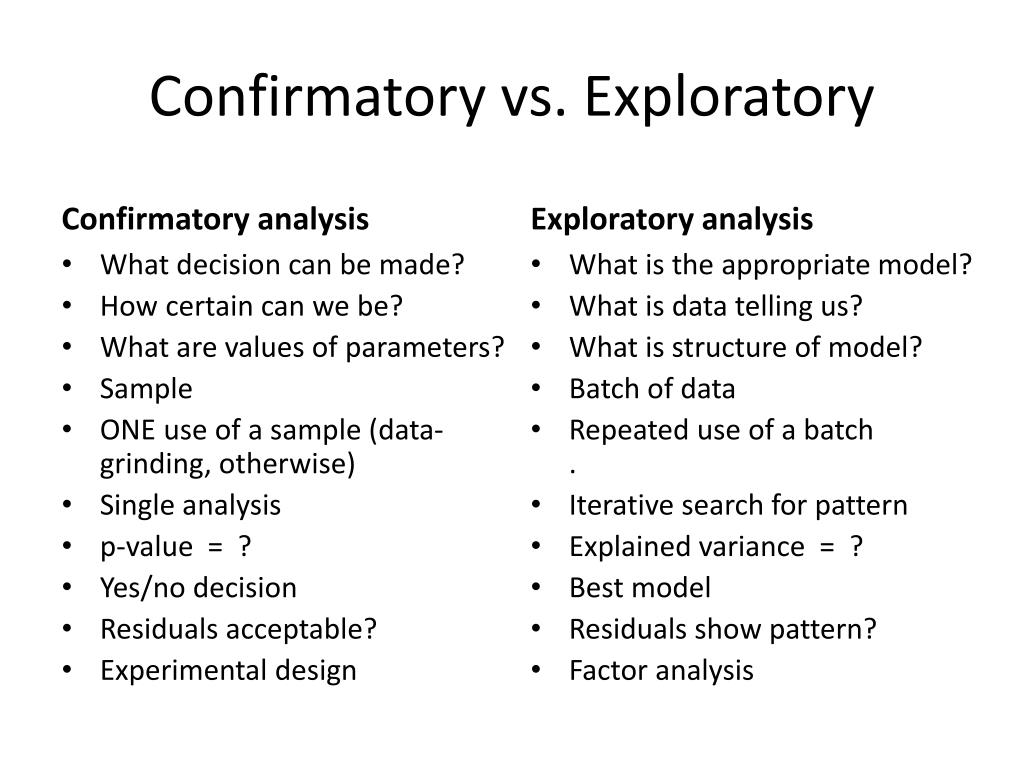

Confirmatory vs. Exploratory

Confirmatory analysis

Exploratory analysis

What is the appropriate model?

What is data telling us?

What is structure of model?

Batch of data

Repeated use of a batch .

Iterative search for pattern

Explained variance = ?

Best model

Residuals show pattern?

Factor analysis

• What decision can be made?
• How certain can we be?
• What are values of parameters?
• Sample
• ONE use of a sample (data-grinding, otherwise)
• Single analysis
• p-value = ?
• Yes/no decision
• Residuals acceptable?
• Experimental design

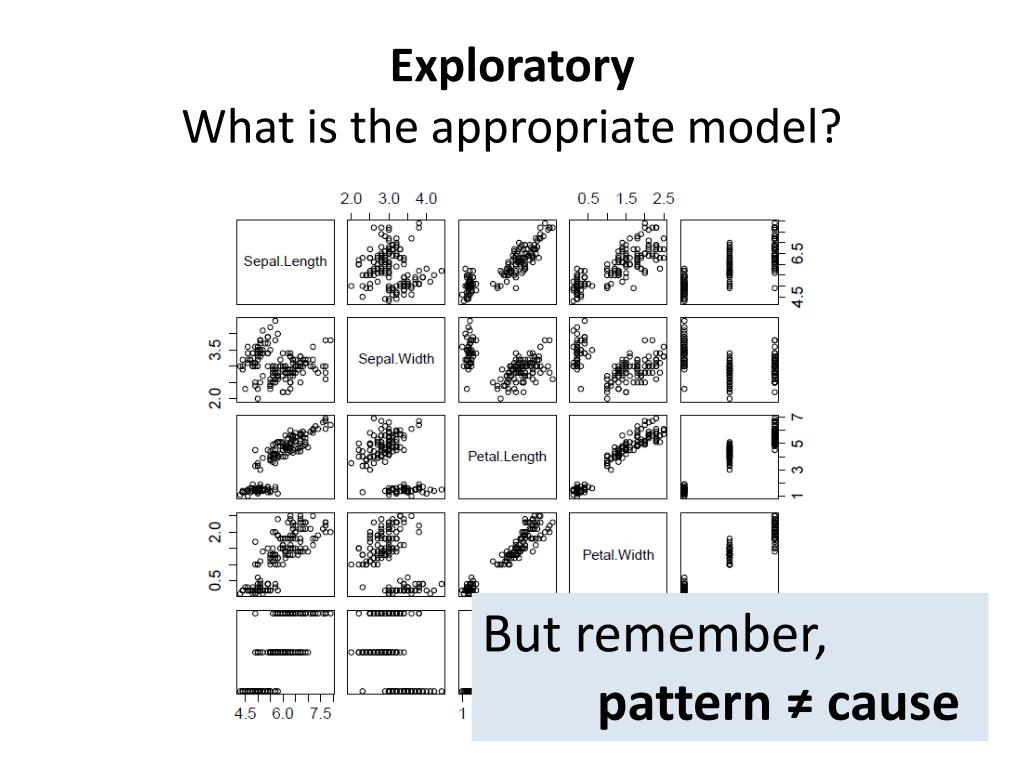

ExploratoryWhat is the appropriate model?

But remember,

pattern ≠ cause

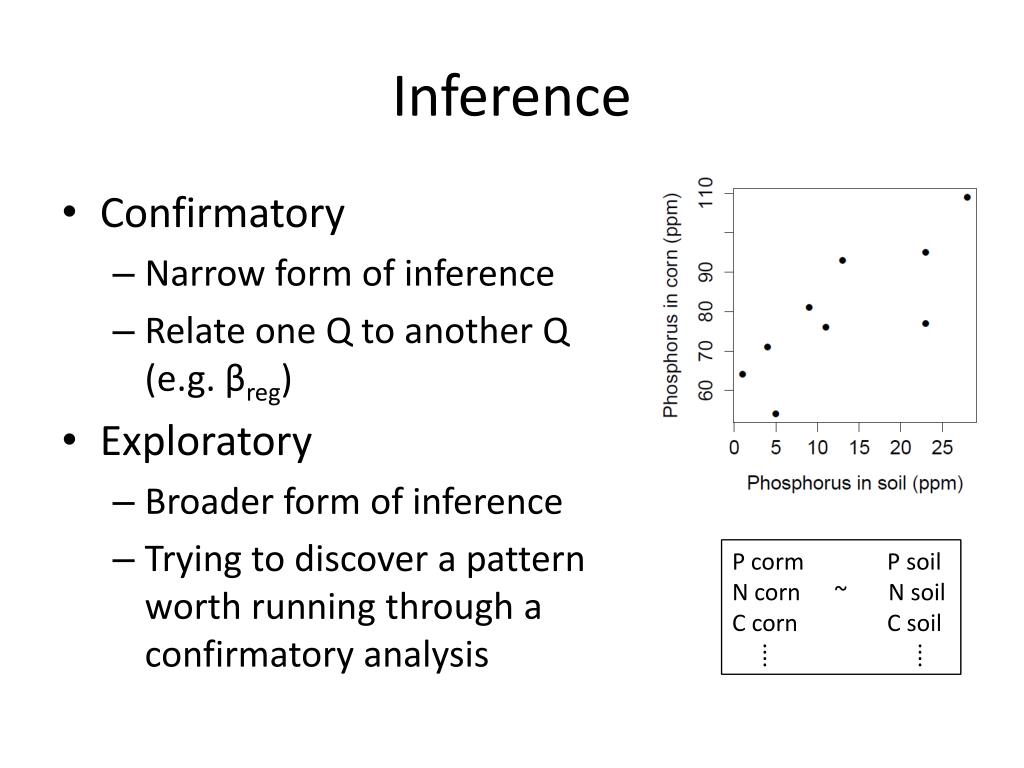

Inference
• Confirmatory
• Narrow form of inference
• Relate one Q to another Q (e.g. βreg)
• Exploratory
• Trying to discover a pattern worth running through a confirmatory analysis

P corm P soil

N corn ~ N soil

C corn C soil

⁞ ⁞

Don’t confuse confirmatory and exploratory analyses
• Refining models using p-values ≠ exploratory analysis
• Repeated analysis of the same data set is data dredging (aka: data grinding, data mining, data fishing, data snooping…)
• Any data set has a degree of randomness, so multiple comparisons may be bound to find a false association

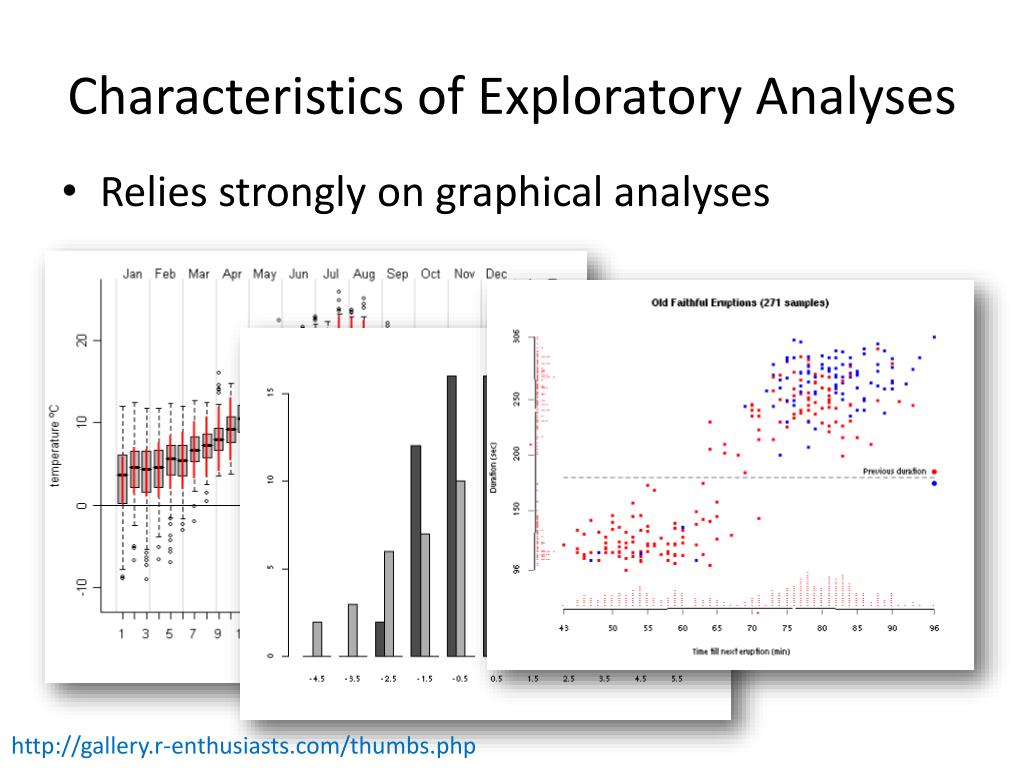

Characteristics of Exploratory Analyses
• Relies strongly on graphical analyses

http://gallery.r-enthusiasts.com/thumbs.php

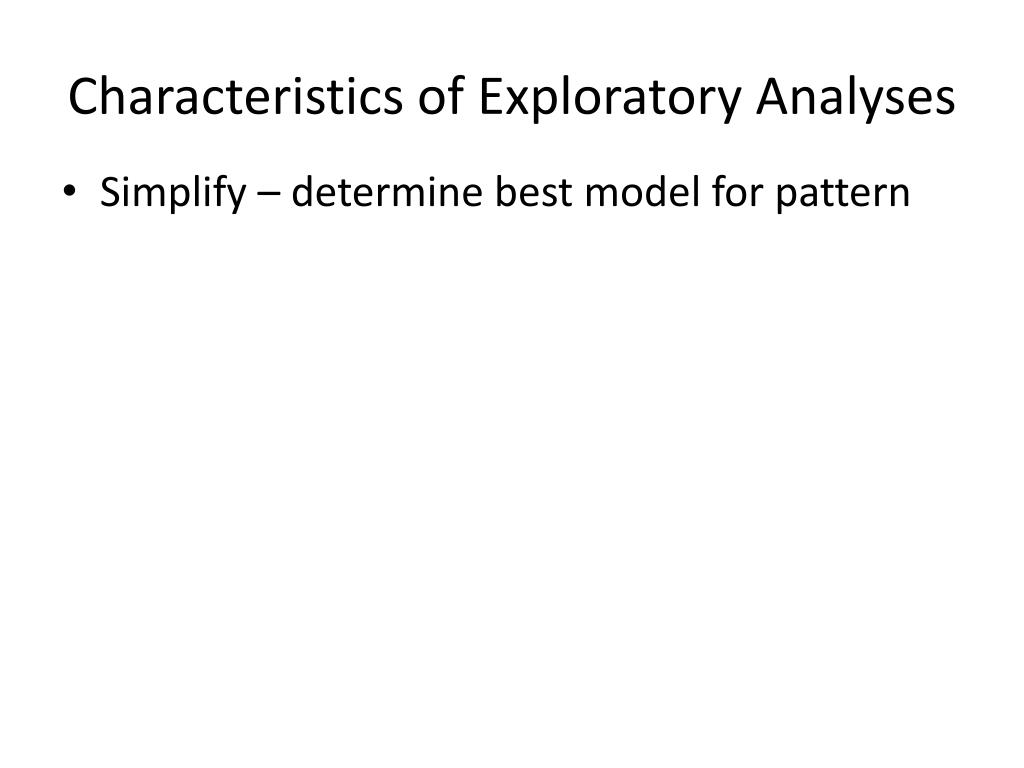

Characteristics of Exploratory Analyses
• Simplify – determine best model for pattern

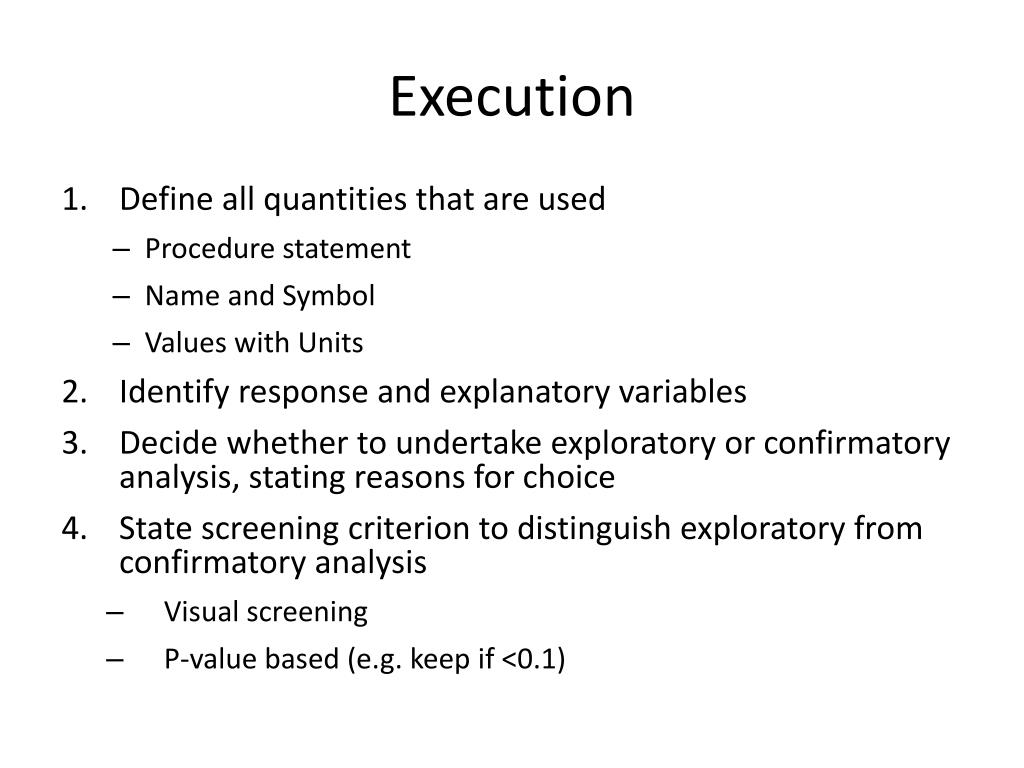

Execution
• Define all quantities that are used
• Procedure statement
• Name and Symbol
• Values with Units
• Identify response and explanatory variables
• Decide whether to undertake exploratory or confirmatory analysis, stating reasons for choice
• State screening criterion to distinguish exploratory from confirmatory analysis
• Visual screening
• P-value based (e.g. keep if <0.1)

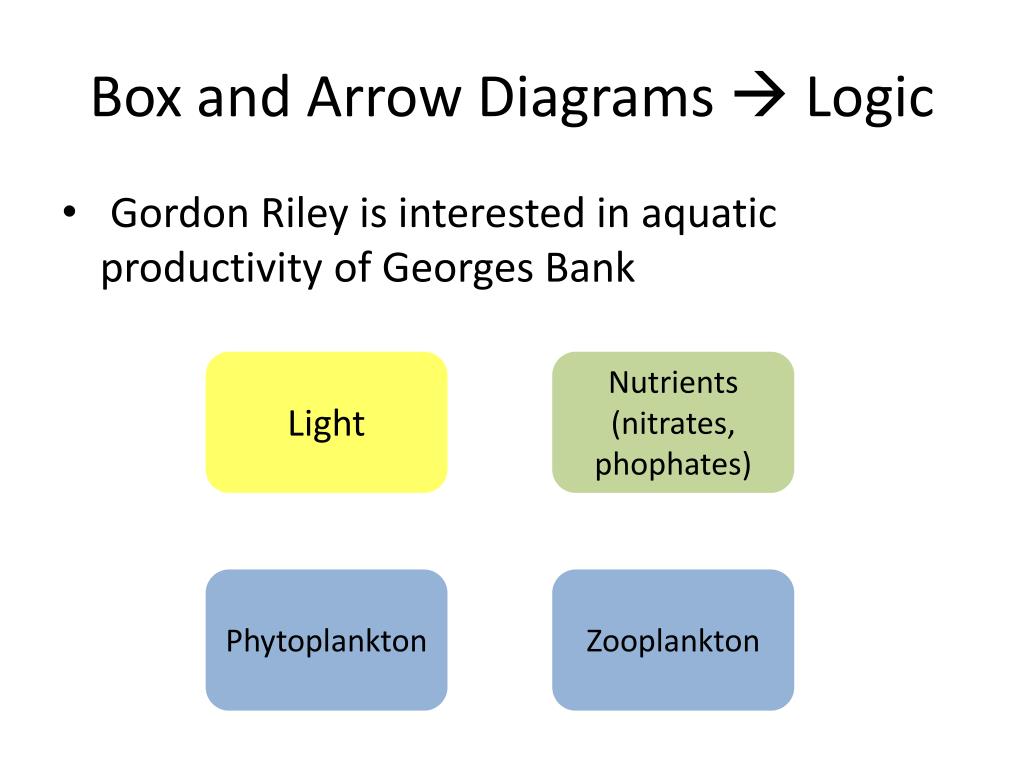

Box and Arrow Diagrams  Logic
• Gordon Riley is interested in aquatic productivity of Georges Bank

Light

Nutrients (nitrates, phophates)

Phytoplankton

Zooplankton
