  1. Potential impact of HF radar and gliders on ocean forecast system Peter Oke June 2009 CSIRO Marine and Atmospheric Research Centre for Australian Weather and Climate Research

  2. Talk Outline • NSW node of the Australian Integrated Marine Observing System • Method • Assessment of Bluelink background and analysis error estimates • Estimation of likely analysis estimates with new observations • Summary & conclusions

  3. HF radar x x X - mooring x x glider x approved wish-list Australian Integrated Marine Observing System: NSW node

  4. 1/10o 9/10o 2o The Bluelink System • Ocean Model • OFAM • MOM4p0d • Global model • 10 m vert res over top 200 m • Data Assimilation • BODAS • EnOI • 120 member ensemble • Localised covariances • Assimilates along-track ALTIM, coastal SLA, SST & in situ T and S

  5. Method • To assimilate observations we must estimate: • the background error covariance (Pb) … errors in the model • the observation operator (H) … where & what the obs are • the observation error covariance (R) … errors in the obs • Given this information we can estimate: • the analysis error covariance (Pa) … errors in the analysis Pa= [I – PbHT(HPbHT + R)-1H] Pb • Bluelink uses an static ensemble, A = [a1a2 … an], to approximate Pb = AAT / (n-1). • The background ensemble A, with covariance Pb, can be efficiently transformed into the analysis ensemble Aa, with covariance Pa, using a transformation from ensemble square root filter theory. • This is most efficiently done serially – one observation at a time.

  6. Assumed observation errors, R … includes instrument + representation error.

  7. Experiments • We consider cases with: • GOOS + new platform • just new platform • just GOOS • Where the GOOS is assumed to be altimeters + SST + Argo/XBT

  8. Impact of sampling error – varying obs distribution • Data distribution impacts the results – so we perform each calculation using the distribution of atSLA, SST and T/S from the GOOS for each week of 2006.

  9. Evaluation of estimates: SLA • Estimated / Theoretical errors are based on the assumed and estimated BGF and analysis errors • Actual (BRAN) errors are computed from differences with observations over a 3-year reanalysis • Obs assimilated every 7-days include: • AMSRE SST • atSLA • Argo T/S • XBT

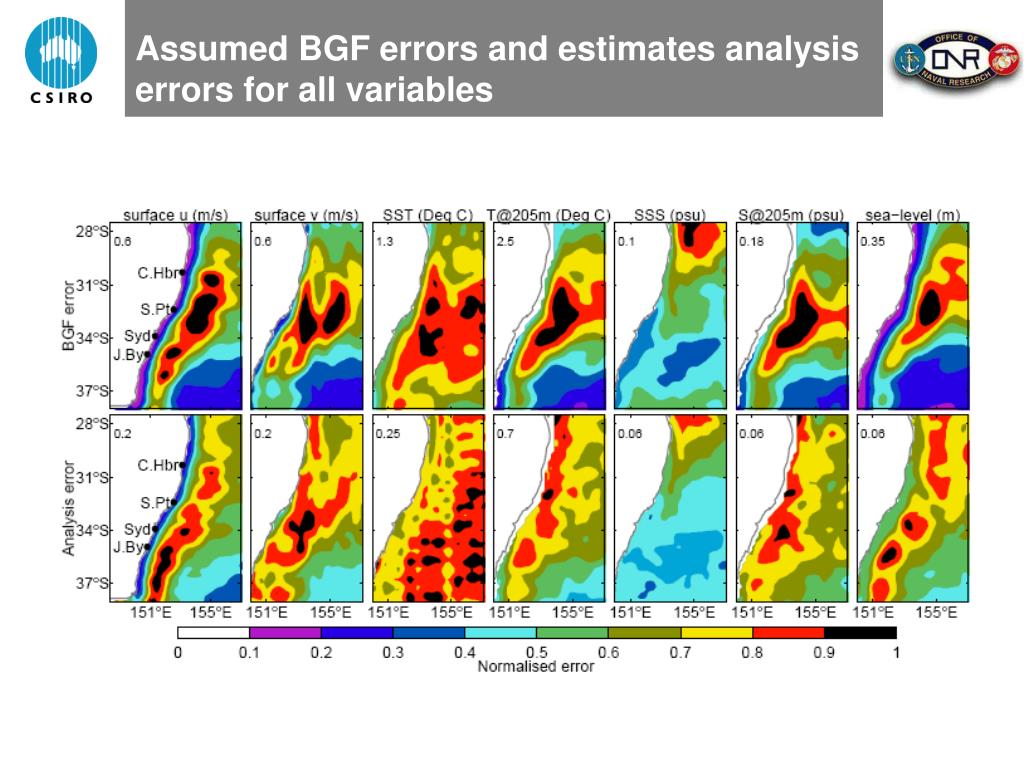

  10. Assumed BGF errors and estimates analysis errors for all variables

  11. Estimates % improvements for different HF radar arrays HF radar + GOOS % error reduction relative to GOOS with only ALTIM+SST+Argo HF radars are assumed to measure daily-mean surface velocity every day with no data gaps.

  12. Actual glider path … not exactly the same as the assumed E-W tracks. Estimates % improvements for different glider sections (or CTD or mooring lines) Gliders + GOOS % error reduction relative to GOOS with only ALTIM+SST+Argo Gliders are assumed to “fly” along a fixed latitude within 200 km of the coast with a repeat cycles of 2-weeks.

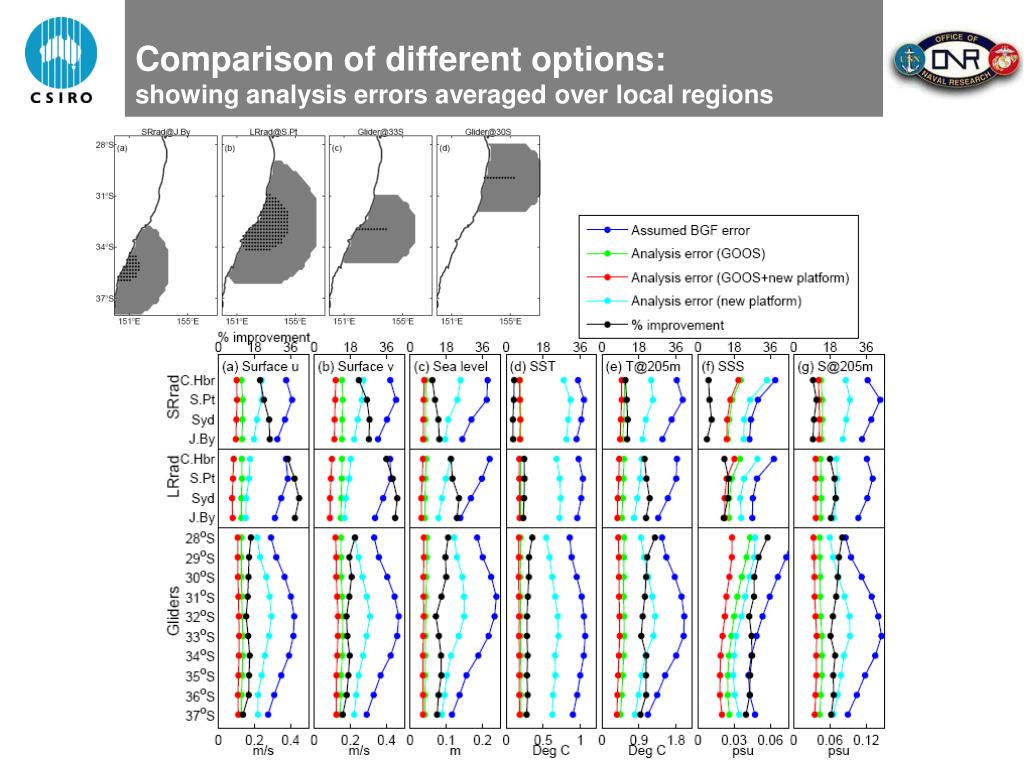

  13. Comparison of different options: showing analysis errors averaged over local regions

  14. Conclusions • HF radar obs may reduce U/V errors by as much as 80%; and T/S and sea-level errors by ~60% near the observed regions. • T and S obs near the shelf are likely to provide a more modest benefit … because they are somewhat redundant. • assumed glider tracks are clearly unrealistic – and are more akin to repeat ship-borne CTD sections. • As a result of this study Bluelink will likely develop the capability to assimilate HF radar data (initially in research mode) once data is available – but will likely retain glider observations for validation. Sakov, P., and P. R. Oke 2008: Objective array design: Application to the tropical Indian Ocean. Journal of Atmospheric and Oceanic Technology,25, 794-807. Oke, P. R., P. Sakov and E. Schulz, 2009: A comparison of shelf observation platforms for assimilation into an eddy-resolving ocean model. Dynamics of Atmospheres and Oceans, in press.
