CMB and the Topology of the Universe

CMB and the Topology of the Universe. Dmitri Pogosyan, UAlberta. With: Tarun Souradeep Dick Bond and: Carlo Contaldi Adam Hincks. Simon White, Garching, last week: Open questions in Cosmology: Is our Universe is finite or infinite? Is its space curved ? ….

drake-olsen
Download Presentation

CMB and the Topology of the Universe

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

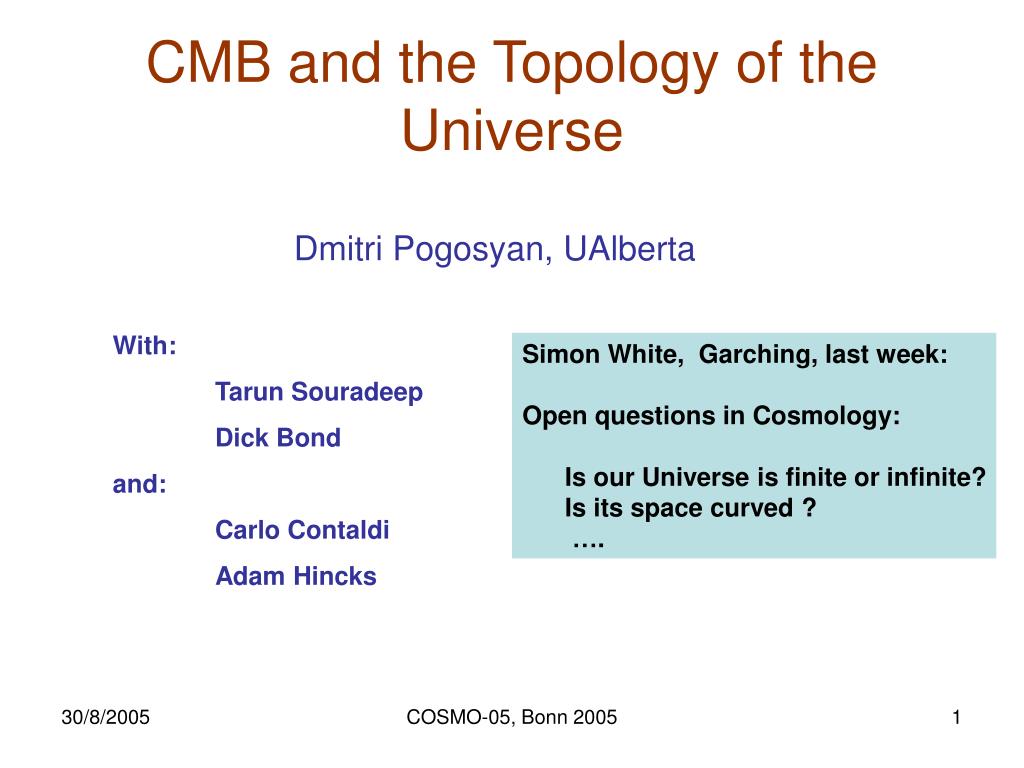

  1. CMB and the Topology of the Universe Dmitri Pogosyan, UAlberta With: Tarun Souradeep Dick Bond and: Carlo Contaldi Adam Hincks Simon White, Garching, last week: Open questions in Cosmology: Is our Universe is finite or infinite? Is its space curved ? …. COSMO-05, Bonn 2005

  2. Preferred parameter region, tot=1.02 ± 0.02 Ωtot=1.01 RLSS/Rcurv=0.3 COSMO-05, Bonn 2005

  3. How Big is the Observable Universe ? Relative to the local curvature & topological scales COSMO-05, Bonn 2005

  4. Dirichlet domain and dimensions of the compact space RLS < R< COSMO-05, Bonn 2005

  5. Dirichlet domain and dimensions of the compact space RLS > R> COSMO-05, Bonn 2005

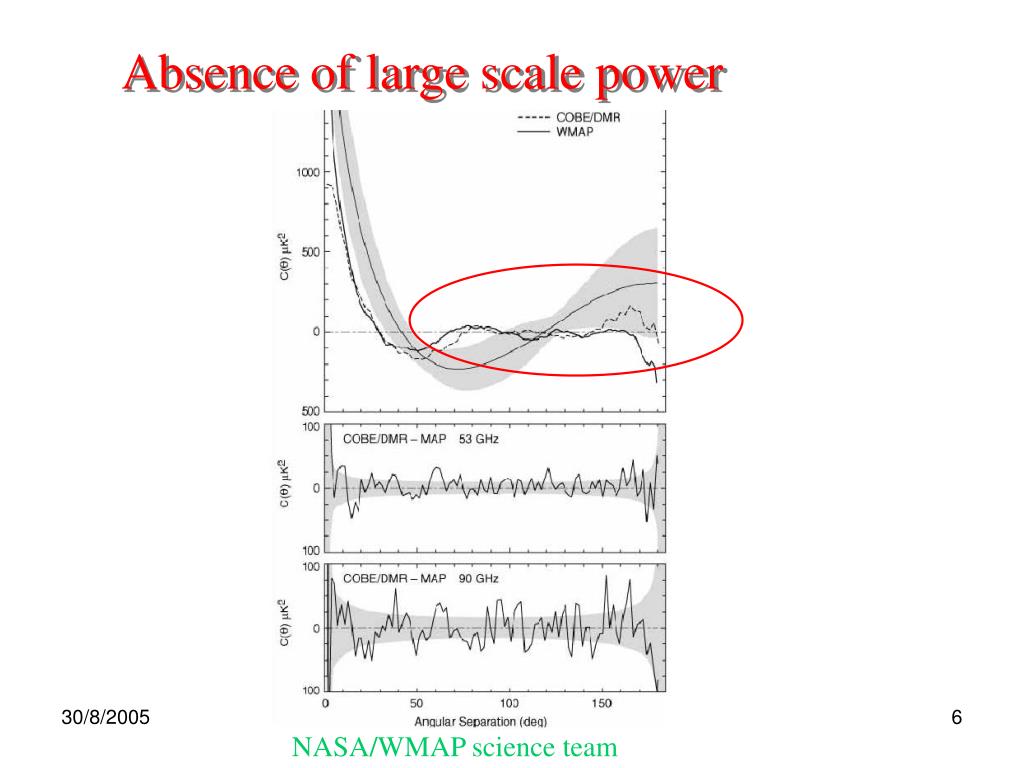

  6. Absence of large scale power COSMO-05, Bonn 2005 NASA/WMAP science team

  7. Correlation function of isotropic CMB Oscillations in the angular spectrum come from this break COSMO-05, Bonn 2005

  8. Perturbations in Compact space • Spectrum has the lowest eigenvalue. • Spectrum is discrete, hence statistics in general is anisotropic, especially at large scales. • Statistical properties can be inhomogeneous. • However, perturbations are Gaussian, and CMB temperature fluctuations are fully described by pixel-pixel correlation matrix CT(p,p’) • We implemented general method of images to compute CT(p,p’) for arbitrary compact topology (Bond,Pogosyan, Souradeep, 1998,2002) COSMO-05, Bonn 2005

  9. Pixel-pixel correlation with compact topology (using method of images, BPS, Phys Rev D. 2000) COSMO-05, Bonn 2005

  10. Example of strong correlation on last scattering surface These two points on LSS are identical And so are these COSMO-05, Bonn 2005

  11. Correlated Circles(after Cornish, Spergel, Starkman et al, 1998,2004) (Figure: Bond, Pogosyan & Souradeep 1998, 2002) COSMO-05, Bonn 2005

  12. Temperature along the correlated circles(pure LSS signal) COSMO-05, Bonn 2005

  13. Temperature along the correlated circles (ISW modification) COSMO-05, Bonn 2005

  14. COSMO-05, Bonn 2005

  15. Positive curvature multiconnected universe ? : Perhaps, a Poincare dodecahedron “Soccer ball cosmos” ? COSMO-05, Bonn 2005

  16. Isotropic Cpp’ D/RLSS=10 COSMO-05, Bonn 2005

  17. Surface term to DT/T D/RLSS=0.3 COSMO-05, Bonn 2005

  18. Complete, surface and integrated large-angle ΔT/T D/RLSS=0.3 COSMO-05, Bonn 2005

  19. Variation of the pixel variance D/RLSS=0.3 COSMO-05, Bonn 2005

  20. Constraining the models from maps • Complete topological information is retained when comparison with data is done on map level • Low res (Nside=16) maps contain most information, although special techniques as circle searching may benefit from finer pixalization. The cost – additional small scale effects which mask topological correlations. • Main signal comes from effects, localized in space, e.q on LSS. But even integrated along the line of sight contributions retain signature of compact topology. • Orientation of the space (and, possibly, position of observer) are additional parameters to consider. What is the prior for them ? COSMO-05, Bonn 2005

  21. Likelehood comparison ofcompact closed versus flat Universe with =0.7 COSMO-05, Bonn 2005

  22. WMAP: Angular power spectrum NASA/WMAP science team COSMO-05, Bonn 2005

  23. Single index n: (l,m) -> n Diagonal COSMO-05, Bonn 2005

  24. Inadequacy of isotropized Cl’s: alm cross correlation Very small space Just a bit smaller than LSS 2 3 4 5 6 7 8 9 10 2 3 4 5 6 7 8 9 10 COSMO-05, Bonn 2005

  25. Compression to isotropic Cls is lossy Inhanced cosmic variance of Cl’s COSMO-05, Bonn 2005

  26. Bipolar Power spectrum (BiPS) :A Generic Measure of Statistical Anisotropy Bipolar multipole index A weighted average of the correlation function over all rotations Except for when (This slide is provided as a free advertisement for T. Souradeep talk, Wednesday) COSMO-05, Bonn 2005

  27. Conclusions • A fundamental question – whether our Universe is finite or infinite –is still open. • The region near Otot=1 is rich with possibilities, with negatively or positively curved or flat spaces giving rise to distinct topological choices. • Modern CMB data shows that small Universes with V < VLS are failing to describe the temperature maps. Reason – complex correlation are not really observed (in line with circle finding results). • This is despite the fact that it is not too difficult to fit the low l suppression of isotropized angular power spectrum. • Integrated along the line of sight contribution to temperature anisotropy masks and modifies topology signature. It must be taken into account for any accurate quantitative restrictions on compact spaces. • Full likelihood analysis assumes knowledge of the models. Model independent search for statistical anisotropy calls for specialized techniques – see talk on BiPS by Tarun Souradeep on Wednesday. COSMO-05, Bonn 2005
