Collins effect ( Sin( φ h + φ S ) ) Access to transversity Artru model

Neutron (e,e ’ π ± ) Target Single-Spin Asymmetry in Semi-inclusive DIS on a Transversely Polarized 3 He Target . -. Kalyan Allada, Chiranjib Dutta, Mitra Shabestari, Xin Qian On the behalf of Transversity Collaboration Two experiments with the highest scientific rate: . A.

deva
Download Presentation

Collins effect ( Sin( φ h + φ S ) ) Access to transversity Artru model

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

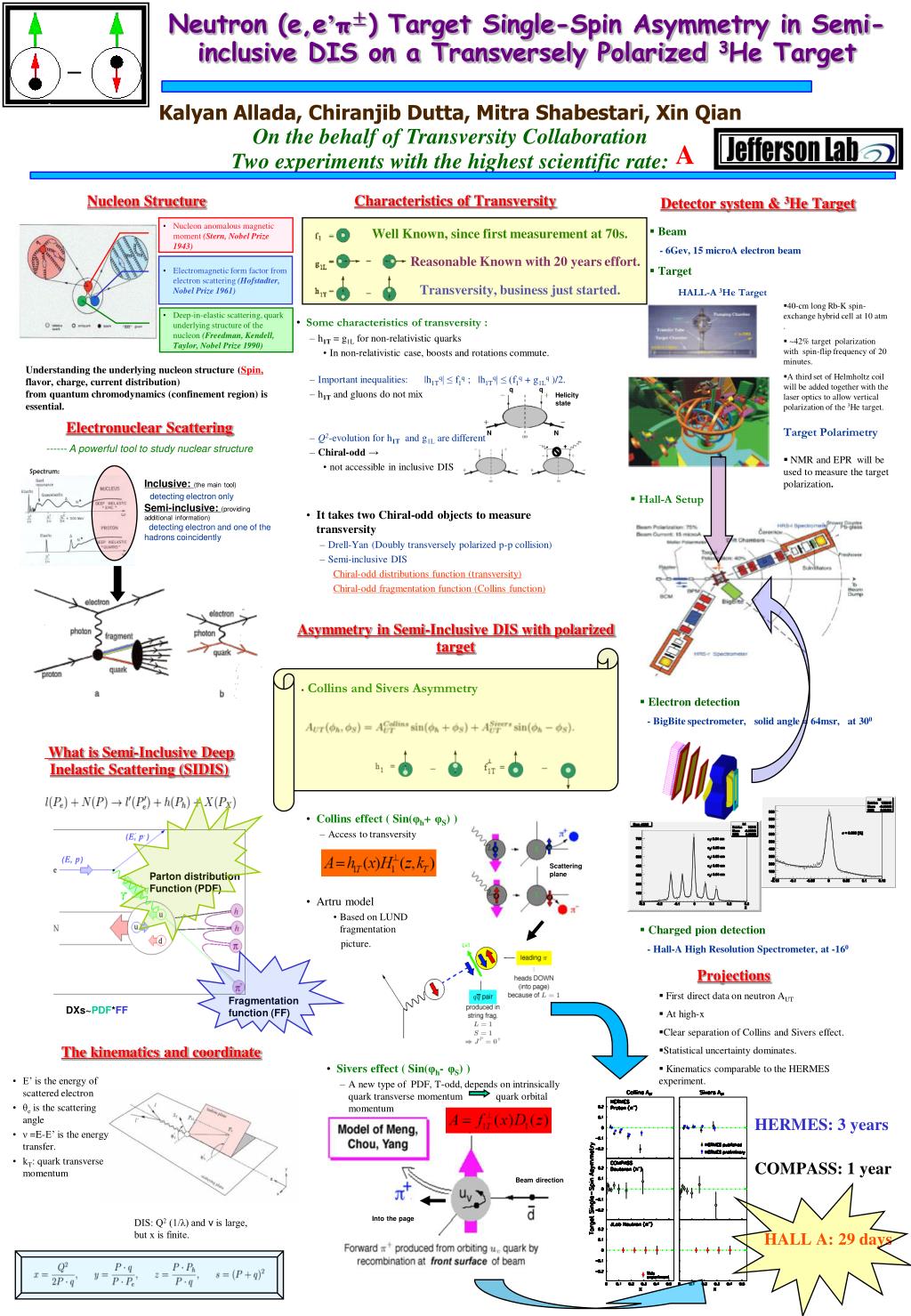

  1. Neutron (e,e’π±) Target Single-Spin Asymmetry in Semi-inclusive DIS on a Transversely Polarized 3He Target - Kalyan Allada, Chiranjib Dutta, Mitra Shabestari, Xin Qian On the behalf of Transversity Collaboration Two experiments with the highest scientific rate: A Nucleon Structure Characteristics of Transversity Detector system & 3He Target • Beam • - 6Gev, 15 microA electron beam • Target Well Known, since first measurement at 70s. • Nucleon anomalous magnetic moment (Stern, Nobel Prize 1943) • Electromagnetic form factor from electron scattering (Hofstadter, Nobel Prize 1961) • Deep-in-elastic scattering, quark underlying structure of the nucleon (Freedman, Kendell, Taylor, Nobel Prize 1990) Reasonable Known with 20 years effort. Transversity, business just started. HALL-A 3He Target • 40-cm long Rb-K spin-exchange hybrid cell at 10 atm . • ~42% target polarization with spin-flip frequency of 20 minutes. • A third set of Helmholtz coil will be added together with the laser optics to allow vertical polarization of the 3He target. • Some characteristics of transversity : • h1T = g1Lfor non-relativistic quarks • In non-relativistic case, boosts and rotations commute. • Important inequalities: |h1Tq| ≤ f1q ; |h1Tq| ≤ (f1q + g1Lq )/2. • h1T and gluons do not mix • Q2-evolution for h1T and g1L are different • Chiral-odd → • not accessible in inclusive DIS HRS HRS Understanding the underlying nucleon structure (Spin, flavor, charge, current distribution) from quantum chromodynamics (confinement region) is essential. q q Helicity state Electronuclear Scattering ------ A powerful tool to study nuclear structure • Target Polarimetry • NMR and EPR will be used to measure the target polarization. N N + - Spectrum: Inclusive: (the main tool) detecting electron only Semi-inclusive: (providing additional information) detecting electron and one of the hadrons coincidently • Hall-A Setup • It takes two Chiral-odd objects to measure transversity • Drell-Yan (Doubly transversely polarized p-p collision) • Semi-inclusive DIS Chiral-odd distributions function (transversity) Chiral-odd fragmentation function (Collins function) Asymmetry in Semi-Inclusive DIS with polarized target • Collins and Sivers Asymmetry • Electron detection - BigBite spectrometer, solid angle = 64msr, at 300 What is Semi-Inclusive Deep Inelastic Scattering (SIDIS) • Collins effect ( Sin(φh+ φS) ) • Access to transversity • Artru model • Based on LUND fragmentation picture. Scattering plane Parton distribution Function (PDF) • Charged pion detection - Hall-A High Resolution Spectrometer, at -160 Projections • First direct data on neutron AUT • At high-x • Clear separation of Collins and Sivers effect. • Statistical uncertainty dominates. • Kinematics comparable to the HERMES experiment. Fragmentation function (FF) DXs~PDF*FF The kinematics and coordinate • Sivers effect ( Sin(φh- φS) ) • A new type of PDF, T-odd, depends on intrinsically quark transverse momentum quark orbital momentum • E’ is the energy of scattered electron • θe is the scattering angle • ν =E-E’ is the energy transfer. • kT: quark transverse momentum HERMES: 3 years COMPASS: 1 year Beam direction Into the page DIS: Q2 (1/λ) and ν is large, but x is finite. HALL A: 29 days
