The Microscope. Mr. Gacc/Bakka BHS. Visit www.worldofteaching.com for more free powerpoints. The History. Many people experimented with making microscopes Was the microscope originally made by accident? (Most people were creating telescopes) The first microscope was 6 feet long!!!

Download Presentation

The Microscope

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


The microscope

The Microscope

Mr. Gacc/Bakka

BHS

Visit www.worldofteaching.com for more free powerpoints


The history

The History

  • Many people experimented with making microscopes

  • Was the microscope originally made by accident? (Most people were creating telescopes)

  • The first microscope was 6 feet long!!!

  • The Greeks & Romans used “lenses” to magnify objects over 1000 years ago.


The microscope

The HistoryHans and Zacharias Janssen of Holland in the 1590’s created the “first” compound microscope

Zacharias Jansen

1588-1631

The “First” Microscope


The history1

The History

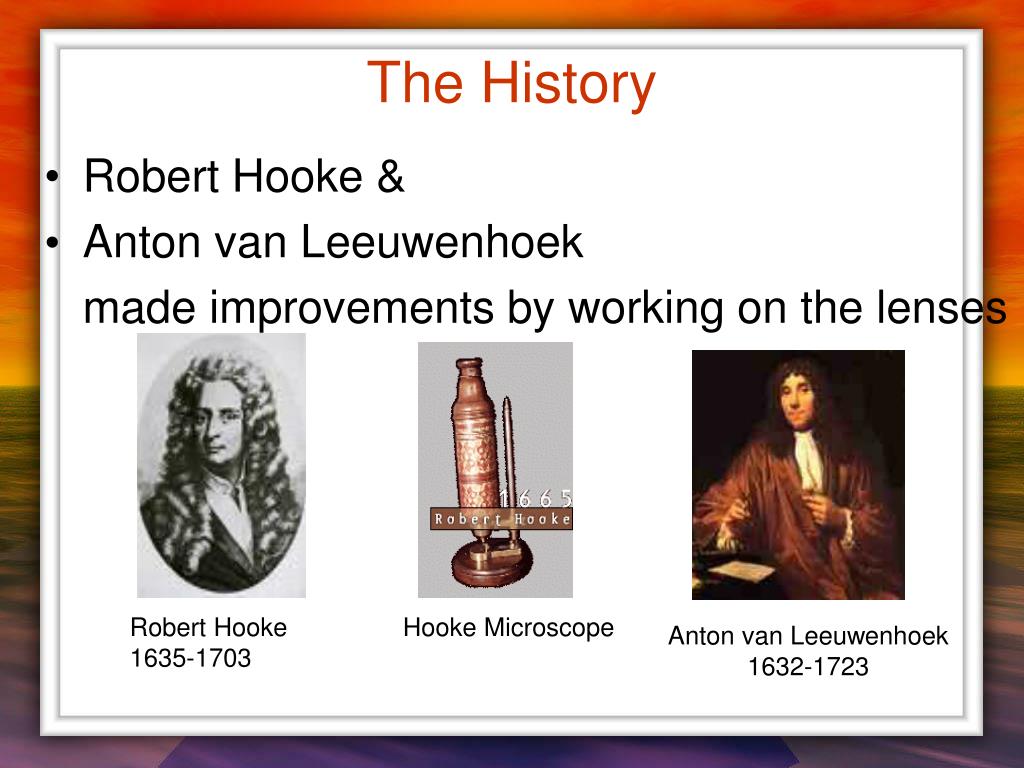

  • Robert Hooke &

  • Anton van Leeuwenhoek

    made improvements by working on the lenses

Robert Hooke

1635-1703

Hooke Microscope

Anton van Leeuwenhoek

1632-1723


History

History

  • In 1665 Robert Hooke examined a thin slice of cork with a single magnifying lens and observed tiny compartments

  • He gave them the latin name cellulae, meaning small rooms - hence the origin of the term cell.

  • He later observed cells in plant tissues and observed the cells were “fill’d with juices”


History1

History

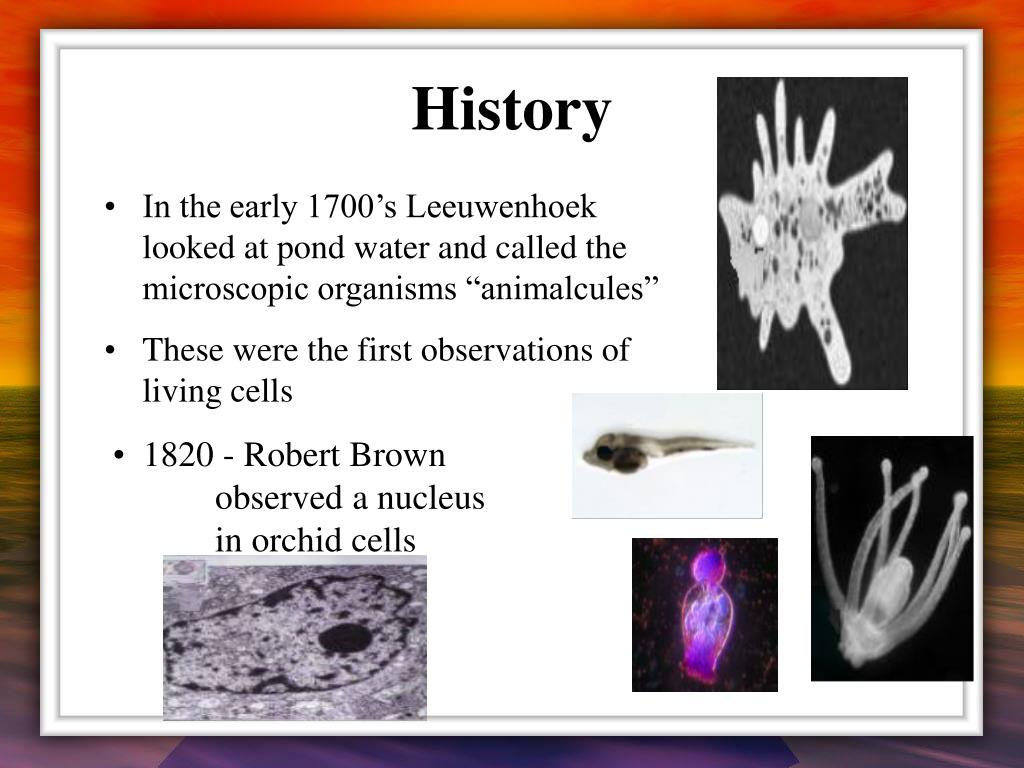

  • In the early 1700’s Leeuwenhoek looked at pond water and called the microscopic organisms “animalcules”

  • These were the first observations of living cells

  • 1820 - Robert Brown observed a nucleus in orchid cells


History2

History

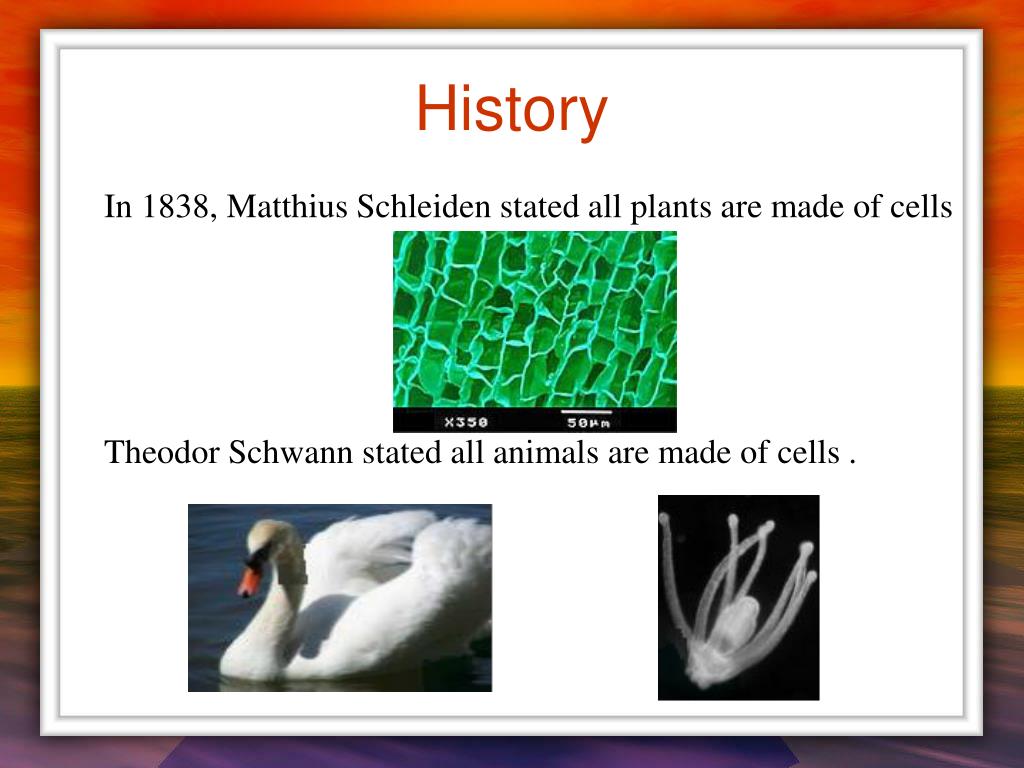

In 1838, Matthius Schleiden stated all plants are made of cells

Theodor Schwann stated all animals are made of cells .


Cell theory 3 parts

Cell Theory - 3 parts

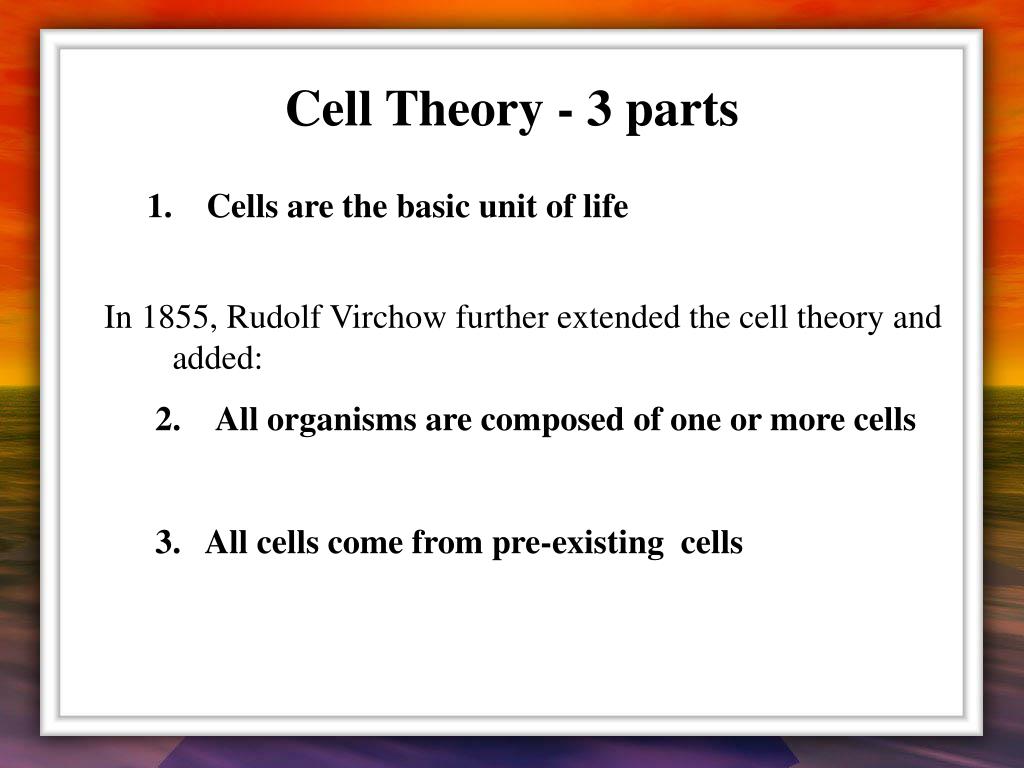

1.Cells are the basic unit of life

In 1855, Rudolf Virchow further extended the cell theory and added:

  • All organisms are composed of one or more cells

    3. All cells come from pre-existing cells


How a microscope works

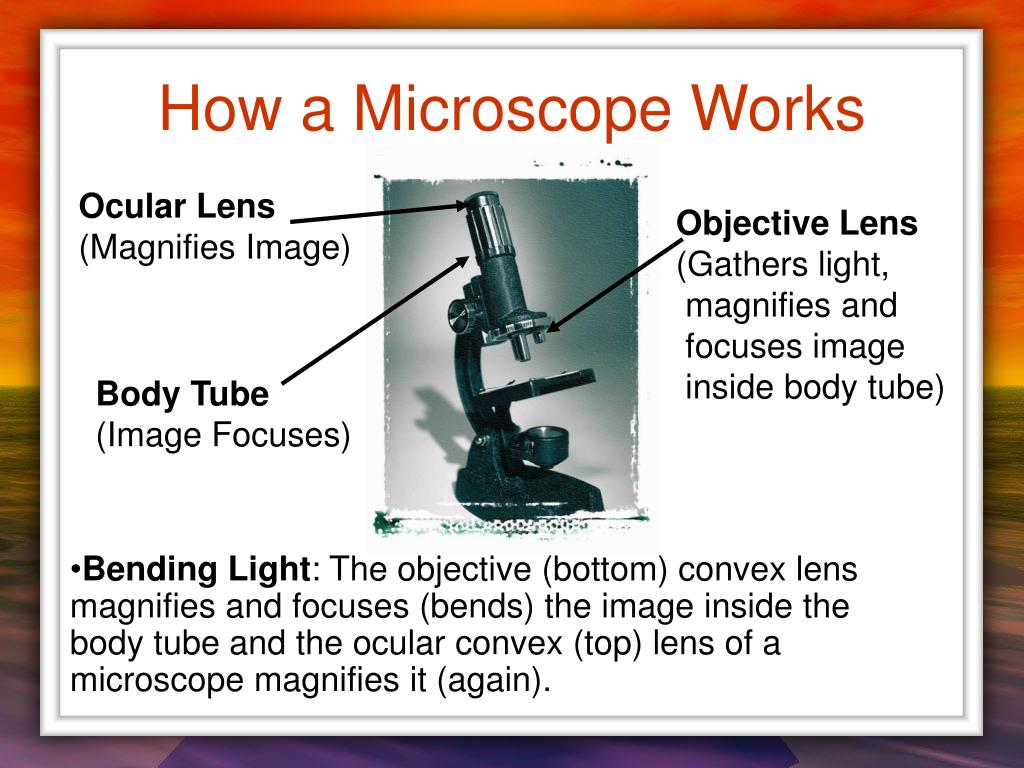

How a Microscope Works

Convex Lenses are

curved glass used to make microscopes

(and glasses etc.)

Convex Lenses bend

light and focus it in

one spot.


How a microscope works1

How a Microscope Works

Ocular Lens

(Magnifies Image)

Objective Lens

(Gathers light,

magnifies and

focuses image

inside body tube)

Body Tube

(Image Focuses)

  • Bending Light: The objective (bottom) convex lens magnifies and focuses (bends) the image inside the body tube and the ocular convex (top) lens of a microscope magnifies it (again).


The parts of a microscope

The Parts of a Microscope


Body tube

Body Tube

  • 1.The body tube holds the objective

    lenses and the ocular lens at the proper distance

Diagram

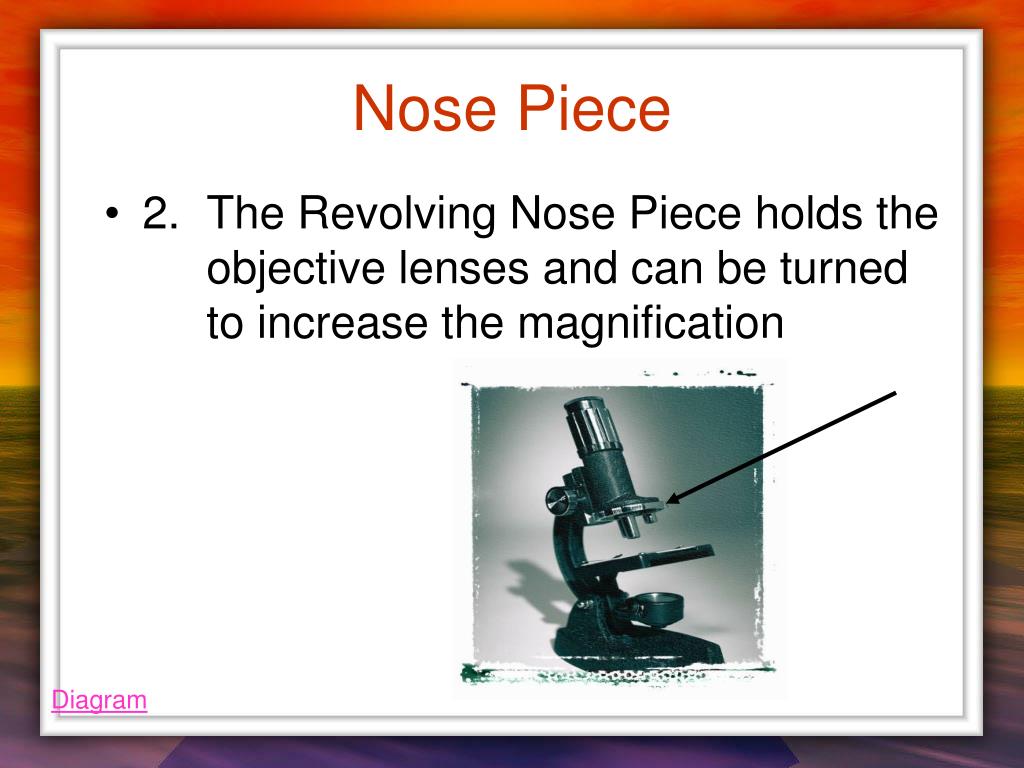

Nose piece

Nose Piece

  • 2.The Revolving Nose Piece holds the objective lenses and can be turned to increase the magnification

Diagram

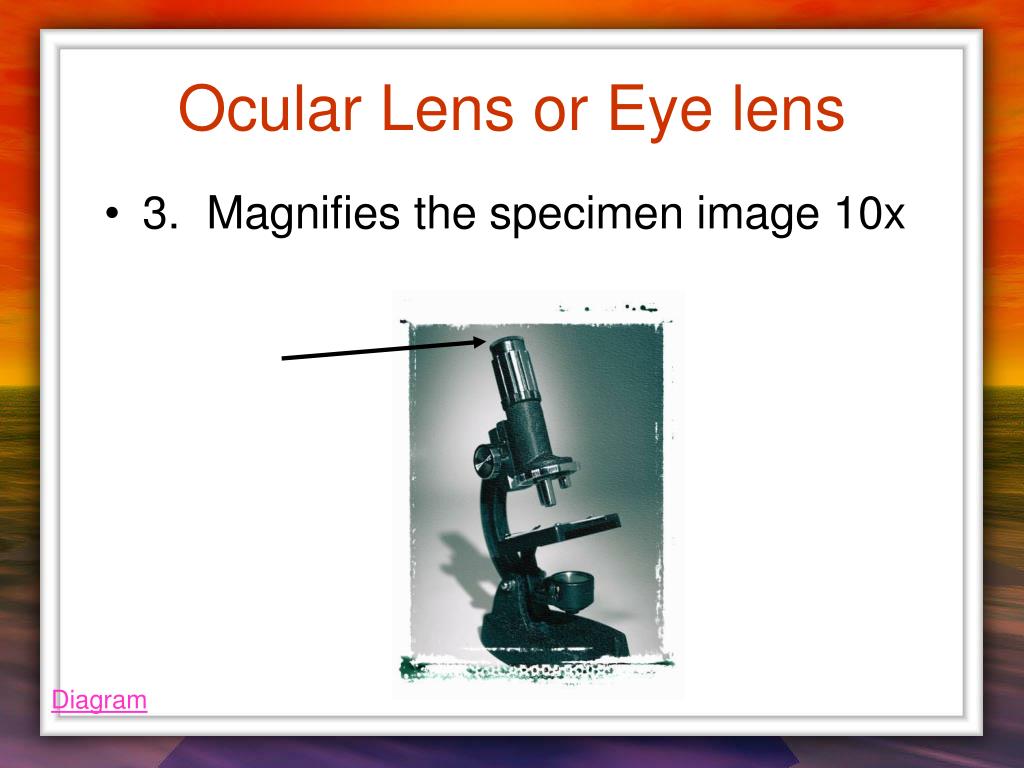

Ocular lens or eye lens

Ocular Lens or Eye lens

  • 3.Magnifies the specimen image 10x

Diagram


Objective lenses

Objective Lenses

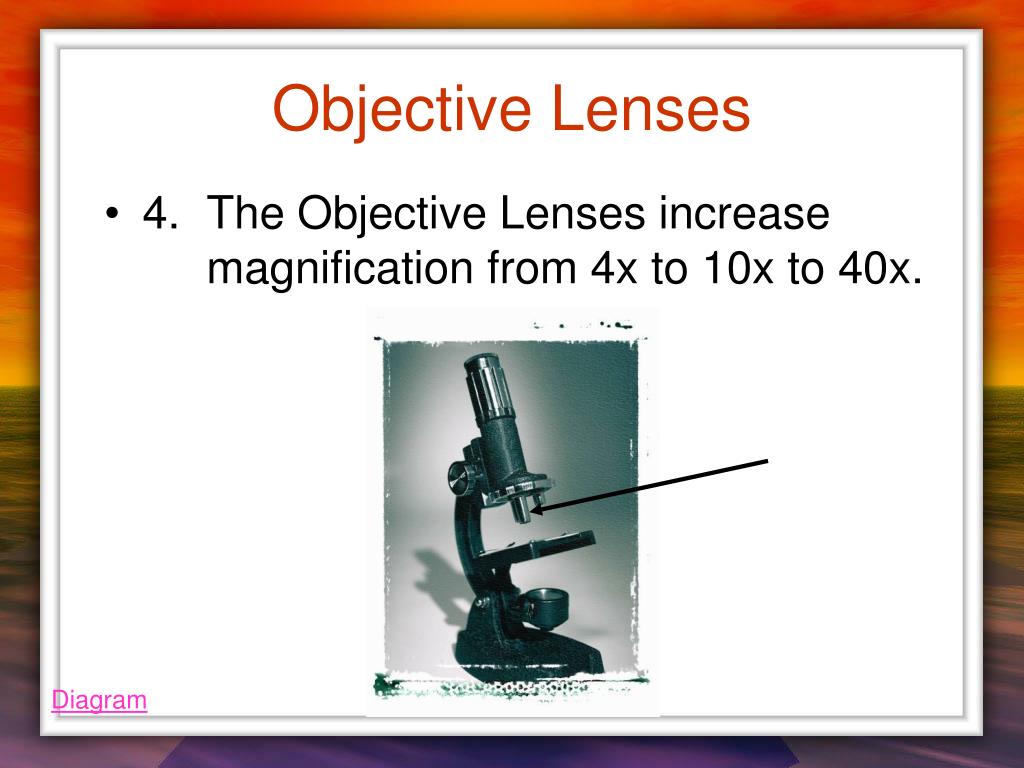

  • 4.The Objective Lenses increase magnification from 4x to 10x to 40x.

Diagram


Stage clips

Stage Clips

  • 5.These 2 clips hold the slide/specimen in place on the stage.

Diagram


Diaphragm

Diaphragm

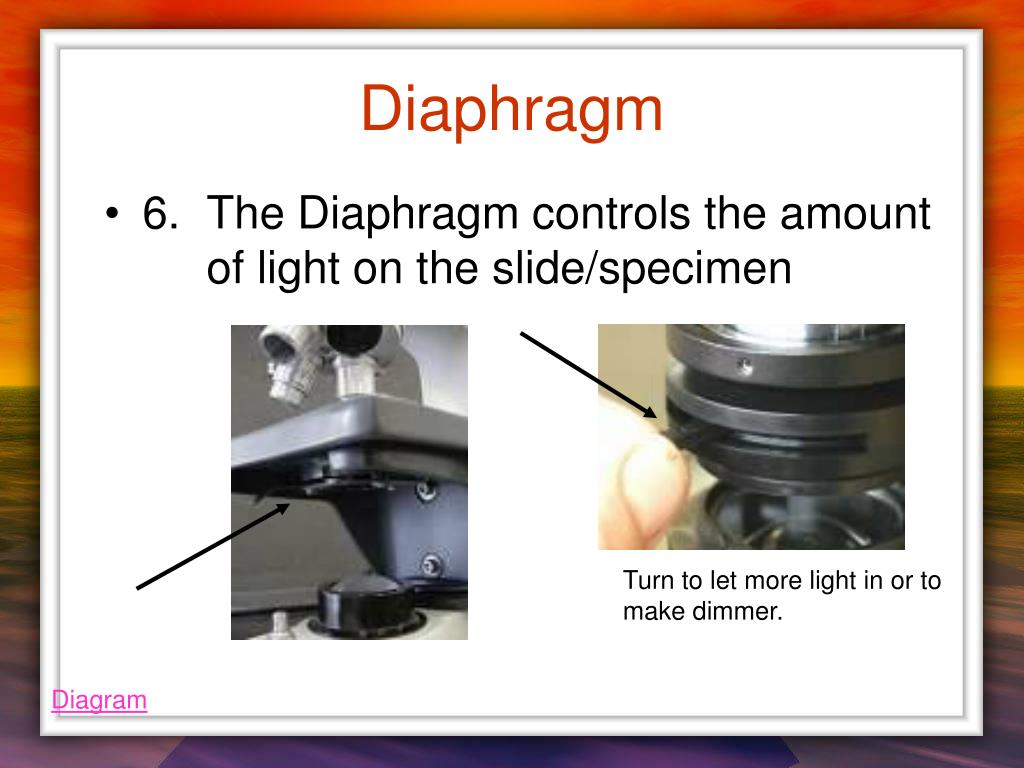

  • 6.The Diaphragm controls the amount of light on the slide/specimen

Turn to let more light in or to

make dimmer.

Diagram

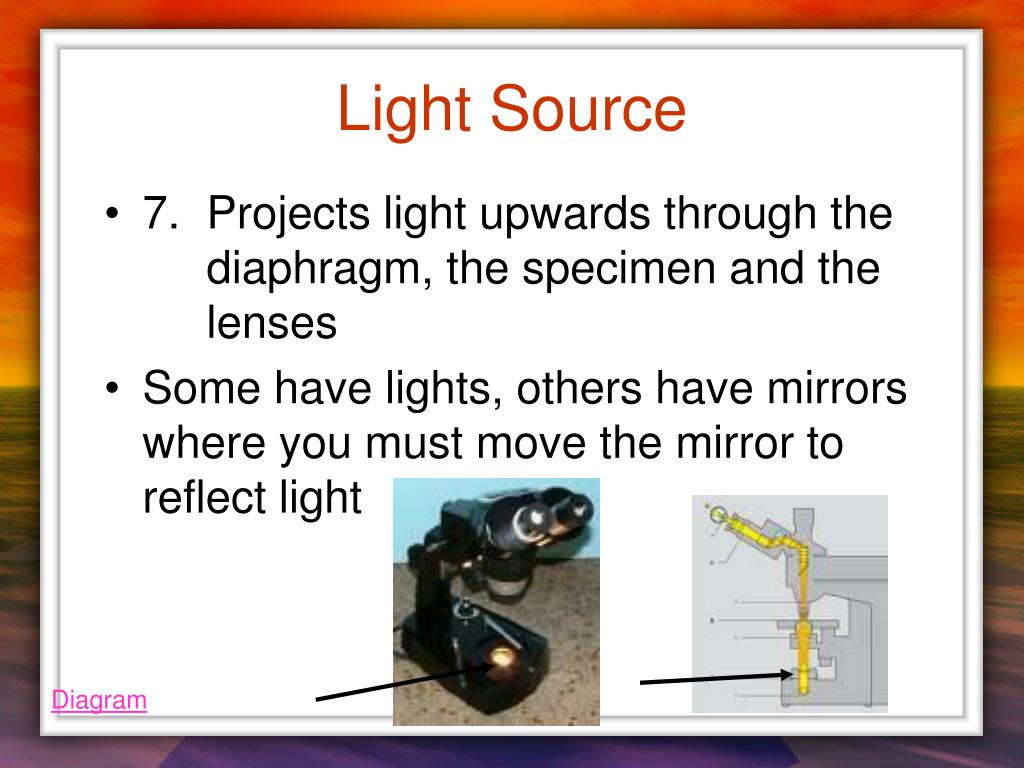

Light source

Light Source

  • 7.Projects light upwards through the diaphragm, the specimen and the lenses

  • Some have lights, others have mirrors where you must move the mirror to reflect light

Diagram


The microscope

Arm

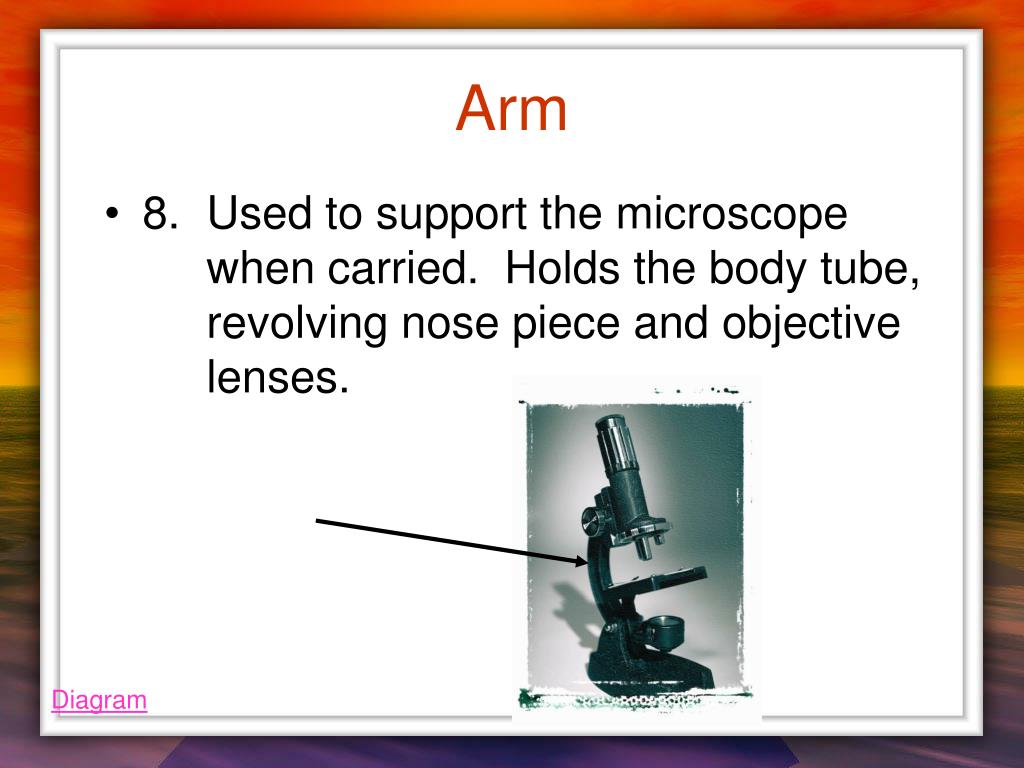

  • 8.Used to support the microscope when carried. Holds the body tube, revolving nose piece and objective lenses.

Diagram


Stage

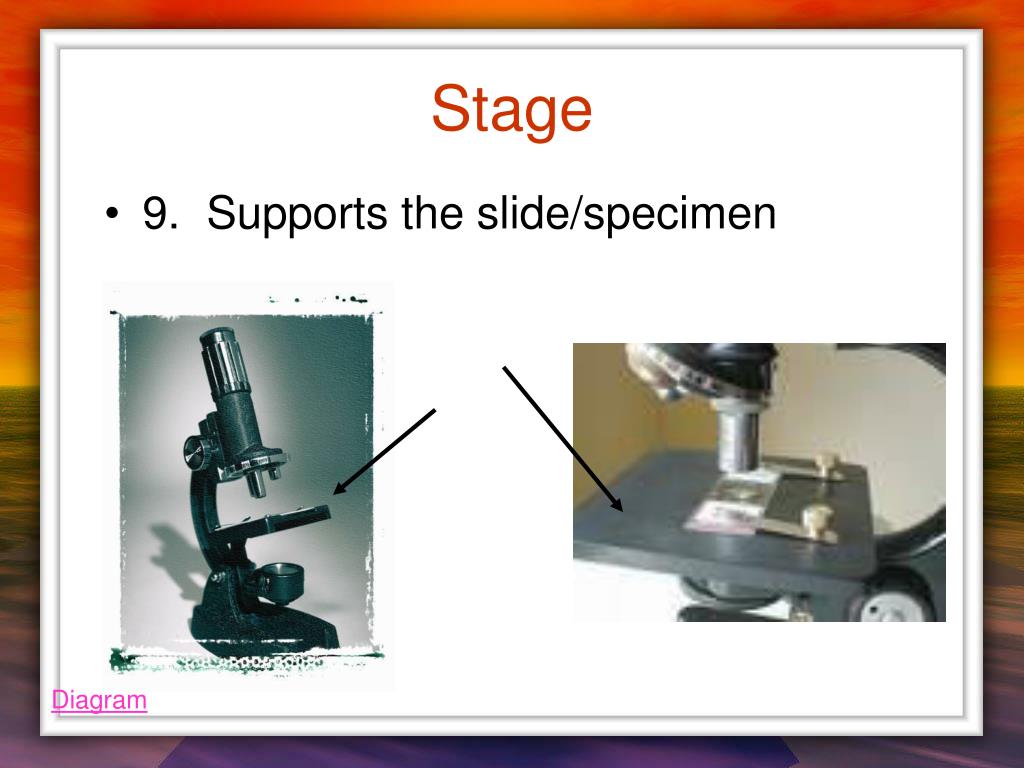

Stage

  • 9.Supports the slide/specimen

Diagram


Coarse adjustment knob

Coarse Adjustment Knob

  • 10. Moves the stage up and down (quickly) for focusing your image.

  • Never use coarse adjustment under high power!!!!!

Diagram


Fine adjustment knob

Fine Adjustment Knob

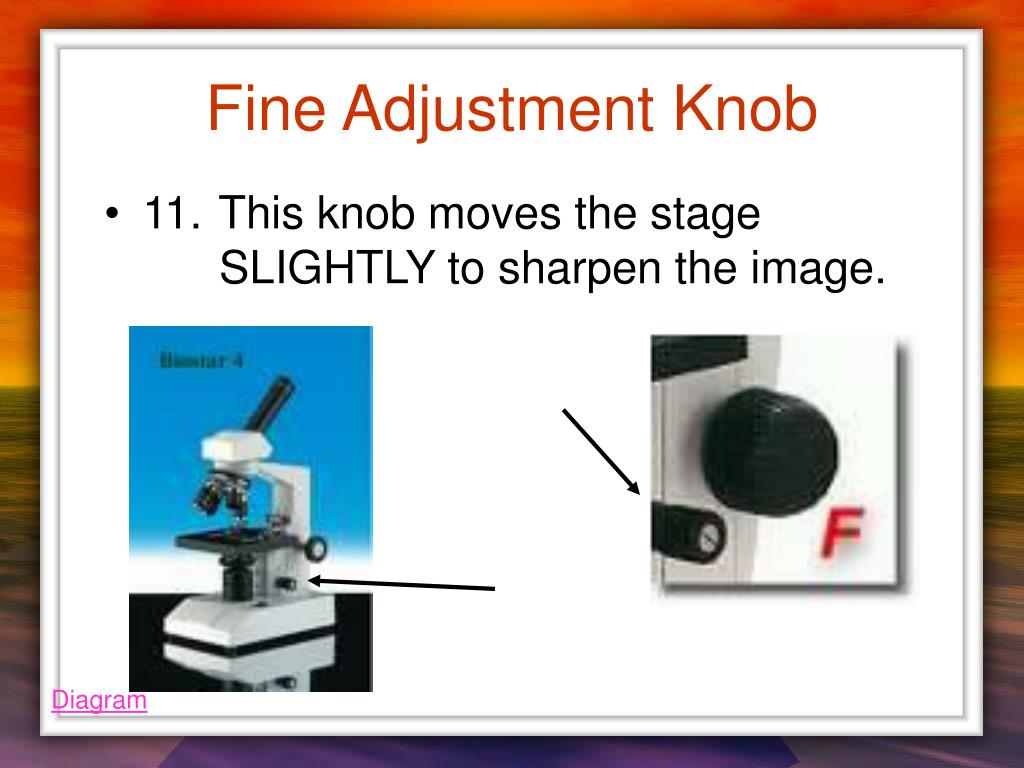

  • 11. This knob moves the stage SLIGHTLY to sharpen the image.

Diagram


The microscope

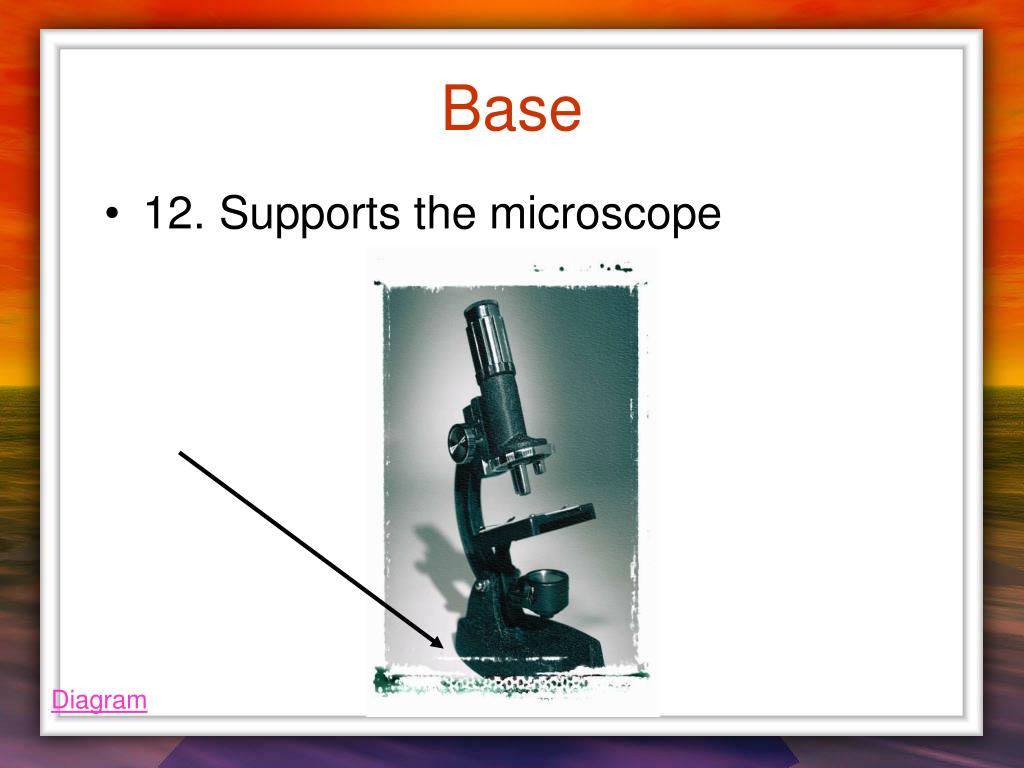

Base

  • 12. Supports the microscope

Diagram


Magnification

Magnification


Magnification1

Magnification

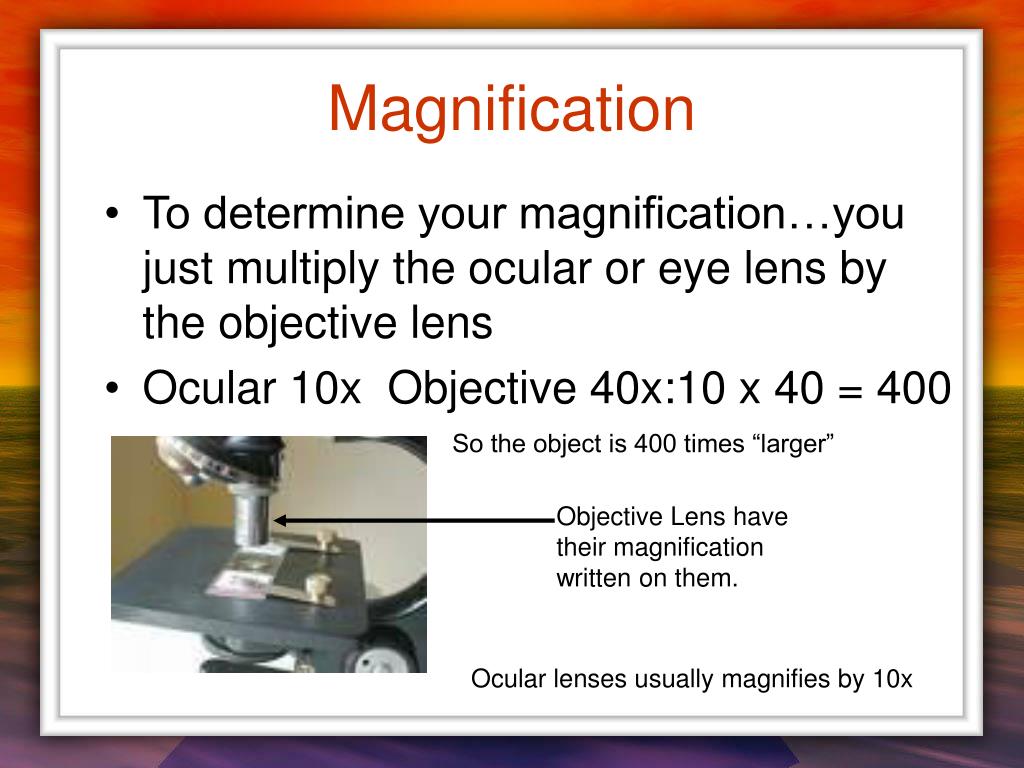

  • To determine your magnification…you just multiply the ocular or eye lens by the objective lens

  • Ocular 10x Objective 40x:10 x 40 = 400

So the object is 400 times “larger”

Objective Lens have

their magnification

written on them.

Ocular lenses usually magnifies by 10x

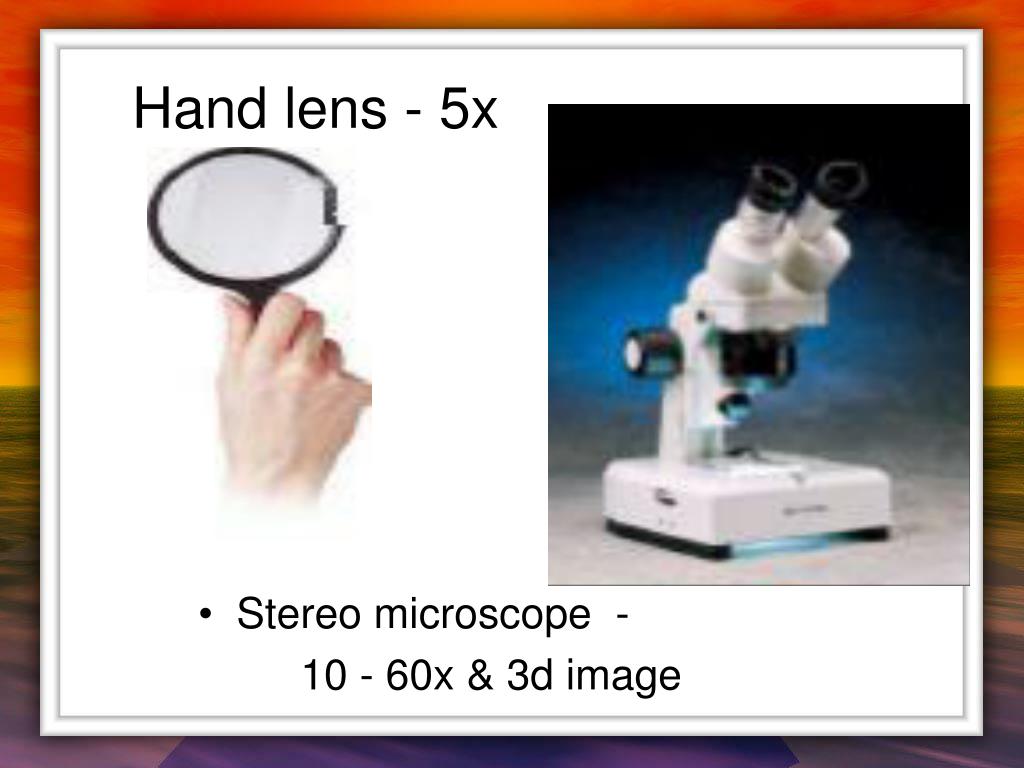

Hand lens 5x

Hand lens - 5x

  • Stereo microscope -

    10 - 60x & 3d image


Electron microscope can focus up 500 000x

Electron Microscopecan focus up 500,000x


Tunneling cell parts organells

Tunneling - cell parts/organells

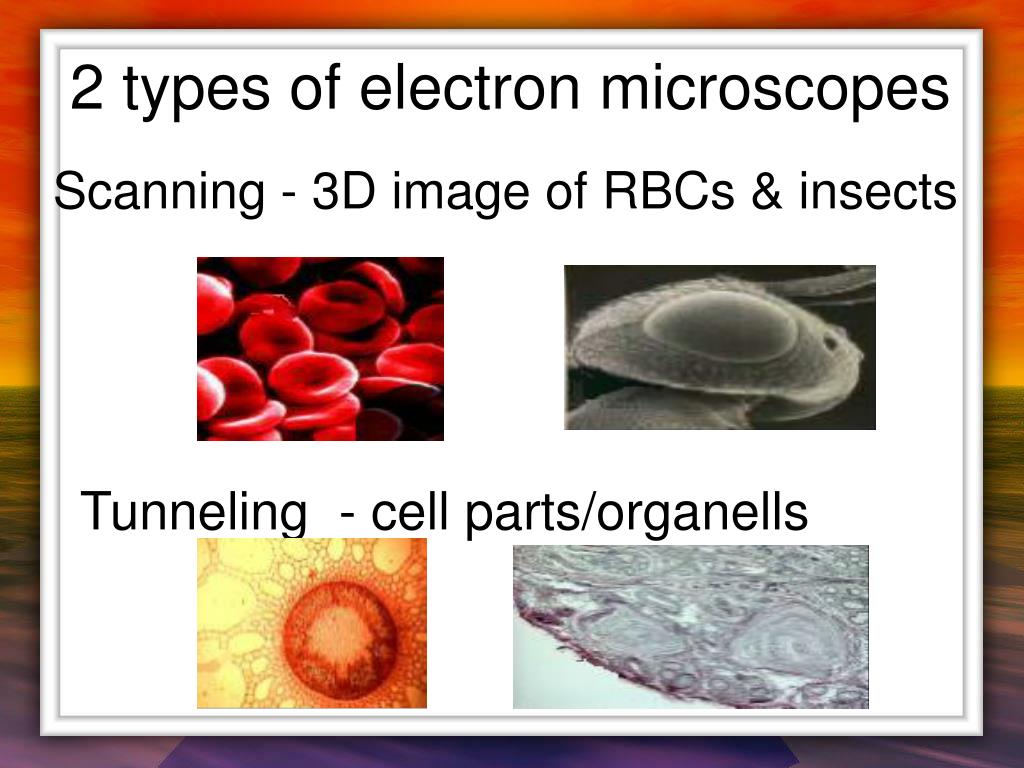

2 types of electron microscopes

Scanning - 3D image of RBCs & insects


The microscope

Ocular Lens

or eye lens

Body Tube

Nose Piece

Arm

Objective

Lenses

Stage

Stage Clips

Coarse Adjustment.

Diaphragm

Fine Adjustment

Light Source

Base

Skip to Magnification Section


Using a microscope

Using a Microscope

  • Start on the lowest magnification

  • Don’t use the coarse adjustment knob on high magnification…you’ll break the slide!!!

  • Place slide on stage and lock clips

  • Adjust light source (if it’s a mirror…don’t stand in front of it!)

  • Use fine adjustment to focus

  • Use diaghram for light intensity


Caring for a microscope

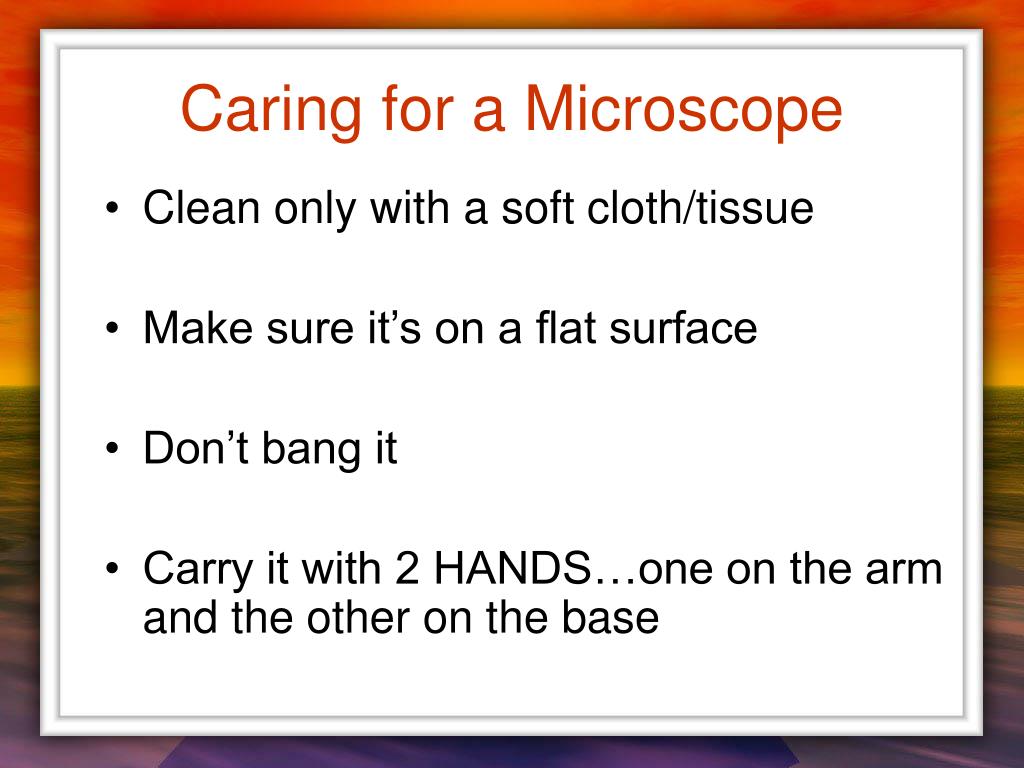

Caring for a Microscope

  • Clean only with a soft cloth/tissue

  • Make sure it’s on a flat surface

  • Don’t bang it

  • Carry it with 2 HANDS…one on the arm and the other on the base


Carry a microscope correctly

Carry a Microscope Correctly


References

References

  • http://www.cerebromente.org.br/n17/history/neurons1_i.htm

  • Google Images

  • http://science.howstuffworks.com/light-microscope1.htm
