Ocean & Atmospheric circulation redux

Ocean & Atmospheric circulation redux. 1) Unequal planetary heating creates pressure gradients which make winds blow on ocean surface in trade-wind & westerly patterns due to balance of pressure gradient and Coriolis effect. Ocean & Atmospheric circulation redux.

deanna-hancock
Download Presentation

Ocean & Atmospheric circulation redux

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ocean & Atmospheric circulation redux 1) Unequal planetary heating creates pressure gradients which make winds blow on ocean surface in trade-wind & westerly patterns due to balance of pressure gradient and Coriolis effect.

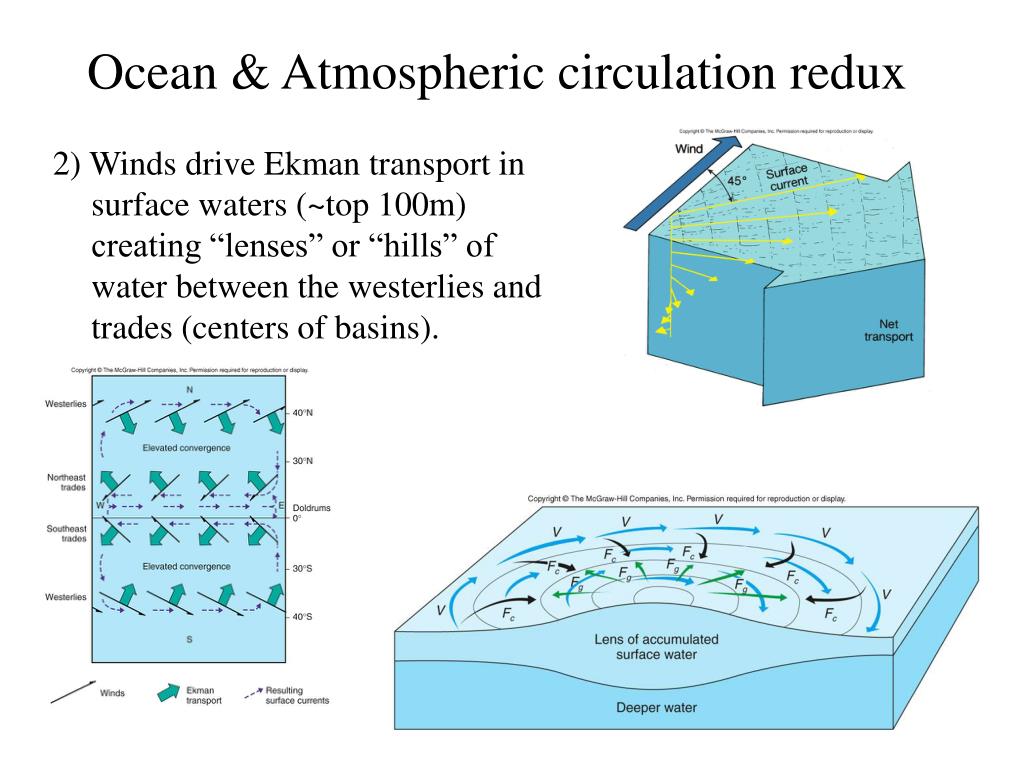

  2. Ocean & Atmospheric circulation redux 2) Winds drive Ekman transport in surface waters (~top 100m) creating “lenses” or “hills” of water between the westerlies and trades (centers of basins).

  3. Ocean & Atmospheric circulation redux 3) Gravity drives water downhill (pressure gradient) and Coriolis effect balances it to create geostrophic flow in circles around the center. Note that this flow is like a fly-wheel compared to the winds in the atmosphere...it responds to changes (such as storms, etc.) very slowly and will keep going for long time even after wind stress stops.

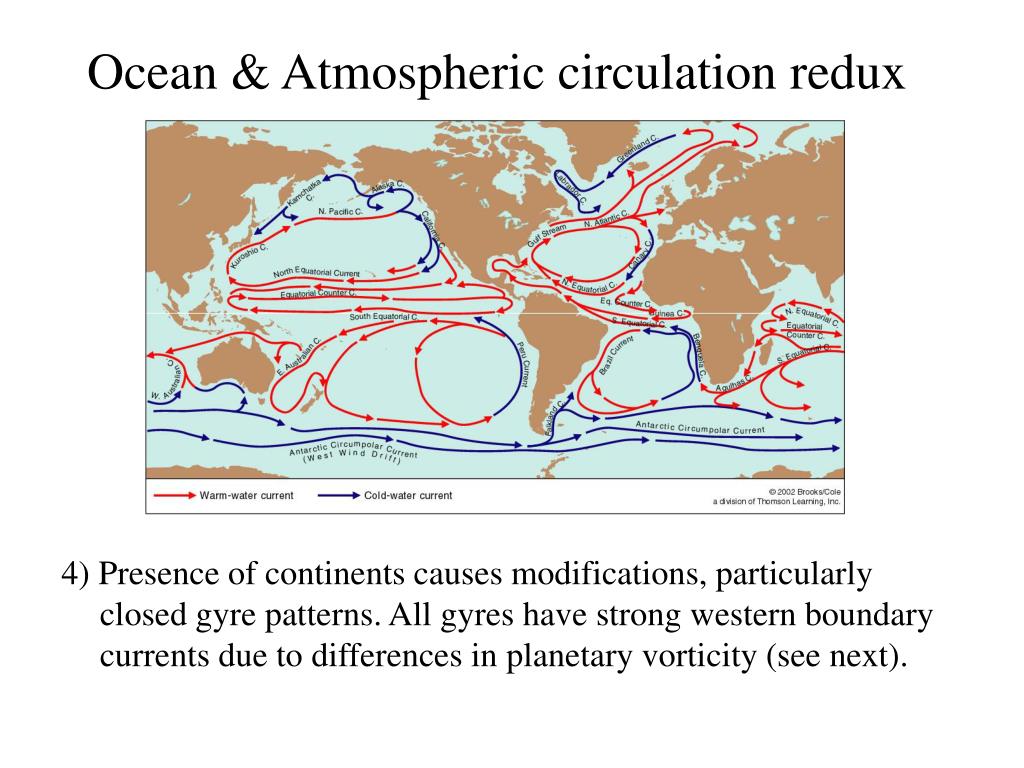

  4. Ocean & Atmospheric circulation redux 4) Presence of continents causes modifications, particularly closed gyre patterns. All gyres have strong western boundary currents due to differences in planetary vorticity (see next).

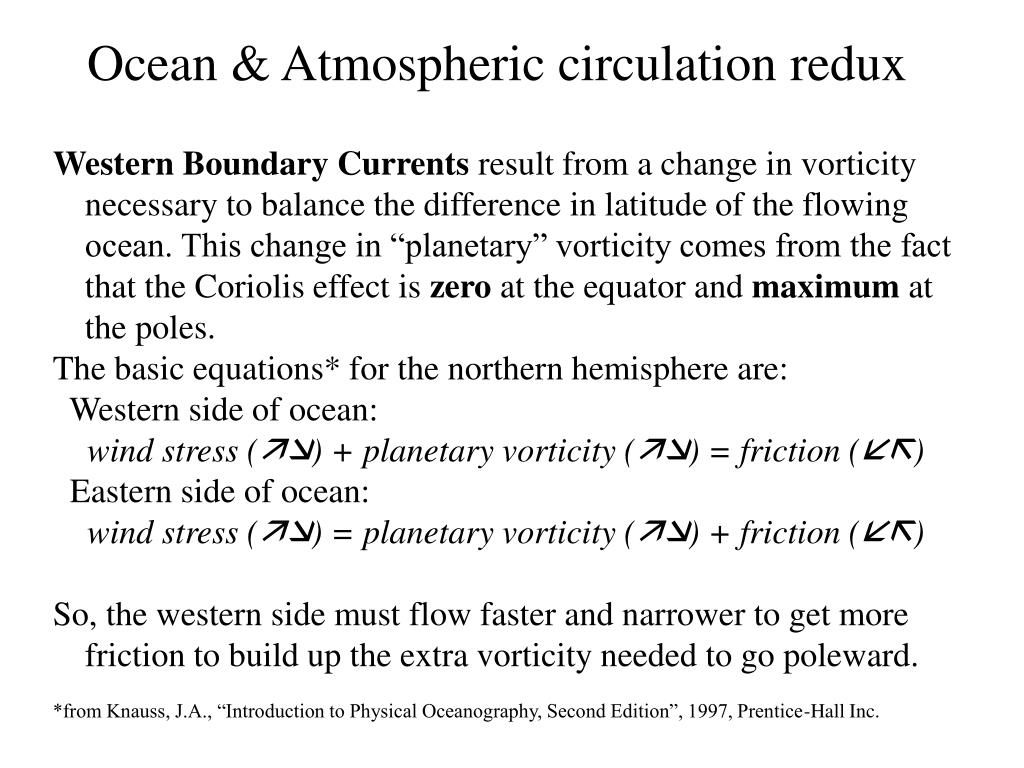

  5. Ocean & Atmospheric circulation redux Western Boundary Currents result from a change in vorticity necessary to balance the difference in latitude of the flowing ocean. This change in “planetary” vorticity comes from the fact that the Coriolis effect is zero at the equator and maximum at the poles. The basic equations* for the northern hemisphere are: Western side of ocean: wind stress () + planetary vorticity () = friction () Eastern side of ocean: wind stress () = planetary vorticity () + friction () So, the western side must flow faster and narrower to get more friction to build up the extra vorticity needed to go poleward. *from Knauss, J.A., “Introduction to Physical Oceanography, Second Edition”, 1997, Prentice-Hall Inc.
