  1. From Geneto Protein: An exercise in breaking the code

  2. New copy (RNA) is read and translated Genes (DNA) Make copies of itself www.squidoo.com/geneticsresearch Amino acids (protein) are formed A trait is expressed VC: What is phenotype

  3. Cracking the Code DNA VC: Cracking the code copied and read RNA translated http://entomology.wisc.edu/~goodman/wgr...rch.html PROTEIN

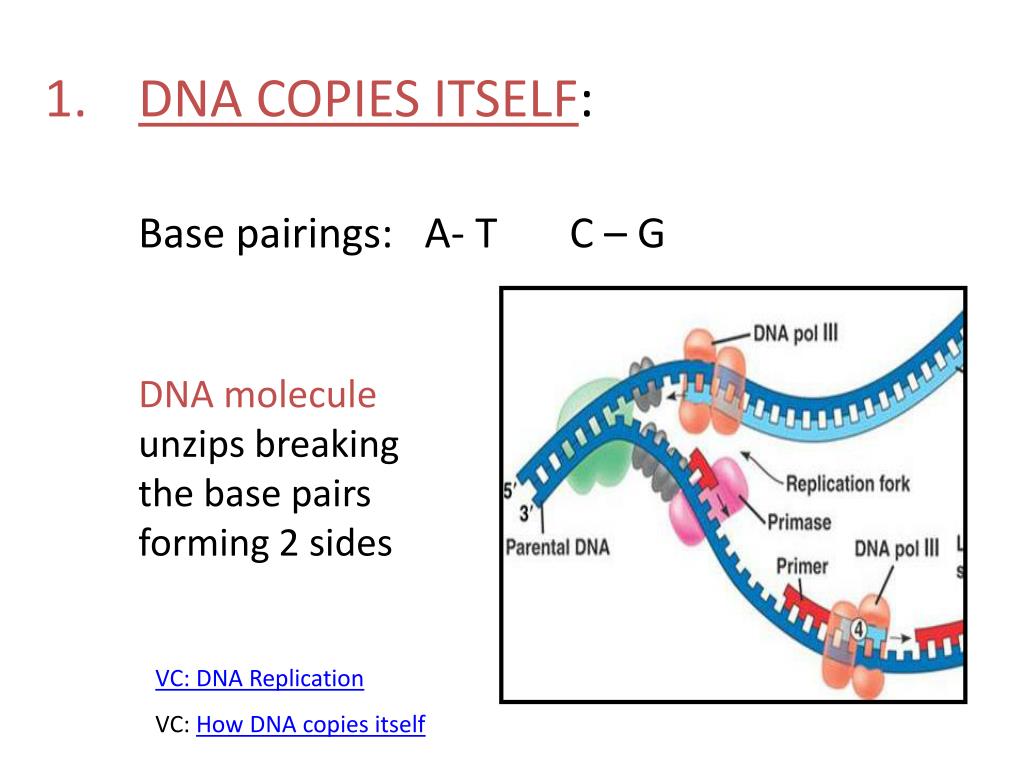

  4. DNA COPIES ITSELF:Base pairings: A- T C – GDNA moleculeunzips breaking the base pairs forming 2 sides VC: DNA Replication VC: How DNA copies itself

  5. A: TACCGGATGCCAGATCAAATCWhat is the other side?__________________________ Given the code of a DNA molecule, what would be the code of the new DNA strand? B: TACGGGGGCGTAACCACAACTWhat is the other side?__________________________

  6. A: TACCGGATGCCAGATCAAATCWhat is the other side? Given the code of a DNA molecule, what would be the code of the new DNA strand? ATGGCCTACGGTCTAGTTTAG B: TACGGGGGCGTAACCACAACTWhat is the other side?ATGCCCCCGCATTGGTGTTGA

  7. 2.CODE IS READ into RNA. The code of the new strand (DNA copy) is READwith theT replaced with a new base Uracil or U to make RNA. From #1: (DNA copy) ATGGCCTACGGTCTAGTTTAG A: ____________________________________ B: ____________________________________

  8. 2.CODE IS READ. The code of the new strand (DNA copy) is READwith theT replaced with a new base Uracil or U. ATGGCCTACGGTCTAGTTTAG A: ____________________________________ ATGCCCCCGCATTGGTGTTGA B: ____________________________________ AUGGCCUACGGUCUAGUUUAG AUGCCCCCGCAUUGGUGUUGA

  9. VC: From DNA to protein

  10. 3. CODE IS TRANSLATED. The code is read in groups of 3 called codons). AUGGCCUACGGUCUAGUUUAG A: ____________________________________ B: ____________________________________

  11. 3. CODE IS TRANSLATED. The code is read in groups of 3 called codons). AUGGCCUACGGUCUAGUUUAG A: ____________________________________ B: ____________________________________ AUG GCC UAC GGU CUA GUU UAG AUGCCCCCGCAUUGGUGUUGA AUG CCC CCG CAU UGG UGU UGA

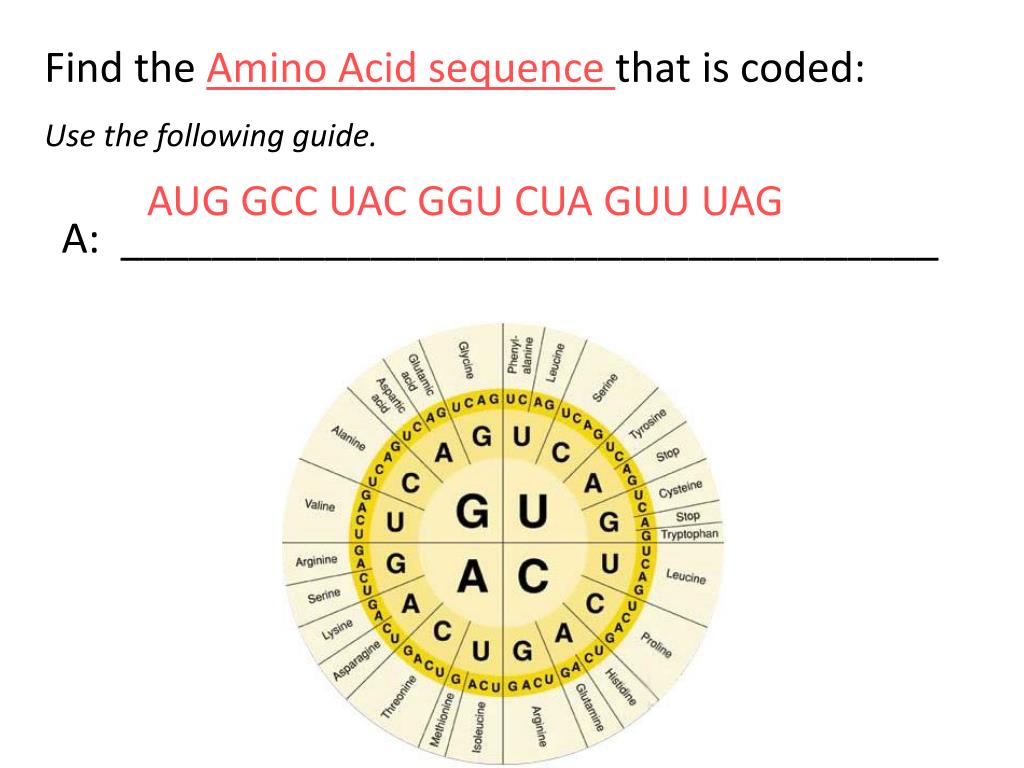

  12. Find the Amino Acid sequence that is coded: Use the following guide. AUG GCC UAC GGU CUA GUU UAG A: ____________________________________

  13. AMINO ACID SEQUENCE AUG GCC UAC GGU A: Methionine-Alanine-Tyrosine-Glycine- CUA GUU UAG Leucine-Valine-Stop

  14. AMINO ACID SEQUENCE AUG GCC UAC GGU CUA GUU UAG A: Methionine-Alanine-Tyrosine-Glycine- Leucine-Valine-Stop B: Methionine-Proline-Proline-Histidine- Tryptophan-Cysteine-Stop AUG CCC CCG CAU UGG UGU UGA

  15. Cracking the Code DNA VC: Cracking the code copied and read RNA translated http://entomology.wisc.edu/~goodman/wgr...rch.html PROTEIN

  16. New copy (RNA) is read and translated Genes(DNA) Make copies of itself Crossover (mixing of code) www.squidoo.com/geneticsresearch Amino acids (protein) are formed A trait is expressed VC: What is phenotype
