Stellar linearity test

Stellar Linearity Test

Jason Surace (Spitzer Science Center)


Irac linearization pre launch

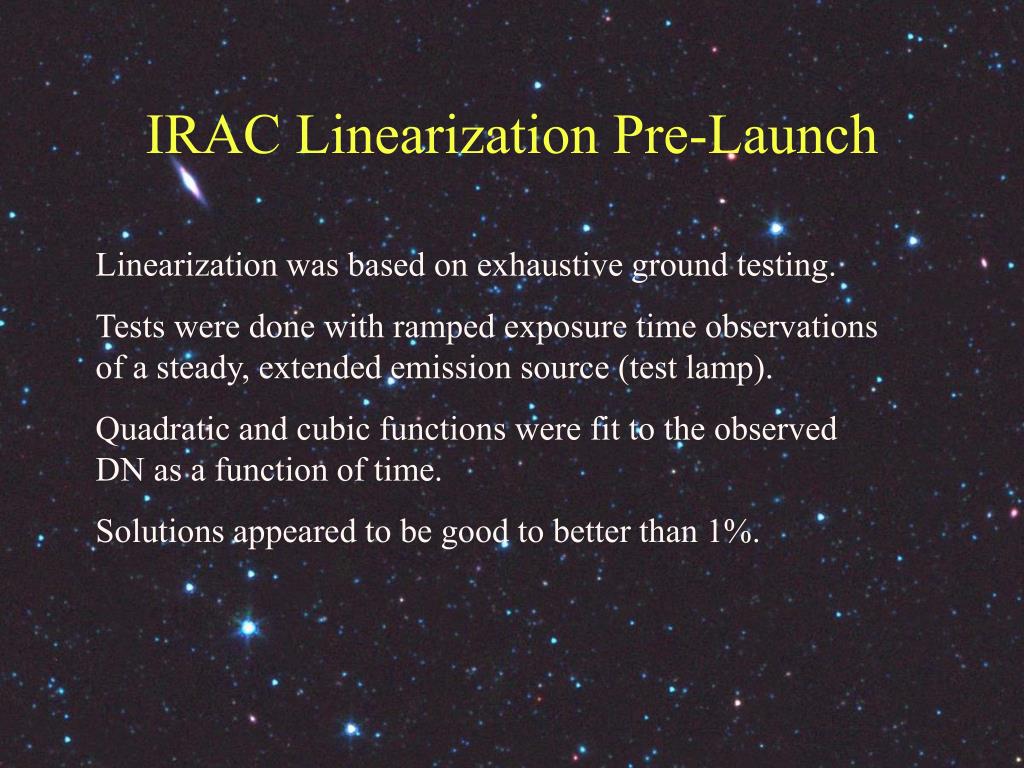

IRAC Linearization Pre-Launch

Linearization was based on exhaustive ground testing.

Tests were done with ramped exposure time observations of a steady, extended emission source (test lamp).

Quadratic and cubic functions were fit to the observed DN as a function of time.

Solutions appeared to be good to better than 1%.


Irac linearization post launch

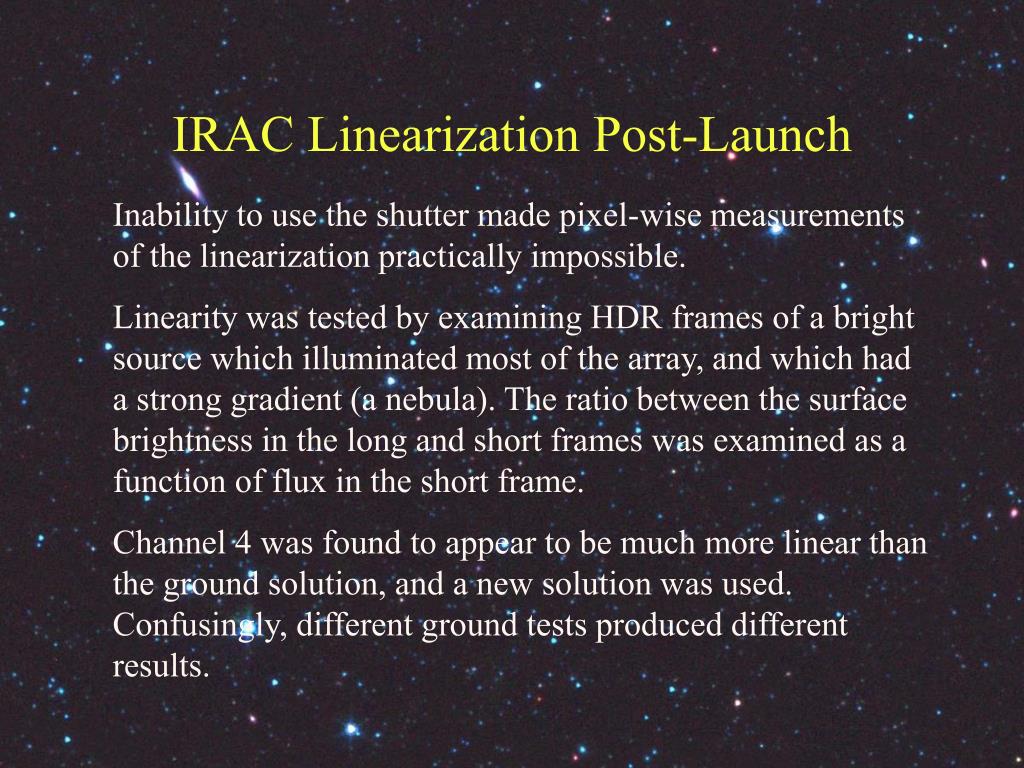

IRAC Linearization Post-Launch

Inability to use the shutter made pixel-wise measurements of the linearization practically impossible.

Linearity was tested by examining HDR frames of a bright source which illuminated most of the array, and which had a strong gradient (a nebula). The ratio between the surface brightness in the long and short frames was examined as a function of flux in the short frame.

Channel 4 was found to appear to be much more linear than the ground solution, and a new solution was used. Confusingly, different ground tests produced different results.


Stellar test

Stellar Test

IERs made from AOR templates.

Step over array, with gauss 5 dither and offsets to separate each observations, to minimize latent image problems.

Stack of all observations


Stellar test target selection

Stellar Test: Target Selection

Target selection difficult, yet critical to success.

Stars need to saturate in 10-15 seconds.

Test from 1/3 to 3x full well depth.

Had to use different stars for InSb and Si:As channels.

Needed stars actually visible, and had been previously observed. Settled on IOC CVZ calibrators


Data reduction

Data Reduction

Data processed with “pipe-0” - this applies basic reformatting, adds pointing.

Data further processed with on-line linearity correction module, flat-fielded, gain corrections applied.

IDL script locates stars, re-centers, extracts photometry using local background subtraction.

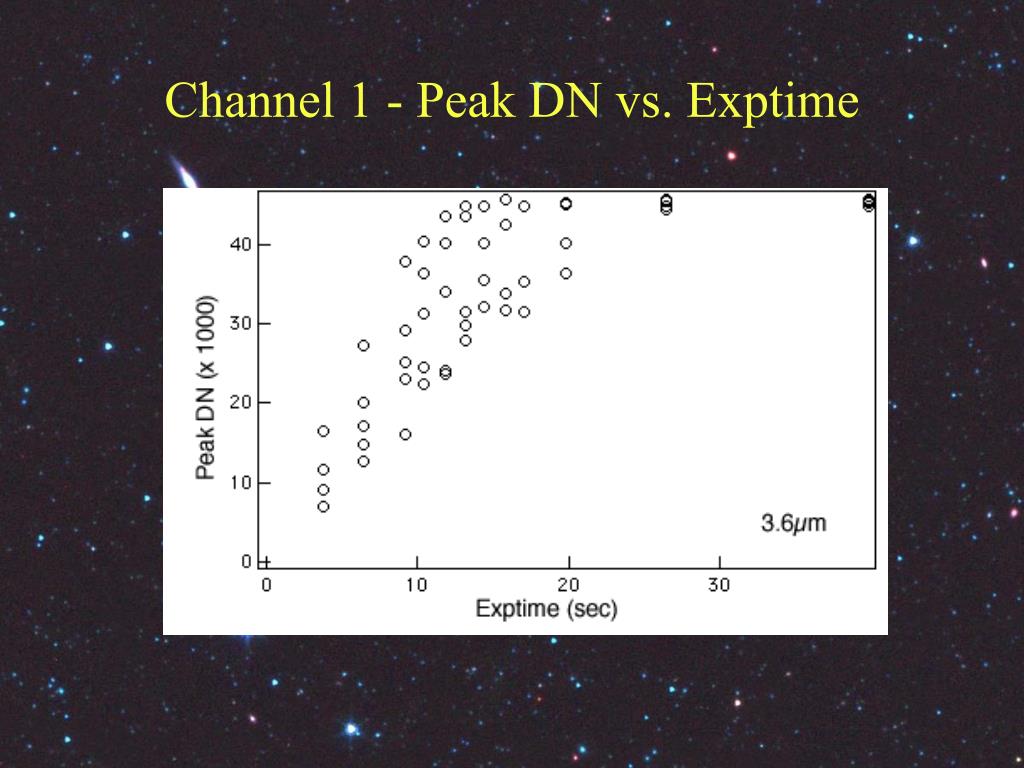

Channel 1 peak dn vs exptime

Channel 1 - Peak DN vs. Exptime

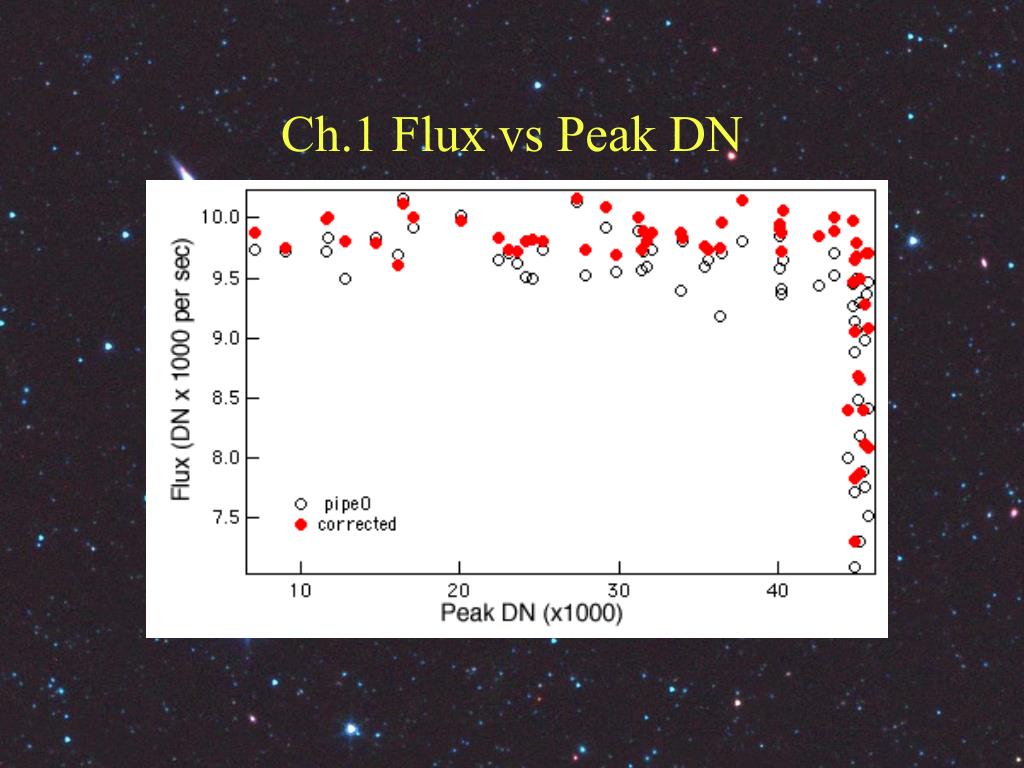

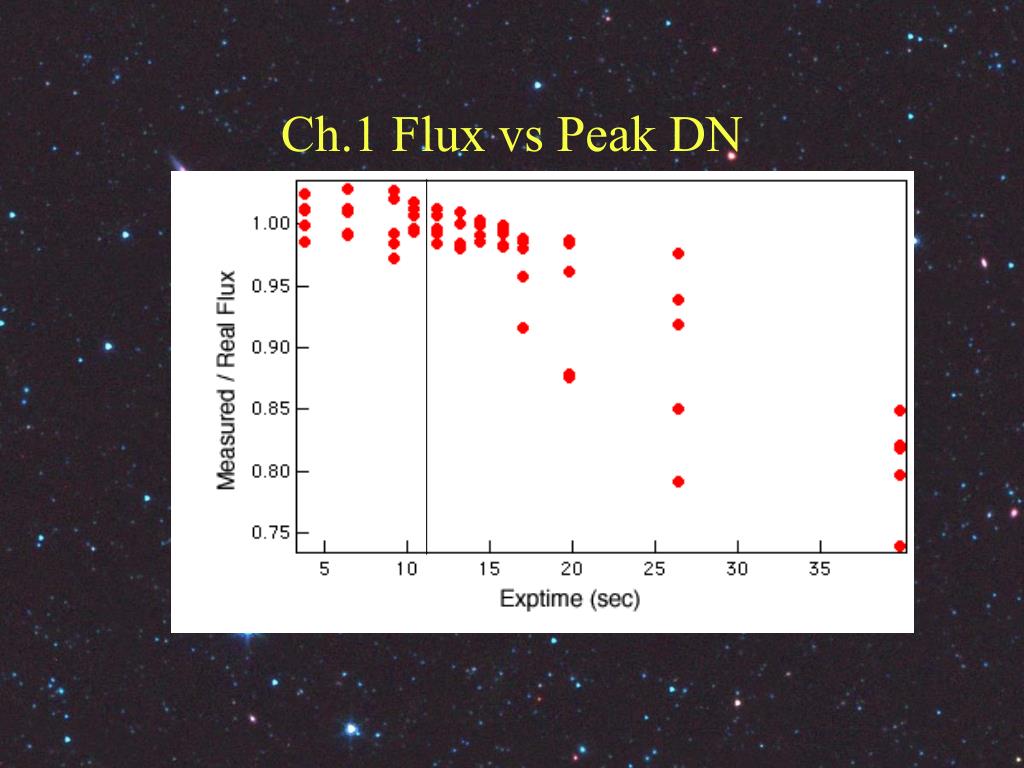

Ch 1 flux vs peak dn

Ch.1 Flux vs Peak DN


Ch 1 flux vs peak dn1

Ch.1 Flux vs Peak DN


Channel 2

Channel 2


Ch 2 flux vs peak dn

Ch.2 Flux vs Peak DN


Ch 2 flux vs exptime

Ch.2 Flux vs Exptime


Summary insb

Summary: InSb

Up until nearly full-well, the InSb channels are linearized to around 0.2%.

The “saturation level” is highly dependent on pixel phasing, due to the undersampling of the IRAC beam.

Saturation affects the central pixel first, and driving this well into saturation only results in flux underestimates of 20% or so.

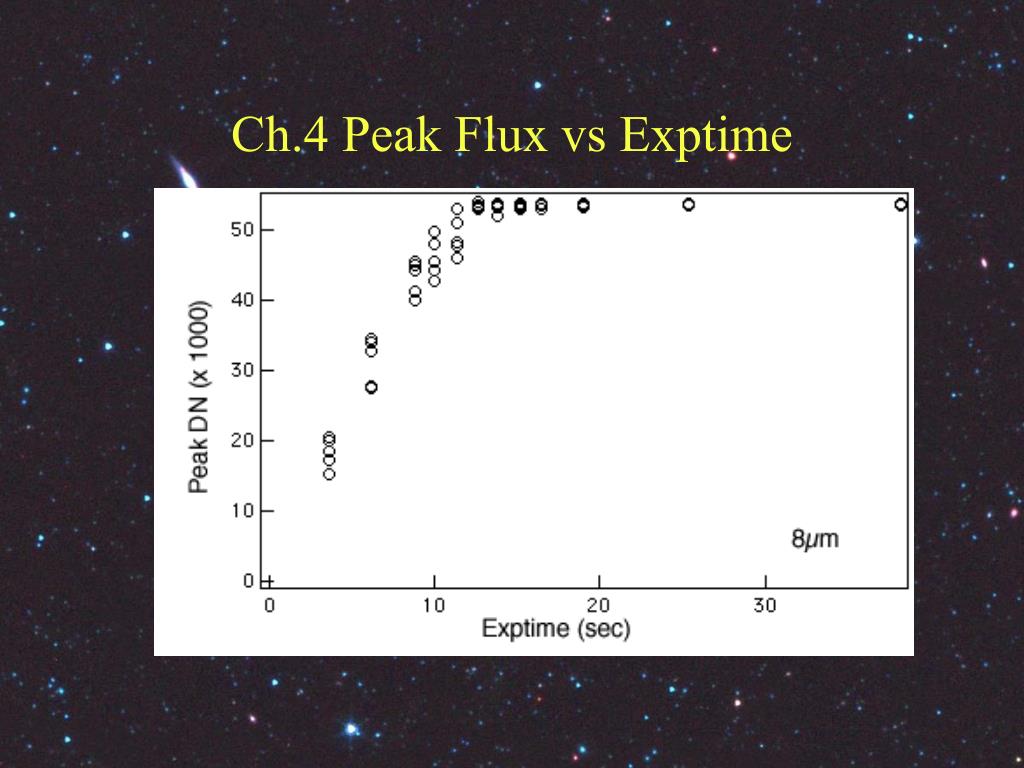

Ch 4 peak flux vs exptime

Ch.4 Peak Flux vs Exptime

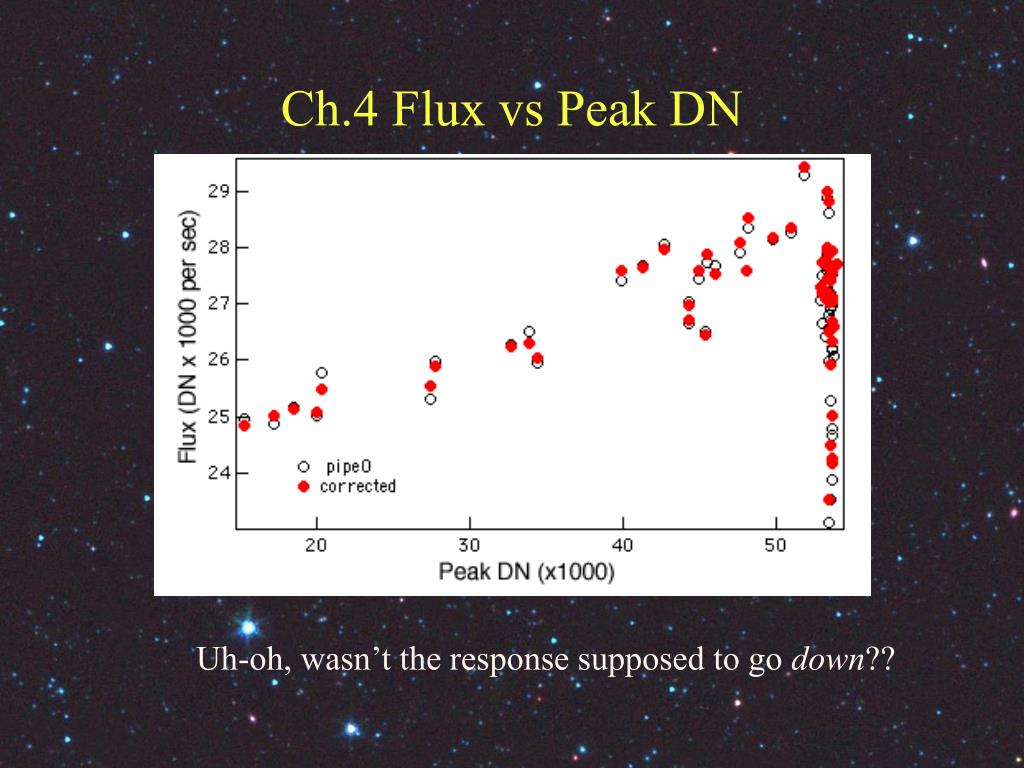

Ch 4 flux vs peak dn

Ch.4 Flux vs Peak DN

Uh-oh, wasn’t the response supposed to go down??

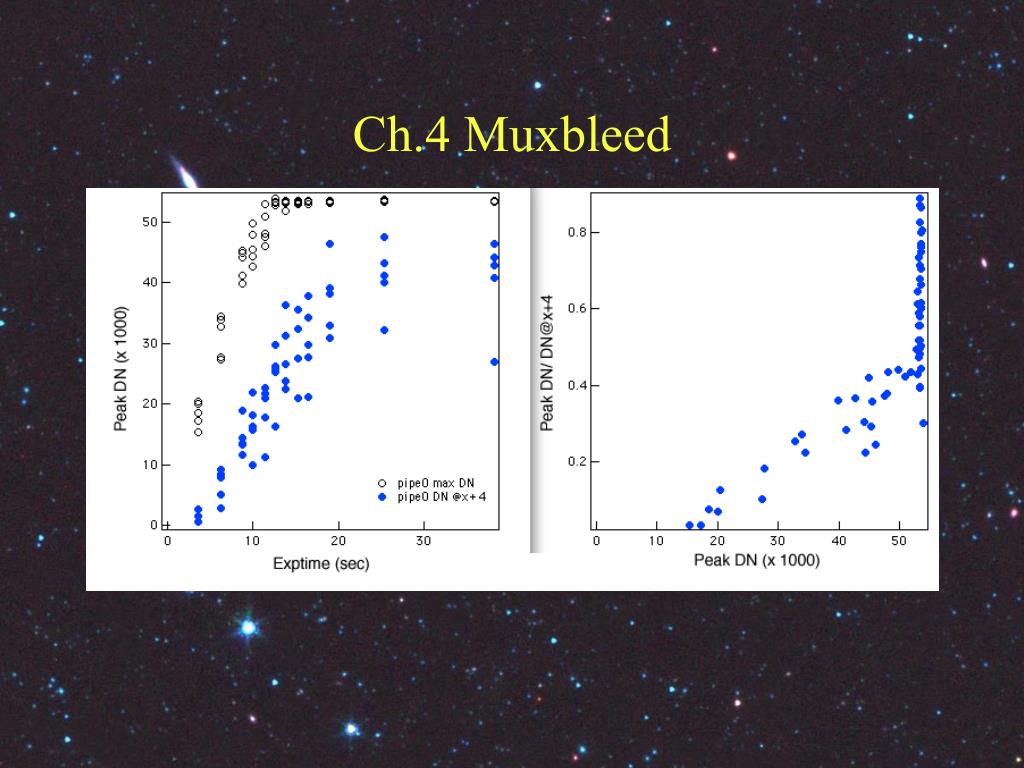

Ch 4 muxbleed

Ch.4 Muxbleed

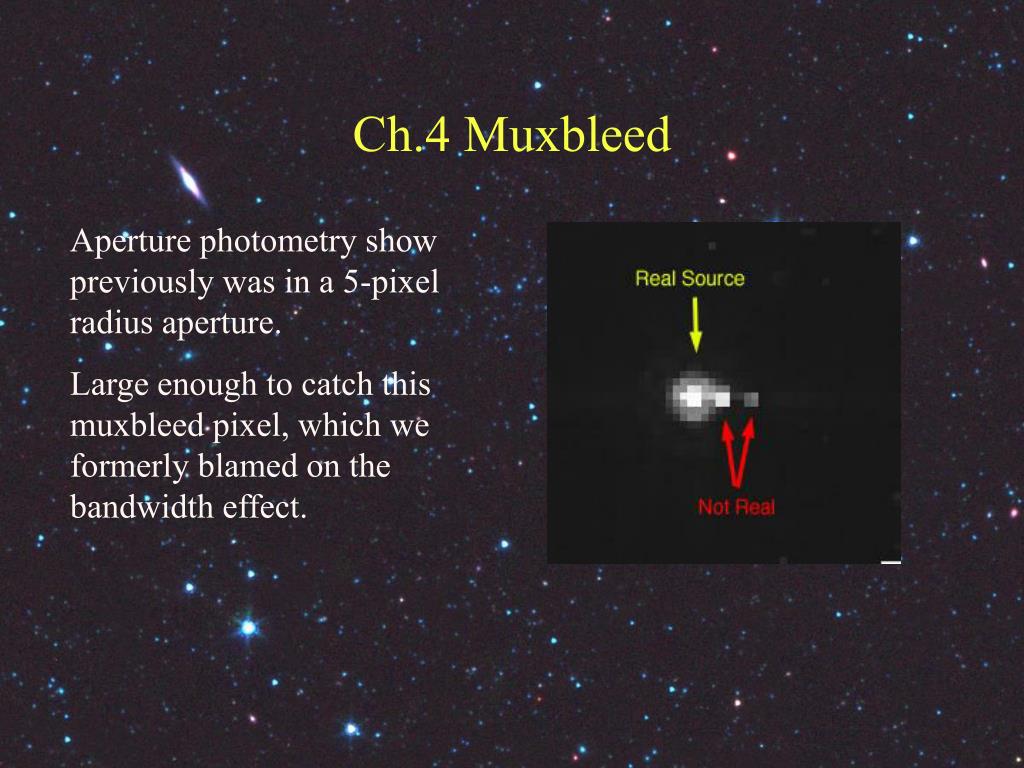

Aperture photometry show previously was in a 5-pixel radius aperture.

Large enough to catch this muxbleed pixel, which we formerly blamed on the bandwidth effect.


Ch 4 muxbleed1

Ch.4 Muxbleed


Ch 4 small ap flux vs peak dn

Ch.4 Small Ap. Flux vs Peak DN

The uncorrected data is totally linear! Not how it behaved on the ground!

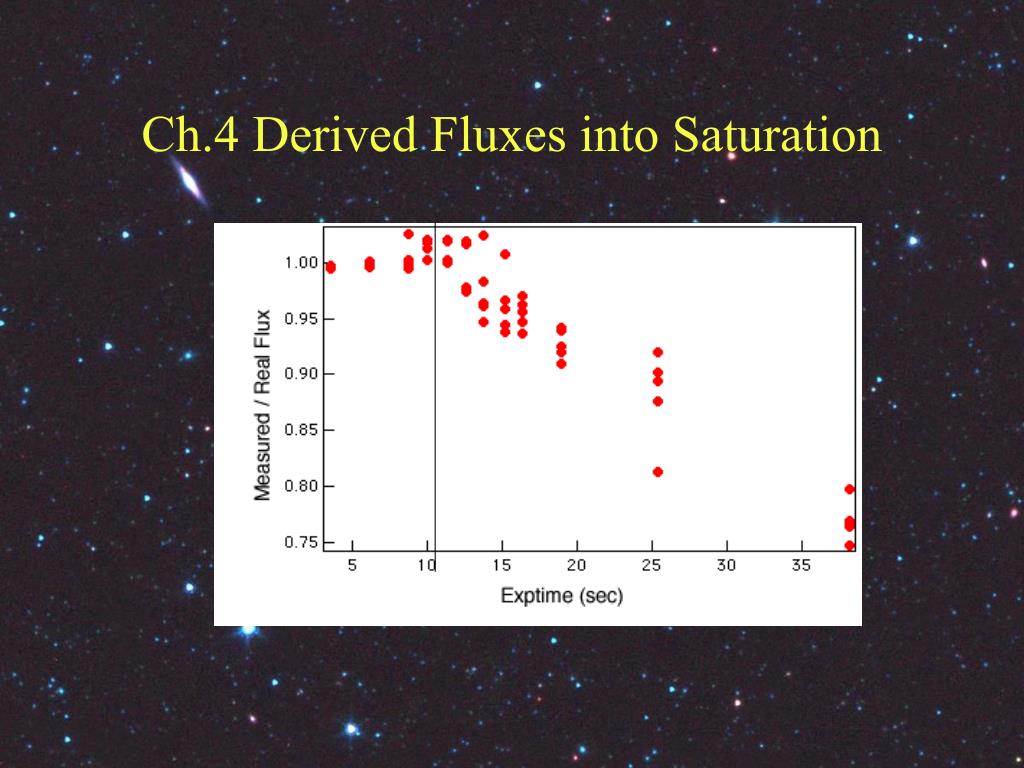

Ch 4 derived fluxes into saturation

Ch.4 Derived Fluxes into Saturation


Looking at ch 3

Looking at Ch.3

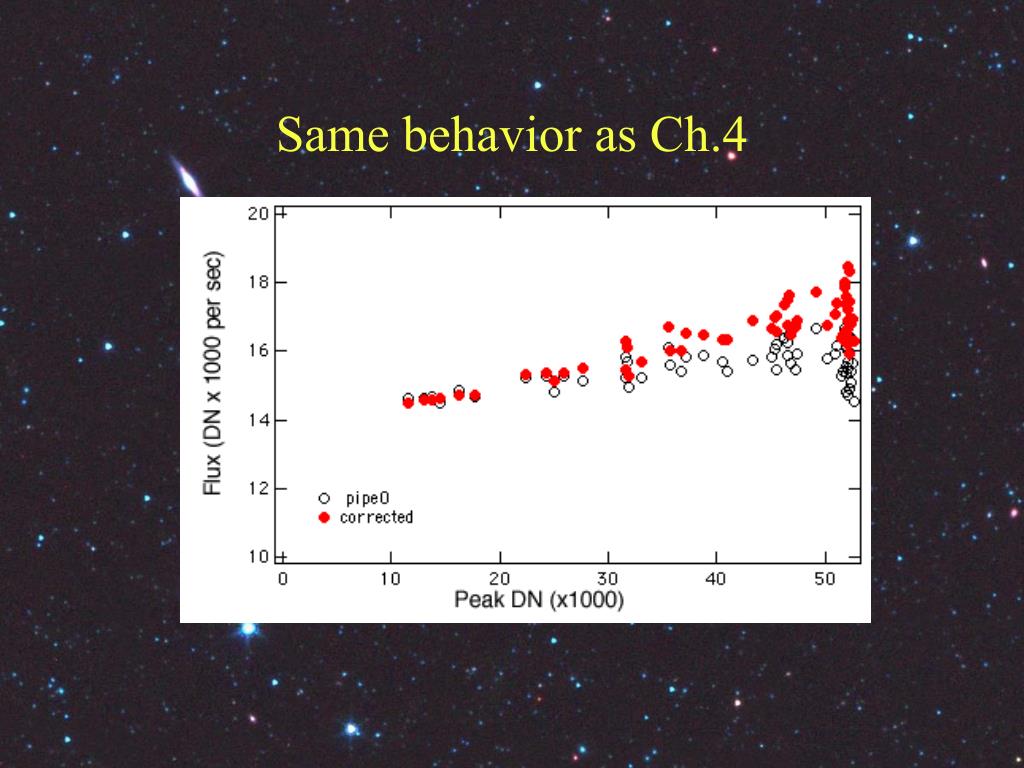

Same behavior as ch 4

Same behavior as Ch.4


Ch 3 muxbleed

Ch.3 Muxbleed

Muxbleed nearly identical to ch.4


Ch 3 small ap photometry

Ch.3 Small Ap. Photometry

Hmm…. Correction is no good - it hurts more than it helps.


Ch 3 flux vs exptime

Ch.3 Flux vs Exptime

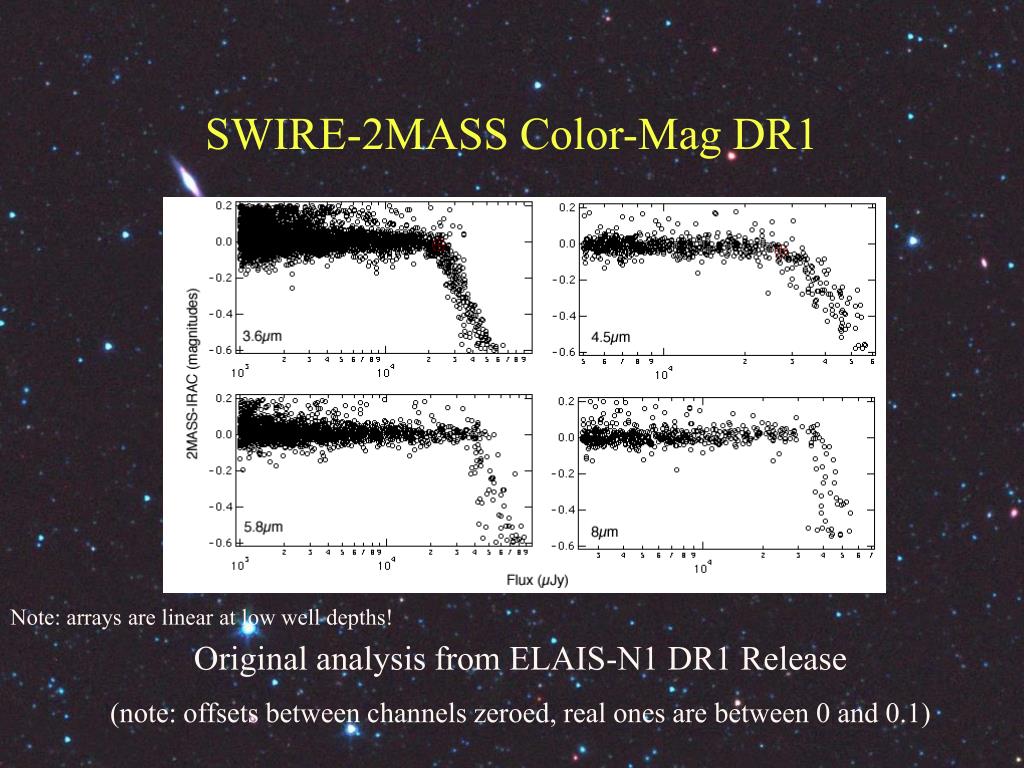

Swire 2mass color mag dr1

SWIRE-2MASS Color-Mag DR1

Note: arrays are linear at low well depths!

Original analysis from ELAIS-N1 DR1 Release

(note: offsets between channels zeroed, real ones are between 0 and 0.1)


Swire vs 2mass dr2

SWIRE vs. 2MASS DR2

ELAIS-N1 DR1

ELAIS-N2 DR2

2MASS-IRAC

oops

Ch.3

Flux (mJy)

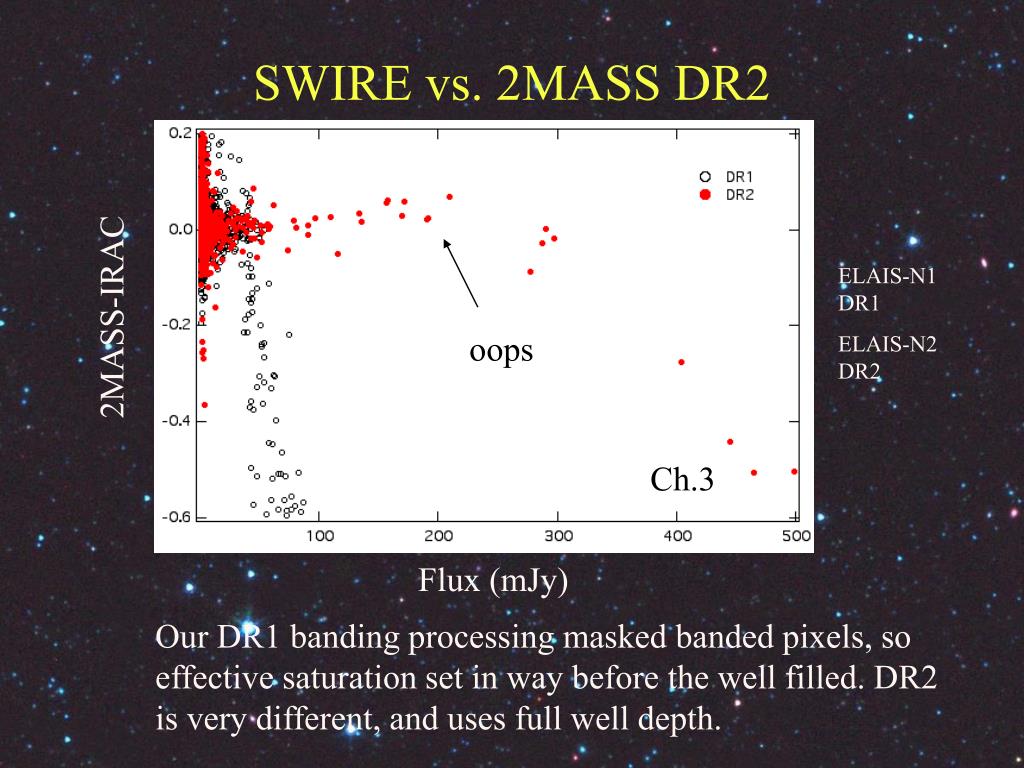

Our DR1 banding processing masked banded pixels, so effective saturation set in way before the well filled. DR2 is very different, and uses full well depth.
