  1. Archimede’s Principal

  2. Achimede’s Principal

  3. Buoyancy Factors • Density of the object • Size (volume) • Weight • Density of fluid • Salt water 64 lbs/Cu. Ft. • Fresh Water 62.4 lbs/ cu. Ft. • Air .088 lbs/cu. Ft.

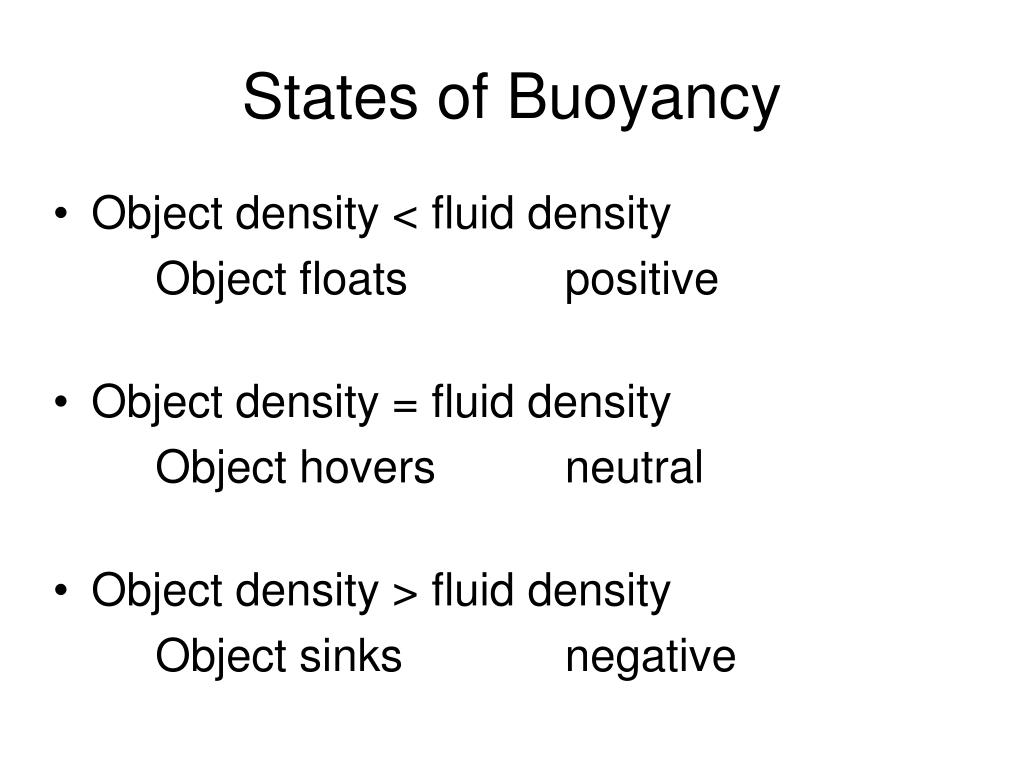

  4. States of Buoyancy • Object density < fluid density Object floats positive • Object density = fluid density Object hovers neutral • Object density > fluid density Object sinks negative

  5. Buoyancy 32 lbs 1 cu ft Positive _______________________________________________ ____________________________________________________ 64 lbs 1 cu ft Neutral 64 lbs 1 cu ft Neutral 96 lbs 1 cu ft negative

  6. Buoyancy ___________________________________ ________________________________________ 64 lbs 2 cu ft positive 64 lbs 1 cu ft positive 64 lbs 1/2 cu ft negative

  7. Pressure Volume Relationship Boyle’s Law

  8. Depth Pressure Vol Density fsw atm 0 1 1 1 33 2 ½ 2 66 3 1/3 3

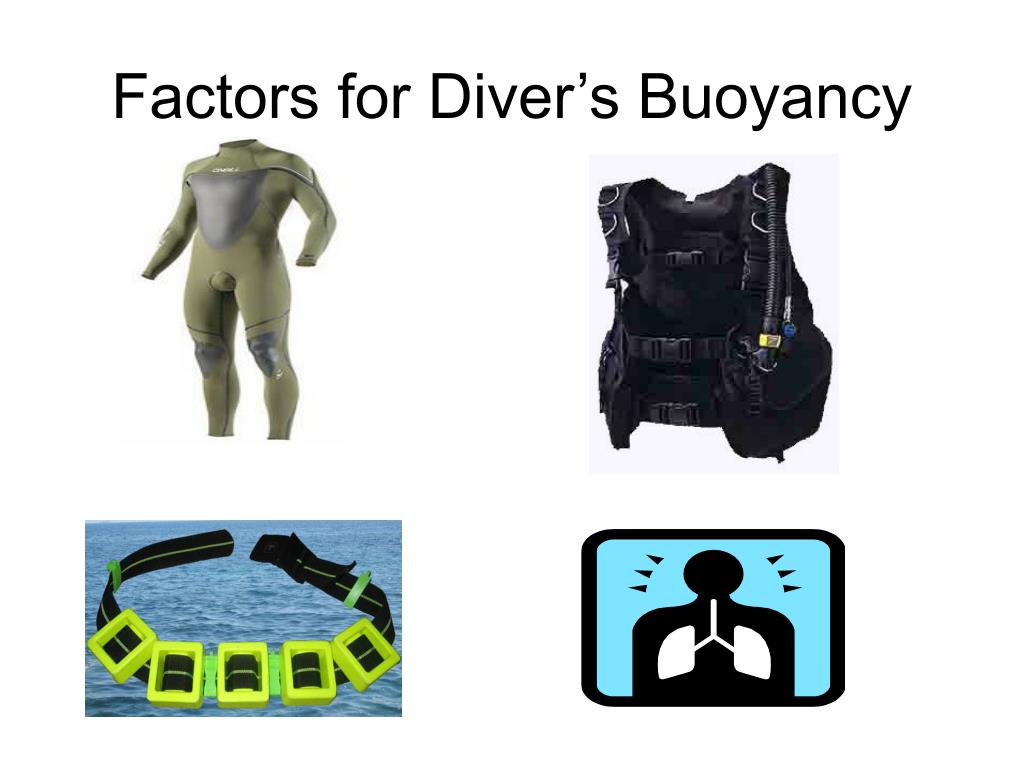

  9. Factors for Diver’s Buoyancy

  10. Air Consumption Depth Press Vol PSI/min Dive Time 0 1 1 30 100 min. 33 2 ½ 60 50 min. 66 3 1/3 90 33 min. 99 4 ¼ 120 25 min.
