  1. STATUS OF OTR IMAGER FOR THE LCLS UNDULATOR Bingxin Yang, Jim Bailey, and Dean Walters Advanced Photon Source

  2. OTR Imager Status Specifications and designs • LCLS PSD 1.4–004 (cancelled) • LCLS ESD 1.4–109 • LCLS Tech Note LCLS-TN-05-21 (most complete) • PAC 05, “Design of a high-resolution optical transition radiation imager for the linac coherent light source undulator,” by B.X. Yang, J. L. Bailey, D. R. Walters, and S. J. Stein. Outline • Basic design features of the OTR imager • Current status • Future?

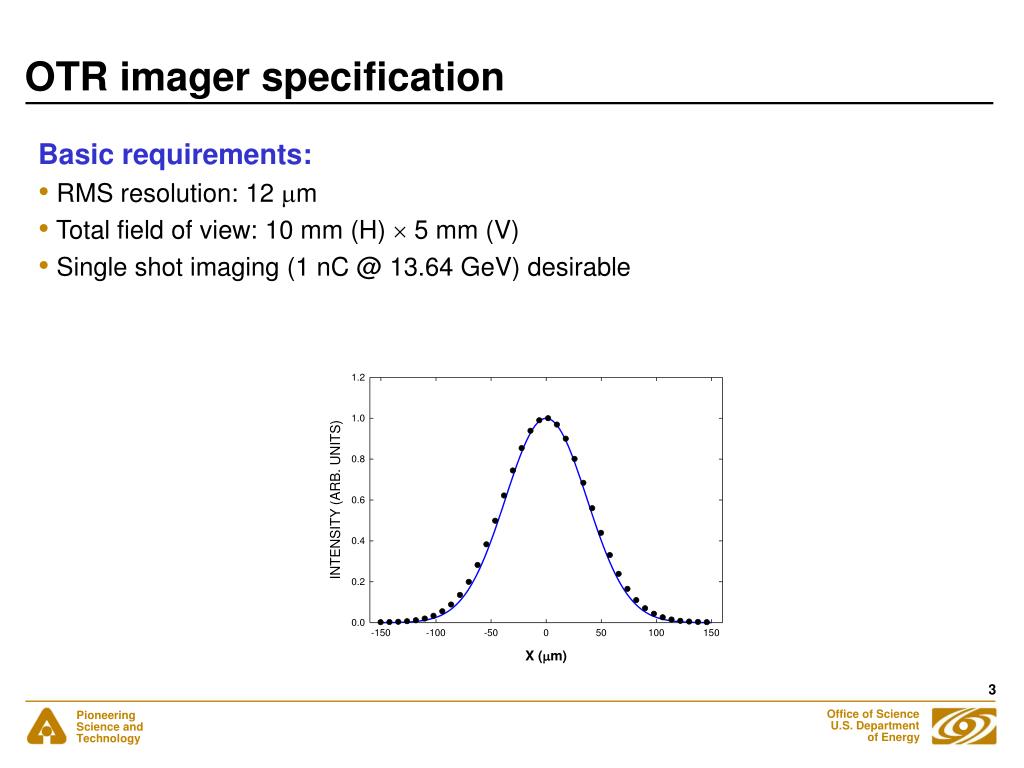

  3. OTR imager specification Basic requirements: • RMS resolution: 12 mm • Total field of view: 10 mm (H)  5 mm (V) • Single shot imaging (1 nC @ 13.64 GeV) desirable

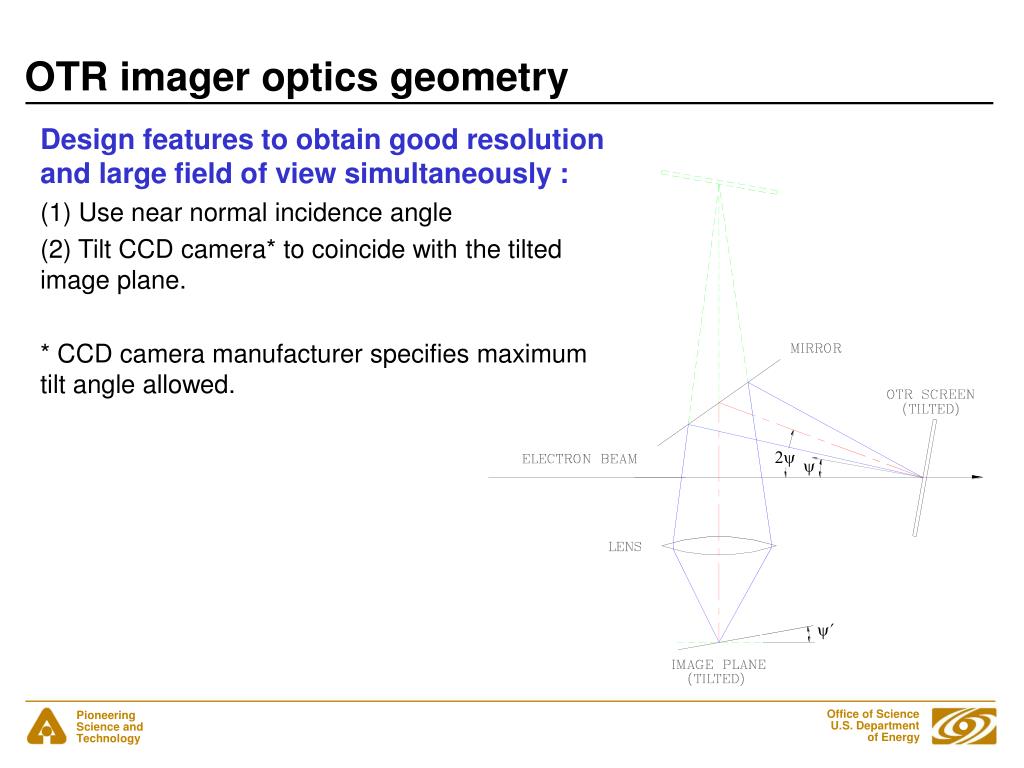

  4. OTR imager optics geometry Design features to obtain good resolution and large field of view simultaneously : (1) Use near normal incidence angle (2) Tilt CCD camera* to coincide with the tilted image plane. * CCD camera manufacturer specifies maximum tilt angle allowed.

  5. OTR imager optics calculation: perfect optics Specifications without aberrations: • Collection cone angle radius: 0.075 radian • Diffraction contribution to resolution: 3.2 – 5.6 mm (400 – 700 nm) Collection efficiency Radial distribution Integrated profile

  6. OTR imager optics calculation: aberrations Ray tracing studies for aberrations: • Commercial achromat lenses (M = 1) • Spherical aberrations unimportant • Chromatic aberrations dominant contribution • Use laser mirrors as bandpass filters to improve efficiency

  7. OTR imager mechanical design: partially assembled Design Parts

  8. OTR imager intended location: long break sections

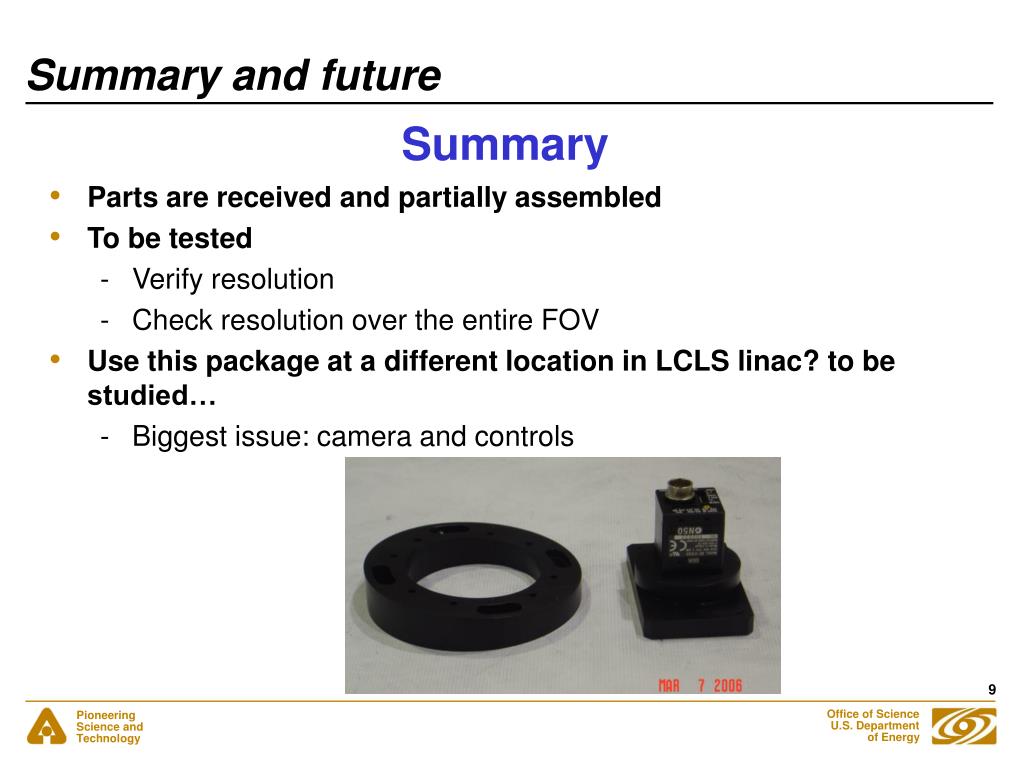

  9. Summary and future Summary • Parts are received and partially assembled • To be tested • Verify resolution • Check resolution over the entire FOV • Use this package at a different location in LCLS linac? to be studied… • Biggest issue: camera and controls
