Learning Objectives
• To calculate minimum radius of horizontal curve
• To understand design concepts for transition curves and compute min length
• To understand the role of SSD in horizontal and vertical design
• To define and apply grade considerations
• To develop vertical curves

(Chapter 6.1 ~ 6.4)

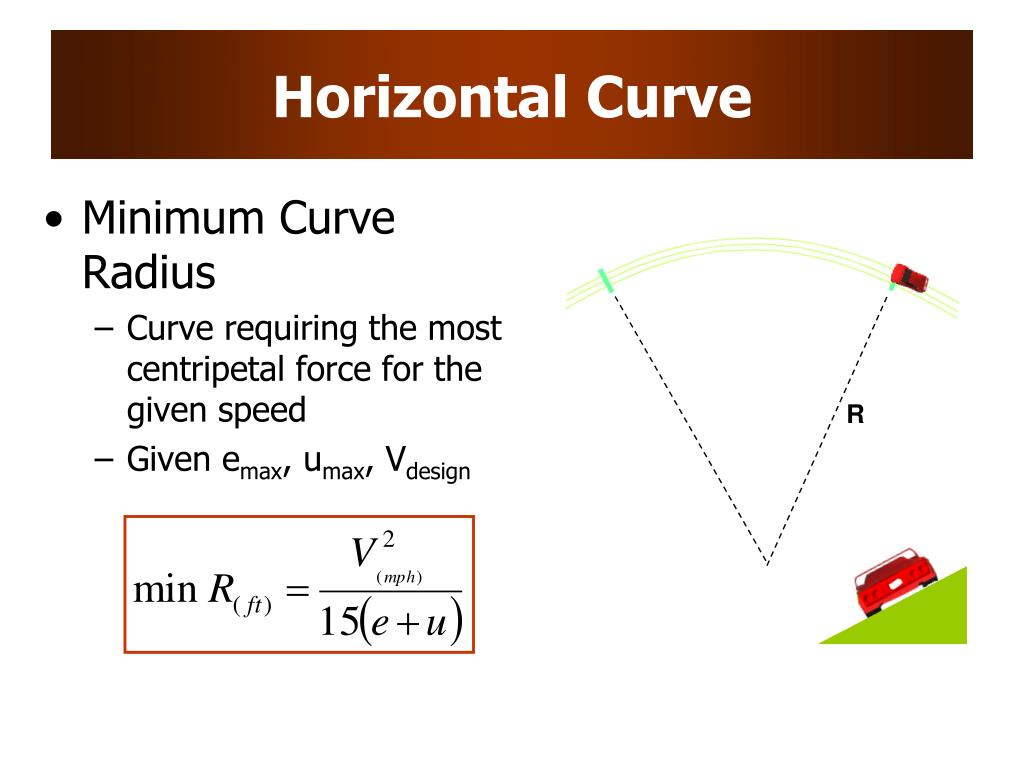

Horizontal Curve
• Curve requiring the most centripetal force for the given speed
• Given emax, umax, Vdesign

R

Point of

Tangency

Point of

Curvature

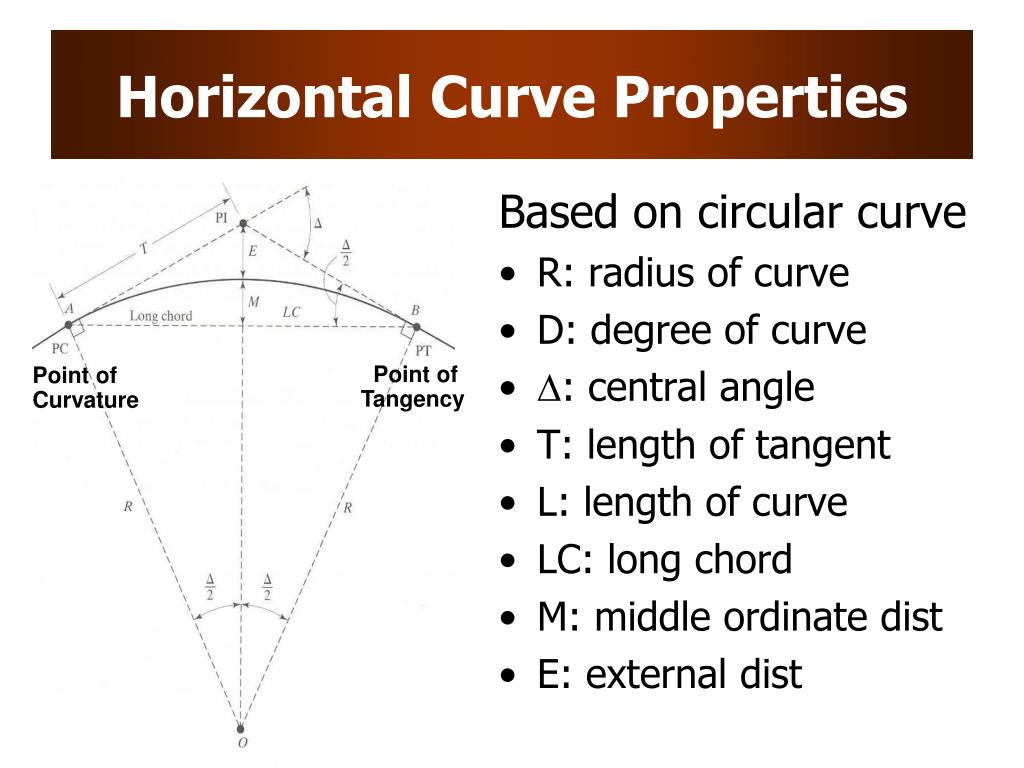

Horizontal Curve Properties

Based on circular curve

• D: degree of curve
• : central angle
• T: length of tangent
• L: length of curve
• LC: long chord
• M: middle ordinate dist
• E: external dist
Horizontal Design Iterations
• Design baseline
• Curve radius above the minimum
• Superelevation and side-friction factor not exceeding the maximum values
• Design is revised to consider:

cost, environmental impacts, sight distances, aesthetic consequences, etc.

R

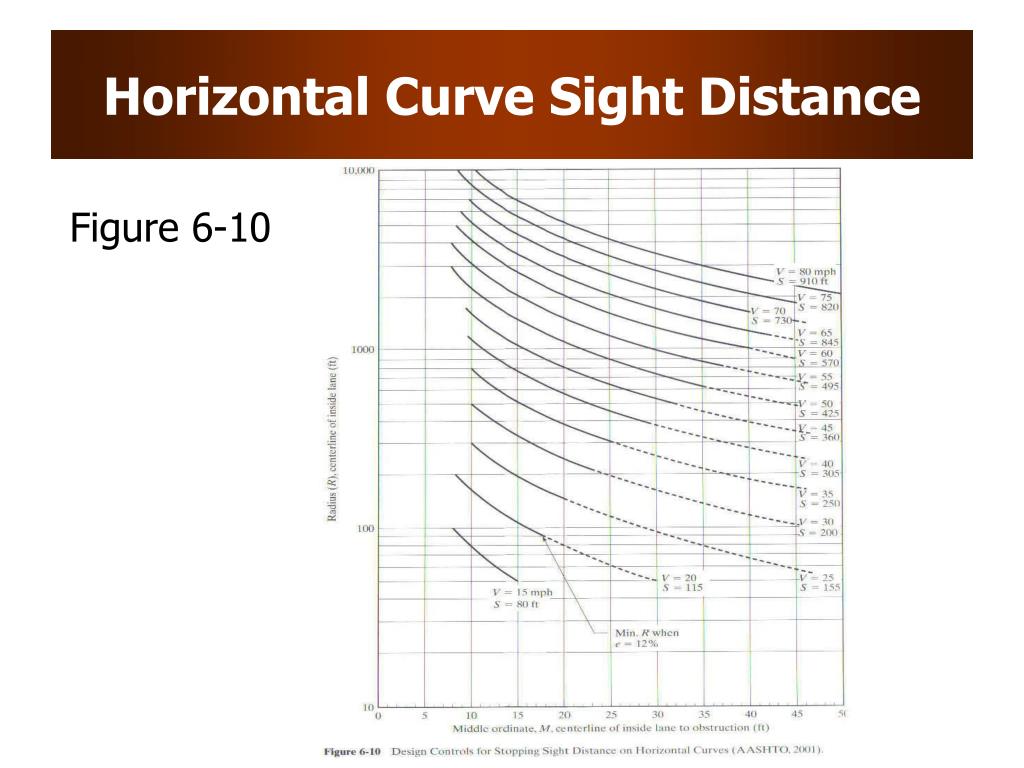

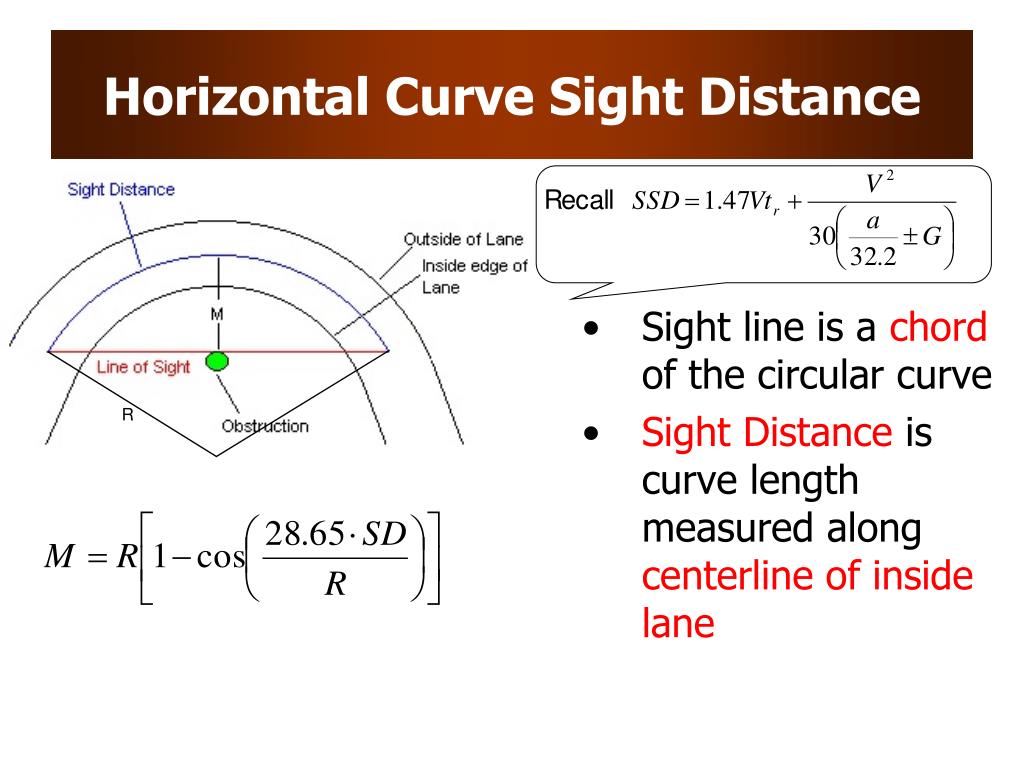

Horizontal Curve Sight Distance
• Sight line is a chord of the circular curve
• Sight Distance is curve length measured along centerline of inside lane
Transition Curves
• Gradually changing the curvature from tangents to circular curves

Without Transition Curves

With Transition Curves

Transition Curves
• Gradually changing the curvature from tangents to circular curves
• Use a spiral curve

L: min length of spiral (ft)

V: speed (mph)

C: rate of increase of centrifugal accel (ft/sec3), 1~3

Transitional Curves
• Gradually changing the cross-section of the roadway from normal to superelevated (Figure 6-9)

Keep water drainage in mind while considering all of the available cross-section options

Vertical Alignment

Reduced Speed

Increased Speed

Vertical Alignment
• measure of inclination or slope, rise over the run
• Cars: negotiate 4-5% grades without significant speed reduction
• Trucks: significant speed changes
• 5% increase on short descending grades
• 7% decrease on short ascending grades
• Maximum grade – depends on terrain type, road functional class, and design speed

Rural Arterials

• Maximum length which a loaded truck can travel without unreasonable speed reduction
• Based on accident involvement rates with 10mph speed reduction as threshold

General Design Speed Reduction

Vertical Curves
• To provide transition between two grades
• Consider
• Drainage (rainfall)
• Driver safety (SSD)
• Driver comfort
• Use parabolic curves
• Crest vs Sag curves
Vertical Curves
• Given
• G1, G2: initial & final grades in percent
• L: curve length (horizontal distance)
• Develop the actual shape of the vertical curve

point of vertical intersection

PVI

point of verticaltangency

point of vertical curvature

G1%

G2%

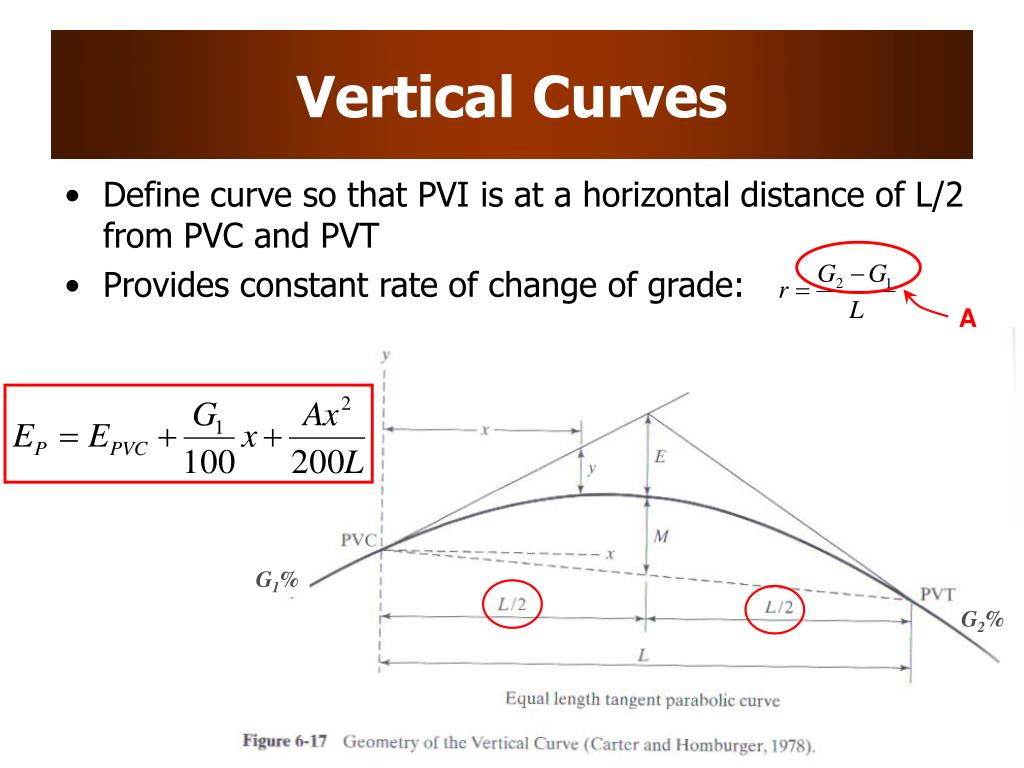

Vertical Curves
• Define curve so that PVI is at a horizontal distance of L/2 from PVC and PVT
• Provides constant rate of change of grade:

A

G1%

G2%

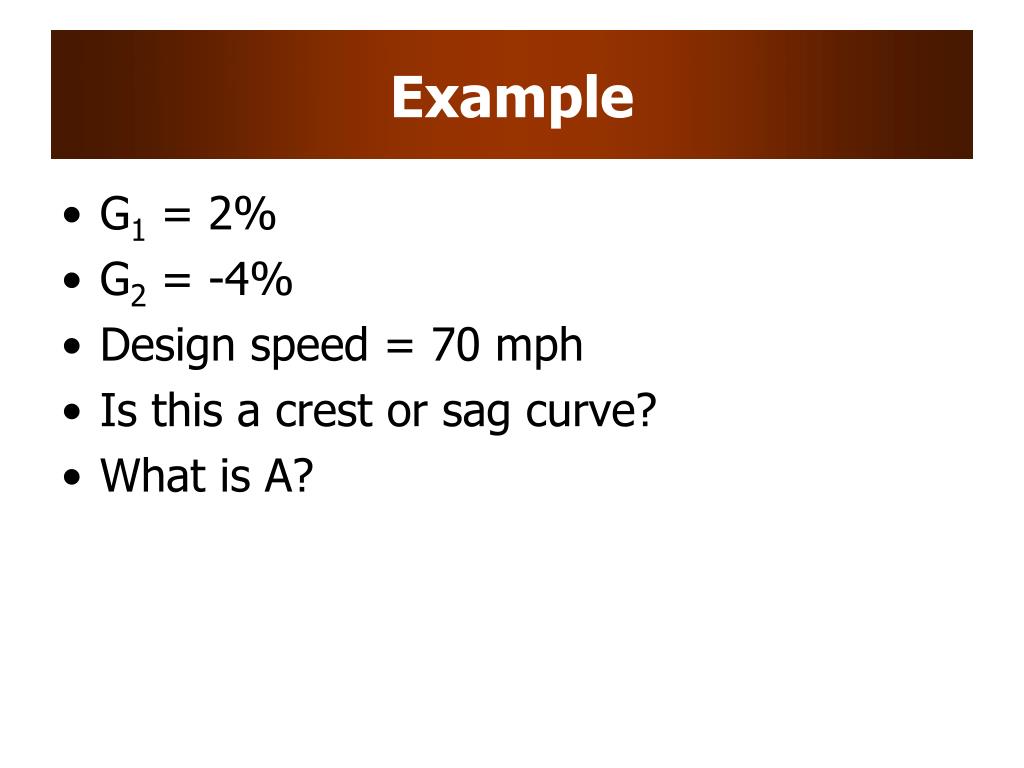

Example
• G1 = 2%
• G2 = -4%
• Design speed = 70 mph
• Is this a crest or sag curve?
• What is A?
Vertical Curves
• Major control for safe operation is sight distance
• MSSD should be provided in all cases (use larger sight distance where economically and physically feasible)
• For sag curves, also concerned with driver comfort (large accelerations due to both gravitational and centrifugal forces)

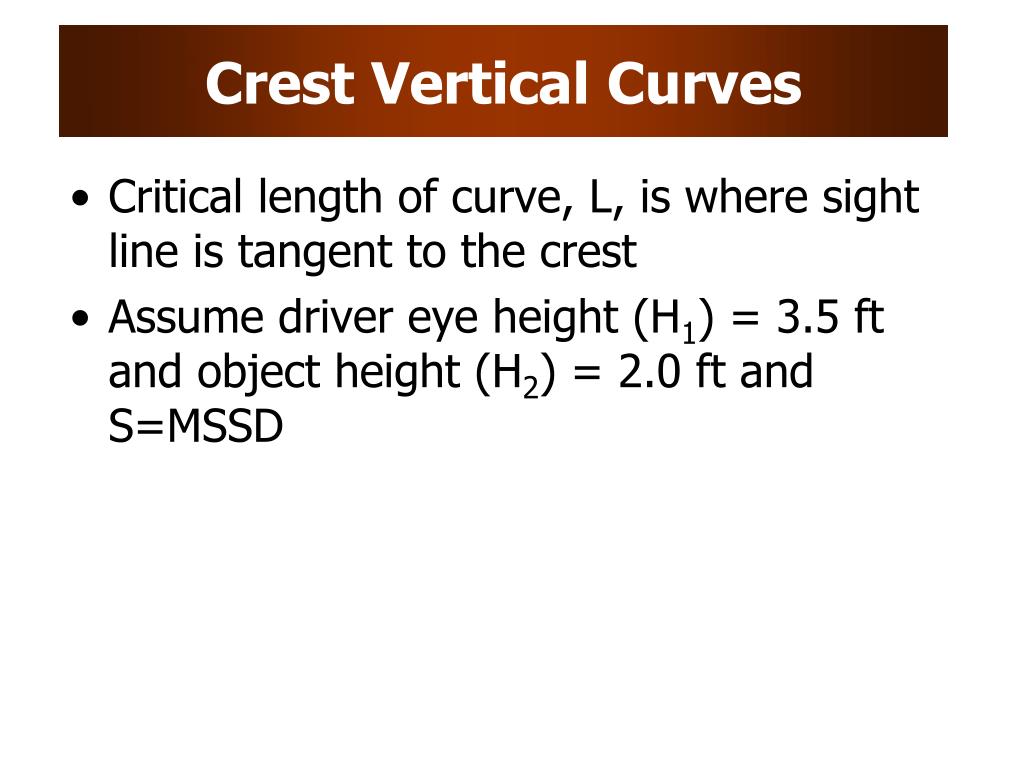

Crest Vertical Curves
• Critical length of curve, L, is where sight line is tangent to the crest
• Assume driver eye height (H1) = 3.5 ft and object height (H2) = 2.0 ft and S=MSSD
Sag VC - Design Criteria
