1 / 3

Pulse Fourier Transform NMR

Pulse Fourier Transform NMR. t. 90º x RF pulse. =.  =  H 0. H o. H o. A. t. Fourier Transform. f. . Variation of signal at X axis vs. time. NMR frequency. The Power of Fourier Transform. t. 90º x RF pulse. +.  1 =  H 0  2 =  H 0. A. t. Fourier

craig
Download Presentation

Pulse Fourier Transform NMR

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Pulse Fourier Transform NMR t 90ºx RF pulse =  =  H0 Ho Ho A t Fourier Transform f  Variation of signal at X axis vs. time NMR frequency

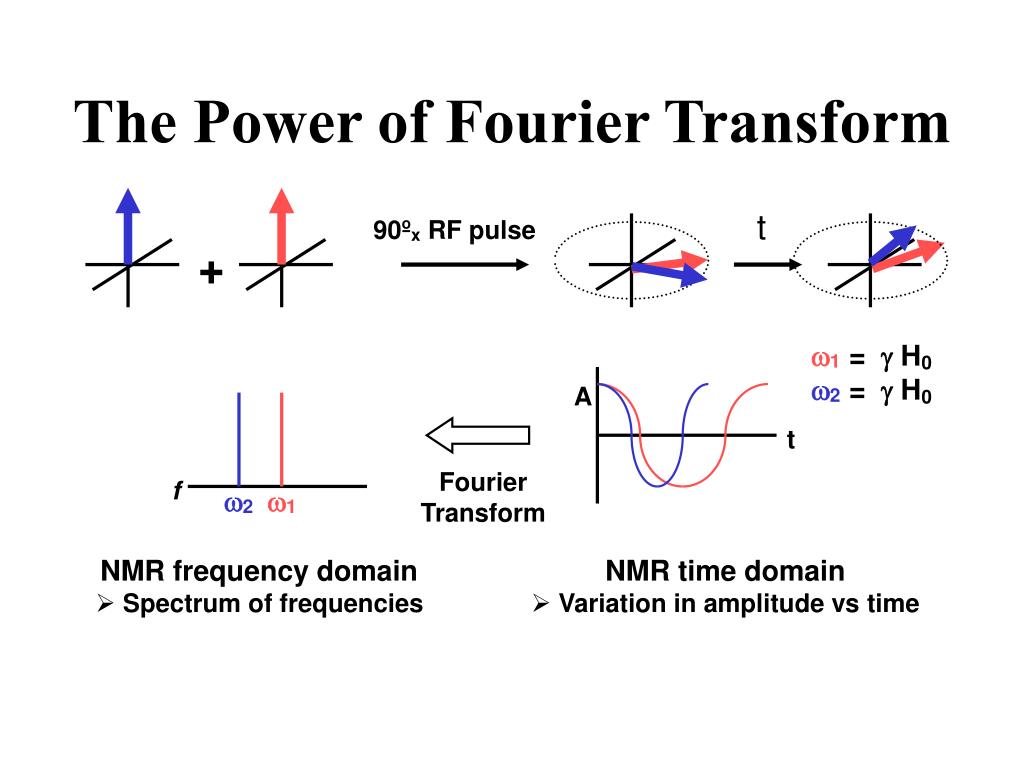

  2. The Power of Fourier Transform t 90ºx RF pulse + 1 =  H0 2 =  H0 A t Fourier Transform f 2 1 • NMR frequency domain • Spectrum of frequencies • NMR time domain • Variation in amplitude vs time

  3. 90º pulse Experiment (t) equilibration detection of signals Fourier Transform Data Analysis Time domain (t) The Pulse FT NMR Experiment

More Related
