Rate Laws

Rate Laws. Text p. 580-585 Topic 16.1.1-16.1.3. Rate Law. An equation that gives its rate as a function of reactant concentrations. Allows chemists to propose reaction mechanisms. Each reaction has its own The general form of the rate law is Rate = k[A] x [B] y k is the rate constant

cortez
Download Presentation

Rate Laws

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Rate Laws • Text p. 580-585 • Topic 16.1.1-16.1.3

  2. Rate Law • An equation that gives its rate as a function of reactant concentrations. • Allows chemists to propose reaction mechanisms. • Each reaction has its own • The general form of the rate law is Rate = k[A]x[B]y • k is the rate constant • Constant of proportionality • Varies greatly with temperature • For solids, it varies with particle size • Its units will vary • [A]and [B]are the concentrations of the reactants. • x and y are exponents known as rate orders • must be determined experimentally • Typically small whole numbers (0, 1, 2) • x is the order of the reaction with respect to A • y is the order of the reaction with respect to B • Overall order of the reaction is x +y • Expresses how the reaction changes with time. 2.

  3. Example 1 NH4+ (aq) + NO2- (aq)  N2 (g) + 2H2O (l) Compare Experiments 1 and 2: when [NH4+] doubles, the initial rate doubles. 3.

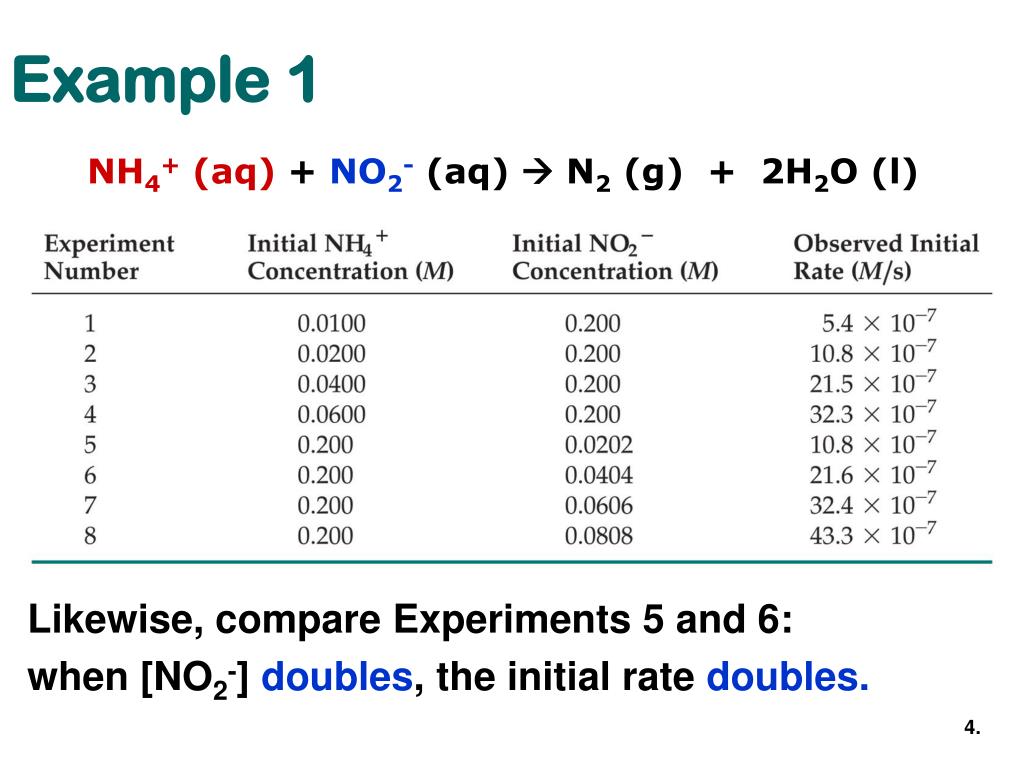

  4. Example 1 NH4+ (aq) + NO2- (aq)  N2 (g) + 2H2O (l) Likewise, compare Experiments 5 and 6: when [NO2-] doubles, the initial rate doubles. 4.

  5. Concentration and Rate NH4+ (aq) + NO2- (aq)  N2 (g) + 2H2O (l) This equation is called the rate law, andk is the rate constant. 5.

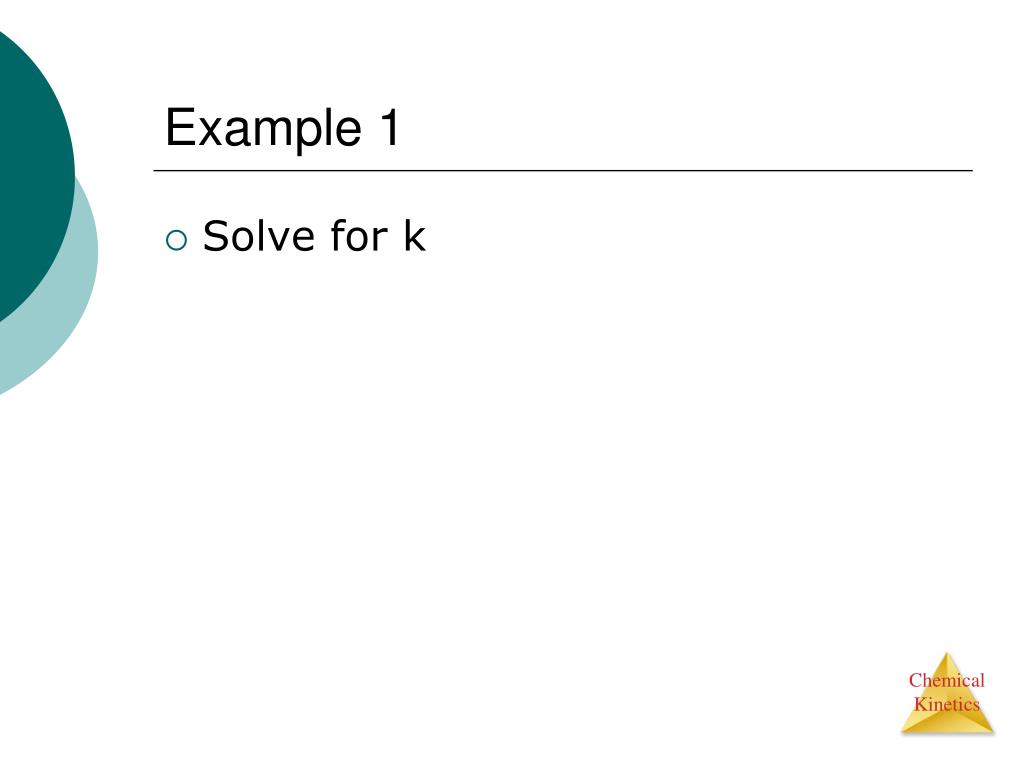

  6. Example 1 • Solve for k

  7. Example 1 What is the rate of the reaction when[ NH4+ ] is 0.100M and [NO2- ] is 0.100 M?

  8. The Rate Law • Exponents tell the order of the reaction with respect to each reactant. • This reaction is First-order in [NH4+] First-order in [NO2−] • The overall reaction order can be found by adding the exponents on the reactants in the rate law. • This reaction is second-order overall. Rate = K [NH4+]1[NO2- ]1 8.

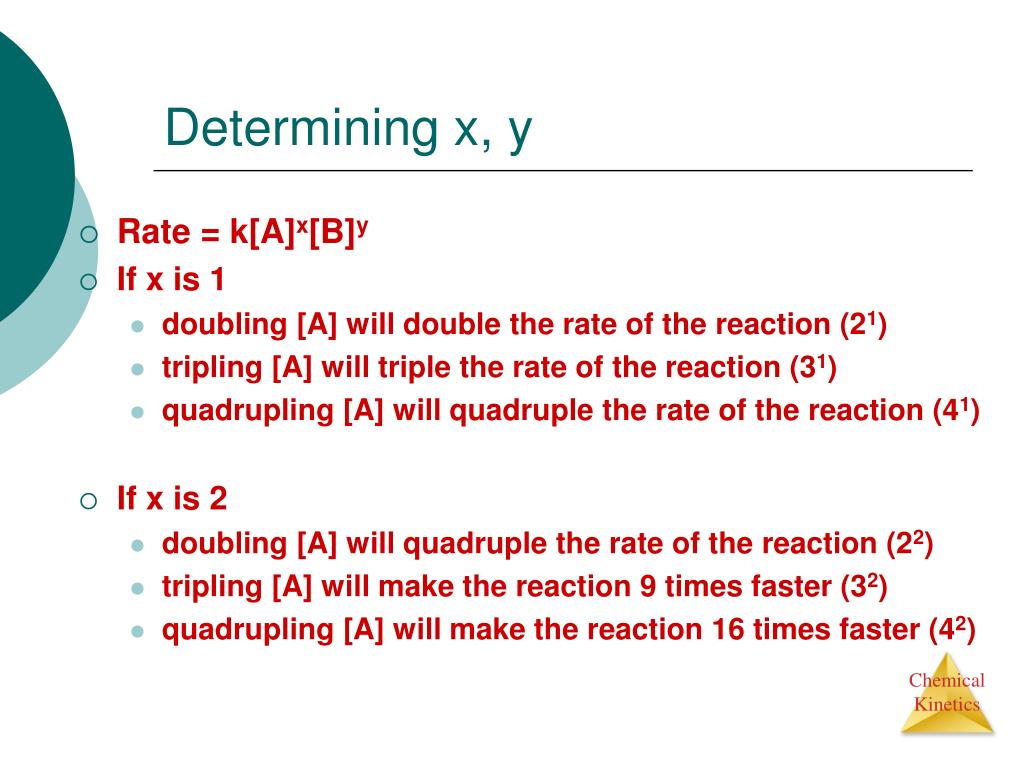

  9. Determining x, y • Rate = k[A]x[B]y • If x is 1 • doubling [A] will double the rate of the reaction (21) • tripling [A] will triple the rate of the reaction (31) • quadrupling [A] will quadruple the rate of the reaction (41) • If x is 2 • doubling [A] will quadruple the rate of the reaction (22) • tripling [A] will make the reaction 9 times faster (32) • quadrupling [A] will make the reaction 16 times faster (42)

  10. Units of k Depend on Overall Reaction Order • Rate = k[A]x[B]y • k= Rate [A]x[B]y • k= M/s (M/s)x (M/s)y • For a reaction that is second order overall (x + y) = 2 , • k= M/s (M/s)1 (M/s)1 • k= 1 (M/s)1

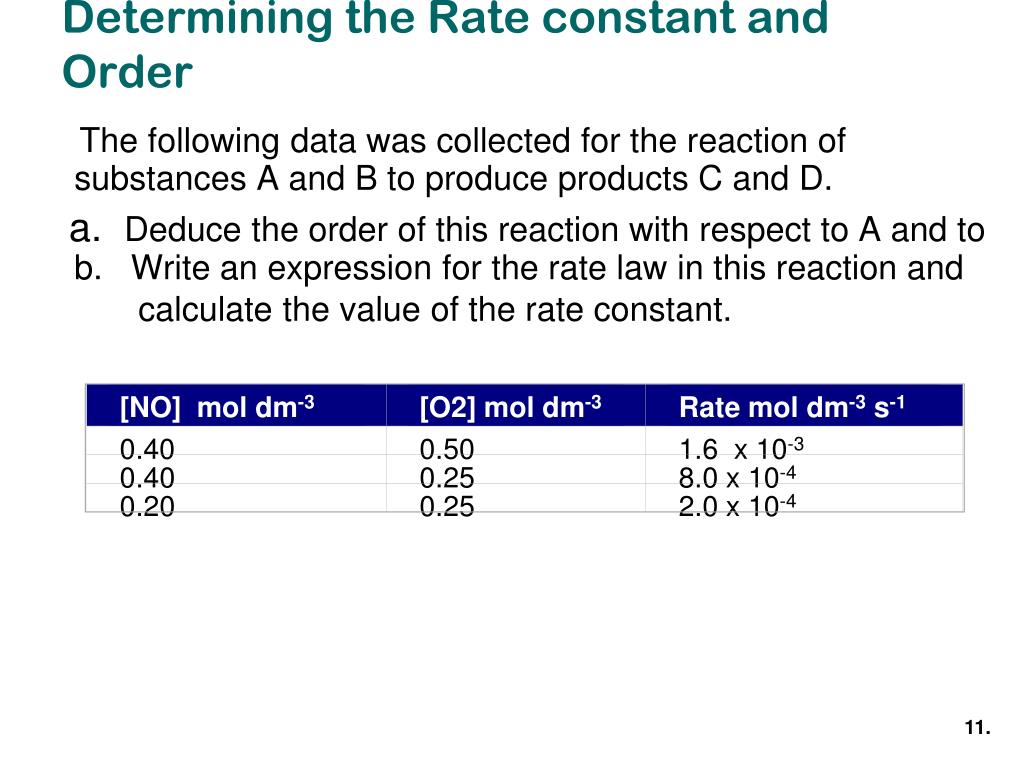

  11. [NO] mol dm-3 [O2] mol dm-3 Rate mol dm-3 s-1 0.40 0.50 1.6 x 10-3 0.40 0.25 8.0 x 10-4 0.20 0.25 2.0 x 10-4 Determining the Rate constant and Order The following data was collected for the reaction of substances A and B to produce products C and D. a. Deduce the order of this reaction with respect to A and to b. Write an expression for the rate law in this reaction and calculate the value of the rate constant. 11.

  12. The First Order Rate Equation Consider a simple 1st order reaction: A  B Rate = k[A] • How much reactant A is left after time t? • How much time is required for a given • amount of A to react? • The rate equation as a function of time can be written as Where [A]t = the concentration of reactant A at time t [A]o = the concentration of reactant A at time t = 0 K = the rate constant Ln [A]t - Ln[A]o = - kt Or Ln[A]t = -kt Ln[A]0 12.

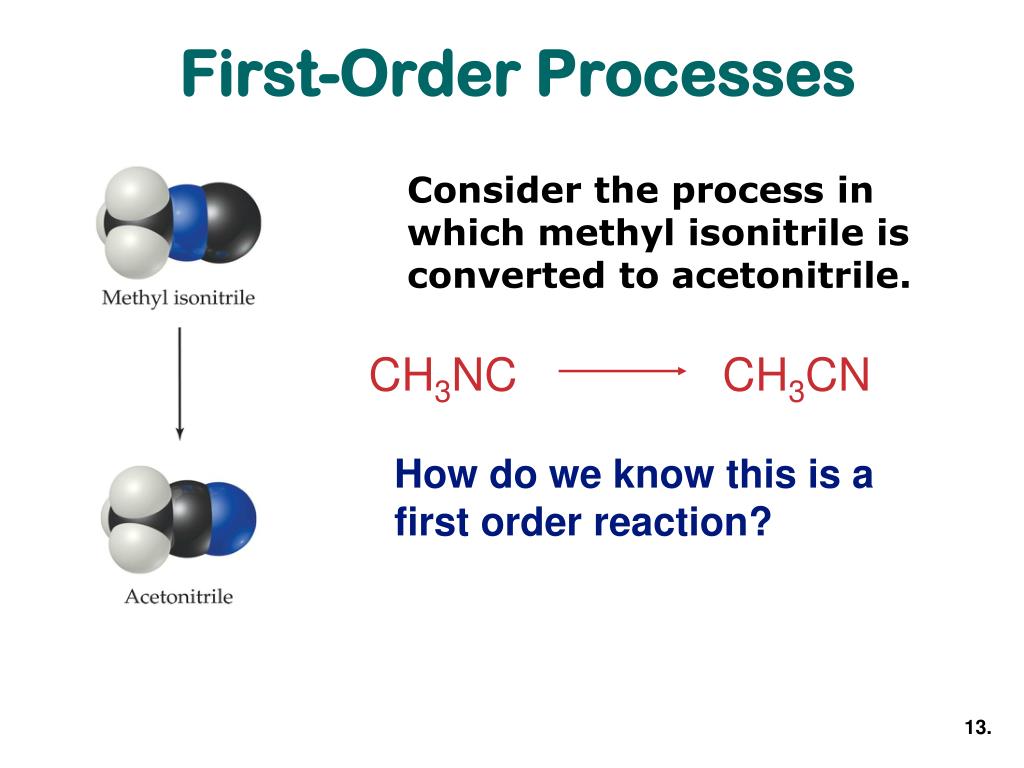

  13. CH3NC CH3CN First-Order Processes Consider the process in which methyl isonitrile is converted to acetonitrile. How do we know this is a first order reaction? 13.

  14. CH3NC CH3CN First-Order Processes This data was collected for this reaction at 198.9°C. Does rate=k[CH3NC] for all time intervals? 14.

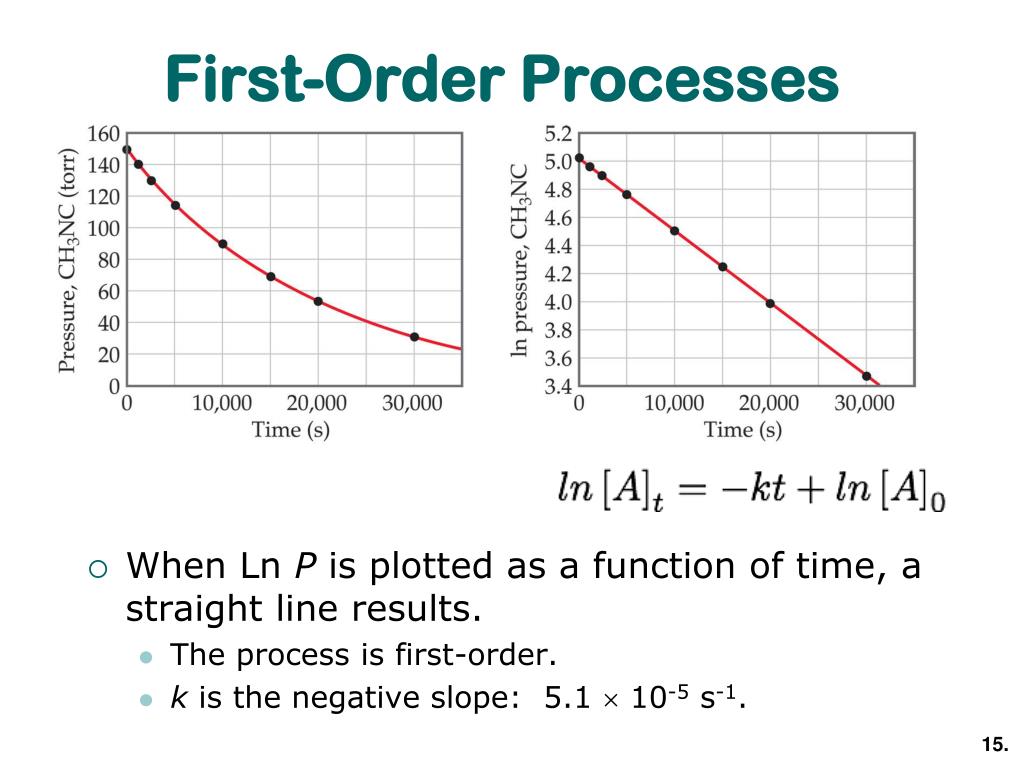

  15. First-Order Processes • When Ln P is plotted as a function of time, a straight line results. • The process is first-order. • k is the negative slope: 5.1  10-5 s-1. 15.

  16. Half-Life of a Reaction • Half-life is defined as the time required for one-half of a reactant to react. • Convenient way to describe how fast a reaction will occur. • Because [A] at t1/2 is one-half of the original [A], [A]t = 0.5 [A]0. . 16.

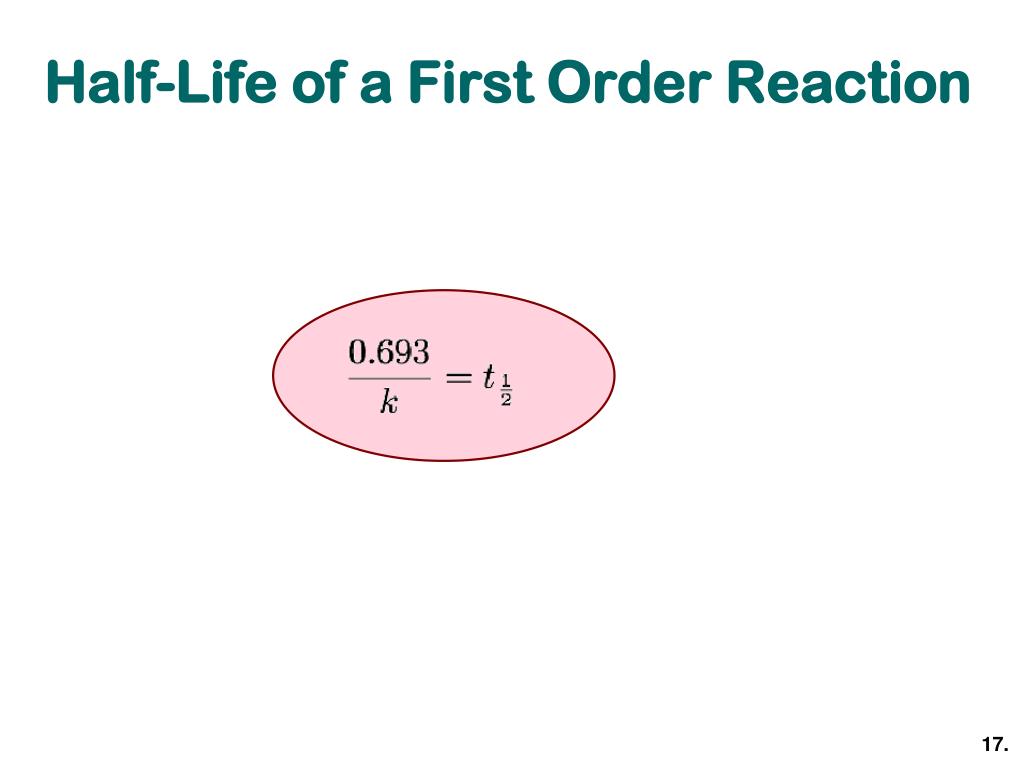

  17. Half-Life of a First Order Reaction 17.

  18. First Order Rate Calculation Example 1: The decomposition of compound A is first order. If the initial [A]0 = 0.80 mol dm-3. and the rate constant is 0.010 s-1, what is the concentration of [A] after 90 seconds? 18.

  19. First Order Rate Calculation Example 1: The decomposition of compound A is first order. If the initial [A]0 = 0.80 mol dm-3. and the rate constant is 0.010 s-1, what is the concentration of [A] after 90 seconds? Ln[A]t – Ln[A]o = -kt Ln[A]t – Ln[0.80] = - (0.010 s-1 )(90 s) Ln[A]t = - (0.010 s-1 )(90 s) + Ln[0.80] Ln[A]t = -0.90 - 0.2231 Ln[A]t = -1.1231 [A]t = 0.325 mol dm-3 19.

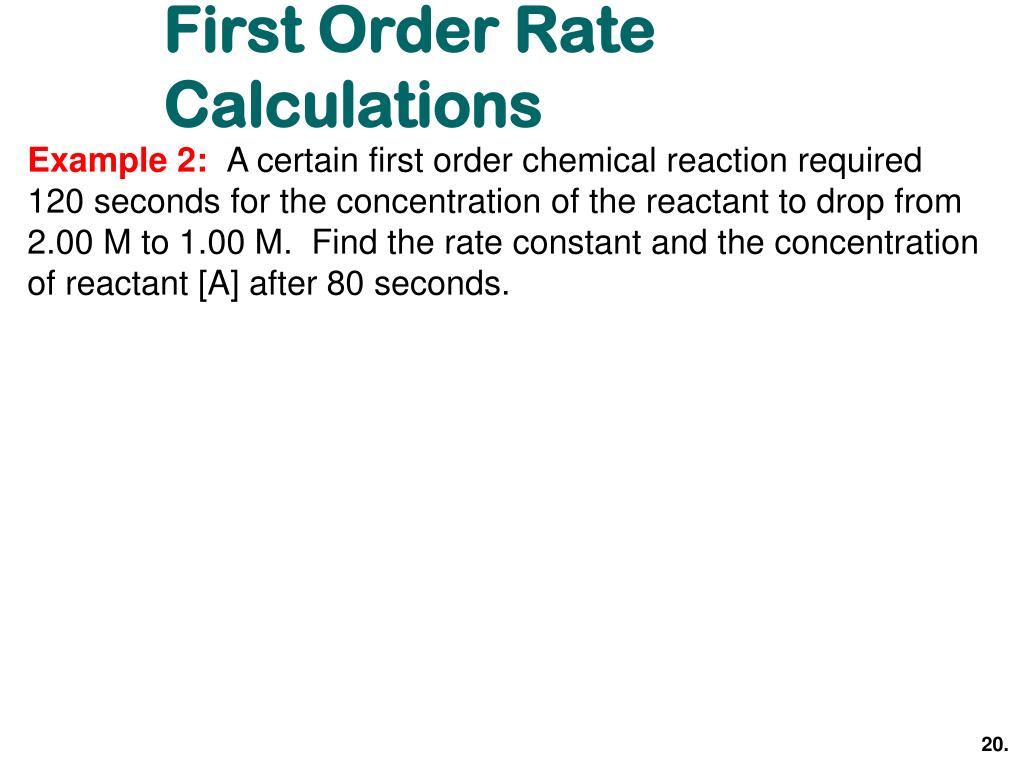

  20. First Order Rate Calculations Example 2:A certain first order chemical reaction required 120 seconds for the concentration of the reactant to drop from 2.00 M to 1.00 M. Find the rate constant and the concentration of reactant [A] after 80 seconds. 20.

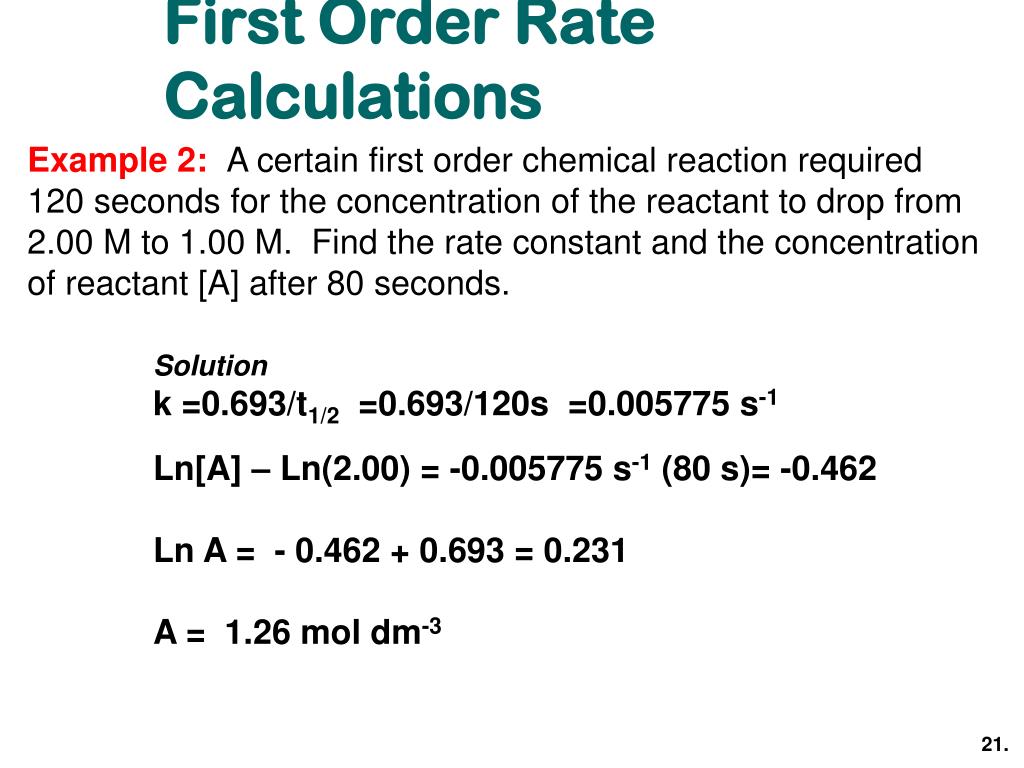

  21. First Order Rate Calculations Example 2:A certain first order chemical reaction required 120 seconds for the concentration of the reactant to drop from 2.00 M to 1.00 M. Find the rate constant and the concentration of reactant [A] after 80 seconds. Solution k =0.693/t1/2 =0.693/120s =0.005775 s-1 Ln[A] – Ln(2.00) = -0.005775 s-1 (80 s)= -0.462 Ln A = - 0.462 + 0.693 = 0.231 A = 1.26 mol dm-3 21.

  22. First Order Rate Calculations Example 3: Radioactive decay is also a first order process. Strontium 90 is a radioactive isotope with a half-life of 28.8 years. If some strontium 90 were accidentally released, how long would it take for its concentration to fall to 1% of its original concentration? 22.

  23. First Order Rate Calculations Example 3: Radioactive decay is also a first order process. Strontium 90 is a radioactive isotope with a half-life of 28.8 years. If some strontium 90 were accidentally released, how long would it take for its concentration to fall to 1% of its original concentration? Original concentration (100 M, final concentration 1 M) Solution k =0.693/t1/2 =0.693/28.8 yr =0.02406 yr-1 Ln[1] – Ln(100) = - (0.02406 yr-1)t = - 4.065 t = - 4.062 . - 0.02406 yr-1 t = 168.8 years 23.

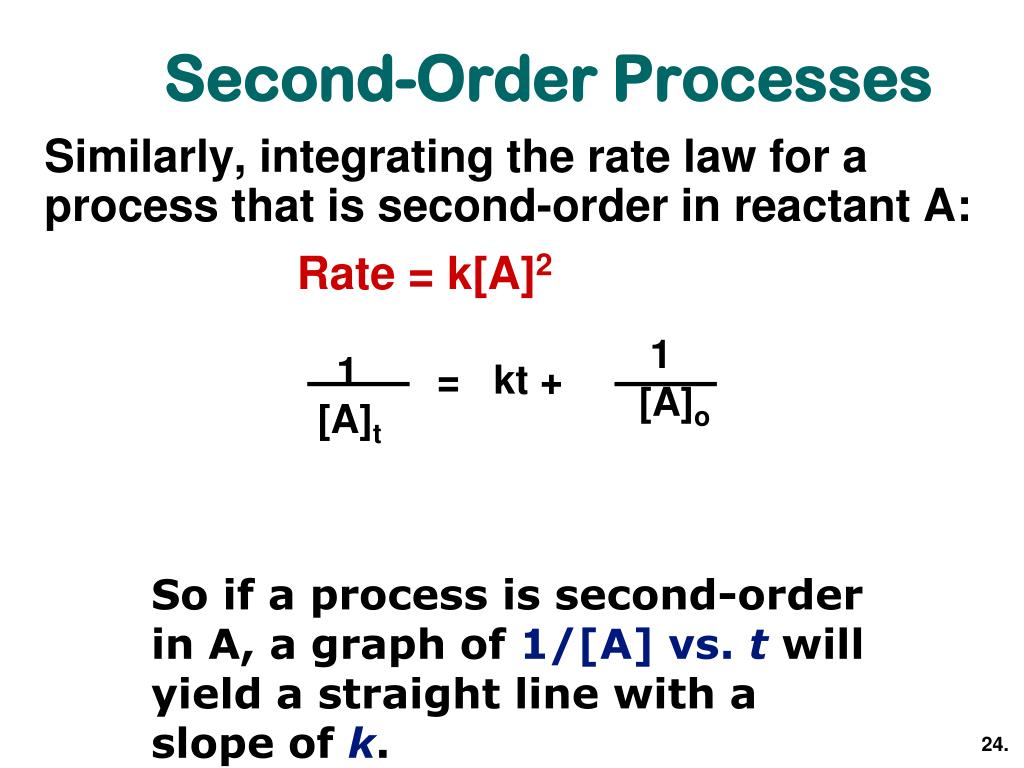

  24. Second-Order Processes Similarly, integrating the rate law for a process that is second-order in reactant A: Rate = k[A]2 1 [A]o 1 [A]t = kt + So if a process is second-order in A, a graph of 1/[A] vs. twill yield a straight line with a slope of k. 24.

  25. NO2(g) NO (g) + 1/2 O2(g) Determining Reaction OrderDistinguishing Between 1st and 2nd Order The decomposition of NO2 at 300°C is described by the equation: A experiment with this reaction yields this data: 25.

  26. Determining Reaction OrderDistinguishing Between 1st and 2nd Order Graphing ln [NO2] vs.t yields: • The graph is not a straight line, so this process cannot be first-order in [A]. Does not fit the first order equation: 26.

  27. Second-Order Reaction Kinetics A graph of 1/[NO2] vs. t gives this plot. • This is a straight line. Therefore, the process is second-order in [NO2]. • The slope of the line is the rate constant, k. 27.

  28. Half-Life for 2nd Order Reactions In this case the half-life depends on the initial concentration of the reactant A. 28.

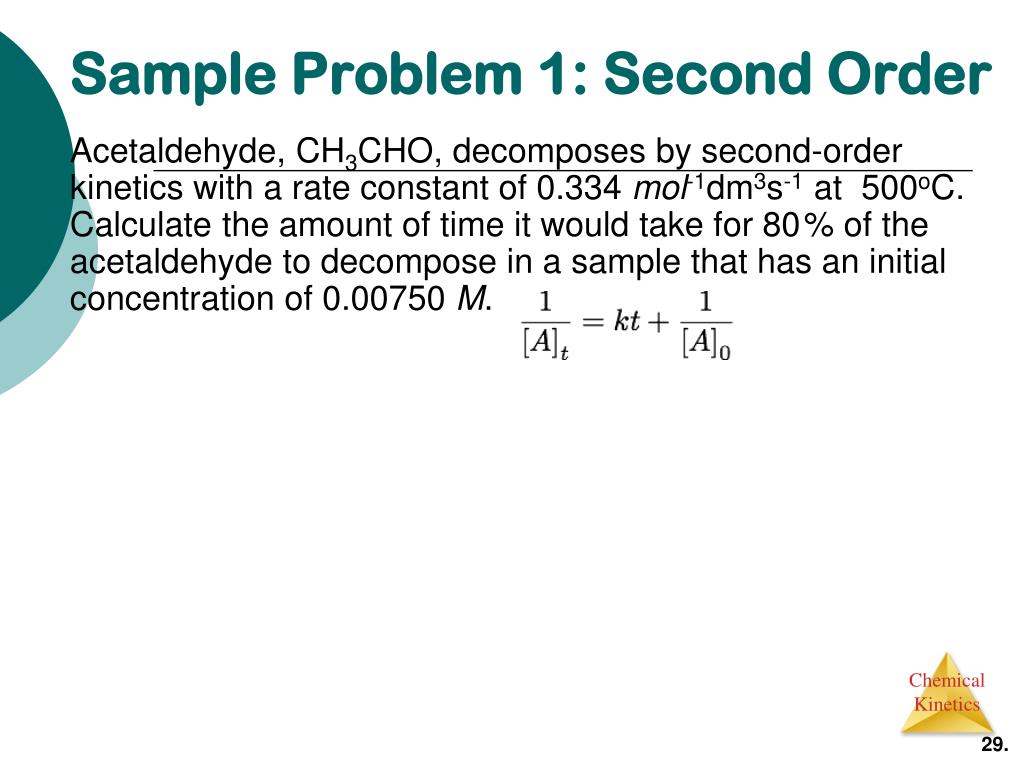

  29. Sample Problem 1: Second Order Acetaldehyde, CH3CHO, decomposes by second-order kinetics with a rate constant of 0.334 mol-1dm3s-1 at 500oC. Calculate the amount of time it would take for 80% of the acetaldehyde to decompose in a sample that has an initial concentration of 0.00750 M. 29.

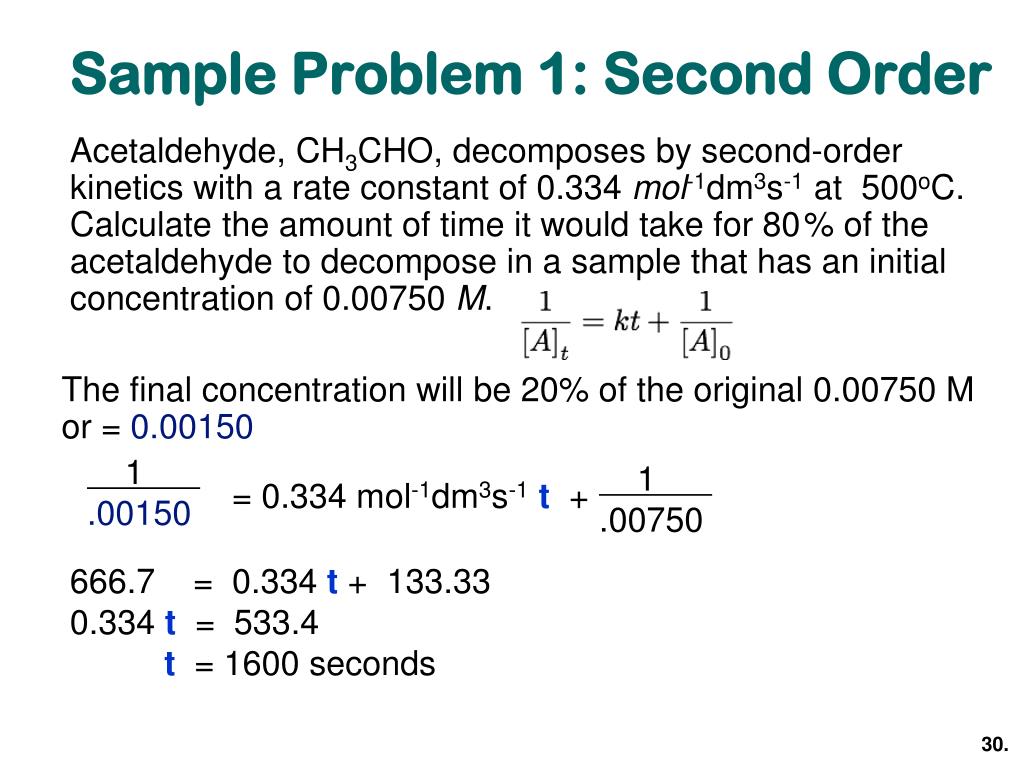

  30. Sample Problem 1: Second Order Acetaldehyde, CH3CHO, decomposes by second-order kinetics with a rate constant of 0.334 mol-1dm3s-1 at 500oC. Calculate the amount of time it would take for 80% of the acetaldehyde to decompose in a sample that has an initial concentration of 0.00750 M. The final concentration will be 20% of the original 0.00750 M or = 0.00150 1 . .00150 1 . .00750 = 0.334 mol-1dm3s-1t + 666.7 = 0.334 t + 133.33 0.334 t = 533.4 t = 1600 seconds 30.

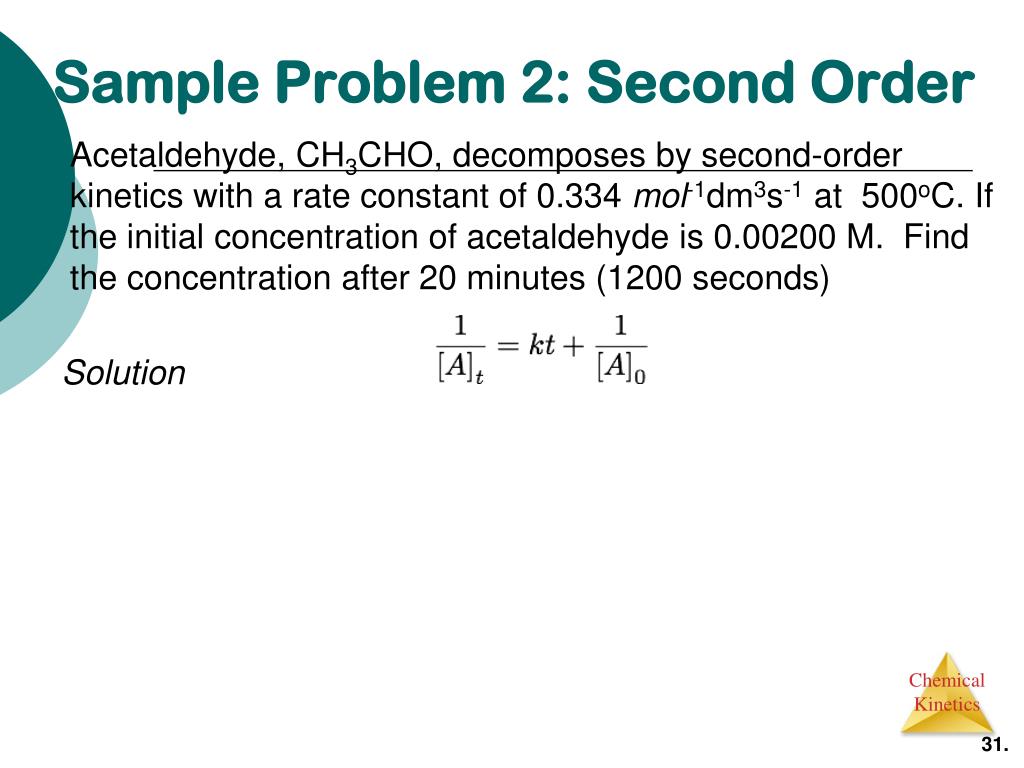

  31. Sample Problem 2: Second Order Acetaldehyde, CH3CHO, decomposes by second-order kinetics with a rate constant of 0.334 mol-1dm3s-1 at 500oC. If the initial concentration of acetaldehyde is 0.00200 M. Find the concentration after 20 minutes (1200 seconds) Solution 31.

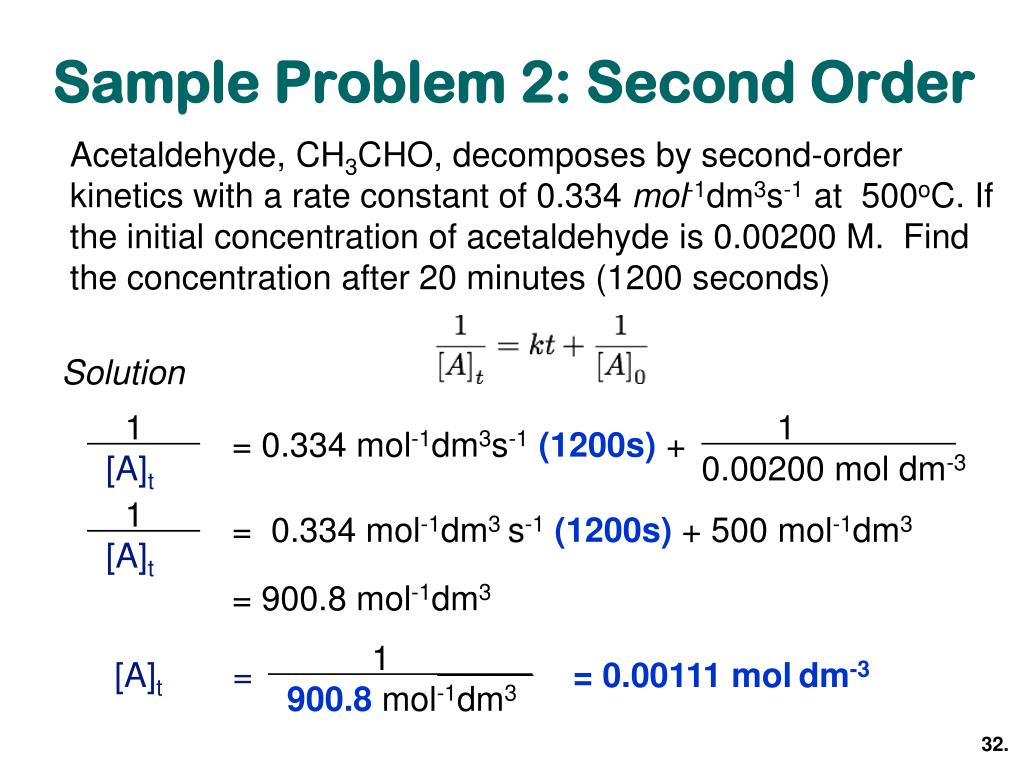

  32. Sample Problem 2: Second Order Acetaldehyde, CH3CHO, decomposes by second-order kinetics with a rate constant of 0.334 mol-1dm3s-1 at 500oC. If the initial concentration of acetaldehyde is 0.00200 M. Find the concentration after 20 minutes (1200 seconds) Solution 1 . [A]t 1 . 0.00200 mol dm-3 = 0.334 mol-1dm3s-1(1200s) + 1 . [A]t = 0.334 mol-1dm3 s-1(1200s) + 500 mol-1dm3 = 900.8 mol-1dm3 1 _____. 900.8 mol-1dm3 [A]t = = 0.00111 moldm-3 32.

  33. Summary of Kinetics Equations 33.

  34. Homework • Read p. 580-591 • Problems p. 619-620 • # 14.37-14.46

  35. Collision Model • Topic 6.2.1 - 6.2.7 • Topic 16.3.1-16.3.2 • Text p. 591-597, p. 605-612

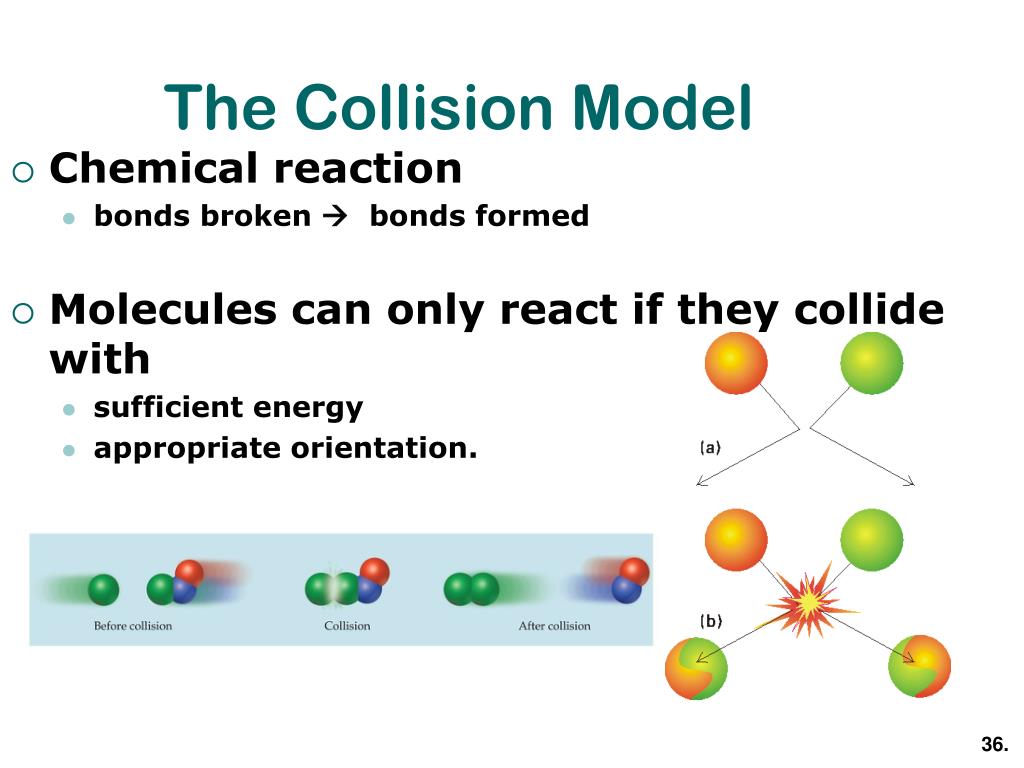

  36. The Collision Model • Chemical reaction • bonds broken  bonds formed • Molecules can only react if they collide with • sufficient energy • appropriate orientation. 36.

  37. Activation Energy (Ea) • Minimum amount of energy required for reaction 37.

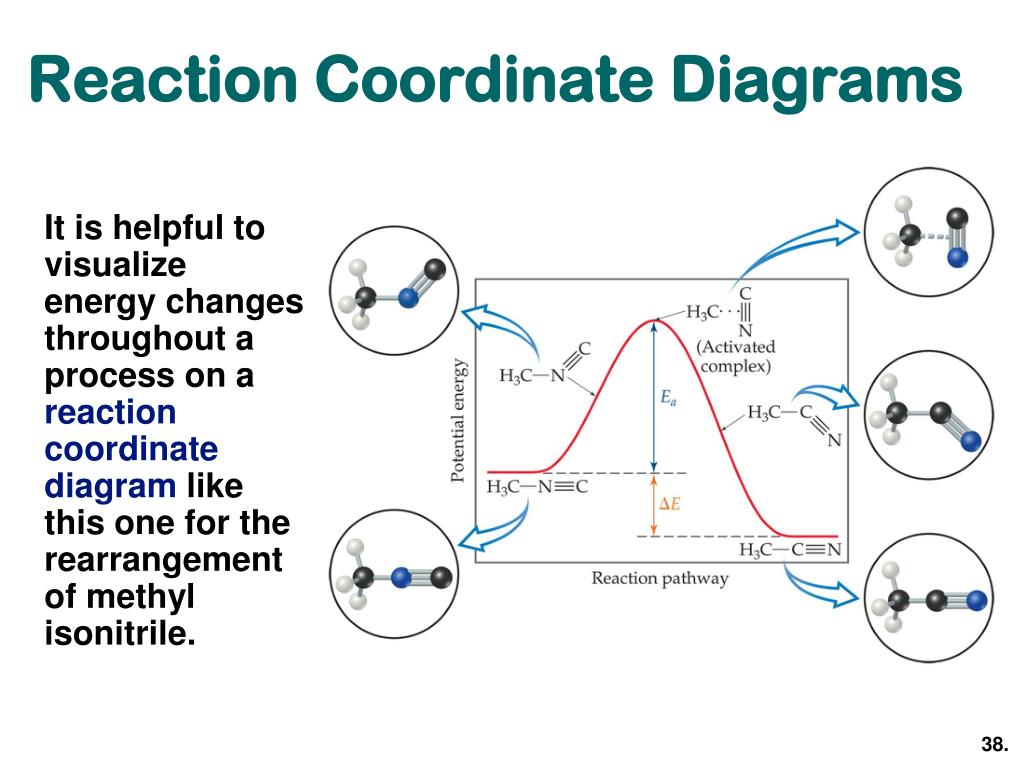

  38. Reaction Coordinate Diagrams It is helpful to visualize energy changes throughout a process on a reaction coordinate diagram like this one for the rearrangement of methyl isonitrile. 38.

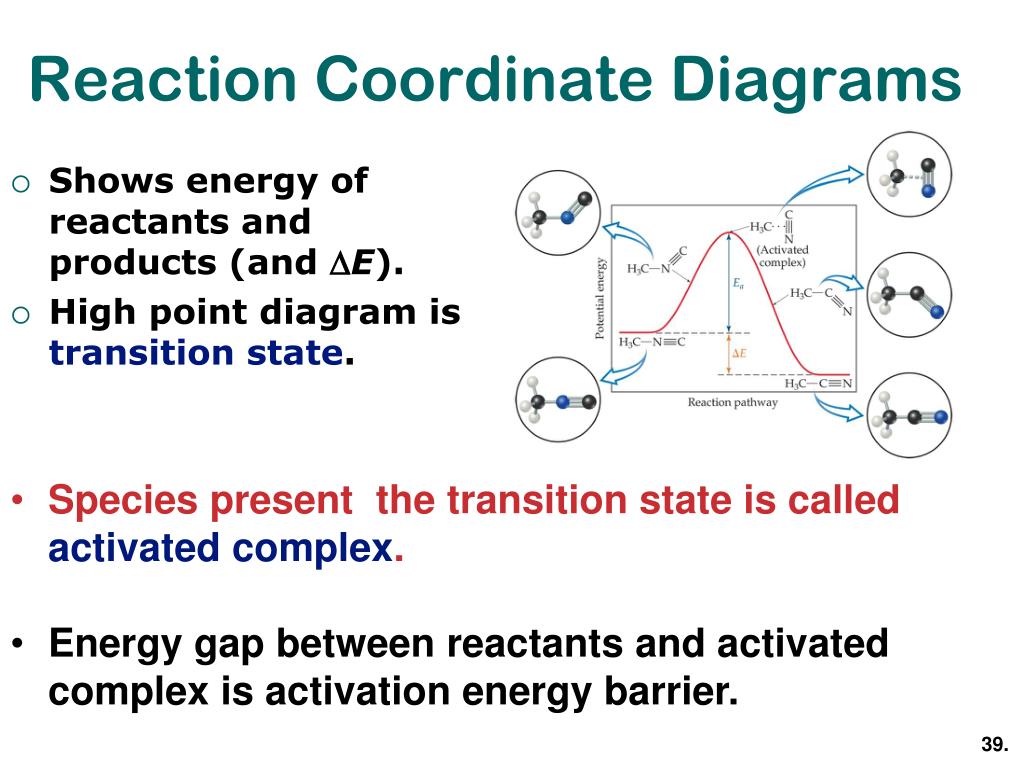

  39. Reaction Coordinate Diagrams • Shows energy of reactants and products (and E). • High point diagram is transition state. • Species present the transition state is called activated complex. • Energy gap between reactants and activated complex is activation energy barrier. 39.

  40. Temperature and Rate • Reaction rate increases as temperature increases. • k is temperature dependent. • Reaction rate increases about 10 fold for each 10oC rise in temperature 40.

  41. Maxwell–Boltzmann Distributions • Temperature-- a measure of the average kinetic energy of the molecules in a sample. • At any temperature there is a wide distribution of kinetic energies. 41.

  42. Maxwell–Boltzmann Distributions • As temperature increases, the curve flattens and broadens. • At higher temperatures, more molecules have higher energy. 42.

  43. Maxwell–Boltzmann Distributions • If the dotted line represents the activation energy, at higher temps the fraction of molecules that can overcome the activation energy barrier increases. • As a result, the reaction rate increases. 43.

  44. Maxwell–Boltzmann Distributions This fraction of molecules can be found through the expression: where R is the gas constant and T is the temperature in Kelvin . 44.

  45. Example • Ea = 100 KJ/mol • T = 300 K • R = 8.314 J/Mol K • f= 3.9 X10-18 • Ea = 100 kJ/mol • T = 310 K • R = 8.314 J/Mol K • f = 1.4 X 10-17 • There are 3.6 times more molecules possessing the activation energy.

  46. Svante Arrhenius • Swedish Chemist (1888) • Noticed that increase in rate constant with increase in temp is NOT linear. • Determined that reaction data obeyed an equation based on • Fraction of molecules with Ea or greater • # of collisions per second • Fraction of collisions with appropriate orientation

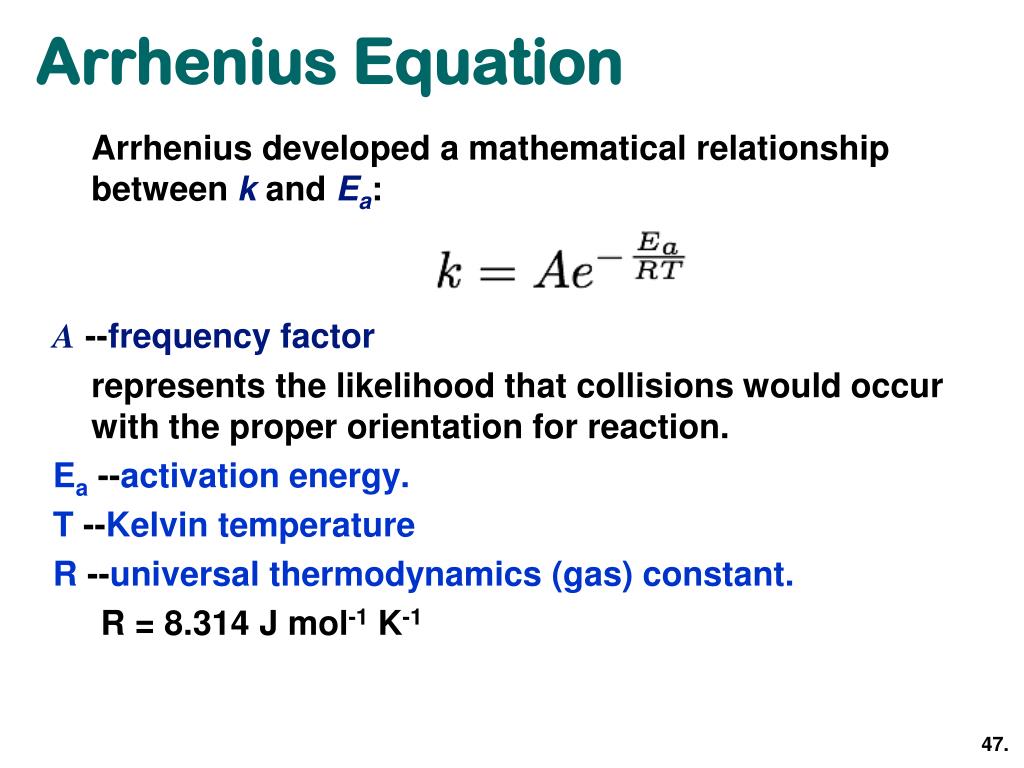

  47. Arrhenius Equation Arrhenius developed a mathematical relationship between k and Ea: A --frequency factor represents the likelihood that collisions would occur with the proper orientation for reaction. Ea --activation energy. T --Kelvin temperature R --universal thermodynamics (gas) constant. R = 8.314 J mol-1 K-1 47.

  48. 1 RT Arrhenius Equation Taking the natural logarithm of both sides, the equation becomes y = mx + b When k is determined experimentally at several temperatures,Eacan be calculated from the slope of a plot of ln k vs. 1/T. 48.

  49. Assignment • Read p. 591-597, 605-612 • P. 620 14.49-14.54,14.57, 14.58 • Read Handout—”Factors affecting the rate of a reaction”

  50. Reaction Mechanisms • Topic 16.2.1-16.2.2 • Textbook p. 597-604
