Rate laws

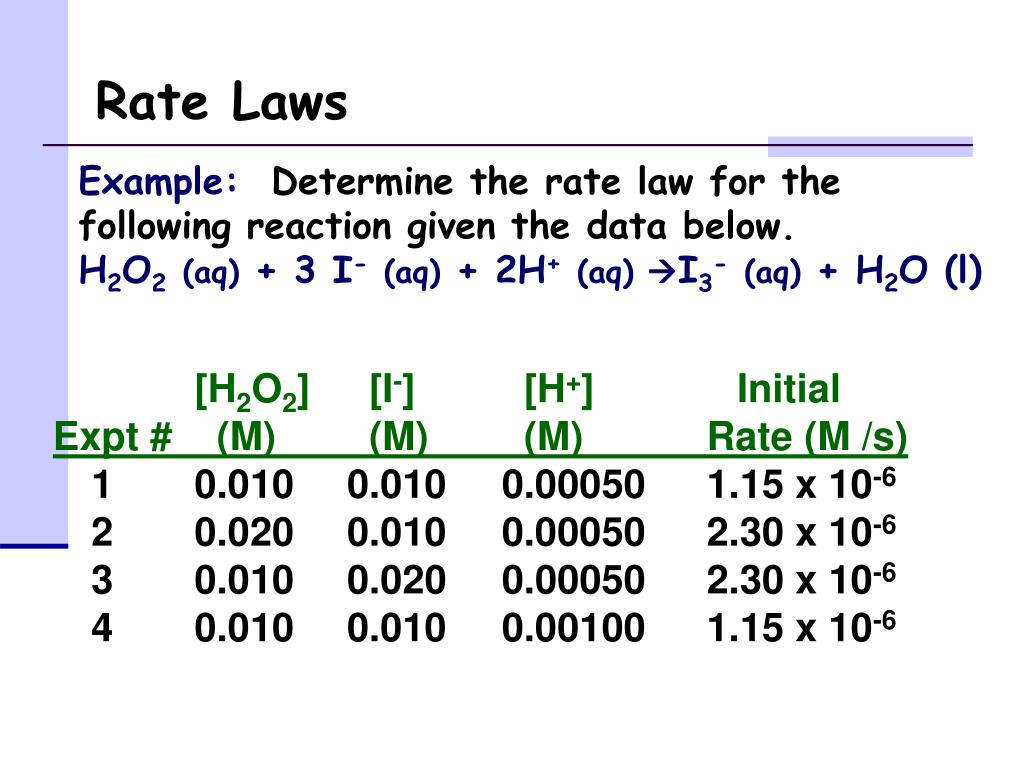

Rate Laws

Example: Determine the rate law for the following reaction given the data below.

H2O2(aq) + 3 I-(aq) + 2H+(aq) I3-(aq) + H2O (l)

[H2O2] [I-] [H+]Initial

Expt # (M) (M) (M)Rate (M /s)

10.0100.0100.000501.15 x 10-6

20.0200.0100.000502.30 x 10-6

30.0100.0200.00050 2.30 x 10-6

40.0100.0100.001001.15 x 10-6


Rate laws1

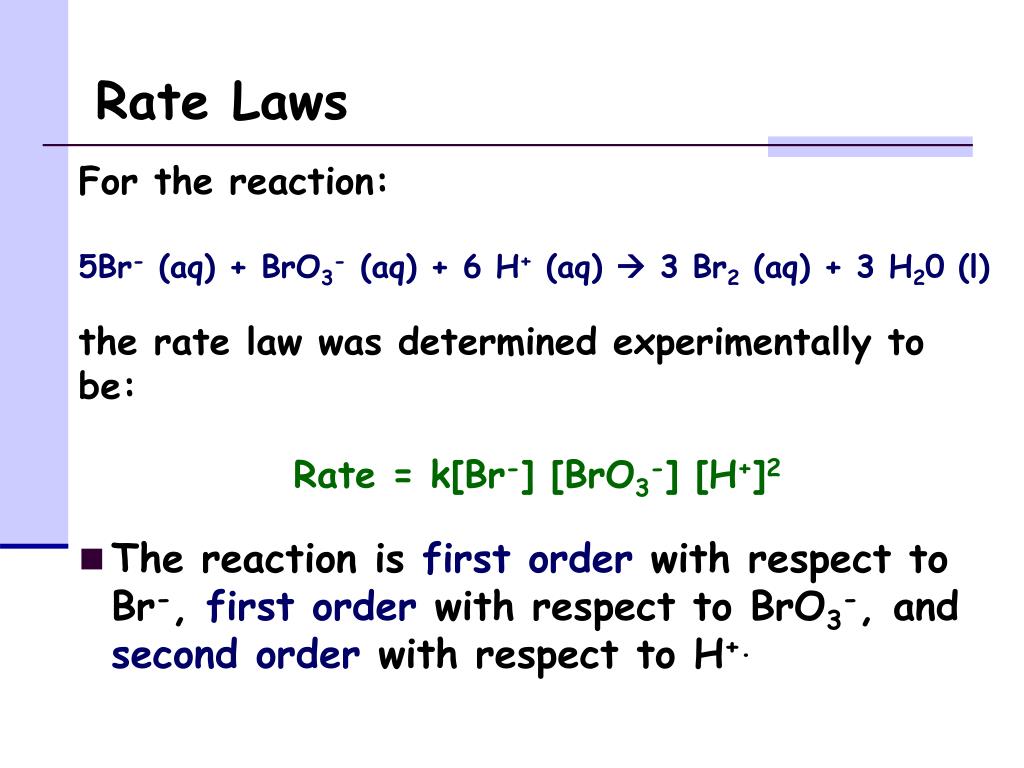

Rate Laws

For the reaction:

5Br- (aq) + BrO3- (aq) + 6 H+ (aq)  3 Br2 (aq) + 3 H20 (l)

the rate law was determined experimentally to be:

Rate = k[Br-] [BrO3-] [H+]2

  • The reaction is first order with respect to Br-, first order with respect to BrO3-, and second order with respect to H+.


Rate laws2

Rate Laws

The previous reaction is fourth order overall.

The overall reaction order is the sum of all the exponents in the rate law.

Note: In most rate laws, the reaction orders are 0, 1, or 2.

Reaction orders can be fractional or negative.


Rate laws3

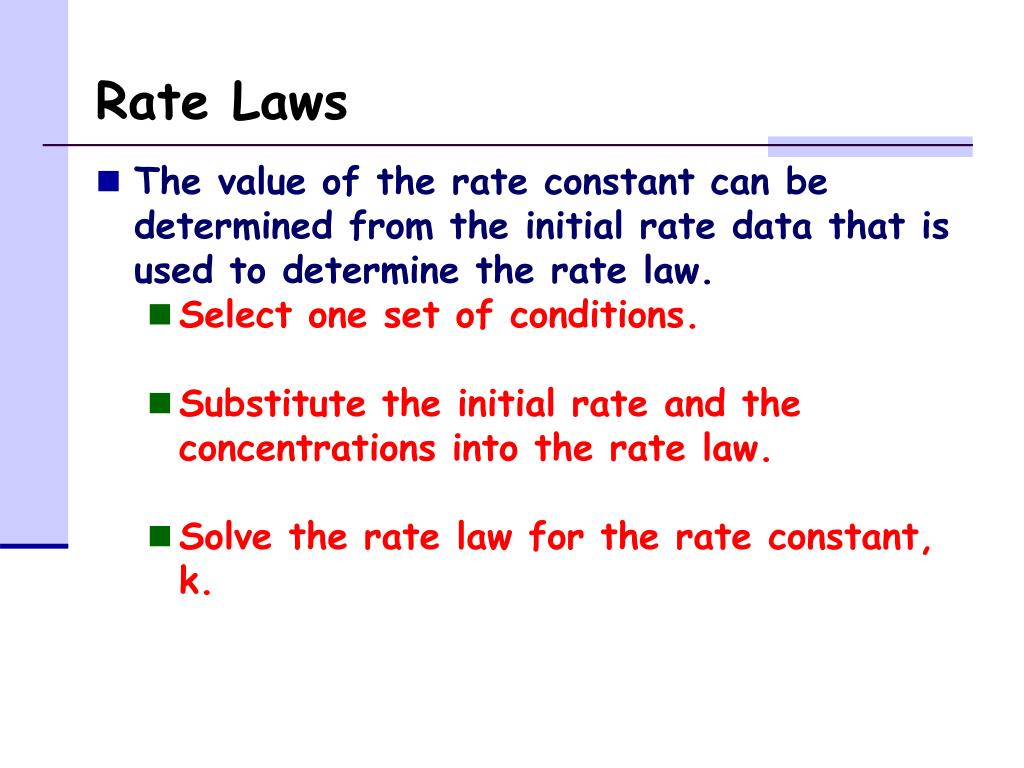

Rate Laws

The value of the rate constant can be determined from the initial rate data that is used to determine the rate law.

Select one set of conditions.

Substitute the initial rate and the concentrations into the rate law.

Solve the rate law for the rate constant, k.


Rate laws4

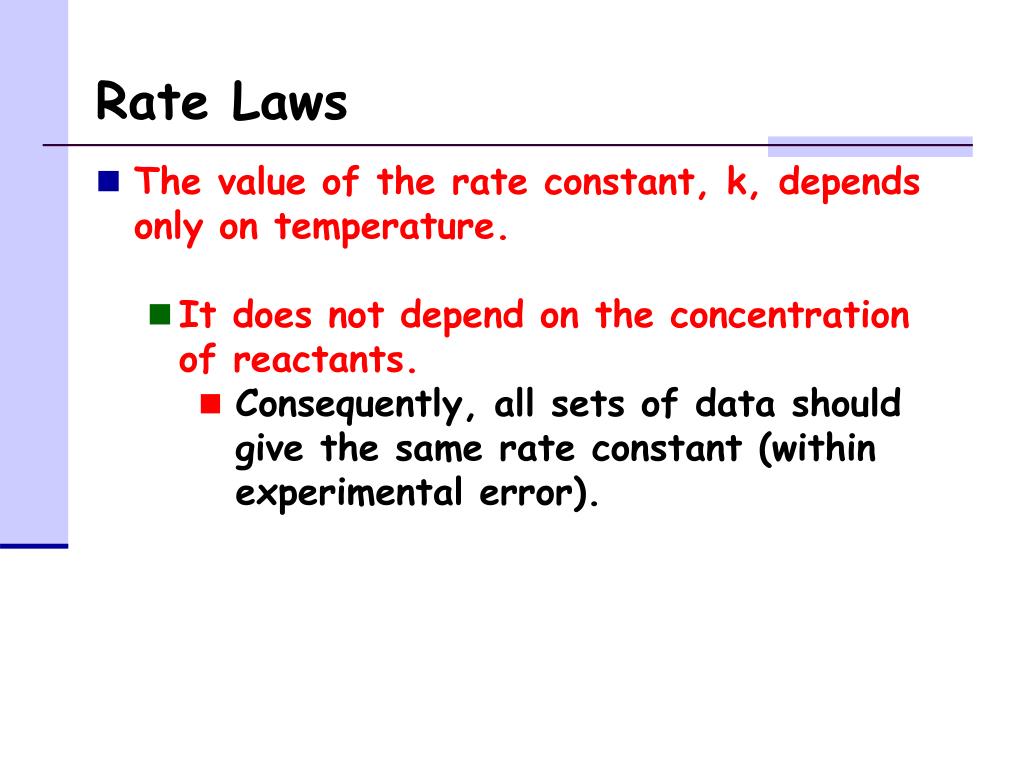

Rate Laws

The value of the rate constant, k, depends only on temperature.

It does not depend on the concentration of reactants.

Consequently, all sets of data should give the same rate constant (within experimental error).


Rate laws5

Rate Laws

Example: The following data was used to determine the rate law for the reaction:

A + B  C

Calculate the value of the rate constant if the rate law is:

Rate = k [A]2[B]

Expt #[A] (M)[B] (M)Initial rate (M /s)

10.1000.1004.0 x 10-5

20.1000.2008.0 x 10-5

30.2000.100 16.0 x 10-5


Rate laws6

Rate Laws

Select a set of conditions:

Substitute data into the rate law:

Solve for k


Rate laws7

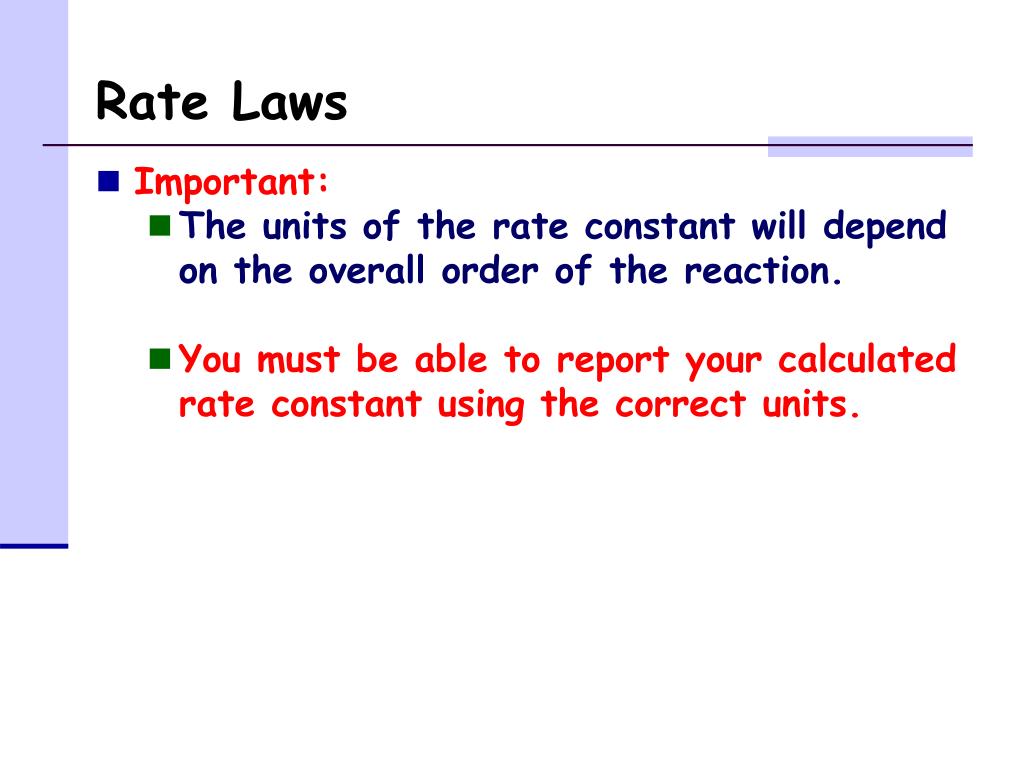

Rate Laws

Important:

The units of the rate constant will depend on the overall order of the reaction.

You must be able to report your calculated rate constant using the correct units.


First order reactions

First Order Reactions

A first order reaction is one whose rate depends on the concentration of a single reactant raised to the first power:

Rate = k[A]

Calculus (integration) gives us the integrated form of the rate law which allows us to predict the concentration of a reactant after a given amount of time has elapsed:

ln[A]t = -kt + ln[A]0


First order reactions1

First Order Reactions

To predict the concentration of a reactant after a given time has elapsed during a first order reaction:

ln[A]t = -kt + ln[A]0

where ln = natural logarithm (not log)

t =time (units depend on k)

[A]t = conc.or amount of A at time t

[A]0 = initial concentration or am’t of A

k = rate constant


First order reactions2

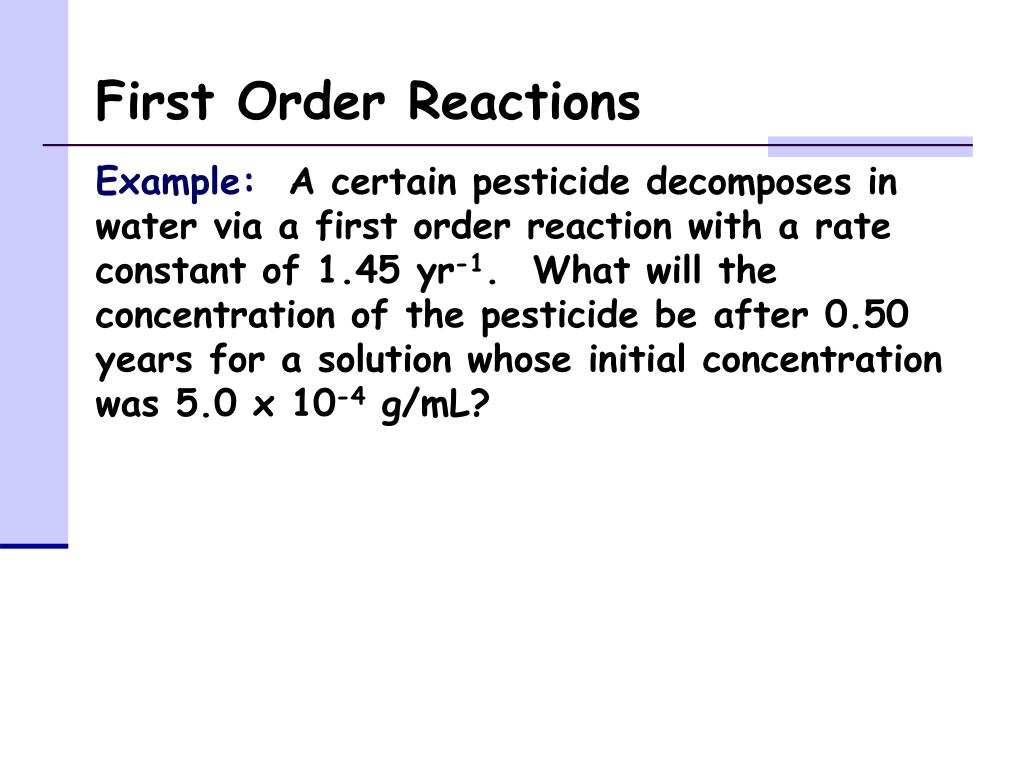

First Order Reactions

Example: A certain pesticide decomposes in water via a first order reaction with a rate constant of 1.45 yr-1. What will the concentration of the pesticide be after 0.50 years for a solution whose initial concentration was 5.0 x 10-4 g/mL?


First order reactions3

First Order Reactions


First order reactions4

First Order Reactions

The time required for the concentration of a reactant to drop to one half of its original value is called the half-life of the reaction.

t1/2

After one half life has elapsed, the concentration of the reactant will be:

[A]t = ½ [A]0

For a first order reaction:

t1/2 = 0.693

k

½


First order reactions5

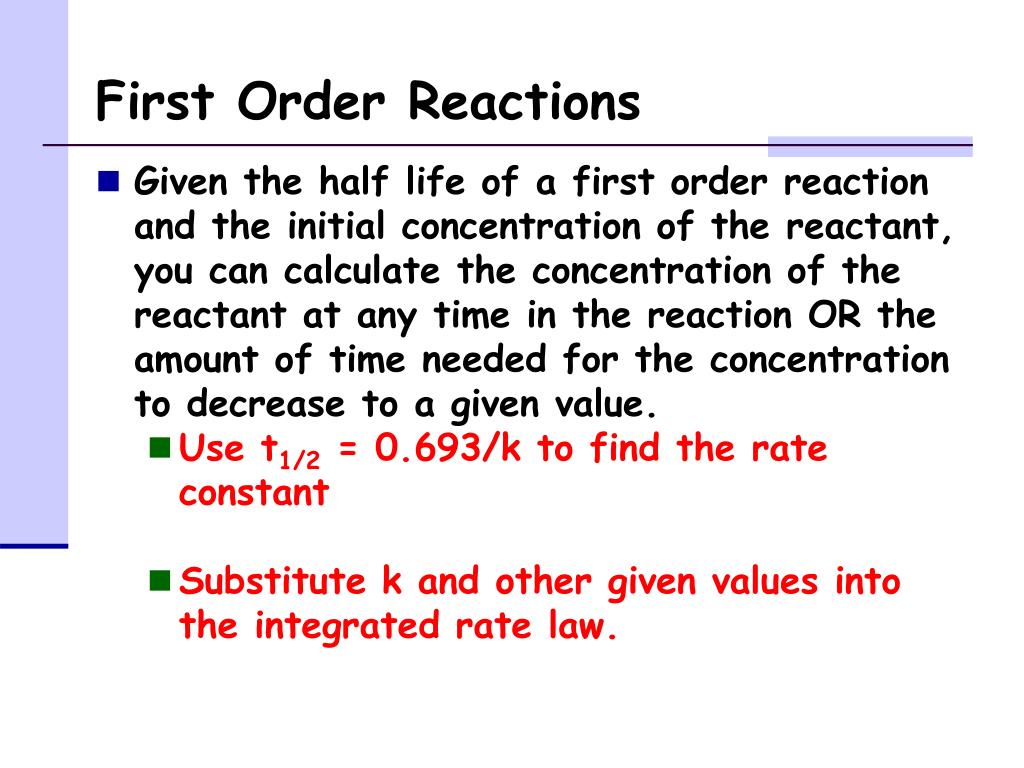

First Order Reactions

Given the half life of a first order reaction and the initial concentration of the reactant, you can calculate the concentration of the reactant at any time in the reaction OR the amount of time needed for the concentration to decrease to a given value.

Use t1/2 = 0.693/k to find the rate constant

Substitute k and other given values into the integrated rate law.


First order reactions6

First Order Reactions

  • The integrated rate law can also be re-written in terms of the half life of the reaction:

    [A]t = [A]0 x (0.5)

    • This equation is easier to use when solving for [A]t or [A]0.

    • The original integrated rate law is easier to use if you need to find telapsed.

telapsed

t1/2


First order reactions7

First Order Reactions

Example: A 25.0 mass % solution of a certain drug in water has a half life of 14 days. Calculate the concentration of the drug present in the solution after 30. days.


First order reactions8

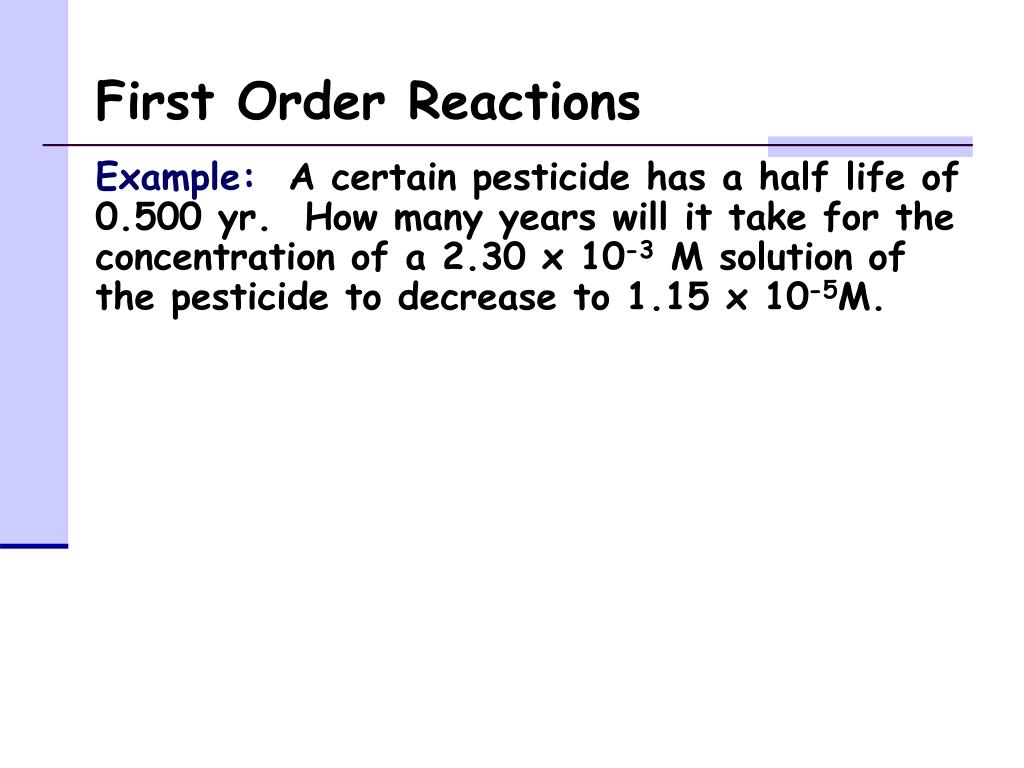

First Order Reactions

Example: A certain pesticide has a half life of 0.500 yr. How many years will it take for the concentration of a 2.30 x 10-3 M solution of the pesticide to decrease to 1.15 x 10-5M.


Identifying zero first second order reactions experimentally

Identifying Zero, First & Second Order Reactions Experimentally

Notice that the integrated rate law for first order reactions follows the general formula for a straight line:

ln[A]t = -kt + ln[A]0

y = mx + b

Therefore, if a reaction is first-order, a plot of ln [A] vs. t will yield a straight line, and the slope of the line will be -k.


First order reactions9

First Order Reactions

CH3NC

CH3CN

Consider the process in which methyl isonitrile is converted to acetonitrile.


First order reactions10

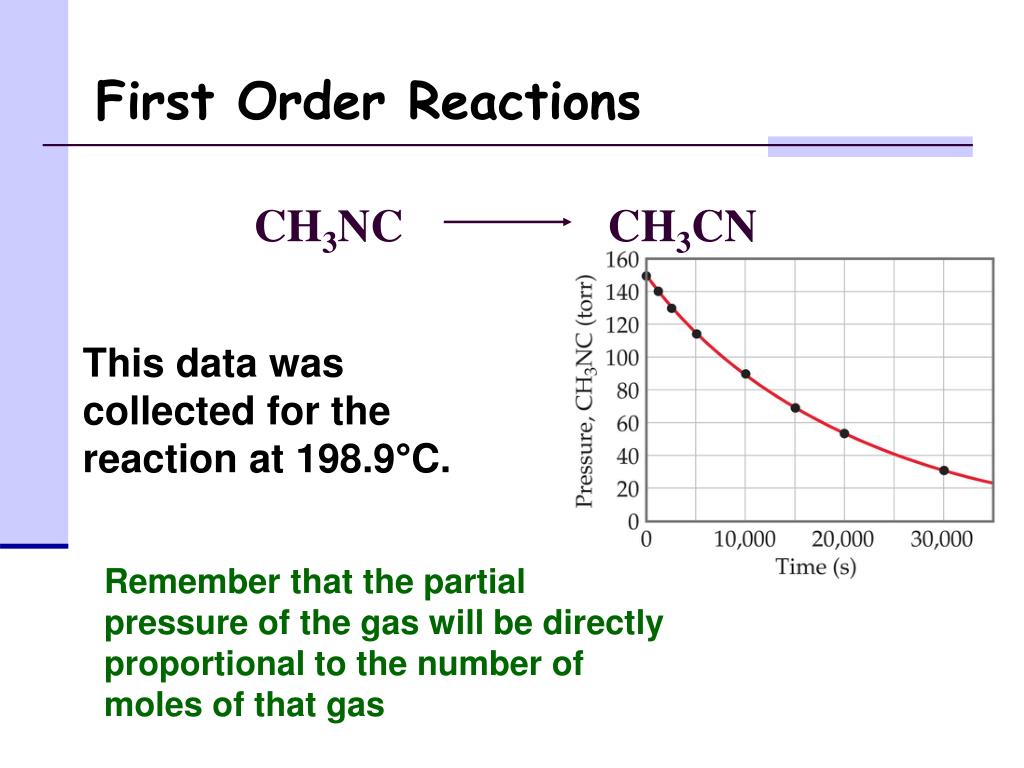

First Order Reactions

CH3NC

CH3CN

This data was collected for the reaction at 198.9°C.

Remember that the partial pressure of the gas will be directly proportional to the number of moles of that gas


First order reactions11

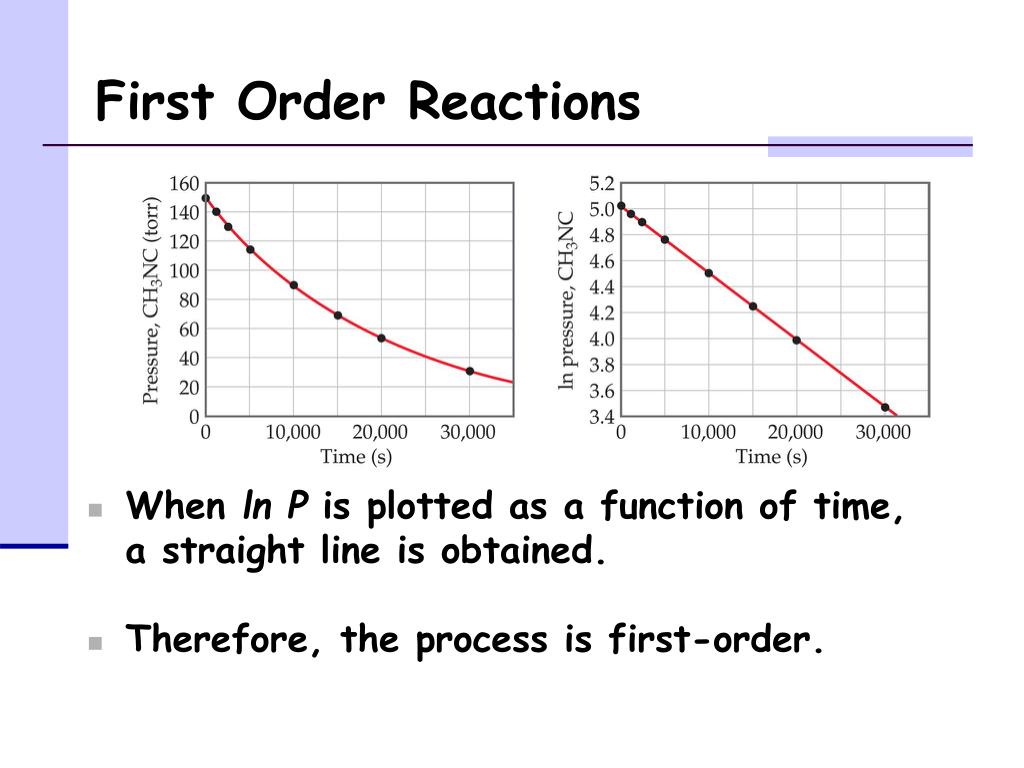

First Order Reactions

  • When ln P is plotted as a function of time, a straight line is obtained.

  • Therefore, the process is first-order.


Second order processes

Second Order Processes

A reaction that is second order with respect to A has the following rate law:

Rate = k[A]2

The integrated form of the second order rate law follows the general formula for a straight line:

1

[A]t

1

[A]0

= kt +


Second order processes1

Second Order Processes

For a reaction that is second order with respect to A, a plot of 1/[A] versus time will give a straight line.

slope of line = k

1

[A]


Zero order reactions

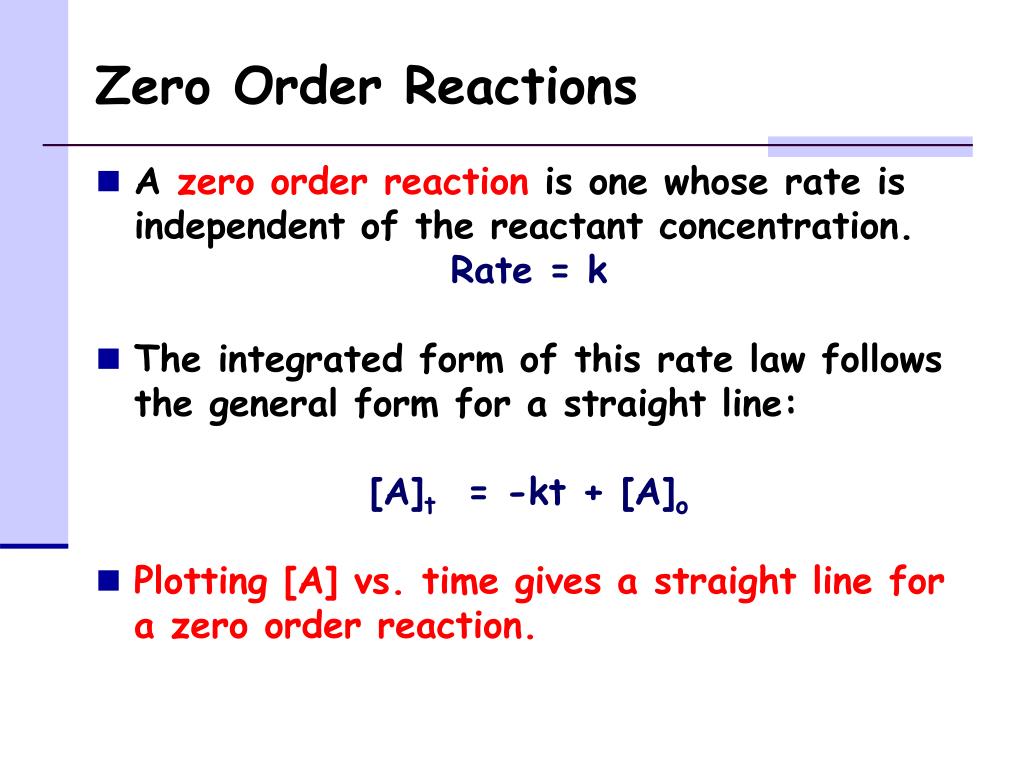

Zero Order Reactions

  • A zero order reaction is one whose rate is independent of the reactant concentration.

    Rate = k

  • The integrated form of this rate law follows the general form for a straight line:

    [A]t = -kt + [A]o

  • Plotting [A] vs. time gives a straight line for a zero order reaction.


Distinguishing zero first second order reactions graphically

Distinguishing Zero, First, & Second Order Reactions Graphically

  • On your exam, you must be able to use experimental data to graphically determine if a reaction is zero, first, or second order with respect to a given reactant.

  • Zero Order:

    • A plot of [A] vs. time is a straight line.

  • First Order:

    • A plot of ln[A] vs. time is a straight line.

  • Second Order:

    • A plot of 1/[A] vs. time is a straight line.


Distinguishing zero first second order reactions graphically1

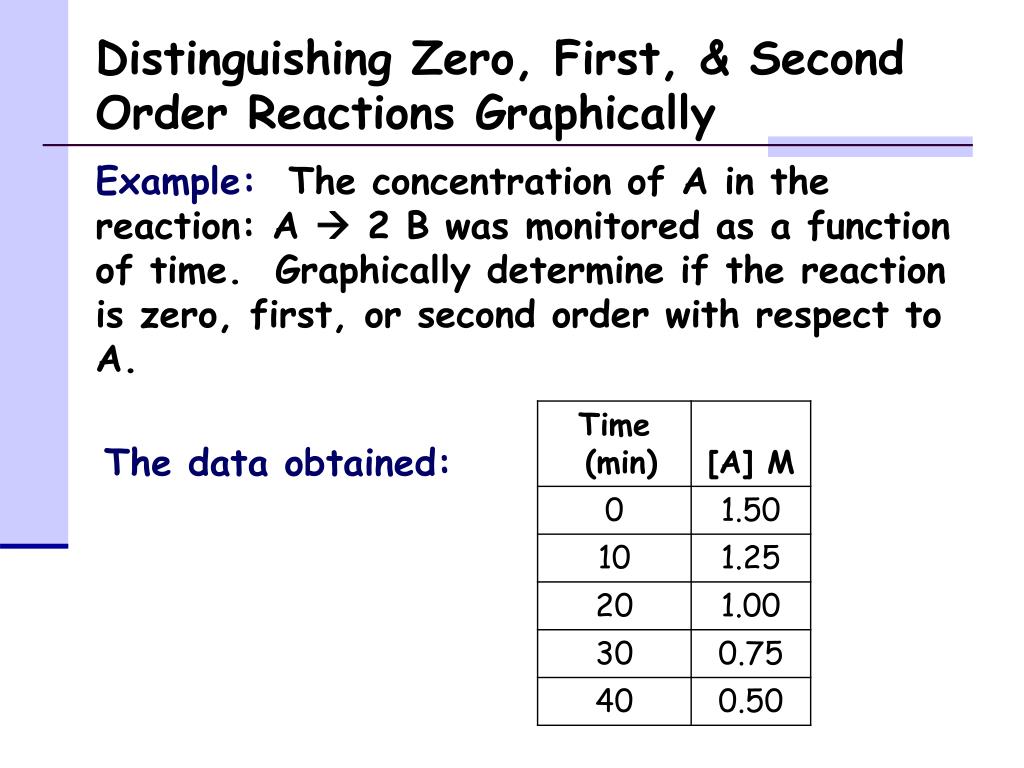

Distinguishing Zero, First, & Second Order Reactions Graphically

Example: The concentration of A in the reaction: A  2 B was monitored as a function of time. Graphically determine if the reaction is zero, first, or second order with respect to A.

The data obtained:


Distinguishing zero first second order reactions graphically2

Distinguishing Zero, First, & Second Order Reactions Graphically

A plot of [A] vs. time is a straight line so the reaction is zero order with respect to A.


Distinguishing zero first second order reactions graphically3

Distinguishing Zero, First, & Second Order Reactions Graphically

Notice that the plots of ln[A] vs. time and 1/[A] vs. time are both curves instead of straight lines! This means that the reaction is not first or second order with respect to [A].


Distinguishing zero first second order reactions graphically4

Distinguishing Zero, First, & Second Order Reactions Graphically

Time (s)

[NO2], M

0.0

0.01000

50.0

0.00787

100.0

0.00649

200.0

0.00481

300.0

0.00380

Example: The decomposition of NO2 at 300°C is described by the equation:

NO2 (g) 

NO (g) + 1/2 O2 (g)

and yields the data below. Determine if the reaction is zero, first, or second order with respect to NO2?


Distinguishing zero first second order reactions graphically5

Distinguishing Zero, First, & Second Order Reactions Graphically

  • A plot of [NO2] vs. time is a curve instead of a straight line.

    • The reaction is not zero order with respect to [NO2]


Distinguishing zero first second order reactions graphically6

Distinguishing Zero, First, & Second Order Reactions Graphically

Time (s)

[NO2], M

ln [NO2]

0.0

0.01000

−4.610

50.0

0.00787

−4.845

100.0

0.00649

−5.038

200.0

0.00481

−5.337

300.0

0.00380

−5.573

  • A graph of ln [NO2] vs.t is a curve instead of a straight line.

    • Reaction is not first order in [NO2].


Distinguishing zero first second order reactions graphically7

Distinguishing Zero, First, & Second Order Reactions Graphically

Time (s)

[NO2], M

1/[NO2]

0.0

0.01000

100

50.0

0.00787

127

100.0

0.00649

154

200.0

0.00481

208

300.0

0.00380

263

  • Graphing 1/[NO2] vs. t gives a straight line.

  • Therefore, the process is second-order in [NO2].
