  1. Identifying the Spatial Locationof Land Use Permit & Water License Applications in the NWT Colin Daniel & Philip Bailey ESSA Technologies December 19, 2006 Draft Findings & Recommendations

  2. Project Overview Objectives: • review current processes • identify possible changes  tool • evaluate GNWT Spatial Data Warehouse Approach: • interviews • functional requirements • technical requirements • implementation plan

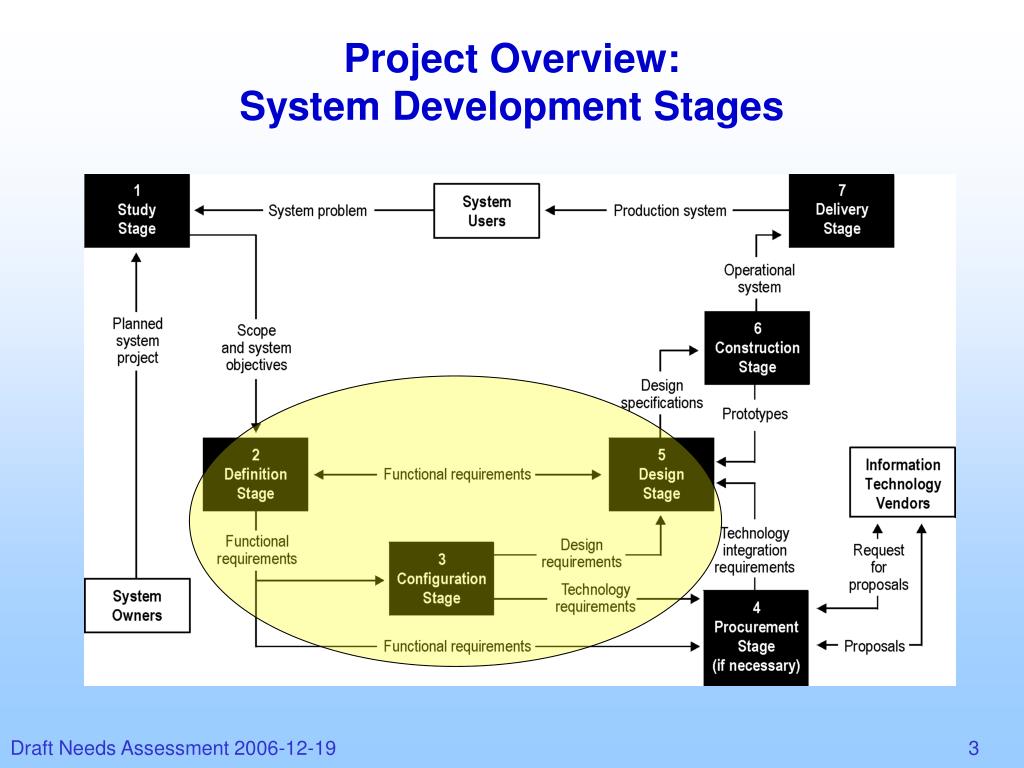

  3. Project Overview:System Development Stages

  4. Project Overview:Deliverables & Schedule

  5. Today’s Agenda • Functional Requirements (09:15-11:30) • current process • system objectives & users • key functions • inputs & outputs • Technical Requirements(11:30-12:15) • feasibility analysis & recommended solution • Implementation Plan(12:45-13:30) • possible phases • schedule & budget • Next steps(13:30-14:00) • review project workplan and schedule

  6. Today’s Agenda • Functional Requirements (09:15-11:30) • current process • system objectives & users • key functions • inputs & outputs • Technical Requirements(11:30-12:15) • feasibility analysis & recommended solution • Implementation Plan(12:45-13:30) • possible phases • schedule & budget • Next steps(13:30-14:00) • review project workplan and schedule

  7. Current Process:Boards & Applications

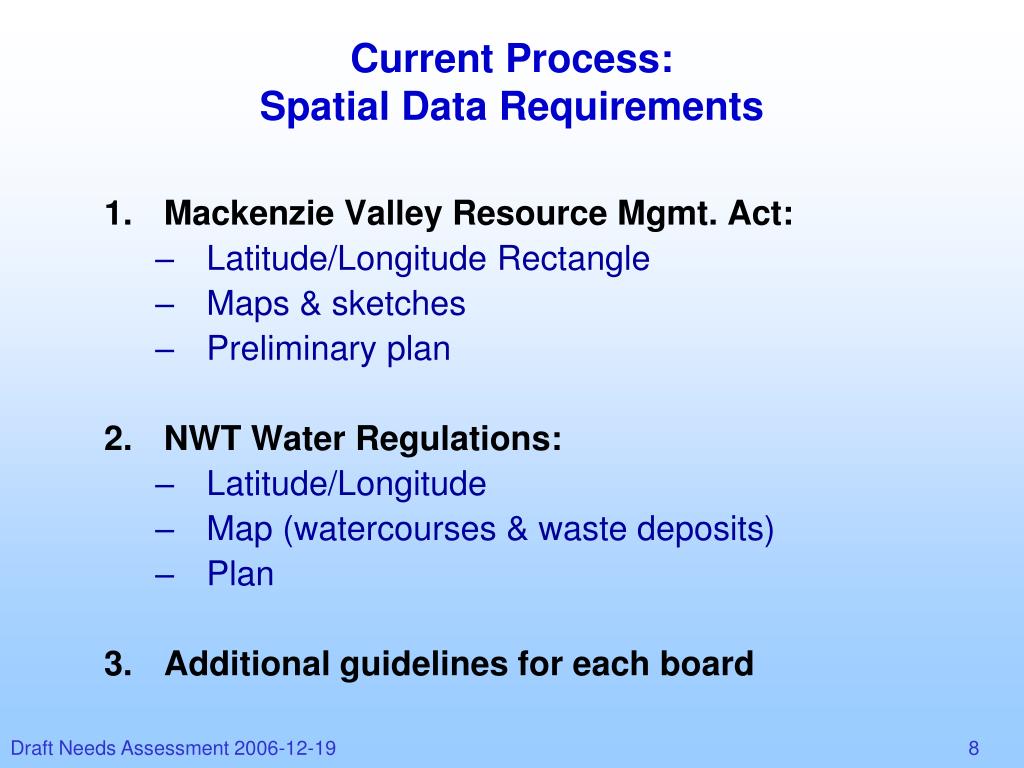

  8. Current Process:Spatial Data Requirements • Mackenzie Valley Resource Mgmt. Act: • Latitude/Longitude Rectangle • Maps & sketches • Preliminary plan • NWT Water Regulations: • Latitude/Longitude • Map (watercourses & waste deposits) • Plan • Additional guidelines for each board

  9. Current Process:Key Issues and Opportunities • Variation in spatial data requirements • Spatial extent and site plan • Hard-copy submissions • Existing spatial database • Lack of digital data for reviewers • Variation in GIS capacity • Cumulative effects assessment

  10. Overall System Objective To develop a integratedsystem that will allow for the electronic acquisition, storage and retrieval of location information associated with land use permit and water license applications in the NWT.

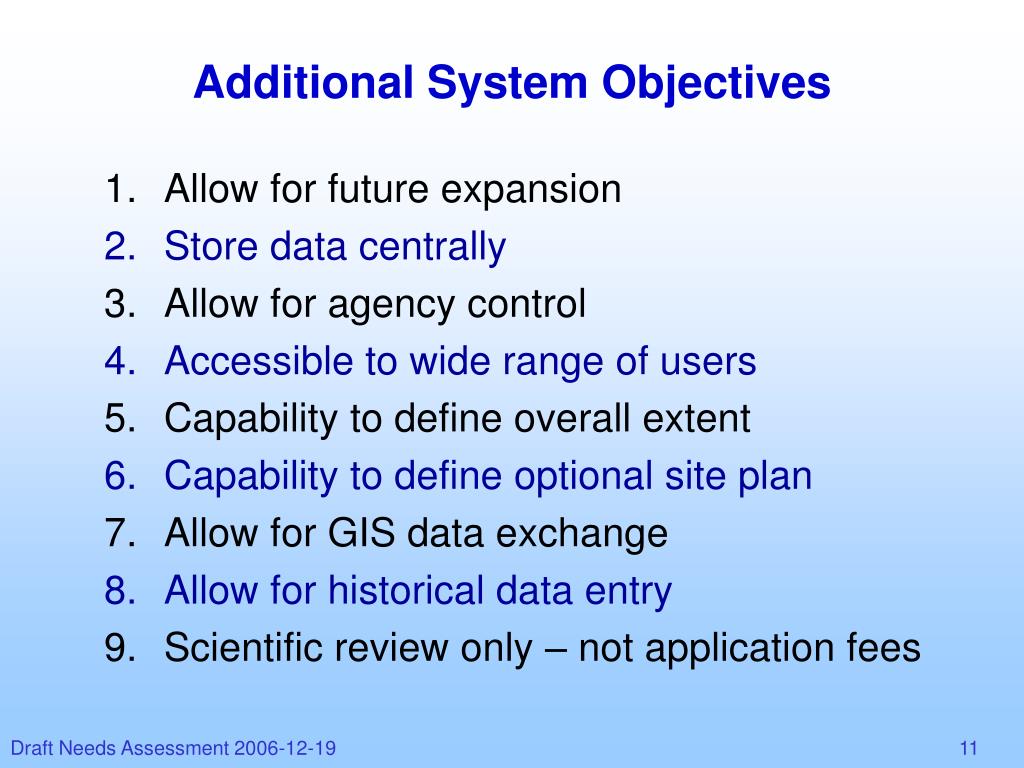

  11. Additional System Objectives • Allow for future expansion • Store data centrally • Allow for agency control • Accessible to wide range of users • Capability to define overall extent • Capability to define optional site plan • Allow for GIS data exchange • Allow for historical data entry • Scientific review only – not application fees

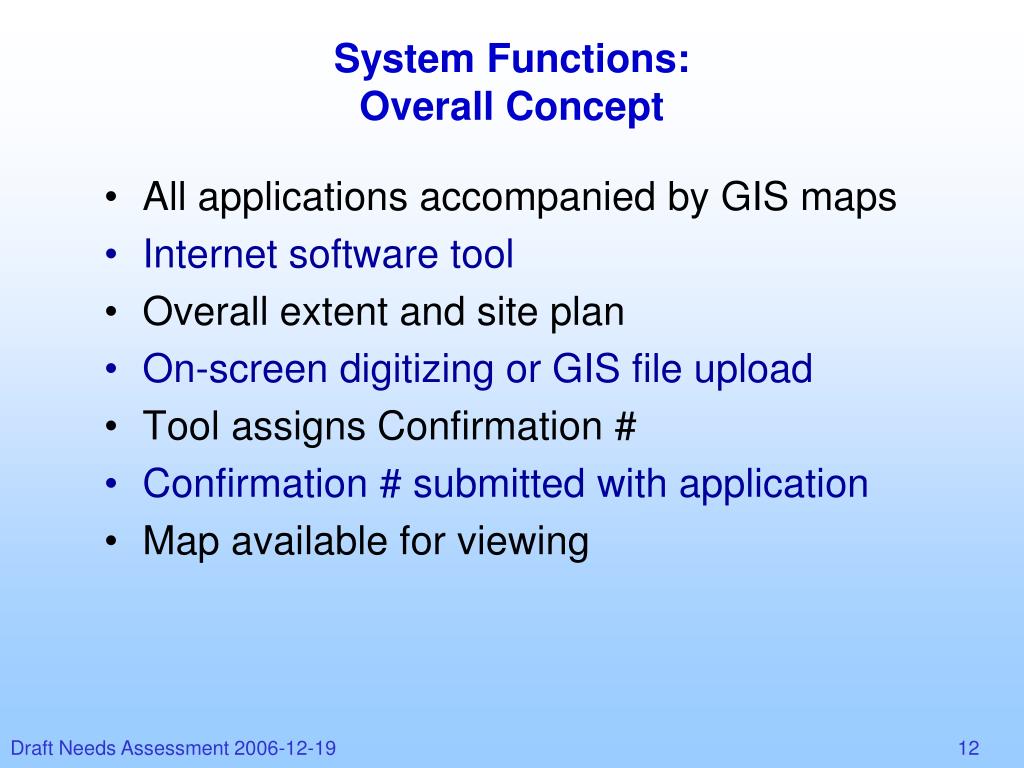

  12. System Functions:Overall Concept • All applications accompanied by GIS maps • Internet software tool • Overall extent and site plan • On-screen digitizing or GIS file upload • Tool assigns Confirmation # • Confirmation # submitted with application • Map available for viewing

  13. System Users

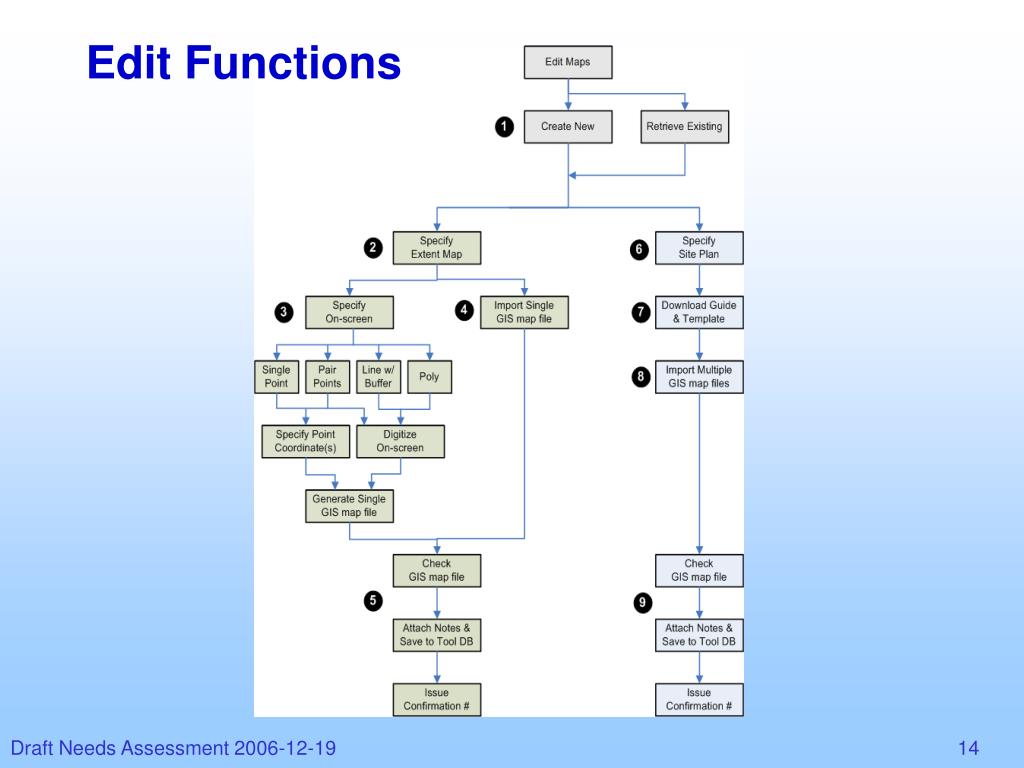

  14. Edit Functions

  15. Review Functions

  16. Inputs and Outputs User Inputs: • spatial extent: • point, rectangle, line, polygon OR • single GIS map file with single polygon • site plan: • one GIS map file per development type System Inputs: • GIS base maps (1:50,000 NTS) • possible development types • application data from participating boards Outputs: • Extent: Confirmation # and GIS map • Site Plan: Confirmation # and GIS map(s)

  17. Today’s Agenda • Functional Requirements (09:15-11:30) • current process • system objectives & users • key functions • inputs & outputs • Technical Requirements (11:30-12:15) • feasibility analysis & recommended solution • Implementation Plan(12:45-13:30) • possible phases • schedule & budget • Next steps(13:30-14:00) • review project workplan and schedule

  18. Technical Options Option 1: Internet Mapping Framework • extend existing SDW technology • add IMF editing suite • customize web interface: editing & review Option 2: ESRI ArcGIS Server • new architecture from ESRI • replace portion of current SDW technology • customize web interface

  19. Feasibility Analysis

  20. Feasibility Analysis of Technical Options

  21. Feasibility Analysis of Technical Options

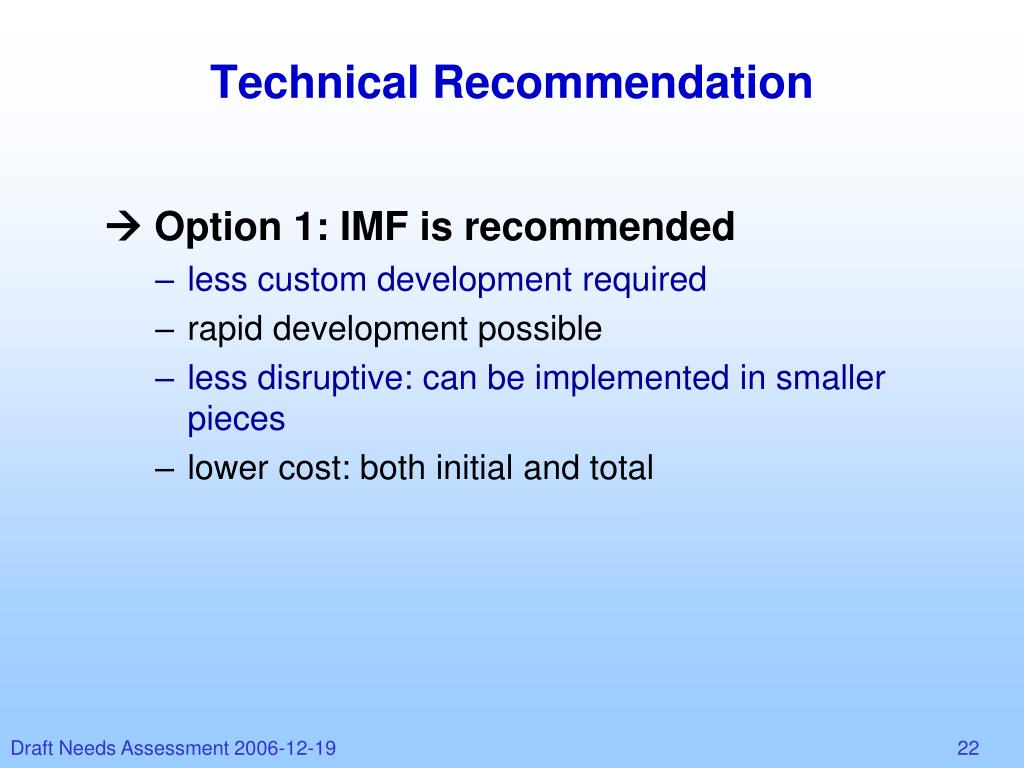

  22. Technical Recommendation  Option 1: IMF is recommended • less custom development required • rapid development possible • less disruptive: can be implemented in smaller pieces • lower cost: both initial and total

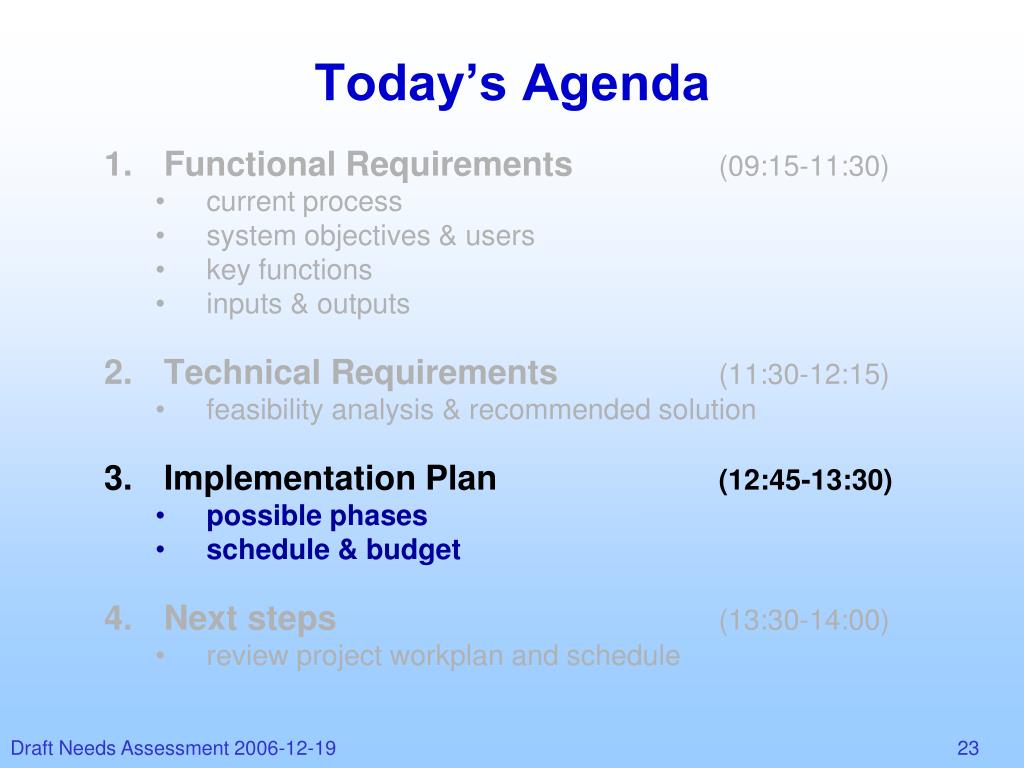

  23. Today’s Agenda • Functional Requirements (09:15-11:30) • current process • system objectives & users • key functions • inputs & outputs • Technical Requirements(11:30-12:15) • feasibility analysis & recommended solution • Implementation Plan (12:45-13:30) • possible phases • schedule & budget • Next steps(13:30-14:00) • review project workplan and schedule

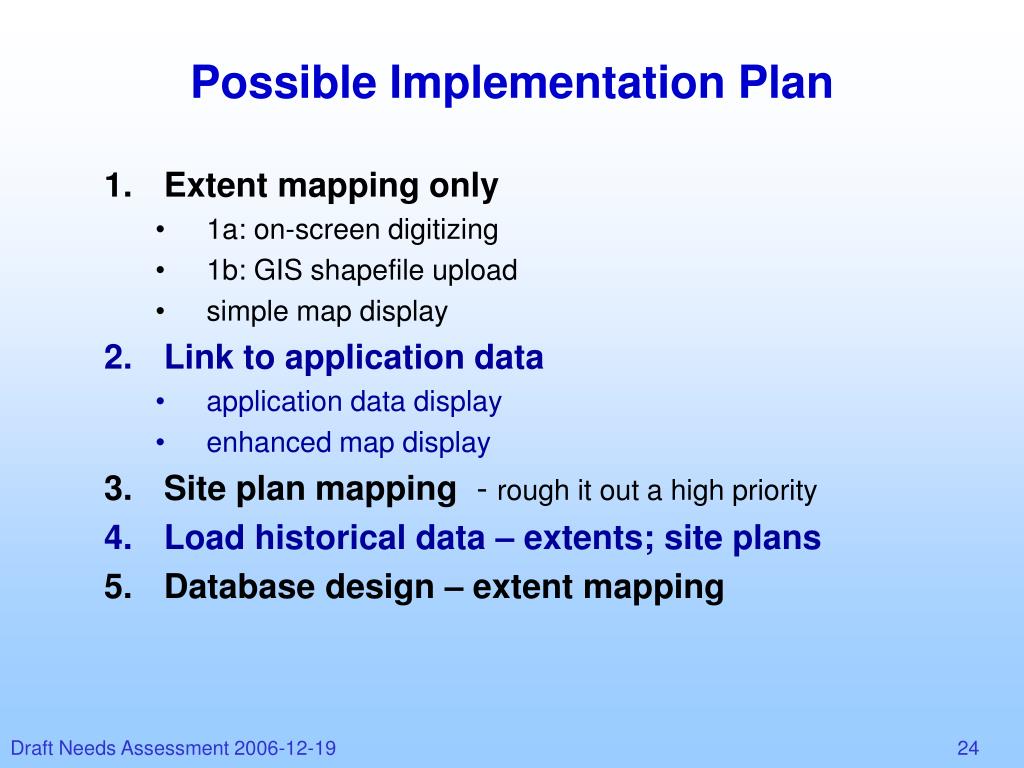

  24. Possible Implementation Plan • Extent mapping only • 1a: on-screen digitizing • 1b: GIS shapefile upload • simple map display • Link to application data • application data display • enhanced map display • Site plan mapping - rough it out a high priority • Load historical data – extents; site plans • Database design – extent mapping

  25. Today’s Agenda • Functional Requirements (09:15-11:30) • current process • system objectives & users • key functions • inputs & outputs • Technical Requirements(11:30-12:15) • feasibility analysis & recommended solution • Implementation Plan(12:45-13:30) • possible phases • schedule & budget • Next steps (13:30-14:00) • review project workplan and schedule
