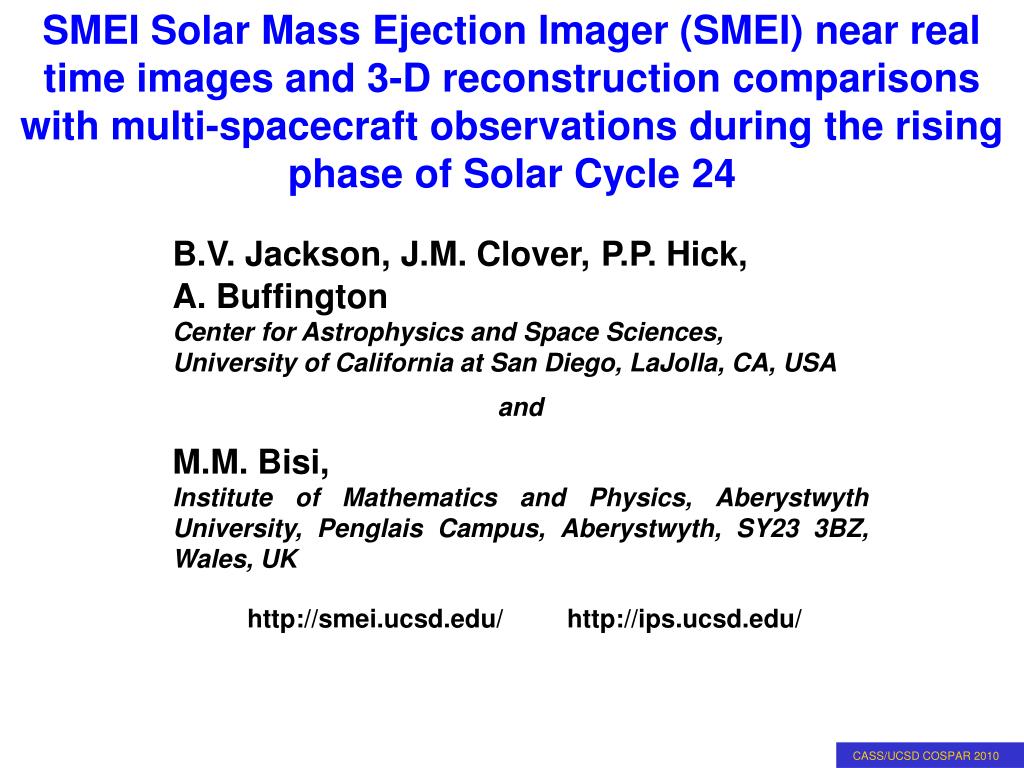

  1. SMEI Solar Mass Ejection Imager (SMEI) near real time images and 3-D reconstruction comparisons with multi-spacecraft observations during the rising phase of Solar Cycle 24 B.V. Jackson, J.M. Clover,P.P. Hick, A. Buffington Center for Astrophysics and Space Sciences, University of California at San Diego, LaJolla, CA, USA and M.M. Bisi, Institute of Mathematics and Physics, Aberystwyth University, Penglais Campus, Aberystwyth, SY23 3BZ, Wales, UK http://smei.ucsd.edu/ http://ips.ucsd.edu/

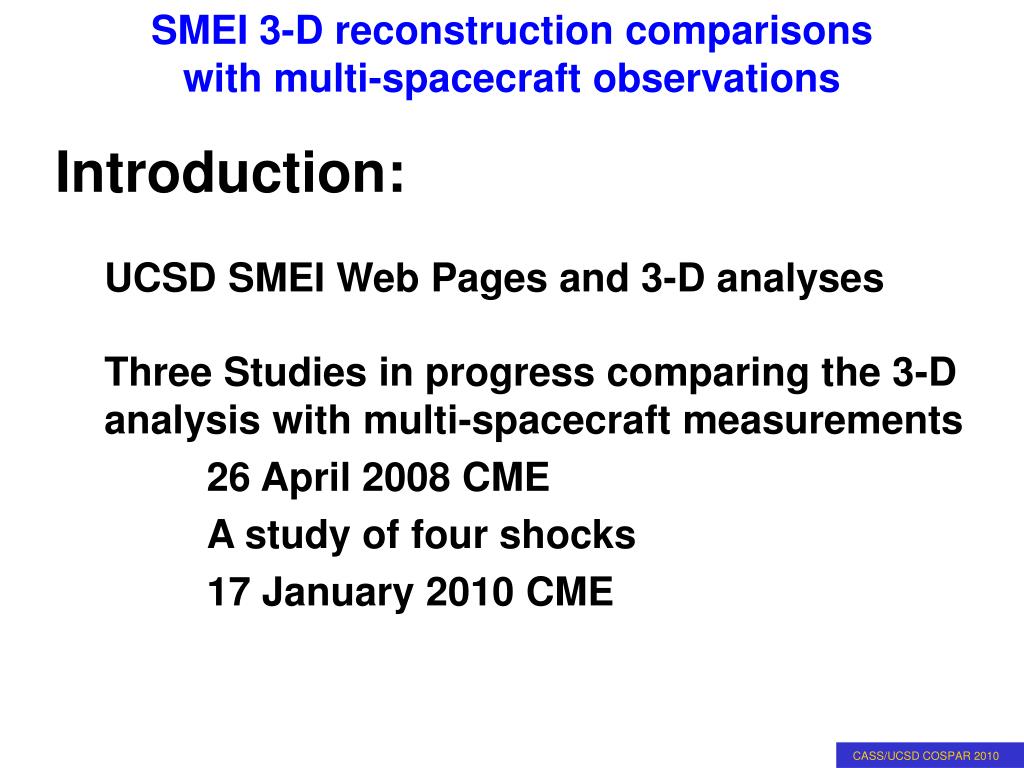

  2. Introduction: UCSD SMEI Web Pages and 3-D analyses Three Studies in progress comparing the 3-D analysis with multi-spacecraft measurements 26 April 2008 CME A study of four shocks 17 January 2010 CME

  3. The Solar Mass Ejection Imager (SMEI) Mission -- Journal Article B. V. Jackson, A. Buffington, P. P. Hick Center for Astrophysics and Space Sciences, University of California at San Diego, LaJolla, CA. R.C. Altrock, S. Figueroa, P.E. Holladay, J.C. Johnston, S.W. Kahler, J.B. Mozer, S. Price,R.R. Radick, R. Sagalyn, D. Sinclair Air Force Research Laboratory/Space Vehicles Directorate (AFRL/VS), Hanscom AFB, MA G.M. Simnett, C.J. Eyles, M.P. Cooke, S.J. Tappin School of Physics and Space Research, University of Birmingham, UK T. Kuchar, D. Mizuno, D.F.Webb ISR, Boston College, Newton Center, MA P.A. Anderson Boston University, Boston, MA S.L. Keil National Solar Observatory, Sunspot, NM R.E. Gold Johns Hopkins University/Applied Physics Laboratory, Laurel, MD N.R. Waltham Space Science Dept., Rutherford-Appleton Laboratory, Chilton, UK The Coriolis spacecraft at Vandenberg prior to flight. The SMEI baffles are circled. The large NRL radiometer Windsat is on the top of the spacecraft.

  4. 7 years of Data!! Sun C1 Sun C2 C3 Simultaneous images from the three SMEI cameras. 4-sec image-frame exposures

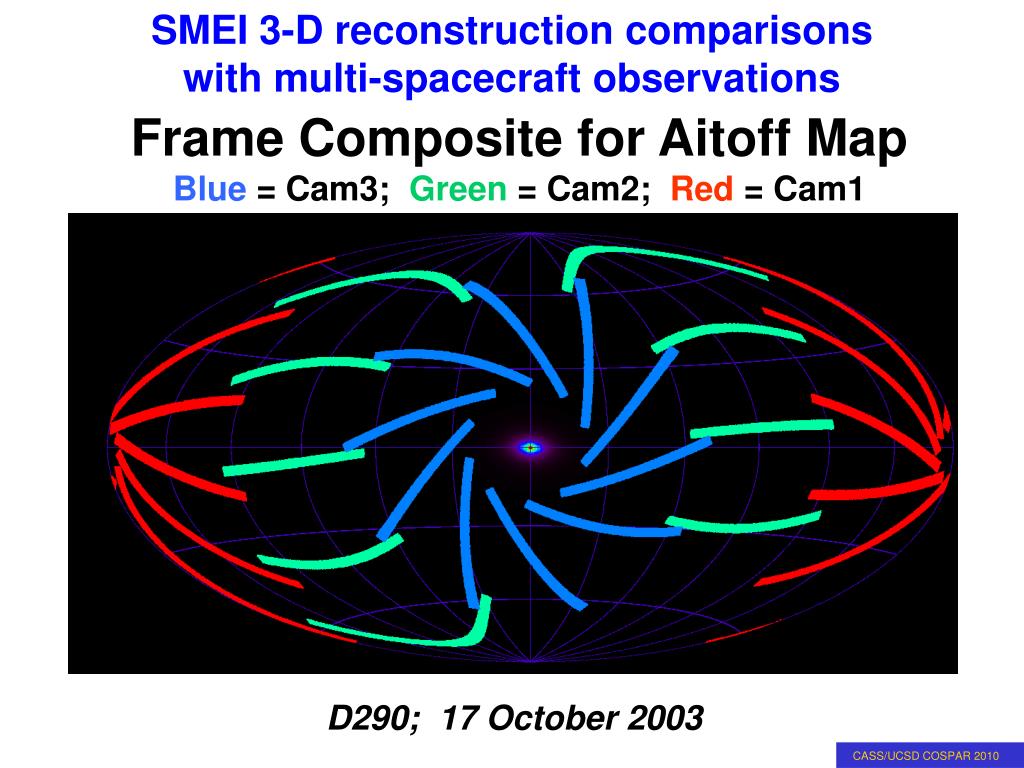

  5. Frame Composite for Aitoff Map Blue = Cam3; Green= Cam2; Red = Cam1 D290; 17 October 2003

  6. SMEI first light composite image Composite all-sky map Feb 2, 2003 from the three SMEI cameras.

  7. The signal we observe with SMEI

  8. UCSD SMEI Webpage

  9. UCSD Web Pages http://smei.ucsd.edu/

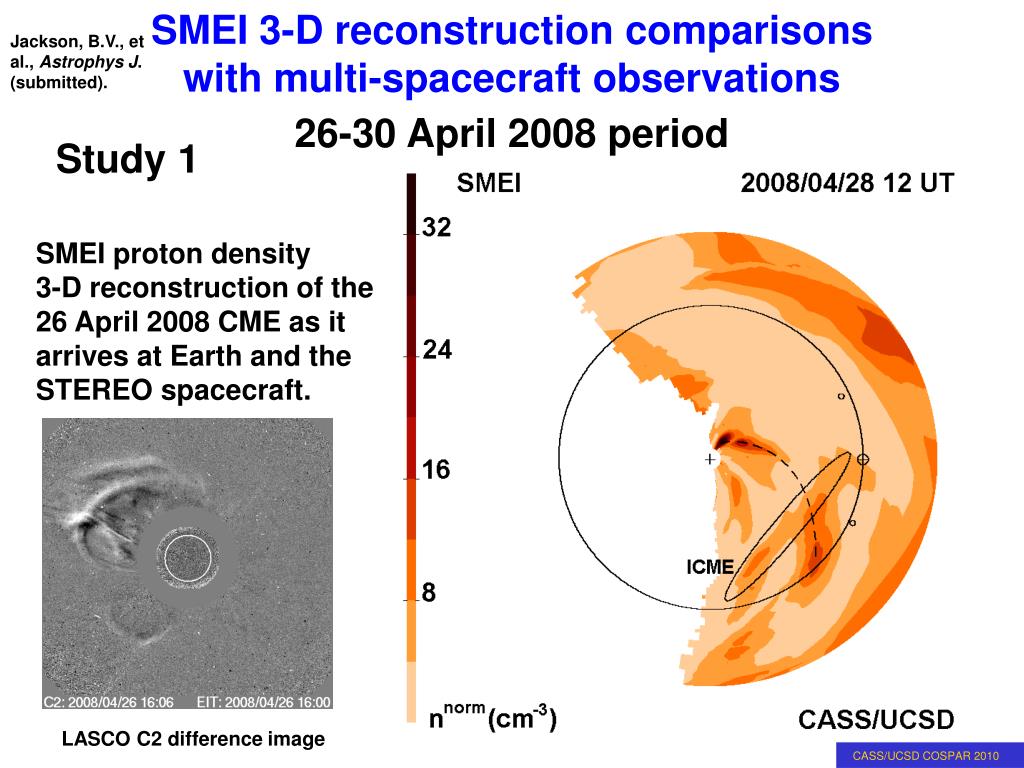

  10. 26-30 April 2008 period Study 1 SMEI proton density 3-D reconstruction of the 26 April 2008 CME as it arrives at Earth and the STEREO spacecraft. LASCO C2 difference image LASCO C2 difference image

  11. Jackson, B.V., et al., Astrophys J. (submitted). 26-30 April 2008 period Study 1 SMEI proton density 3-D reconstruction of the 26 April 2008 CME as it arrives at Earth and the STEREO spacecraft. LASCO C2 difference image

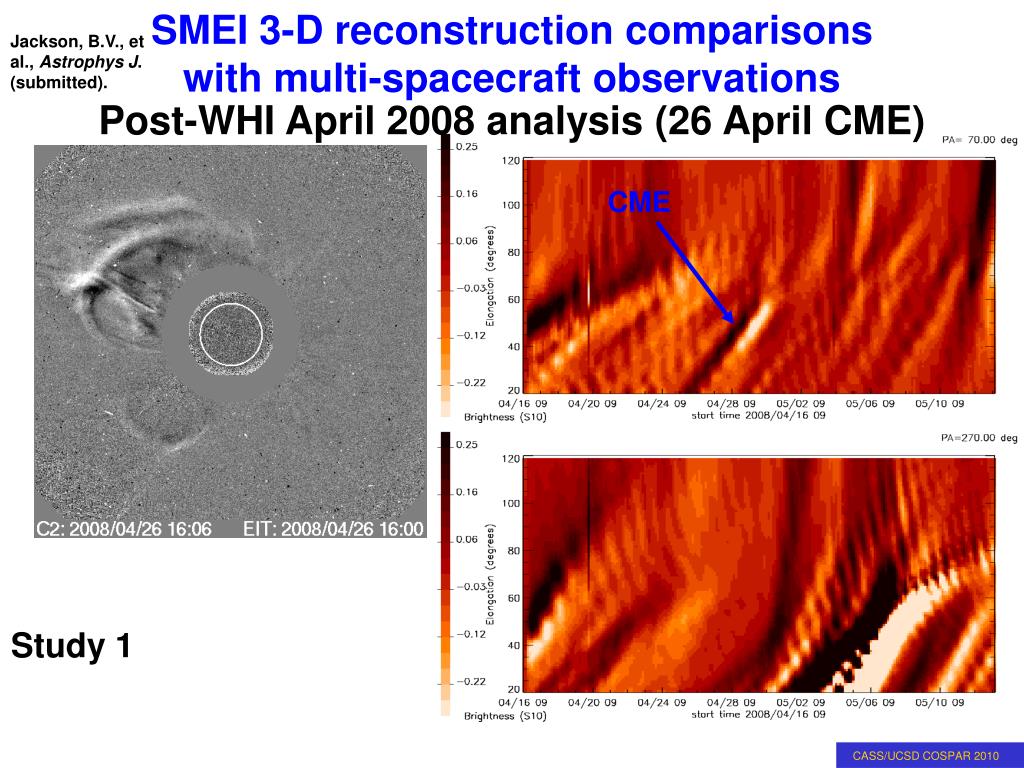

  12. Jackson, B.V., et al., Astrophys J. (submitted). Post-WHI April 2008 analysis (26 April CME) CME Study 1

  13. Jackson, B.V., et al., Astrophys J. (submitted). Post-WHI April 2008 analysis (26 April CME) CME CME Study 1

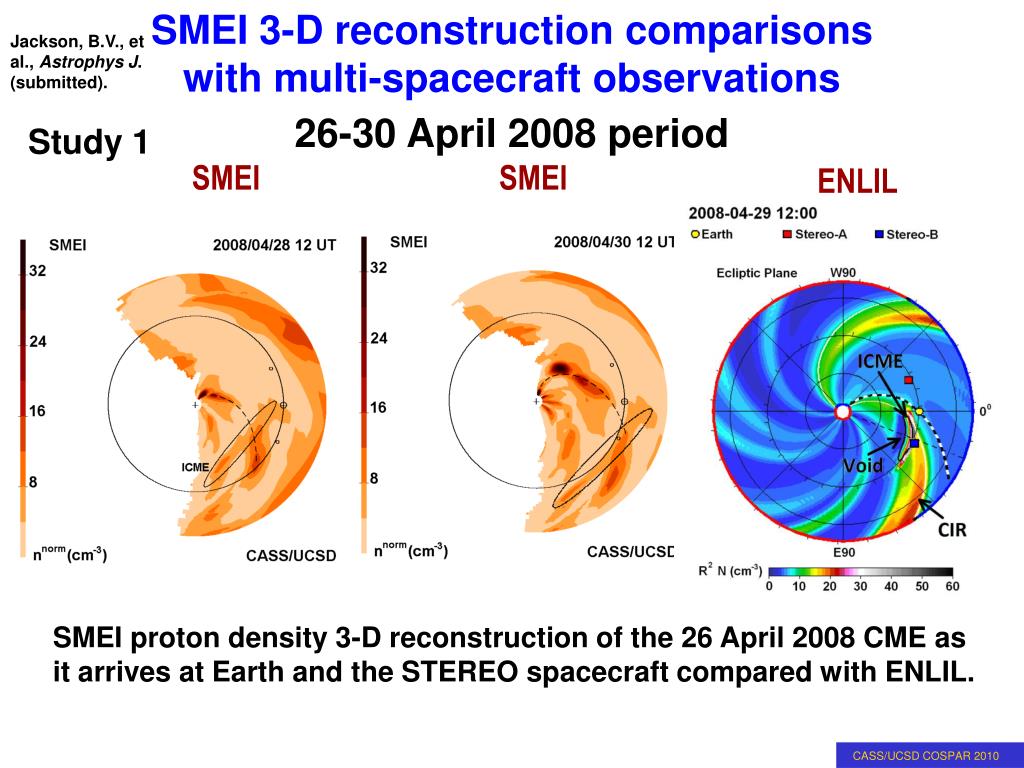

  14. Jackson, B.V., et al., Astrophys J. (submitted). 26-30 April 2008 period Study 1 SMEI SMEI ENLIL SMEI proton density 3-D reconstruction of the 26 April 2008 CME as it arrives at Earth and the STEREO spacecraft compared with ENLIL.

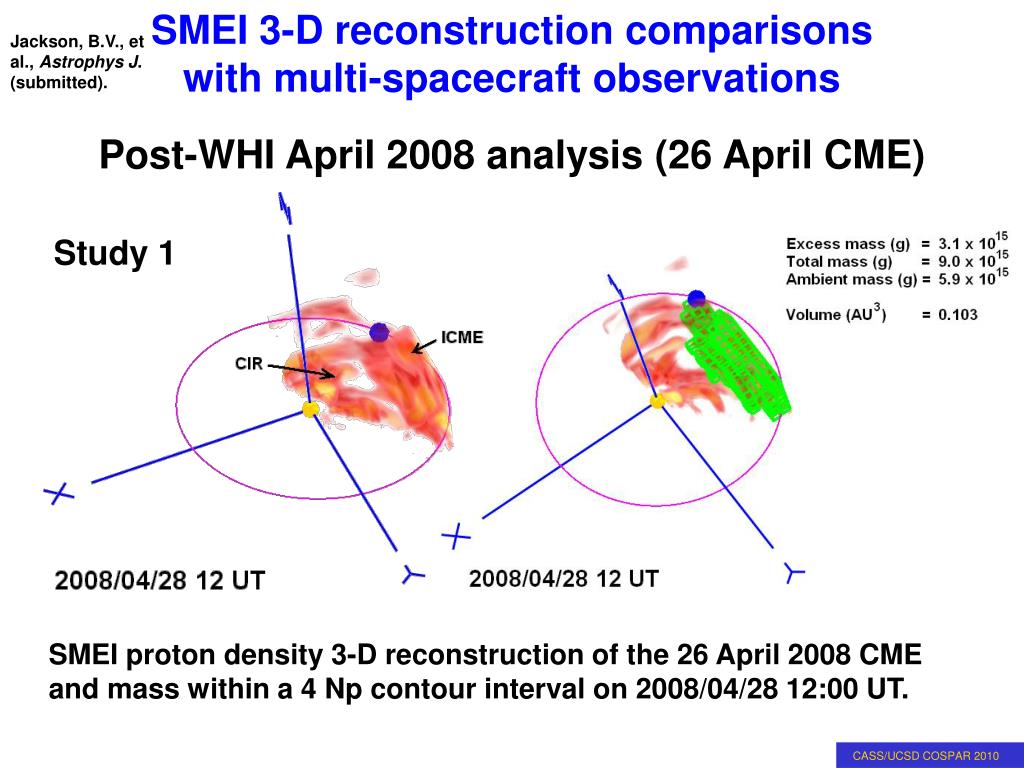

  15. Jackson, B.V., et al., Astrophys J. (submitted). Post-WHI April 2008 analysis (26 April CME) Study 1 SMEI proton density 3-D reconstruction of the 26 April 2008 CME and mass within a 4 Np contour interval on 2008/04/28 12:00 UT.

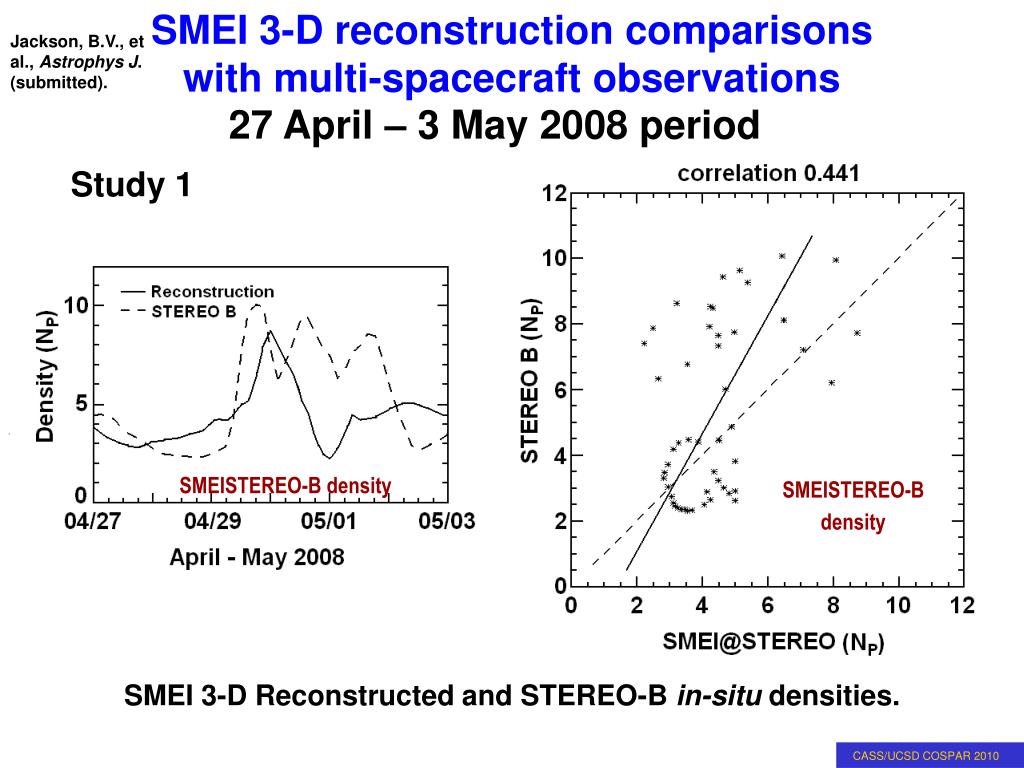

  16. Jackson, B.V., et al., Astrophys J. (submitted). 27 April – 3 May 2008 period Study 1 SMEISTEREO-B density SMEISTEREO-B density SMEI 3-D Reconstructed and STEREO-Bin-situ densities.

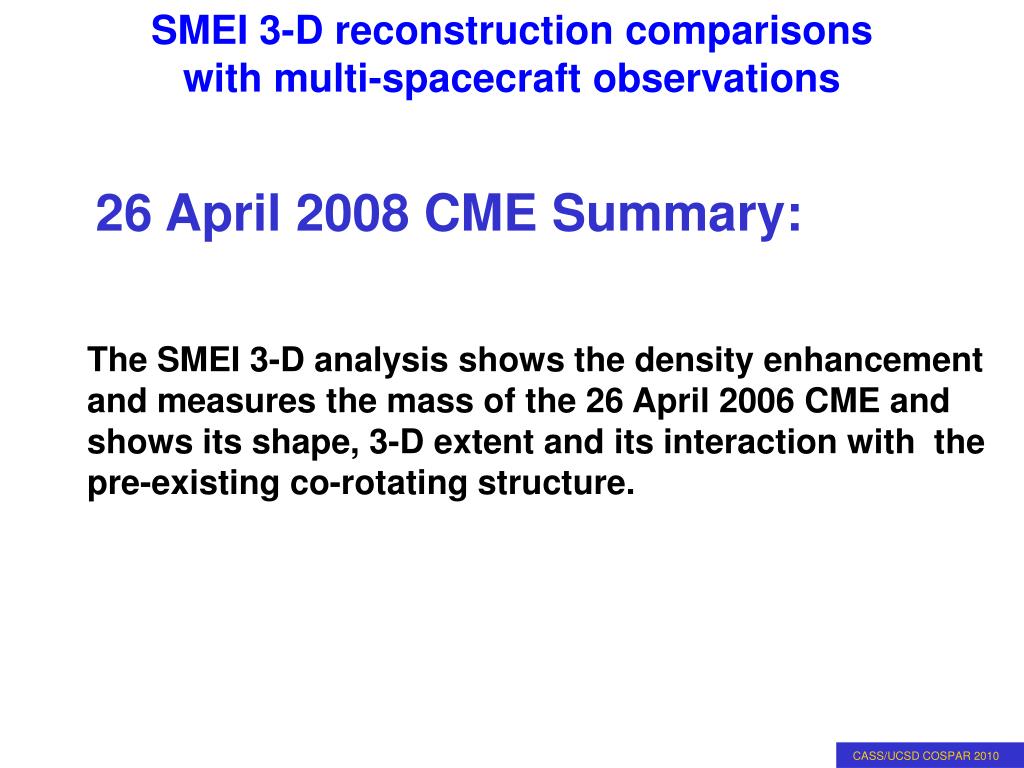

  17. 26 April 2008 CME Summary: The SMEI 3-D analysis shows the density enhancement and measures the mass of the 26 April 2006 CME and shows its shape, 3-D extent and its interaction with the pre-existing co-rotating structure.

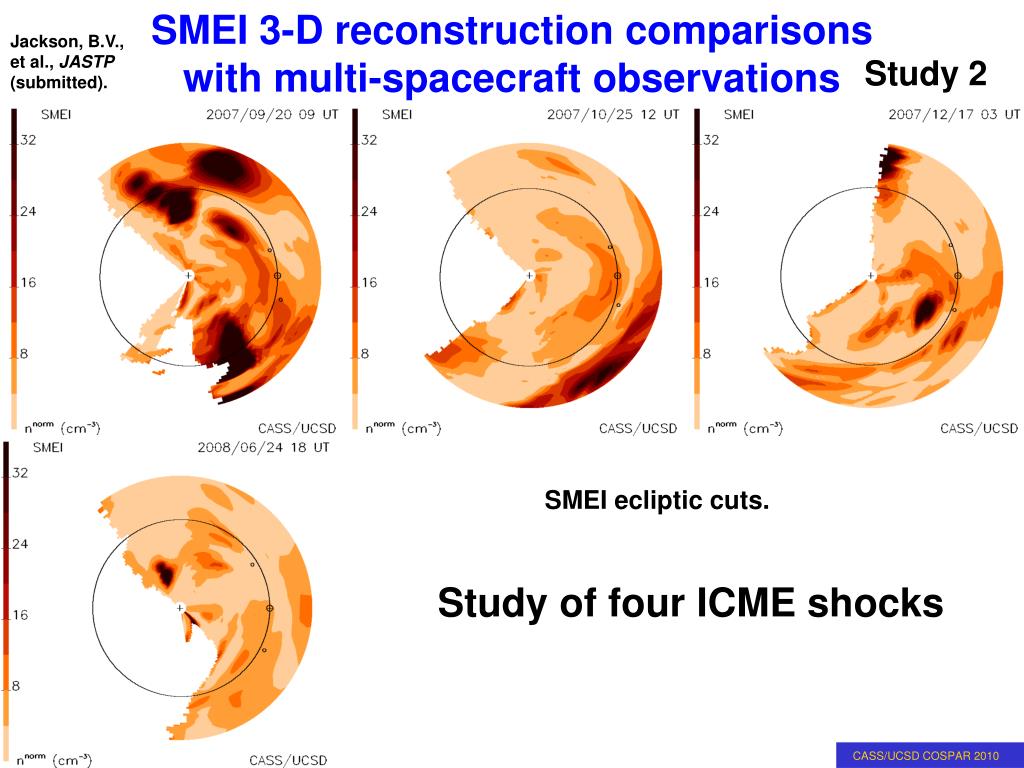

  18. Jackson, B.V., et al., JASTP (submitted). Study 2 SMEI ecliptic cuts. Study of four ICME shocks

  19. Jackson, B.V., et al., JASTP (submitted). Study 2 CELIAS in situ measurements. Study of four ICME shocks

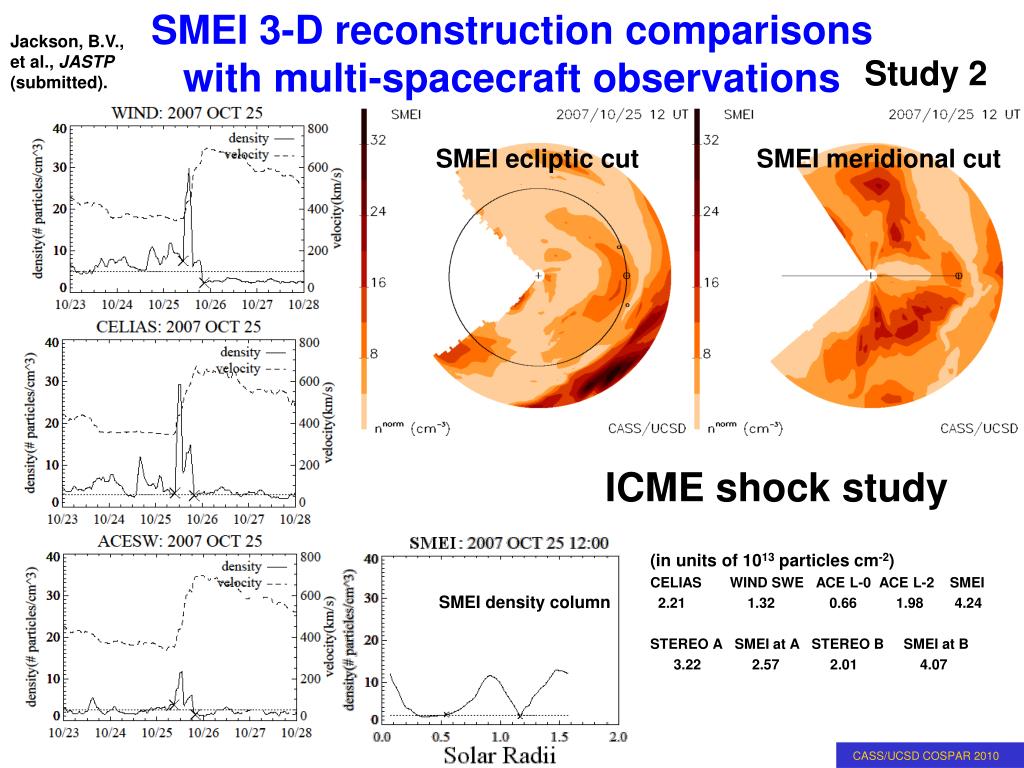

  20. Jackson, B.V., et al., JASTP (submitted). Study 2 SMEI ecliptic cut SMEI meridional cut ICME shock study (in units of 1013 particles cm-2) CELIAS WIND SWE ACE L-0 ACE L-2 SMEI 2.21 1.32 0.66 1.98 4.24 STEREO A SMEI at A STEREO B SMEI at B 3.22 2.57 2.01 4.07 SMEI density column

  21. Jackson, B.V., et al., JASTP (submitted). Study 2 ThroughEarth ThroughSTEREO-A SMEI ecliptic cut SMEI meridional cuts ICME shock study ThroughSTEREO-B (in units of 1013 particles cm-2) CELIAS WIND SWE ACE L-0 ACE L-2 SMEI 1.70 3.10 3.02 3.51 1.66 STEREO A SMEI at A STEREO B SMEI at B 2.82 2.79 3.61 2.21

  22. Jackson, B.V., et al., JASTP (submitted) Study 2 STEREO-A HI2 view SMEI ecliptic cut STEREO-B HI2 view ICME shock Study

  23. Summary of the study of 4 shocks: The 3-D SMEI analyses now show the extent of density enhancements behind shocks in pretty-good agreement with in-situ spacecraft proton densities. The shock sheaths observed in the SMEI data are highly variable in latitudinal andlongitudinal extent. In SMEI, the shock density enhancements analyzed to date generally do not show a uniform shell-like extent. Attempts to compare the density enhancements behind shocks from brightness and in situ measurements show not only the agreement in the these two types of analyses, but also the differences in the different instruments that measure proton density in situ.

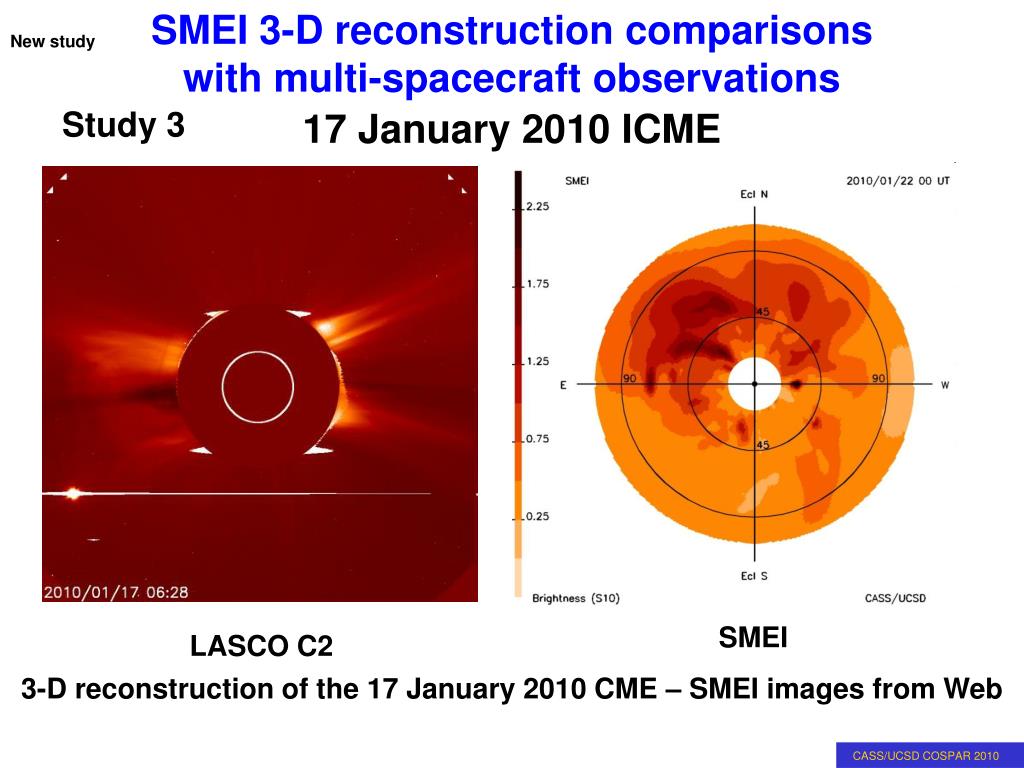

  24. New study 17 January 2010 ICME Study 3 SMEI LASCO C2 3-D reconstruction of the 17 January 2010 CME – SMEI images from Web

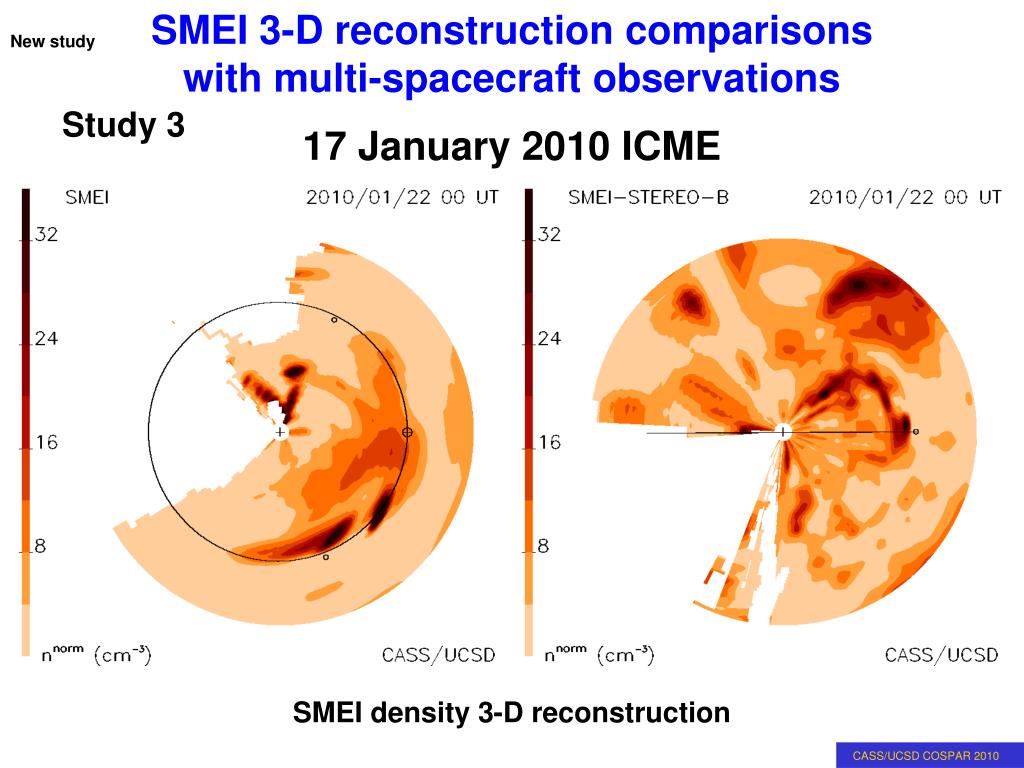

  25. New study Study 3 17 January 2010 ICME SMEI density 3-D reconstruction

  26. New study 17 January 2010 ICME Study 3 SMEI density 3-D reconstruction (remote observer view). Fisheye sky map for reference.

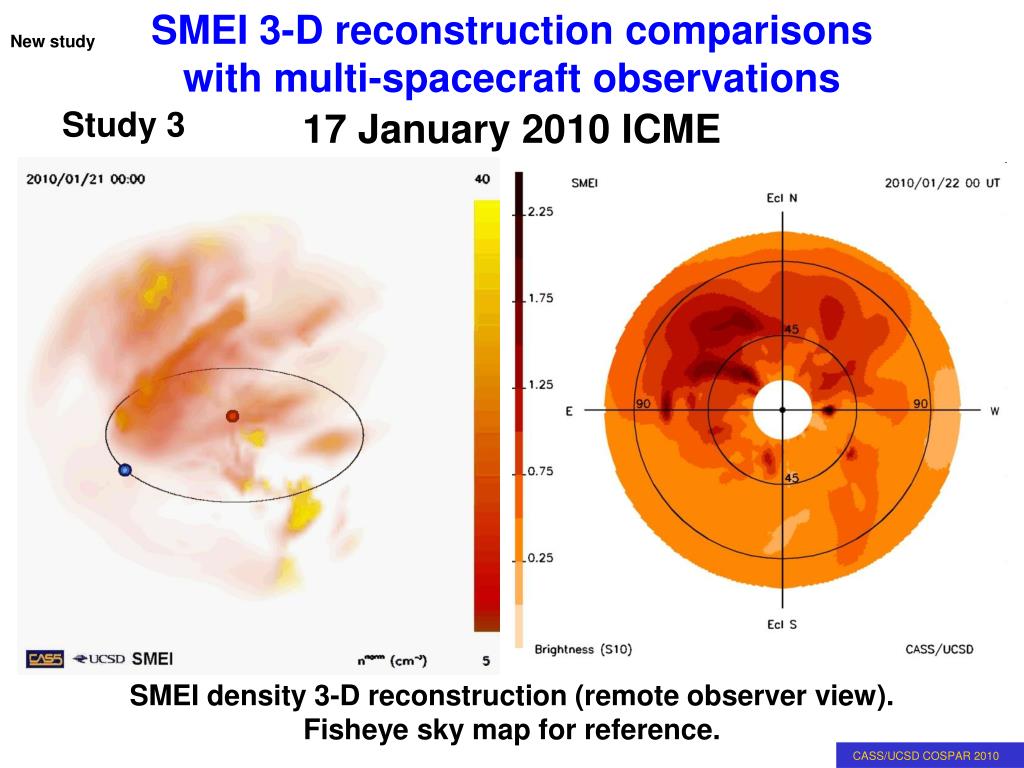

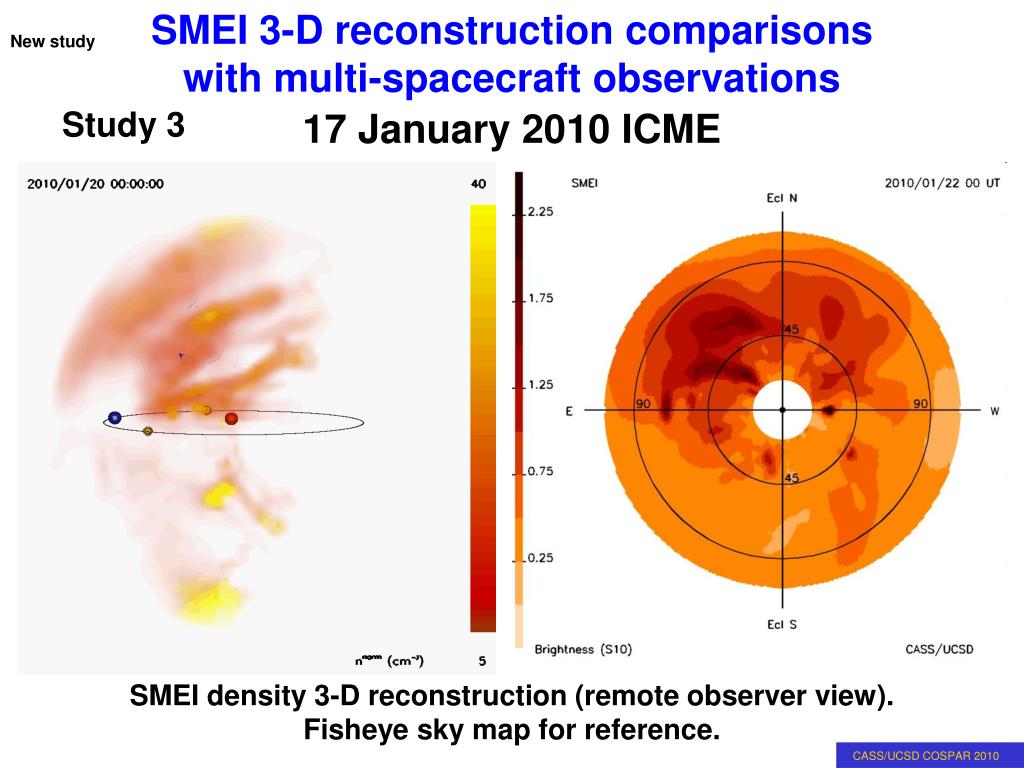

  27. New study 17 January 2010 ICME Study 3 SMEI density 3-D reconstruction (remote observer view). Fisheye sky map for reference.

  28. 17 January 2010 CME Summary: The SMEI 3-D analysis shows a loop of material. Does this agree with the flux rope cylinder orientation and show the approximate orientation of the filament on the solar surface?

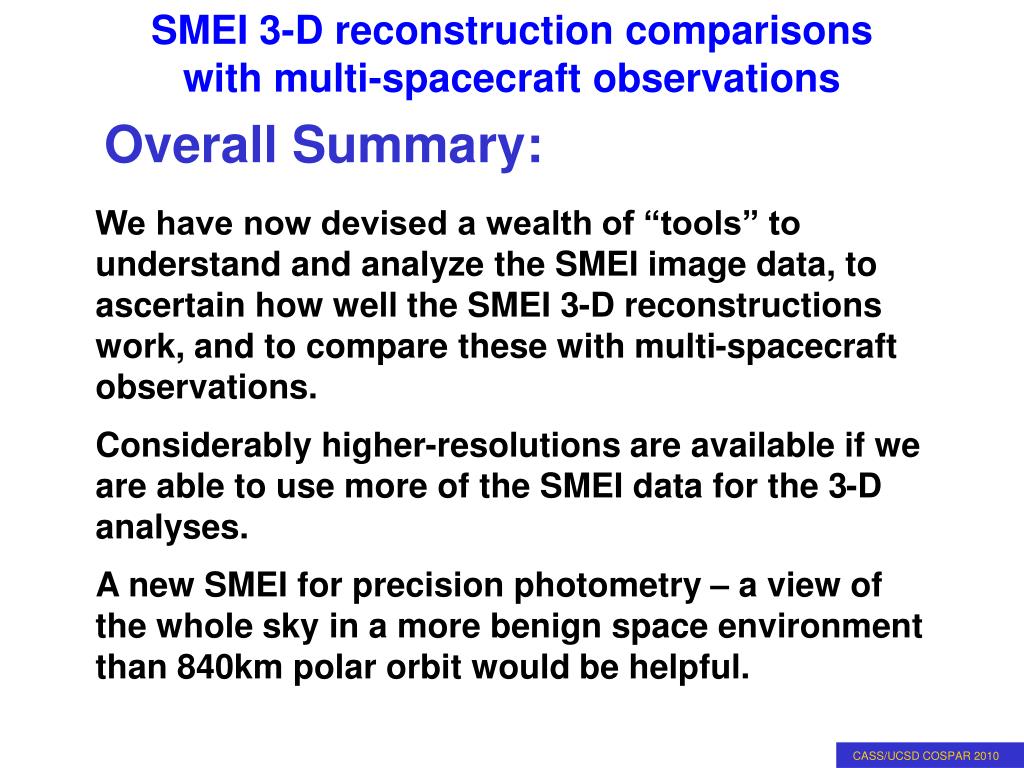

  29. Overall Summary: We have now devised a wealth of “tools” to understand and analyze the SMEI image data, to ascertain how well the SMEI 3-D reconstructions work, and to compare these with multi-spacecraft observations. Considerably higher-resolutions are available if we are able to use more of the SMEI data for the 3-D analyses. A new SMEI for precision photometry – a view of the whole sky in a more benign space environment than 840km polar orbit would be helpful.
