2 nd advanced course on diagnostics and data acquisition

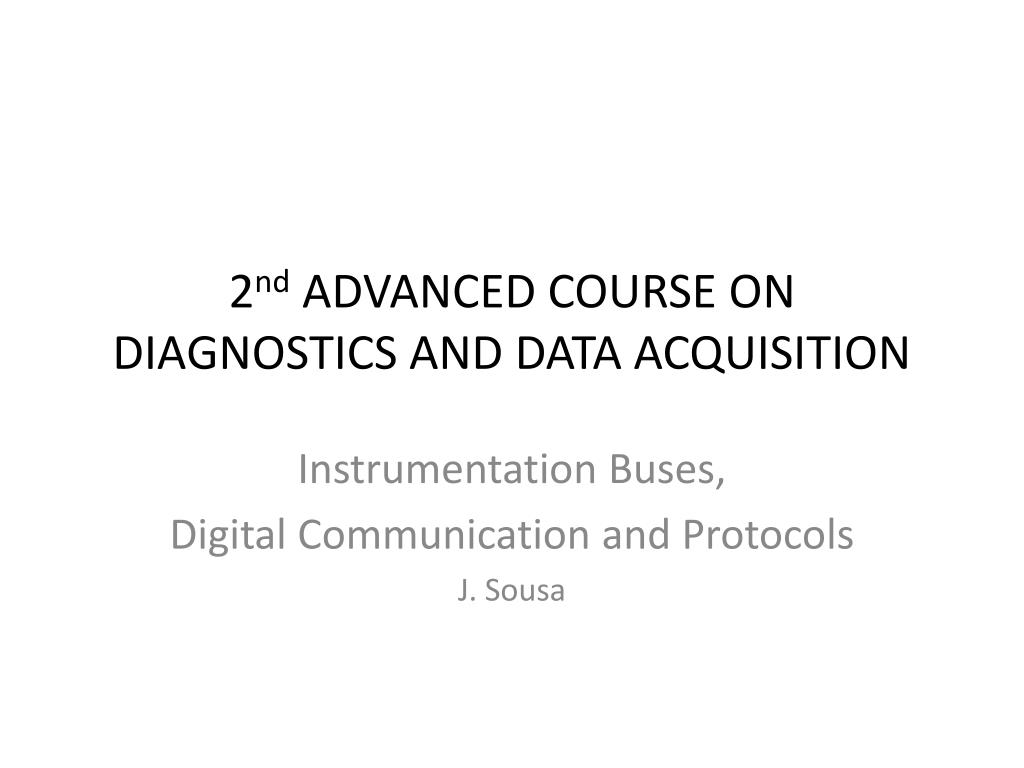

2nd ADVANCED COURSE ON DIAGNOSTICS AND DATA ACQUISITION

Instrumentation Buses,

Digital Communication and Protocols

J. Sousa


Summary

Summary

  • Digital Communication

  • Signalling, Encoding and Protocols

  • Instrumentations Buses

  • Networks for Control and Data Acquisition


Digital communication

Digital Communication


Types of data transmission

Types of data transmission

  • Parallel

    • Theoretically higher transfer rates

    • Short distances

    • Volumous cabling

  • Serial

    • Longer distances

    • Complex channel encoding and data recovery

  • Synchronous or Asynchronous

  • Hybrid transmission

    • Bundle of serial links

    • Long distances and high transfer rates

    • X1, X2, X4, X16, X32


Asynchronous transmission rs 232c

Asynchronous transmission (RS-232C)

  • Each word is enclosed between two synchronization characters (start and stop bit).

  • The start bit indicates a word follows. The data line is held in mark or “1” when no data is being transmitted; set to space or “0” by the start bit. The receiver synchronizes its clock with the start bit

  • The stop bit reports word transmission complete resetting data line to “1”.

  • Parity bit.

    • Odd parity: “1” if checksum is odd number

    • Even parity: “1” if checksum is even number


Synchronous transmission

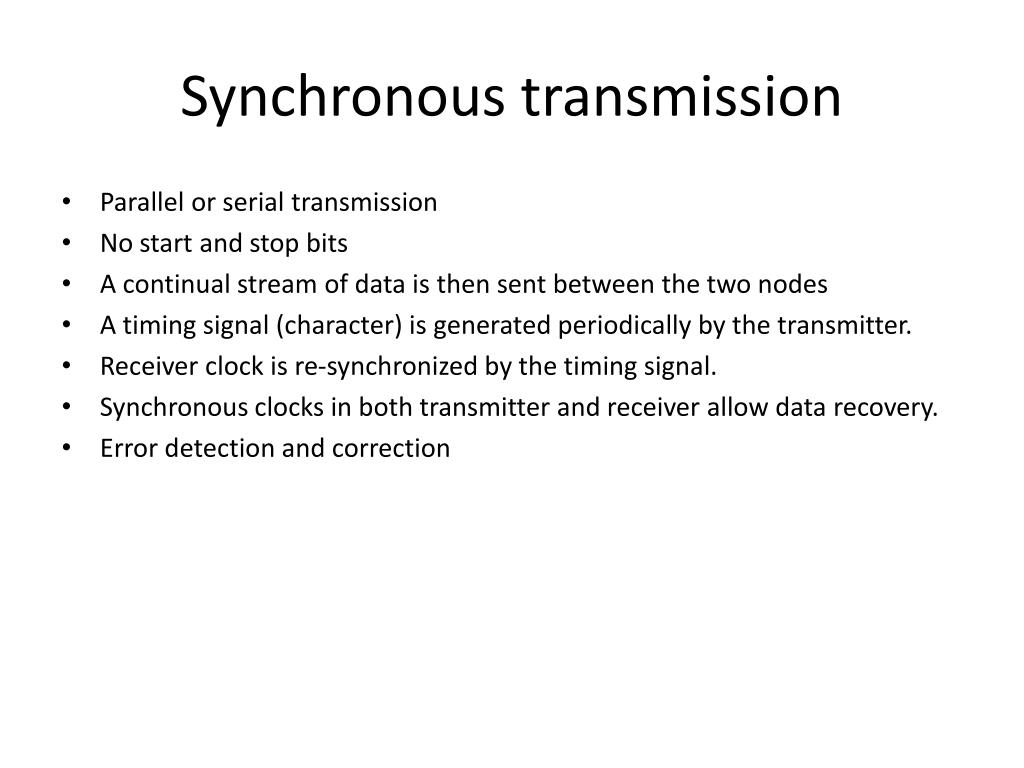

Synchronous transmission

  • Parallel or serial transmission

  • No start and stop bits

  • A continual stream of data is then sent between the two nodes

  • A timing signal (character) is generated periodically by the transmitter.

  • Receiver clock is re-synchronized by the timing signal.

  • Synchronous clocks in both transmitter and receiver allow data recovery.

  • Error detection and correction


Signal distorsion on transmission channel

Signal distorsion on transmission channel

  • Serial data transmission sends binary bits of information as a series of optical or electrical pulses

  • The transmission channel (cable, radio, fiber) generally distorts the signal in various ways

  • Jitter on reception can impede correct data reception


Source encoding 8b 10b

Source encoding – 8b/10b

  • 8b/10b is a line code that maps 8-bit symbols to 10-bit symbols to:

    • achieve DC-balance

    • provide enough state changes to allow reasonable clock recovery

  • up to 12 special symbols: start-of-frame, end-of-frame, link idle …

  • Un-allowed symbols permit error detection

  • Used among others in:

    • PCI Express

    • IEEE 1394b

    • Serial ATA

    • Fibre Channel

    • Gigabit Ethernet

    • InfiniBand

    • Serial RapidIO

    • HyperTransport


Communication protocols

Communication Protocols

  • Detection of the underlying physical connection (wired or wireless), or the existence of the other endpoint or node

  • Handshaking

  • Negotiation of various connection characteristics

  • How to start and end a message

  • How to format a message

  • What to do with corrupted or improperly formatted messages (error correction)

  • How to detect unexpected loss of the connection, and what to do next

  • Termination of the session and or connection.


Internet protocol ip

Internet Protocol (IP)

  • Deliver datagrams (packets) from the source host to the destination host based on their addresses

  • Defines addressing methods and structures for datagram encapsulation

  • Connection-less protocol

  • Lack of reliability allows any of the following fault events to occur:

    • data corruption

    • lost data packets

    • duplicate arrival

    • out-of-order packet delivery


Instrumentation buses

Instrumentation buses

  • Local

  • Backplane

  • System

  • Parallel buses

    • GPIB (IEEE 488)

    • VME

    • PCI

    • FPDP

  • Serial buses

    • RS-232C

    • USB

    • PCI Express

    • Ethernet (IEEE 802)


Peripheral component interconnect pci

Peripheral Component Interconnect (PCI)

  • Parallel, Synchronous

  • 32/64-bit, 33/66 MHz

  • Max data throughput rate from 133 to 266 Mbyte/s

  • PCI-X, PCIe physical share logical PCI specification


Pci express pcie

PCI Express (PCIe)

  • Serial, point-to-point type interconnect for communication between two devices

  • PCI Express interconnect consists of either a x1, x2, x4, x8, x12, x16 or x32 point-to-point Link

  • A Lane consists of signal pairs in each direction.

  • A x1 Link consists of 1 Lane or 1 differential signal pair in each direction for a total of 4 signals.

  • Switch-based technology

  • Packet Based Protocol; 8b/10b coding.

  • 2.5 Gbits/sec/lane/direction transfer rate (~200MB/lane). 3.2GB on x16


2 nd advanced course on diagnostics and data acquisition

VME

  • VMEbus: VERSAmodule Eurocard bus

  • Parallel, Asynchronous

  • 64-bit bus in 6U-sized cards and 32-bit in 3U cards.

  • VME64 has a typical performance of 40 MB/s.


2 nd advanced course on diagnostics and data acquisition

GPIB

  • Connect and control programmable instruments

  • IEEE-488 allows up to 15 devices by daisy chaining connections

  • 8-bit parallel, asynchronous electrical bus

  • maximum data rate is 1 MB/s to 8 MB/s


Advancedtca

AdvancedTCA

  • AdvancedTCA Data Transport

    • Differential signaling capable of 10 Gbps (XAUI) today

    • 5+ Gbps differential signal capacity

    • Single backplane supports many fabric technologies and topologies

  • Base Interface

    • 10/100/1000 BASE-T Ethernet

    • Dual Star fabric topology

  • Fabric Interface

    • SERDES (3.125 Gbps minimum)

    • 1x, 2x, or 4x Channels

    • Star or Mesh fabric topology

    • actual throughput capacity of ~800 MByte/s per link

  • Synchronization Interface

    • Three dedicated clock interfaces (8kHz, 19.44 MHz, user defined)

    • Redundant buses


Networks for control and data acquisition

Networks for Control and Data Acquisition

  • Plant Operation Network

  • Synchronous DataBus Network

  • Event Distribution Network

  • Time Communication Network

  • Audio Video Network

  • Central Interlock Network

  • Central Security Network


Networks

Networks

  • Synchronous DataBus Network (SDN)

    • SDN is used for deterministic communication between CODAC systems and Plant Systems, which cannot be guaranteed with conventional technology as used by PON.

    • The purpose of SDN is to provide data exchange between multiple Plant Systems and CODAC systems for plasma feedback control with a performance cycle time on less than 1 ms.

  • Time Communication Network (TCN)

    • The purpose of TCN is to provide the distribution of timing information to plant wide I&C for synchronization and time stamping to processes, data, and actions/events.

    • TCN interface allows to generate synchronized clock from timing information with guaranteed phase alignment and jitter.

    • Standards like UTC, GPS, NTP, IEEE 1588

  • Event Distribution Network (EDN)

    • The Event Distribution Network (EDN) manages the events signaling among CODAC Systems and Plant Systems with a lower latency than the Synchronous DataBus.

    • Low latency, low jitter

  • Audio Video Network (AVN)

    • The purpose of the AVN is to provide plant wide distribution of surveillance audio-video signals and diagnostics video data.

    • AVN interfaces standard source devices like camera, mic etc. and standard receiving devices like screens, TV, remote displays
