  1. RegistersLab 5 Mano and Kime Sections 5-2, 5-3, 5-7

  2. 4-Bit Register

  3. A Generic Register library IEEE; use IEEE.std_logic_1164.all; entity reg is generic(width: positive); port ( d: in STD_LOGIC_VECTOR (width-1 downto 0); load: in STD_LOGIC; clr: in STD_LOGIC; clk: in STD_LOGIC; q: out STD_LOGIC_VECTOR (width-1 downto 0) ); end reg;

  4. architecture reg_arch of reg is begin process(clk, clr) begin if clr = '1' then for i in width-1 downto 0 loop q(i) <= '0'; endloop; elsif (clk'event and clk = '1') then if load = '1' then q <= d; end if; end if; end process; end reg_arch; Infers a flip-flop for all outputs (q)

  5. debounce entity entity debounce is port ( inp, clk, clr: in std_logic; outp: out std_logic ); end debounce; clk clr inp debounce outp

  6. outp inp delay1 delay2 delay3 clk debounce

  7. outp inp delay1 delay2 delay3 clk

  8. debounce architecture architecture rtl of debounce is signal delay1, delay2, delay3: std_logic; begin process(clk, clr) begin if clr = '1' then delay1 <= '0'; delay2 <= '0'; delay3 <= '0'; elsif clk'event and clk='1' then delay1 <= inp; delay2 <= delay1; delay3 <= delay2; end if; end process; outp <= delay1 and delay2 and (not delay3); end rtl;

  9. Lab 5 – A Single-Cycle Processor

  10. fcode (hex) Name y 10 + b + a 11 - b - a 12 1+ a + 1 13 1- a - 1 14 INVERT Complement all bits of a. 15 AND b and a 16 OR b or a 17 XOR b xor a 18 2* Logic shift left a. 19 U2/ Logic shift right a. 1A 2/ Arithmetic shift right a. 1B RSHIFT Shift b a bits to the right. SHR(b,a); 1C LSHIFT Shift b a bits to the left. SHL(b,a); 1D Reserved for multiplication 1E Reserved for division Add:

  11. 20 fcode (hex) Name TRUE Set all bits in a to ‘1’. y 21 FALSE Clear all bits in a to ‘0’. 22 NOT 0= TRUE if all bits in a are ‘0’. 23 0< TRUE if sign bit of a is ‘1’. 24 U> TRUE if b > a (unsigned), else FALSE 25 U< TRUE if b < a (unsigned), else FALSE 26 = TRUE if b = a, else FALSE 27 U>= TRUE if b >= a (unsigned), else FALSE 28 U<= TRUE if b <= a (unsigned), else FALSE 29 <> TRUE if b /= a, else FALSE 2A > TRUE if b > a (signed), else FALSE 2B < TRUE if b < a (signed), else FALSE 2C >= TRUE if b >= a (signed), else FALSE 2D <= TRUE if b <= a (signed), else FALSE Add:

  12. clk_pulse.vhd

  13. Pcount.vhd -- A 4-bit up-counter library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_unsigned.all; entity Pcount is port ( clr: in STD_LOGIC; clk: in STD_LOGIC; q: out STD_LOGIC_VECTOR (3 downto 0) ); end Pcount;

  14. Pcount.vhd (cont.) architecture Pcount_arch of Pcount is signal COUNT: STD_LOGIC_VECTOR (3 downto 0); begin process (clk, clr) begin if clr = '1' then COUNT <= "0000"; elsif clk'event and clk='1' then COUNT <= COUNT + 1; end if; q <= COUNT; end process; end Pcount_arch;

  15. dig7seg.vhd

  16. Instruction Operation DUP Duplicate T to N. SWAP Swap the contents of T and N S@ Load the 8-bit byte from SW(1:8) into T and push T to N Prom Single-cycle microcoded instructions Additional Instructions

  17. Prom.vhd library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_unsigned.all; entity Prom is port ( addr: in STD_LOGIC_VECTOR (3 downto 0); M: out STD_LOGIC_VECTOR (8 downto 0) ); end Prom;

  18. Prom.vhd architecture Prom_arch of Prom is constant dup: STD_LOGIC_VECTOR (9 downto 0) := "1000010000"; constant swap: STD_LOGIC_VECTOR (9 downto 0) := "1100010000"; constant Sfetch: STD_LOGIC_VECTOR (9 downto 0) := "1110010000"; constant plus: STD_LOGIC_VECTOR (9 downto 0) := "0101010000"; constant oneplus: STD_LOGIC_VECTOR (9 downto 0) := "0101010010"; constant invert: STD_LOGIC_VECTOR (9 downto 0) := "0101010100"; constant orr: STD_LOGIC_VECTOR (9 downto 0) := "0101010110"; constant twotimes: STD_LOGIC_VECTOR (9 downto 0) := "0101011000"; constant lshift: STD_LOGIC_VECTOR (9 downto 0) := "0101011100"

  19. Lab 5 – A Single-Cycle Processor

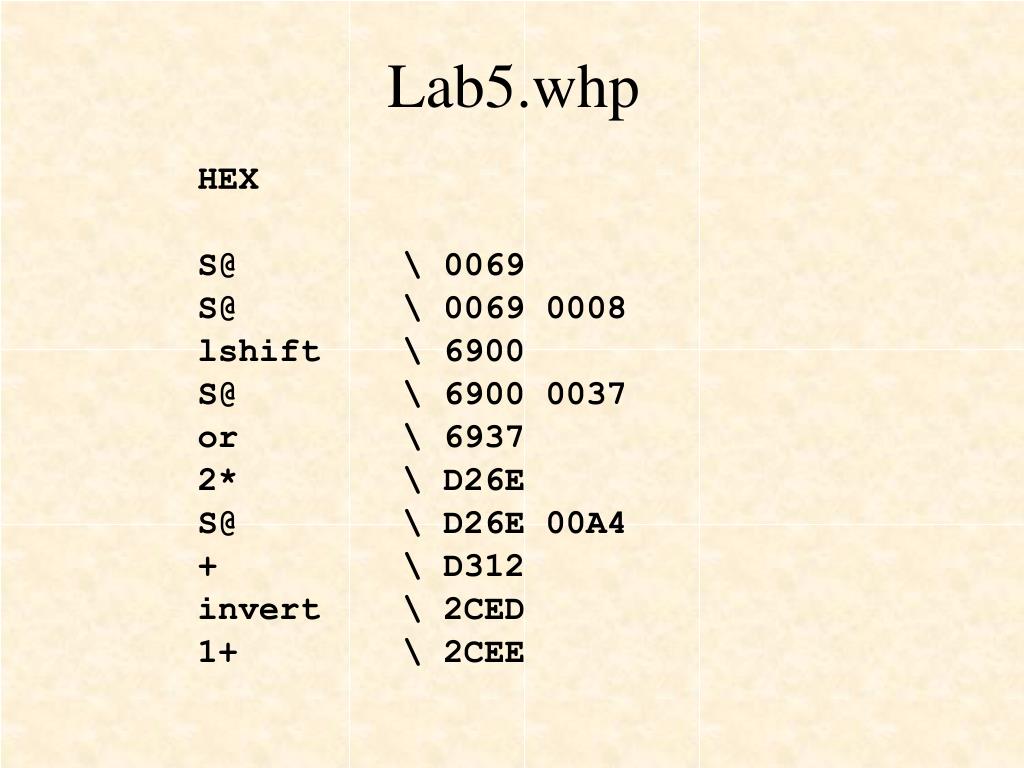

  20. Lab5.whp HEX S@ \ 0069 S@ \ 0069 0008 lshift \ 6900 S@ \ 6900 0037 or \ 6937 2* \ D26E S@ \ D26E 00A4 + \ D312 invert \ 2CED 1+ \ 2CEE

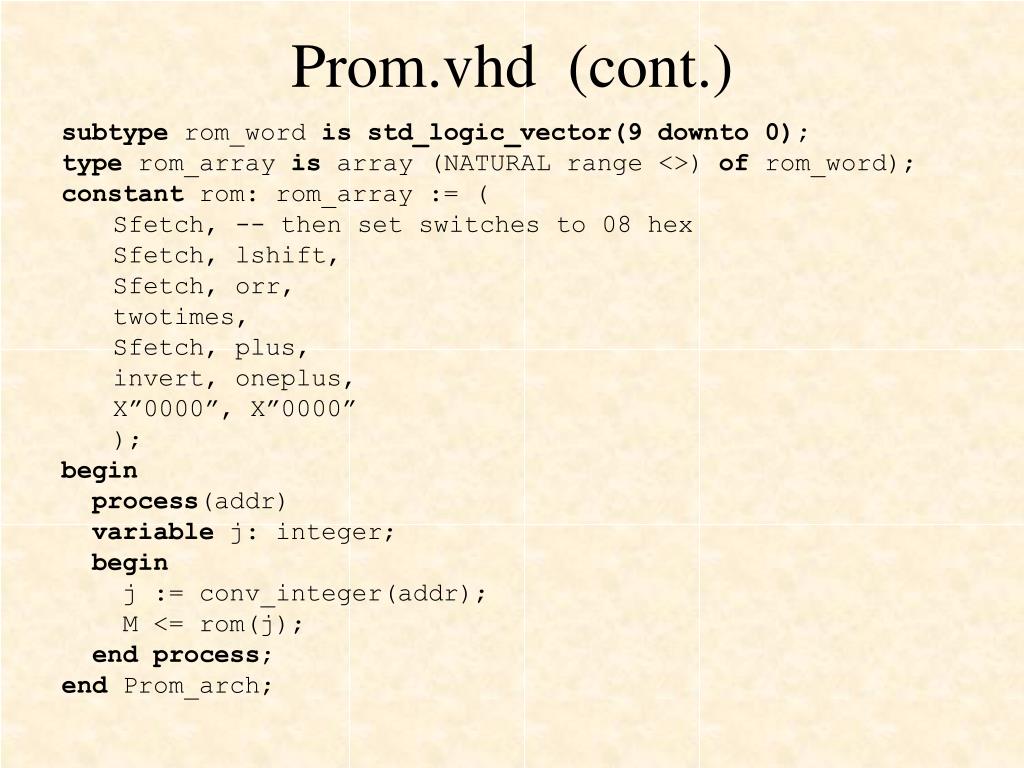

  21. Prom.vhd (cont.) subtype rom_word is std_logic_vector(9 downto 0); type rom_array is array (NATURAL range <>) of rom_word); constant rom: rom_array := ( Sfetch, -- then set switches to 08 hex Sfetch, lshift, Sfetch, orr, twotimes, Sfetch, plus, invert, oneplus, X”0000”, X”0000” ); begin process(addr) variable j: integer; begin j := conv_integer(addr); M <= rom(j); end process; end Prom_arch;
