Basic DC Generator

Basic DC Generator. Separately Excited Shunt Generator. If the Rheostat resistance is reduced, I f increases, Φ p increases, E a increases, as shown in the “Magnetization” Curve. Operating Point. E bat = I f (R f +R rheo ) looks like y=mx + b Superimpose on the Magnetization curve.

clem
Download Presentation

Basic DC Generator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Basic DC Generator Separately Excited Shunt Generator

  2. If the Rheostat resistance is reduced, If increases, Φp increases, Ea increases, as shown in the “Magnetization” Curve

  3. Operating Point Ebat = If(Rf +Rrheo) looks like y=mx + b Superimpose on the Magnetization curve

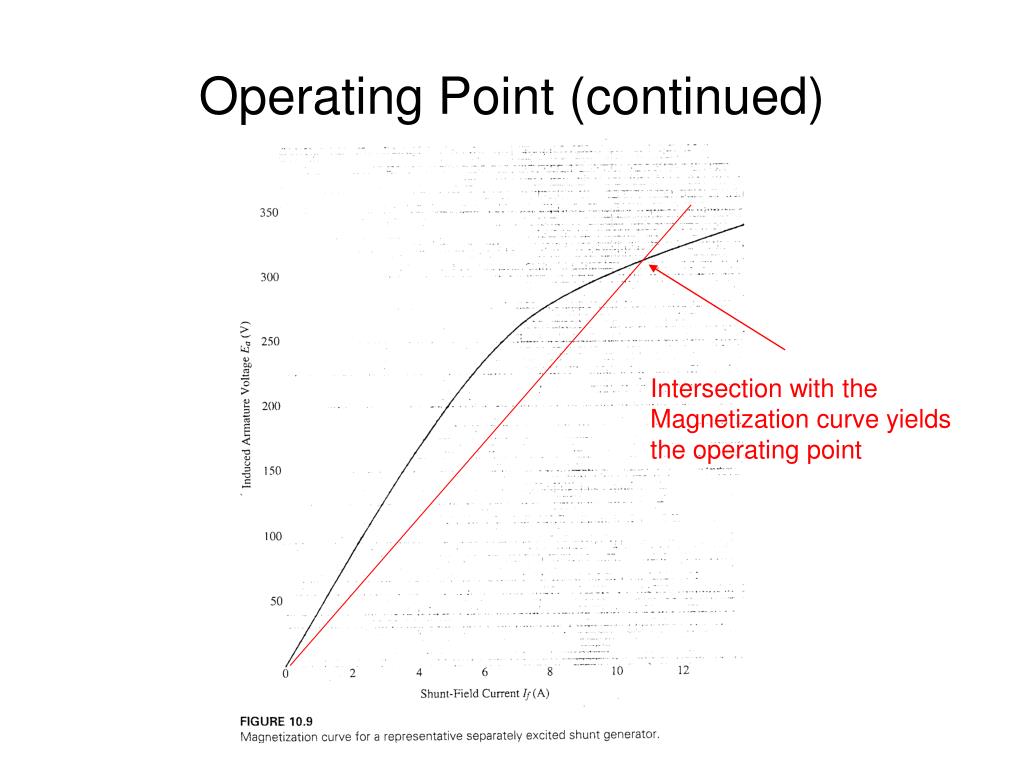

  4. Operating Point (continued) Intersection with the Magnetization curve yields the operating point

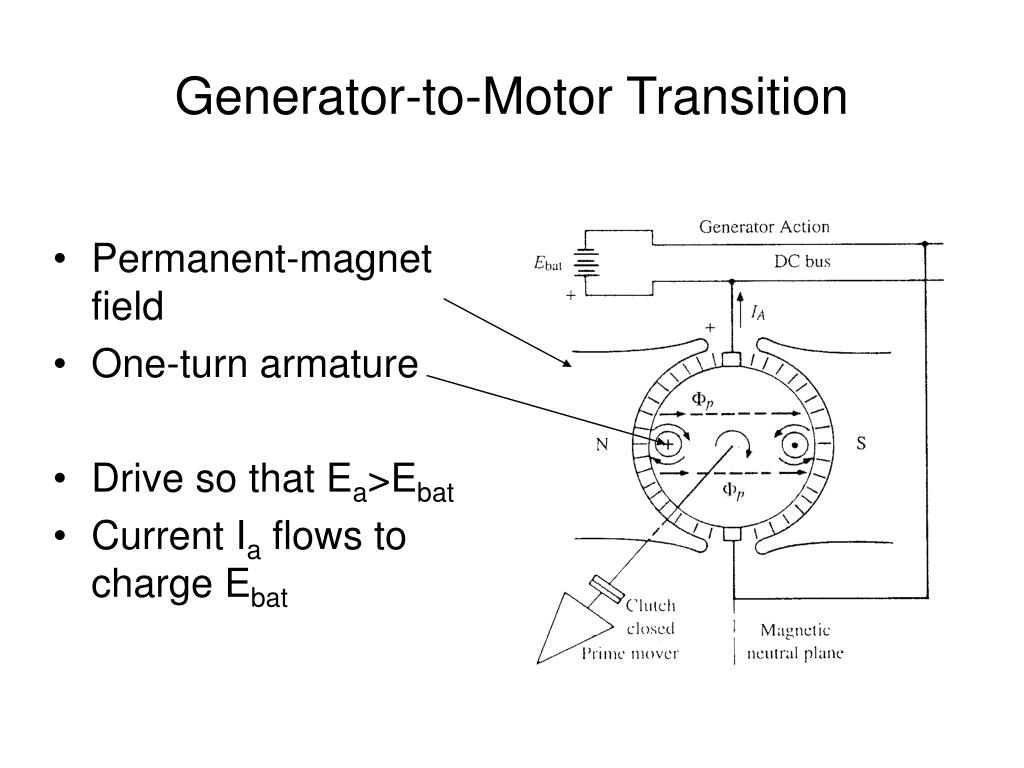

  5. Generator-to-Motor Transition • Permanent-magnet field • One-turn armature • Drive so that Ea>Ebat • Current Ia flows to charge Ebat

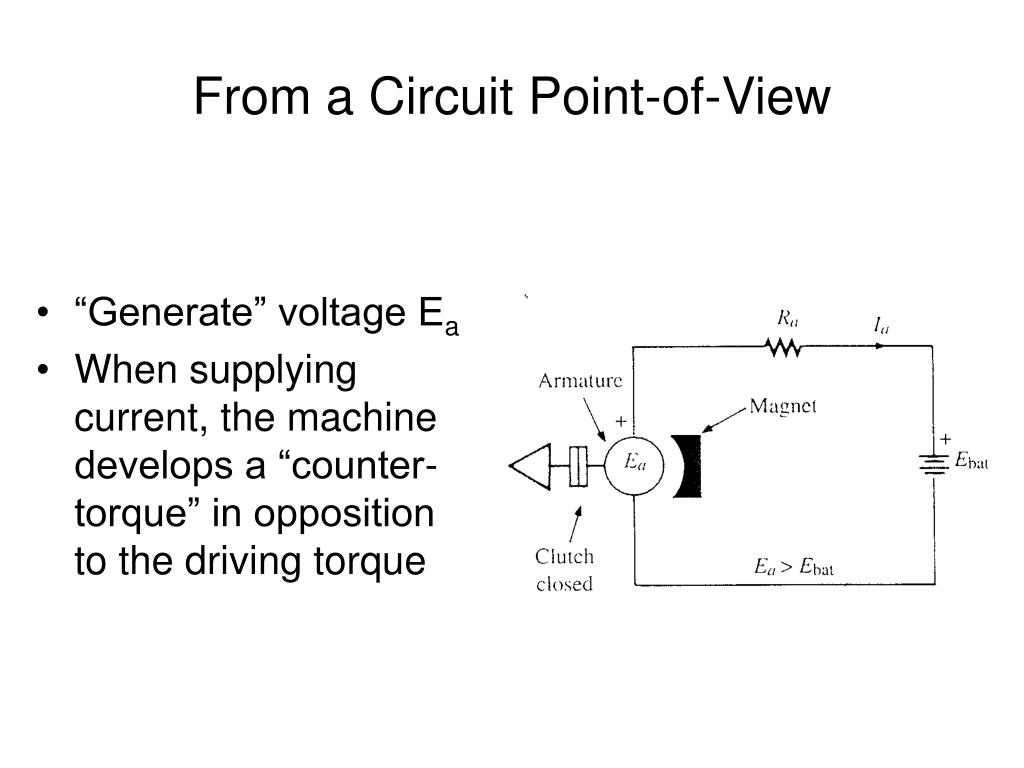

  6. From a Circuit Point-of-View • “Generate” voltage Ea • When supplying current, the machine develops a “counter-torque” in opposition to the driving torque

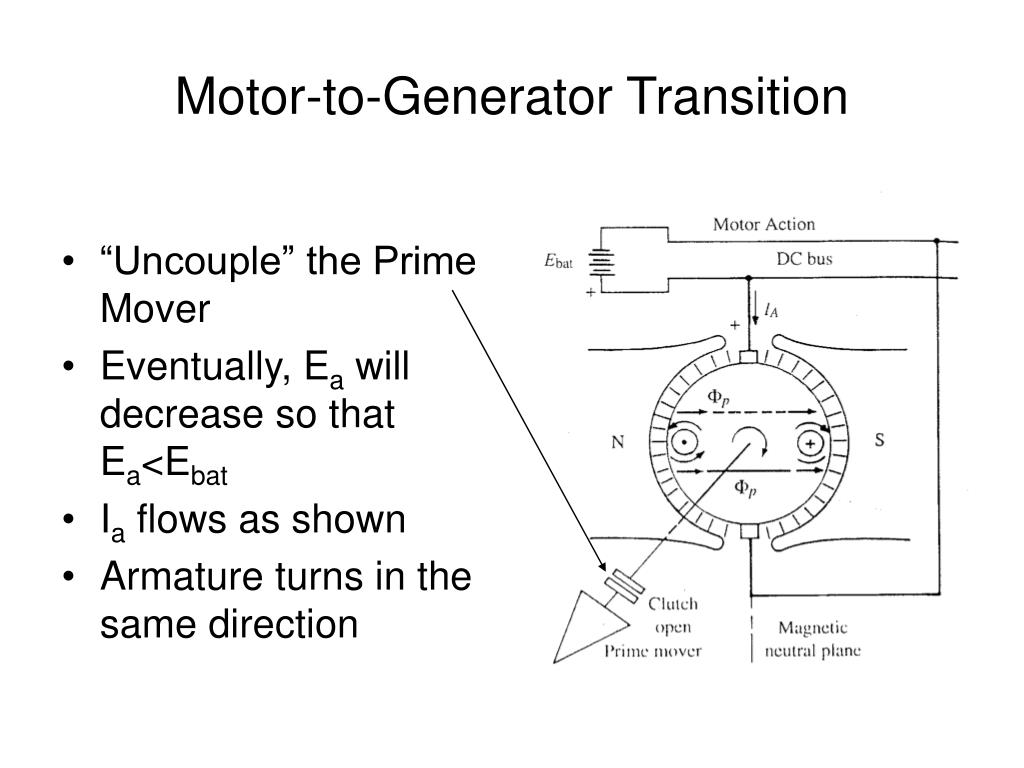

  7. Motor-to-Generator Transition • “Uncouple” the Prime Mover • Eventually, Ea will decrease so that Ea<Ebat • Ia flows as shown • Armature turns in the same direction

  8. From a Circuit Point-Of-View • Counter-emf, Ea, is induced, opposing the driving voltage Ebat • Machine develops a driving torque

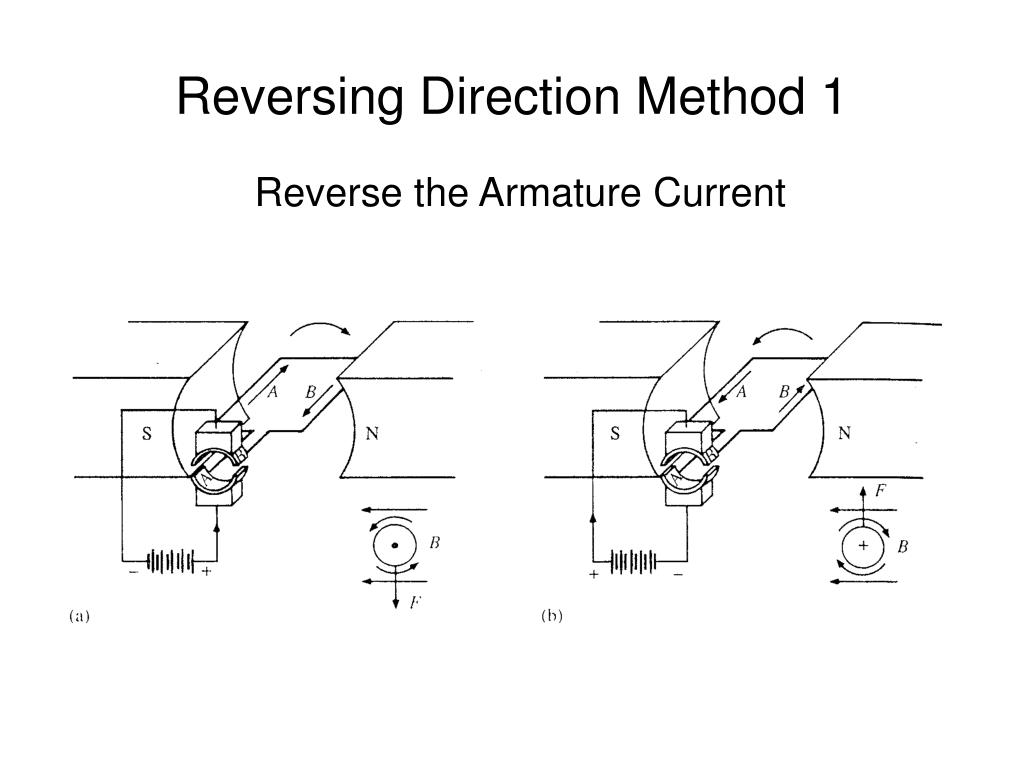

  9. Reversing Direction Method 1 Reverse the Armature Current

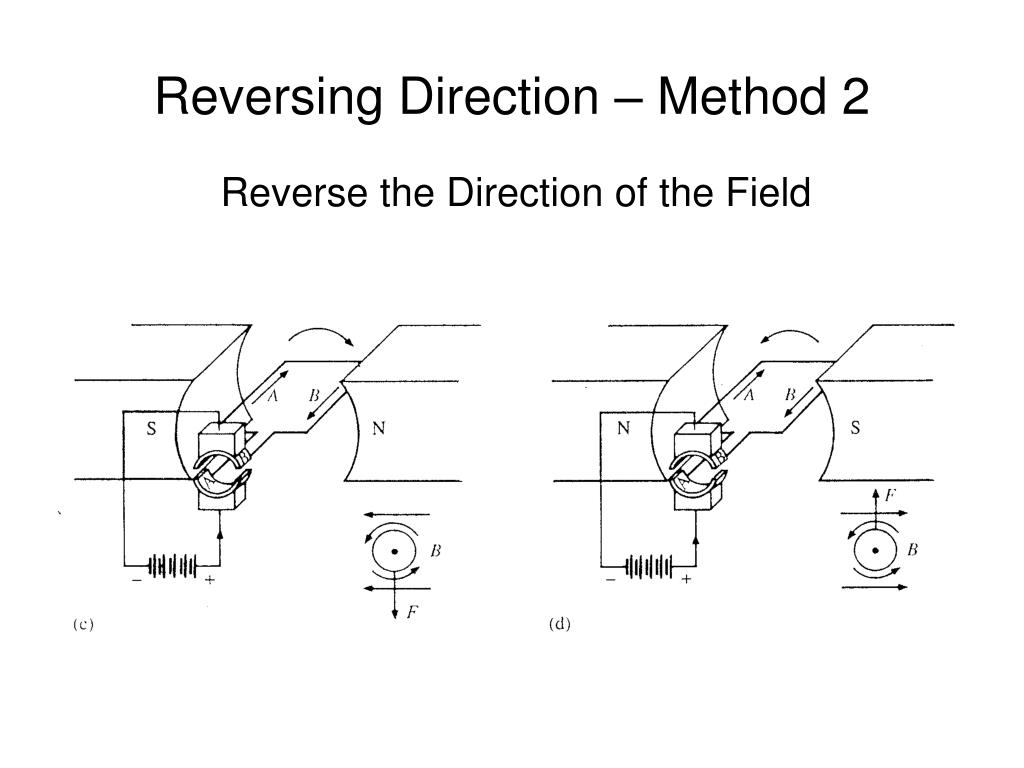

  10. Reversing Direction – Method 2 Reverse the Direction of the Field

  11. Basic DC Motor – Shunt Motor

  12. Characteristics of a Shunt Motor • Shunt field provides the pole flux • Power in the field is independent of the LOADing • Generate counter-emf in the armature
