Conformal computing program july 26 2007

Conformal Computing ProgramJuly 26, 2007

NDSU Center for Nanoscale Science & Engineering

Center for Bits and Atoms

MIT Media Lab


Cnse cc team

CNSE CC Team

(not pictured: Ahana Gosh and Jordan Dahl)


Wallpaper computing display

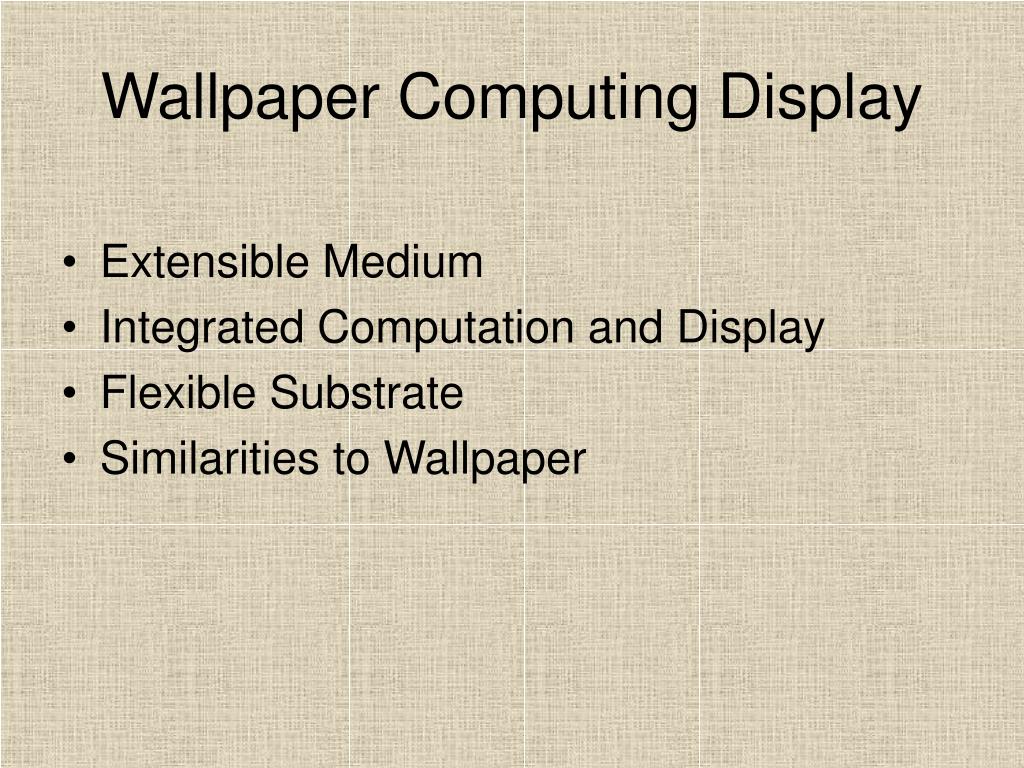

Wallpaper Computing Display

  • Extensible Medium

  • Integrated Computation and Display

  • Flexible Substrate

  • Similarities to Wallpaper


Wcd prototypes

WCD Prototypes

  • Rigid 2x2 and 8x8 Prototypes

  • Strip Concept

  • Strip Prototypes


2x2 prototype

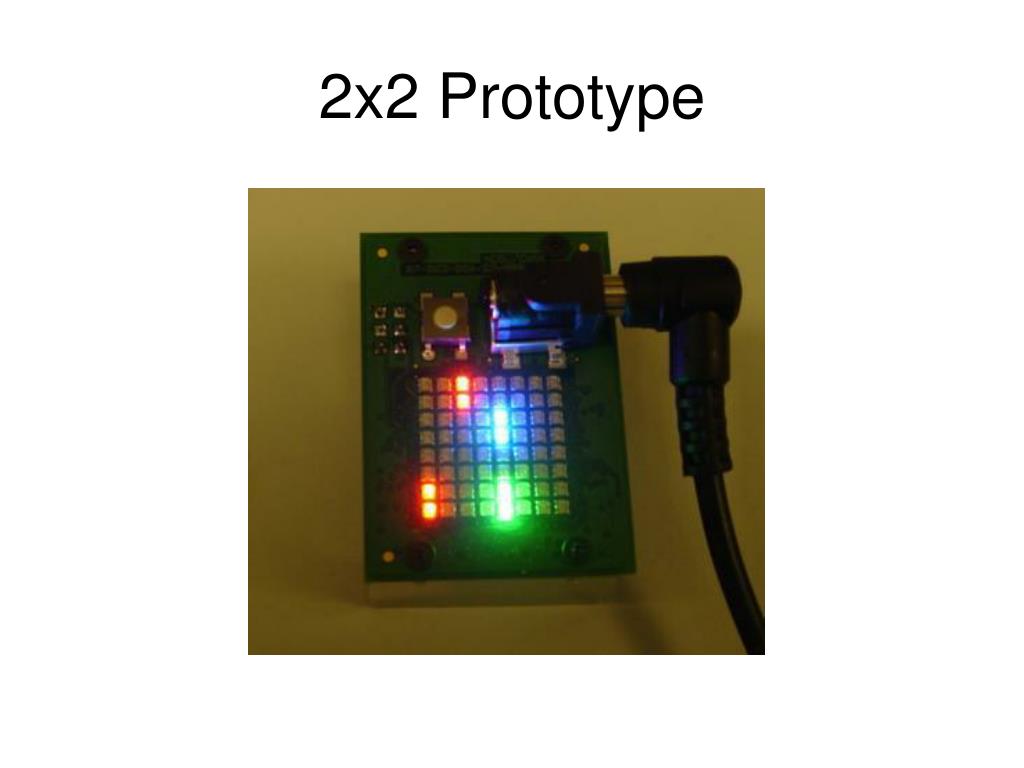

2x2 Prototype


Each processor scans 48 leds

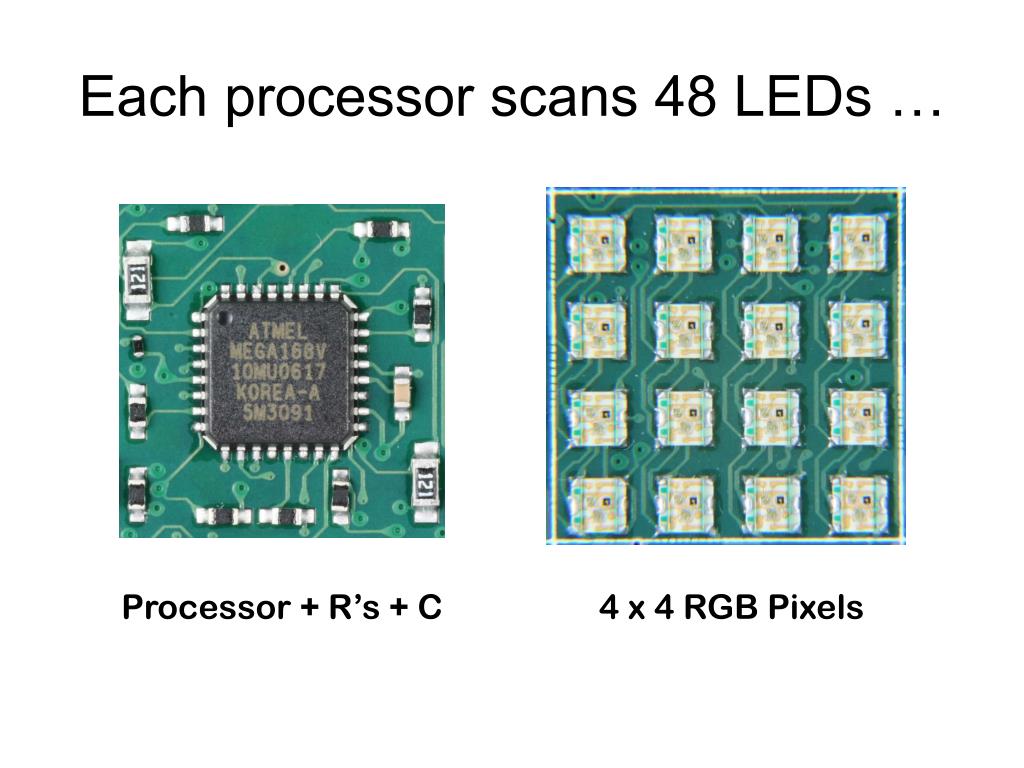

Each processor scans 48 LEDs …

Processor + R’s + C

4 x 4 RGB Pixels


And connects to 4 neighbors

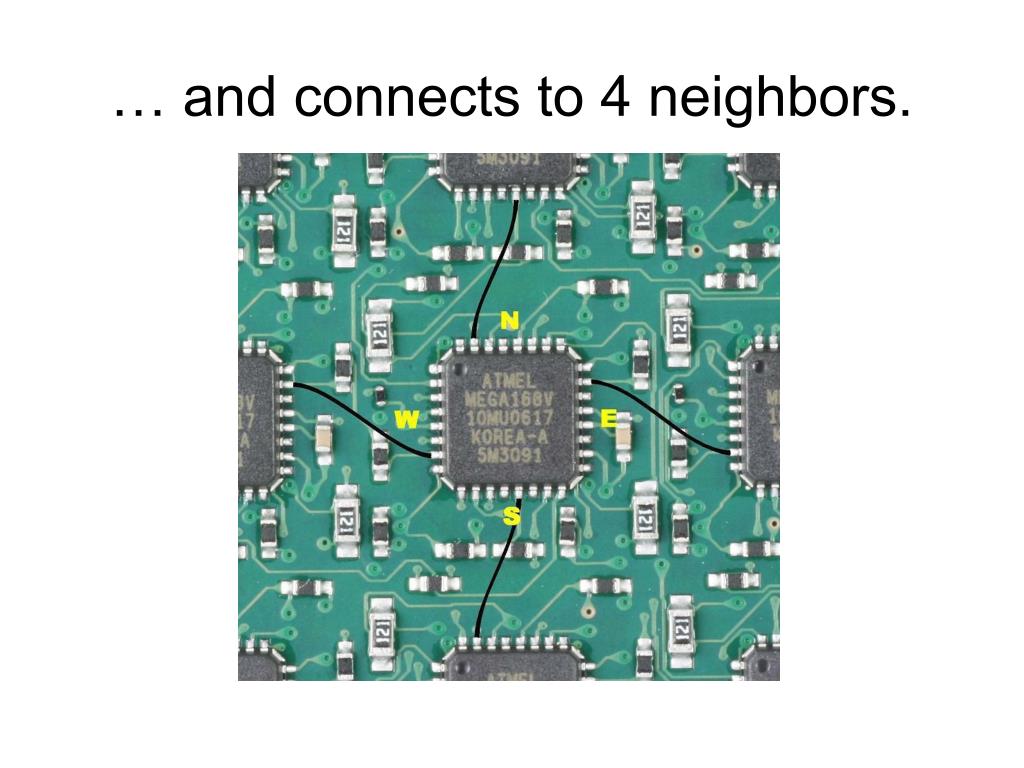

… and connects to 4 neighbors.


8x8 prototype 1 processor and 16 pixels cm 2

8x8 Prototype (1 processor and 16 pixels / cm2)

computing side display side


Chassis

Chassis


Strip concept

Strip Concept

  • Uses only two metal layers  Lower cost, thinner, more flexible

  • Strips combine to form sheets  Extensible


1x8 strip layout

1x8 Strip Layout

Layer 1 (display side)

Layer 2 (computing side)


2 nd strip prototype

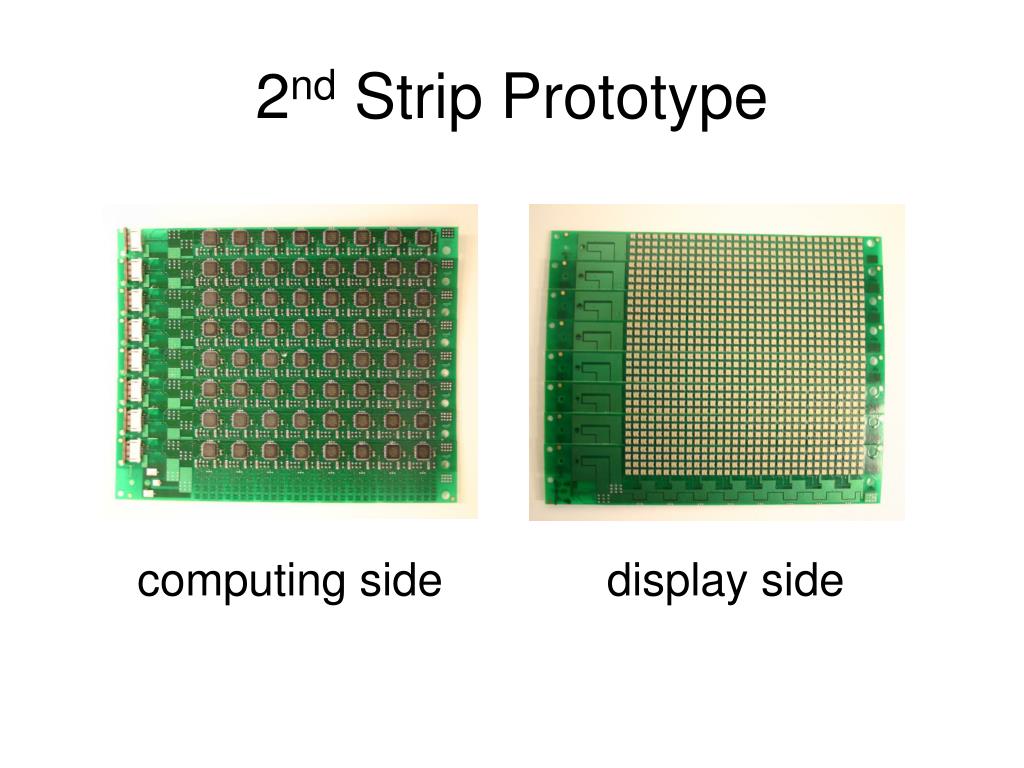

2nd Strip Prototype

computing side display side


Flat strip display

Flat Strip Display

  • Top: thin 2-layer boards

  • Bottom: thick multi-layer boards

  • Must include processor-to-display cxns

  • No vias in strip-to-strip power distribution


Applications

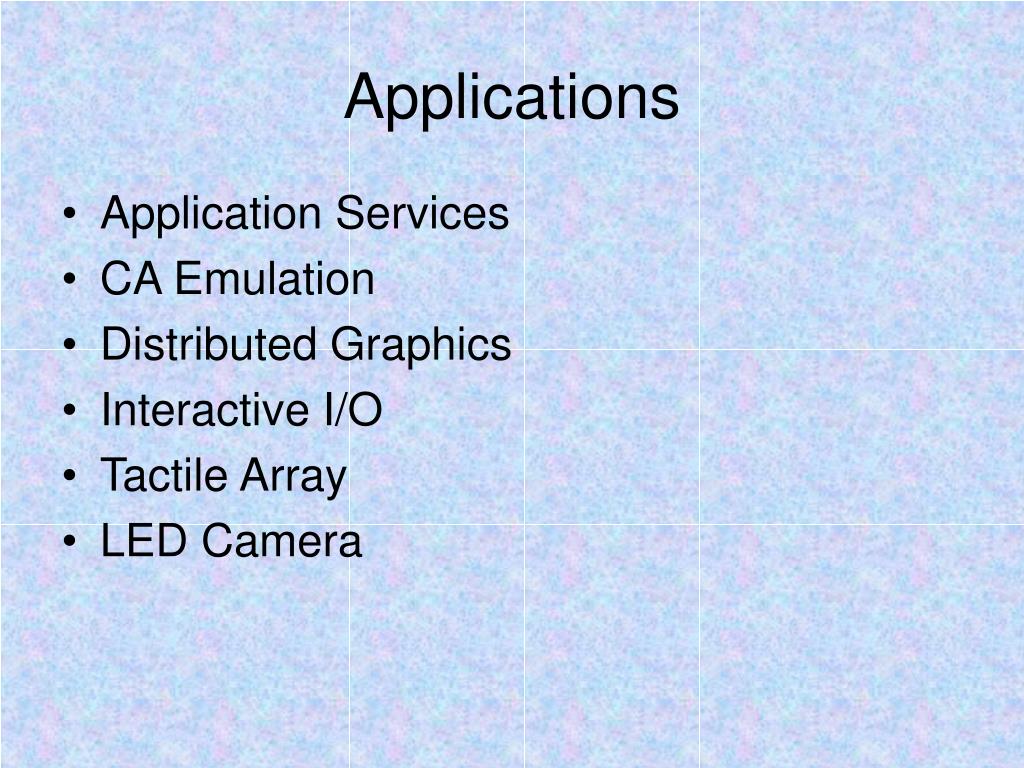

Applications

  • Application Services

  • CA Emulation

  • Distributed Graphics

  • Interactive I/O

  • Tactile Array

  • LED Camera


Application services

Application Services

  • Provides common application functions

  • Functions include:

    • Initial program loading (IPL)

    • Display setting and refreshing

    • Inter-processor communication (IPC)

    • Message passing

    • Thread management

    • Subsequent program loading


Ca emulation

CA Emulation

  • Each cell has 8 configuration bits and 1 state bit

  • A text file format has been defined to specify the configurations and initial states of an array of cells

  • The text file is used to define the program to be loaded into a wallpaper computing display

  • A message passing sequence is used to exchange data between the subarrays emulated by individual processors


Distributed graphics

Distributed Graphics

  • Purpose

    • Explore distributed applications capabilities using the 2x2 and 8x8 prototypes

  • Objective

    • Render a single graphics primitive (a quadrilateral) in a distributed fashion


Approach

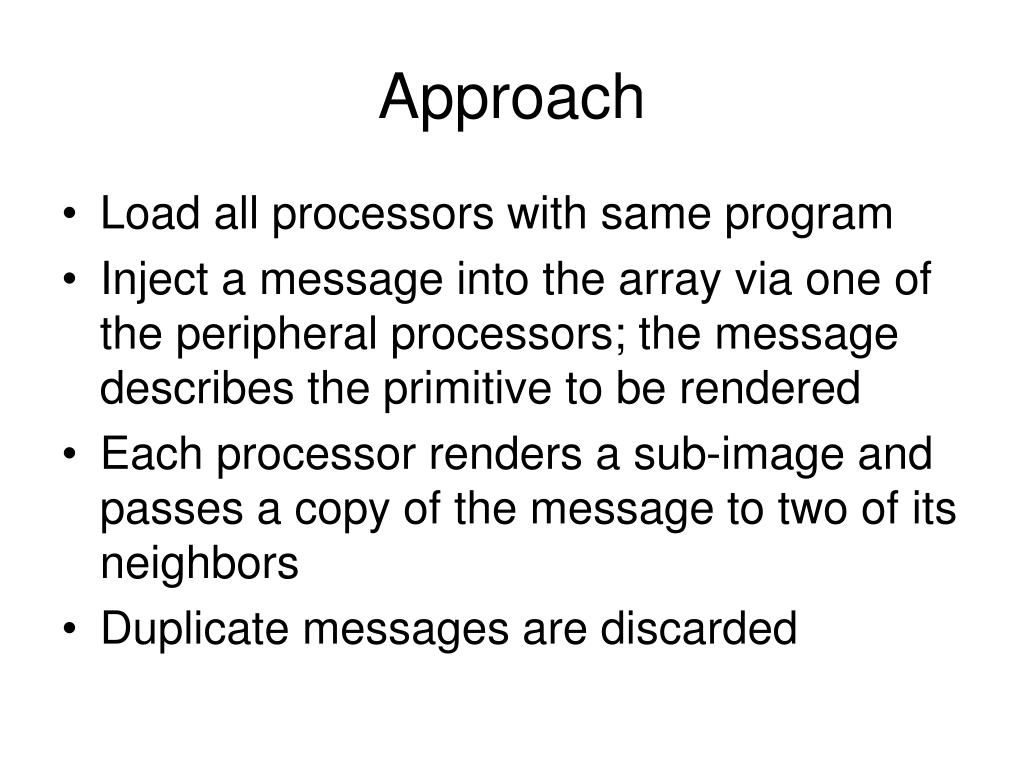

Approach

  • Load all processors with same program

  • Inject a message into the array via one of the peripheral processors; the message describes the primitive to be rendered

  • Each processor renders a sub-image and passes a copy of the message to two of its neighbors

  • Duplicate messages are discarded


Algorithm

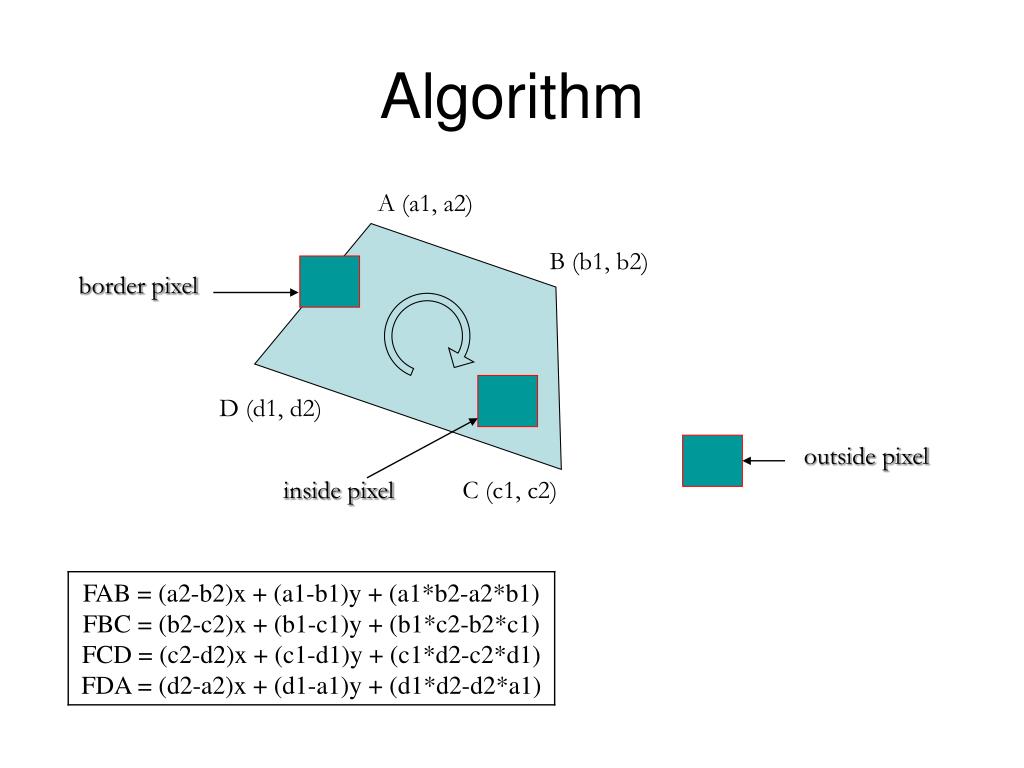

Algorithm

A (a1, a2)

B (b1, b2)

border pixel

D (d1, d2)

outside pixel

inside pixel

C (c1, c2)


Controller and 8x8 wcd

Controller and 8x8 WCD


Tactile array

Tactile Array

Purpose

Produce an example of actuation integrated with a conformal computer

Objective

Tactile array for sensory substitution


Tactile display prototype

Tactile Display Prototype

Testbed for tactile transduction on forehead; uses biofeedback

Sensor system

Ultrasound range finders in fly’s eye configuration

Accurate 3.5 meter range sensing

Display system

Electromechanical actuators

Processing

3 microcontrollers in master-slave configuration


Tactile display schematic

Tactile Display Schematic


Stepper motor brush

Transduction produced by brush on plastic disk

Stepper motor driven by

Pulse-width modulation

Short envelope duty cycle

Performance

No audible noise

Relatively low power

Stepper Motor & Brush


Led camera

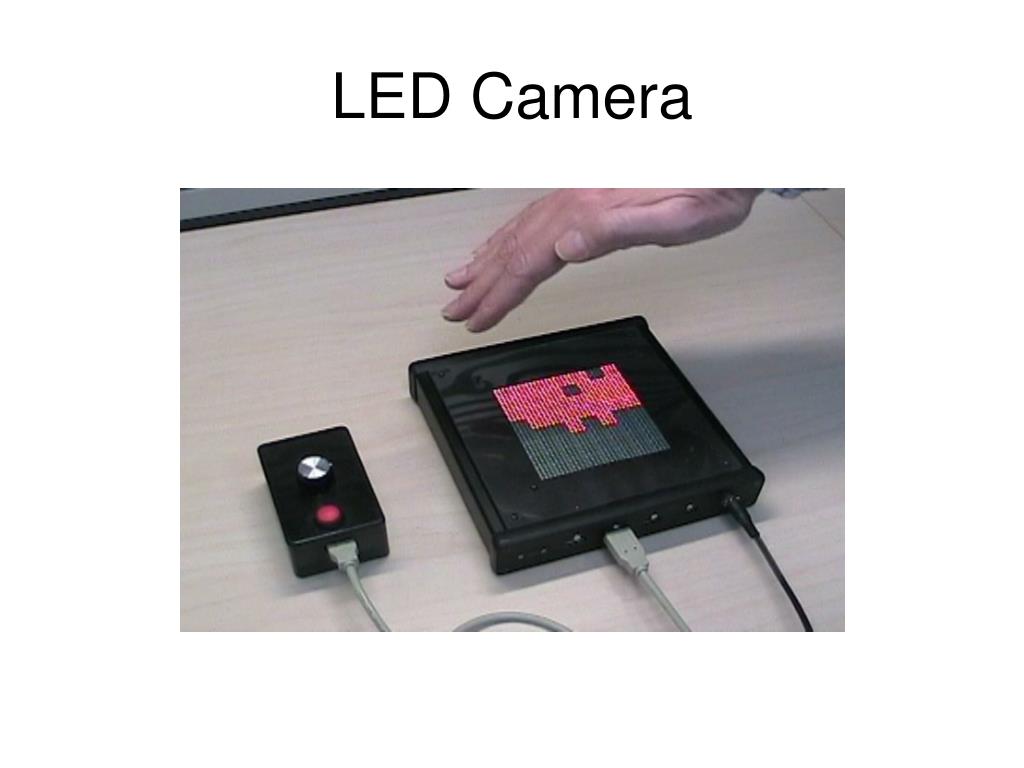

LED Camera


Programmable cellular arrays

Programmable Cellular Arrays

  • (Larger Arrays of Microcontrollers)

  • Programmable Cellular Array ASIC

  • Assembling Large Arrays of ASICs

  • (Using the 3rd Dimension)


Ca processors

CA Processors

  • Purpose

    • Scale processors down in size (and complexity) and up in number

  • Objectives

    • Design CMOS ASICs with arrays of simple computational cells

    • Consider sync & async approaches


Single ca cell

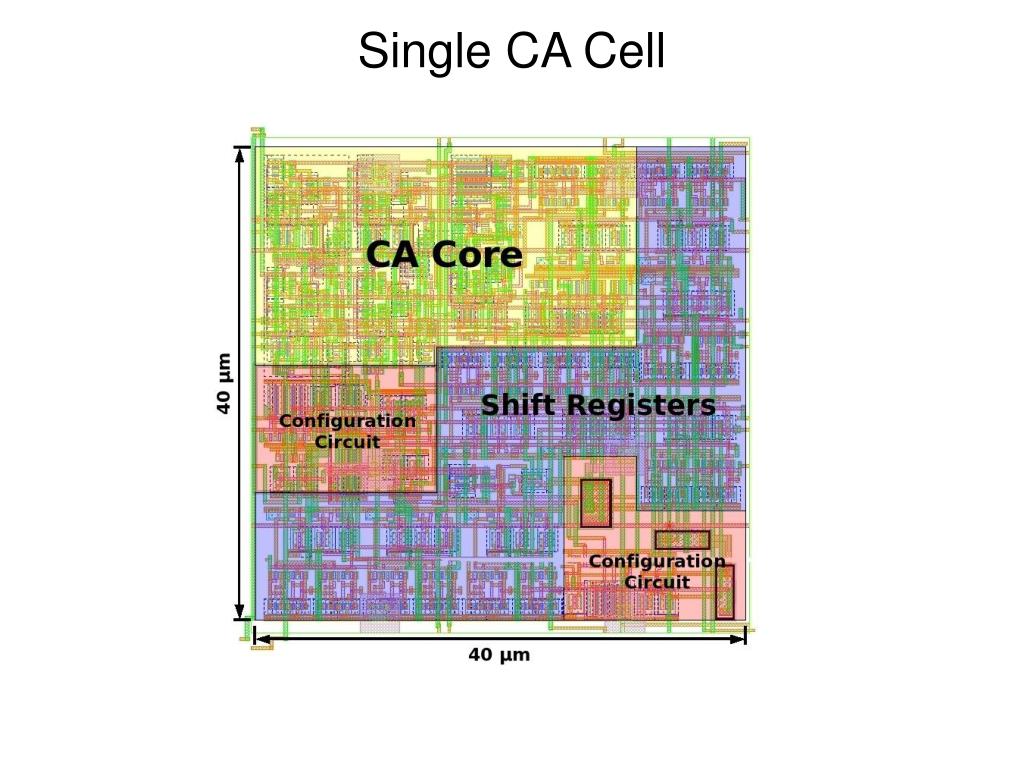

Single CA Cell


Assembly methods

Assembly Methods

  • Via-to-Pad

  • Roll-to-place (Part Printer)

  • FSA

  • R2R Flip-Chip on Flex

  • Selective Device Transfer


Via to pad

Via-to-Pad


Roll to place

Roll-to-Place

  • Parts are “printed” from dispensers

  • Dispensers are at fixed locations relative to the roll

  • (See MIT-CBA for dispenser mock-up)


Nanoblocks

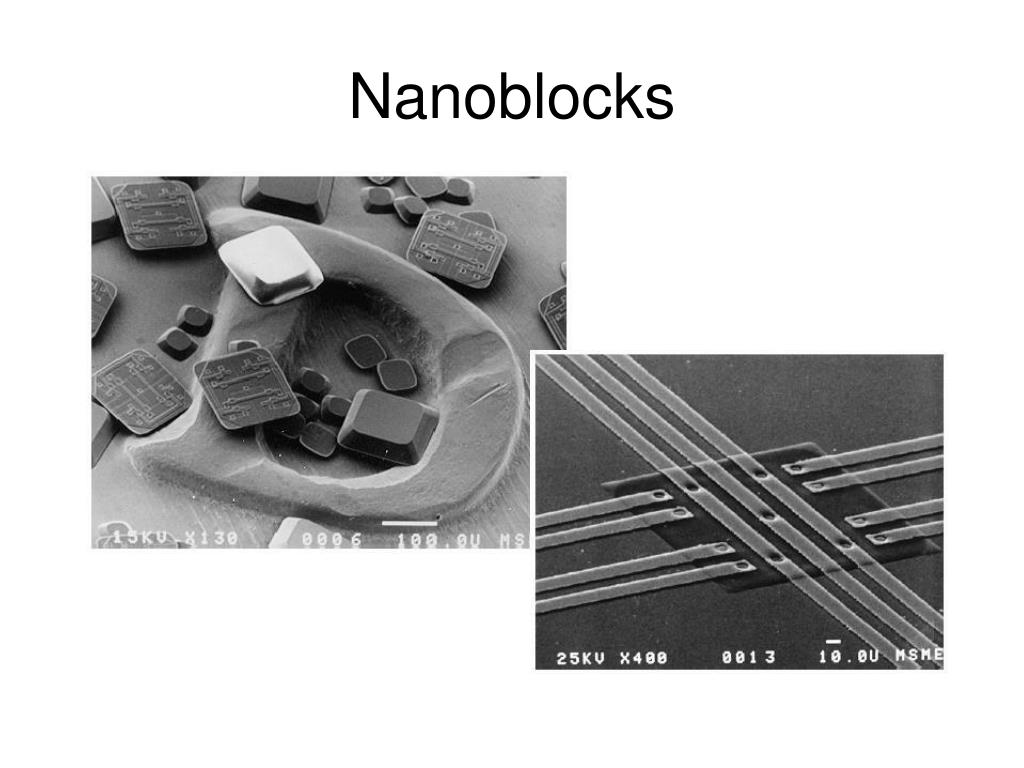

Nanoblocks


Fsa process

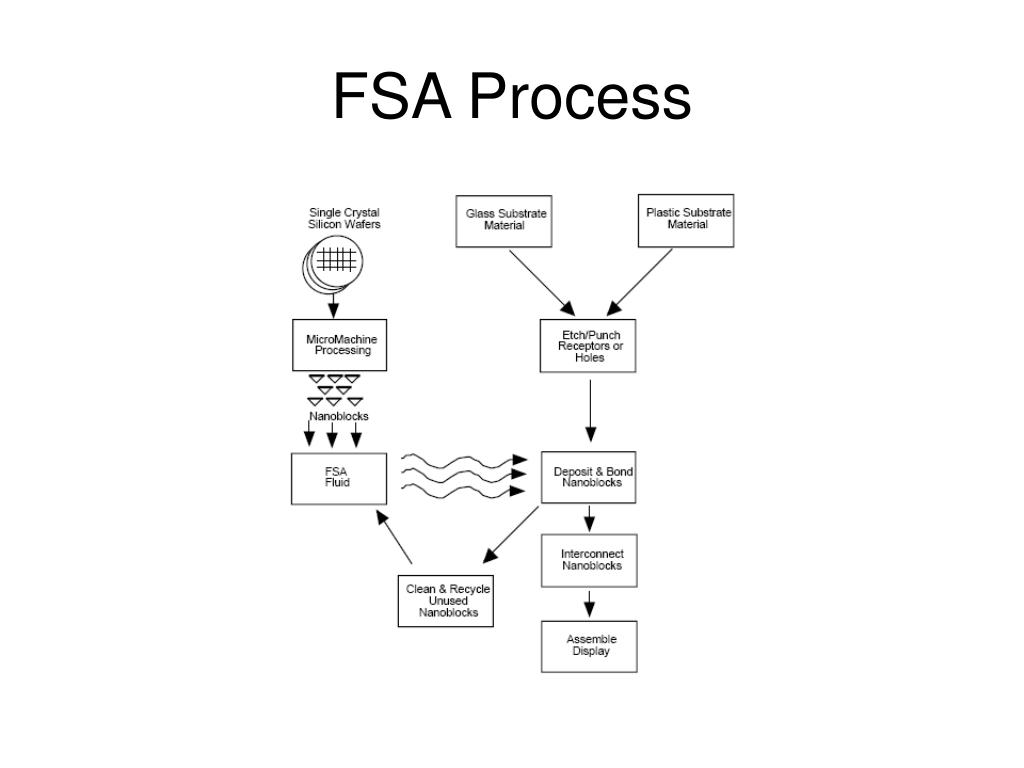

FSA Process


R2r flip chip on flex automated assembly corporation

R2R Flip-Chip on Flex Automated Assembly Corporation


Selective device transfer figure from www zurich ibm com st server selectivetrans html

Selective Device TransferFigure from www.zurich.ibm.com/st/server/selectivetrans.html
