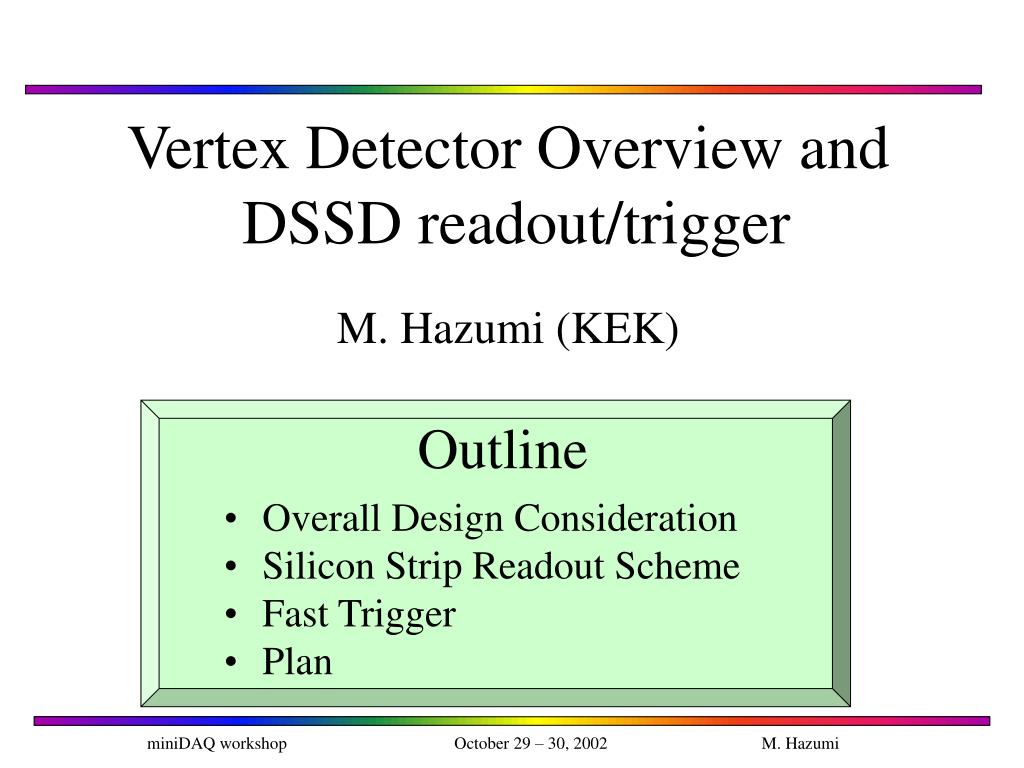

  1. Vertex Detector Overview and DSSD readout/triggerM. Hazumi (KEK) • Overall Design Consideration • Silicon Strip Readout Scheme • Fast Trigger • Plan Outline

  2. Overall Design Consideration Physics Requirements • Time-dependent CP Violation • In physics beyond the SM (e.g. B0  ’Ks, Ks) • Time-dependent analyses for 1, 2 • Time dependence in rare decays • Special time-dependence [e.g. sin(21+3)] Present resolution is adequate for signal events. However, Better resolution is required to separate signal from continuum Better resolution is required for signal events.

  3. z resolution function • smaller beampipe radius • less material • Resolution is improved by • narrower main Gaussian • smaller 2nd Gaussian component (e.g. tail) • robustness against fake hits • small background occupancy • more layers

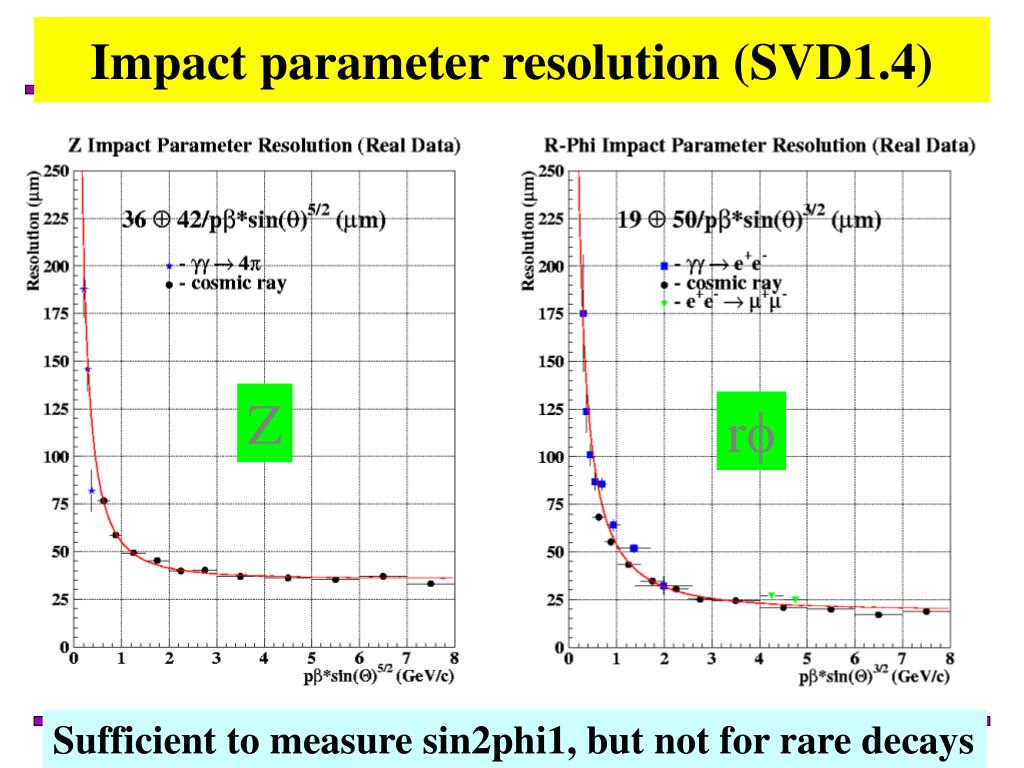

  4. Impact parameter resolution (SVD1.4) Z r Sufficient to measure sin2phi1, but not for rare decays

  5. Resolution with Rbp=1cm and Strip pitch = 50um Meet the Super KEKB requirement Further improvement possible by reducing material (expecially beampipe and the innermost pixel, as well as having a larger lever arm SVD1.4 5-layer SVD (a la Inner Tracker taskforce)

  6. Better Impact Parameter Resolution • Smaller-radius beampipe  Rbp = 1cm • Good intrinsic resolution  50um or less • Smaller amount of material need studies ½ of present resolution seems feasible. 1/3 of present should be tried !

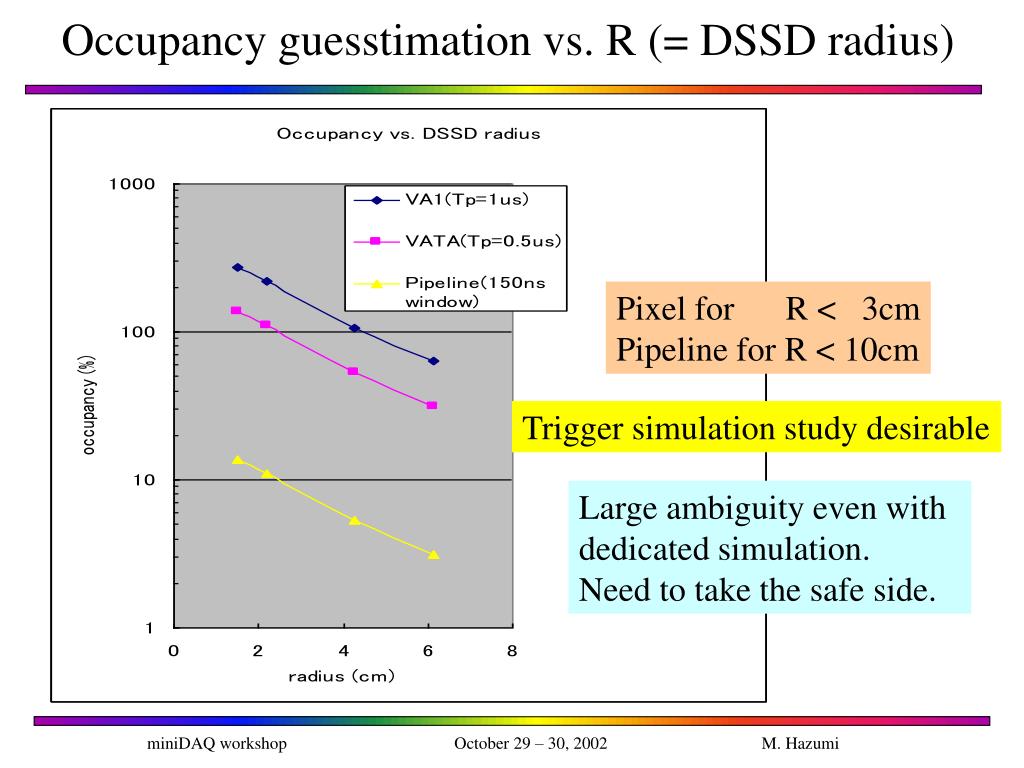

  7. Occupancy guesstimation vs. R (= DSSD radius) Pixel for R < 3cm Pipeline for R < 10cm Trigger simulation study desirable Large ambiguity even with dedicated simulation. Need to take the safe side.

  8. 15cm Configuration of SuperB VXD Rbp = 1cm 2-layer Pixel 3 or more DSSDs Rcdc > 15cm DSSD w/ Pipeline readout Extrapolating present hit rate and requiring the hit rate being less than the present, Rcdc > 12cm is “probably no problem”. Additional DSSD layers CDC

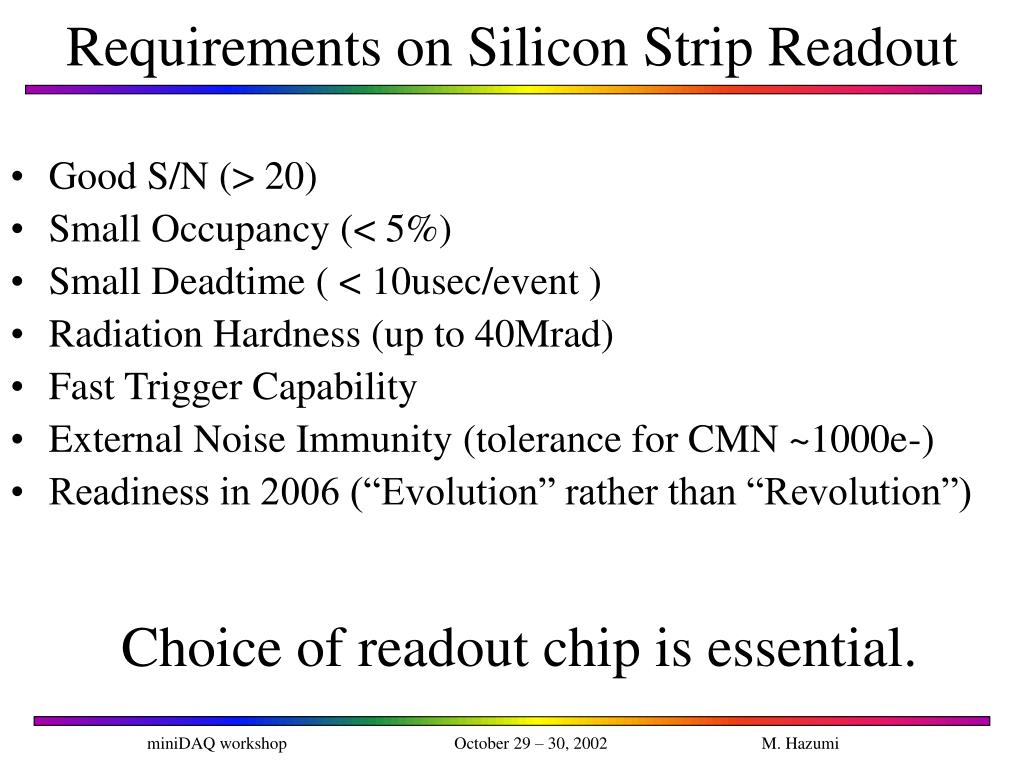

  9. Requirements on Silicon Strip Readout • Good S/N (> 20) • Small Occupancy (< 5%) • Small Deadtime ( < 10usec/event ) • Radiation Hardness (up to 40Mrad) • Fast Trigger Capability • External Noise Immunity (tolerance for CMN ~1000e-) • Readiness in 2006 (“Evolution” rather than “Revolution”) Choice of readout chip is essential.

  10. Readout chips for DSSDs Exp chip process pipeline fasttrig principle Belle VATA AMS 0.8um x o cnt. Shaping. Analogue BaBar AtoM Honeywell o x Time-over-Threshold CLEO FE/BE Honeywell x x on-hybrid ADC, Digital ZEUS Helix AMS 128cells x Analogue (non-radhard) CDF II SVX4 IBM ? um 47cells x FE/BE architecture double-corr. Sampling periodic reset, Digital CMS APV25 IBM 0.25um 192cells x Analogue ATLAS ABCD? 132cells x Binary LHCb SICA-VELO DMILL BEETLE 0.25um 160cells ? Analogue (Belle FELIX(+TA) AMS0.35um O(100) o Analogue)

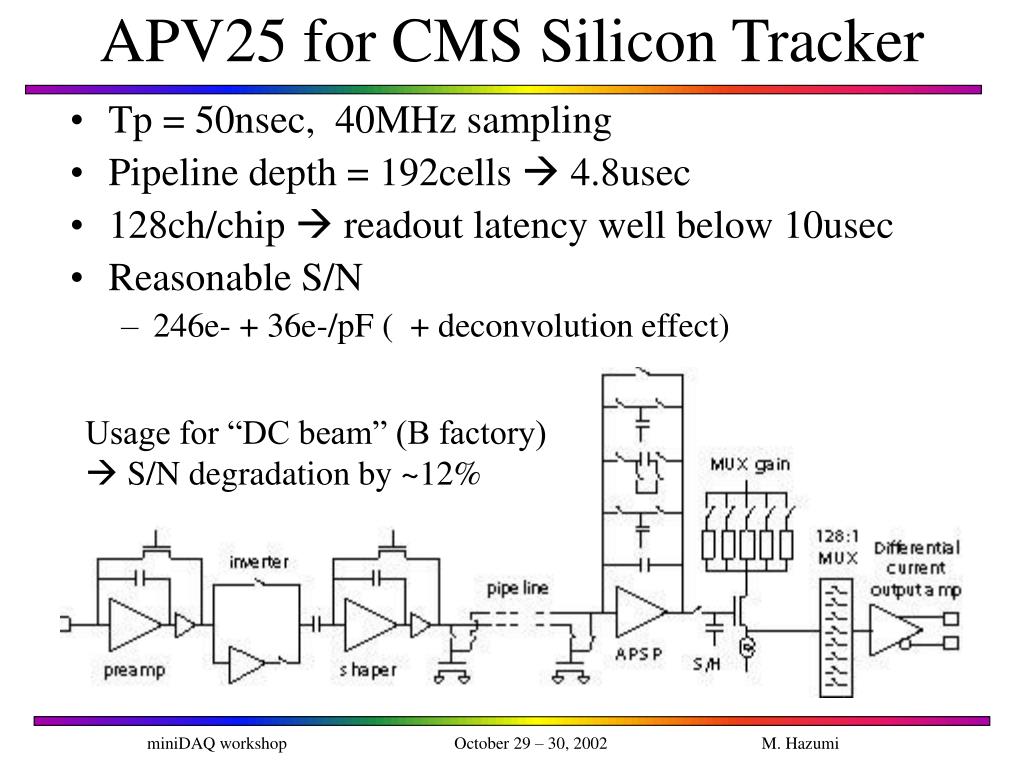

  11. APV25 for CMS Silicon Tracker • Tp = 50nsec, 40MHz sampling • Pipeline depth = 192cells  4.8usec • 128ch/chip  readout latency well below 10usec • Reasonable S/N • 246e- + 36e-/pF ( + deconvolution effect) Usage for “DC beam” (B factory)  S/N degradation by ~12%

  12. Deadtime-less pipeline Trigger read pointer 32-depth FIFO (to store cell address) 192-cell ring buffer (4.8us) (3 consecutive cells / event) write pointer address stored in 32-depth FIFO is skipped. • Readout time = 1/20MHz x 128ch = 6.4us • No deadtime during readout (unless the address FIFO is full). • Also periodic reset is not necessary (continuous shaping).

  13. APV25 test setup in Vienna Clock clock/trig/reset/power APV sequencer VME I2C VME-I2C PC VME-ADC Analog Data Repeater control software APV Hybrid and APV Hybrid+silicon detector Contract-related issues should be solved to use APV25 at Super KEKB.

  14. K. Uchida

  15. L1.5-like L1 with APV25 Proposal by Manfred Pernicka (Vienna) • SVD2 adopts L1.5 trigger • used as “abort” for other CDC/ACC/TOF/ECL/KLM … • work as “L1” for SVD • L1.5-like L1 for all detector components as SuperB • A plausible solution • CDC trigger used as “L0” for SVD (latency should be less than 4us) • Cost ? can be shorter 20MHz (or 40MHz) 128ch 6.4us (= T0) ~2T0 2T0 +  L1.5-like L1 trigger APV25 ADC L1 FPGA Total latency depends on the choice of the chip CDC trigger

  16. Real L1 trigger from VXD • No “readily available” solution • Chip modifications ? • APV25 with fast trigger • Felix + TA (“all IDEAS” solution) • Pipelined VATA in other words • Dedicated detector ? • Straw tube (high resistivity) for z information ? Large amount of R&D may be required. Need to know if L1 from VXD is really needed (e.g. simulation studies).

  17. Three issues • Short bunch-crossing period at KEKB (2ns) • Essentially DC beam (collisions happen anytime) • 40MHz pipeline can be off-timing by 12.5ns; ¼ of the peaking time (Tp = 50ns)  S/N degradation probably tolerable • Requirement for fast SVD trigger (L1) • L1 group thinks it essential to have the fast SVD trg. • No available readout chip that has both pipeline readout and fast triggering capability. • L1.5-like L1 seems the plausible solution (other detector components need sufficient buffer length) • Contract • It may not be so easy to use existing chips • Development of our own pipeline chips ?

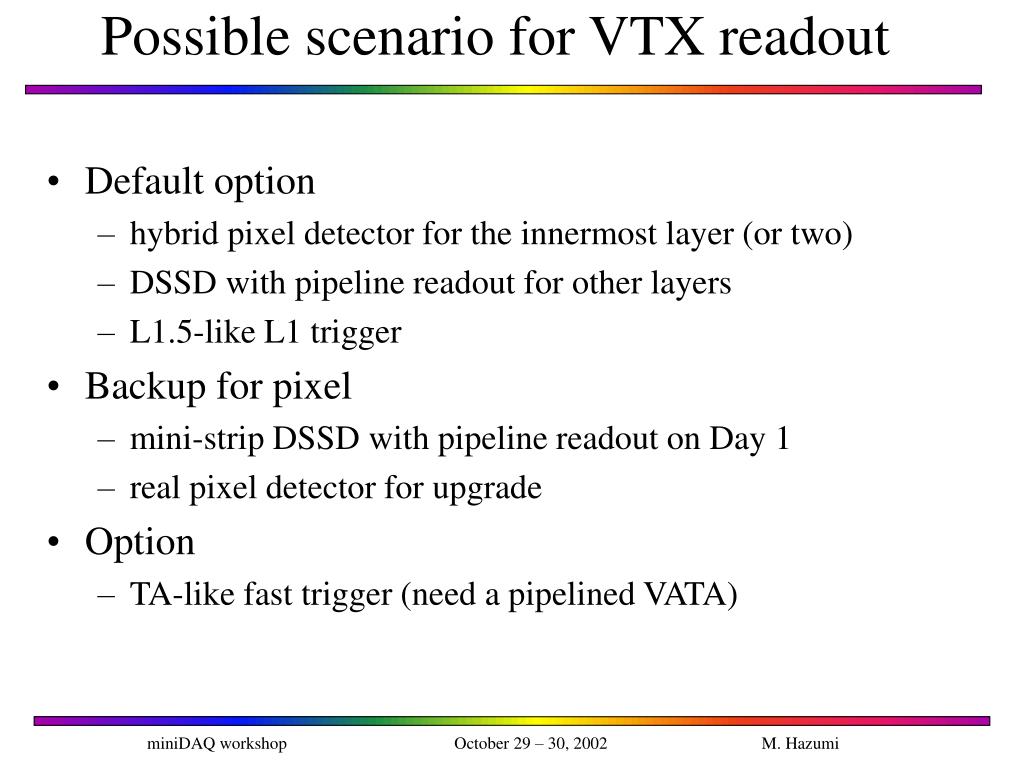

  18. Possible scenario for VTX readout • Default option • hybrid pixel detector for the innermost layer (or two) • DSSD with pipeline readout for other layers • L1.5-like L1 trigger • Backup for pixel • mini-strip DSSD with pipeline readout on Day 1 • real pixel detector for upgrade • Option • TA-like fast trigger (need a pipelined VATA)

  19. Schedule • Oct. 26, 02 1st SuperB VTX meeting • late Nov.02 2nd SuperB VTX meeting • late Dec.02 or Jan.03 3rd SuperB VTX meeting • Feb.03 LCPAC report • …. monthly meetings for progress reports …. • Aug.03 or Sep.03 HL04 workshop  LoI • Feb (?) 04 Official proposal to LCPAC

  20. R&D items for Pixel: initial assignments • Sim. study for Pixel requirements • Background study and IR design (Yamamoto) • TRACKERR study on thickness and pixel size (Trabelsi) • GEANT preparation (if necessary) (Hara) • Hybrid pixel detector development • joint effort with HPK (e.g. floating pixel) (Hazumi) • Bump bonding (with HPK or else) • Thinning • Monolithic pixel detector development (Palka) • Pixel readout chip selection • gaining experience with ALICE pixel (Kawasaki, Tanaka) • Hawaii R&D  beamtest ? (Varner) • Cooling, mechanical structure (Rosen) • Monitoring (Tsuboyama)

  21. R&D items for DSSD: initial assignments • pipeline readout chip • gaining experience with APV25 (Kawasaki) • Discussion with IDEAS (Hazumi) • Backend electronics • Trigger • L1.5-like L1 (Pernicka**) • Detector configuration • Large-area detector • floating strip design (Tsuboyama, Hazumi) • Cooling, mechanical structure (Rosen) • Monitoring (Tsuboyama) ** To be confirmed

  22. Backup Slides

  23. Hit rate (occupancy) guesstimation • SVD occupancy (now) = 3~5% (innermost) • Assume occupancy  annual dose • Annual dose estimated to be 7.3MRad at super KEKB (r=1cm beampipe, see EoI for detail) • Assume DSSD with the same pitch but with the length scaled to be half • For r=1cm beampipe, DSSD occupancy ~ 274% for an area of 50um x 2.7cm and Tp = 1usec (time window for noise ~ 3usec.) • Need pixel detectors • To achieve 1% occupancy, pixel size of 50um x 100um is required. • Requirement relaxed for faster time window.

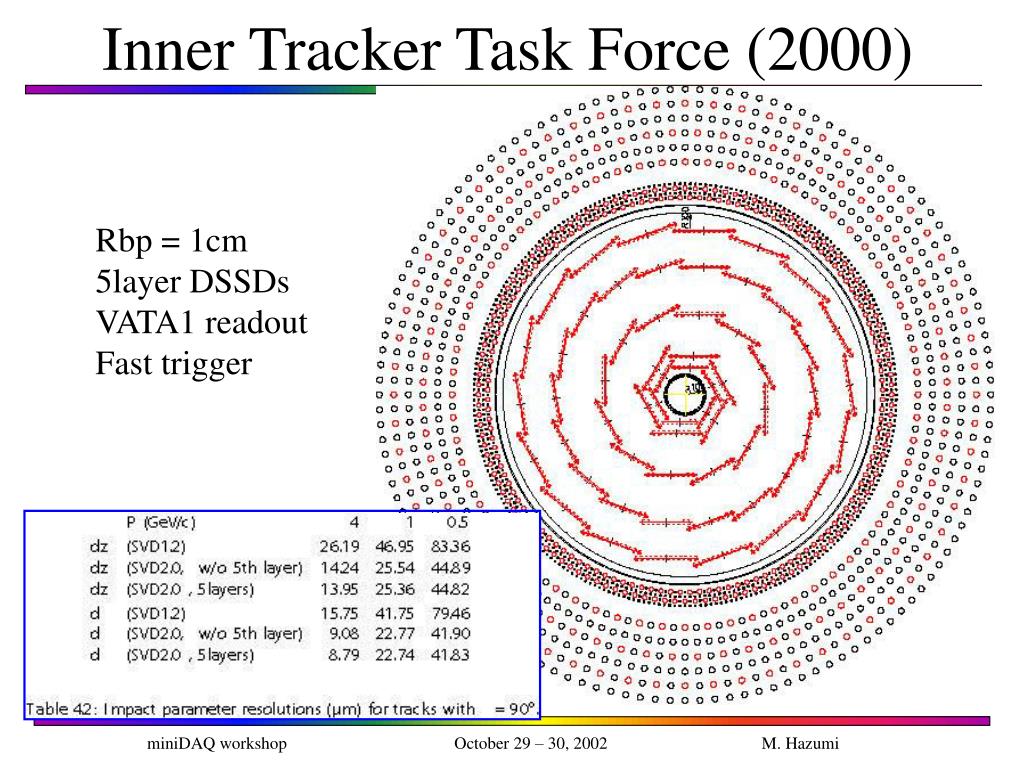

  24. Inner Tracker Task Force (2000) Rbp = 1cm 5layer DSSDs VATA1 readout Fast trigger

  25. Material Budget SVD1.4 2.60% (X0) 5layer 3.37% (X0) LC VTX  more ambitious design. Cf. NIM A473 (2001) 86 Thin CCD (0.12% X0) Beryllium substrate (0.09% X0)  Goal : 4  4/(psin3/2theta) (um) !

  26. Requirement on readout latency Trigger Rate for 10^35cm^-2s^-1 expect. design Background 2kHz 5kHz Physics 1kHz 1kHz Datasize 100kB 100kB L1 Data flow 300MB/s 600MB/s At storage 150MB/s 225MB/s ~10usec/event for 5% deadtime @ 5kHz trigger rate Rather difficult with present scheme Pipeline scheme is better.

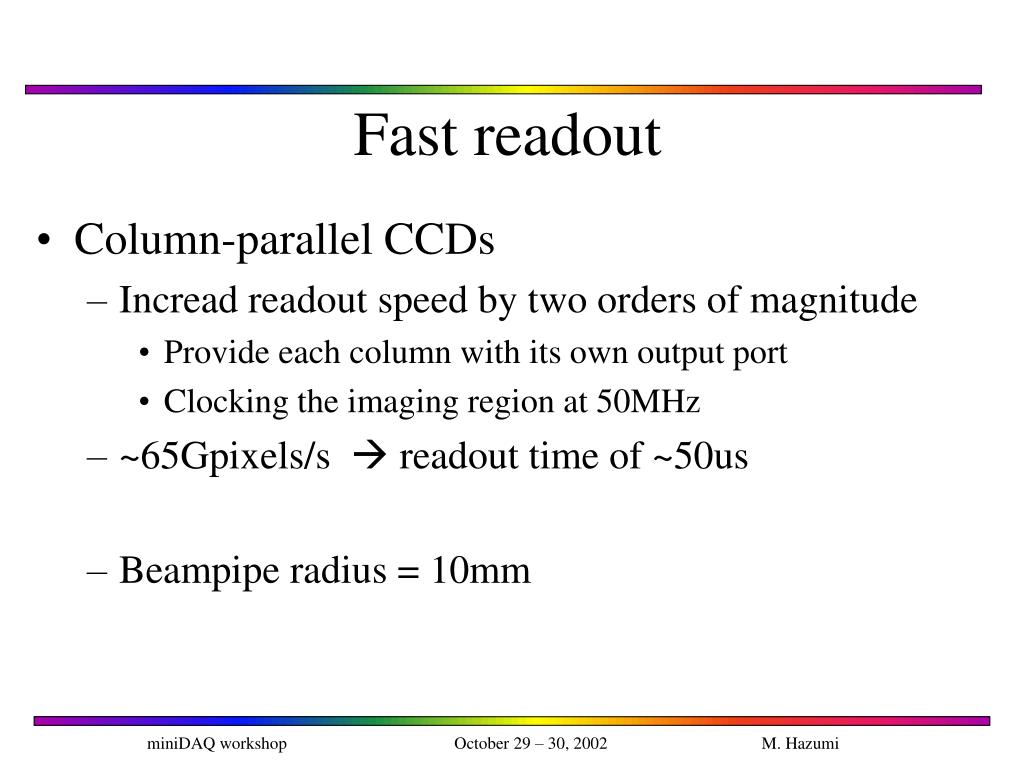

  27. Fast readout • Column-parallel CCDs • Incread readout speed by two orders of magnitude • Provide each column with its own output port • Clocking the imaging region at 50MHz • ~65Gpixels/s  readout time of ~50us • Beampipe radius = 10mm

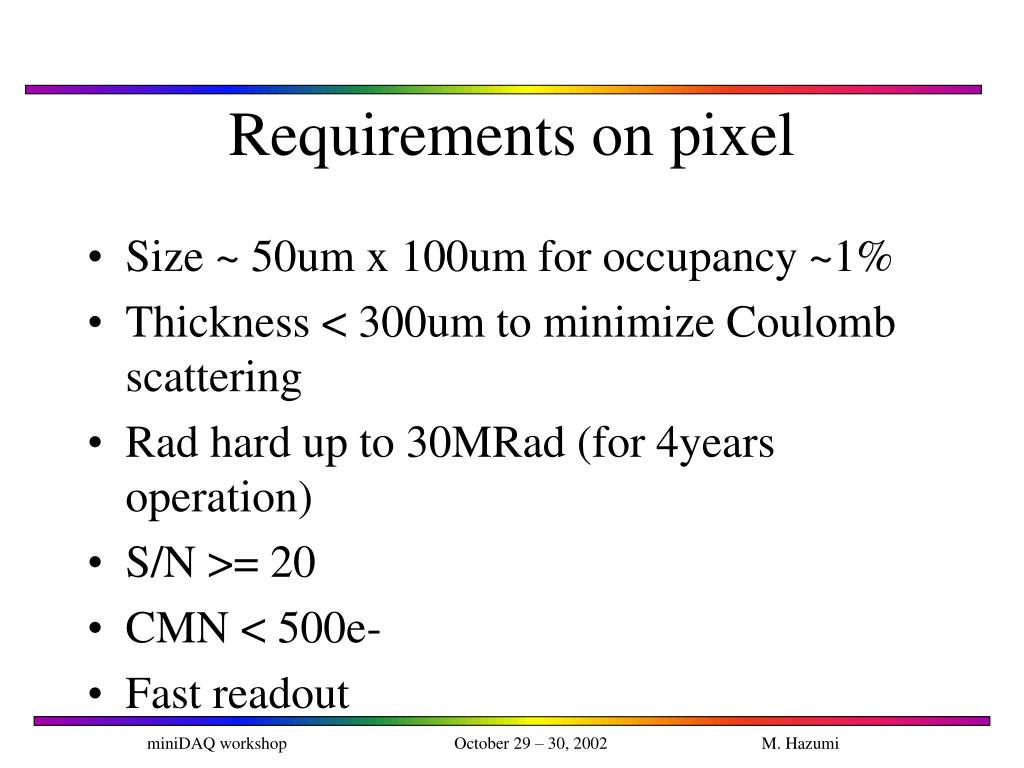

  28. Requirements on pixel • Size ~ 50um x 100um for occupancy ~1% • Thickness < 300um to minimize Coulomb scattering • Rad hard up to 30MRad (for 4years operation) • S/N >= 20 • CMN < 500e- • Fast readout

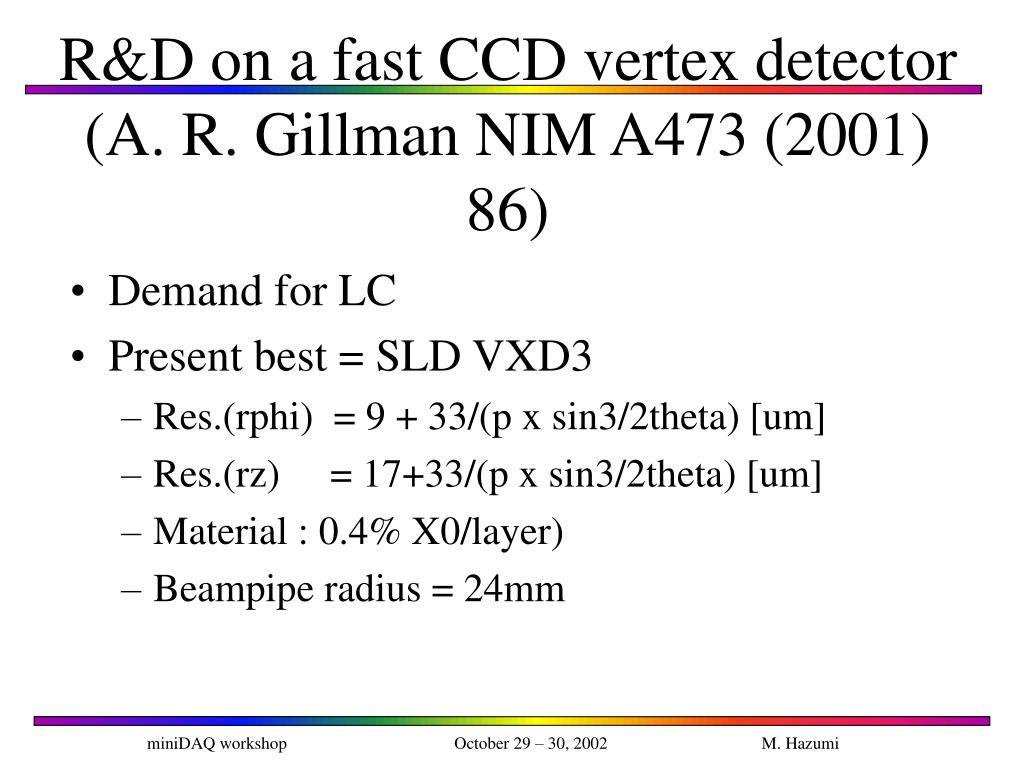

  29. R&D on a fast CCD vertex detector(A. R. Gillman NIM A473 (2001) 86) • Demand for LC • Present best = SLD VXD3 • Res.(rphi) = 9 + 33/(p x sin3/2theta) [um] • Res.(rz) = 17+33/(p x sin3/2theta) [um] • Material : 0.4% X0/layer) • Beampipe radius = 24mm

  30. Requirements for LC VXD • SLD VXD3  LC VXD • Res.(rphi) = 4 + 4/(p x sin3/2theta) [um] • Res.(rz) = 4 + 4/(p x sin3/2theta) [um] • Material : 0.06% X0/layer) • Beampipe radius = 10mm

  31. CLEO III FE/BE • FE (front-end chip) • Preamp+shaper+gainstage • CR-RC shaper • Shaping time 0.7 ~ 3.0us • Baseline subtraction circuit • Similar to VA • BE (back-end chip) • Based on SVX-2b back-end • 128 8-bit Wilkinson ADCs, comparators and FIFO buffers

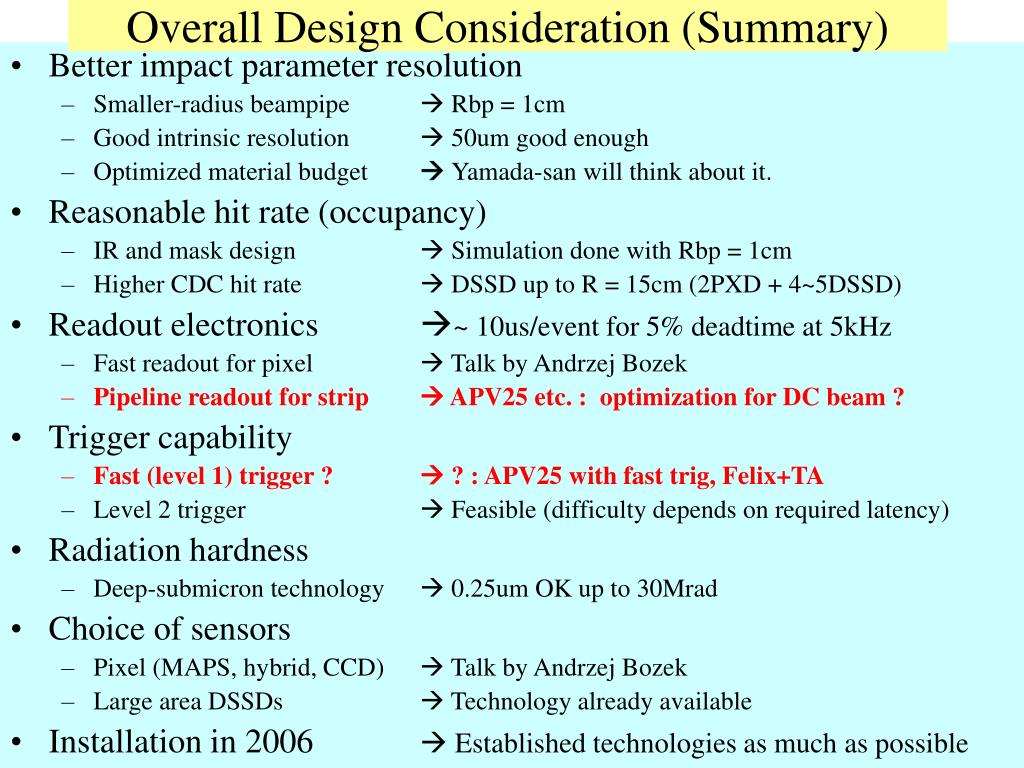

  32. Overall Design Consideration (Summary) • Better impact parameter resolution • Smaller-radius beampipe  Rbp = 1cm • Good intrinsic resolution  50um good enough • Optimized material budget Yamada-san will think about it. • Reasonable hit rate (occupancy) • IR and mask design  Simulation done with Rbp = 1cm • Higher CDC hit rate  DSSD up to R = 15cm (2PXD + 4~5DSSD) • Readout electronics ~ 10us/event for 5% deadtime at 5kHz • Fast readout for pixel  Talk by Andrzej Bozek • Pipeline readout for strip  APV25 etc. : optimization for DC beam ? • Trigger capability • Fast (level 1) trigger ?  ? : APV25 with fast trig, Felix+TA • Level 2 trigger  Feasible (difficulty depends on required latency) • Radiation hardness • Deep-submicron technology  0.25um OK up to 30Mrad • Choice of sensors • Pixel (MAPS, hybrid, CCD)  Talk by Andrzej Bozek • Large area DSSDs  Technology already available • Installation in 2006 Established technologies as much as possible
