  1. 2010 Standards for Accessible Design – Part IIChapters 6-9 Presented by Ray Petty Great Plains ADA Center Wichita, Kansas May 24, 2012

  2. Plumbing Elements & Facilities (Chapter 6) • Drinking Fountains • Toilet & Bathing Rooms • Water Closets & Toilet Compartments • Urinals • Lavatories & Sinks • Bathtubs • Shower Compartments • Grab Bars • Seats • Washing Machines & Clothes Dryers • Saunas & Steam Rooms

  3. Drinking Fountains (211) Where provided on an exterior site or floor, • 2 required: wheelchair accessible & standing access • alternative: single unit with dual access (e.g., “hi-lo” units) • multiple installations: 50% of each type

  4. Drinking Fountains (602) • forward approach - all wheelchair units • revised specs for spout location & water flow • clear floor space to be “centered” • height for standard units: 38”- 43”

  5. Toilet & Bathing Facilities (213) • Scoping for rooms & elements (e.g., toilets, lavs, mirrors) • toilet rooms clustered at 1 location: 50% scoping • unisex toilet rooms • Urinals - access where more than 1 provided

  6. Toilet Rooms & Water Closets (603 & 604) • Range for toilet centerline • lavatory cannot overlap toilet clearance (except in dwelling units)

  7. Toilet Rooms & Water Closets (603 & 604) • a fixture can be recessed • shorter (24” min.) rear grab bar allowed

  8. Toilet & Bathing Rooms (603) Space for side transfers provided

  9. Toilet & Bathing Rooms (603) Door can swing into fixture clearances if clear floor space provided beyond door swing

  10. Toilet & Bathing Rooms (603) Turning space (which door can swing into) and door clearances further define room size

  11. Water Closets (604) Other changes/ clarifications: • objects permitted to overlap clearance (grab bars, dispensers, etc.) • flush controls (standard reach range) • toilet paper dispenser location

  12. Water Closets (604) revised location for toilet paper dispenser

  13. Water Closets (604) grab bars clearances (609.3) further determine location of non-recessed dispensers

  14. Water Closets (604) large dispensers can conflict with grab bar clearance

  15. Water Closets (604) What’s wrong with this picture?

  16. Water Closets (604) What’s wrong with this picture?

  17. Adaptable Toilet & Bathing Rooms More detail about adaptable features (specific exceptions in Chapter 6): • Door swing / fixture clearance (if swing can be reversed) • Toilet seat height • Grab bars (toilets, tubs, showers) • Lavatories (knee & toe clearances, height)

  18. Toilet Compartments (604) • compartments with > 1 fixture to meet room requirements • doors – self-closing; door pulls on both sides • removed alternate stall designs (technical infeasibility)

  19. Wheelchair Compartments (604) Standard Stall 60” min. wide depth: • 56” min. (wall hung toilet) • 59” min. (floor-mounted or children’s toilet)

  20. Ambulatory Accessible Stalls (604) depth specified (60” min.) width: 35”- 37” (instead of 36” absolute)

  21. Urinals (605) minimum depth specified

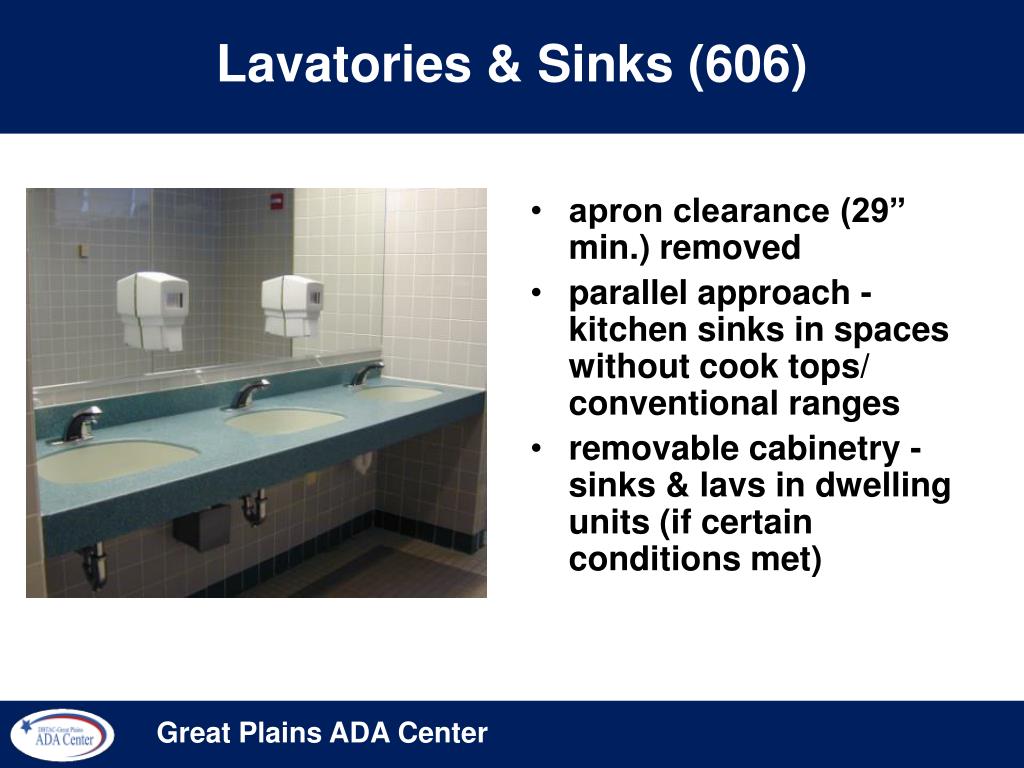

  22. Lavatories & Sinks (606) • apron clearance (29” min.) removed • parallel approach - kitchen sinks in spaces without cook tops/ conventional ranges • removable cabinetry - sinks & lavs in dwelling units (if certain conditions met)

  23. Bathtubs & Shower Compartments (607& 608) • hand-held shower spray (on/off control) • water temperature (120 degrees max.) • grab bars – can be adaptable in private bathrooms & dwelling units bathrooms

  24. Bathtubs (607) additional 12” clearance beyond permanent seat

  25. Shower Compartments (608) Alternate design permitted in any facility

  26. Shower Compartments (608) Allowed: • 1/2” max. beveled threshold in roll-in showers • a higher curb (2” max.) - transfer showers in existing facilities (where floor slab affected)

  27. Grab Bars (609) • wider diameter – 2” max. (instead of 1 ½”) • circular and non-circular cross sections • (4” – 4.8” perimeter dimension; 2 ” max. cross section dimension)

  28. Grab Bars (609)

  29. Grab Bars (609) 12” min. clearance above 1 ½” min. below

  30. Seats (610) More detail on: • Size • Shape • location in showers • removable tub seats

  31. Washing Machines and Clothes Dryers (214) At least: • 1 accessible where 3 or fewer provided • 2 accessible where more than 3 provided

  32. Washing Machines & Clothes Dryers (611) • clear floor space (parallel approach) • operable parts • door height • front-loading, top-loading

  33. Saunas & Steam Rooms (612) from supplement on recreation facilities • bench • turning space

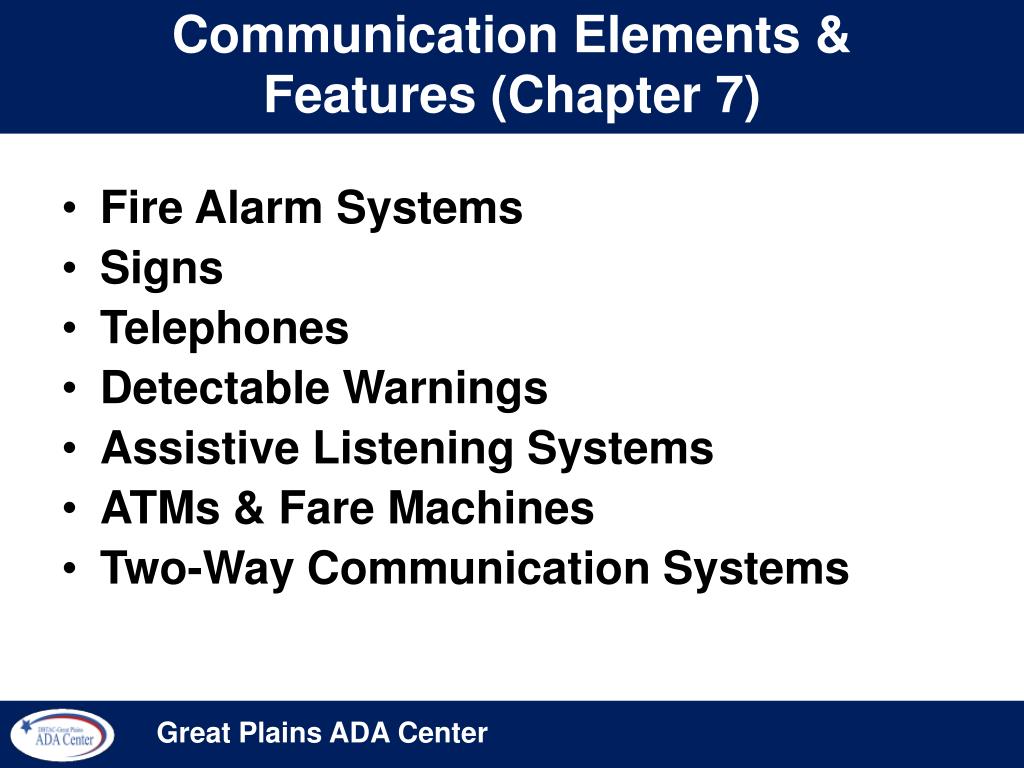

  34. Communication Elements & Features (Chapter 7) • Fire Alarm Systems • Signs • Telephones • Detectable Warnings • Assistive Listening Systems • ATMs & Fare Machines • Two-Way Communication Systems

  35. Fire Alarm Systems (215) • public and common use areas • employee work areas (wiring) • transient lodging • residential facilities • alterations: compliance required where system upgraded or replaced or a new one is installed

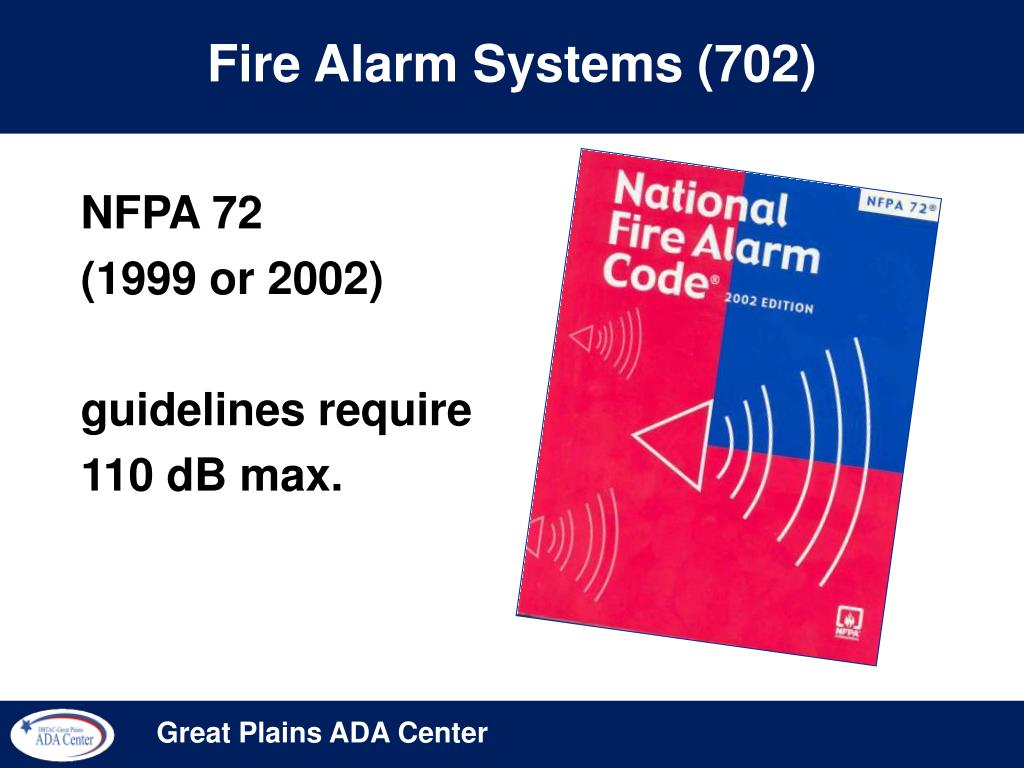

  36. Fire Alarm Systems (702) NFPA 72 (1999 or 2002) guidelines require 110 dB max.

  37. Visual Alarms (702) NFPA 72 covers: • flash rate & pulse duration • location - wall & ceiling • minimum intensity (based on coverage area) • larger coverage thru fewer appliances • many spaces (other than corridors) can be covered by 1 appliance • synchronization of multiple appliances

  38. Signs (216) Scoping clarified: • tactile/ visual – labels for permanent rooms & spaces, exit doors • visual – directional or informational signs • exempt: temporary signs, building menus, directories, addresses, company names and logos

  39. Signs (216) Specific provisions for: • means of egress • parking • entrances • elevators • toilet and bathing rooms • TTYs • assistive listening systems • check-out aisles • amusement rides

  40. Raised Characters (703) • sans serif • character proportion, height, spacing • line spacing • height (48” – 60”) • placement at doors

  41. Braille (703) • dimensions specified (e.g., dot height, base diameter) • limited use of uppercase notation • location below raised letters (3/8” min. separation)

  42. Tactile Signs (703)

  43. Visual Characters (703) • “conventional form” • character proportion, height, & spacing • location (40” min. height) • stroke thickness • line spacing • finish & contrast (visual signs with raised characters & Braille subject only to finish & contrast specs of 703)

  44. Telephones (704) • Volume controls on all public phones • volume control – to 20 dB (12 dB intermediate step) • automatic reset TTYs – 34” min. height keyboard (in use) except where seats provided

  45. Telephones – TTYs (217) Scoping based on pay phones provided: • banks – where 4 or more provided (exception for banks within 200 ft.) • floors and buildings: - where 1 provided (public building) - where 4 or more provided (private bldg.) • exterior sites – where 4 or more provided

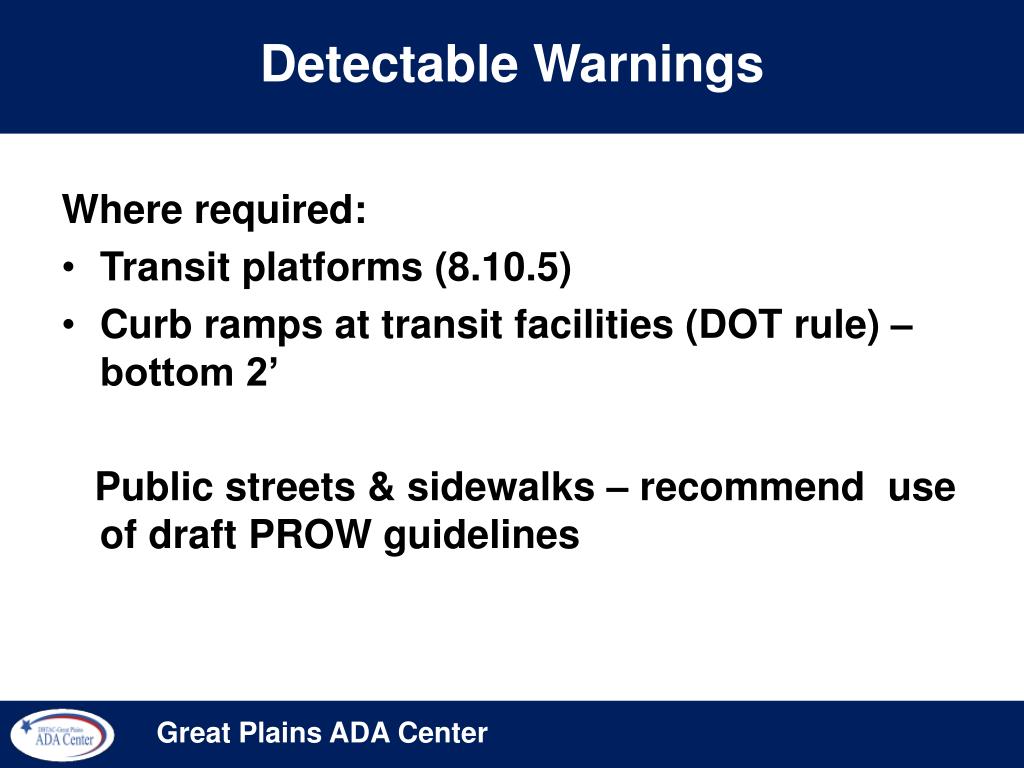

  46. Detectable Warnings Where required: • Transit platforms (8.10.5) • Curb ramps at transit facilities (DOT rule) – bottom 2’ Public streets & sidewalks – recommend use of draft PROW guidelines

  47. Detectable Warnings (705) greater range of designs & products allowed • dome diameter (range) • spacing (range) • removed: resiliency/ sound-on-cane contact • color contrast doesn’t have to be integral

  48. Assistive Listening Systems (219 & 706) Required where: • audible communication = integral to use of the space and • audio amplification provided • courtrooms Not triggered by fixed seating or occupant load

  49. ATMs & Fare Machines (220 & 707) Access to 1 of each type at each location • speech output • privacy • input controls • display screen • Braille instructions (for speech mode)

  50. Two-Way Communication Systems (230 & 708) • applies where provided • audible and visual signals • handsets (cord length) • systems serving dwelling units
