  1. Integrated Base Mapping Managementat the City of Calgary Presented by : Leanne James ALS P.Eng. Supervisor of Cadastral Mapping, Land Information and Mapping

  2. Geomatics Division Is Responsible for Base Mapping at the City of Calgary

  3. How Does Geomatics Fit In?

  4. Our Base Mapping Products • Legal Survey Fabric (LSF) • Ownership Parcel Fabric (OPF) • Single Line Road Network (Roadnet) • Digital Aerial Survey (DAS)

  5. Legal Survey Fabric Block and Lot Lines Plan, Block and Lot Numbers

  6. Ownership Parcel Fabric Ownership Polygons Addresses

  7. Road Network Segments Junctions

  8. Address Ranges

  9. Digital Aerial Survey Building Shapes Curb and Gutter Vegetation Contours

  10. Base Mapping is used by the Entire Corporation as a foundation for other Mapping Products

  11. Mapping Is Updated at Each Stage of the Land Development Cycle • Tentative plan • Approved tentative plan • Registered plan

  12. Tentative Plan Circulation Process Approved Tentative Plan Conditions Satisfied and Final Approval Registered Plan

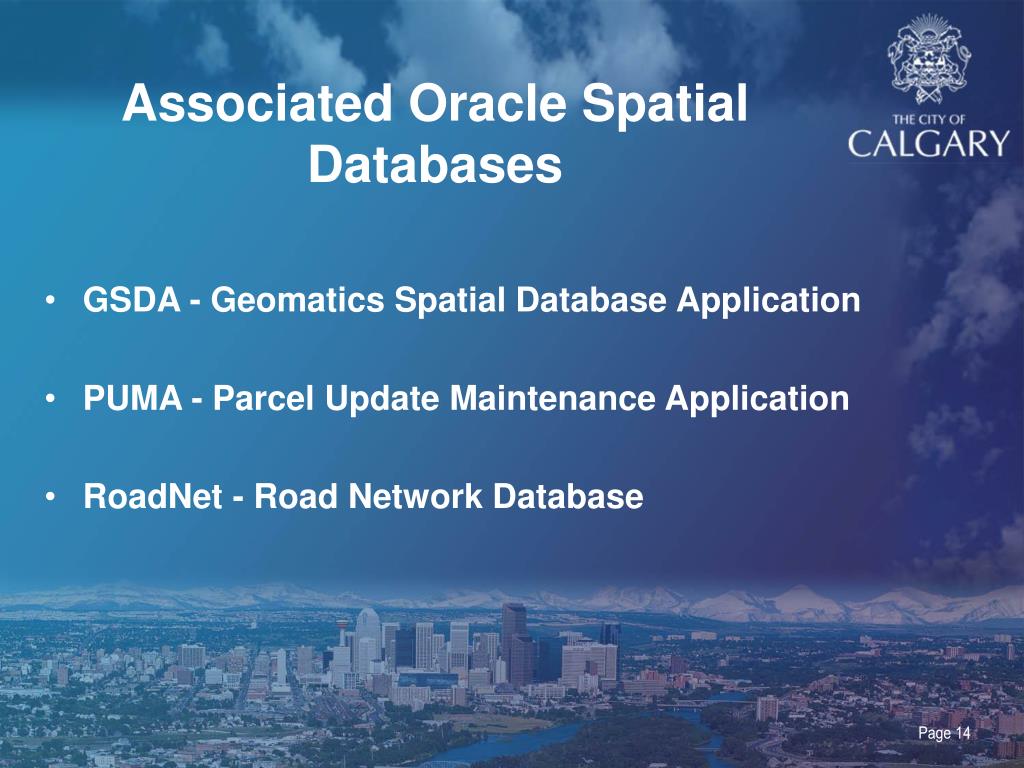

  13. Associated Oracle Spatial Databases • GSDA - Geomatics Spatial Database Application • PUMA - Parcel Update Maintenance Application • RoadNet - Road Network Database

  14. LSF OPF RoadNet LSF GSDA PUMA RoadNet

  15. The Mapping Process Legal Survey Fabric

  16. Plan received Translated Integrated Line work and Text Input LSF Mapping 3 Stages

  17. Surveyor’sPlan Received

  18. After Translation

  19. Integration • Existing points are regenerated from the GSDA database • Common points are matched and a least squares adjustment is performed • Adjusted points are written to the database.

  20. Plan Input • Geomatics cartographer checks out the affected section • Affected line work identified and updated • New line work is added

  21. Legal Survey Fabric

  22. Legal Survey Fabric Registered Approved Tentative

  23. The Mapping Process Ownership Parcel Fabric

  24. Parcel Shapes created from LSF Addressing Received at ATP Stage Addressing Objects Created Line work and Text Input OPF Mapping

  25. Ownership Parcel Fabric

  26. Ownership Parcel Fabric Approved Tentative Registered

  27. The Mapping ProcessRoadNet

  28. RoadNet Tentative Stage • Place Junctions and Segments • Enter Built Status, Street names and Other Attribute Information

  29. RoadNet Input

  30. Roadnet Approved Tentative and Registered Stage • Update built status • Update barrier information • Add address range information

  31. RoadNet

  32. RoadNet

  33. RoadNet

  34. Digital Aerial Survey • Annual flight campaign covering 1/3 of the city and all new growth areas • Information is extracted from Aerial Photos

  35. DAS • 90 different feature types • Most sections average 40,000 features • Accuracy 15cm • Scale 1:5000

  36. DAS Datasets A

  37. Distribution of Mapping • Design Files are regenerated nightly from the GSDA • Converted to SDE layers • ESRI , Microstation and AutoCAD formats served up to corporation and external companies

  38. Some Interesting Facts • 304,170 active parcels • 61,627 Ha or 293 sections. • 94,567 active roadnet segments • totaling 9,343 kms of road.

  39. Tri-Services Dispatch Mapping Group

  40. Tri-Services Mapping • Started the service in 1999 • Used for dispatch of EMS, Fire and Police inside Calgary and surrounding Municipalities. • 5 different mapping products. • 3 for dispatch • 2 for in-vehicle mapping

  41. Tri-Services Mapping • Uses the Intergraph ICAD software • Automatically routes emergency vehicles

  42. Constructed with • DAS • OPF • Roadnet

  43. Tri-ServicesEmergency Dispatch

  44. Tri-services Dispatch Mapping Accuracy Improvement Over Time

  45. Rural Roadnet

  46. MD of ROCKYVIEW MD of FOOTHILLS MD of BIGHORN Rural Roadnet Mapping CALGARY Rural Roadnet

  47. Rural Roadnet • 49,182 road segments • 12,422 Km of Roads • Distributed to the Calgary Regional Partners • Used for the Triservices Mapping at the City

  48. Accident Reconstruction

  49. Base Mapping and Projects Staff • 2 Integrators • 5 Cartographers • 4 Senior Cartographers • 2 Graph Systems Computer Analysts • 2 Coordinators • 1 Supervisor
