MikroHENDESE Model: C4PROX-485 Bağlantı Şeması

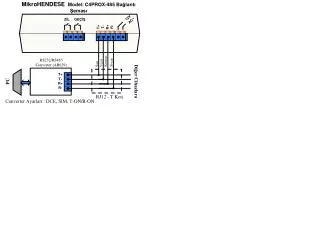

MikroHENDESE Model: C4PROX-485 Bağlantı Şeması. 12V AC~. GEÇİŞ. ZİL. R-. T-. R+. T+. Kırmızı. RS232/RS485 Converter (AB629). Siyah. Yeşil. Sarı. T+. T-. Diğer Cihazlara. PC. R+. R-. RJ12 - T Kon. Converter Ayarları : DCE, SIM, T-ON/R-ON.
