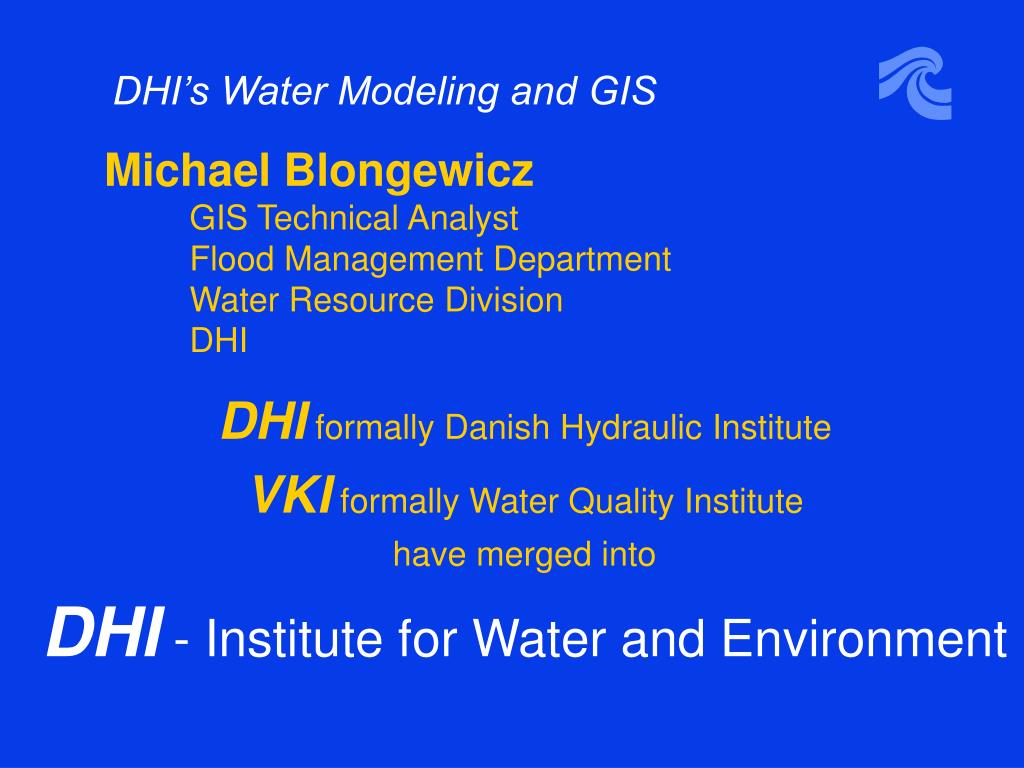

  1. DHI’s Water Modeling and GIS Michael Blongewicz GIS Technical Analyst Flood Management Department Water Resource Division DHI DHI formally Danish Hydraulic Institute VKI formally Water Quality Institute have merged into DHI - Institute for Water and Environment

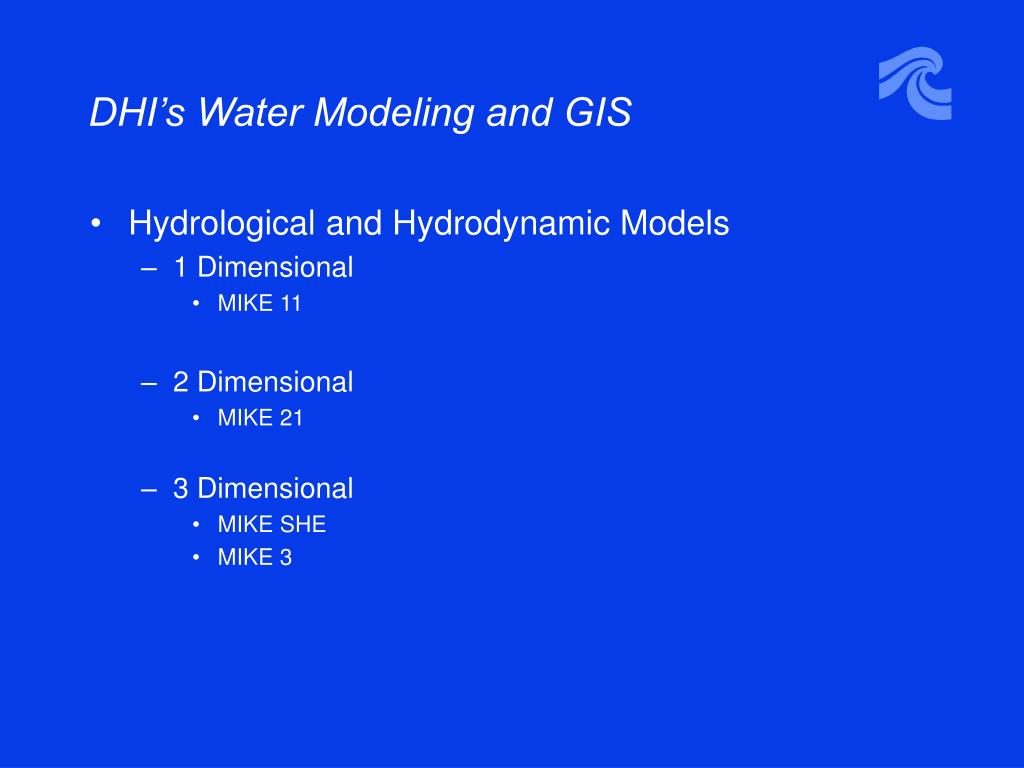

  2. DHI’s Water Modeling and GIS • Hydrological and Hydrodynamic Models • 1 Dimensional • MIKE 11 • 2 Dimensional • MIKE 21 • 3 Dimensional • MIKE SHE • MIKE 3

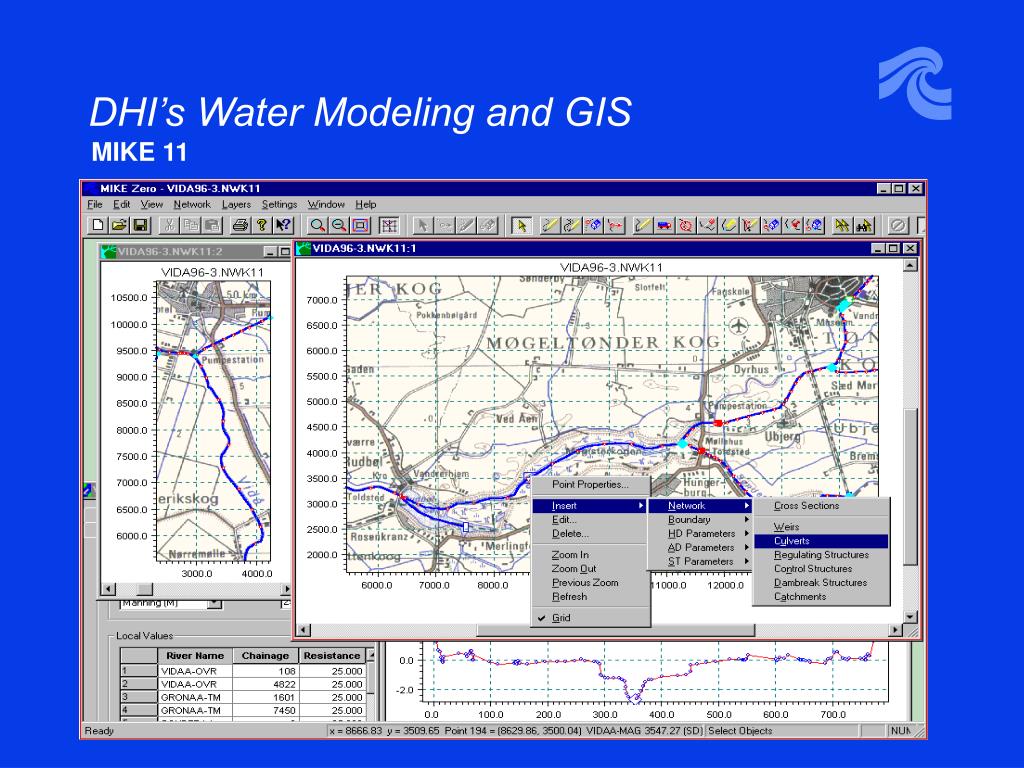

  3. DHI’s Water Modeling and GIS MIKE 11

  4. DHI’s Water Modeling and GIS MIKE 21 Deterministic Forecast Model

  5. DHI’s Water Modeling and GIS MIKE 21 Sediment Transport

  6. DHI’s Water Modeling and GIS MIKE SHE Integrated Hydrological Modeling System

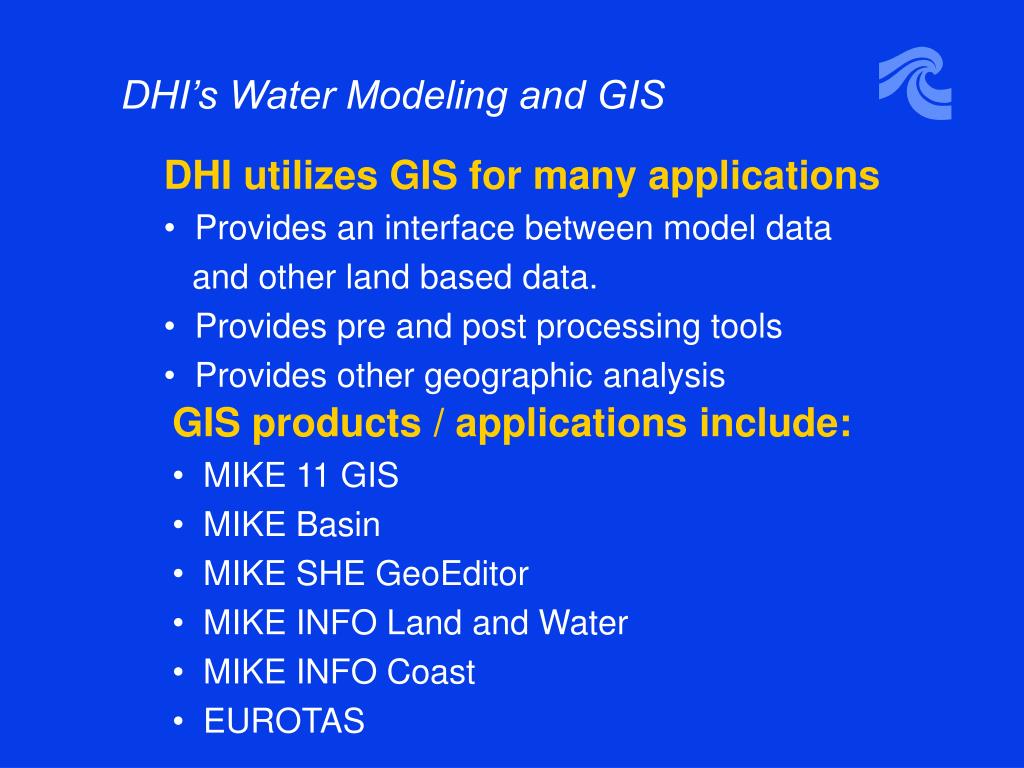

  7. DHI’s Water Modeling and GIS • GIS products / applications include: • MIKE 11 GIS • MIKE Basin • MIKE SHE GeoEditor • MIKE INFO Land and Water • MIKE INFO Coast • EUROTAS DHI utilizes GIS for many applications Provides an interface between model data and other land based data. Provides pre and post processing tools Provides other geographic analysis

  8. DHI’s Water Modeling and GIS EUROTAS TimeSeries Locations Branches Catchments Cross Sections Boundary Features Support for various feature types in a generic format

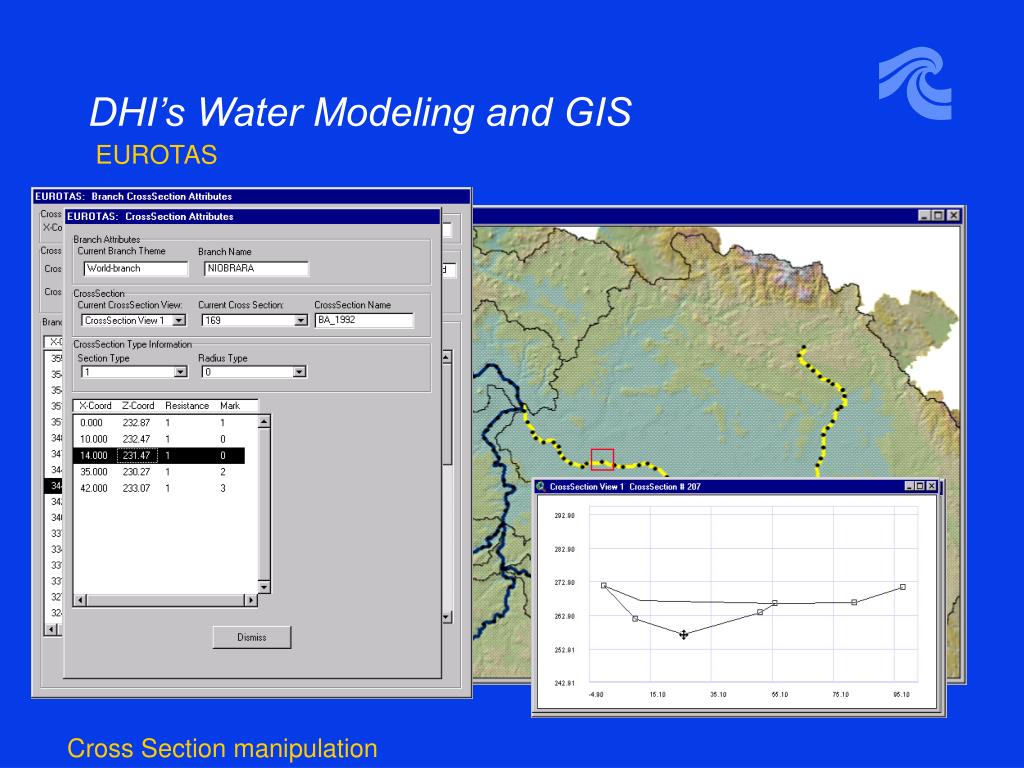

  9. DHI’s Water Modeling and GIS EUROTAS Cross Section manipulation

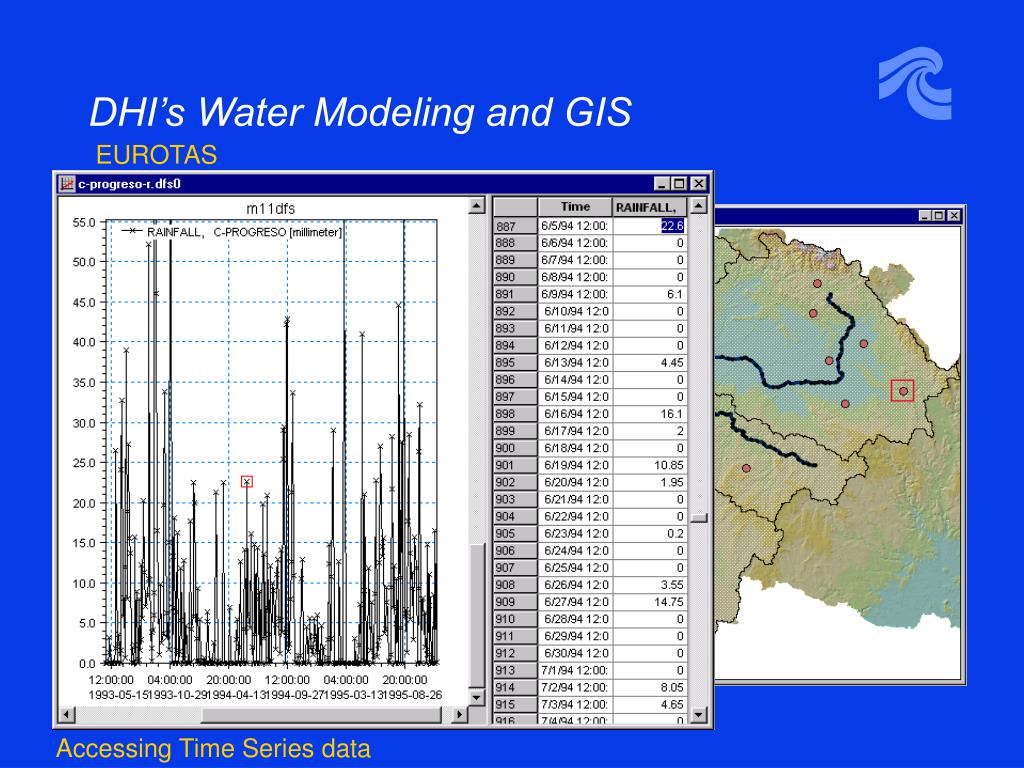

  10. DHI’s Water Modeling and GIS EUROTAS Accessing Time Series data

  11. DHI’s Water Modeling and GIS MIKE INFO Land and Water Water Balance in Catchments

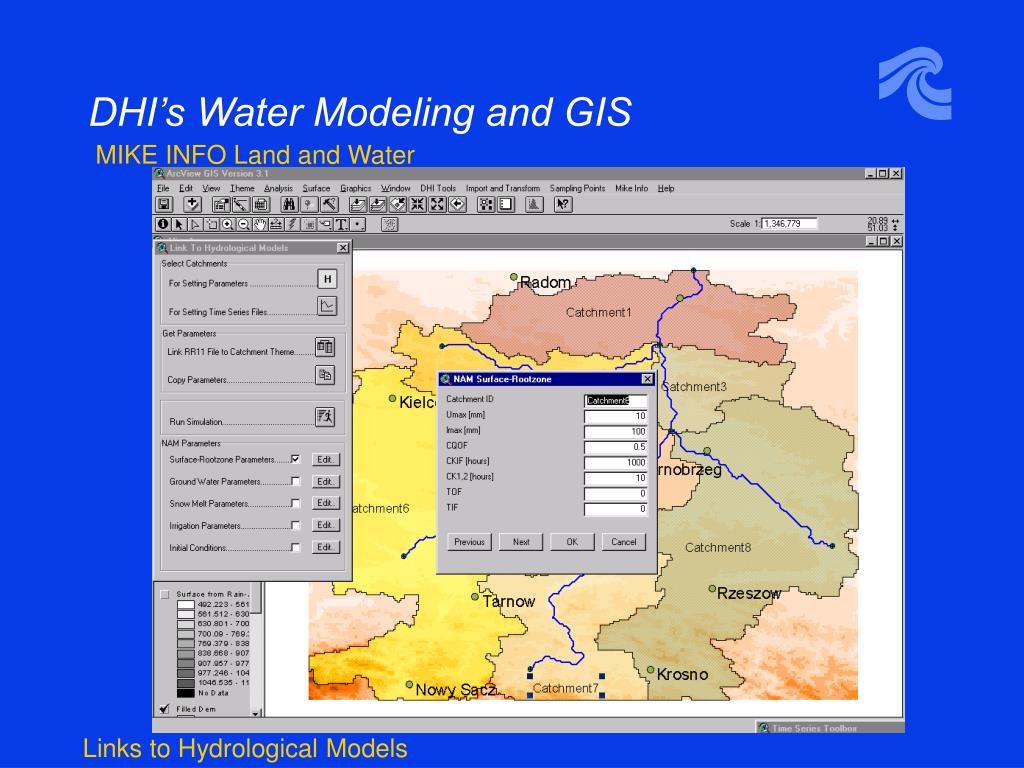

  12. DHI’s Water Modeling and GIS MIKE INFO Land and Water Links to Hydrological Models

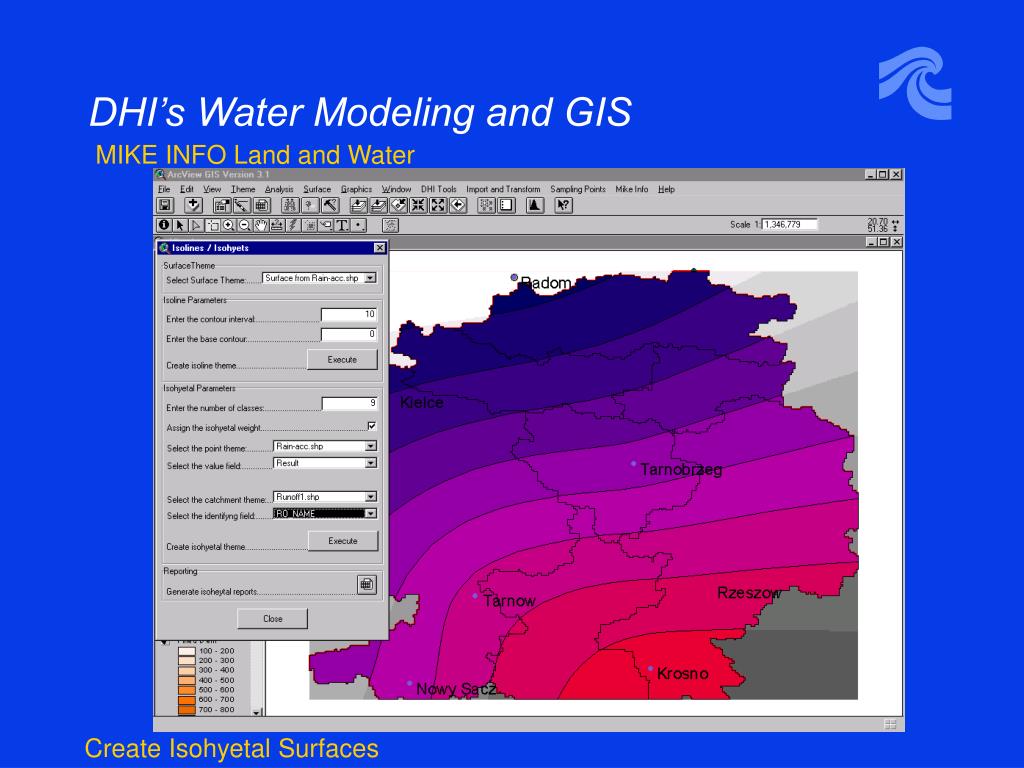

  13. DHI’s Water Modeling and GIS MIKE INFO Land and Water Create Isohyetal Surfaces

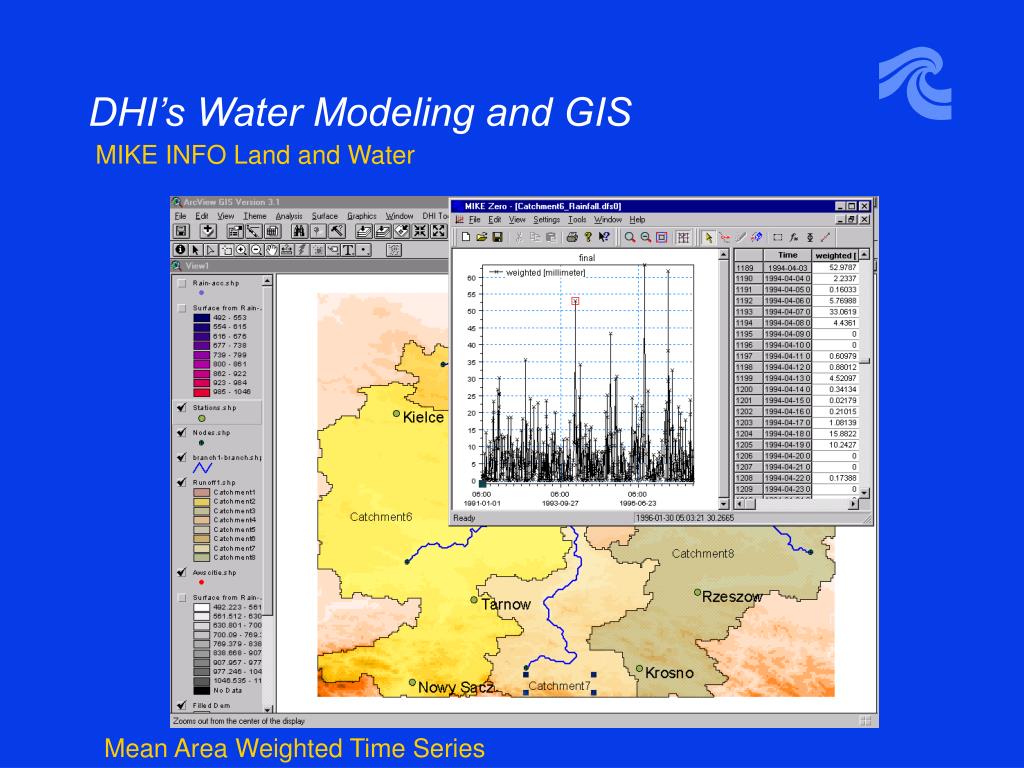

  14. DHI’s Water Modeling and GIS MIKE INFO Land and Water Mean Area Weighted Time Series

  15. DHI’s Water Modeling and GIS MIKE 11 GIS Importing MIKE 11 H and Q Points

  16. DHI’s Water Modeling and GIS MIKE 11 GIS Flood Mapping

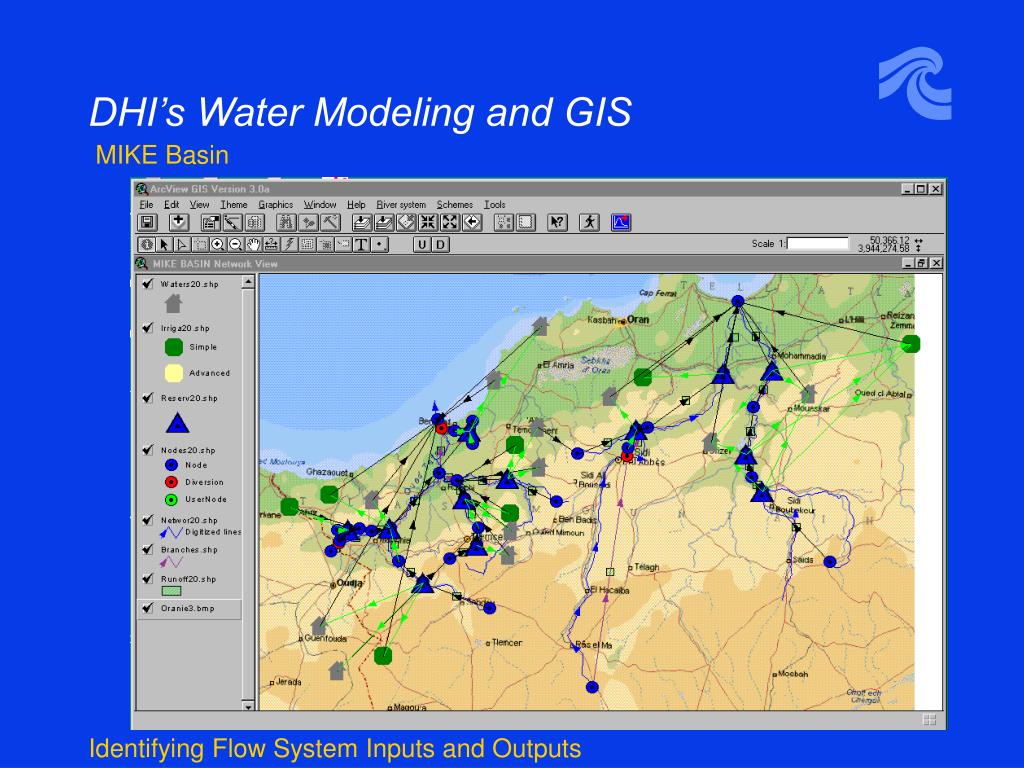

  17. DHI’s Water Modeling and GIS MIKE Basin Identifying Flow System Inputs and Outputs

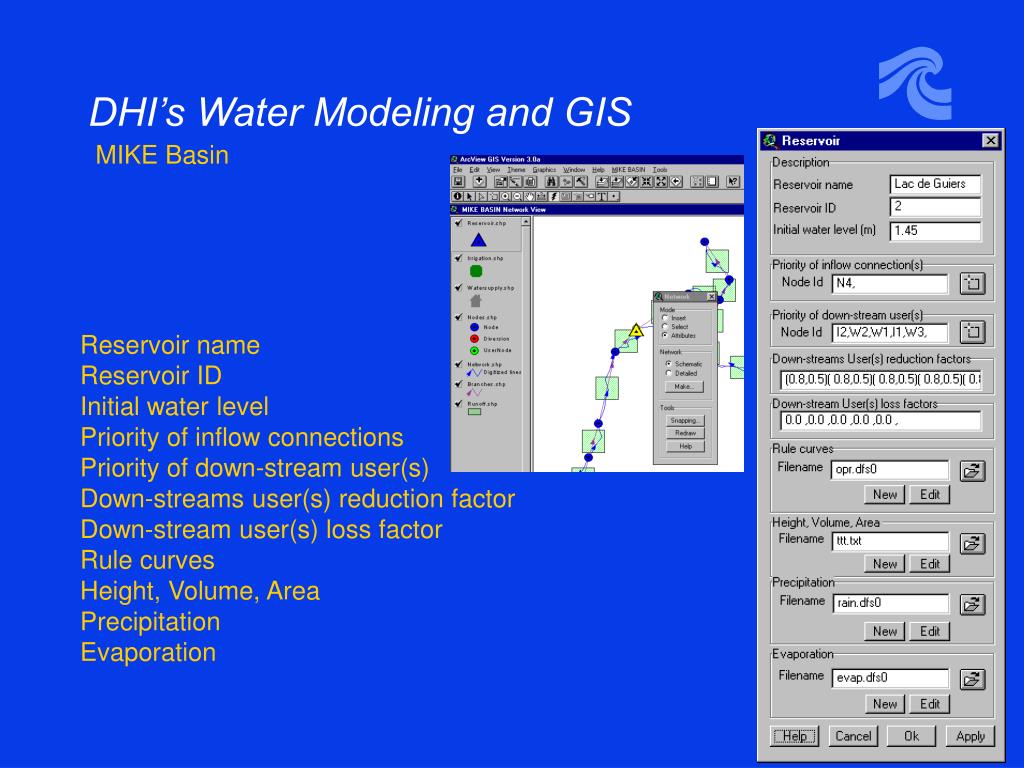

  18. DHI’s Water Modeling and GIS MIKE Basin Reservoir name Reservoir ID Initial water level Priority of inflow connections Priority of down-stream user(s) Down-streams user(s) reduction factor Down-stream user(s) loss factor Rule curves Height, Volume, Area Precipitation Evaporation

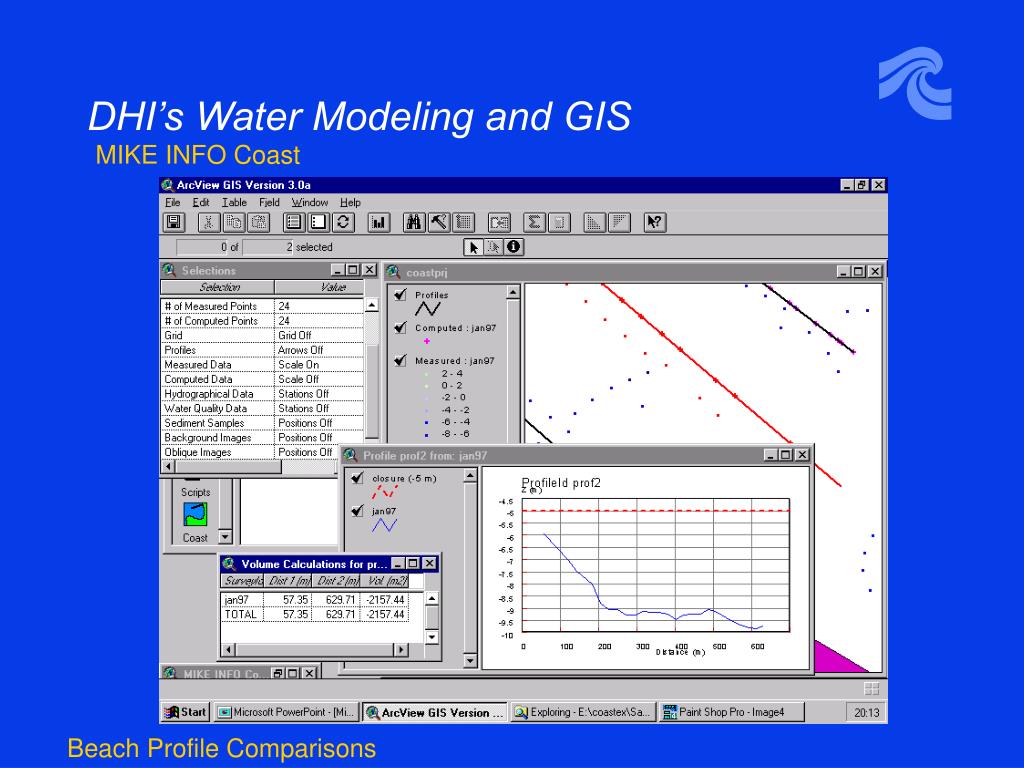

  19. DHI’s Water Modeling and GIS MIKE INFO Coast Beach Profile Comparisons

  20. DHI’s Water Modeling and GIS MIKE INFO Coast Coastal Evolutions

  21. MIKE Zero MIKE 3 MIKE Zero-fication! MIKE 21 MIKE SHE MIKE 11 COM based development

  22. MIKE Zero

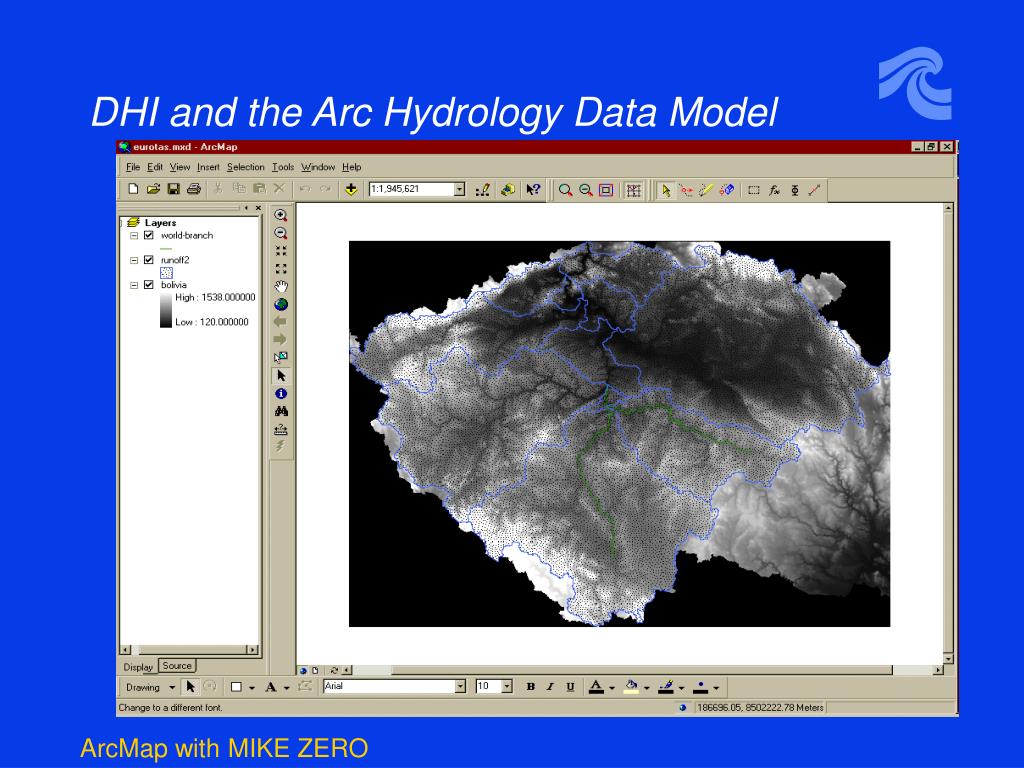

  23. DHI and the Arc Hydrology Data Model ArcMap with MIKE ZERO
