Presentation Transcript


2014 04 4

学术报告

A Low Noise Amplifier For 5.2GHz Application Using 0.18um CMOS

蔡天昊

2014.04.4


Outline

Outline

  • Abstract

  • Introduction

  • Circuit Design

  • Simulation Results

  • Conclusion

  • References


Abstract

Abstract

  • This paper presents a novel LNAfor 5.2GHz applications.


2014 04 4

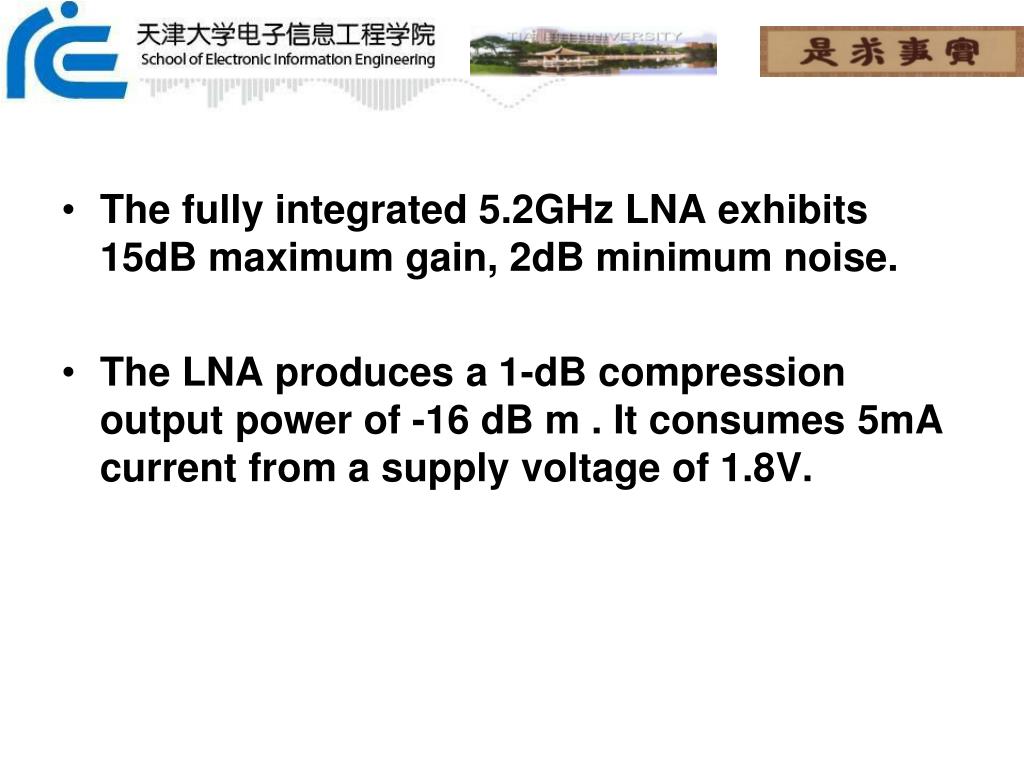

  • The fully integrated 5.2GHz LNA exhibits 15dB maximum gain, 2dB minimum noise.

  • The LNA produces a 1-dB compression output power of -16 dB m . It consumes 5mA current from a supply voltage of 1.8V.


2014 04 4

Introduction

  • Low noise amplifier is used extensively in modern communication systems.

  • The LNA uses source inductor degeneration to trade off between the noise and gain.


2014 04 4

Fig 1. Narrowband LNA topology


2014 04 4

TOTAL NOISE


2014 04 4

Conclusion

  • A novel LNA operating in 5.25GHz using standard 0.18um 1P6M CMOS technology was demonstrated.


2014 04 4

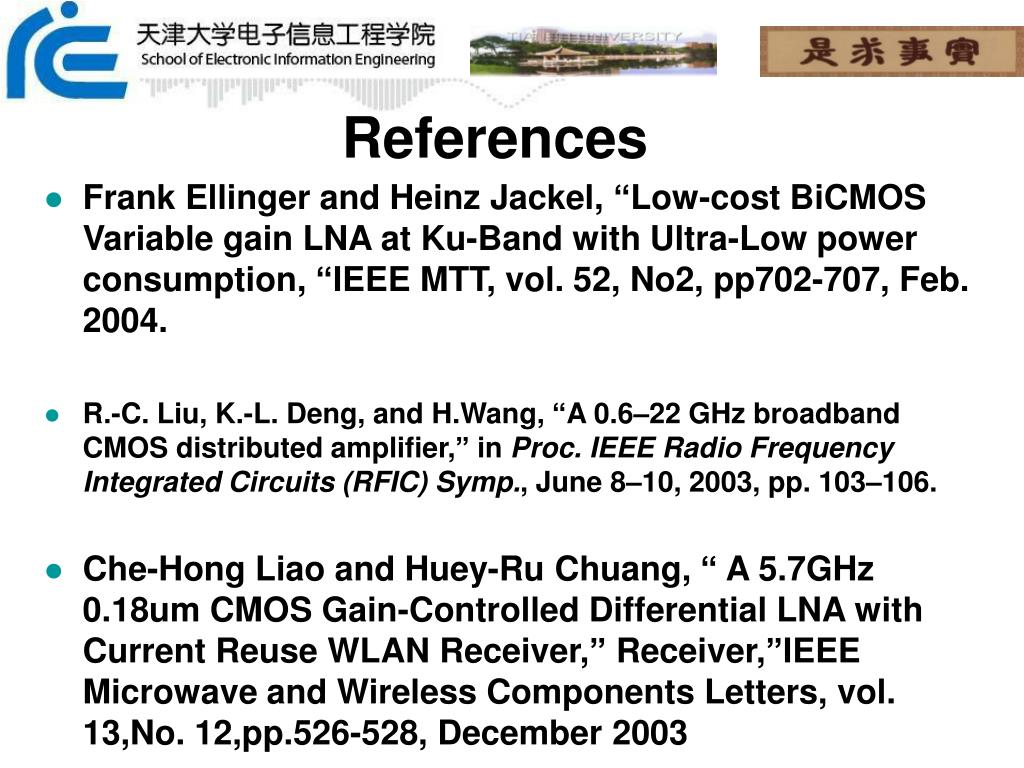

References

  • Frank Ellinger and Heinz Jackel, “Low-cost BiCMOS Variable gain LNA at Ku-Band with Ultra-Low power consumption, “IEEE MTT, vol. 52, No2, pp702-707, Feb. 2004.

  • R.-C. Liu, K.-L. Deng, and H.Wang, “A 0.6–22 GHz broadband CMOS distributed amplifier,” in Proc. IEEE Radio Frequency Integrated Circuits (RFIC) Symp., June 8–10, 2003, pp. 103–106.

  • Che-Hong Liao and Huey-Ru Chuang, “ A 5.7GHz 0.18um CMOS Gain-Controlled Differential LNA with Current Reuse WLAN Receiver,” Receiver,”IEEE Microwave and Wireless Components Letters, vol. 13,No. 12,pp.526-528, December 2003


2014 04 4

The end!
