1. CGS 3763 Operating Systems Concepts Spring 2013 Dan C. Marinescu Office: HEC 304 Office hours: M-Wd 11:30 - 12:30 AM

2. Last time: Answers to the midterm Today: Answers from week 7 questions CPU Scheduling Next time CPU scheduling Reading assignments Chapter 5 and 6 of the textbook Lecture 22 – Friday, February 29, 2013 Lecture 22

3. Student Review Form 7 Summary BO KANG • Feb 18th Monday: • Key Points: Threads: single and multithreading processes. • Questions: • How threads, programs, and processes differ? • The classification between user-level threads and kernel-level threads, and the reasons that make each other unique. • Among the different threading APIs, is there one that is more effective than the other? • What is meant by “race” conditions in relation to thread safeness? How do you detect a race condition, and how are they handled? • Can you explain why barrier synchronization is a challenge for multi-threading? • Are there any advantages to single threading over multithreading? • Since threads share data, do the other threads have to wait to access the information if one thread is using the data? • How does a programmer know which thread model to use when writing code? Lecture 22

4. Threads versus processes • In the traditional view a process has two roles: • consumer of resources, e.g., address space, open files. • code executing on a CPU, in one address space, there is asingle line of execution. • The multi-threaded view of processes and threads  the two roles are distinct: • A process is a consumer of resources, it owns an address space and a set of open files. • A thread is an instance of code executing sequentially on a CPU. • A thread needs an address space in which to execute, so we think of a thread as belonging to a process. • A single process may own many threads, running concurrently within its address space.   • Threads are “lightweight processes” less state information must be kept to maintain a thread than a process. Lecture 22

5. Threads versus processes • Any  applications of threads can be implemented with separate processes. • Advantages of using threads instead of processes: • Threads share data in memoryand can communicate without IPC (Inter-Process Communication) mechanisms, which require expensive system calls. • Thread creation and context switching are much less time-consuming than the same operations for processes. • Disadvantages • Use of shared memory results in a need to synchronize access to shared data. • Libraries may need to be rewritten to make them “thread-safe” Lecture 22

6. User and kernel threads • User threads – run in user mode, are supported by a user-level thread library. • Kernel threads –run in user mode when executing user functions or library calls; switch to kernel mode when executing system calls. • Provide privileged services to applications e.g., system calls. • The entities handled by the system scheduler. Used by the kernel to keep track of all processes in the system and how much resources are allocated to each process. • When multiple user threads are mapped to a single kernel thread then this thread schedules individual user threads. • Akernel-only thread- executes only in kernel mode environment. Lecture 22

7. User and kernel threads (cont’d) • Library code decides which user threads the mapping of user to kernel threads. • The use of system calls or other kernel services by an application: • If uses heavily system calls, the more user threads per kernel thread, the slower the applications will run, because the kernel thread becomes a bottleneck, all system calls pass through it. • If it uses rarely system calls, a large number of user threads can be assigned to a kernel thread without much performance penalty, other than the overhead of the context switch. • Increasing the number of kernel threads, adds overhead to the kernel in general, so while individual threads will be more responsive with respect to system calls, the system as a whole will become slower. • It is important to find a good balance between the number of kernel threads and the number of user threads per kernel thread. Lecture 22

8. Race condition A race condition occurs in concurrent execution of multiple threads/processes when the output is dependent on the timing or other uncontrollable events. Example: two threads T1 and T2 which share a variable x. in T1 there is a statement (SA): x = -2 in T2 there is a statement (SB): x=+17 The result depends the scheduler. If the order of execution is: SA then SB then the final result is x=+17 SB then SA then the final result is x=-2 Lecture 22

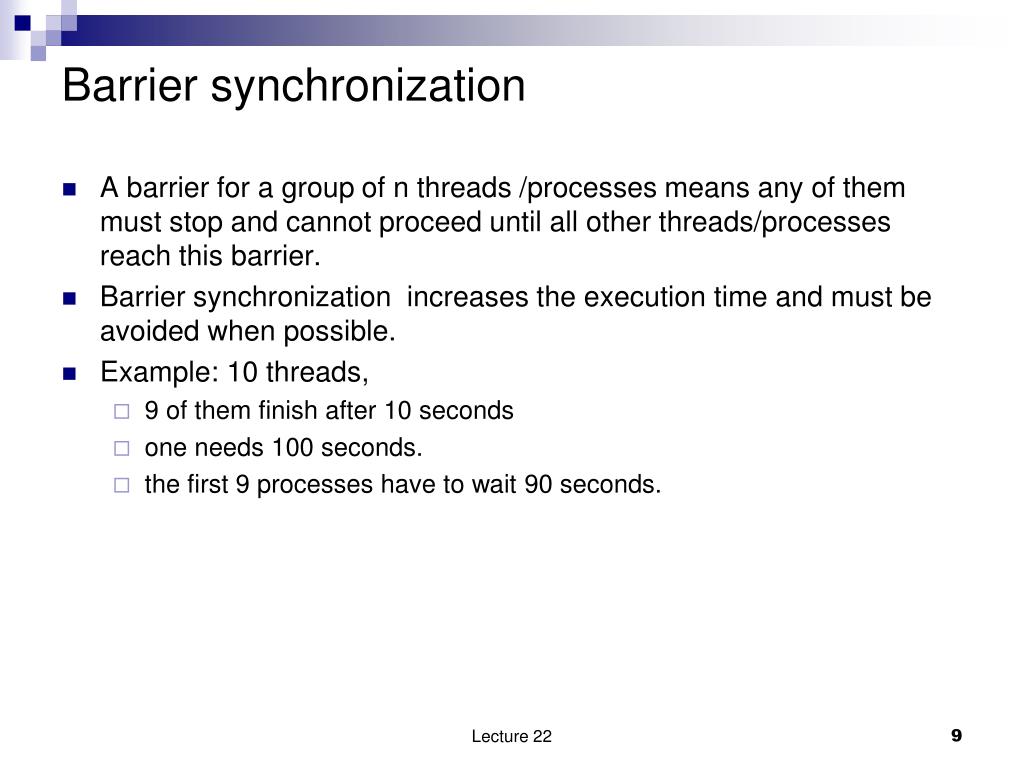

9. Barrier synchronization • A barrier for a group of n threads /processes means any of them must stop and cannot proceed until all other threads/processes reach this barrier. • Barrier synchronization increases the execution time and must be avoided when possible. • Example: 10 threads, • 9 of them finish after 10 seconds • one needs 100 seconds. • the first 9 processes have to wait 90 seconds. Lecture 22

10. Feb 20th Wednesday: • Key Points: Pthreads, Java threads, CPU Scheduling, CPU burst, I/O burst • Questions: • Why would you want to use a thread instead of a pthread? If pthreads take less time, why not just use pthreads instead of threads all the time? • Are Pthreads just universally accepted threads used across different OS’s? • Pthreads is a library that allows multiple threads to use the same code. Can multiple threads access the same code simultaneously? • Is Pthreads a set of instructions that can be used in any programming language or what is specifically? • What decides what type of scheduling is used, preemptive vs. non-preemptive)? What are the advantages and disadvantages of preemptive vs. non-preemptive modes? • CPU scheduling, and the two subtypes of scheduling that it also uses, non-preemptive and preemptive. I don’t know what each of the subcategories specifically Lecture 22

11. Feb 22th Friday: • Key Points: CPU scheduling metrics, Scheduling Objectives, Scheduling Policies – first-come, first-served (FCFS) • Questions: • What are batch and interactive systems used for? Please further clarify the difference between interactive and batch processing policies. • When to use these different forms of scheduling? • Are rules for scheduling polices such as one being faster than another or when to use one over anther? • Can a higher priority thread prevent a lower priority from executing? • Which example of process scheduling is most efficient? FCFS, SJF, RR or priority? • Where and when does Marshaling take place? Is it required for all processes? Lecture 22

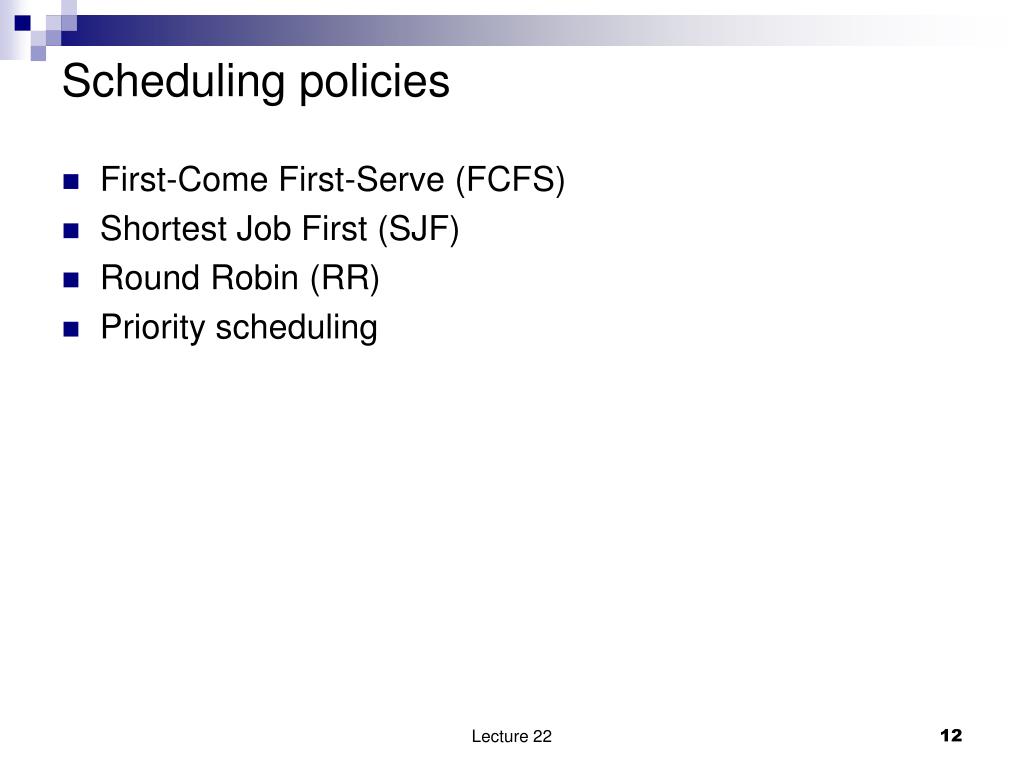

12. Scheduling policies First-Come First-Serve (FCFS) Shortest Job First (SJF) Round Robin (RR) Priority scheduling Lecture 22

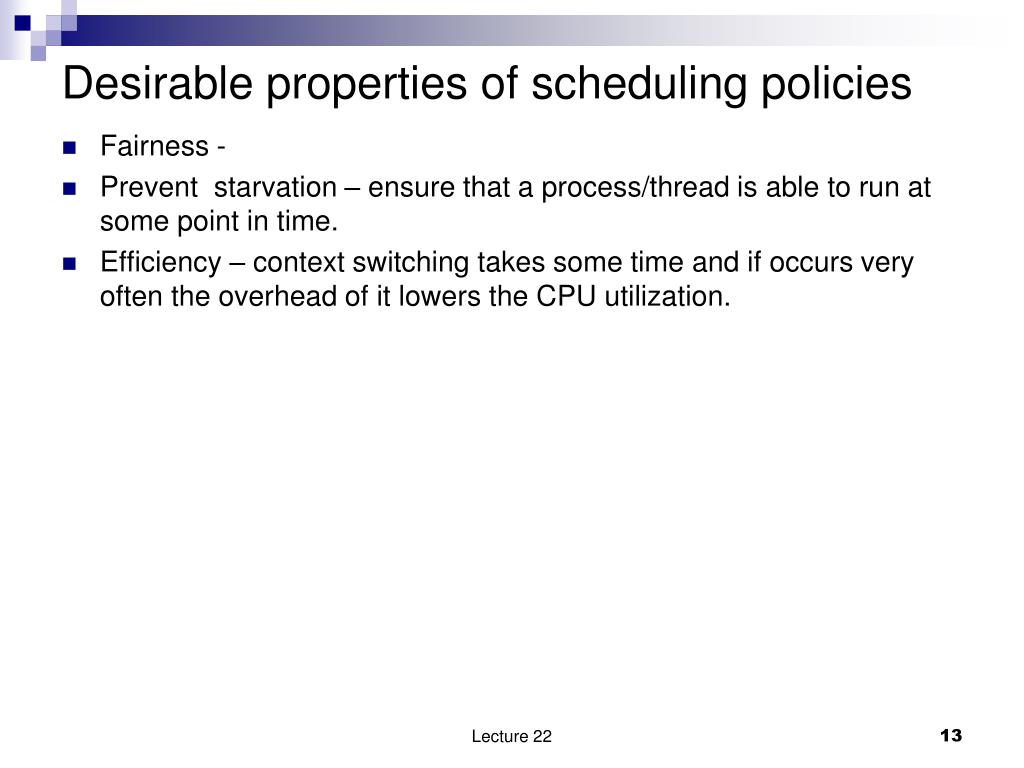

13. Desirable properties of scheduling policies Fairness - Prevent starvation – ensure that a process/thread is able to run at some point in time. Efficiency – context switching takes some time and if occurs very often the overhead of it lowers the CPU utilization. Lecture 22

14. First-Come First-Served (FCFS) P1 P2 P3 0 24 27 30 ThreadBurst Time P1 24 P2 3 P3 3 Processes arrive in the order: P1P2P3 Gantt Chart for the schedule: Waiting time for P1 = 0; P2 = 24; P3 = 27 Average waiting time: (0 + 24 + 27)/3 = 17 Convoy effectshort process behind long process Lecture 22

15. The effect of the release time on FCFS scheduling P2 P3 P1 0 3 6 30 Release time  time when a job is available. Now threads arrive in the order: P2P3P1 Gantt chart: Waiting time for P1 = 6;P2 = 0; P3 = 3 Average waiting time: (6 + 0 + 3)/3 = 3 Much better!! Lecture 22

16. Shortest-Job-First (SJF) • Use the length of the next burst to schedule the thread/process with the shortest time. • SJF is optimal minimum average waiting time for a given set of threads/processes • Two schemes: • Non-preemptive  the thread/process cannot be preempted until completes its burst • Preemptive  if a new thread/process arrives with burst length less than remaining time of current executing process, preempt. known as Shortest-Remaining-Time-First (SRTF) Lecture 22

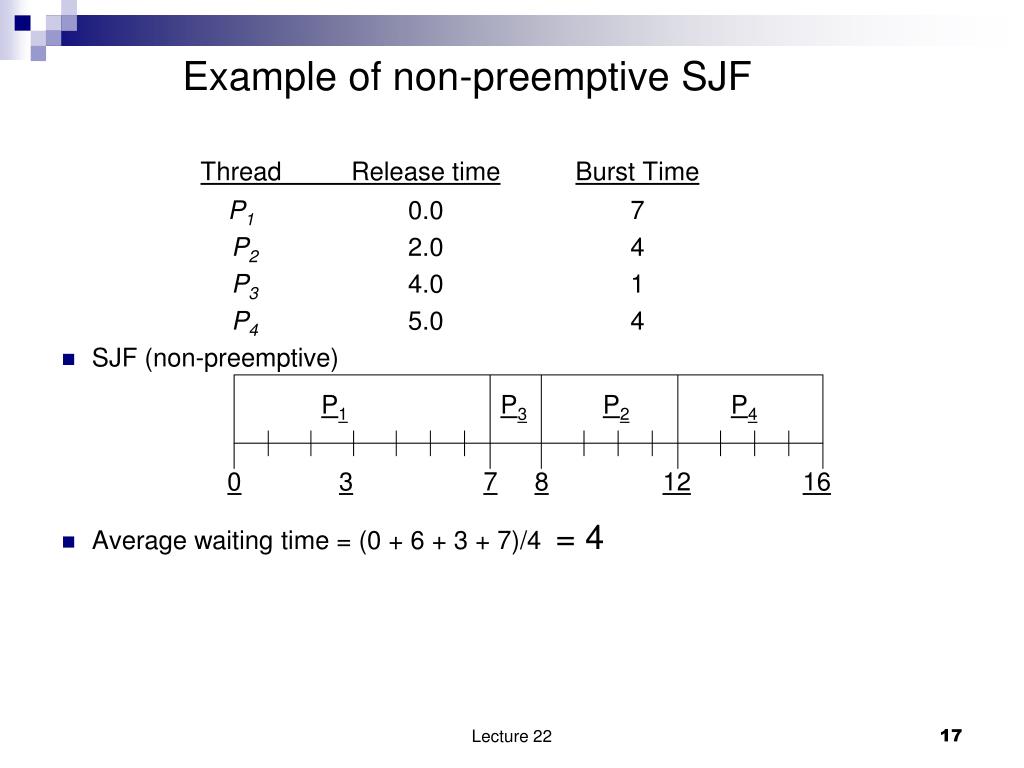

17. Example of non-preemptive SJF P1 P3 P2 P4 0 3 7 8 12 16 Thread Release timeBurst Time P1 0.0 7 P2 2.0 4 P3 4.0 1 P4 5.0 4 SJF (non-preemptive) Average waiting time = (0 + 6 + 3 + 7)/4 = 4 Lecture 22

18. Example of Shortest-Remaining-Time-First (SRTF) (Preemptive SJF) P1 P2 P3 P2 P4 P1 11 16 0 2 4 5 7 Thread Release timeBurst time P1 0.0 7 P2 2.0 4 P3 4.0 1 P4 5.0 4 Shortest-Remaining-Time-First Average waiting time = (9 + 1 + 0 +2)/4 = 3 Lecture 22

19. Determining length of next CPU Burst • Needed by the SJF algorithm. • Can be predictedby using: • The past history, the length of previous CPU bursts. • Exponential averaging based on the past lengths of the CPU bursts Lecture 22

20. Prediction of the Length of the Next CPU Burst Lecture 22

21. Exponential Averaging •  =0 • n+1 = n • Recent history does not count •  =1 • n+1 =  tn • Only the actual last CPU burst counts • If we expand the formula, we get: n+1 =  tn+(1 - ) tn-1+ … +(1 -  )j tn-j+ … +(1 -  )n +1 0 • Since both  and (1 - ) are less than or equal to 1, each successive term has less weight than its predecessor Lecture 22

22. Round Robin (RR) • Each process gets a small unit of CPU time (time quantum), usually 10-100 milliseconds. After this time has elapsed, the thread/process is preempted and added to the end of the ready queue. • If there are n threads/processes in the ready queue and the time quantum is q, then each thread/process gets 1/n of the processor time in chunks of at most q time units at once. No thread/process waits more than (n-1)q time units. • Performance • q large  FIFO • q small  q must be large with respect to context switch, otherwise overhead is too high Lecture 22

23. RR with time slice q = 20 P1 P2 P3 P4 P1 P3 P4 P1 P3 P3 0 20 37 57 77 97 117 121 134 154 162 ThreadBurst Time P1 53 P2 17 P3 68 P4 24 Typically, higher average turnaround than SJF, but better response Lecture 22

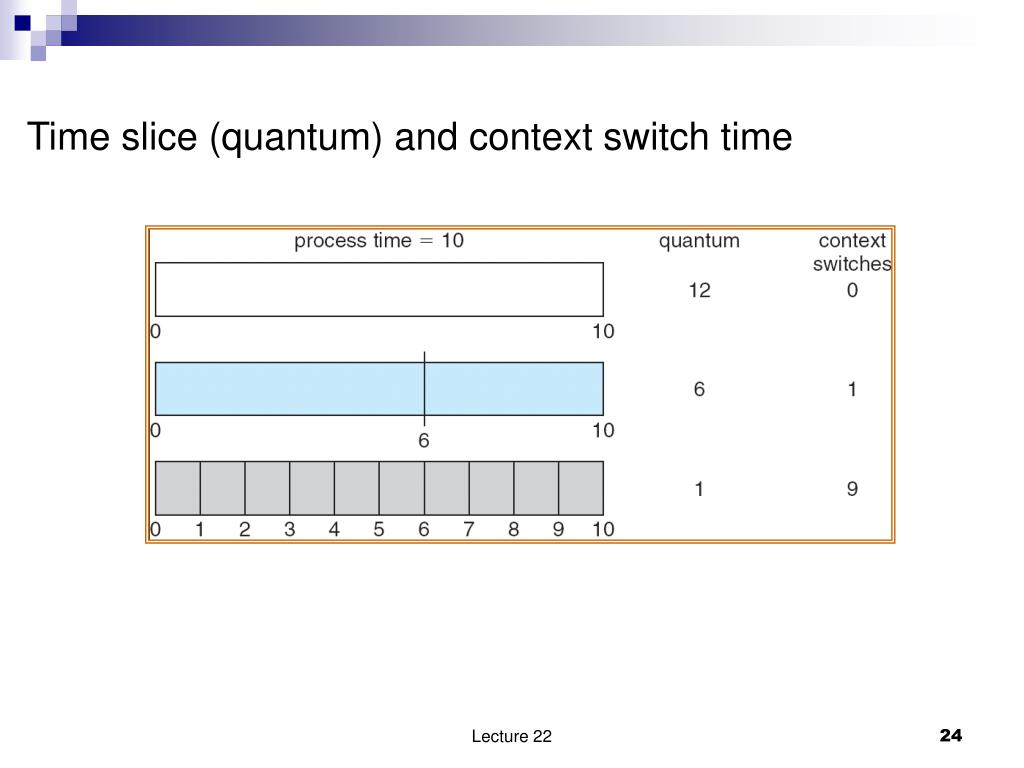

24. Time slice (quantum) and context switch time Lecture 22

25. Comparison of FCFS, SJF, and RR • We have three processes A, B, and C. • Each process is characterized by • Release time (R) – the time the process arrives in the system • Start time (S) – the time the scheduler allows it to run • Wait time (W) – the time till it has to wait until it is started: W = S - R • Work (Wrk) – the amount of time it needs to use the CPU • Finish time (F) – the time the process finishes: F=S+Wrk • Time in system (T) – the time from when the process arrives until it finishes: T = F- R. • We compare • The average time in system • The average waiting time for three scheduling policies: FCFS, SJF, and RR. Lecture 22

26. Lecture 22

27. Lecture 22

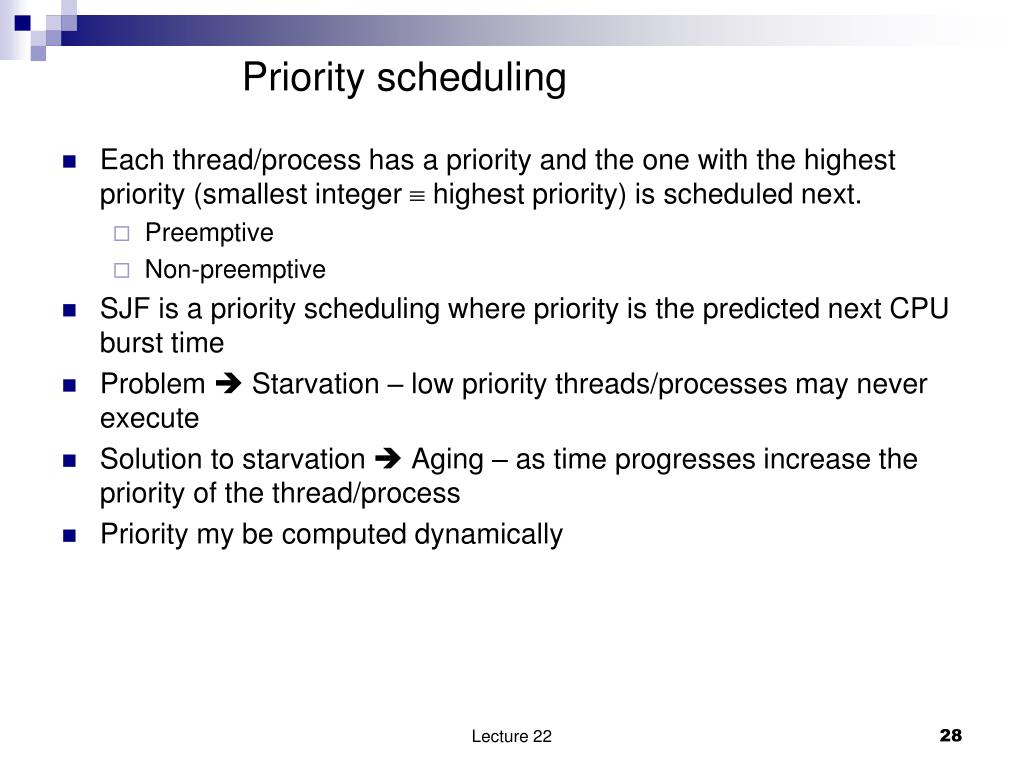

28. Priority scheduling • Each thread/process has a priority and the one with the highest priority (smallest integer  highest priority) is scheduled next. • Preemptive • Non-preemptive • SJF is a priority scheduling where priority is the predicted next CPU burst time • Problem  Starvation – low priority threads/processes may never execute • Solution to starvation  Aging – as time progresses increase the priority of the thread/process • Priority my be computed dynamically Lecture 22

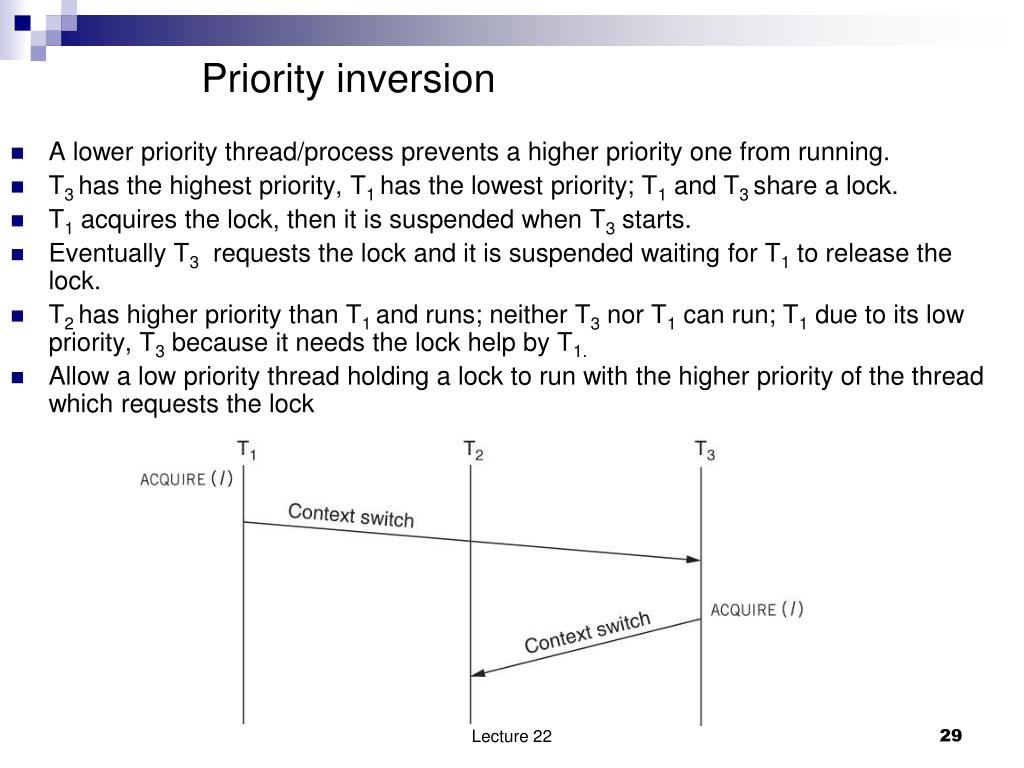

29. Priority inversion • A lower priority thread/process prevents a higher priority one from running. • T3 has the highest priority, T1 has the lowest priority; T1 and T3 share a lock. • T1 acquires the lock, then it is suspended when T3 starts. • Eventually T3 requests the lock and it is suspended waiting for T1 to release the lock. • T2 has higher priority than T1 and runs; neither T3 nor T1 can run; T1 due to its low priority, T3 because it needs the lock help by T1. • Allow a low priority thread holding a lock to run with the higher priority of the thread which requests the lock Lecture 22

30. Multilevel queues • Ready queue is partitioned into separate queues:1. foreground (interactive) 2. background (batch) • Each queue has its own scheduling algorithm • foreground – RR • background – FCFS • The CPU must be shared among the queues • Fixed priority scheduling; (i.e., serve all from foreground then from background). Possibility of starvation. • Time slice – each queue gets a certain amount of CPU time which it can schedule amongst its processes; i.e., • 80% to foreground; RR scheduling algorithm • 20% to background; FCFS scheduling algorithm Lecture 22

31. Lecture 22

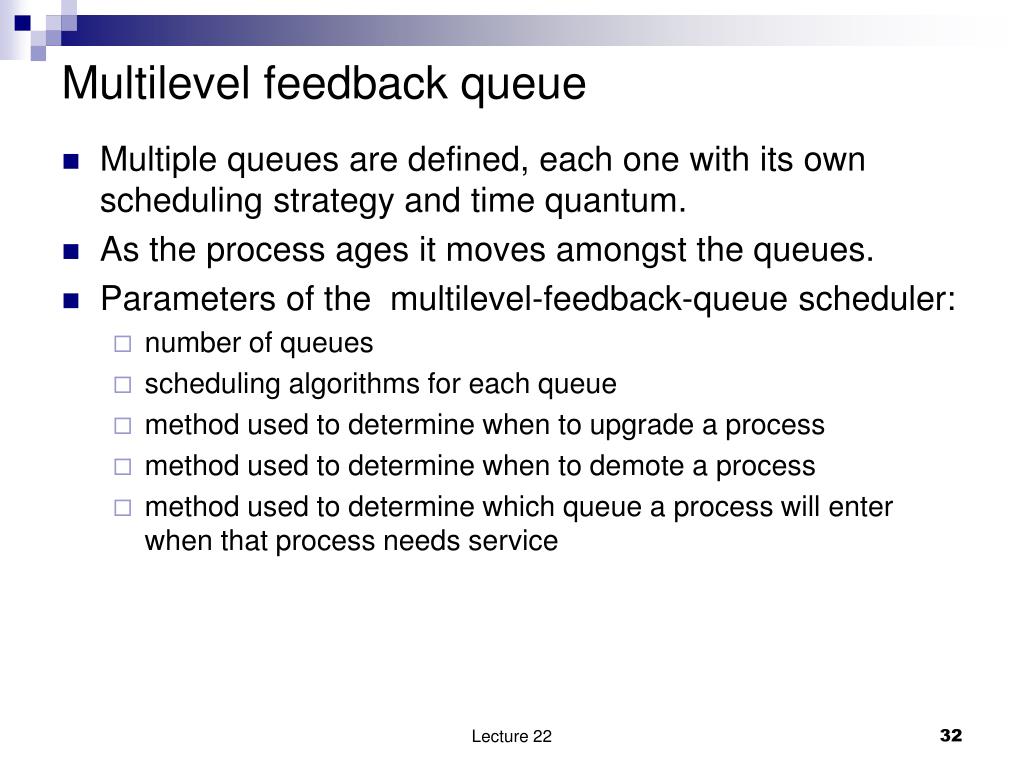

32. Multilevel feedback queue • Multiple queues are defined, each one with its own scheduling strategy and time quantum. • As the process ages it moves amongst the queues. • Parameters of the multilevel-feedback-queue scheduler: • number of queues • scheduling algorithms for each queue • method used to determine when to upgrade a process • method used to determine when to demote a process • method used to determine which queue a process will enter when that process needs service Lecture 22

33. Three queues: • Q0 – RR with time quantum 8 milliseconds • Q1 – RR time quantum 16 milliseconds • Q2 – FCFS • Scheduling • A new job enters queue Q0which is servedFCFS. When it gains CPU, job receives 8 milliseconds. If it does not finish in 8 milliseconds, job is moved to queue Q1. • At Q1 job is again served FCFS and receives 16 additional milliseconds. If it still does not complete, it is preempted and moved to queue Q2. Lecture 22

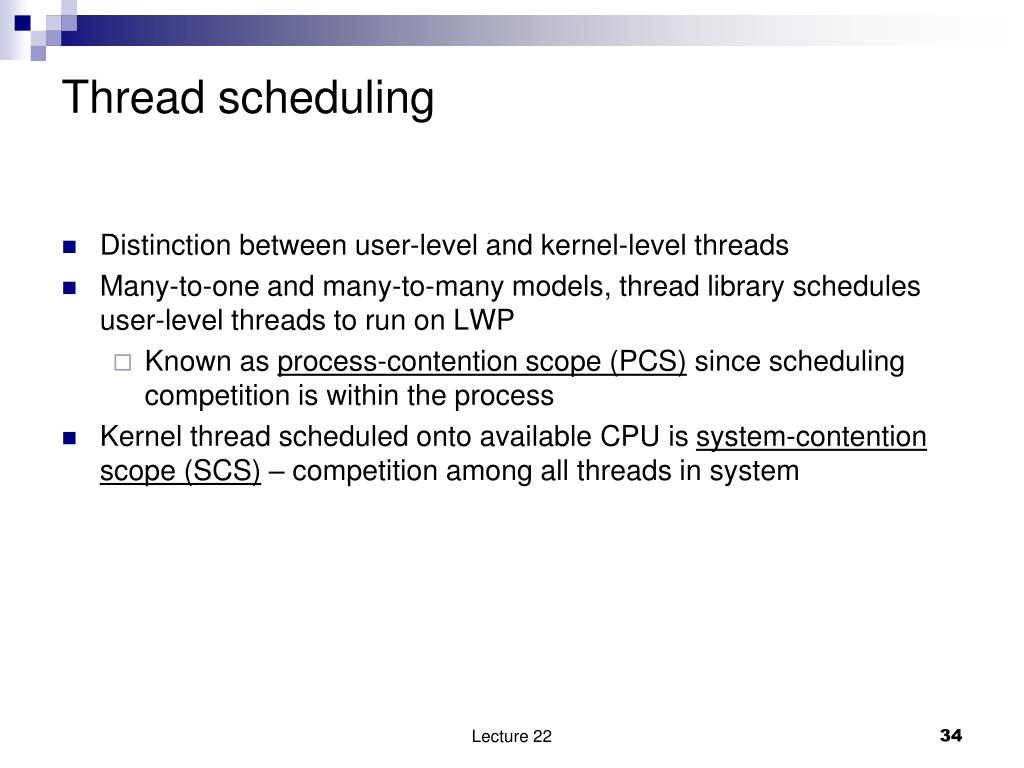

34. Thread scheduling • Distinction between user-level and kernel-level threads • Many-to-one and many-to-many models, thread library schedules user-level threads to run on LWP • Known as process-contention scope (PCS)since scheduling competition is within the process • Kernel thread scheduled onto available CPU is system-contention scope (SCS)– competition among all threads in system Lecture 22

35. Multiple-Processor Scheduling • CPU scheduling more complex when multiple CPUs are available • Homogeneous processors within a multiprocessor • Asymmetric multiprocessing – only one processor accesses the system data structures, alleviating the need for data sharing • Symmetric multiprocessing (SMP) – each processor is self-scheduling, all processes in common ready queue, or each has its own private queue of ready processes. • NUMA – Non-Uniform Memory Access. • Processor affinity – process has affinity for processor on which it is currently running • soft affinity • hard affinity Lecture 22

36. NUMA and CPU Scheduling Lecture 22

37. Multicore Processors • Faster and consume less power • Multiple threads per core;takes advantage of memory stall to make progress on another thread while memory retrieve happens Lecture 22

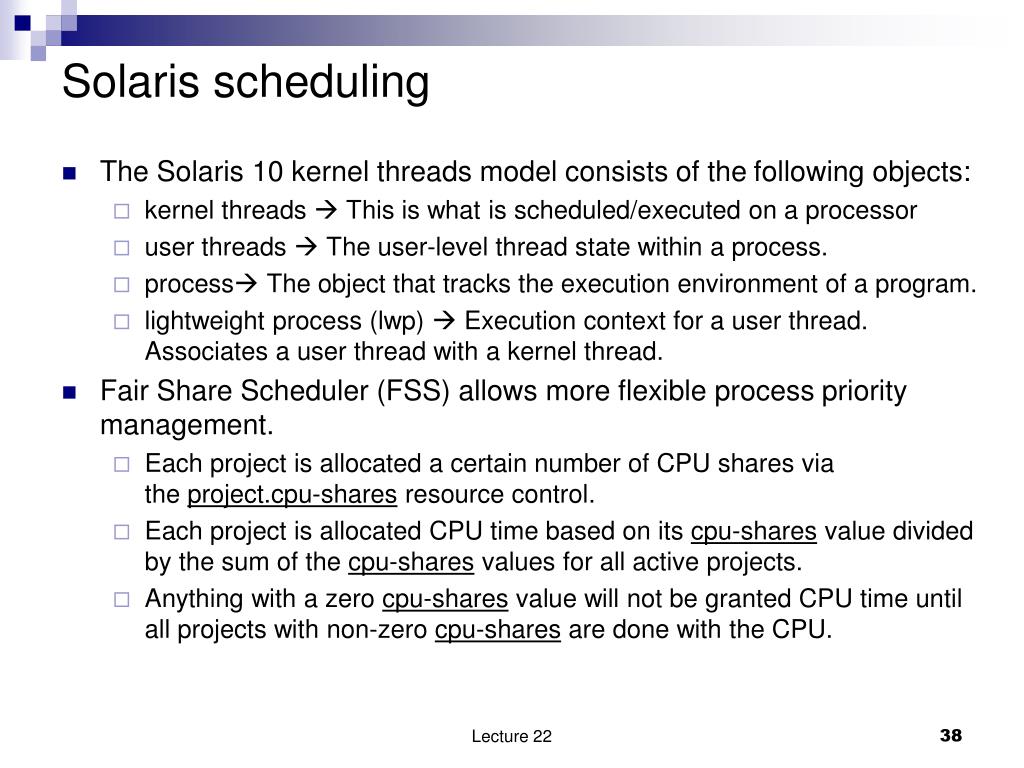

38. Solaris scheduling • The Solaris 10 kernel threads model consists of the following objects: • kernel threads This is what is scheduled/executed on a processor • user threads The user-level thread state within a process. • processThe object that tracks the execution environment of a program. • lightweight process (lwp) Execution context for a user thread. Associates a user thread with a kernel thread. • Fair Share Scheduler (FSS) allows more flexible process priority management. • Each project is allocated a certain number of CPU shares via the project.cpu-shares resource control. • Each project is allocated CPU time based on its cpu-shares value divided by the sum of the cpu-shares values for all active projects. • Anything with a zero cpu-shares value will not be granted CPU time until all projects with non-zero cpu-shares are done with the CPU. Lecture 22

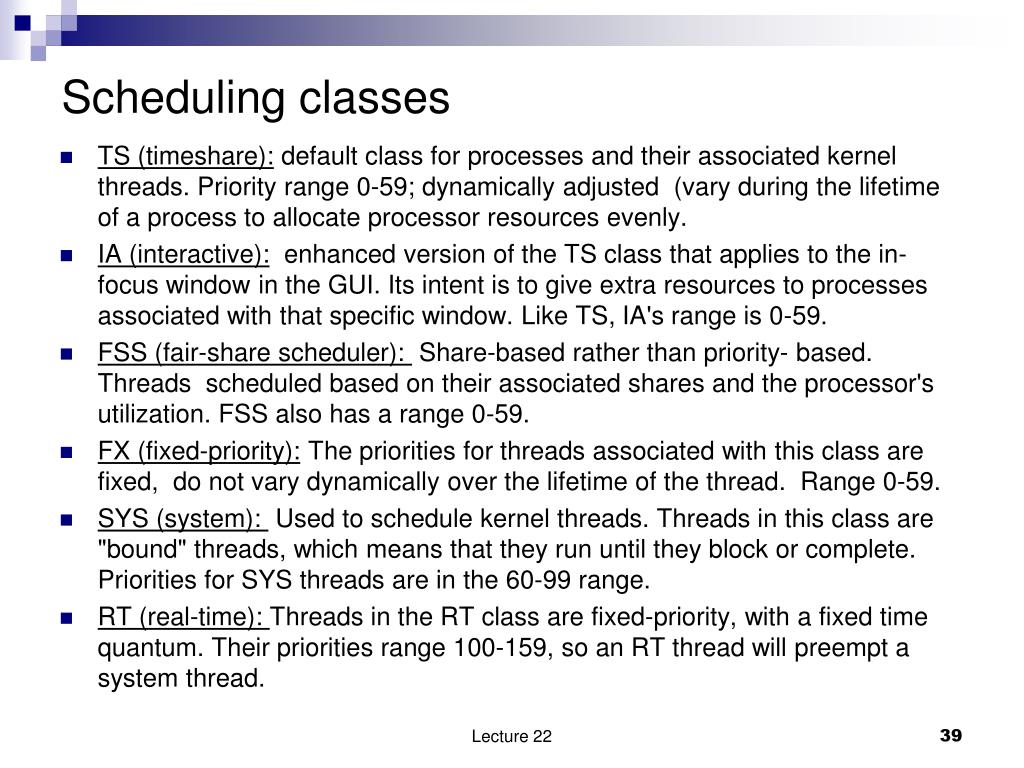

39. Scheduling classes TS (timeshare):default class for processes and their associated kernel threads. Priority range 0-59; dynamically adjusted (vary during the lifetime of a process to allocate processor resources evenly. IA (interactive):enhanced version of the TS class that applies to the in-focus window in the GUI. Its intent is to give extra resources to processes associated with that specific window. Like TS, IA's range is 0-59. FSS (fair-share scheduler): Share-based rather than priority- based. Threads scheduled based on their associated shares and the processor's utilization. FSS also has a range 0-59. FX (fixed-priority): The priorities for threads associated with this class are fixed, do not vary dynamically over the lifetime of the thread. Range 0-59. SYS (system): Used to schedule kernel threads. Threads in this class are "bound" threads, which means that they run until they block or complete. Priorities for SYS threads are in the 60-99 range. RT (real-time): Threads in the RT class are fixed-priority, with a fixed time quantum. Their priorities range 100-159, so an RT thread will preempt a system thread. Lecture 22

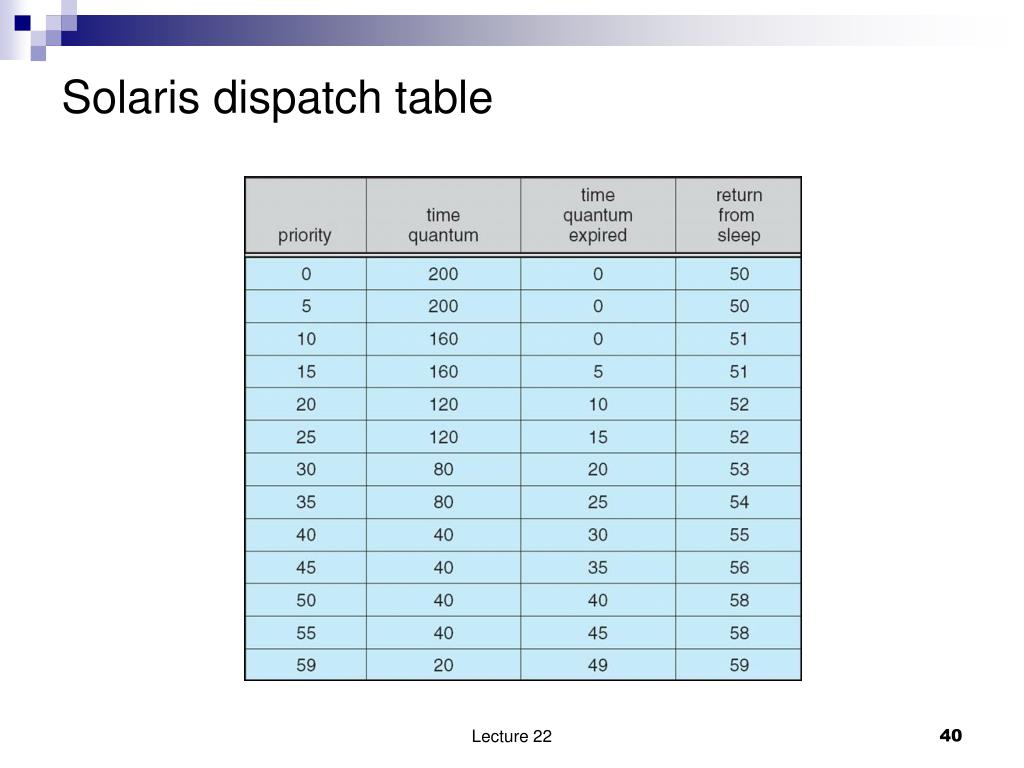

40. Solaris dispatch table Lecture 22

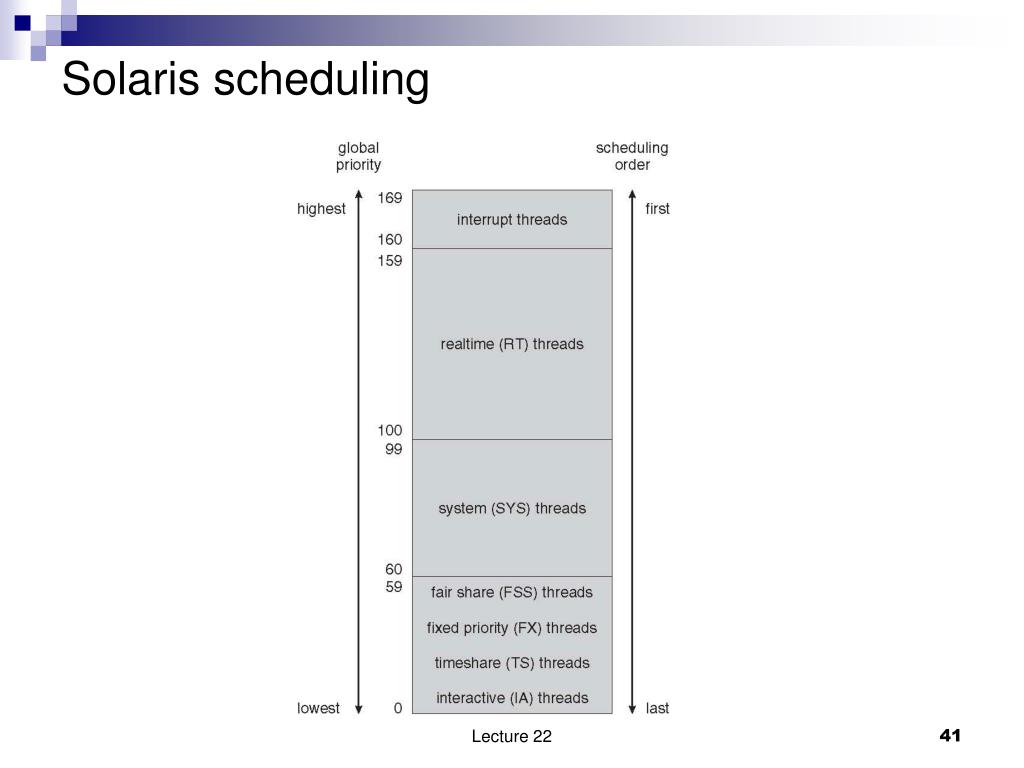

41. Solaris scheduling Lecture 22

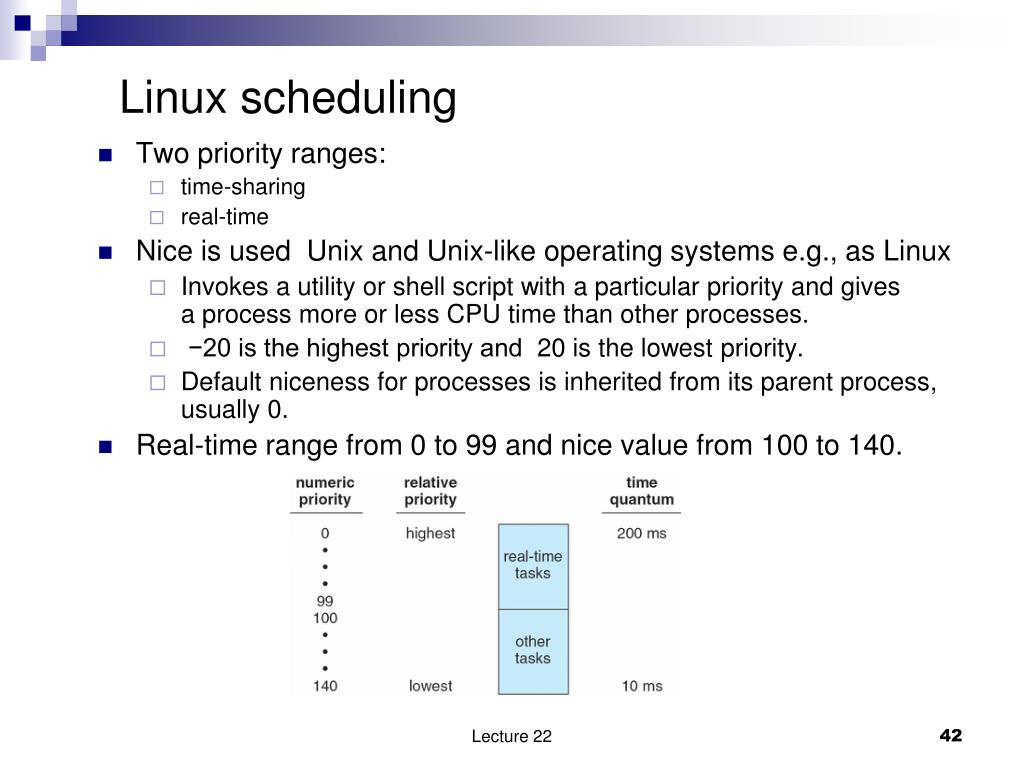

42. Linux scheduling • Two priority ranges: • time-sharing • real-time • Nice is used Unix and Unix-like operating systems e.g., asLinux • Invokes a utilityor shell script with a particular priorityand gives a process more or less CPU time than other processes. • −20 is the highest priority and 20 is the lowest priority. • Default niceness for processes is inherited from its parent process, usually 0. • Real-time range from 0 to 99 and nice value from 100 to 140. Lecture 22

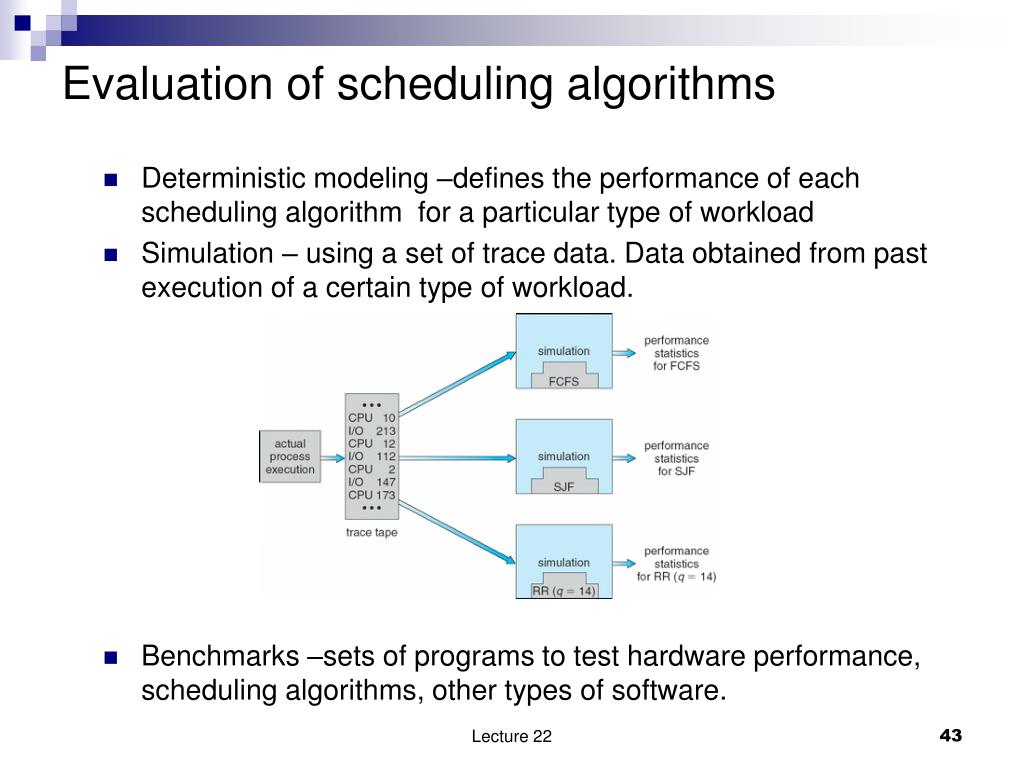

43. Evaluation of scheduling algorithms • Deterministic modeling –defines the performance of each scheduling algorithm for a particular type of workload • Simulation– using a set of trace data. Data obtained from past execution of a certain type of workload. • Benchmarks –sets of programs to test hardware performance, scheduling algorithms, other types of software. Lecture 22
