Texture Mapping from Watt, Ch. 8

Jonathan Han


Topics discussed l.jpg

Topics Discussed

  • Texture Map to Models

  • Bump Maps, Light Maps

  • Environment (Reflection) Mapping

  • 3D Textures

  • Interactive Texture Mapping


What is mapping l.jpg

What is Mapping?

Assigning colors to the

pixels on a 3D model to

simulate. . .

  • Color

  • Specular ‘color’

  • Surface perturbation

  • Transparency


2d texture maps to polygon mesh objects l.jpg

2D Texture Maps to Polygon Mesh Objects

  • Association of 2 coordinate systems between the mesh and the map

  • Inverse Mapping vs. Forward Mapping

  • Bilinear Interpolation

  • Problem is parametrization of object surface


Mapping by intermediate surface l.jpg

Mapping by Intermediate Surface

  • Map -> (S map) Simple 3D shape -> (O map) Projection onto complex mesh

  • Plane, cylinder, cube, spheres all possible intermediate shapes


O mapping l.jpg

O Mapping


O mapping result l.jpg

O Mapping Result


Bi cubic parametric patch l.jpg

Bi-Cubic Parametric Patch

  • If an object is already a quadric or a cubic, then the surface possess a coordinate system that covers every point already.

  • Simply multiply u and v by the resolution in pixels to obtain location on texture map


Parametric example l.jpg

Parametric Example


Parametric patch cont d l.jpg

Parametric Patch (cont’d)

  • Divide mesh up to individual parametric surfaces, and place the texture over each


Parametric patch cont d11 l.jpg

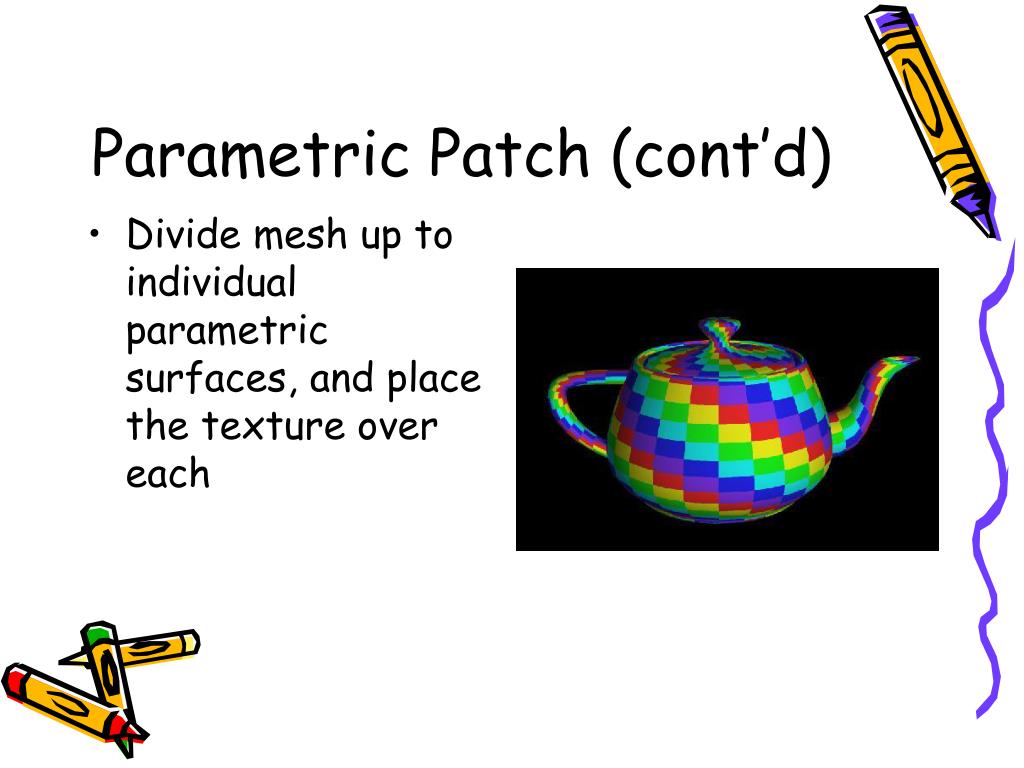

Parametric Patch (cont’d)

  • Assign (u, v) coordinates to points on mesh surface, and interpolate between these points


Billboards l.jpg

Billboards

  • Technique to create pseudo-realistic 3D objects when viewed in constricted directions


Bump mapping l.jpg

Bump mapping

  • Simulation for surface perturbation without adding polygons to the mesh

  • The lighting changes per-pixel to achieve said simulation


What is a bump map l.jpg

What is a Bump Map?

  • Array of values that represent object’s height variation on small scale

  • Combined with surface normal to evaluate lighting equation


Light maps l.jpg

Light Maps

  • Like Bump Maps, Light Maps store information on a surface that’s not just color

  • Simulate localized lighting

  • Same map applied to multiple mesh to create the same lighting pattern


Light maps example l.jpg

Light Maps Example

No light maps

With light maps


Environmental mapping l.jpg

Environmental Mapping

  • To substitute expensive ray-tracing for modelling shiny objects, 2D environment map are textured onto the object.


Creating an environmental map l.jpg

Creating an Environmental Map

  • Sphere map:

  • Render scene from opposite angle of output camera, and apply as texture map

  • Problem: Inaccurate when the object is round


Creating an environmental map19 l.jpg

Creating an Environmental Map

  • Ball Map:

  • Create a mirrored sphere and place at approximate location of object – render the sphere.

  • Problem: Non-uniform sampling at non-original viewpoint


Creating an environmental map20 l.jpg

Creating an Environmental Map

  • Cube Map:

  • Place a camera at location of object and remove object – take snapshots at 6 directions.


Extended environmental mapping l.jpg

Extended Environmental Mapping

  • Surface Properties:

  • 2 maps – diffuse and specular, combined like in Phong shading

  • Diffuse: Indexed by surface normal

  • Specular: Indexed by reflected view vector


3 d texture domains l.jpg

3-D Texture Domains

  • Instead of a 2D texture pattern, why not make the texture 3D?

  • Circumvent problems in texture compression and texture continuity

  • Problem: Only have texture that are defined in 3D


Easy example l.jpg

Easy Example

  • If Z-axis integer is even, make it red. If not, make it white.


Easy example no 2 l.jpg

Easy Example No. 2

  • Sine and ramp functions


3d noise l.jpg

3D Noise

  • Used to distort existing texture to form irregular and interesting patterns


Perlin s noise lattice l.jpg

Perlin’s Noise Lattice

  • The Perlin’s Method of Noise Generation:

  • Lattice of points (i,j,k), where i, j, and k are integers – each assigned a random number. Values between i, j, and k linearly (or otherwise) interpolated


Adjusting noise l.jpg

Adjusting Noise

  • Instead of noise(x,y,z), we can use noise(f*x,f*y,f*z) * a to fine-tune result

  • f – frequency

  • a - amplitude


Creating recognizable textures l.jpg

Creating Recognizable Textures

  • Turbulate stripes to emulate marble texture

  • (marble(x) = marble_colour (sin(x + turbulence(x))


3d textures for animation l.jpg

3D Textures for Animation

  • Emulate flame by adding time dimension to 3D Texture Map

  • Successive “slices” of noise rendered for flickering flame


Interactive texturing l.jpg

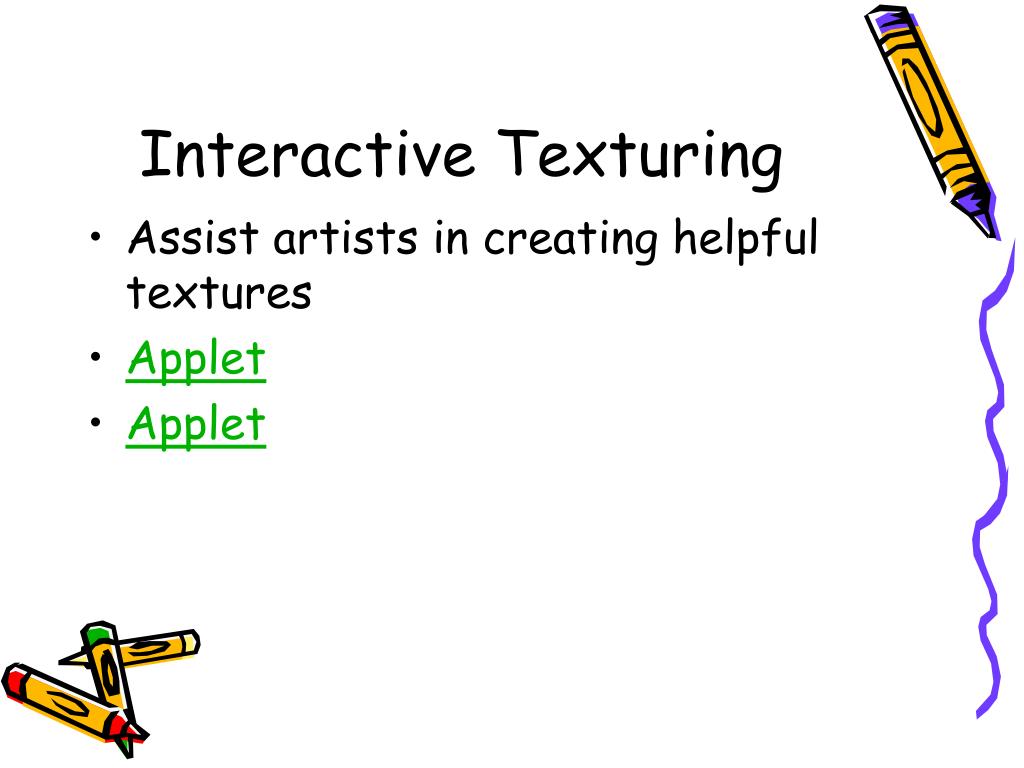

Interactive Texturing

  • Assist artists in creating helpful textures

  • Applet

  • Applet


Interactivity in texturing symmetrical models l.jpg

Interactivity in Texturing Symmetrical Models

  • Model placed in bounding box

  • Artist paints profile texture as 2D image

  • Image plane-textured onto the model

  • Artist adjusts image and re-render for results


Painting textures l.jpg

“Painting” Textures

  • Artist “paints” textures onto models directly

  • Imbues shading, glossiness, as well as pattern to model spontaneously as artist selects it


Implementing texture paint l.jpg

Implementing Texture “Paint”

  • Auxiliary frame buffer – item buffer – created

  • Screen cursor’s location on model gives pointer to position on object surface

  • Requires parametrized surface – divide object’s surface into numerous micropolygons


Discussion l.jpg

Discussion

  • Additional possibilities for “clever” ways around expensive modelling?

  • Applications for 3D textures and noise? In combination with environmental mapping? In combination with light maps and bump maps?
