Presentation Transcript


Mhc restriction and ir genes l.jpg

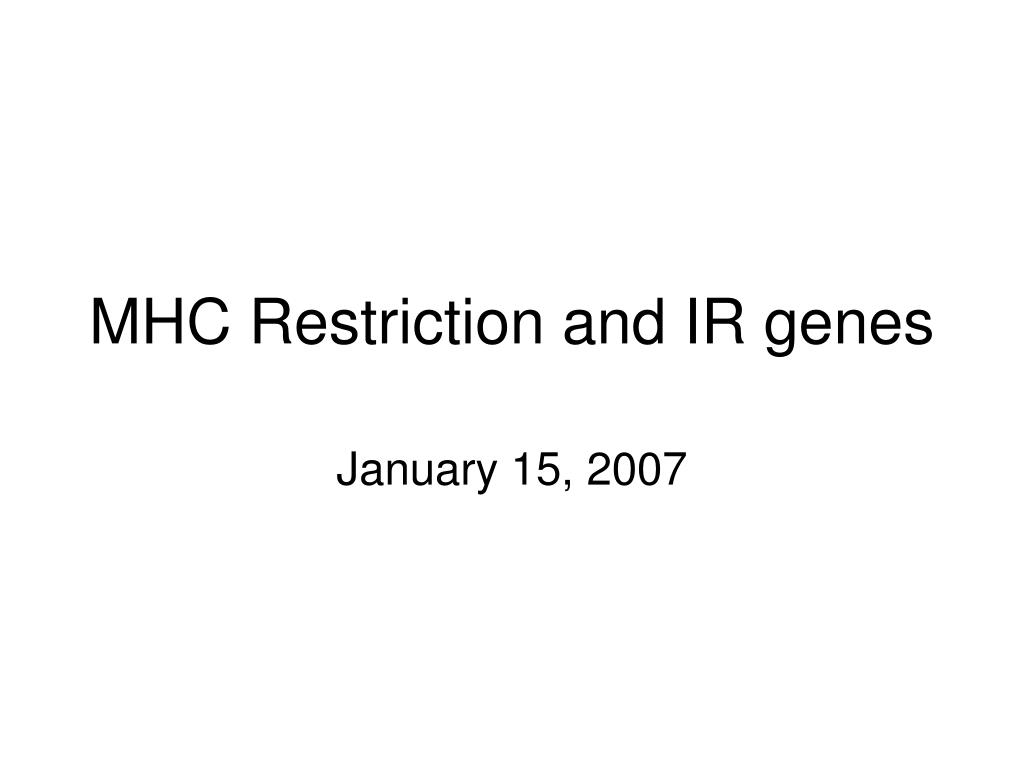

MHC Restriction and IR genes

January 15, 2007


Slide2 l.jpg

1-1. McDevitt, H.O. and Chinitz, A. Genetic control of the antibody response: Relationship between immune response and histocompatibility (H-2) type. Science 163:1207-1208. (1969).


It all began with some rabbits l.jpg

Sandylop

Himalayan

It all began with some rabbits


And some antigens l.jpg

and some antigens

Synthetic polypeptide antigens

-branched multichain synthetic polypeptides

-not defined structures

-(T,G)-A-L; (H,G)-A-L; (P,G)-A-L

R=poly (tyrosine,glutamine acid

=poly (histidine,glutamic acid)

=poly (proline,glutamic acid)

R

R

R

Poly-D,L -alanine

Poly-L -lysine

R

R

Michael Sela-Weissman Institute for Sciences, Rehovot, Israel


People and places l.jpg

People and Places

  • John Humphrey-Mill Hill, UK

    • Early pioneer in modern immunology with wide interests

  • Brigette(Ita) Askonas-Mill Hill, UK

    • Emil’s postdoctoral advisor

  • Don Shreffler-Wash U-Genetics

    • H-2 Immunogeneticist

  • Jan Klein-US/Germany/US

    • Immunogeneticist, prolific author, iconoclast


It all began with some rabbits6 l.jpg

Sandylop:

(Mill Hill)

Non-responder to

(T,G)-A-L

Himalayan:

(Israel)

Responder to

(T,G)-A-L

It all began with some rabbits


Mhc congenic mouse strains l.jpg

MHC Congenic Mouse Strains

1948- George Snell (The Jackson Laboratory)

  • Using skin transplantation he examined what he termed “histocompatibility genes” = H genes

  • The H gene for antigen II was designated H2, later changed to H-2

  • He realized that the first step in the genetic analysis of histocompatibility was the separation and identification of individual genes.

  • He therefore generated congenic mouse stains

    Identified 2 types of loci:

    Major (strong) = H-2

    Minor (weak) = non-H2

    i.e. H-1, H-4, H-Y

  • Nomenclature- STRAIN.LOCUS (i.e. B10.H-2a or B10.A)


Generation of congenic mouse strains l.jpg

Generation of congenic mouse strains

“Speed congenics” decrease the number of

backcross generations by typing each chromosome for background strain alleles and selecting mice to breed which have the highest number of background genes.


H 2 congenic mouse strains l.jpg

H-2 Congenic mouse strains


Table 1 l.jpg

Table 1


Figure 1 l.jpg

Figure 1

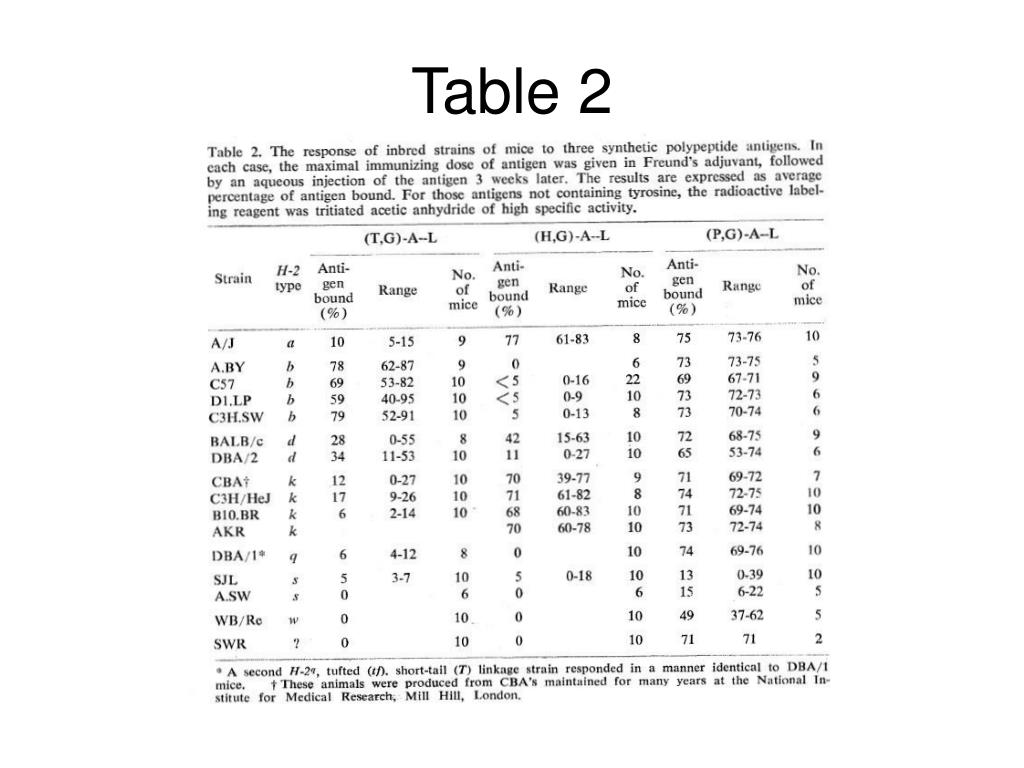

Table 2 l.jpg

Table 2

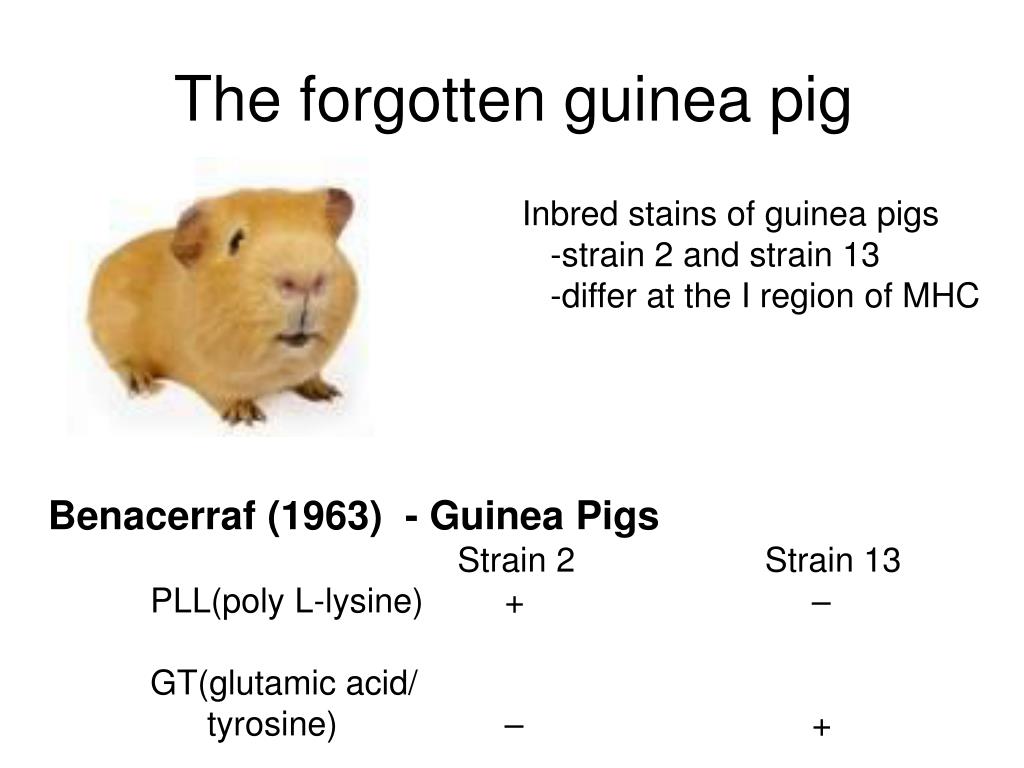

The forgotten guinea pig l.jpg

The forgotten guinea pig

Inbred stains of guinea pigs

-strain 2 and strain 13

-differ at the I region of MHC

Benacerraf (1963) - Guinea Pigs

Strain 2Strain 13

PLL(poly L-lysine) + –

GT(glutamic acid/

tyrosine) – +


Mhc restriction was first shown a year prior to zinkernagel and doherty s study l.jpg

MHC restriction was first shown a year prior to Zinkernagel and Doherty’s study

JEM 138:194,1973


Mhc restriction l.jpg

MHC Restriction


Slide16 l.jpg

1-2. Zinkernagel, R.M. and Doherty, P.C.Immunological surveillance against altered self components by sensitised T lymphocytes in lymphocytic choriomeningitis. Nature 251:547-548. (1974).


People and places17 l.jpg

People and Places

  • Rolf Zinkernagel

    • M.D. Switzerland -

      • Cerottini & Brunner- developed the 51Cr-release assay

    • Ph.D. Australian National University (ANU)

      • Canberra headed by Gordon Ada

    • Asst. Professor - Scripps

    • Professor -U. of Zurich

  • Peter Doherty

    • Veterinarian

    • Postdoc-Scotland

    • ANU

    • Wistar, ANU, St. Jude’s

    • Australia


Table 118 l.jpg

Table 1


Table 219 l.jpg

Table 2


Figure 120 l.jpg

Figure 1


Slide21 l.jpg

1-3. Babbitt, B.P., Allen, P.M., Matsueda, G., Haber, E., and Unanue, E.R. Binding of immunogenic peptides to Ia histocompatibility molecules. Nature 317:359-361. (1985).


Ir genes l.jpg

Ir Genes

  • How to explain lack of a response

    • Hole in the repertoire

      • T cells do not exist that are able to respond, involving thymic selection

    • Determinant Selection

      • MHC molecules select which determinants they can present


Slide23 l.jpg

Where’s Bruce?


Slide24 l.jpg

Numerous groups had completely failed to find any evidence that antigen associated directly with MHC molecules

JI 133:2067(84)


Identification of the hel 46 61 i a k epitope l.jpg

Identification of the HEL(46-61)/I-Ak epitope

A single HEL tryptic fragment stimulates HEL specific T cells

Stimulatory fragment identified as 46-61

Allen, Strydom, and Unanue, PNAS 1984


Figure 126 l.jpg

Figure 1


Figure 2 l.jpg

Figure 2


Figure 3 l.jpg

Figure 3
