1 / 2

1D nanomaterials: Plasma-stimulated synthesis elucidates nanowire nucleation and growth mechanisms

470. 350. C. 430. 400. 510. plasma. 0.26 eV. thermal. Growth Rate (nm/min). 0.74 eV. 1000 / T (1/K). 1D nanomaterials: Plasma-stimulated synthesis elucidates nanowire nucleation and growth mechanisms. S. Tom Picraux, DMR0413523 Arizona State University.

barbie
Download Presentation

1D nanomaterials: Plasma-stimulated synthesis elucidates nanowire nucleation and growth mechanisms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

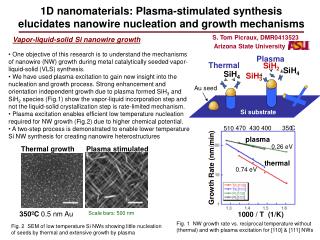

  1. 470 350 C 430 400 510 plasma 0.26 eV thermal Growth Rate (nm/min) 0.74 eV 1000 / T (1/K) 1D nanomaterials: Plasma-stimulated synthesis elucidates nanowire nucleation and growth mechanisms S. Tom Picraux, DMR0413523 Arizona State University Vapor-liquid-solid Si nanowire growth • One objective of this research is to understand the mechanisms of nanowire (NW) growth during metal catalytically seeded vapor-liquid-solid (VLS) synthesis. • We have used plasma excitation to gain new insight into the nucleation and growth process. Strong enhancement and orientation independent growth due to plasma formed SiH3 and SiH2 species (Fig.1) show the vapor-liquid incorporation step and not the liquid-solid crystallization step is rate-limited mechanism. • Plasma excitation enables efficient low temperature nucleation required for NW growth (Fig.2) due to higher chemical potential. • A two-step process is demonstrated to enable lower temperature Si NW synthesis for creating nanowire heterostructures Plasma Thermal SiH2 SiH4 SiH4 SiH3 Au seed Si substrate Thermal growth Plasma stimulated 350ºC 0.5 nm Au Scale bars: 500 nm Fig. 1 NW growth rate vs. reciprocal temperature without (thermal) and with plasma excitation for [110] & [111] NWs Fig. 2 SEM of low temperature Si NWs showing little nucleation of seeds by thermal and extensive growth by plasma

  2. Annual REAS Symposium: Providing professional experience to graduate students S. Tom Picraux, DMR0413523 Arizona State University Research in Engineering and Applied Sciences Each fall semester at Arizona State University, graduate students in the Fulton School of Engineering are offered an excellent opportunity to present their innovative, exciting research in Engineering and Applied Sciences at the Research in Engineering and Applied Sciences Symposium (REAS).  The event serves to bring together student researchers in a professional supportive conference atmosphere for discussions and potential collaborations on their work. Annually over 40 students participate, 300 students/faculty attend, and a keynote address from a local industry leader finishes out the day-long symposium. Hosted by the Fulton School of Engineering Graduate Student Association (FGSA), this symposium takes a broad interdisciplinary view of the different engineering disciplines at ASU, including the newly formed School of Materials at ASU. Graduate students in the Picraux group have presented group research every year and have participated in the running the REAS symposia. Post docs and Picraux have routinely served as judges.

More Related
