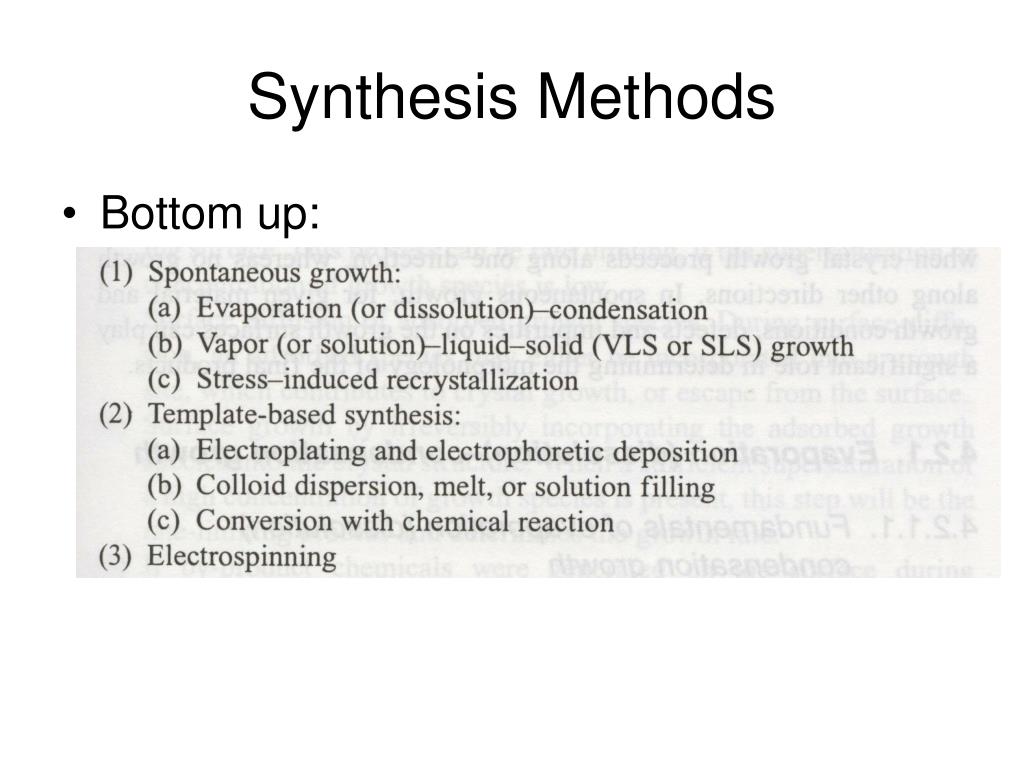

Chapter 4 One-Dimensional Nanostructures : Nanotube, Nanowires and Nanorods. Synthesis Methods. Bottom up:. Spontaneous Growth. A growth driven by reduction of Gibbs free energy or chemical potential. This can be from either recrystallization or a decrease in supersaturation.

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

PowerPoint Slideshow about ' Chapter 4 One-Dimensional Nanostructures : Nanotube, Nanowires and Nanorods ' - judson

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
spontaneous growth
Spontaneous Growth
  • A growth driven by reduction of Gibbs free energy or chemical potential. This can be from either recrystallization or a decrease in supersaturation.
  • Growth along a certain orientation faster than other direction – anisotropic growth.
  • For nanowire, growth occurs only along one direction, but no growth along other directions.
rate limiting steps

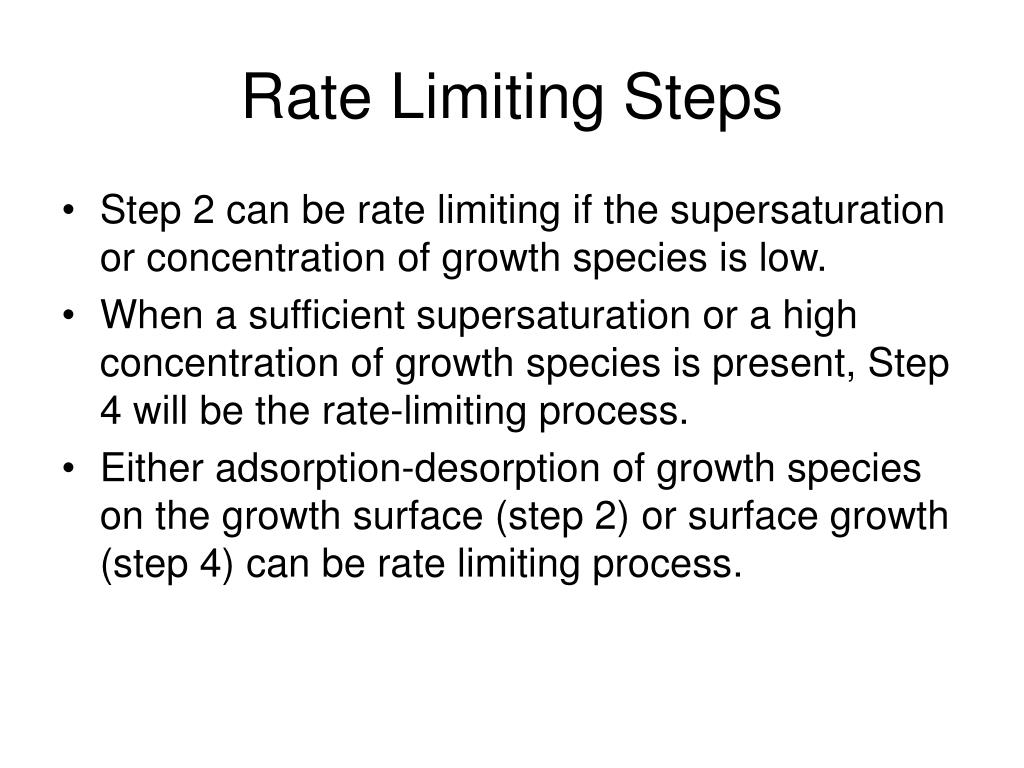

Rate Limiting Steps
  • Step 2 can be rate limiting if the supersaturation or concentration of growth species is low.
  • When a sufficient supersaturation or a high concentration of growth species is present, Step 4 will be the rate-limiting process.
  • Either adsorption-desorption of growth species on the growth surface (step 2) or surface growth (step 4) can be rate limiting process.
step 2 is rate limiting process

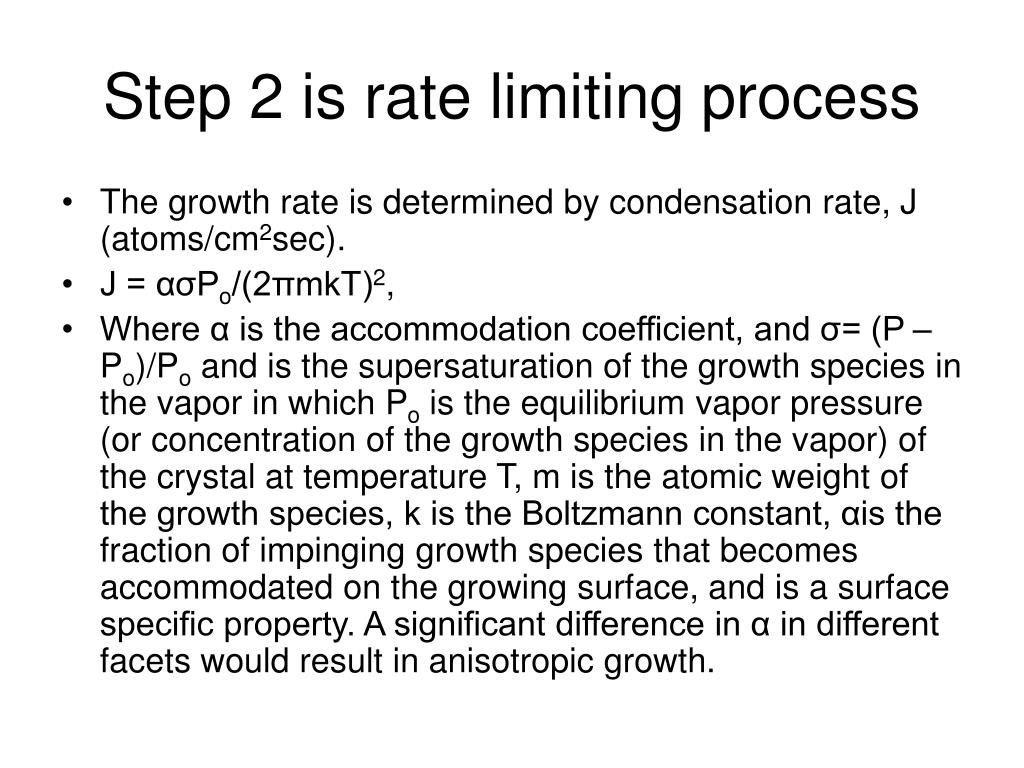

Step 2 is rate limiting process
  • The growth rate is determined by condensation rate, J (atoms/cm2sec).
  • J = ασPo/(2πmkT)2,
  • Where α is the accommodation coefficient, and σ= (P – Po)/Po and is the supersaturation of the growth species in the vapor in which Po is the equilibrium vapor pressure (or concentration of the growth species in the vapor) of the crystal at temperature T, m is the atomic weight of the growth species, k is the Boltzmann constant, αis the fraction of impinging growth species that becomes accommodated on the growing surface, and is a surface specific property. A significant difference in α in different facets would result in anisotropic growth.

The impinging growth species onto the surface is function of residence time and /or diffusion distance before escapting back to the vapor phase.

step growth or ksv theory
Step Growth or KSV Theory

4. Kink site (4 CB), 5. ledge-kink site (3 CB), 7. adatom (1 CB, unstable), 8. ledge site (2 CB)

bcf theory presence of screw dislocation ensures continuous growth and enhances the growth rate
BCF Theory – presence of screw dislocation ensures continuous growth and enhances the growth rate
mechanism leading to formation of nanowire
Mechanism leading to formation of nanowire
  • The growth rate of a facet increases with an increased density of screw dislocations parallel to the growth direction. It is known that different facets can have a significantly different ability to accommodate dislocations. The presence of dislocations on a certain facet can result in anisotropic growth, leading to the formation of nanowire or nanorods.
pbc theory

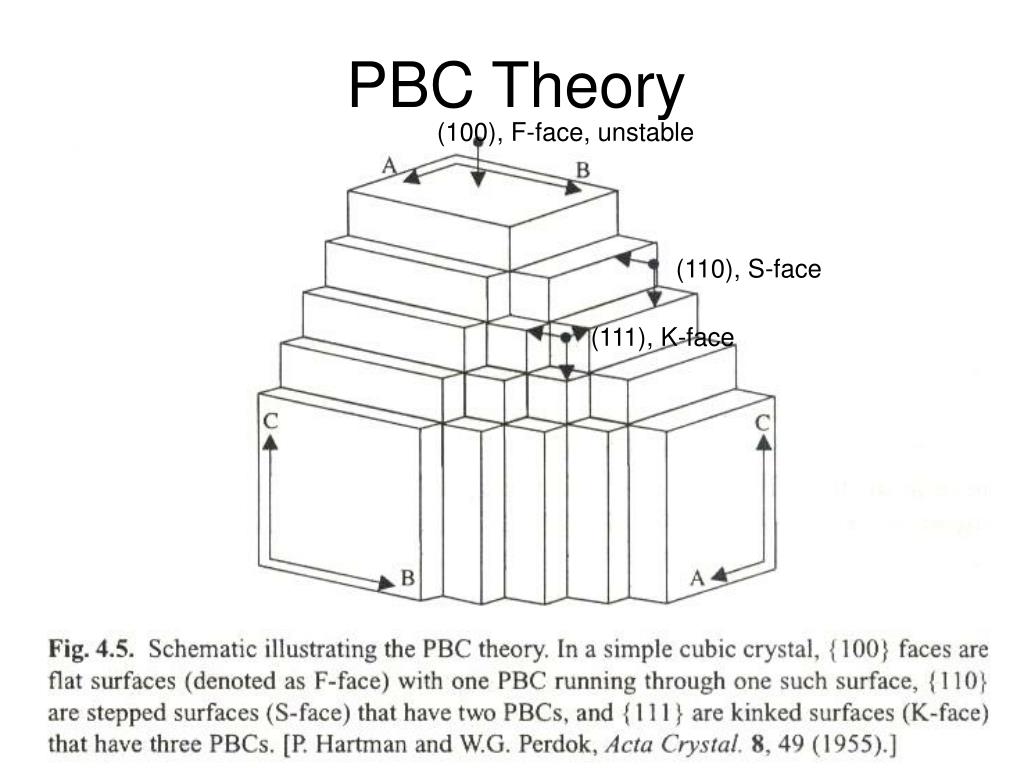

PBC Theory

(100), F-face, unstable

(110), S-face

(111), K-face

mechanism leading to anisotropic growth
Mechanism leading to Anisotropic Growth
  • Therefore, α = 1 for {111} and {110}, α< 1 for {100}. This leads to that growth rate for {111}, {110} is greater than that for {100}. For both {111} and {110}, the growth process is always adsorption limited. Facets with high growth rate (high surface energy) disappears while facets with low growth rate (low surface energy) survives. This leads to anisotropic growth and results in nanowires. In addition, defects-induced growth and impurity-inhibited growth are the possible mechanisms for growth along axis of nanowires. A low supersaturation is required for anisotropic growth. A higher supersaturation supports bulk crystal growth or homogeneous nucleation leading to formation of polycrystalline or powder.
growth of single crystal nanobelts of semiconducting or metal oxides
Growth of Single Crystal Nanobelts of Semiconducting or metal oxides
  • Evaporating the metal oxides (ZnO, SnO2, In2O3, CdO) at high temperatures under a vacuum of 300 torr and condensing on an alumina substrate, placed inside the same alumina tube furnace, at relatively low temperature.
  • Or heating the metal oxide or metal nanoparticles at T=780 - 820oC in air, Nanorods can be obtained depending upon annealing T and time. Nanowires such as ZnO, Ga2O3, MgO, CuO or Si3N4 and SiC can be made by this method.

By controlling growth kinetics, a consequence of minimizing the total energy attributed by spontaneous polarization and elasticity, left-handed helical nanostructures and nano-rings can be formed.

dissolution and condensation growth
Dissolution and Condensation Growth
  • The growth species first dissolve into a solvent or a solution, and then diffuse through the solvent and deposit onto the surface resulting growth of nanowires.
growth of ag nanowire using pt nanoparticles as growth seeds

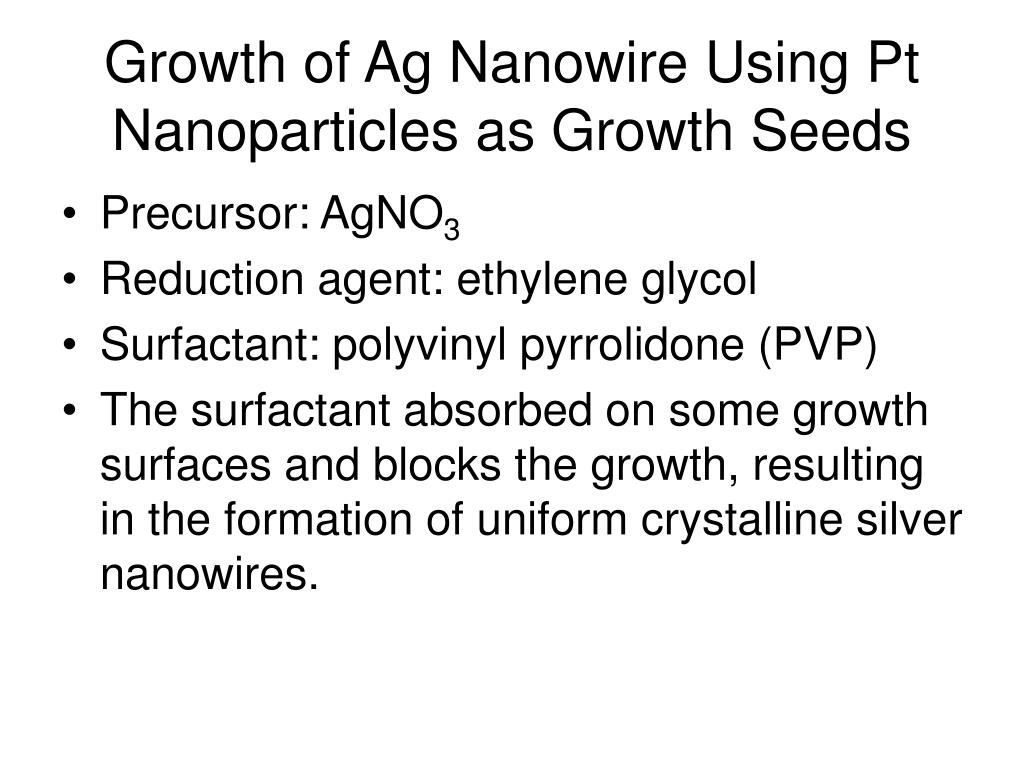

Growth of Ag Nanowire Using Pt Nanoparticles as Growth Seeds
  • Precursor: AgNO3
  • Reduction agent: ethylene glycol
  • Surfactant: polyvinyl pyrrolidone (PVP)
  • The surfactant absorbed on some growth surfaces and blocks the growth, resulting in the formation of uniform crystalline silver nanowires.
disadvantages of evaporation condensation deposition

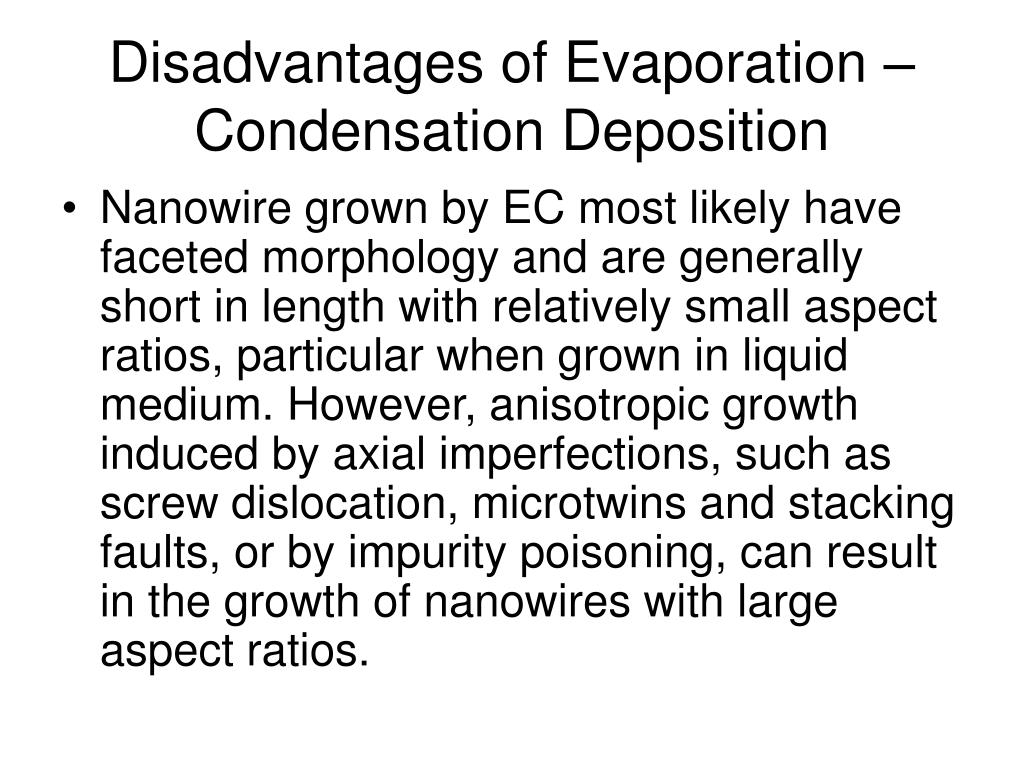

Disadvantages of Evaporation – Condensation Deposition
  • Nanowire grown by EC most likely have faceted morphology and are generally short in length with relatively small aspect ratios, particular when grown in liquid medium. However, anisotropic growth induced by axial imperfections, such as screw dislocation, microtwins and stacking faults, or by impurity poisoning, can result in the growth of nanowires with large aspect ratios.
vapor or solution liquid solid vls growth
Vapor (or solution)-Liquid-solid (VLS) Growth

It is noted that the surface of liquid has a large accommodation coefficient, and is therefore a preferred site for deposition.

the growth rate for vls is much faster

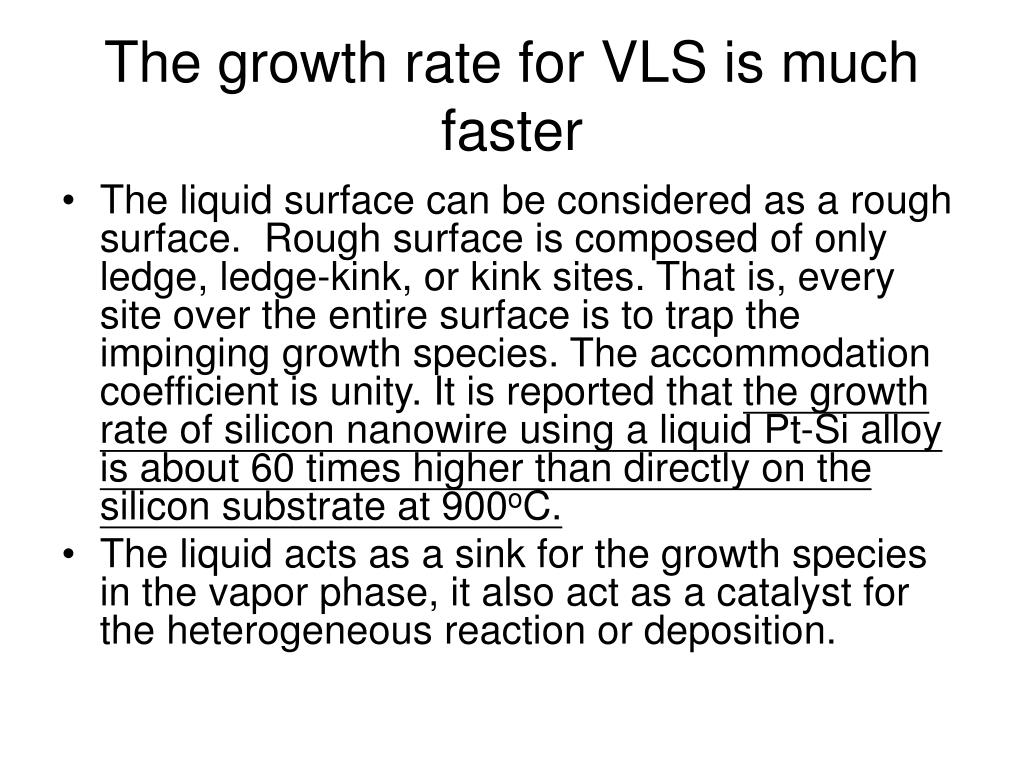

The growth rate for VLS is much faster
  • The liquid surface can be considered as a rough surface. Rough surface is composed of only ledge, ledge-kink, or kink sites. That is, every site over the entire surface is to trap the impinging growth species. The accommodation coefficient is unity. It is reported that the growth rate of silicon nanowire using a liquid Pt-Si alloy is about 60 times higher than directly on the silicon substrate at 900oC.
  • The liquid acts as a sink for the growth species in the vapor phase, it also act as a catalyst for the heterogeneous reaction or deposition.
compound semiconductor nanowires
Nanowires of binary group III-V materials (GaAs, GaP, InAs, and InP), ternary

III-V materials (GaAs/P, InAs/P), binary II-VI compounds (ZnS, ZnSe, CdS, and CdSe), and binary IV-IV SiGe alloys have

been made in bulk quantities as high purity (>90%) single crystals.

Compound Semiconductor Nanowires

Table 1. Summary of single crystal nanowires synthesized. The growth temperatures correspond to ranges exploredin these studies. The minimum and average nanowire diameters were determined from TEM and FESEMimages. Structures were determined using electron diffraction and lattice resolved TEM imaging: ZB, zincblende; W, wurtzite; and D, diamond structure types. Compositions were determined from EDX measurementsmade on individual nanowires. All of the nanowires were synthesized using Au as the catalyst, except GaAs, forwhich Ag and Cu were also used. The GaAs nanowires obtained with Ag and Cu catalysts have the same sizedistribution, structure, and composition as those obtained with the Au catalyst.

choice of catalyst
The catalysts for VLS growth can be chosen in the absence of detailed phase diagrams by identifying metals in which the nanowire component elements are soluble in the liquid phase but that do not form solid compounds more stable than the desired nanowire phase; i.e., the ideal metal catalyst should be physically active but chemically stable. From this perspective the noble metal Au should represent a good starting point for many materials. This noble metal also has been used in the past for the VLS growth of surface supported nanowires by metal-organic chemical vapor deposition (MOCVD).Choice of Catalyst

In general, the nanowires grown by VLS have a cylindrical morphology, i.e. without facets on the side surface and having a uniform diameter. This is attributed to the growth at a temperature greater than the roughening temperature (surface undergoing a transition from faceted (smooth) to rough surface).

vls growth of nanowires

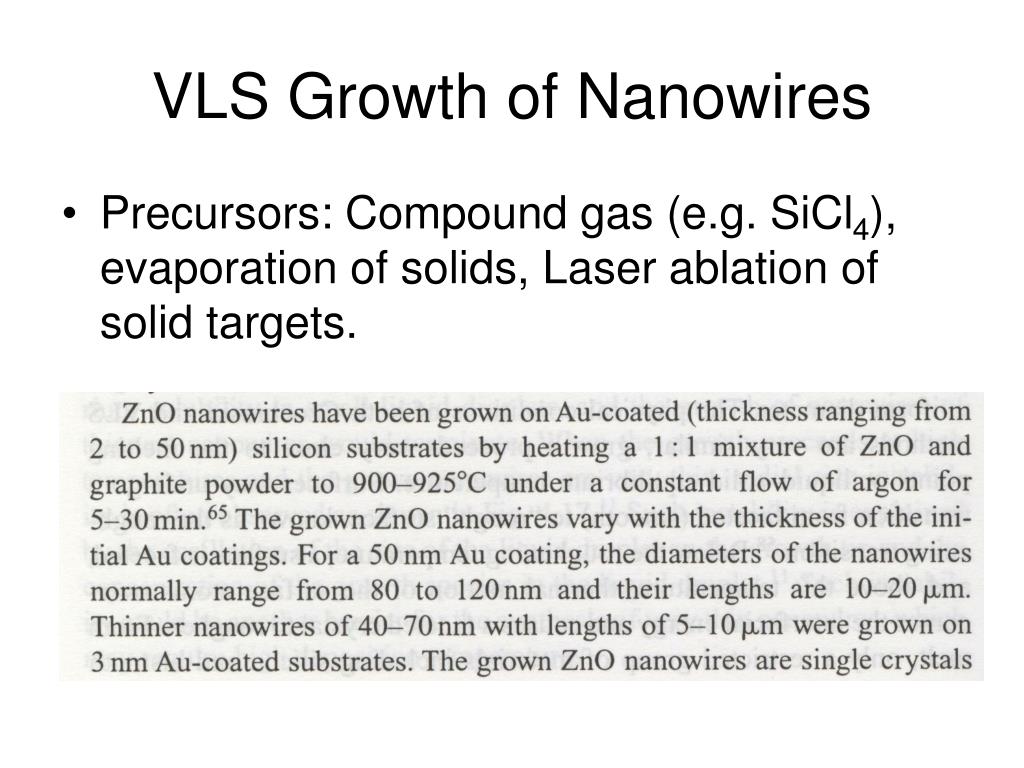

VLS Growth of Nanowires
  • Precursors: Compound gas (e.g. SiCl4), evaporation of solids, Laser ablation of solid targets.

Methods for Growth of CNTs

Water-cooled copper collector

Furnace at 1200 C

Laser Ablation Process

Ar gas

Power Supply

Water in

Water out

Nanotube growing along tip of collector







Arc-Discharge System

Graphite target


graphite, cathode

graphite anode


mass flow controller

auto pressure controller


Formation of nanotubes

Note: The target may be made by pressing Si powder mixed with 0.5% iron.


Using polycarbonate membrane as template – Electrochemical Deposition (for conducting polymer) or electroless electrolysis (for polymer)

electrophoretic deposition
Electrophoretic Deposition

Stabilization of colloids is generally achieved by electrostatic double layer mechanism.

template filling assisted with centrifugation force
Template Filling Assisted with Centrifugation Force

Centrifugation Force which must be greater than the repulsion force between particles
