Amplifier Frequency Response

Amplifier Frequency Response . Chapter 10. Effect of Capacitors . Capacitor have capacitive reactance (Xc) Coupling capacitors (C1 and C3) Bypass capacitors (C2) Internal Xc = 1/2 p fc Very high frequency Xc=0; AC ground is is effectively zero Very low frequency Xc is significant

baakir
Download Presentation

Amplifier Frequency Response

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Amplifier Frequency Response Chapter 10

  2. Effect of Capacitors • Capacitor have capacitive reactance (Xc) • Coupling capacitors (C1 and C3) • Bypass capacitors (C2) • Internal • Xc = 1/2pfc • Very high frequency • Xc=0; AC ground is is effectively zero • Very low frequency • Xc is significant • AC ground is not short anymore

  3. Capacitors • Bypass capacitors • RE is parallel with Xc • Coupling capacitors • Low frequency  High reactance  High voltage drop: Xc.Ic = Vc • Low frequency  more shift in phase • Internal capacitance • High frequency  lower capacitive reactance (Xc) Remember: Phase shift is due Xc = |Xc| |_ Angle

  4. Decibel • Logarithmic measurement of the ratio of one power/voltage to another. • Ap (dB)= 10log Ap • Av (dB) = 20log Av • Example • Ap = 0.5 W  Ap (dB) = 10 log (0.5) = -3dB • Av = 0.707 V  Av (dB) = 20 log (0.707) = -3dB • dBm is the unit to measure power with reference to 1mW • 32 mW  10log (32mW/1mW) = 15 dBm

  5. Center frequency (-3 dB) Center Frequency • Center frequency (fc) also known as critical /cut off frequency or roll-off frequency • @ fc  -3dB • @ 0.1 x fc  -20dB • @ 0.01 x fc  -40dB • Mid-frequency refers to higher frequencies Center frequency: frequency at which the gain is down 3dB (called the -3dB point)

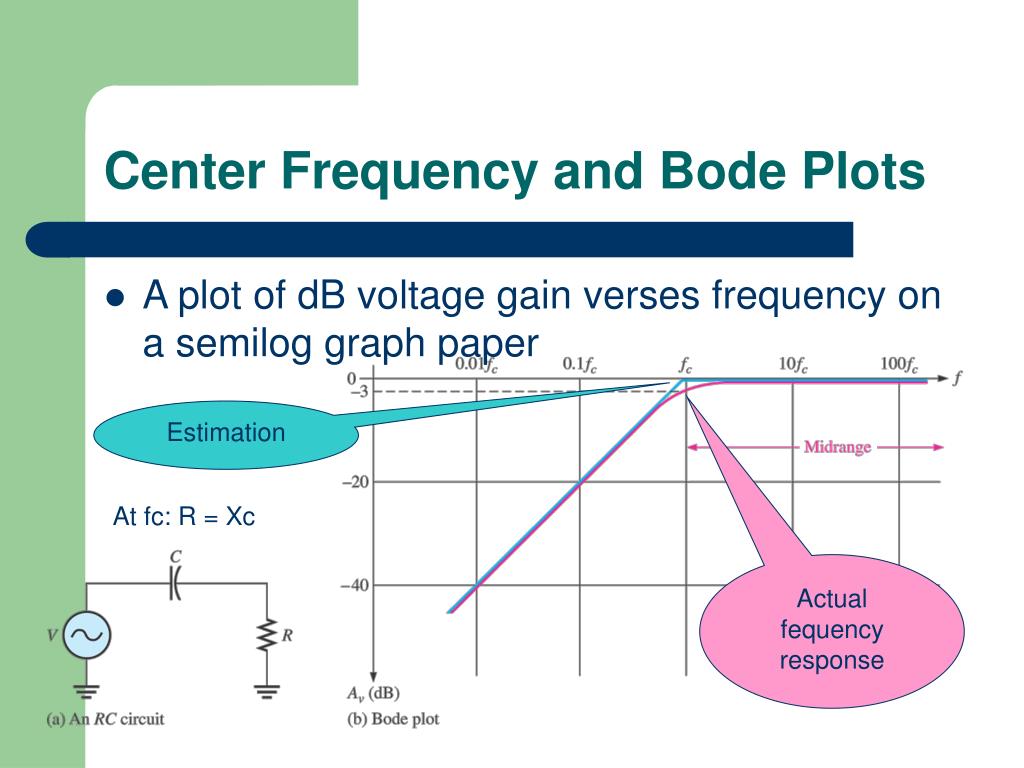

  6. Center Frequency and Bode Plots • A plot of dB voltage gain verses frequency on a semilog graph paper Estimation At fc: R = Xc Actual fequency response

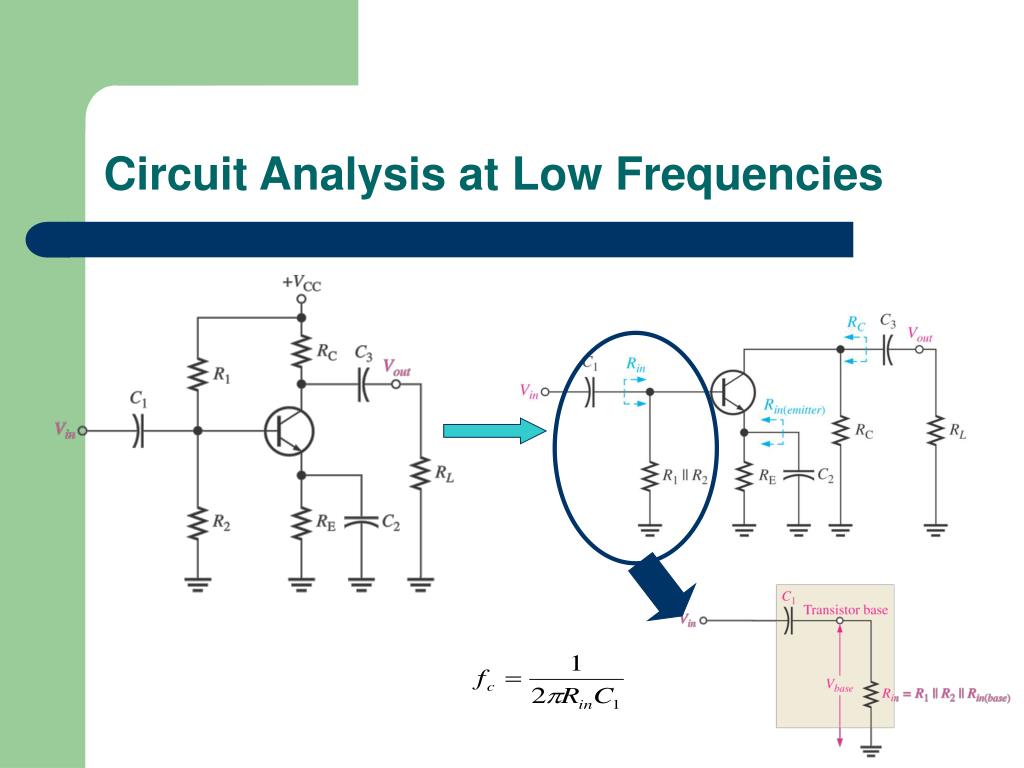

  7. Circuit Analysis at Low Frequencies

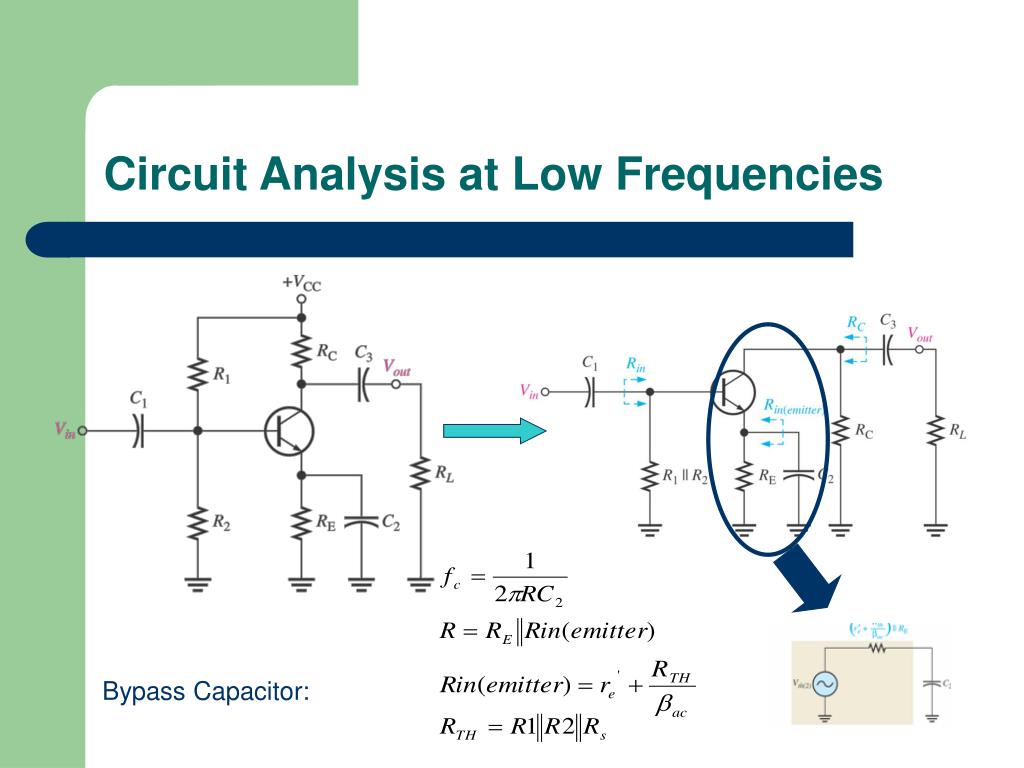

  8. Circuit Analysis at Low Frequencies Bypass Capacitor:

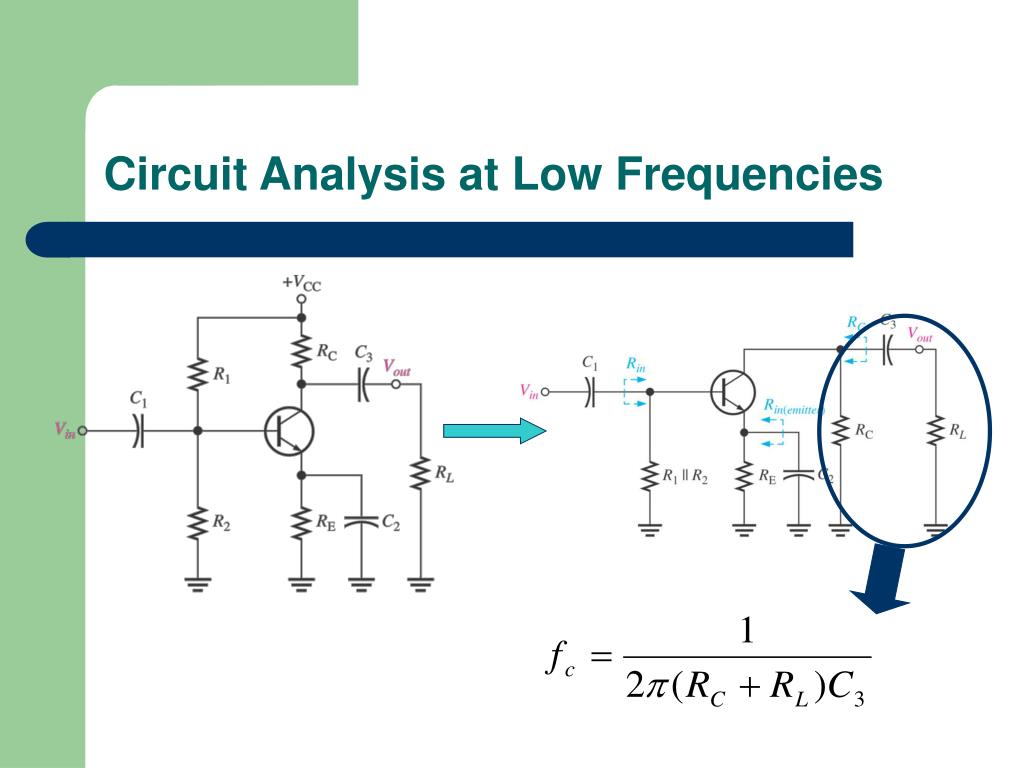

  9. Circuit Analysis at Low Frequencies

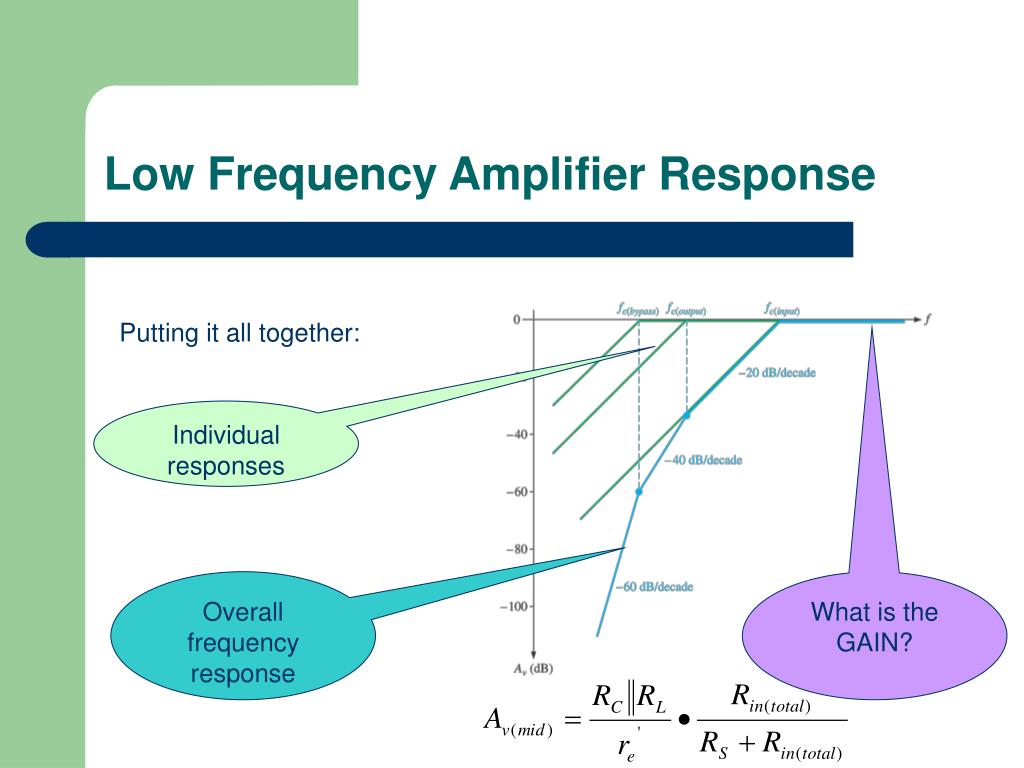

  10. Low Frequency Amplifier Response Putting it all together: Individual responses Overall frequency response What is the GAIN?

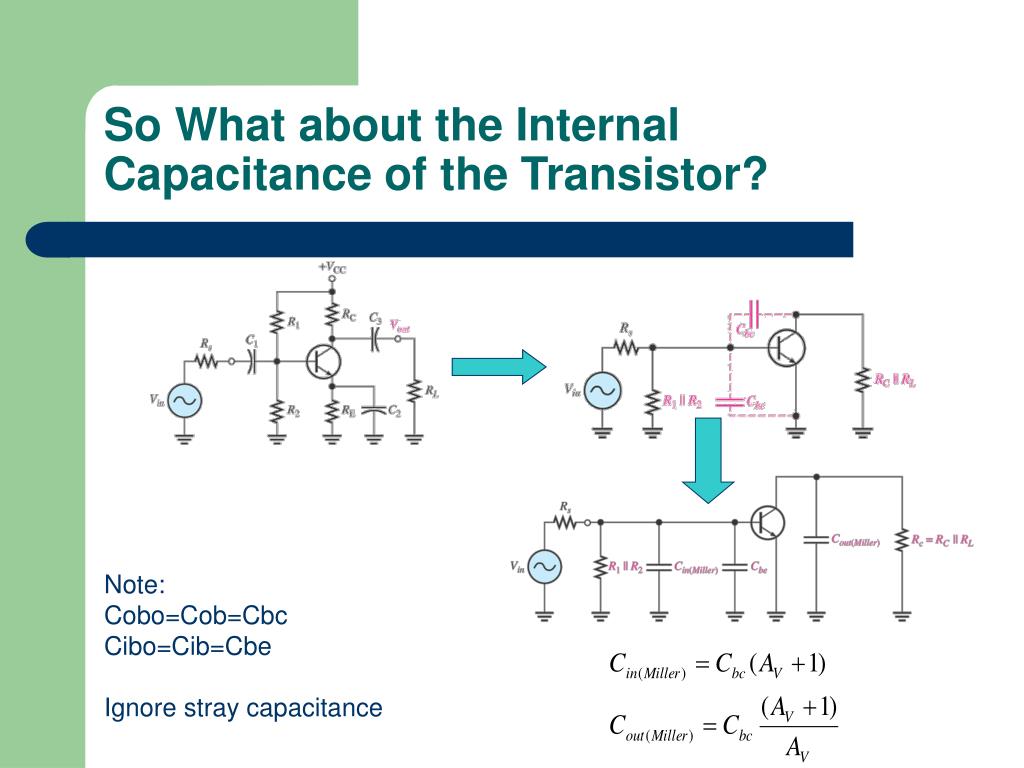

  11. So What about the Internal Capacitance of the Transistor? Note: Cobo=Cob=Cbc Cibo=Cib=Cbe Ignore stray capacitance
