  1. WaveSurfer 3000 Oscilloscopes Public Release – July 1st, 2014

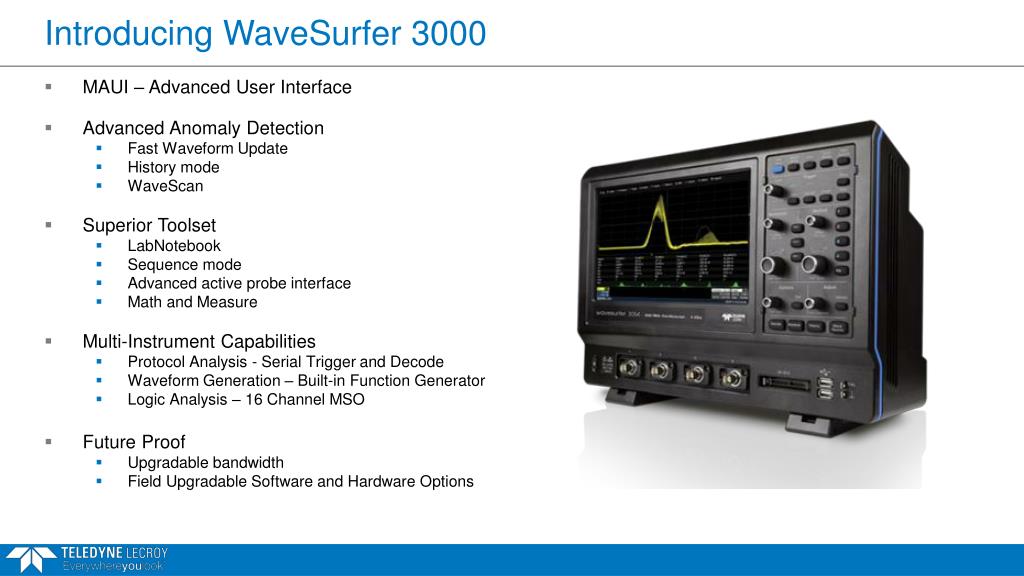

  2. Introducing WaveSurfer 3000 • MAUI – Advanced User Interface • Advanced Anomaly Detection • Fast Waveform Update • History mode • WaveScan • Superior Toolset • LabNotebook • Sequence mode • Advanced active probe interface • Math and Measure • Multi-Instrument Capabilities • Protocol Analysis - Serial Trigger and Decode • Waveform Generation – Built-in Function Generator • Logic Analysis – 16 Channel MSO • Future Proof • Upgradable bandwidth • Field Upgradable Software and Hardware Options

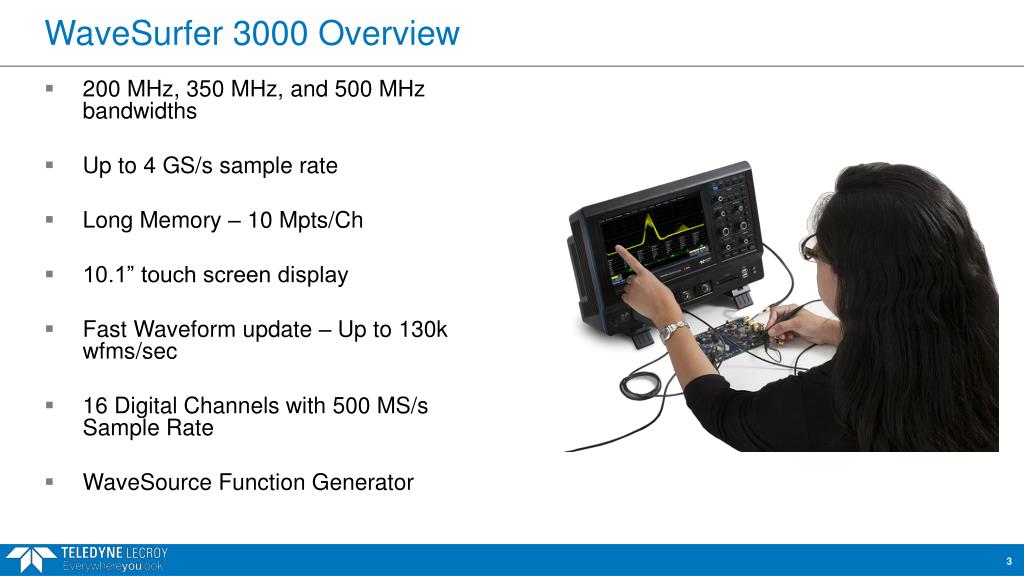

  3. WaveSurfer 3000 Overview • 200 MHz, 350 MHz, and 500 MHz bandwidths • Up to 4 GS/s sample rate • Long Memory – 10 Mpts/Ch • 10.1” touch screen display • Fast Waveform update – Up to 130k wfms/sec • 16 Digital Channels with 500 MS/s Sample Rate • WaveSource Function Generator

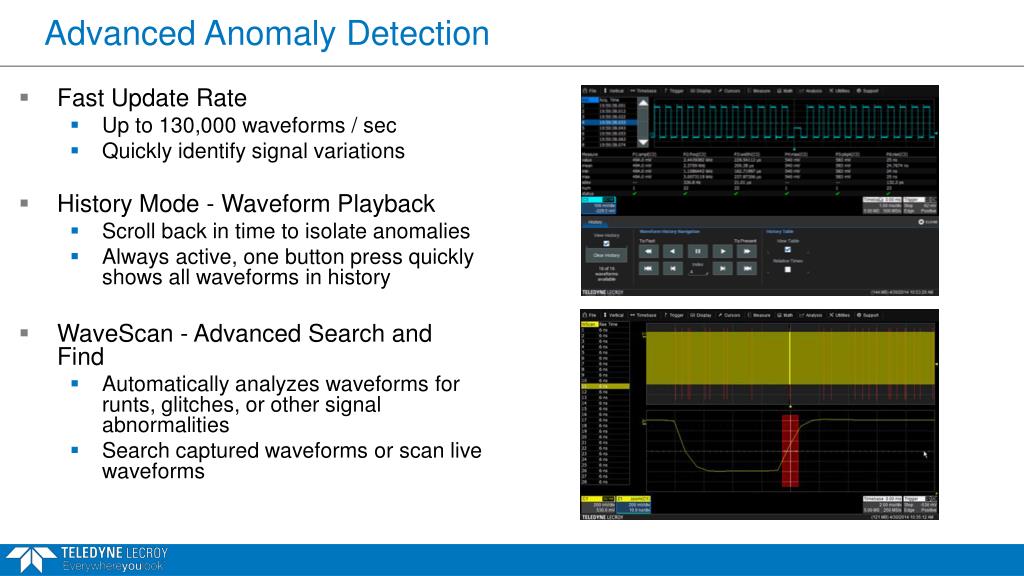

  4. Advanced Anomaly Detection • Fast Update Rate • Up to 130,000 waveforms / sec • Quickly identify signal variations • History Mode - Waveform Playback • Scroll back in time to isolate anomalies • Always active, one button press quickly shows all waveforms in history • WaveScan - Advanced Search and Find • Automatically analyzes waveforms for runts, glitches, or other signal abnormalities • Search captured waveforms or scan live waveforms

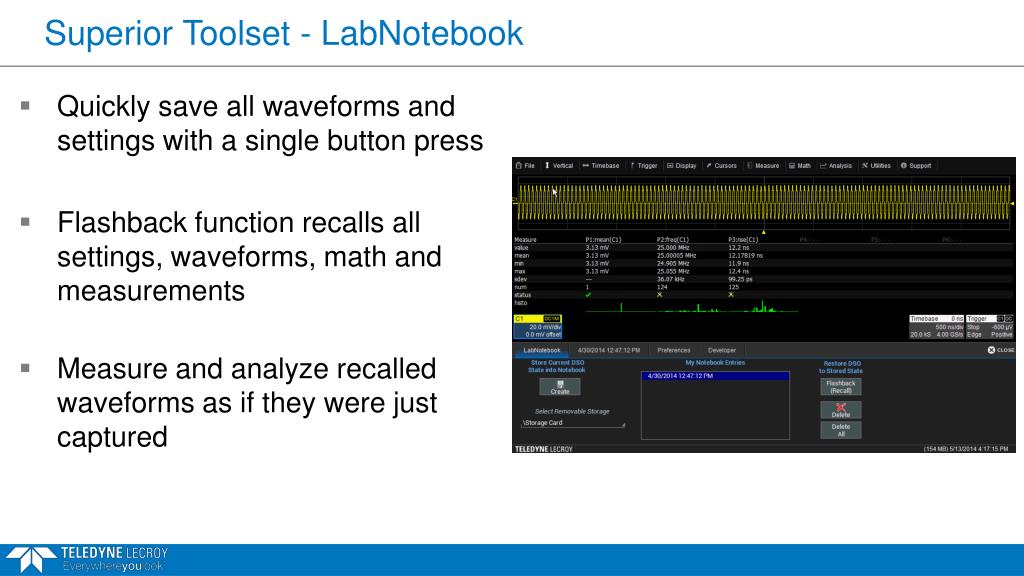

  5. Superior Toolset - LabNotebook • Quickly save all waveforms and settings with a single button press • Flashback function recalls all settings, waveforms, math and measurements • Measure and analyze recalled waveforms as if they were just captured

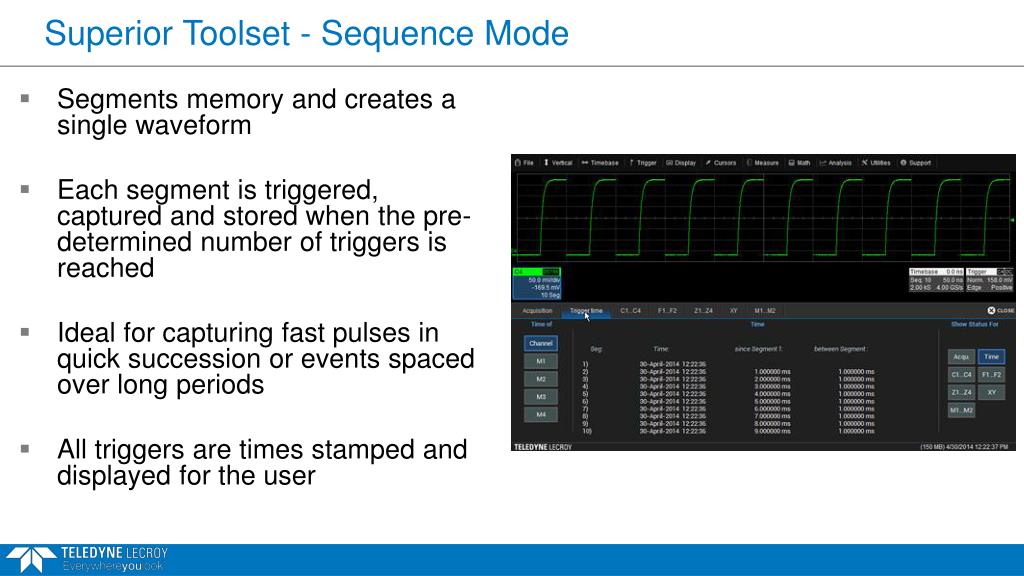

  6. Superior Toolset - Sequence Mode • Segments memory and creates a single waveform • Each segment is triggered, captured and stored when the pre-determined number of triggers is reached • Ideal for capturing fast pulses in quick succession or events spaced over long periods • All triggers are times stamped and displayed for the user

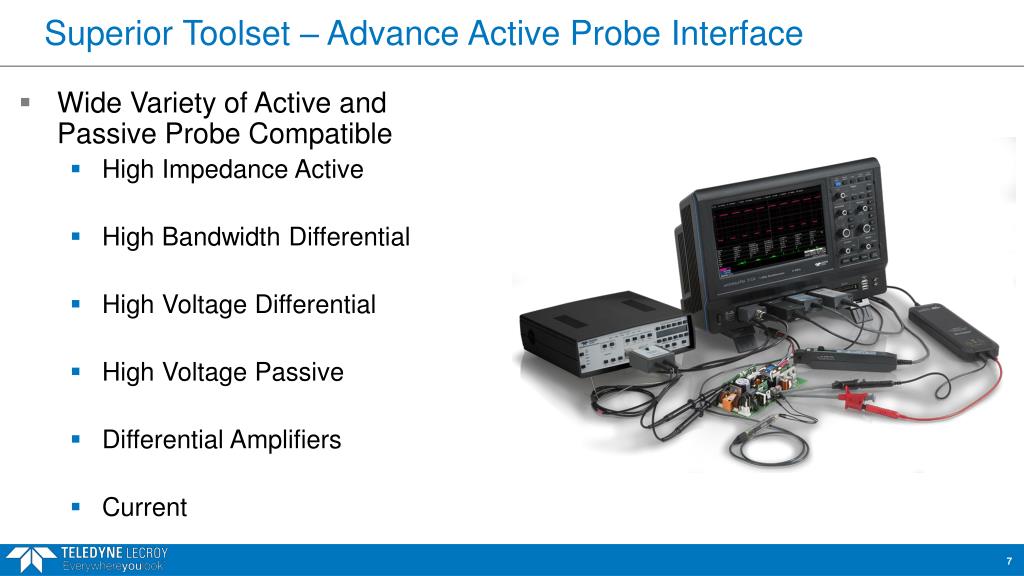

  7. Superior Toolset – Advance Active Probe Interface • Wide Variety of Active and Passive Probe Compatible • High Impedance Active • High Bandwidth Differential • High Voltage Differential • High Voltage Passive • Differential Amplifiers • Current

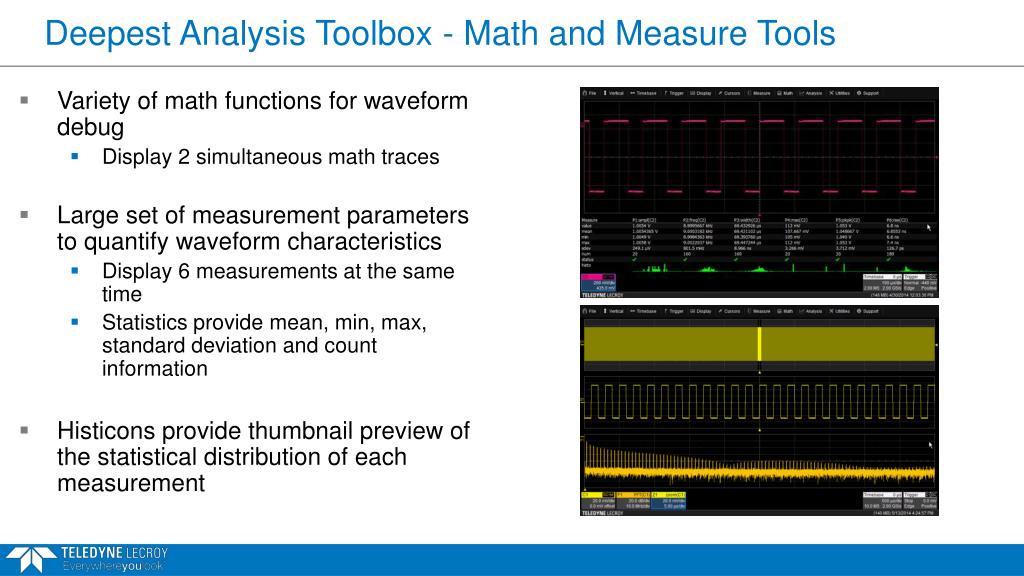

  8. Deepest Analysis Toolbox - Math and Measure Tools • Variety of math functions for waveform debug • Display 2 simultaneous math traces • Large set of measurement parameters to quantify waveform characteristics • Display 6 measurements at the same time • Statistics provide mean, min, max, standard deviation and count information • Histicons provide thumbnail preview of the statistical distribution of each measurement

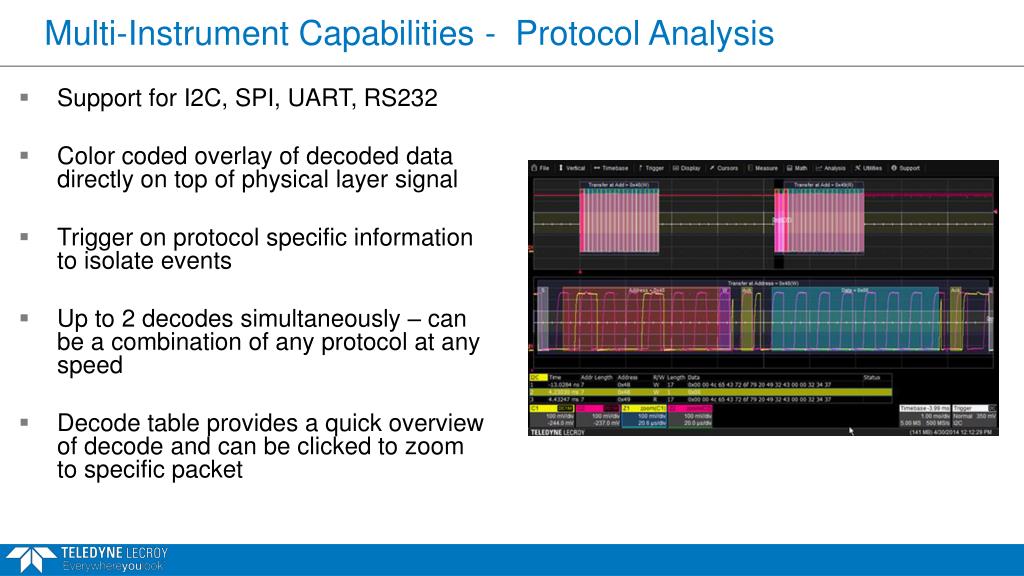

  9. Multi-Instrument Capabilities - Protocol Analysis • Support for I2C, SPI, UART, RS232 • Color coded overlay of decoded data directly on top of physical layer signal • Trigger on protocol specific information to isolate events • Up to 2 decodes simultaneously – can be a combination of any protocol at any speed • Decode table provides a quick overview of decode and can be clicked to zoom to specific packet

  10. Multi-Instrument Capabilities – Waveform Generation • WaveSource Function Genertor • Integrated 1 channel 25 MHz, 125 MS/s • Dedicated user interface integrated into MAUI • Available functions • Sine • Square • Triangle • Pulse • DC • Noise • Demo • Demonstration waveforms available to easily showcase powerful WaveSurfer 3000 features

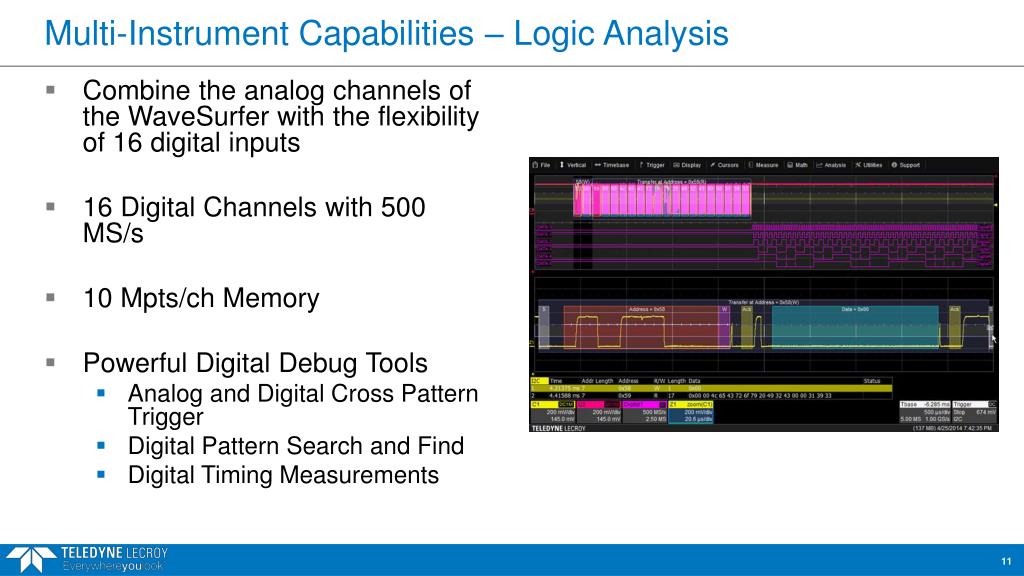

  11. Multi-Instrument Capabilities – Logic Analysis • Combine the analog channels of the WaveSurfer with the flexibility of 16 digital inputs • 16 Digital Channels with 500 MS/s • 10 Mpts/ch Memory • Powerful Digital Debug Tools • Analog and Digital Cross Pattern Trigger • Digital Pattern Search and Find • Digital Timing Measurements

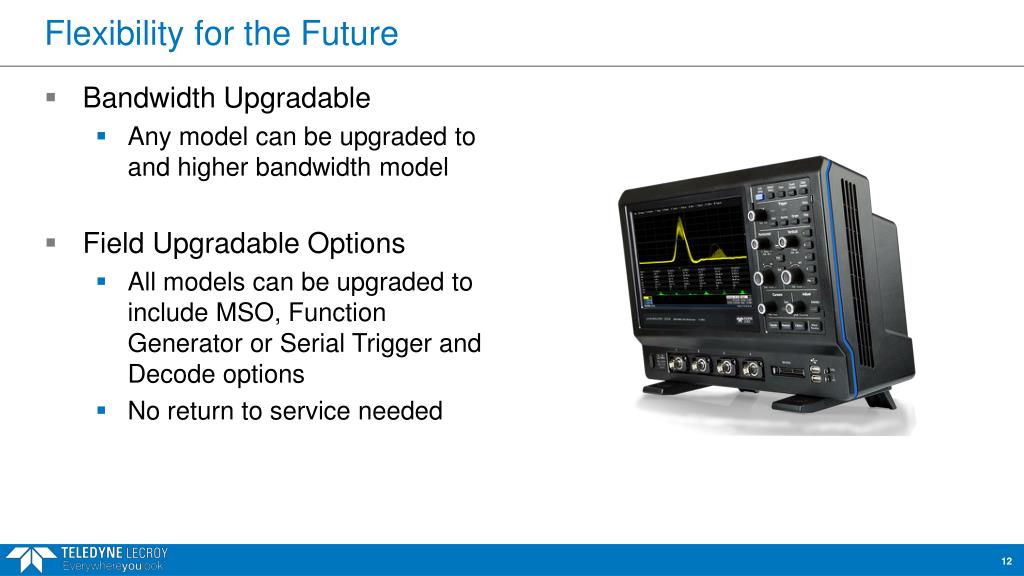

  12. Flexibility for the Future • Bandwidth Upgradable • Any model can be upgraded to and higher bandwidth model • Field Upgradable Options • All models can be upgraded to include MSO, Function Generator or Serial Trigger and Decode options • No return to service needed
