Presentation Transcript
slide1

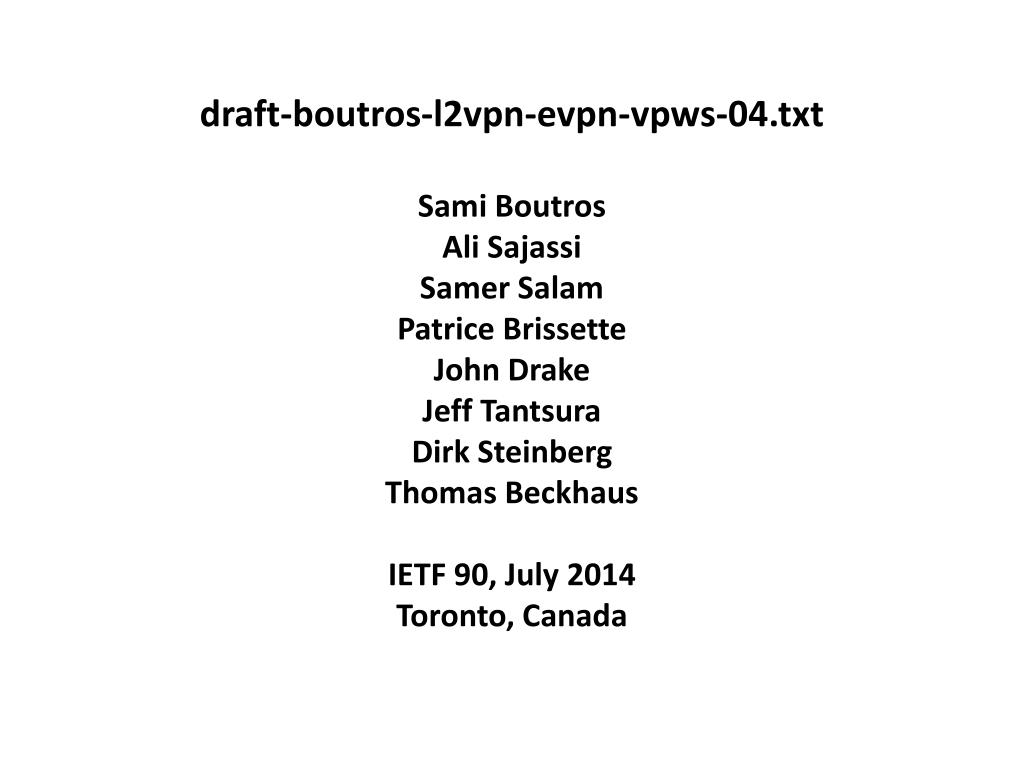

draft-boutros-l2vpn-evpn-vpws-04.txtSami Boutros Ali SajassiSamer SalamPatrice BrissetteJohn DrakeJeff TantsuraDirk Steinberg Thomas BeckhausIETF 90, July 2014Toronto, Canada

how it works

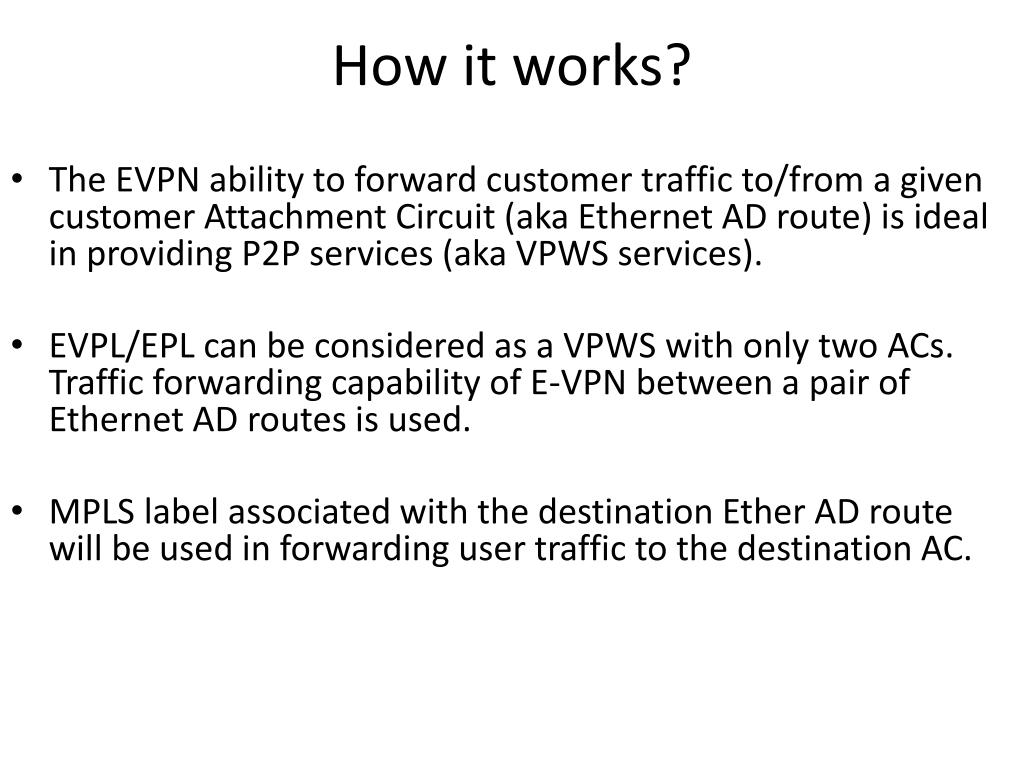

How it works?
  • The EVPN ability to forward customer traffic to/from a given customer Attachment Circuit (aka Ethernet AD route) is ideal in providing P2P services (aka VPWS services).
  • EVPL/EPL can be considered as a VPWS with only two ACs. Traffic forwarding capability of E-VPN between a pair of Ethernet AD routes is used.
  • MPLS label associated with the destination Ether AD route will be used in forwarding user traffic to the destination AC.
evpn vpws operation single home
EVPN VPWS Operation – single-home

ESI – 10 bytes ESI

Set to 0 for single home Segment as per EVPN baseline

3

RD – RD unique per adv. PE per EVI

Eth.Tag ID – 4-bytes VPWS service instance

Identify EPL/EVPL.

MPLS

RT– RT associated with a given EVI

2

MPLS Label – (downstream assigned) used by remote PEs to reach EVPL/EPL

VPWS Service Config:

EVI = 100

Local Eth tag ID = AC2

Remote Eth tag ID = AC1

PE1

PE2

CE1

CE2

ES1– Since CE1 is single homed to PE1, ES1 = 0

ES1

1

ES2

ES2– Since CE2 is single homed to PE2, ES2 = 0

VPWS Service Config:

EVI = 100

Local Eth Tag ID = AC1

Remote Eth Tag ID = AC2

5

6

4

evpn vpws operation single active
EVPN VPWS Operation – single-active

RD – RD unique per adv. PE per EVI

ESI – 10 bytes ESI

as per EVPN baseline

3

Eth.Tag ID – 4-bytes VPWS service instance

Identify EPL/EVPL.

RT– RT associated with a given EVI

MPLS

MPLS Label – (downstream assigned) used by remote PEs to reach EVPL/EPL

VPWS Service Config:

EVI = 100

Local Eth. Tag ID = AC2

Remote Eth. Tag ID = AC1

PE1

VPWS Service Config:

EVI = 100

Local Eth. Tag ID = AC1

Remote Eth. Tag ID = AC2

ES1

PE3

CE1

CE2

2

ES2

ES2– Since CE2 is single homed to PE2, ES2 = 0

1

ES1– Since CE1 is multi-homed to PE1, ES1 is a non 0 value

VPWS Service Config:

EVI = 100

Local Eth. Tag ID = AC1

Remote Eth. Tag ID = AC2

ES1

5

6

PE2

4

evpn vpws operation all active

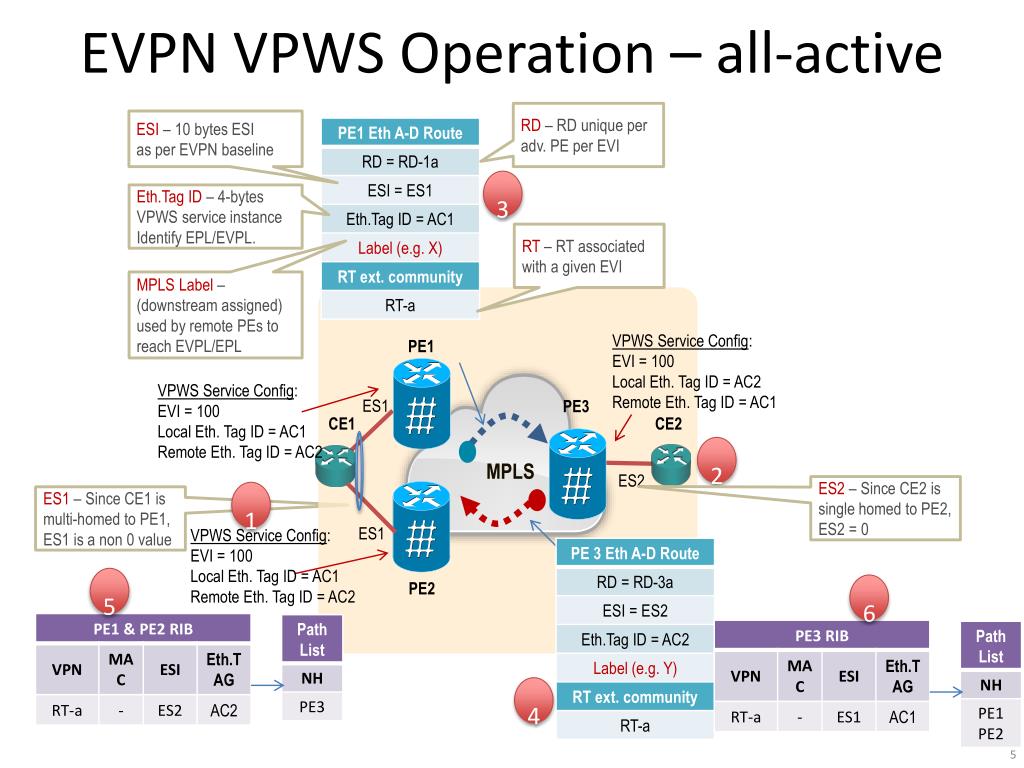

EVPN VPWS Operation – all-active

RD – RD unique per adv. PE per EVI

ESI – 10 bytes ESI

as per EVPN baseline

3

Eth.Tag ID – 4-bytes VPWS service instance

Identify EPL/EVPL.

RT– RT associated with a given EVI

MPLS

MPLS Label – (downstream assigned) used by remote PEs to reach EVPL/EPL

VPWS Service Config:

EVI = 100

Local Eth. Tag ID = AC2

Remote Eth. Tag ID = AC1

PE1

VPWS Service Config:

EVI = 100

Local Eth. Tag ID = AC1

Remote Eth. Tag ID = AC2

ES1

PE3

CE1

CE2

2

ES2

ES2– Since CE2 is single homed to PE2, ES2 = 0

1

ES1– Since CE1 is multi-homed to PE1, ES1 is a non 0 value

VPWS Service Config:

EVI = 100

Local Eth. Tag ID = AC1

Remote Eth. Tag ID = AC2

ES1

5

6

PE2

4

changes from 02 04
Changes from 02 04
  • Added requirements sub-section.
  • Added Patrice, Thomas and Dirk as authors.
  • Clarified ESI value setting aligning with base EVPN.
    • ESI value will be set to 0 for single home.
    • ESI value will be non 0 for single active or all active.
  • Clarified tag-id value setting in the Ethernet AD route.
    • Tag-id value will be set to a non 0 unique value per EVI scope for both EPL or EVPL services.
  • VPWS with multiple site outside the scope of the document
  • Acknowledged Wen Lin and Jose Liste contributions.
next steps
Next steps
  • Authors believe that document is ready for WG adoption.
