KLIPNE PUMPE

KLIPNE PUMPE. Radni element je klip koji se krece translatorno i oscilatorno. Delovi aksijalne klipne pumpe sa nagnutim cilindarskim blokom. Ugao nagiba cilindarskog bloka je stalan a samim tim i protok. Princip rada.

Download Presentation

KLIPNE PUMPE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

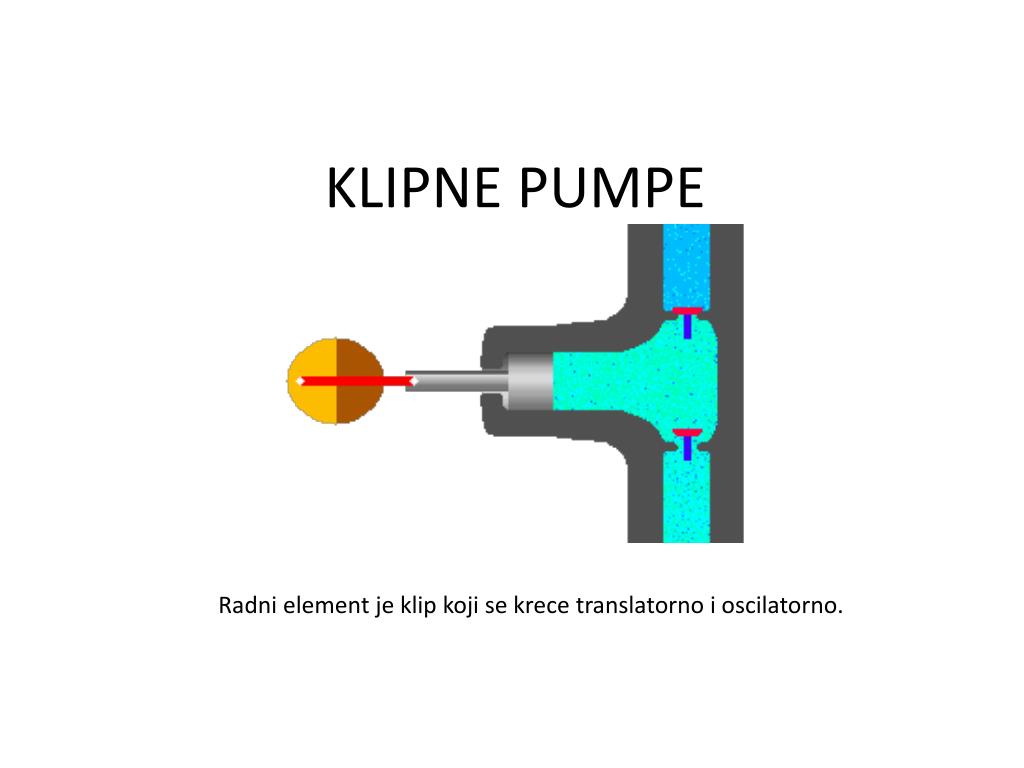

  1. KLIPNE PUMPE Radni element je klip koji se krece translatorno i oscilatorno.

  2. Delovi aksijalne klipne pumpesa nagnutim cilindarskim blokom Ugao nagiba cilindarskog bloka je stalan a samim tim i protok.

  3. Princip rada Obrtanjem pogonskog vratila, prenosi se preko klipnjaca na cilindarski blok, zbog cega dolazi do relativnog translatornog kretanja.

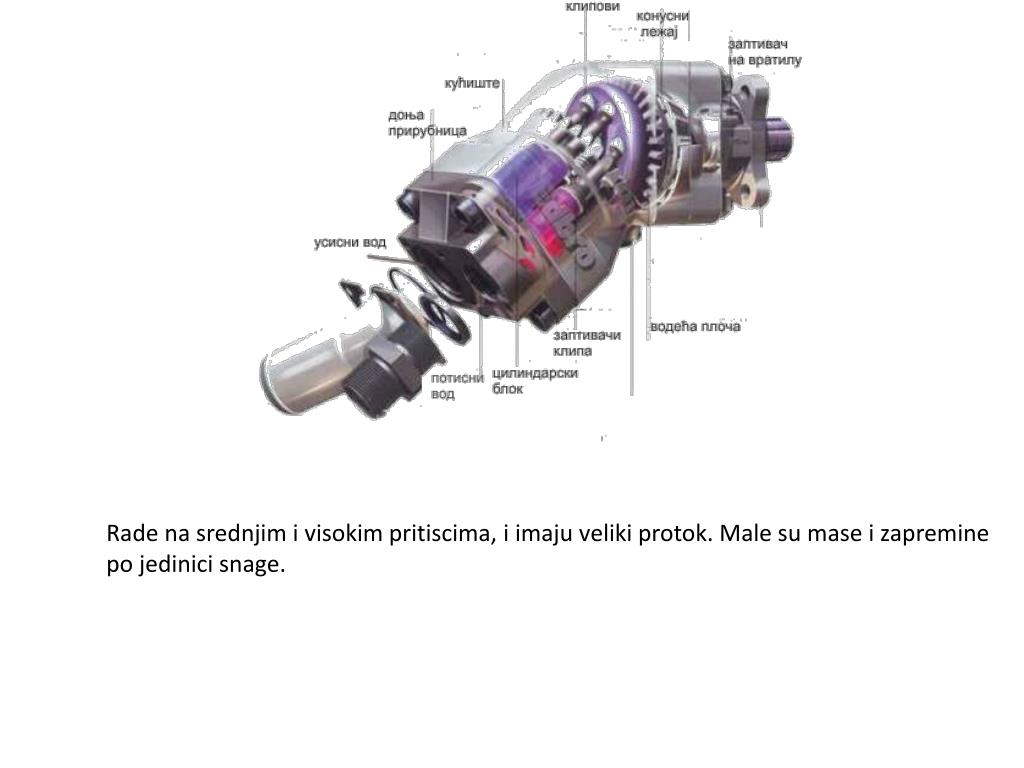

  4. Rade na srednjim i visokim pritiscima, i imaju veliki protok. Male su mase i zapremine po jedinici snage.

  5. Stepen iskoriscenja je veliki. • Zapreminski stepen iskoriscenja je veliki 0,95. • Ukupan stepen iskoriscenja krece se do 0,9. Radili: Cedo Vranic, Veljko Adzic, Dusko Djuricic
