A Framework to Implement a National Cyber Security Structure for Developing Nations

1. A Framework to Implement a National Cyber Security Structure for Developing Nations ID Ellefsen - iellefsen@uj.ac.za SH von Solms - basievs@uj.ac.za Academy for Information Technology University of Johannesburg

2. Outline • Introduction • Critical Information Infrastructure Protection – Background • Protection Structures • CSIRTs • C-SAWs • CIIP Framework for Developing Nations • Challenges • Two-Factor Development • Role of the CSIRT and C-SAW • Stages of Development • Initial, Intermediate, Mature • Timeline • Conclusions SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

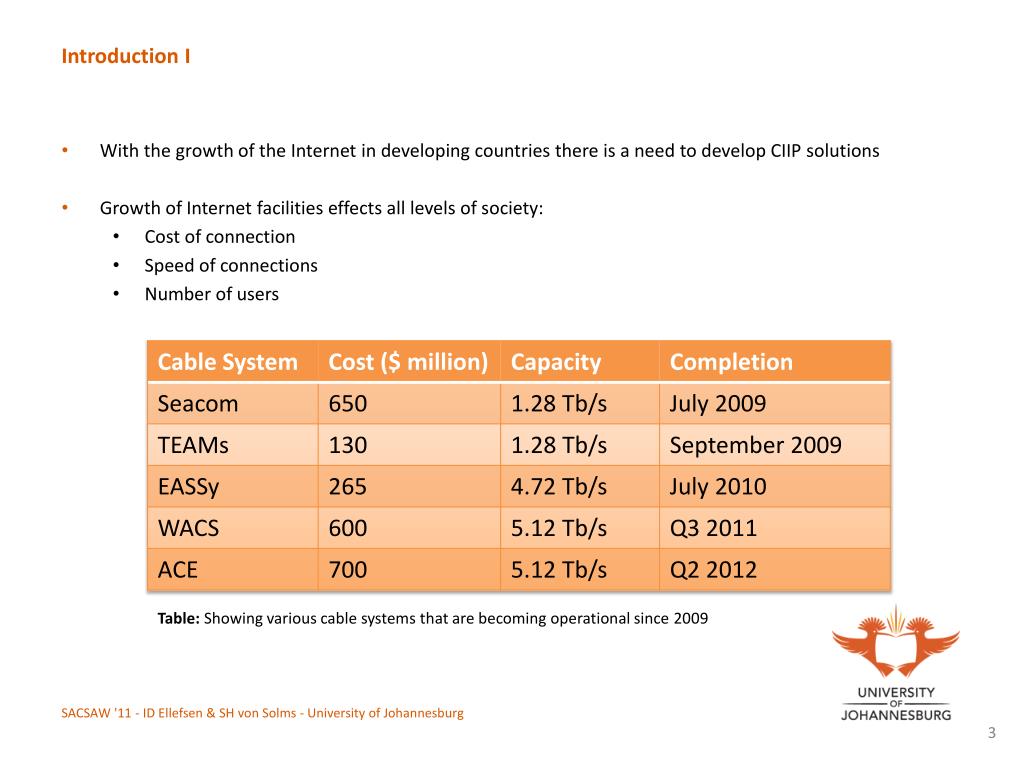

3. Introduction I • With the growth of the Internet in developing countries there is a need to develop CIIP solutions • Growth of Internet facilities effects all levels of society: • Cost of connection • Speed of connections • Number of users Table: Showing various cable systems that are becoming operational since 2009 SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

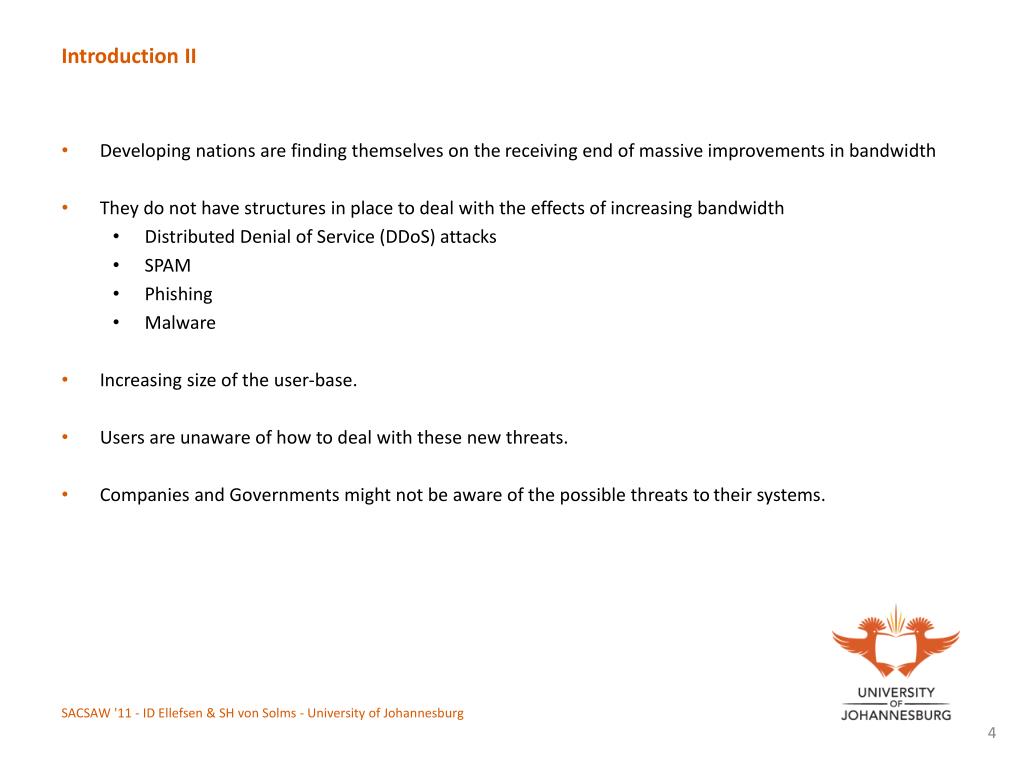

4. Introduction II • Developing nations are finding themselves on the receiving end of massive improvements in bandwidth • They do not have structures in place to deal with the effects of increasing bandwidth • Distributed Denial of Service (DDoS) attacks • SPAM • Phishing • Malware • Increasing size of the user-base. • Users are unaware of how to deal with these new threats. • Companies and Governments might not be aware of the possible threats to their systems. SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

5. Critical Information Infrastructure Protection - Background • The internal structures that countries have in place to prevent attacks on their information infrastructures. • Many systems are now making use of Internet technologies • Critical Systems (Power, Water, Telecommunications, etc.) • Economic Systems (Stock Exchanges, Reserve Banks, Financial Institutions, etc.) • eServices (Tolling Systems, Online Booking Systems, etc.) • If any of these systems were to be attacked via the Internet it would have serious implications. • All countries need to create structures to handle possible cyber attacks. • For often historic reasons, developing nations often have unique challenges that must be addressed in the development of these structures. SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

6. Protection Structures • The structures counties create to handle cyber security incidents. • Computer Security Incident Response Teams (CSIRTs) • Well-understood platform • Operates within a constituency of users • Encapsulates the expertise to responding to computer security incidents • “Top-Down” by design – implemented at a governmental level. • Unique for a particular environment • Computer Security, Advisory and Warning (C-SAW) Team • Part of continuing research • Smaller in scale to that of a CSIRT • Operates within a community of related members • Focuses the computer security expertise of the community • “Bottom-Up” by design • Interfaces with the community and a larger CSIRT SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

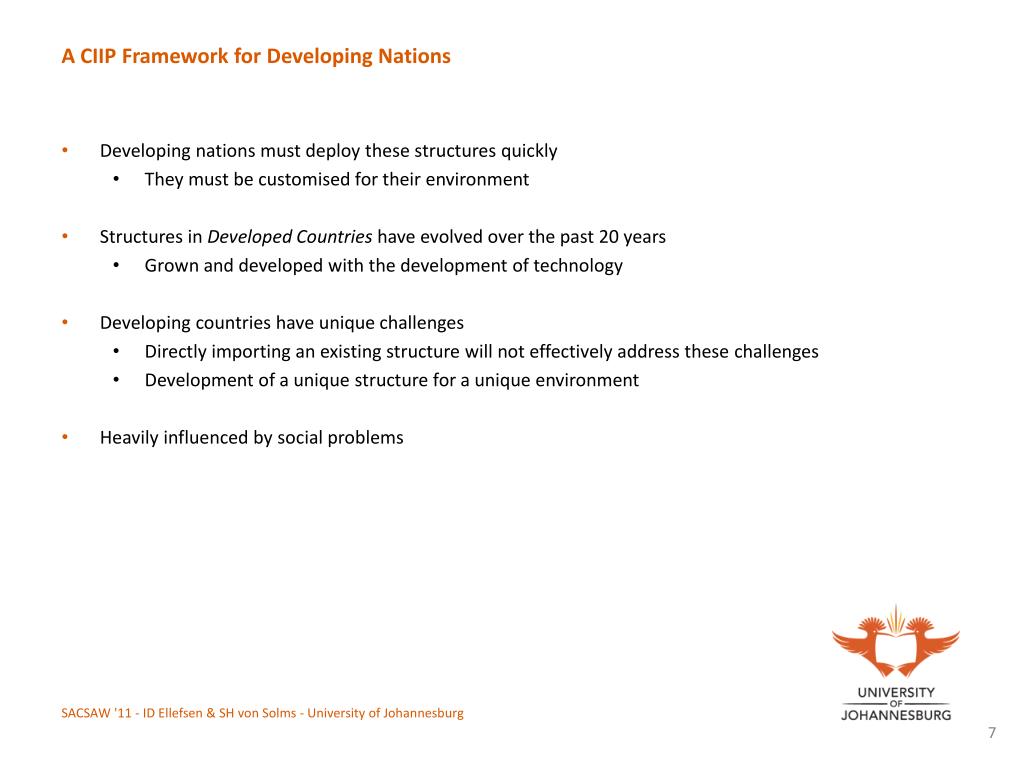

7. A CIIP Framework for Developing Nations • Developing nations must deploy these structures quickly • They must be customised for their environment • Structures in Developed Countries have evolved over the past 20 years • Grown and developed with the development of technology • Developing countries have unique challenges • Directly importing an existing structure will not effectively address these challenges • Development of a unique structure for a unique environment • Heavily influenced by social problems SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

8. Specific Challenges • Significantly faster development of information infrastructures. • High-levels of “cyber security illiteracy”. • A high number of users utilising mobile technologies. • A demand to adopt and provision eServices. • Inadequate legislation addressing cyber security. • Inadequate policy documentation addressing cyber security. SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

9. Two-Factor CIIP Development • Approach the development of a holistic cyber security structure on two fronts: • Top-Down • Large entities • Direct coordination from CSIRT • Bottom-up • Smaller entities • Interaction with C-SAW teams • Two structures are developed concurrently • Resulting in a comprehensive final structure SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

10. Role of the CSIRT • To provide high-level coordination • Bridge between government and the national computer security structure • Focused on large roleplayers: • Governmental Entities • Departments, Military, etc. • Large Commercial Entities • Financial Institutions • Telecommunications • Manufacturing, etc. • Large Academic Entities • National Research Organisations • Large Tertiary Academic Institutions • All of these roleplayer have: • Established computer facilities • Consume large amounts of bandwidth • High number of users SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

11. Role of the C-SAW • To provide “low-level” coordination • Bridge between small roleplayers and the national computer security structure • Focused on small roleplayers: • Small Academic Entities • Primary and Secondary Schools, etc. • Small Commercial Entities • Small and Medium Enterprises • Individuals • The “man-on-the-street” • All of these roleplayers have: • Limited computer facilities • Consume “small” amounts of bandwidth • Relatively little collective knowledge of computer security threats SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

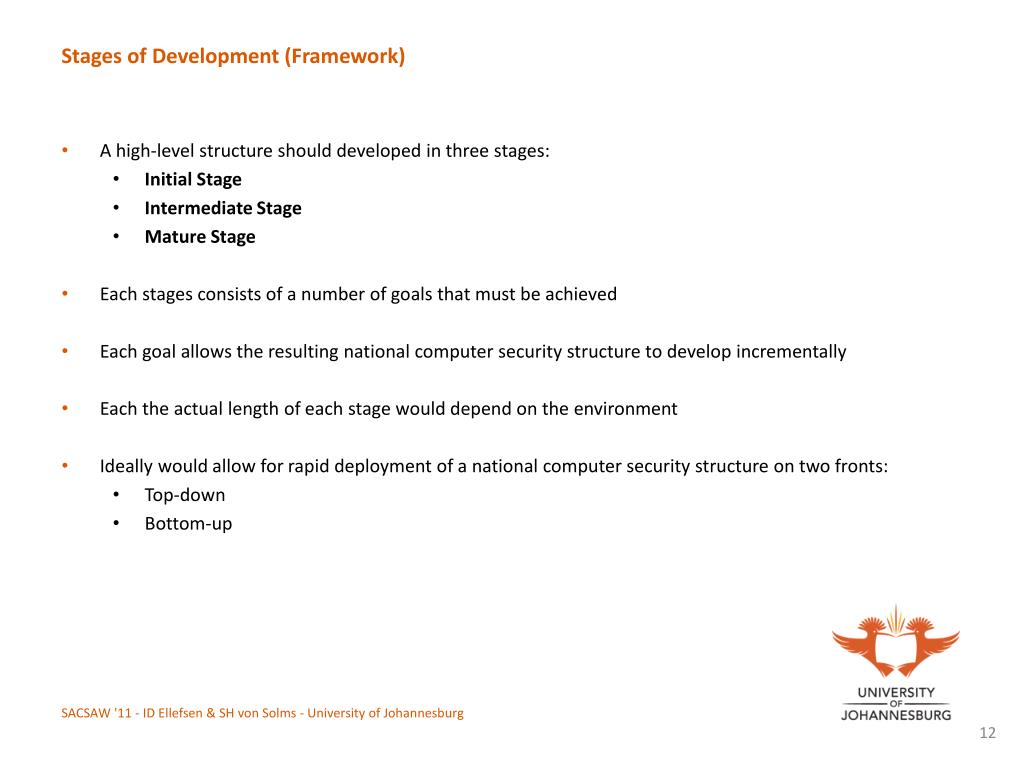

12. Stages of Development (Framework) • A high-level structure should developed in three stages: • Initial Stage • Intermediate Stage • Mature Stage • Each stages consists of a number of goals that must be achieved • Each goal allows the resulting national computer security structure to develop incrementally • Each the actual length of each stage would depend on the environment • Ideally would allow for rapid deployment of a national computer security structure on two fronts: • Top-down • Bottom-up SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

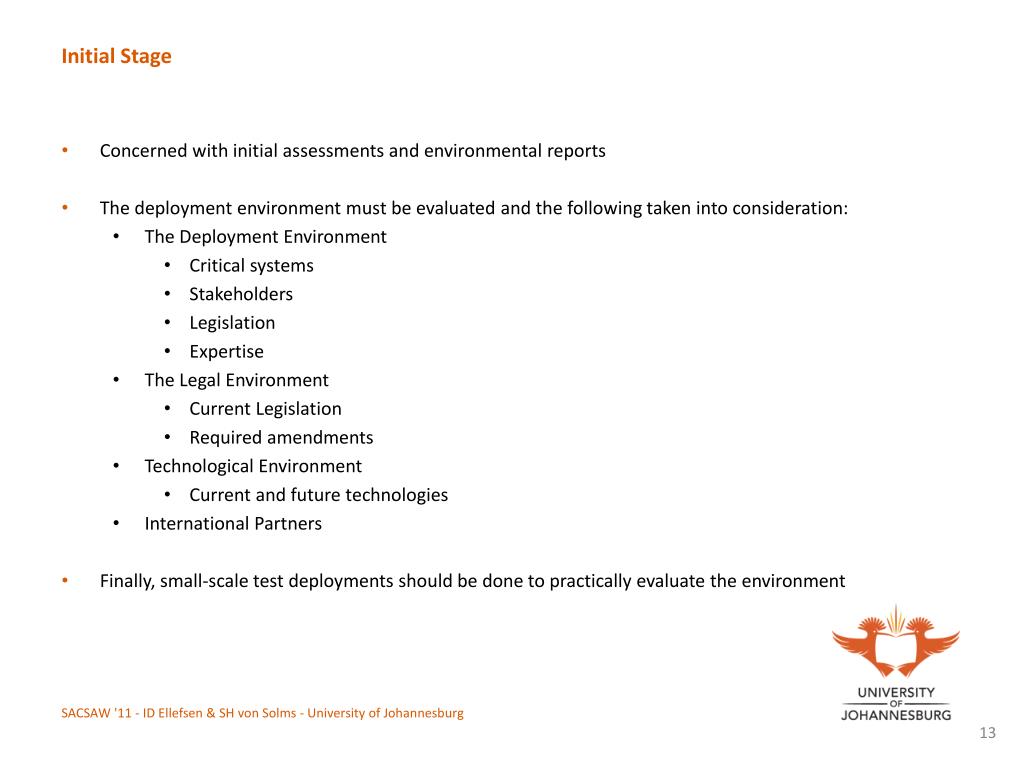

13. Initial Stage • Concerned with initial assessments and environmental reports • The deployment environment must be evaluated and the following taken into consideration: • The Deployment Environment • Critical systems • Stakeholders • Legislation • Expertise • The Legal Environment • Current Legislation • Required amendments • Technological Environment • Current and future technologies • International Partners • Finally, small-scale test deployments should be done to practically evaluate the environment SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

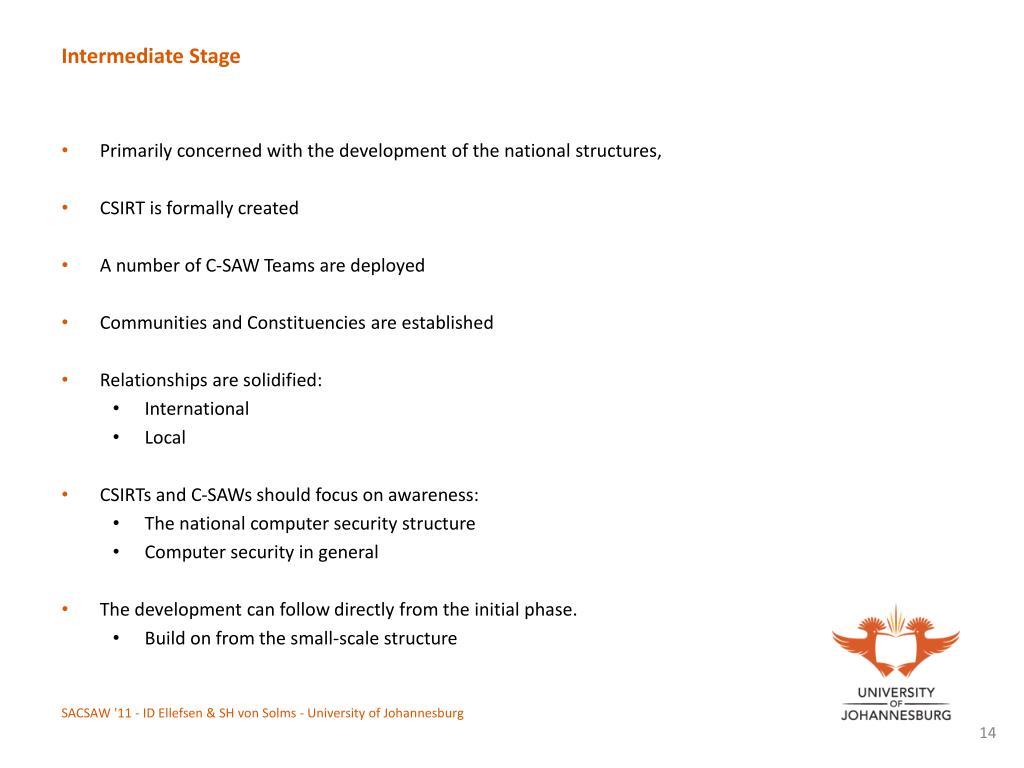

14. Intermediate Stage • Primarily concerned with the development of the national structures, • CSIRT is formally created • A number of C-SAW Teams are deployed • Communities and Constituencies are established • Relationships are solidified: • International • Local • CSIRTs and C-SAWs should focus on awareness: • The national computer security structure • Computer security in general • The development can follow directly from the initial phase. • Build on from the small-scale structure SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

15. Mature Stage • The mature stages indicates a fully functioning and operations national computer security structure • Does not signify complete protection of critical information infrastructure • The structure is able to operate on a day-to-day basis and is able to respond to incidents • There must be on-going development • There must be on-going awareness campaigns • New services that can be offered by the national computer security structure can be identified • Education campaigns to expand local expertise. SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

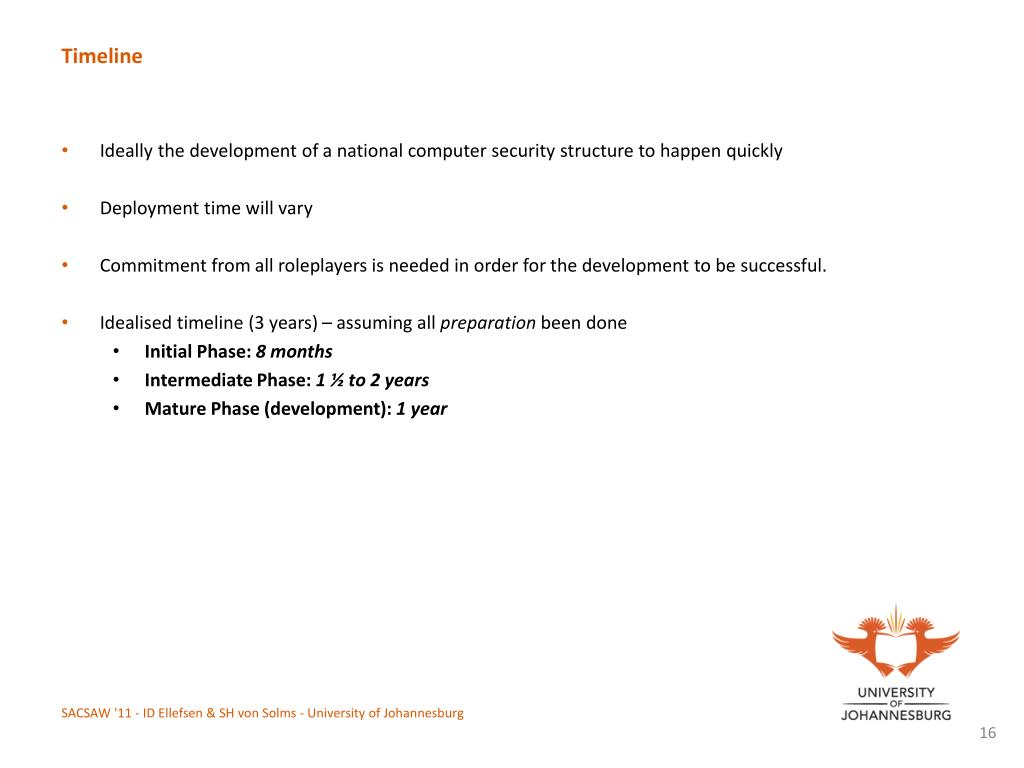

16. Timeline • Ideally the development of a national computer security structure to happen quickly • Deployment time will vary • Commitment from all roleplayers is needed in order for the development to be successful. • Idealised timeline (3 years) – assuming all preparation been done • Initial Phase: 8 months • Intermediate Phase: 1 ½ to 2 years • Mature Phase (development): 1 year SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

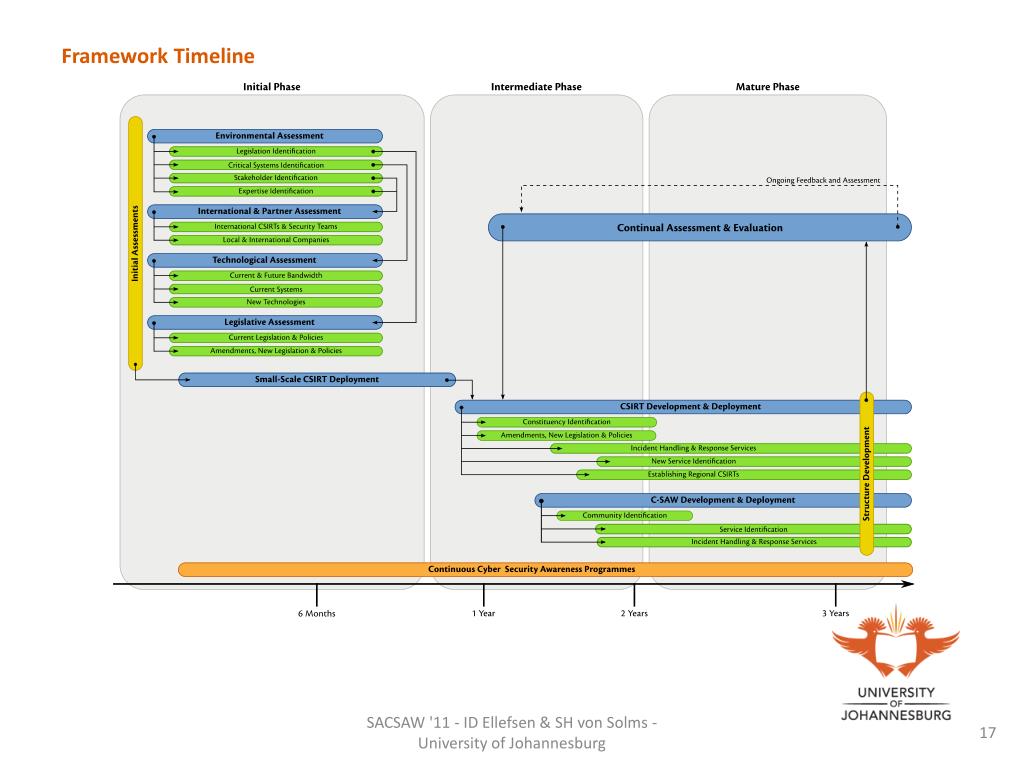

17. Framework Timeline SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg

18. Conclusions • Developing counties must deploy national computer security structure • There are many unique challenges that developing nations face • In light of this, importing an existing structure or framework will not adequately address these challenges • Two-factor development: • Top-down: focused on the development of a CSIRT structure • Bottom-up: focused on the development of a C-SAW structure • Concurrent development to promote the rapid development of a comprehensive, holistic, structure. • Questions? SACSAW '11 - ID Ellefsen & SH von Solms - University of Johannesburg
