Explore the benefits, challenges, models, and libraries of multithreaded processes. Learn about concurrent and parallel execution, user and kernel threads, and various multithreading models. Discover examples of popular threading libraries like POSIX Pthreads and Win32 threads, as well as implementation details on Windows XP and Linux systems.
E N D

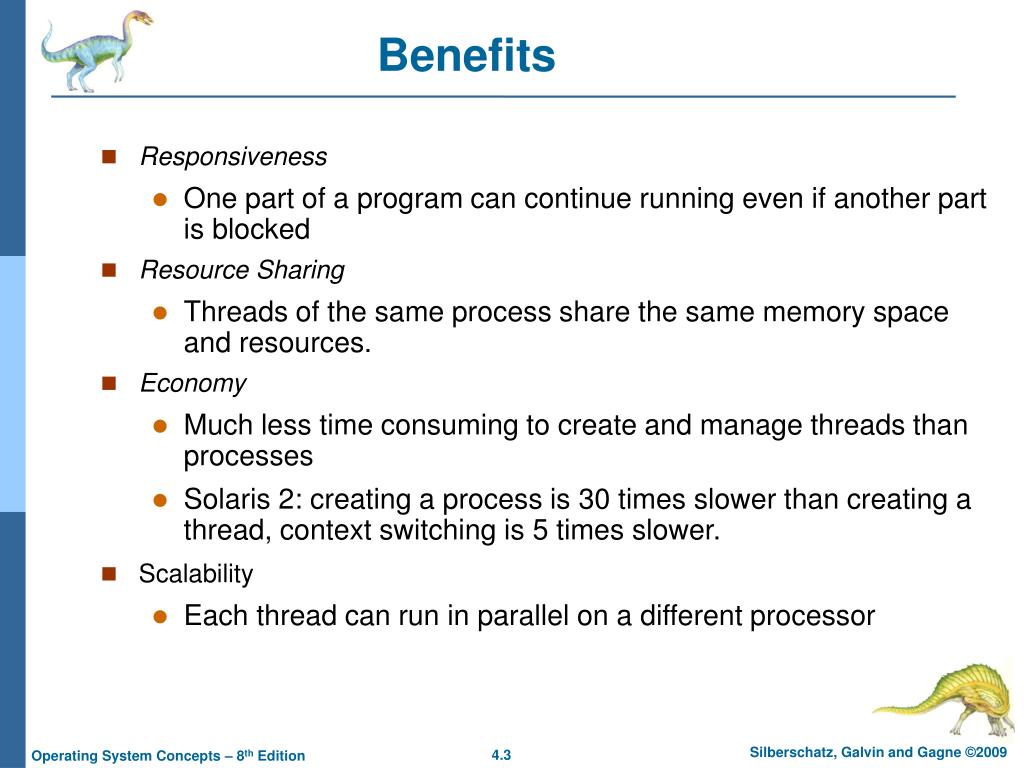

Benefits • Responsiveness • One part of a program can continue running even if another part is blocked • Resource Sharing • Threads of the same process share the same memory space and resources. • Economy • Much less time consuming to create and manage threads than processes • Solaris 2: creating a process is 30 times slower than creating a thread, context switching is 5 times slower. • Scalability • Each thread can run in parallel on a different processor

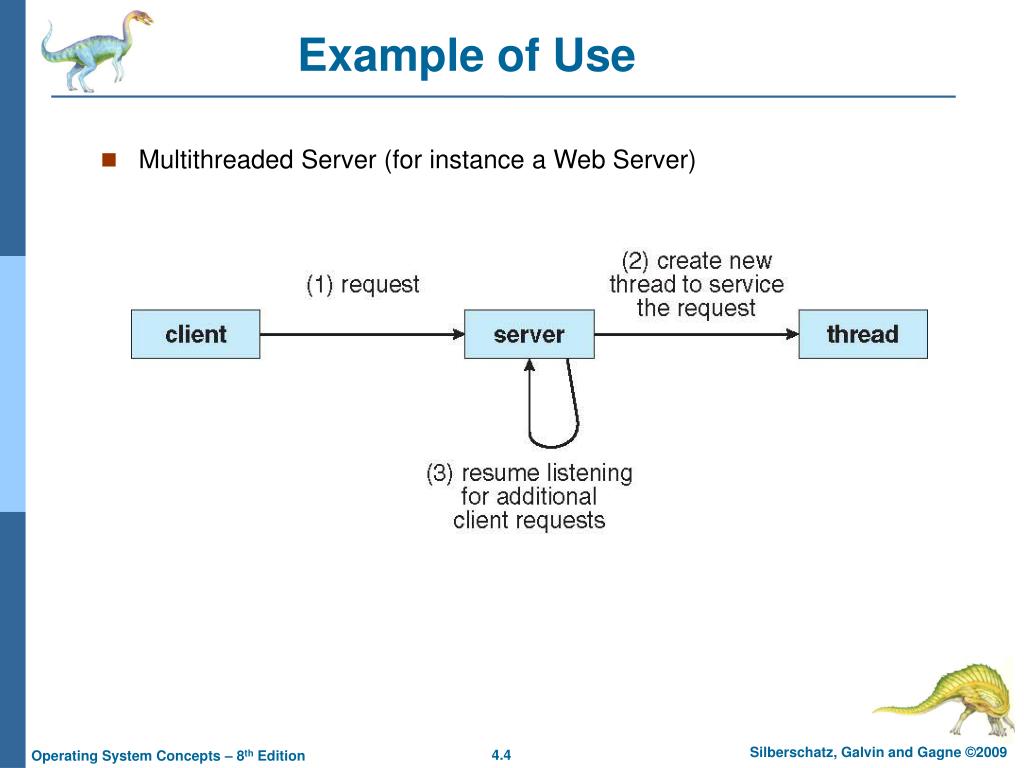

Example of Use • Multithreaded Server (for instance a Web Server)

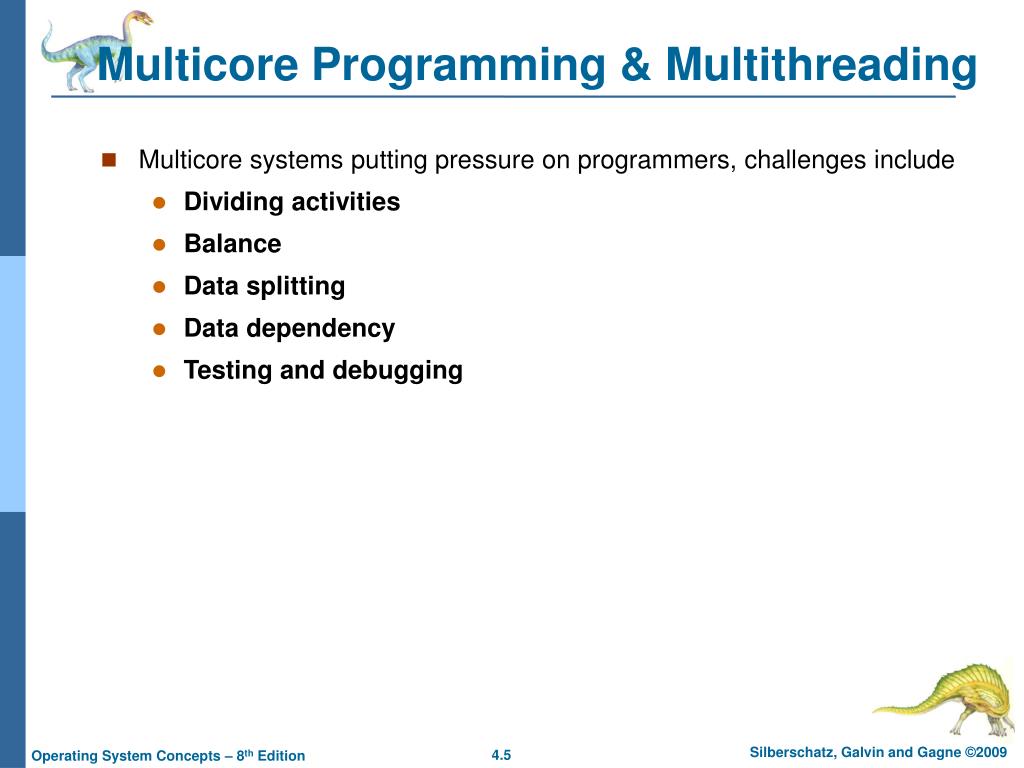

Multicore Programming & Multithreading • Multicore systems putting pressure on programmers, challenges include • Dividing activities • Balance • Data splitting • Data dependency • Testing and debugging

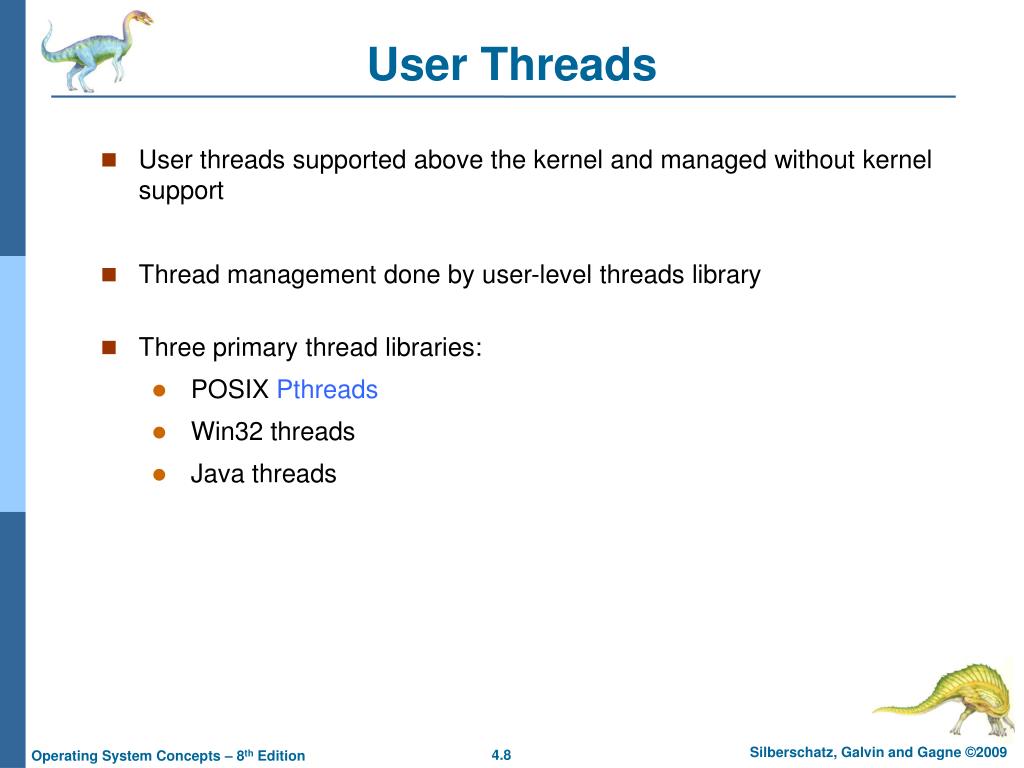

User Threads • User threads supported above the kernel and managed without kernel support • Thread management done by user-level threads library • Three primary thread libraries: • POSIX Pthreads • Win32 threads • Java threads

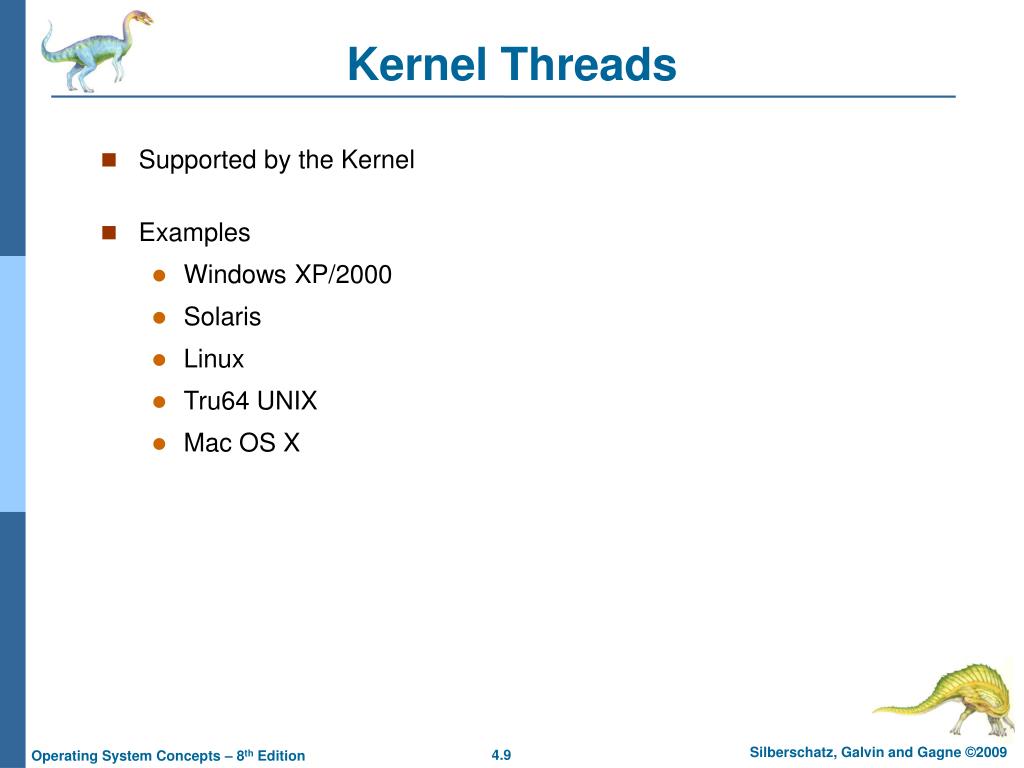

Kernel Threads • Supported by the Kernel • Examples • Windows XP/2000 • Solaris • Linux • Tru64 UNIX • Mac OS X

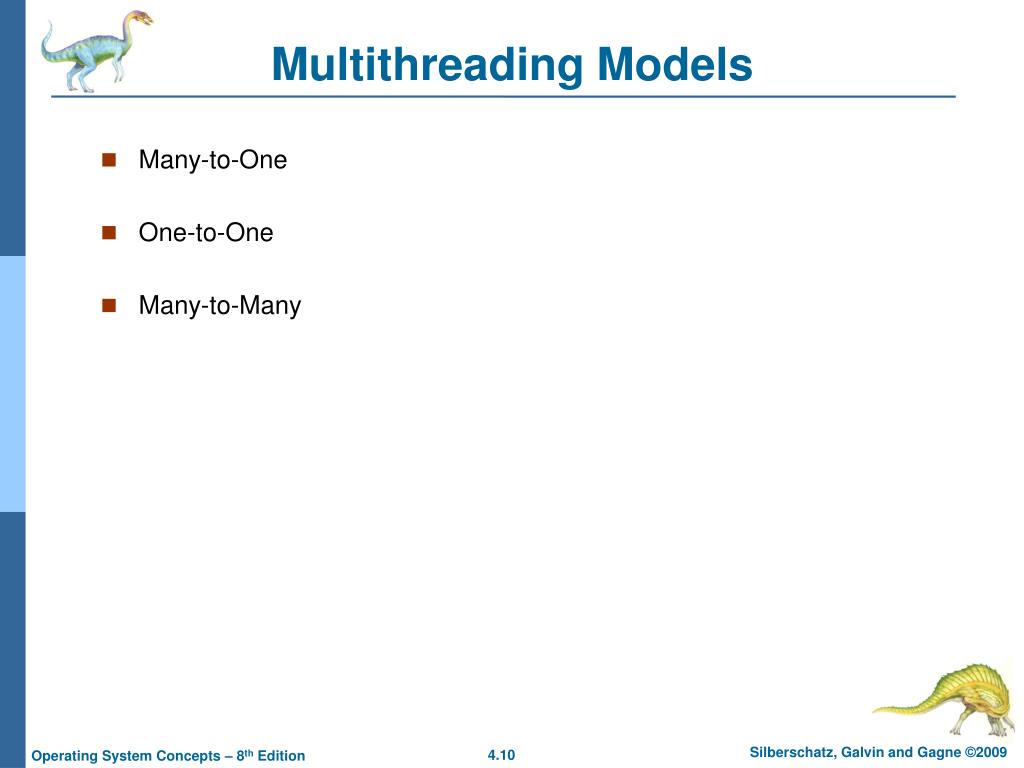

Multithreading Models • Many-to-One • One-to-One • Many-to-Many

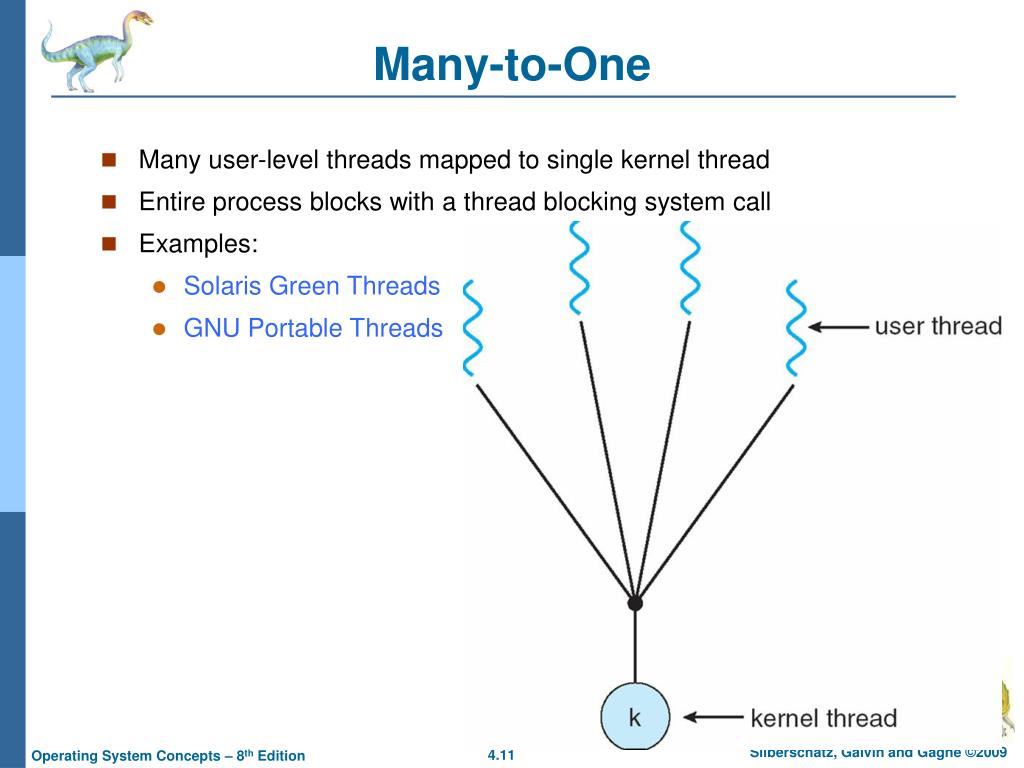

Many-to-One • Many user-level threads mapped to single kernel thread • Entire process blocks with a thread blocking system call • Examples: • Solaris Green Threads • GNU Portable Threads

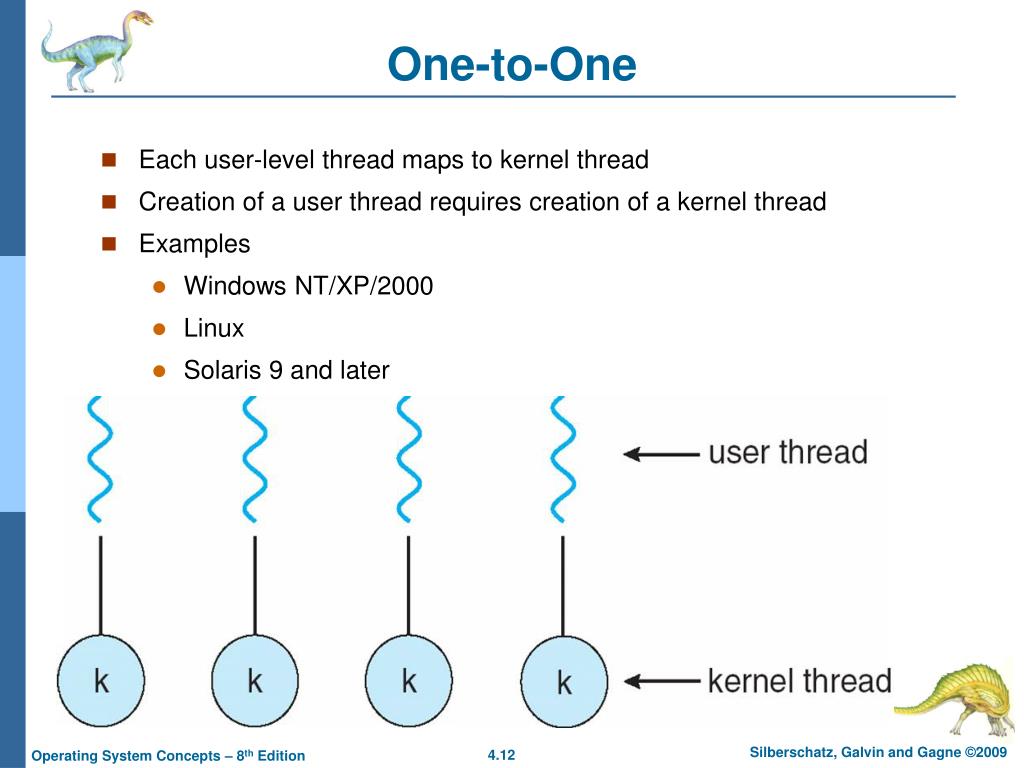

One-to-One • Each user-level thread maps to kernel thread • Creation of a user thread requires creation of a kernel thread • Examples • Windows NT/XP/2000 • Linux • Solaris 9 and later

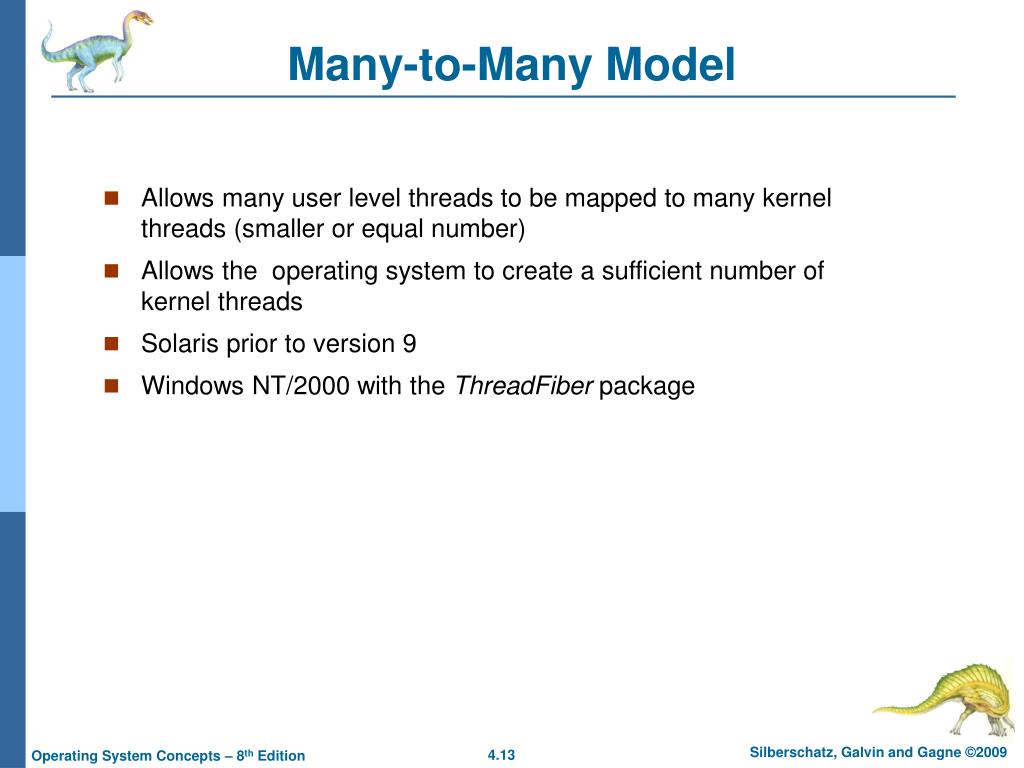

Many-to-Many Model • Allows many user level threads to be mapped to many kernel threads (smaller or equal number) • Allows the operating system to create a sufficient number of kernel threads • Solaris prior to version 9 • Windows NT/2000 with the ThreadFiber package

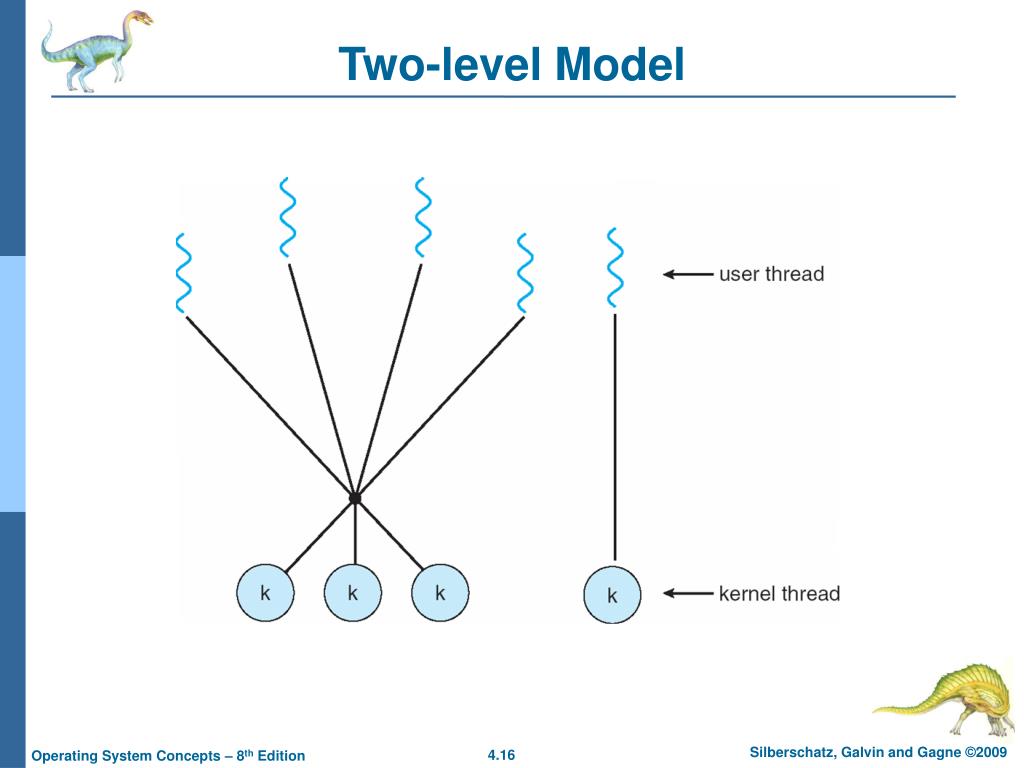

Two-level Model • Similar to M:M, except that it also allows a user thread to be bound to kernel thread • Examples • IRIX • HP-UX • Tru64 UNIX • Solaris 8 and earlier
Thread Libraries • Thread library provides programmer with API for creating and managing threads • Two primary ways of implementing • Library entirely in user space • Kernel-level library supported by the OS

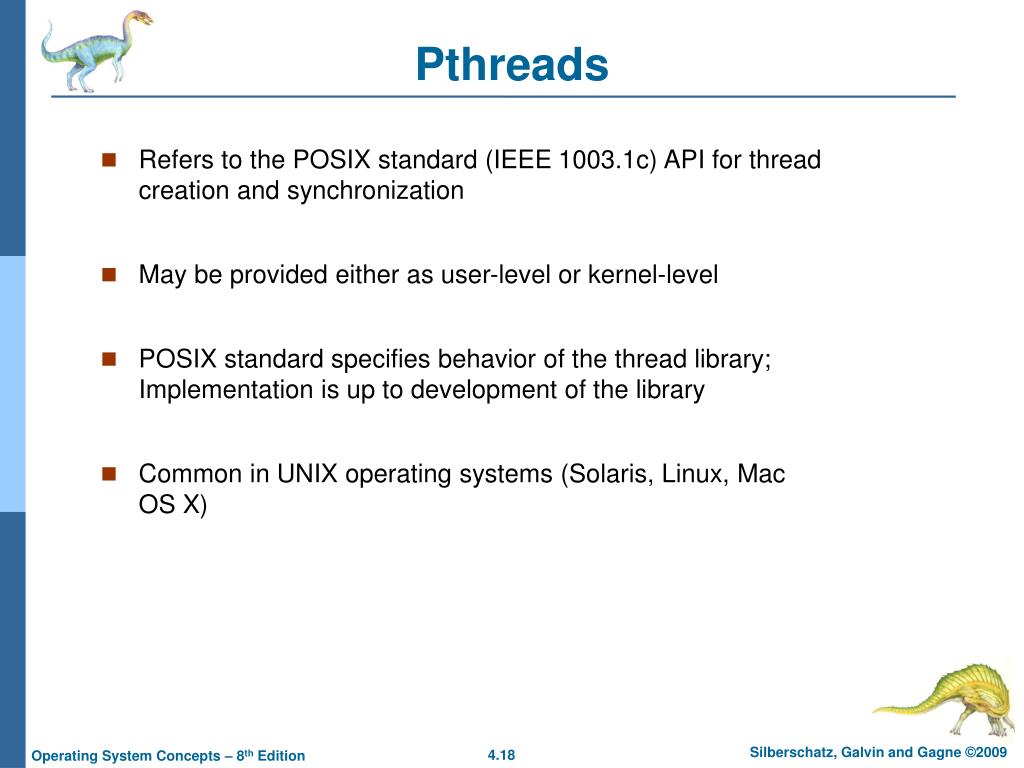

Pthreads • Refers to the POSIX standard (IEEE 1003.1c) API for thread creation and synchronization • May be provided either as user-level or kernel-level • POSIX standard specifies behavior of the thread library; Implementation is up to development of the library • Common in UNIX operating systems (Solaris, Linux, Mac OS X)

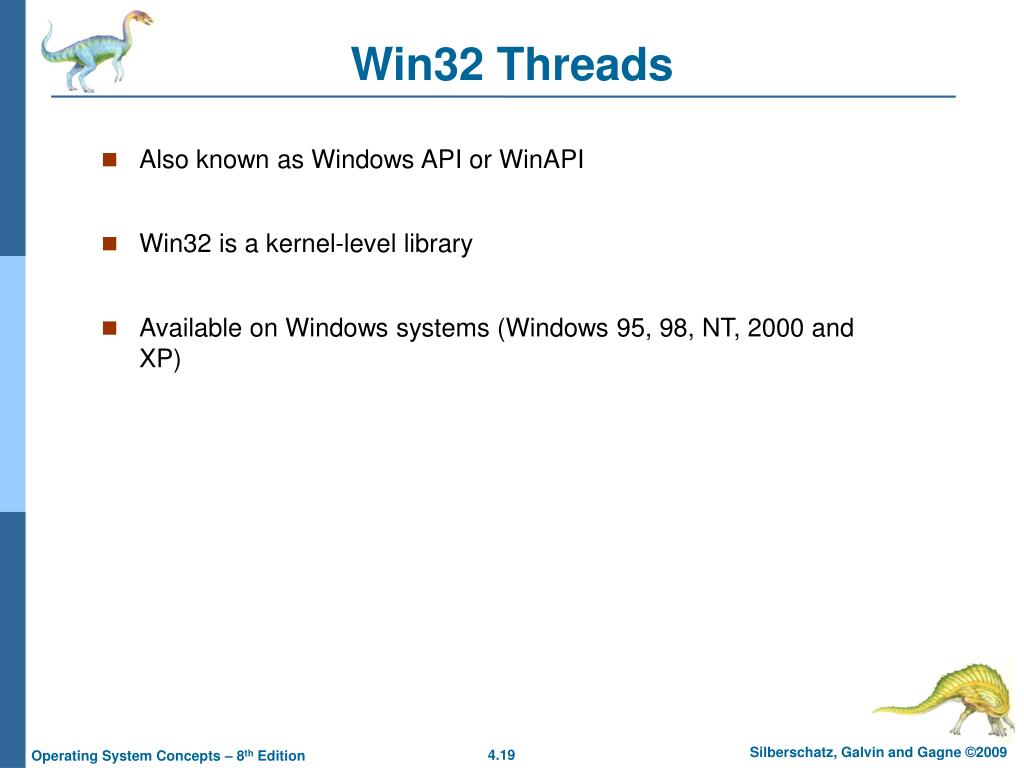

Win32 Threads • Also known as Windows API or WinAPI • Win32 is a kernel-level library • Available on Windows systems (Windows 95, 98, NT, 2000 and XP)

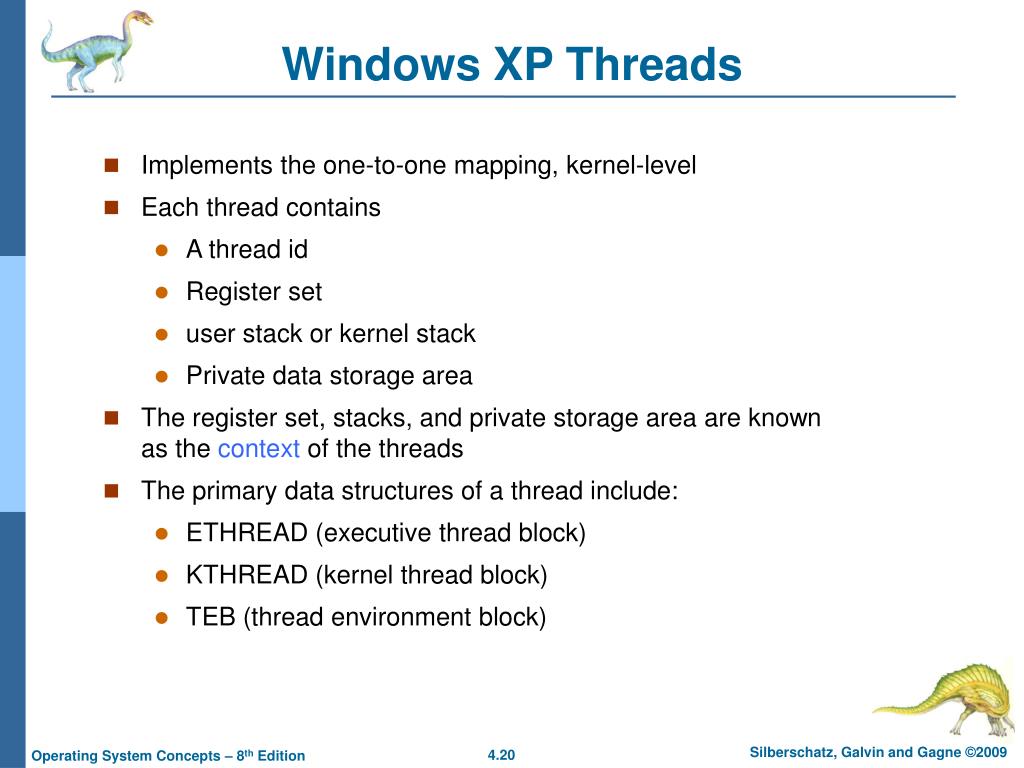

Windows XP Threads • Implements the one-to-one mapping, kernel-level • Each thread contains • A thread id • Register set • user stack or kernel stack • Private data storage area • The register set, stacks, and private storage area are known as the context of the threads • The primary data structures of a thread include: • ETHREAD (executive thread block) • KTHREAD (kernel thread block) • TEB (thread environment block)

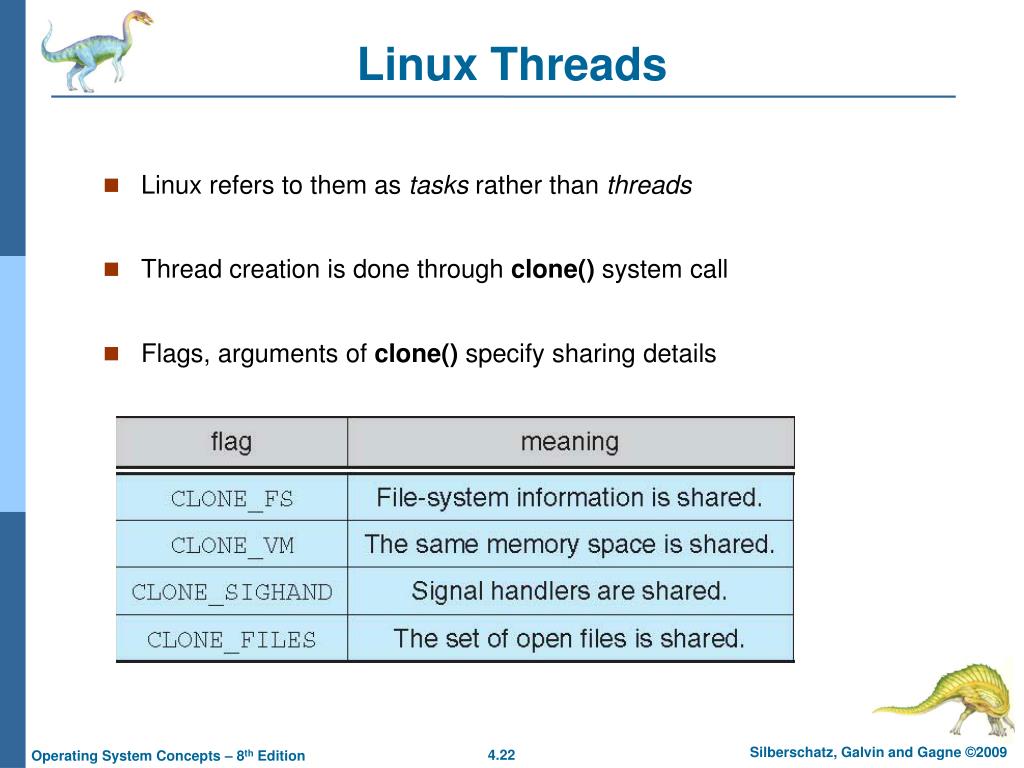

Linux Threads • Linux refers to them as tasks rather than threads • Thread creation is done through clone() system call • Flags, arguments of clone() specify sharing details

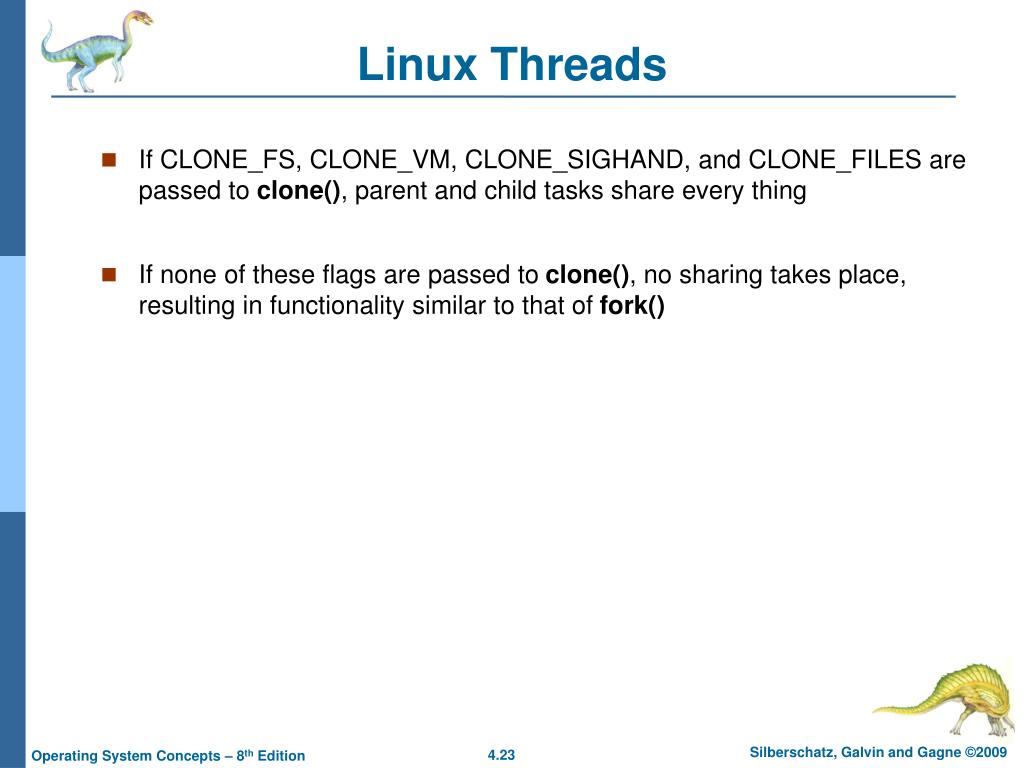

Linux Threads • If CLONE_FS, CLONE_VM, CLONE_SIGHAND, and CLONE_FILES are passed to clone(), parent and child tasks share every thing • If none of these flags are passed to clone(), no sharing takes place, resulting in functionality similar to that of fork()
