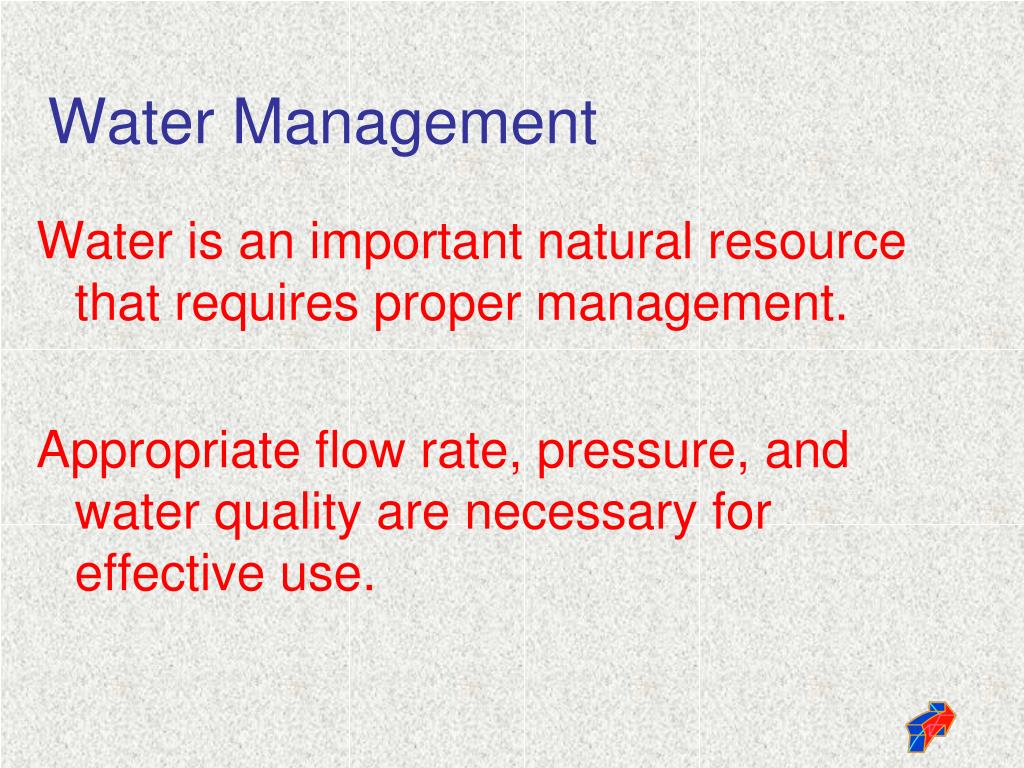

  1. Water Management • Water is an important natural resource that requires proper management. • Appropriate flow rate, pressure, and water quality are necessary for effective use.

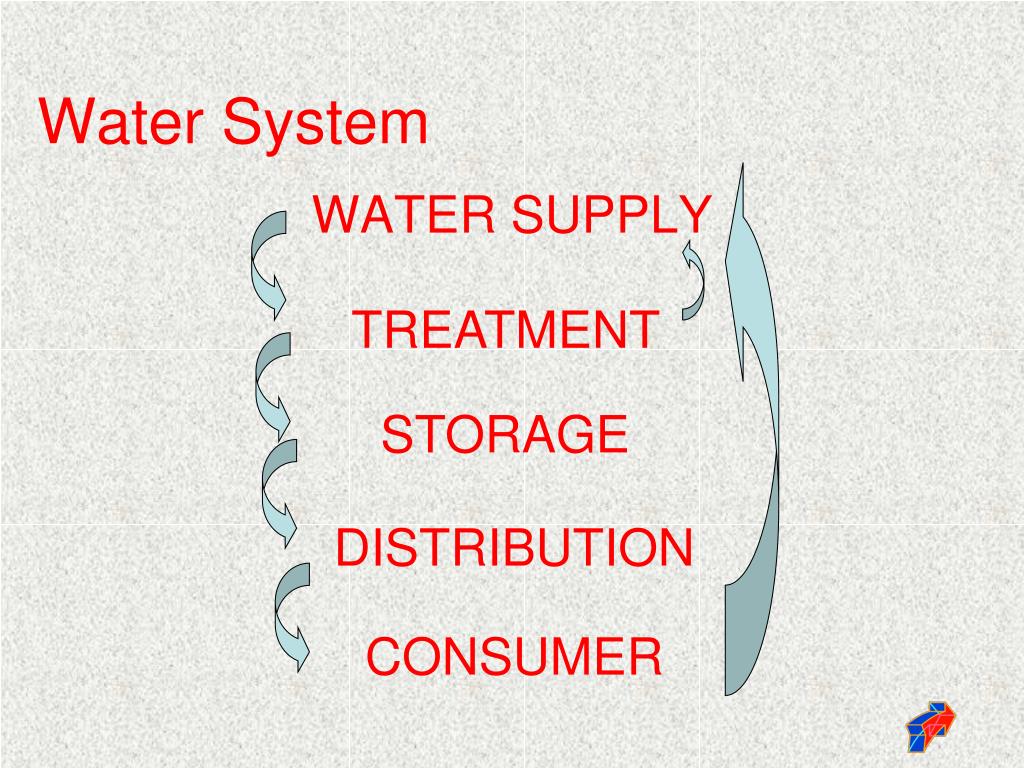

  2. Water System • WATER SUPPLY TREATMENT STORAGE DISTRIBUTION CONSUMER

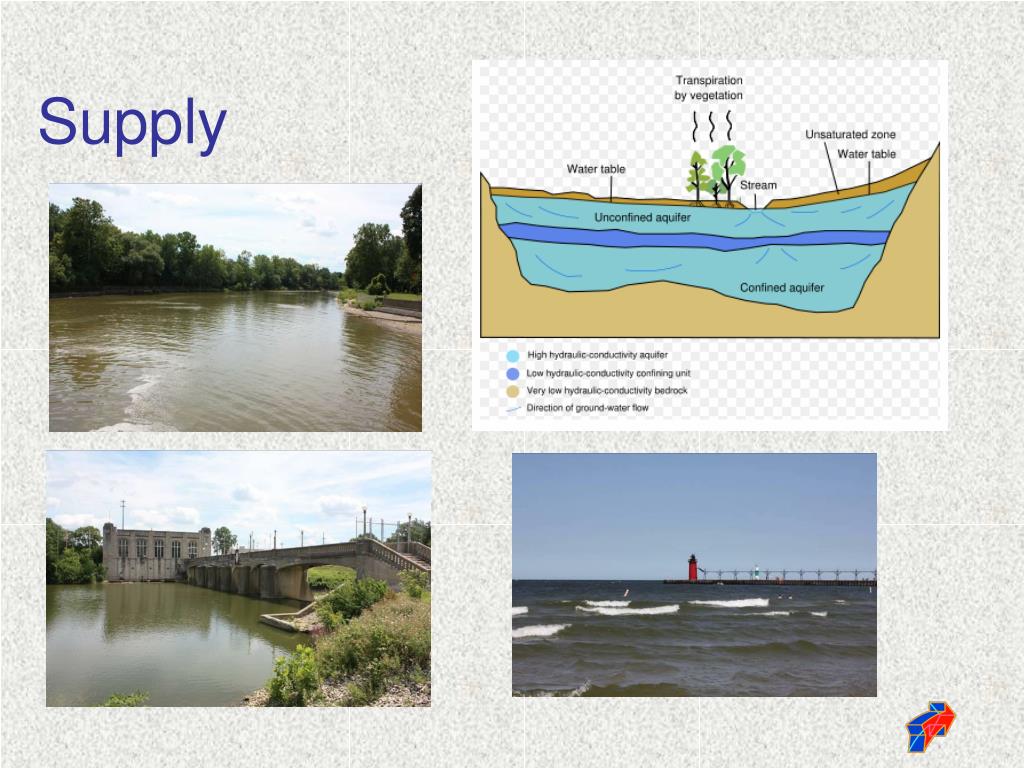

  3. Supply

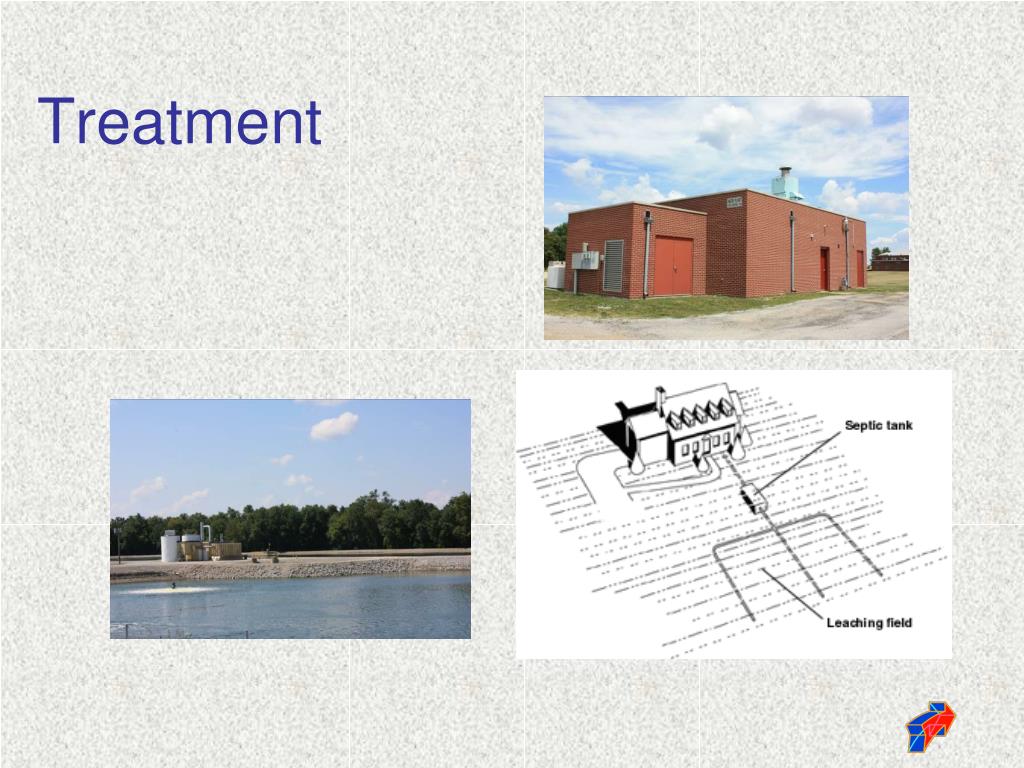

  4. Treatment

  5. Storage

  6. 35-50 psi Consumer 1 psi = 2.31 ft of water

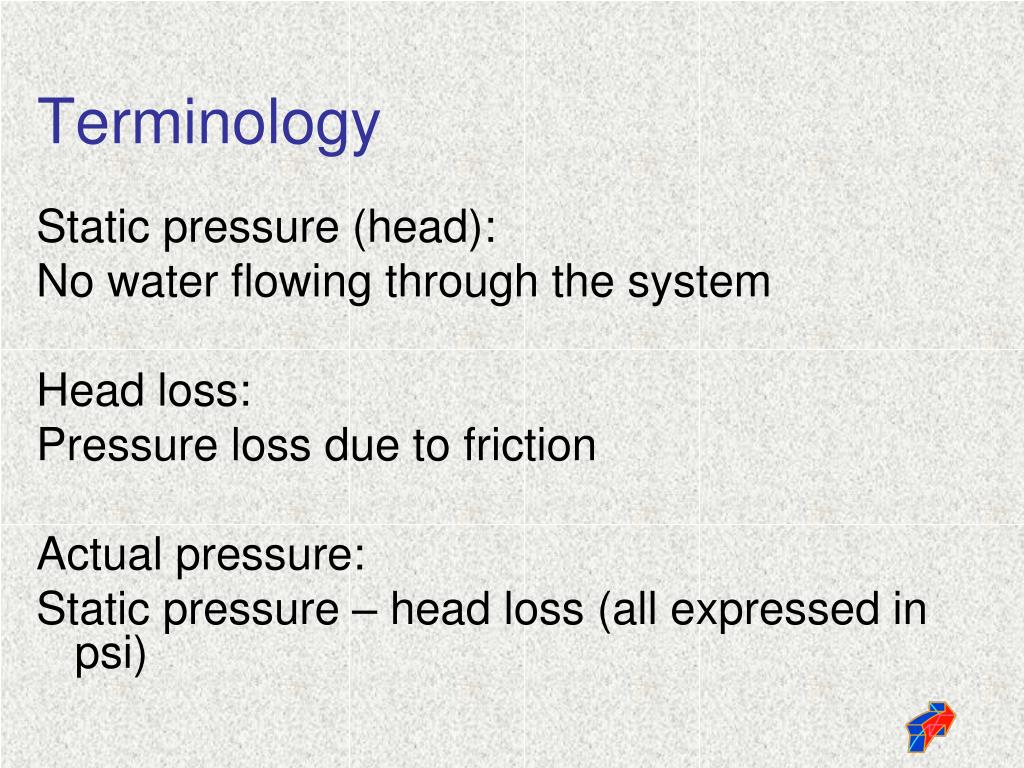

  7. Terminology • Static pressure (head): • No water flowing through the system • Head loss: • Pressure loss due to friction • Actual pressure: • Static pressure – head loss (all expressed in psi)

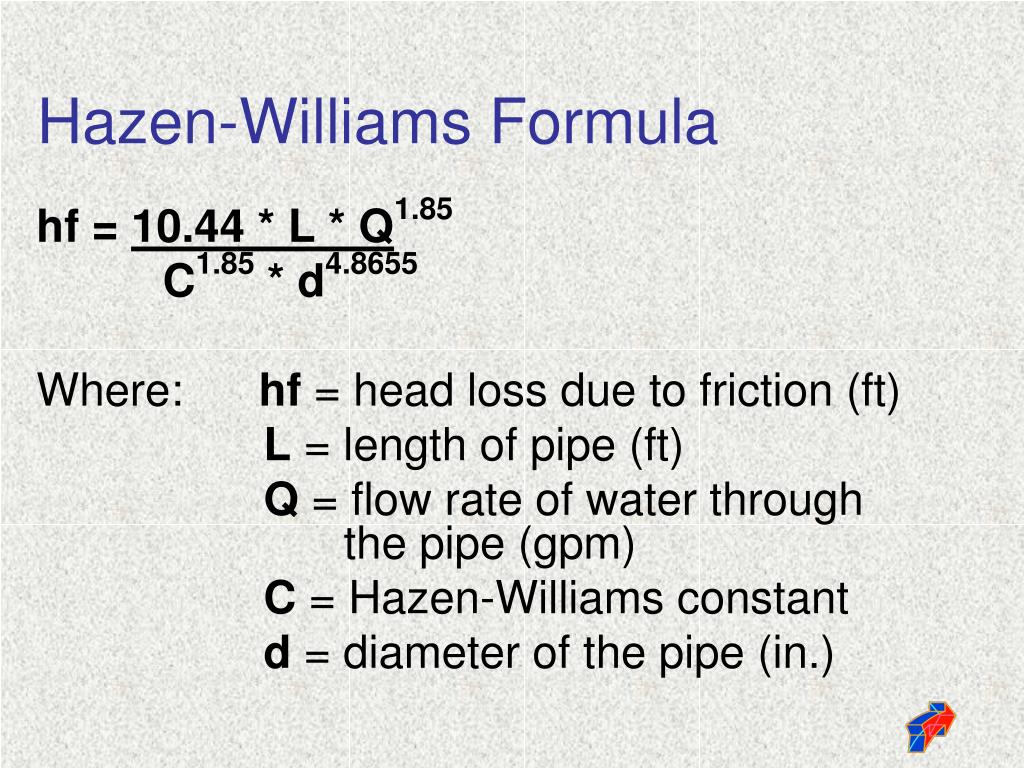

  8. Hazen-Williams Formula • hf = 10.44 * L * Q1.85 •           C1.85 * d4.8655 • Where:      hf = head loss due to friction (ft) • L = length of pipe (ft) • Q = flow rate of water through the pipe (gpm) • C = Hazen-Williams constant • d = diameter of the pipe (in.)

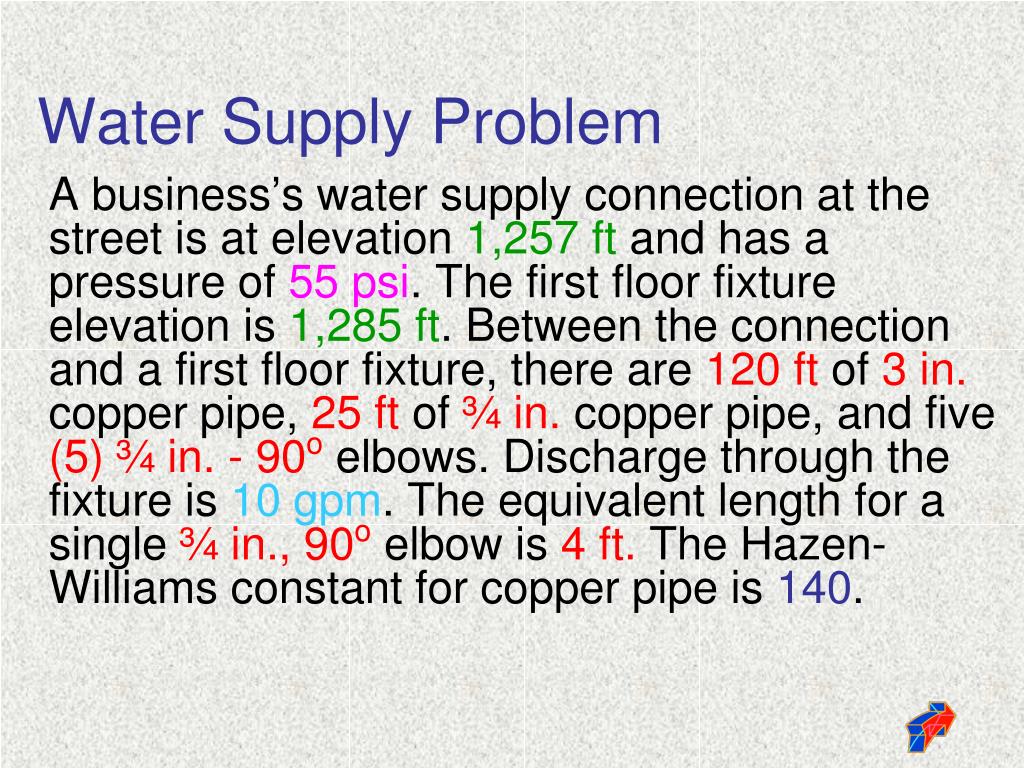

  9. Water Supply Problem • A business’s water supply connection at the street is at elevation 1,257 ft and has a pressure of 55 psi. The first floor fixture elevation is 1,285 ft. Between the connection and a first floor fixture, there are 120 ft of 3 in. copper pipe, 25 ft of ¾ in. copper pipe, and five (5) ¾ in. - 90o elbows. Discharge through the fixture is 10 gpm. The equivalent length for a single ¾ in., 90o elbow is 4ft. The Hazen-Williams constant for copper pipe is 140.

  10. Water Supply Problem • What is the pressure loss due to elevation change between the street connection and the first floor fixture? • 1st floor elevation – street elevation • 1,285 ft – 1,257 ft = 28 ft • Convert to psi: • 28 ft ÷ 2.31 ft/psi = 12.12 psi

  11. Total Equivalent Length of ¾ in. Pipe • = Pipe length + fitting equivalent length • = 25 ft + (5 elbows * 4 ft/elbow) • = 45.00 ft

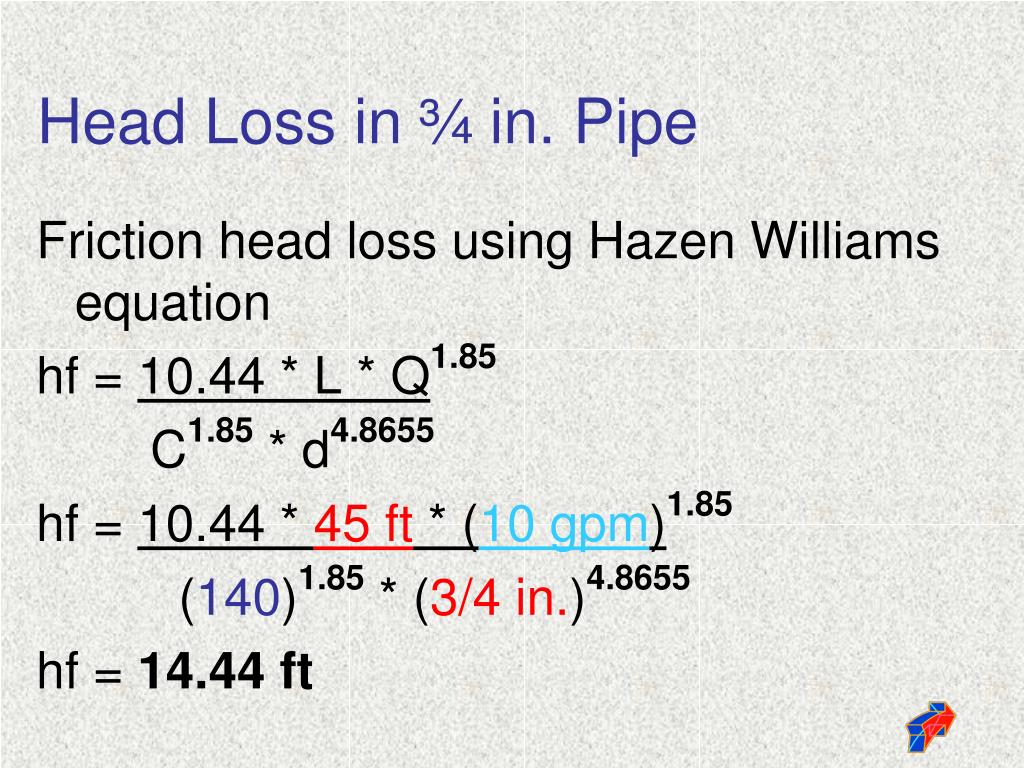

  12. Head Loss in ¾ in. Pipe • Friction head loss using Hazen Williams equation • hf = 10.44 * L * Q1.85 • C1.85 * d4.8655 • hf = 10.44 * 45 ft * (10 gpm)1.85 • (140)1.85 * (3/4 in.)4.8655 • hf = 14.44 ft

  13. Head Loss in 3 in. Pipe • hf = 10.44 * L * Q1.85 • C1.85 * d4.8655 • hf = 10.44 * 120 ft * (10 gpm) 1.85 • (140)1.85 * (3 in.) 4.8655 • hf = 0.05 ft

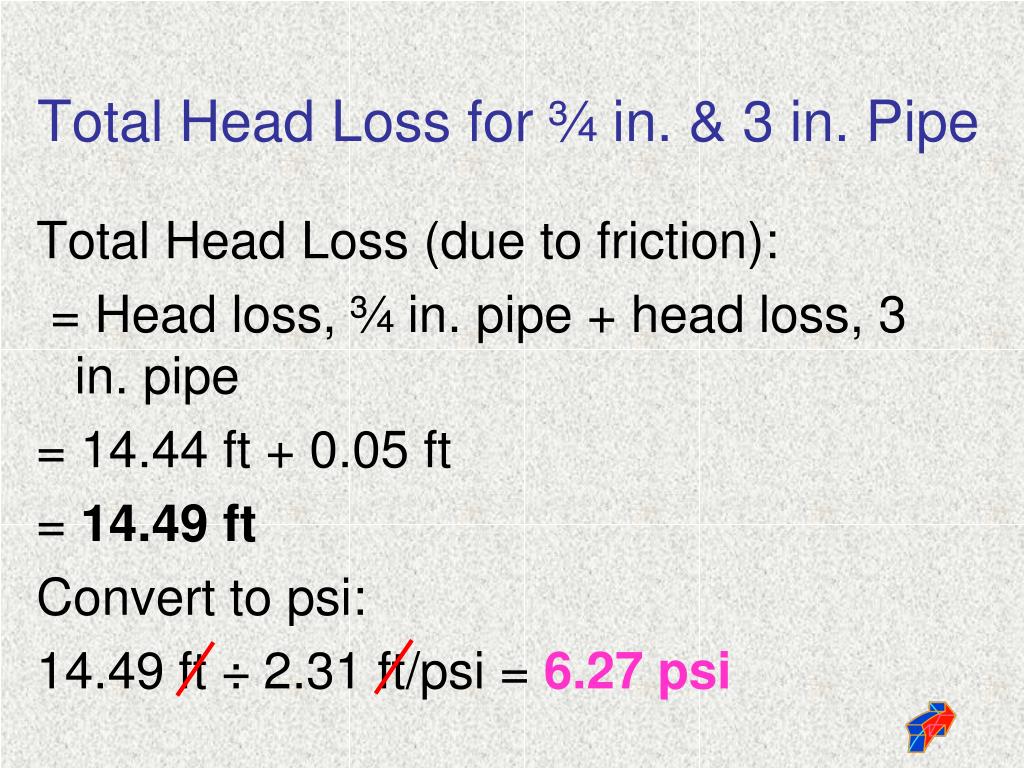

  14. Total Head Loss for ¾ in. & 3 in. Pipe • Total Head Loss (due to friction): • = Head loss, ¾ in. pipe + head loss, 3 in. pipe • = 14.44 ft + 0.05 ft • = 14.49 ft • Convert to psi: • 14.49 ft ÷ 2.31 ft/psi = 6.27 psi

  15. Water Supply Problem What is the pressure in units of psi at the first floor fixture? Actual pressure = street pressure – static difference – head loss = 55 psi – 12.12 psi – 6.27 psi = 36.61 psi
