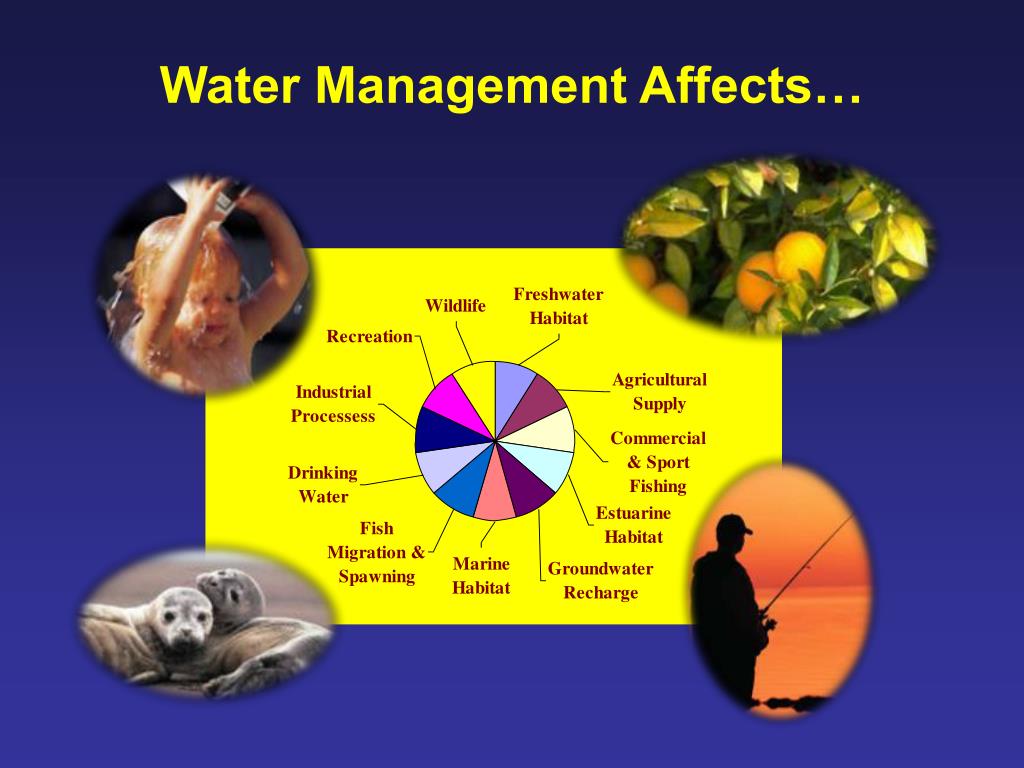

Water Management Water Management Affects… Dewatering Dewatering may include damming, stream bypass, pumping, and/or draining the site. Dewatering is the removal of water from the work area.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha

Download Presentation

Water Management

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript




Dewatering l.jpg
Dewatering

Dewatering may include damming, stream bypass, pumping, and/or draining the site.

Dewatering is the removal of water from the work area.

The purpose is to prevent water from interfering with the work, and to prevent the discharge of contaminants such as suspended sediment and concrete.

The dewatering of an adromous fish stream must be conducted in consultation with the Department of Fish and Game and NOAA Fisheries.


Slide4 l.jpg

Dewatering:Removal of water from the work site

  • Permitting – California Dept. of Fish & Game requires a Streambed Alteration Agreement

  • Consult with Fish/Aquatic Biologist.

  • Intakes and outlets designed to minimize turbidity.

  • Intakes should be screened with wire mesh not larger than 5 millimeters to prevent amphibians from entering pump system.

  • Filtration/settling system must be included to reduce downstream turbidity.


Dewatering options l.jpg
Dewatering Options

Cofferdams – Sand Bag and Gravel Berm

Gravel Berm Cofferdam

Cofferdams may be made of rock, sandbags, wood, or aqua barrier.

A cofferdam is a temporary structure built into a waterway to enclose a construction area and reduce sediment pollution from construction work in, or adjacent to water.

The most common method used in small streams is gravel berms made from river run rock (uniformly graded – no fines) wrapped in plastic or sandbags.

More information on cofferdams is located in FishNet Roads ManualAppendix A-BMPs Toolbox – Water Management BMPs (page A-151).

Illustrations courtesy of FishNet 4C

Sand Bag Cofferdam


Slide6 l.jpg

Sand Bag Cofferdams

Examples of cofferdams made of sandbags with plastic sheeting.

The top photo is from the mainstem Trinity River while the lower photo is a small creek in coastal Humboldt County.

Water collected behind the dam is pumped around the construction site, filtered for sediment, and putback into the river/stream.

Photo courtesy of Caltrans

Photo by Michael Love


Dewatering options7 l.jpg
Dewatering Options

Aqua Barrier

  • Applications & Benefits

  • Used for water damming, water diversion, and silt containment

  • Portable, re-usable, and comes in a variety of sizes

  • Limitations

  • May need permit

  • Need abundant water

  • Not for steep gradients

Illustration courtesy of FishNet 4C

Aqua barriers are temporary, re-usable water-filled plastic tubes installed as dams. They come in a variety of sizes and are easily transported when drained. More information on Aqua Barriers is located in FishNet Roads ManuaLAppendix A-BMPs Toolbox – Water Management BMPs (page A-149).


Examples of shallow trench dewatering system l.jpg
Examples of Shallow Trench Dewatering System

Here are simple dewatering systems for shallow trenching.

The drawing at left shows the use of a perforated drum and pipe dropped at the low spot in the trench to dewater. The fabric around the pipe will act as filtration.

The drawing on right shows perforated pipe wrapped with fabric and surrounded by rock aggregate about a half inch in diameter. The rocks and fabric will act as filtration to remove fine particles.


Examples of large scale dewatering system l.jpg
Examples of Large Scale Dewatering System

For large dewatering of groundwater, the dewatering system will consist of above ground tanks to settle sediment before it is discharged into an authorized drain or creek.


Slide10 l.jpg

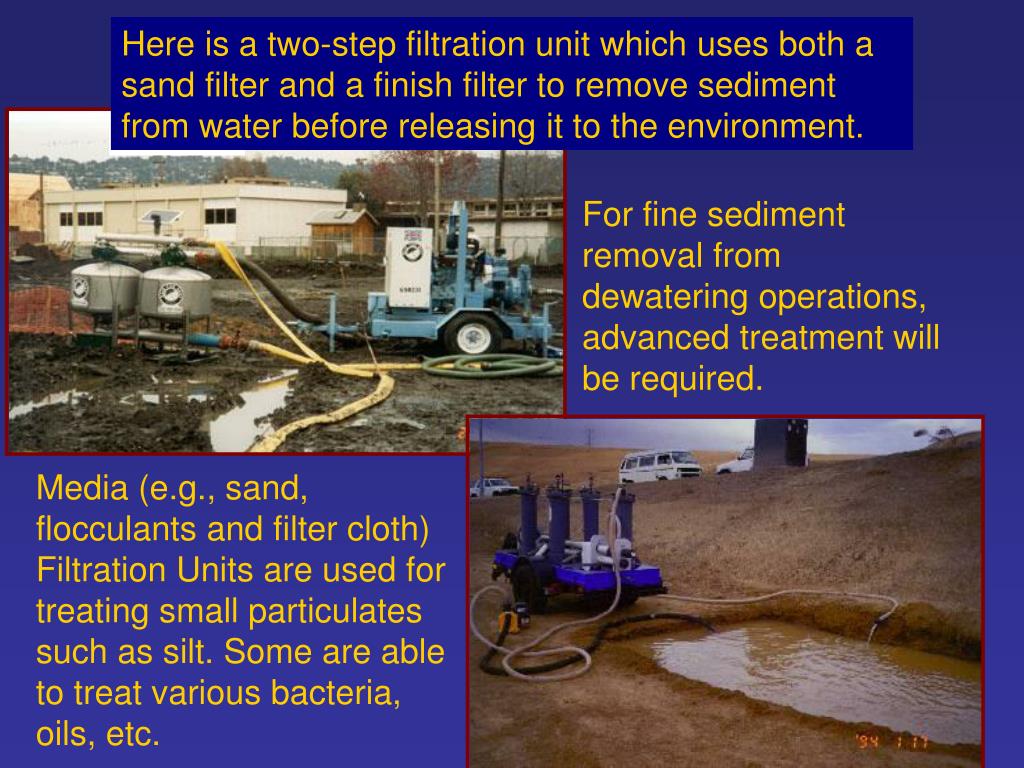

Media Filtration Units

Here is a two-step filtration unit which uses both a sand filter and a finish filter to remove sediment from water before releasing it to the environment.

Sand filter

For fine sediment removal from dewatering operations, advanced treatment will be required.

Media (e.g., sand, flocculants and filter cloth) Filtration Units are used for treating small particulates such as silt. Some are able to treat various bacteria, oils, etc.


Slide11 l.jpg

Dirt bag may not be effective filtration initially because it takes time for the water to swell the fibers of the bag enough for the filtering of small particles to begin.


Water diversion options l.jpg
Water Diversion Options it takes time for the water to swell the fibers of the bag enough for the filtering of small particles to begin.

Diversion Berm

  • Applications & Benefits

  • Berm used to direct water away from unstable slope

  • Made from sandbags or aggregate material/plastic

  • Temporary use

  • Inexpensive

BERM

Unstable Slope

  • Limitations

  • Not for fast flowing water

  • Not for replacement of failing roadway or shoulder

ROAD

Illustration by Tyler Ledwith


Water diversion options13 l.jpg
Water Diversion Options it takes time for the water to swell the fibers of the bag enough for the filtering of small particles to begin.

Slope Drain

(Temporary, Overside, Swale)

  • Applications & Benefits

  • Used to direct water away from unstable slope

  • Made from PVC, ABS, or corrugated metal.

  • Temporary use

  • Limitations

  • Gully erosion if fails

  • Could be tricky to install

Illustration courtesy of FishNet 4C


Temporary run on diversion l.jpg
Temporary Run-on Diversion it takes time for the water to swell the fibers of the bag enough for the filtering of small particles to begin.

  • Divert upland drainage flow from work site

  • Stabilize all disturbed areas prior to rainy season with spray-on application. Mulch, tackifier, Bonded Fiber Matrix (BFM) etc.

  • Control site drainage by installing appropriate combination of BMPs.

  • Good house keeping and maintenance of BMPs.

  • Inspect weekly and document all observations and corrective measures.


Slide15 l.jpg

Temporary it takes time for the water to swell the fibers of the bag enough for the filtering of small particles to begin.

Diversion of Run-on

using plastic pipe


Example of diversion of run on l.jpg
Example of Diversion it takes time for the water to swell the fibers of the bag enough for the filtering of small particles to begin.of Run-on

Erosion Control Blankets are keyed in under fiber rolls to mitigate erosion and sediment.

Fiber rolls are also used as check dams to control the velocity of run-on. Fiber rolls work as check dams in this situation because they can be properly anchored with stakes.

This will allow for clean run-on.


Slide17 l.jpg

In this example of run-on diversion BMPs, we see that source control was first addressed in the form of Bonded Fiber Matrix covering on the left side, mulch and silt fence on the right, and erosion control blanket in the middle of the channel to transport clean run-on.

Diversion of Run-on


Slide18 l.jpg

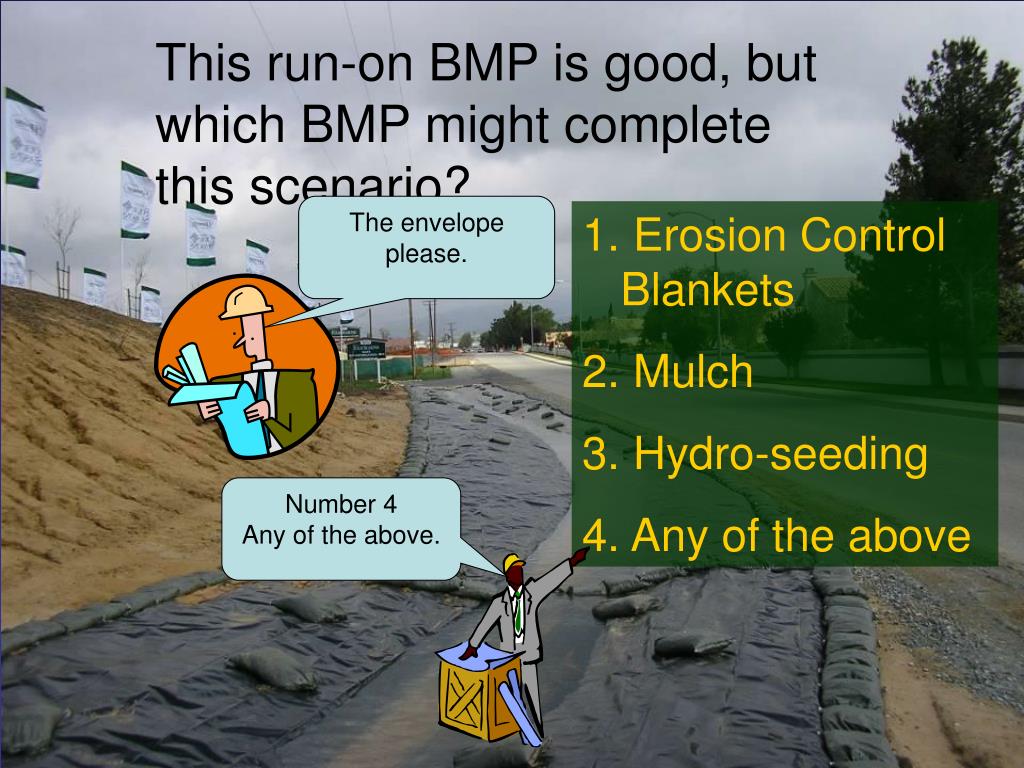

The envelope please. control was first addressed in the form of Bonded Fiber Matrix covering on the left side, mulch and silt fence on the right, and erosion control blanket in the middle of the channel to transport clean run-on.

Number 4

Any of the above.

This run-on BMP is good, but which BMP might complete this scenario?

  • Erosion Control Blankets

  • Mulch

  • Hydro-seeding

  • Any of the above


It pays to do it right the first time l.jpg

Temporarily control was first addressed in the form of Bonded Fiber Matrix covering on the left side, mulch and silt fence on the right, and erosion control blanket in the middle of the channel to transport clean run-on.

Divert Run-on

It pays to do it right the first time!


Environmental barricades l.jpg
Environmental Barricades control was first addressed in the form of Bonded Fiber Matrix covering on the left side, mulch and silt fence on the right, and erosion control blanket in the middle of the channel to transport clean run-on.

Environmental barricades come in various shapes, sizes and materials, from sand or gravel bags to manufactured systems such as the one in this photo.

These manufactured barricades have a variety of advantages over sand or gravel bags in that they may be used for:

Other advantages are:

Rental Options

Recyclable

Replaces Sandbags

Labor Saving

Spill Containment

Flood Control

Erosion Control

Water Filtration


Slide21 l.jpg

Environmental Barriers such as this one are modular and may be configured to fit almost any situation. Each module is a hollow plastic mold that weighs 45 to 50 pounds. When filled with water each module will weigh more than 400 pounds.

Environmental Barricade


Slide22 l.jpg

Portable Dewatering Unit using an Environmental Barrier be configured to fit almost any situation. Each module is a hollow plastic mold that weighs 45 to 50 pounds. When filled with water each module will weigh more than 400 pounds.


Slide23 l.jpg

Environmental Barricade used for a sediment holding tank be configured to fit almost any situation. Each module is a hollow plastic mold that weighs 45 to 50 pounds. When filled with water each module will weigh more than 400 pounds.

Notice the plugs that allow for gradual release of water.


For more information on water management refer to the fishnet roads manual l.jpg
For more information on be configured to fit almost any situation. Each module is a hollow plastic mold that weighs 45 to 50 pounds. When filled with water each module will weigh more than 400 pounds.Water ManagementRefer to the Fishnet Roads Manual

  • Chapter 6: Working in and Around Stream Channels

    • Dewatering

  • Appendix A: BMP Toolbox – Water Management BMPs
