  1. UCLA Types of RF plasma sources • Old RIE parallel plate etcher (GEC reference cell) • Inductively coupled plasmas (ICPs) • New dual frequency capacitively coupled plasmas (CCPs) • Helicon wave sources (HWS)

  2. UCLA Schematic of a capacitive discharge

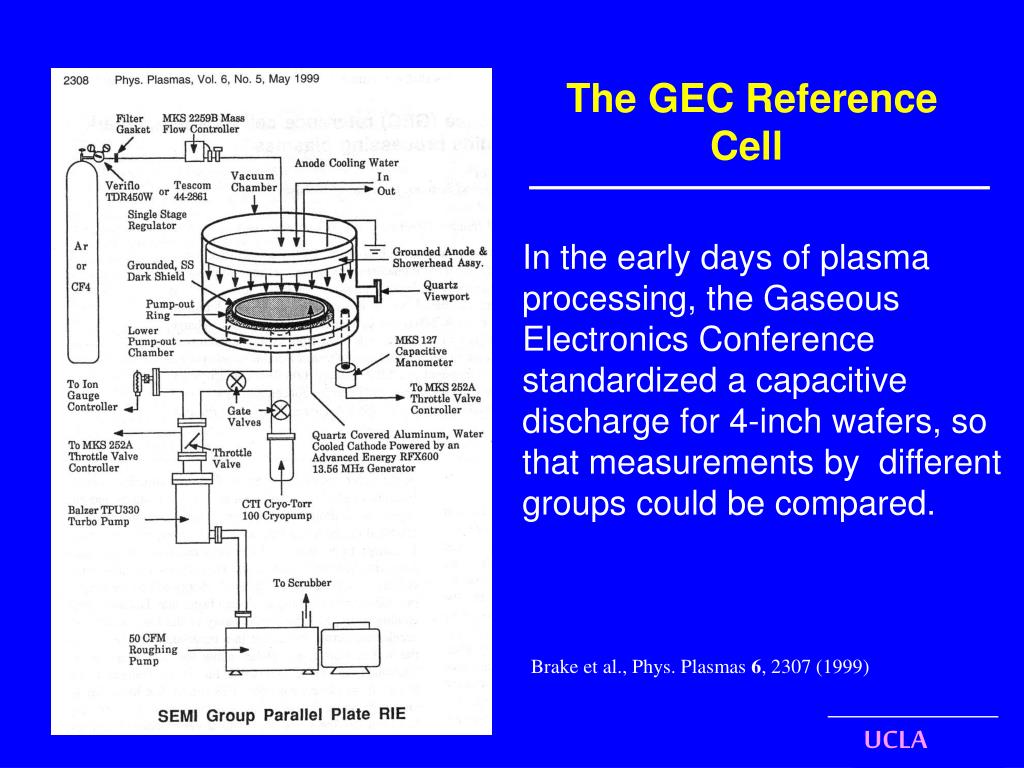

  3. UCLA The GEC Reference Cell In the early days of plasma processing, the Gaseous Electronics Conference standardized a capacitive discharge for 4-inch wafers, so that measurements by different groups could be compared. Brake et al., Phys. Plasmas 6, 2307 (1999)

  4. UCLA Problems with the original RIE discharge • The electrodes have to be inside the vacuum • Changing the power changes both the density and • the sheath drop • Particulates tend to form and be trapped • Densities are low relative to the power used • In general, too few knobs to turn to control the ion • and electron distributions and the plasma uniformity

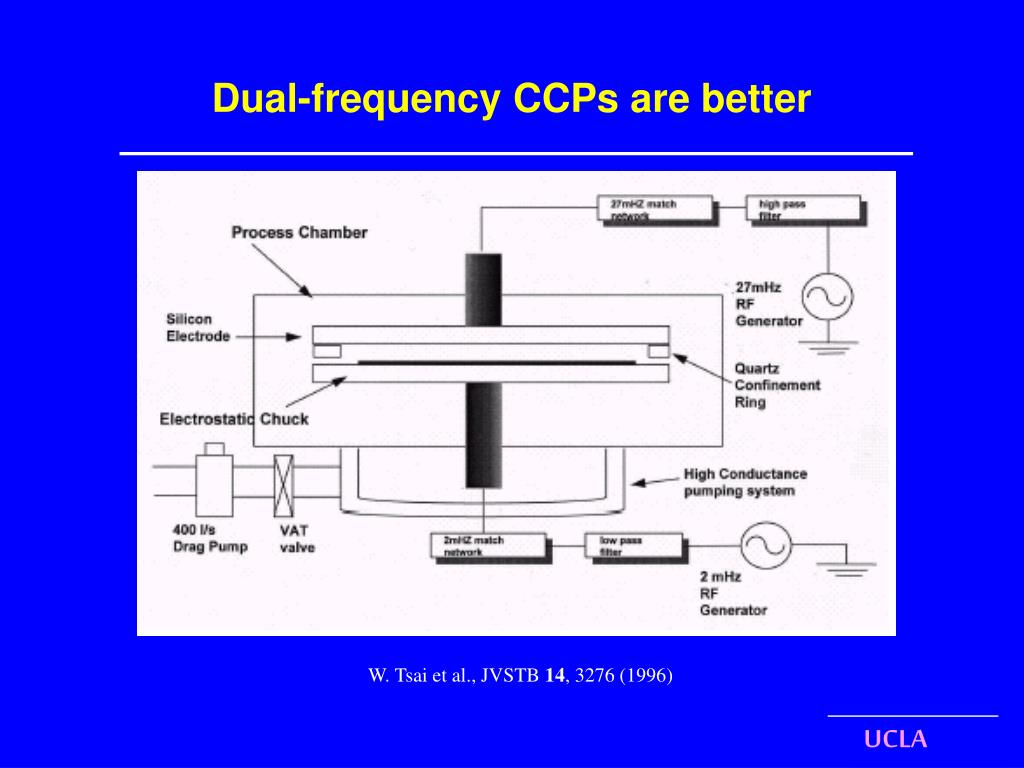

  5. UCLA Dual-frequency CCPs are better W. Tsai et al., JVSTB 14, 3276 (1996)

  6. UCLA One advantage of a capacitive discharge Fast and uniform gas feed for depositing amorphous silicon on very large glass substrates for displays (Applied Komatsu)

  7. UCLA Types of RF plasma sources • Old RIE parallel plate etcher (GEC reference cell) • New dual frequency capacitively coupled plasmas (CCPs) • Helicon wave sources (HWS) • Inductively coupled plasmas (ICPs)

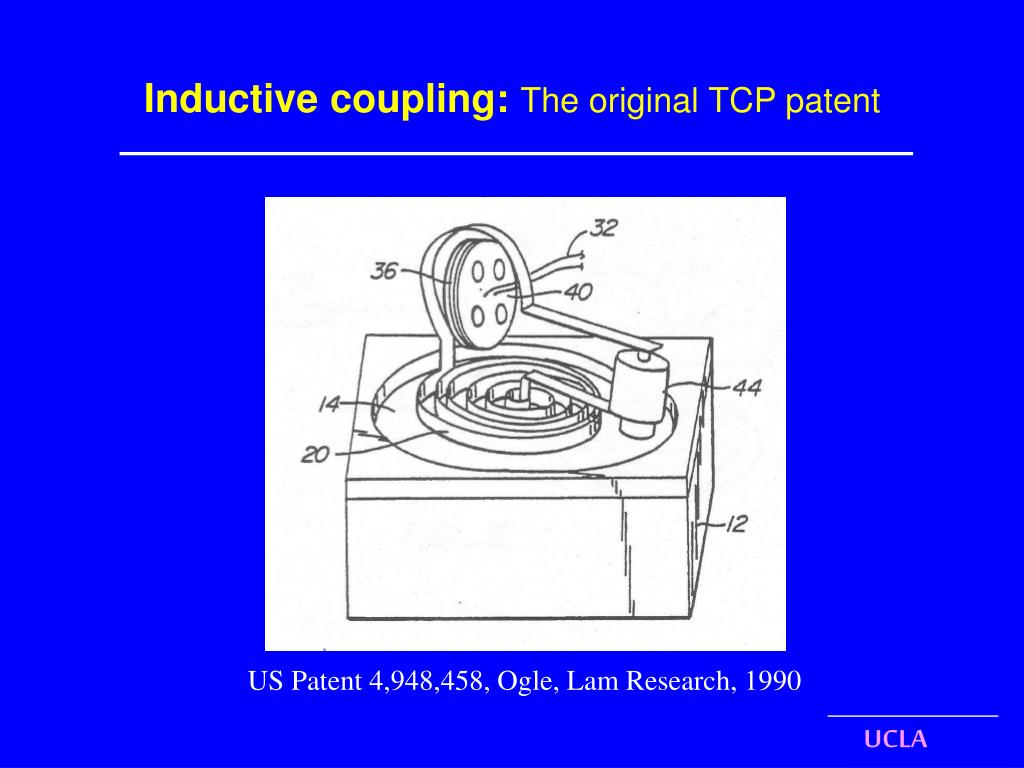

  8. UCLA Inductive coupling: The original TCP patent US Patent 4,948,458, Ogle, Lam Research, 1990

  9. UCLA The Lam TCP (Transformer Coupled Plasma) Simulation by Mark Kushner

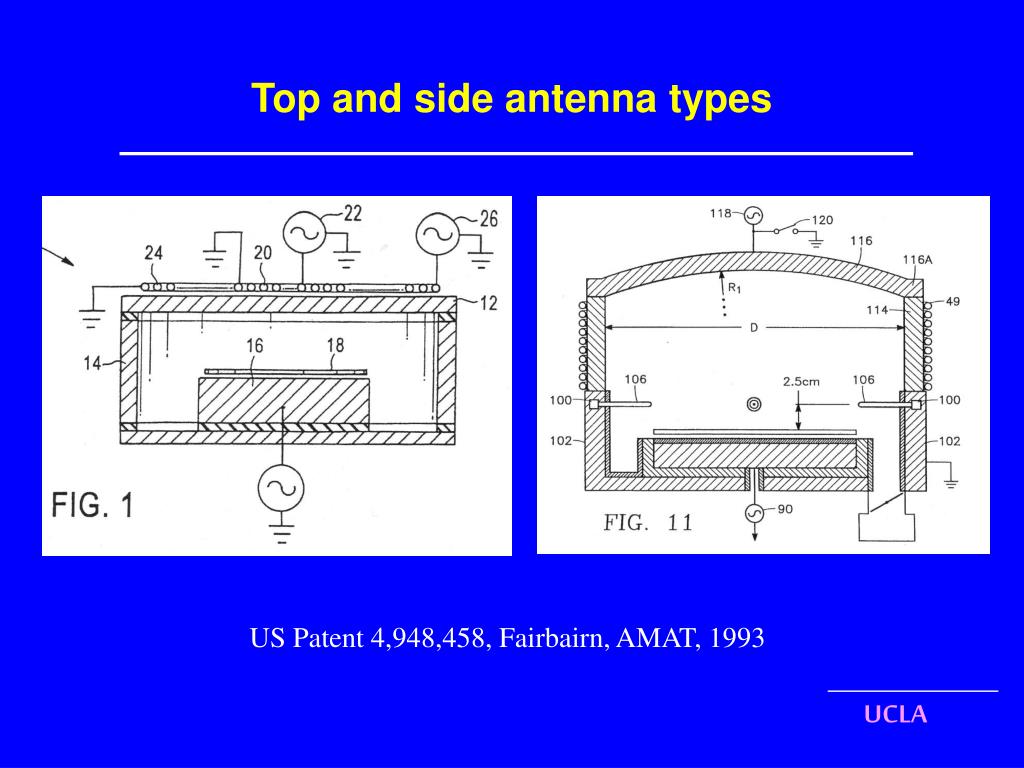

  10. UCLA Top and side antenna types US Patent 4,948,458, Fairbairn, AMAT, 1993

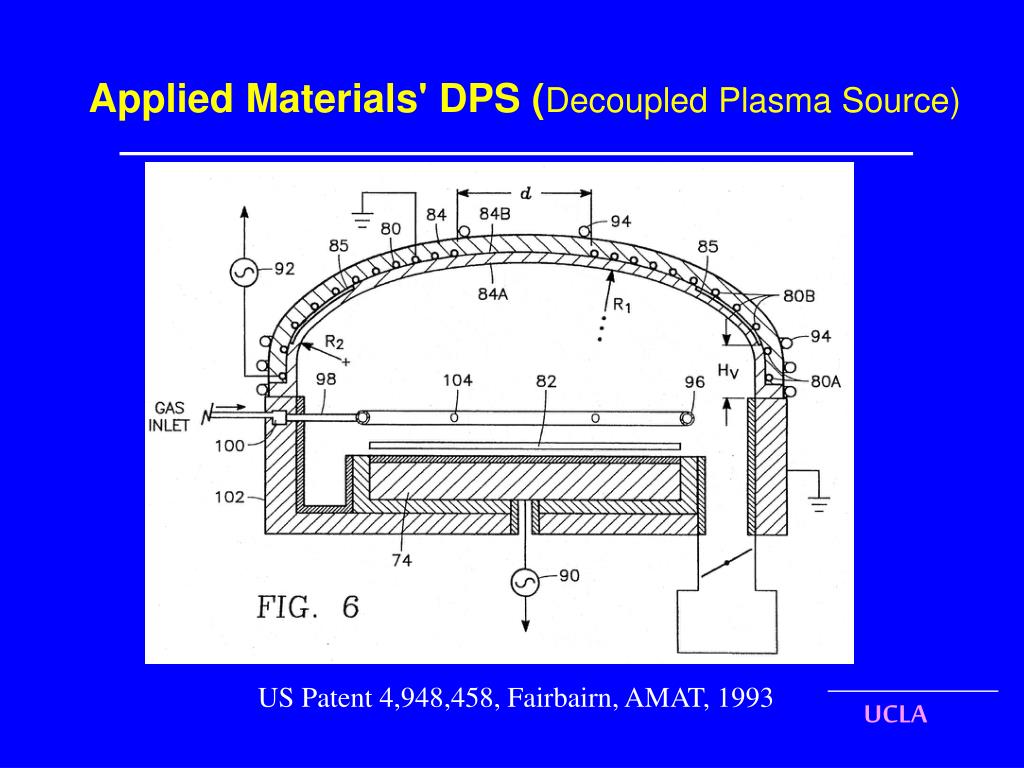

  11. UCLA Applied Materials' DPS (Decoupled Plasma Source) US Patent 4,948,458, Fairbairn, AMAT, 1993

  12. Inside Outside UCLA What the DPS looks like

  13. UCLA Other antennas in AMAT patent US Patent 4,948,458, Fairbairn, AMAT, 1993

  14. UCLA B-field pattern comparison (1) Horizontal strips Vertical strips

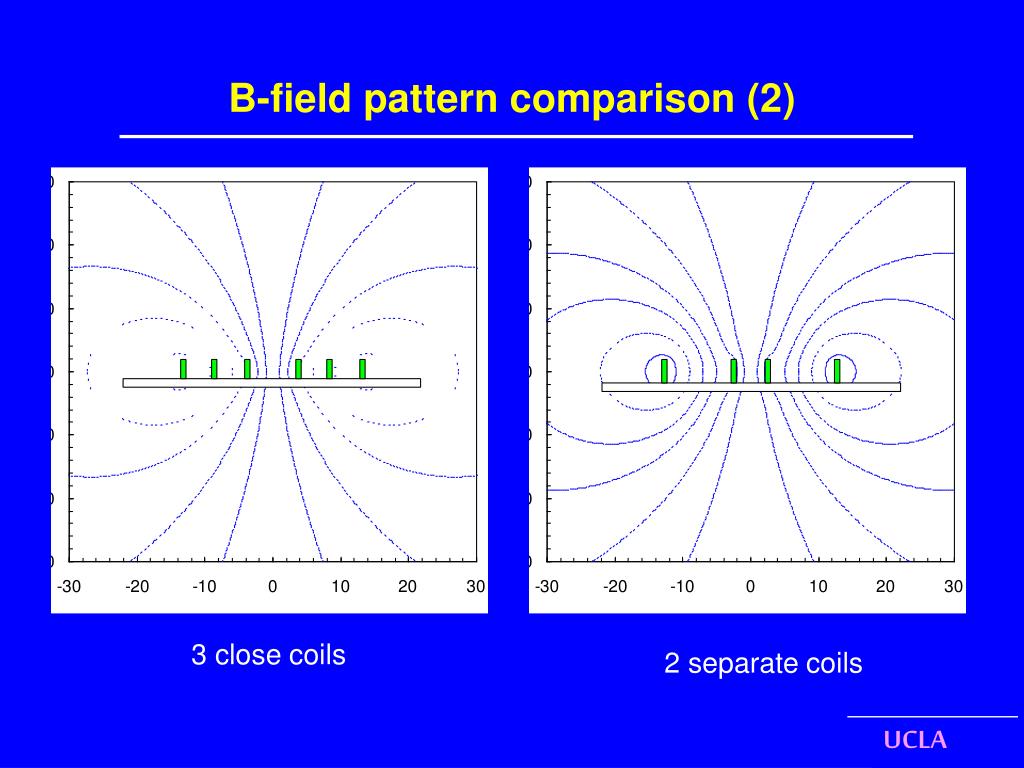

  15. UCLA B-field pattern comparison (2) 3 close coils 2 separate coils

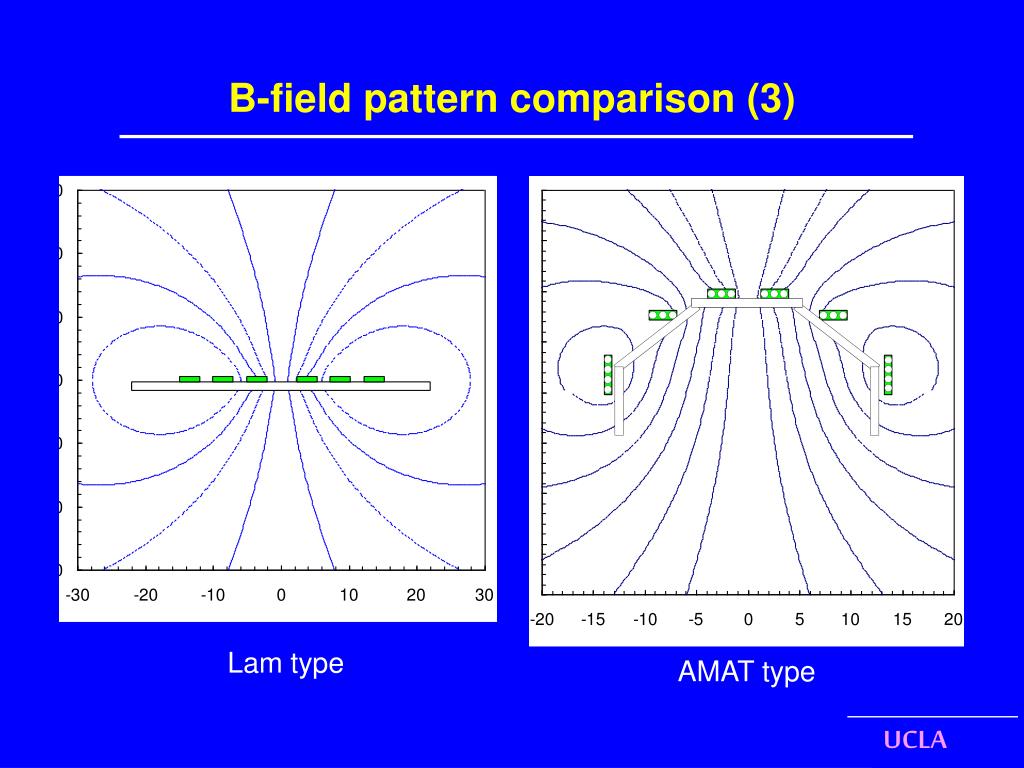

  16. UCLA B-field pattern comparison (3) Lam type AMAT type

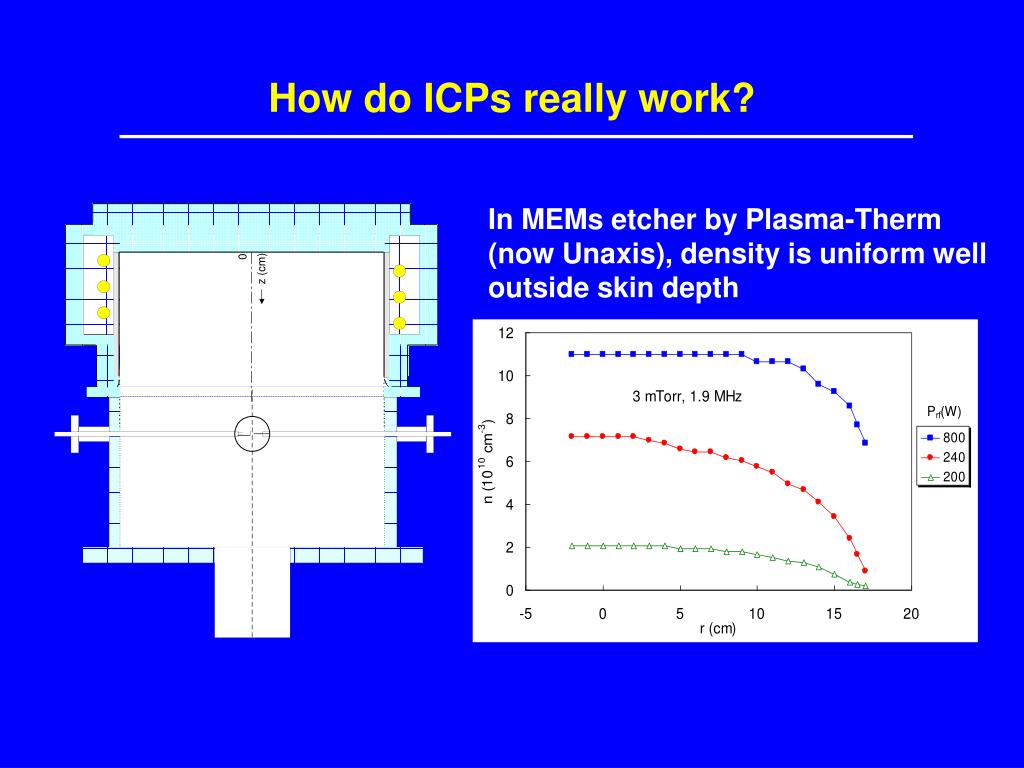

  17. How do ICPs really work? In MEMs etcher by Plasma-Therm (now Unaxis), density is uniform well outside skin depth

  18. UCLA In the plane of the antenna, the density peaks well outside the classical skin layer Data by John Evans

  19. UCLA Anomalous skin effect (thermal motions) E.g., Kolobov and Economou, Plasma Sources Sci. Technol. 6, R1 (1997). Most references neglect collisions and curvature.

  20. UCLA Nonlinear effects have been observed Collisionless power absorption (Godyak et al., Phys. Rev. Lett. 80, 3264 (1998) Second harmonic currents Smolyakov et al., Phys. Plasmas 10, 2108 (2003) Ponderomotive force Godyak et al., Plasma Sources Sci. Technol. 10, 459 (2001)

  21. UCLA Electron trajectories are greatly affected by the nonlinear Lorentz force

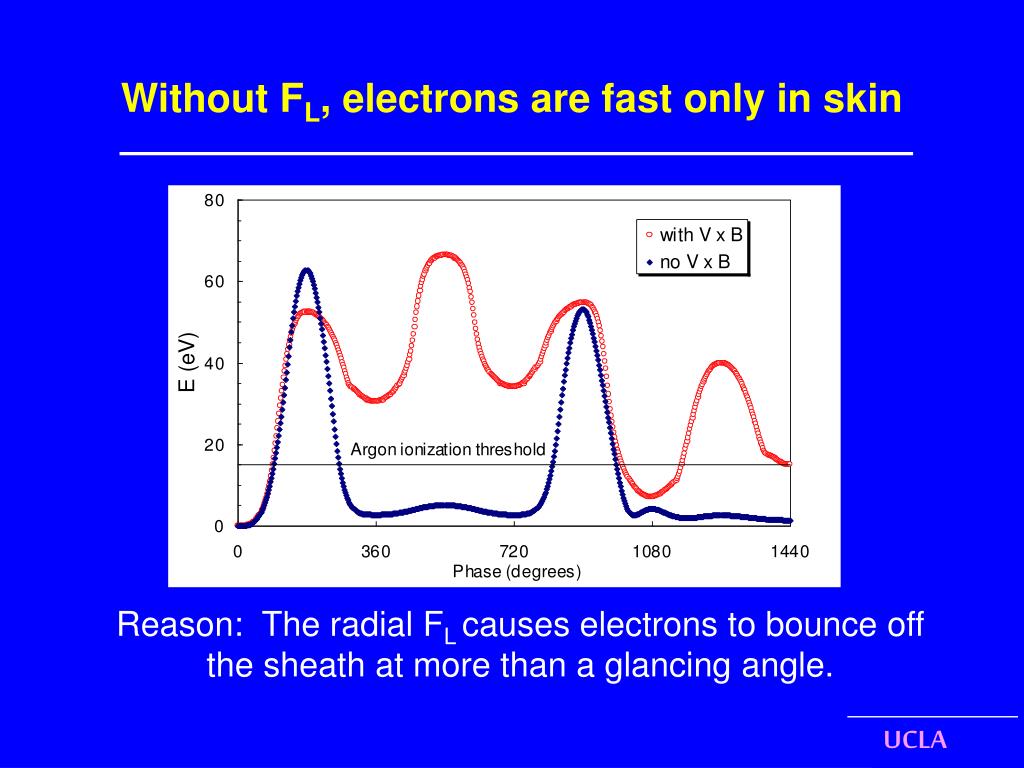

  22. UCLA Without FL, electrons are fast only in skin Reason: The radial FL causes electrons to bounce off the sheath at more than a glancing angle.

  23. UCLA Electrons spend more time near center

  24. UCLA Density profile in four sectors of equal area Points are data from Slide 5

  25. UCLA Disadvantages of stove-top antennas • Skin depth limits RF field penetration. Density falls • rapidly away from antenna • If wafer is close to antenna, its coil structure is seen • Large coils have transmission line effects • Capacitive coupling at high-voltage ends of antenna • Less than optimal use of RF energy

  26. UCLA B-field pattern comparison (2) 3 close coils 2 separate coils

  27.   H = J B = m H UCLA Coupling can be improved with magnetic cover

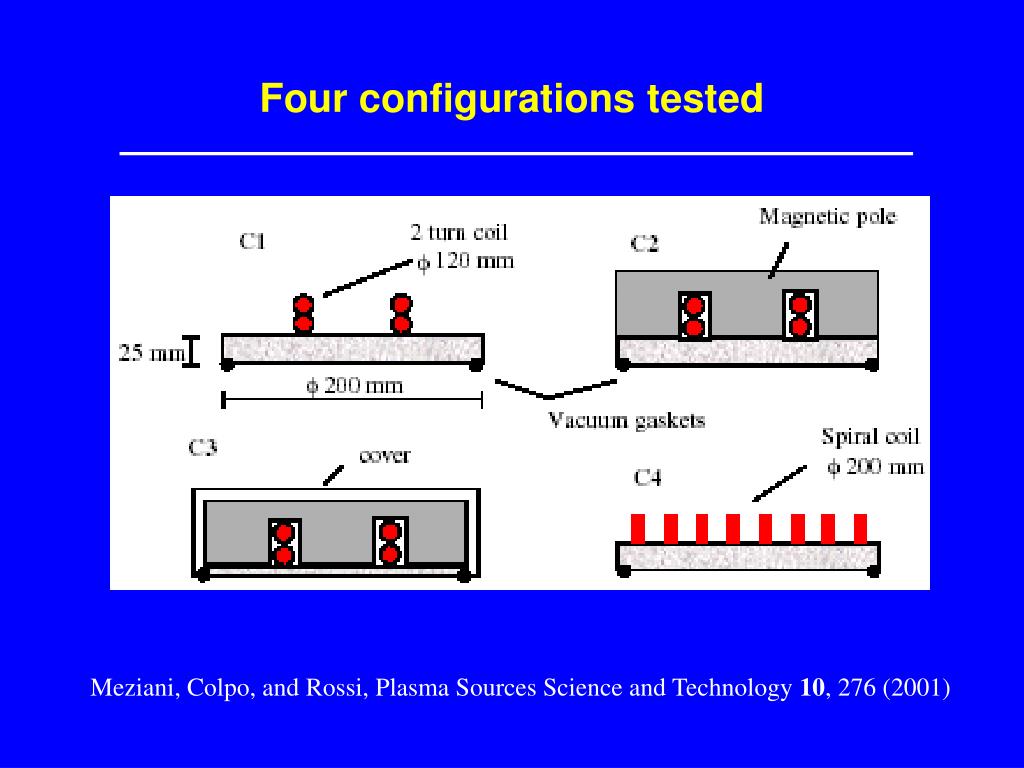

  28. Four configurations tested Meziani, Colpo, and Rossi, Plasma Sources Science and Technology 10, 276 (2001)

  29. The dielectric is inside the vacuum Meziani, Colpo, and Rossi, Plasma Sources Science and Technology 10, 276 (2001)

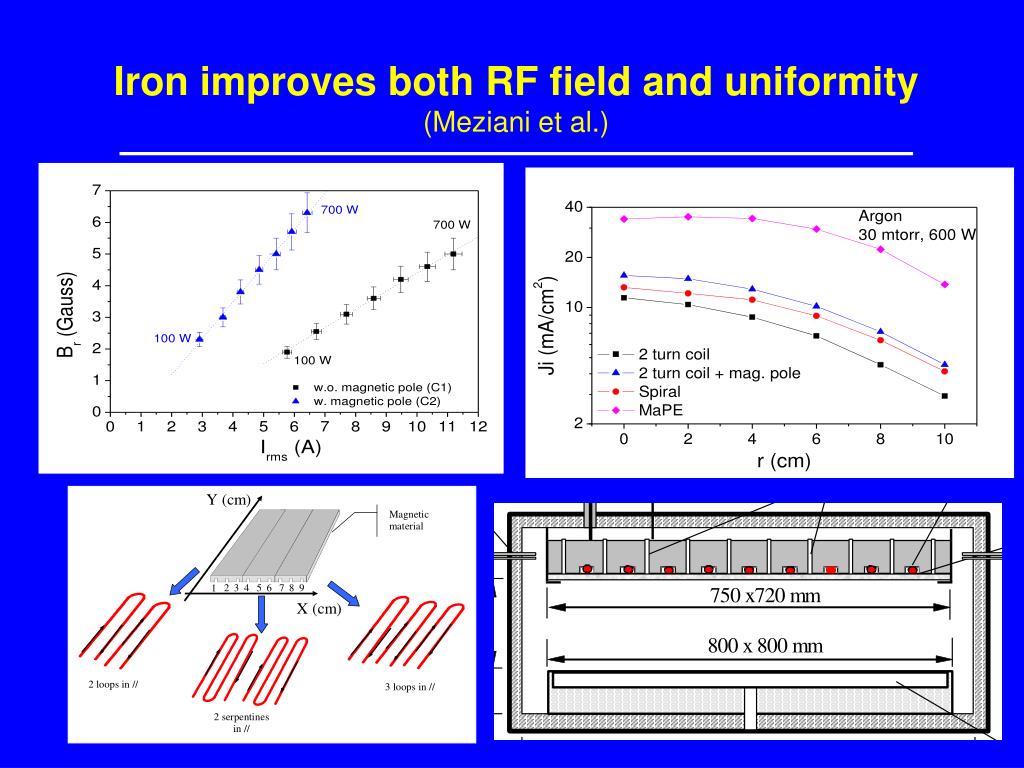

  30. Iron improves both RF field and uniformity (Meziani et al.)

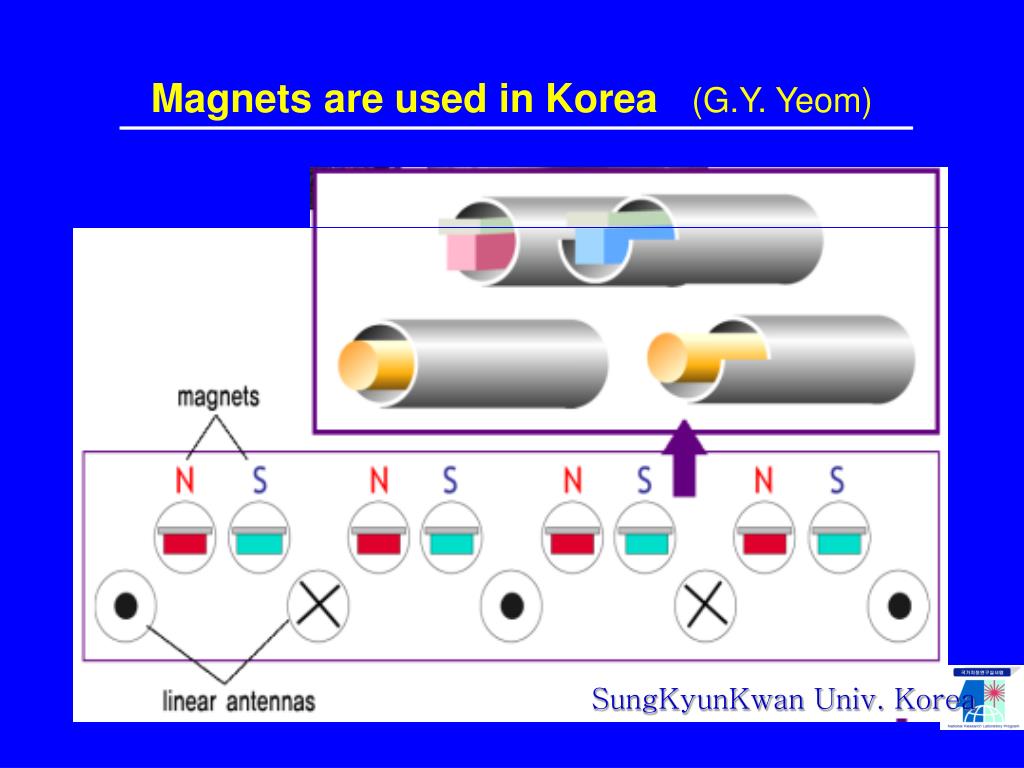

  31. SungKyunKwan Univ. Korea Magnets are used in Korea (G.Y. Yeom)

  32. SungKyunKwan Univ. Korea Both RF field and density are increased

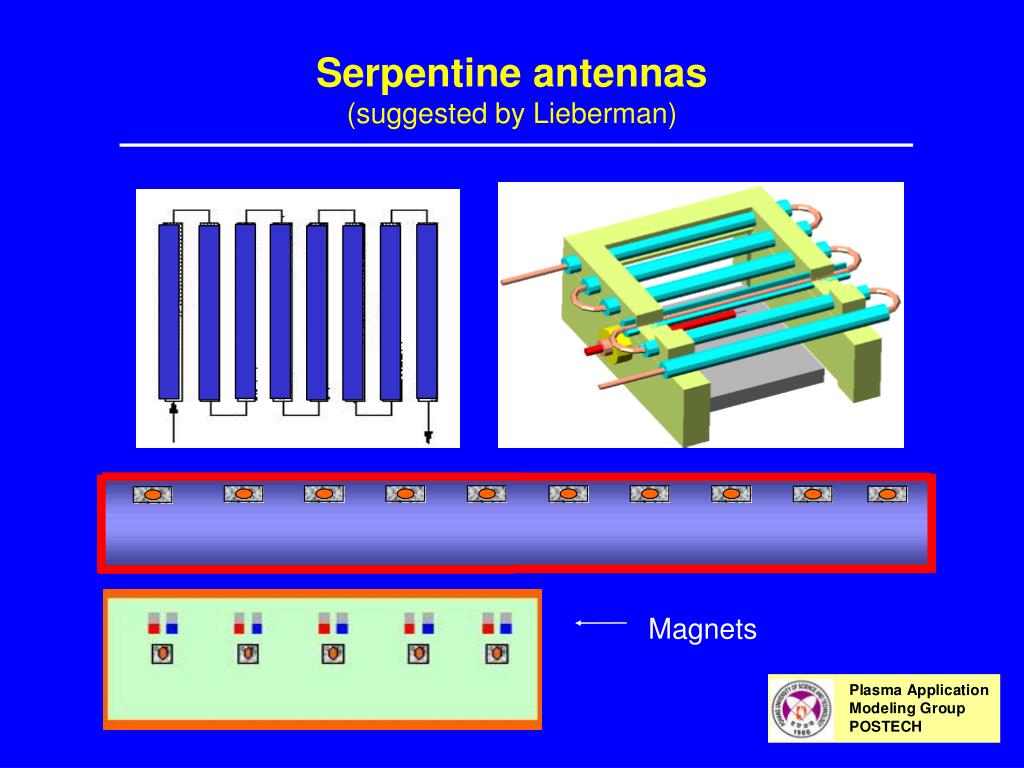

  33. Magnets Serpentine antennas (suggested by Lieberman)

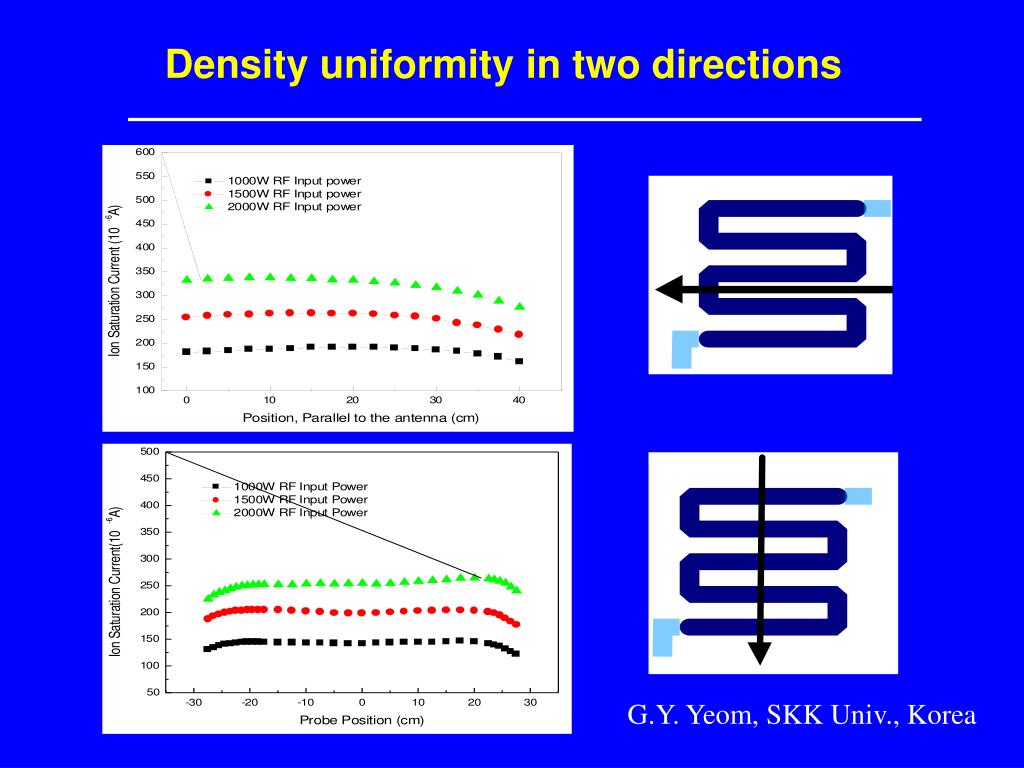

  34. Density uniformity in two directions G.Y. Yeom, SKK Univ., Korea

  35. Effect of wire spacing on density Park, Cho, Lee, Lee, and Yeom, IEEE Trans. Plasma Sci. 31, 628 (2003)

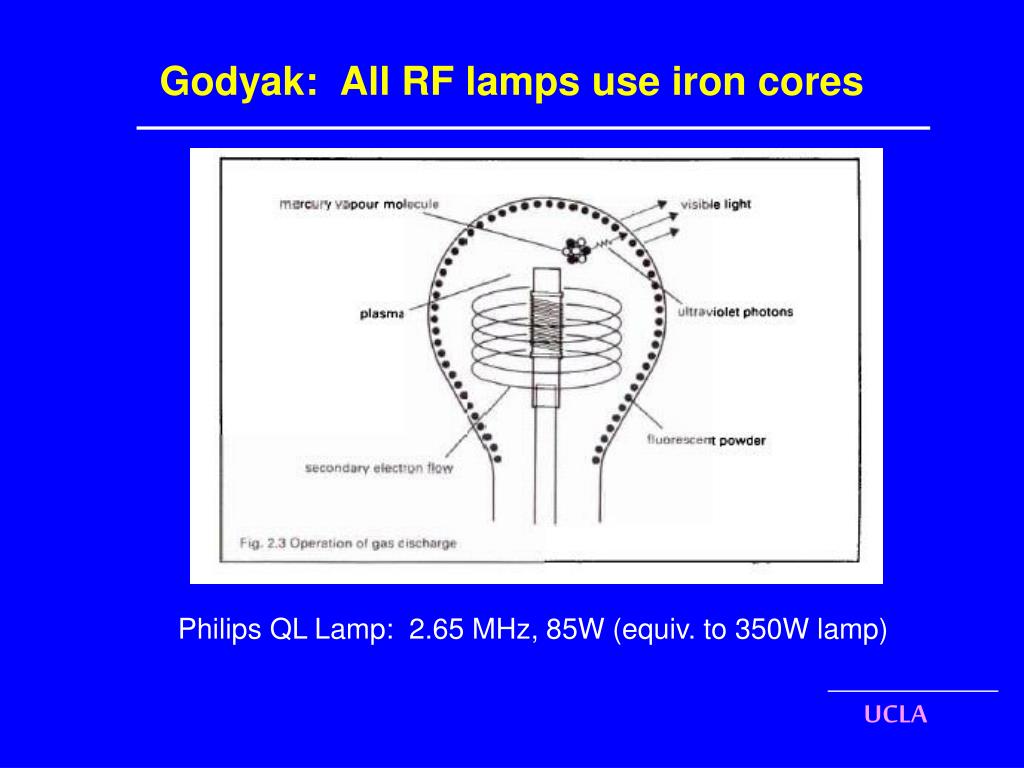

  36. UCLA Godyak: All RF lamps use iron cores Philips QL Lamp: 2.65 MHz, 85W (equiv. to 350W lamp)

  37. UCLA Types of RF plasma sources • Old RIE parallel plate etcher (GEC reference cell) • Inductively coupled plasmas (ICPs) • New dual frequency capacitively coupled plasmas (CCPs) • Helicon wave sources (HWS)

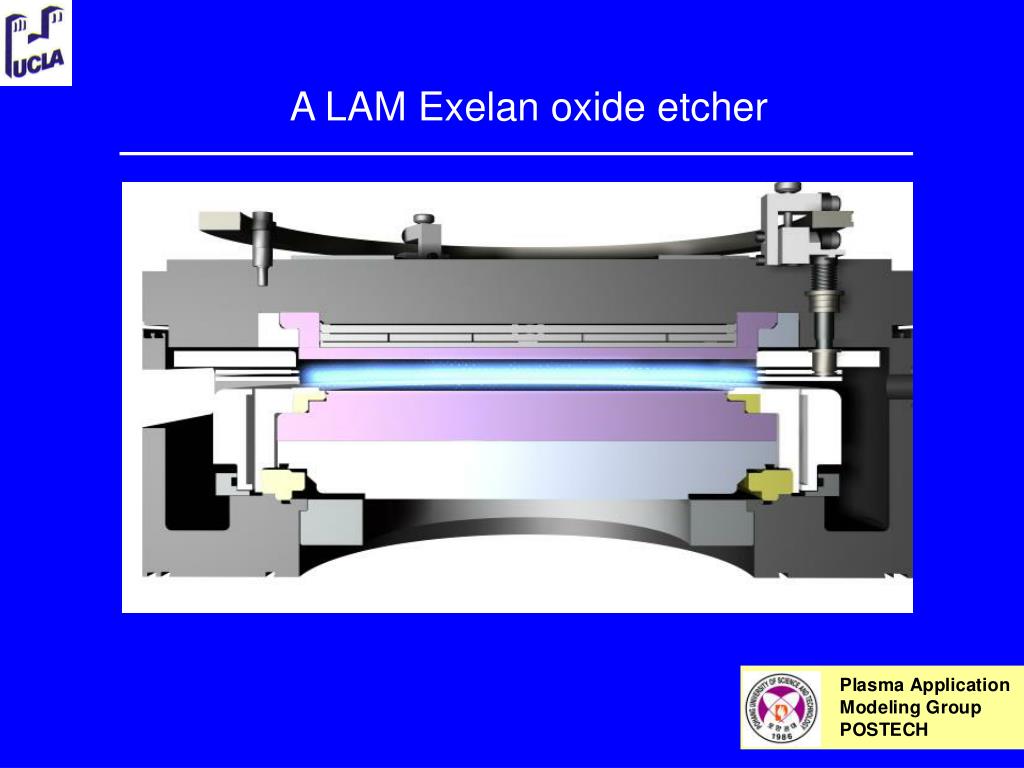

  38. A LAM Exelan oxide etcher

  39. UCLA A dual-frequency CCP Thin gap. Unequal areas to increase sheath drop on wafer High frequency controls plasma density Low frequency controls ion motions and sheath drop

  40. UCLA Most of volume is sheath • Electrons are emitted by secondary emission • Ionization mean free path is shorter than sheath thickness • Ionization occurs in sheath, and electrons are • accelerated into the plasma • Why there is less oxide damage is not yet known

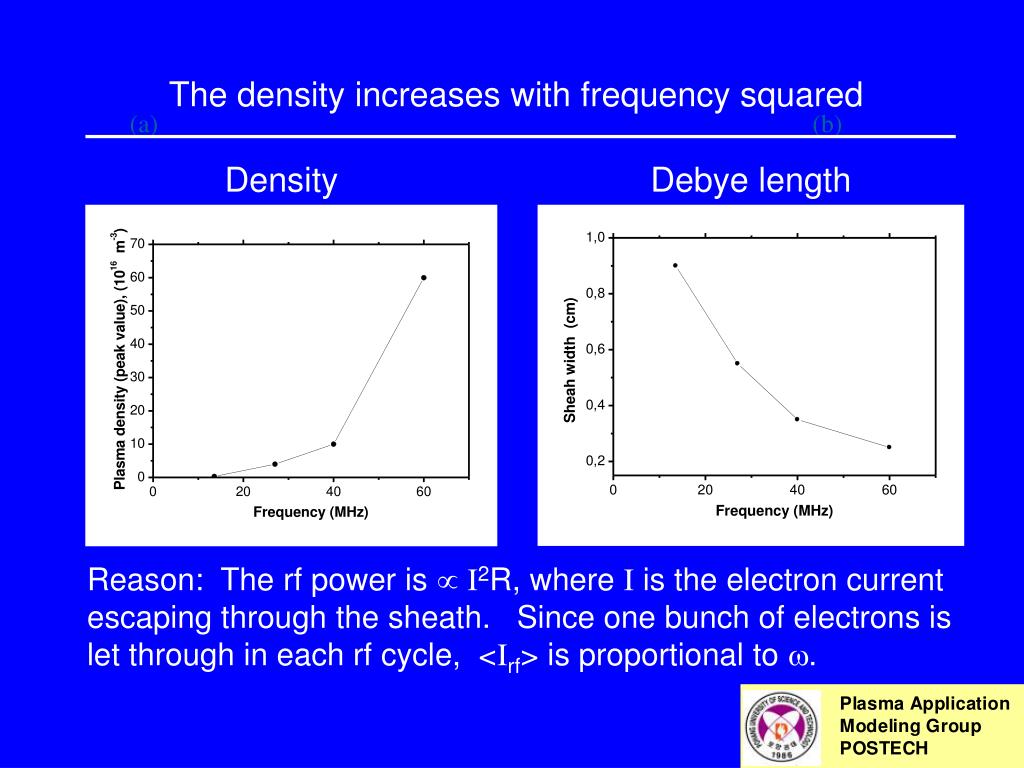

  41. The density increases with frequency squared (a) (b) Density Debye length (c) (d) Reason: The rf power is  I2R, where I is the electron current escaping through the sheath. Since one bunch of electrons is let through in each rf cycle, <Irf> is proportional to .

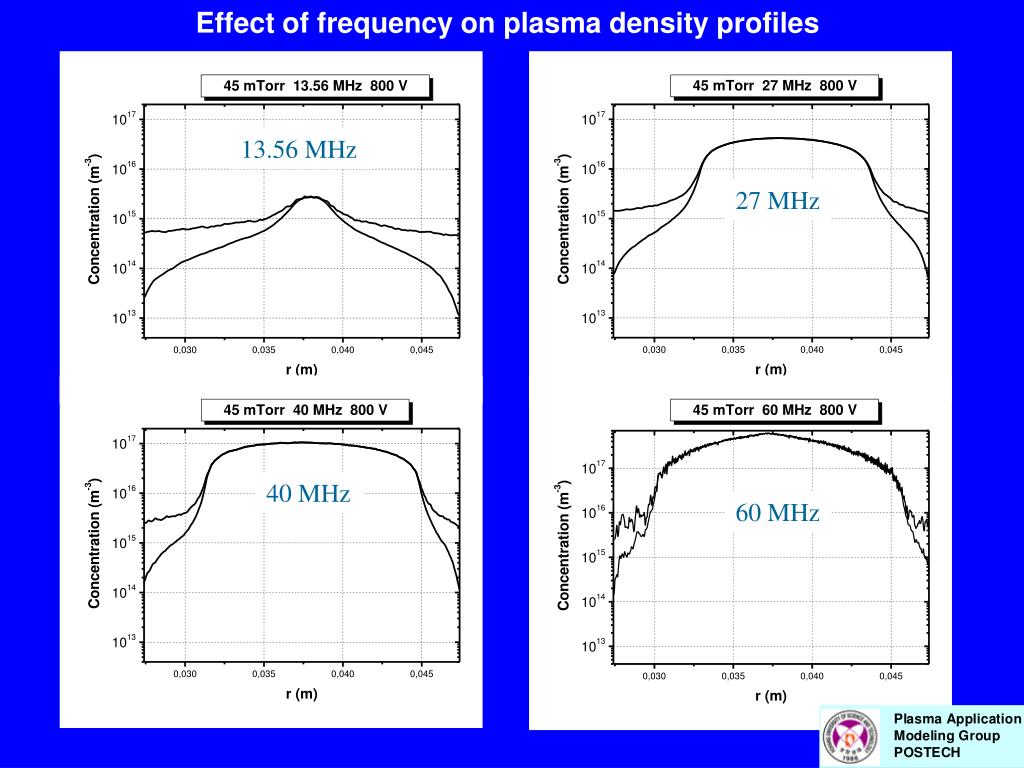

  42. Effect of frequency on plasma density profiles 13.56 MHz 27 MHz 40 MHz 60 MHz

  43. Effect of frequency on IEDF at the smaller electrode 27 MHz (a) (b) 13.56 MHz (c) (d) 60 MHz 40 MHz

  44. Plasma Application Modeling Group POSTECH IEDF at Wall – Pressure Variation 20 mTorr 10 mTorr 50 mTorr 30 mTorr

  45. UCLA Types of RF plasma sources • Old RIE parallel plate etcher (GEC reference cell) • Inductively coupled plasmas (ICPs) • New dual frequency capacitively coupled plasmas (CCPs) • Helicon wave sources (HWS)

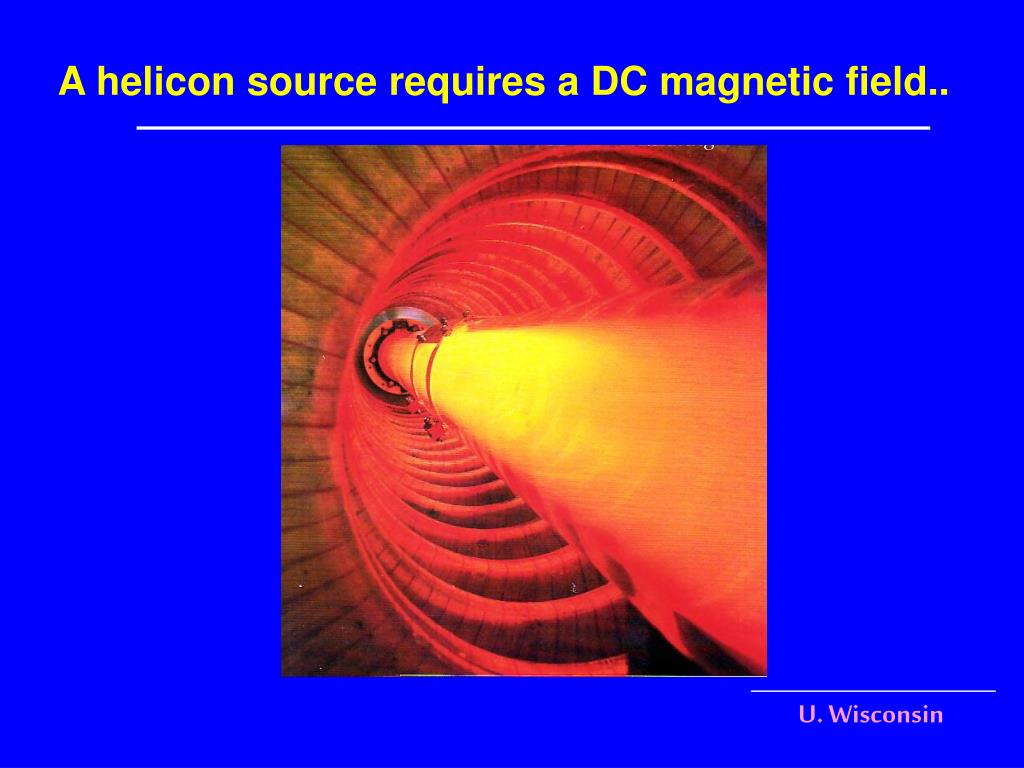

  46. U. Wisconsin A helicon source requires a DC magnetic field..

  47. UCLA ...and is based on launching a circularly polarized wave in the plasma • Much higher density at given power than ICPs • Density peak occurs downstream from the antenna • Magnetic field provides adjustment for uniform density

  48. UCLA Axial density and temperature profiles Density increases greatly as B-field is added. The density peak is detached from the source.

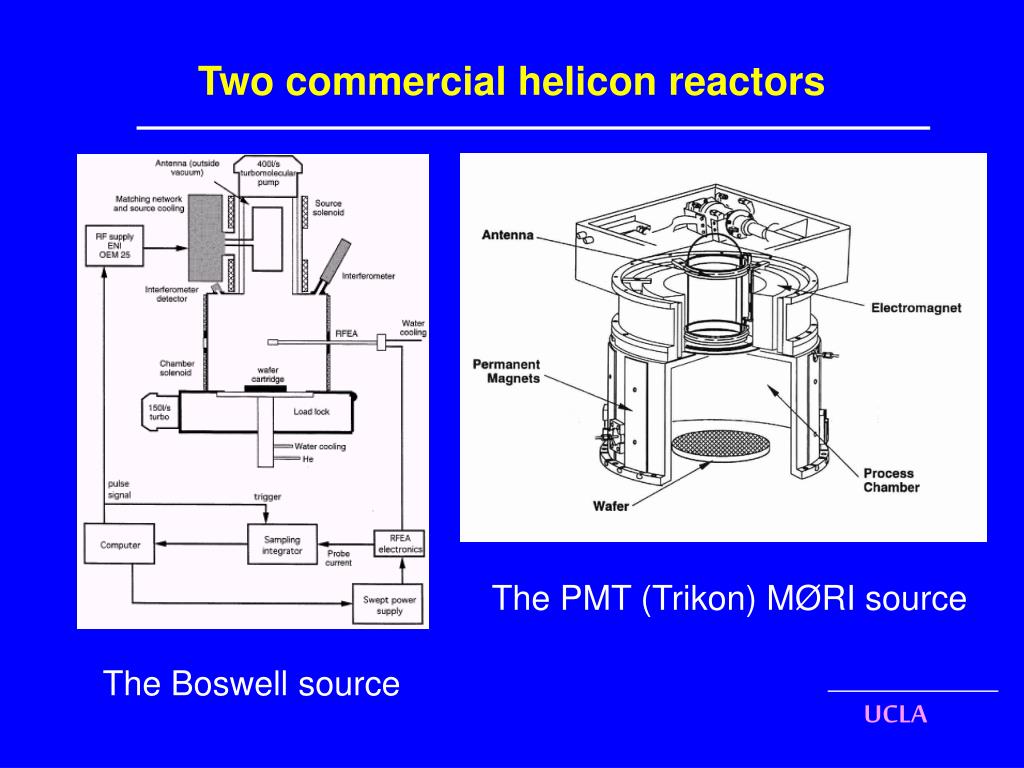

  49. UCLA Two commercial helicon reactors The PMT (Trikon) MØRI source The Boswell source
