Waller creek intake cfd modeling and simulation

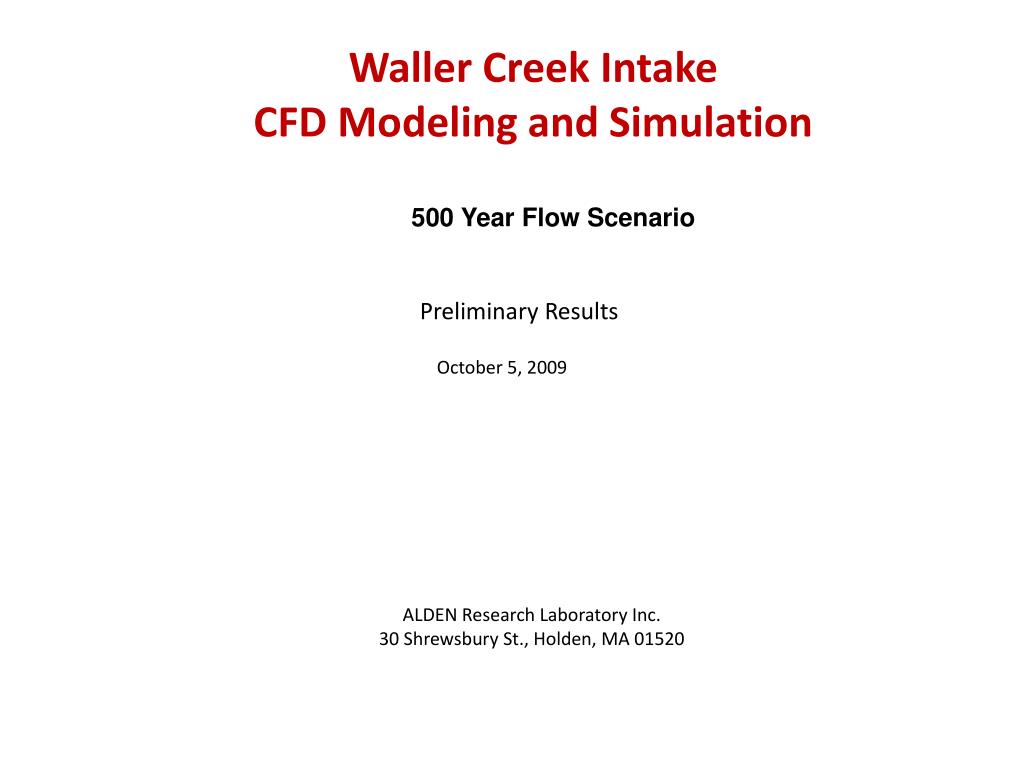

Waller Creek IntakeCFD Modeling and Simulation

500 Year Flow Scenario

Preliminary Results

October 5, 2009

ALDEN Research Laboratory Inc.

30 Shrewsbury St., Holden, MA 01520


Waller creek intake cfd modeling and simulation

CFD model geometry with proposed flood control turning vane

Flood control turning vane

1

2

3

4

5

6


Waller creek intake cfd modeling and simulation

Isosurface plot of water colored with velocity magnitude

(Isometric view)

Time = 300 sec.


Waller creek intake cfd modeling and simulation

Isosurface plot of water colored with velocity magnitude

(Plan view)

Time = 300 sec.


Waller creek intake cfd modeling and simulation

Isosurface plot of water colored with velocity magnitude

(Plan view)

Time = 300 sec.

* same with slide 4 but different color scale


Waller creek intake cfd modeling and simulation

Isosurface plot of water colored with water surface elevation

(Isometric view)

Time = 300 sec.

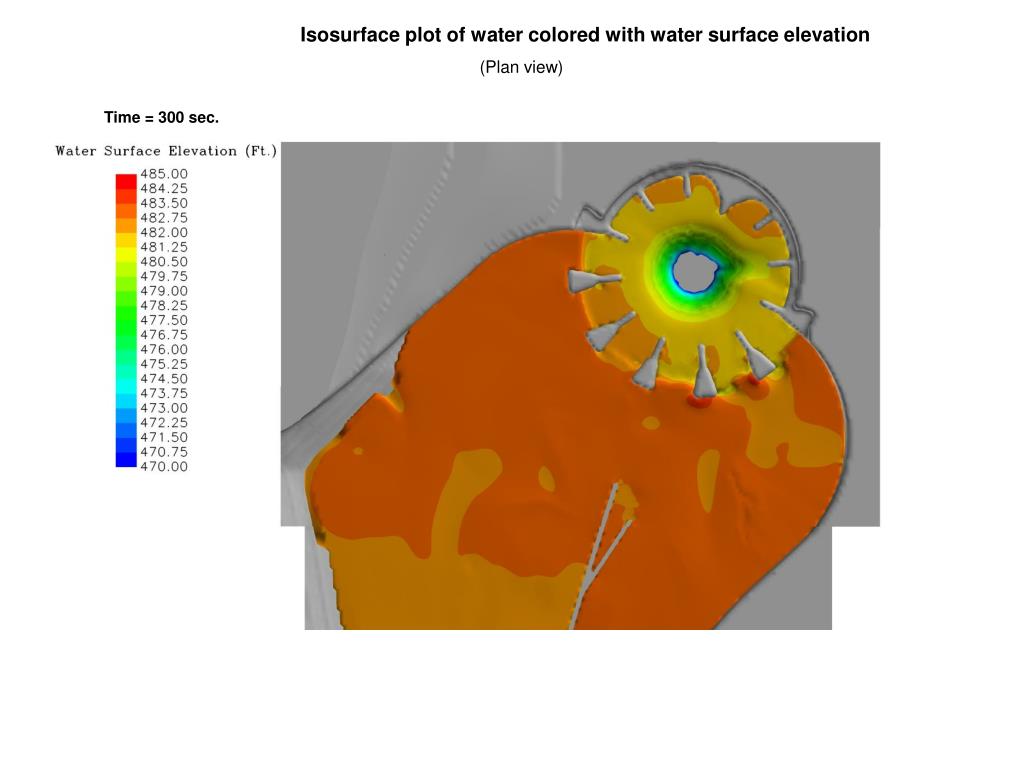

Waller creek intake cfd modeling and simulation

Isosurface plot of water colored with water surface elevation

(Plan view)

Time = 300 sec.


Waller creek intake cfd modeling and simulation

Plot of velocity contours with vectors

(Slice plane cut horizontally at elevation 465 Ft.)

Time = 300 sec.


Waller creek intake cfd modeling and simulation

Plot of velocity contours with vectors

(Slice plane cut horizontally at elevation 470 Ft.)

Time = 300 sec.


Waller creek intake cfd modeling and simulation

Plot of velocity contours with vectors

(Slice plane cut horizontally at elevation 476 Ft.)

Time = 300 sec.


Waller creek intake cfd modeling and simulation

Plot of velocity contours with vectors

(Slice plane cut vertically at the center of the morning glory spillway.)

slice plane cut locations

Time = 300 sec.


Waller creek intake cfd modeling and simulation

Plot of velocity contours with vectors

(Slice plane cut vertically at the center of the morning glory spillway.)

slice plane cut locations

Time = 300 sec.


Waller creek intake cfd modeling and simulation

Plot of velocity contours

(Slice planes cut vertically at the center of the morning glory spillway at different locations.)

Isometric view 1

Time = 300 sec.


Waller creek intake cfd modeling and simulation

Plot of velocity contours

(Slice planes cut vertically at the center of the morning glory spillway at different locations.)

Isometric view 2

Time = 300 sec.
